Chord Etude, Designed to Compliment the Chord DAVE DAC, Offers Unrivaled Dynamics and Control

• 150W Class AB Stereo Power Amplifier
• Fully balanced circuitry
• Chord MOSFET construction
• Class AB sliding bias

From Chord Electronics

The multi-award winning Chord Electronics Choral family of products has never sounded so good. Welcome Étude to the table, a 150w Class AB stereo power amplifier featuring the first fundamentally new topology since Chord Electronics’ inception in 1989, using highly advanced technologies seen within the aerospace industry.

The Choral Étude has been designed to both compliment and exploit the full potential of the multi-award winning Chord DAVE DAC, which has preamp functionality, and the brand new topology has even faster power delivery than exiting designs, offering unrivalled dynamics, life-like delivery of transient information, plus effortless control over loudspeaker drive units.

The design for Étude is based upon multi-feedback and dual feed-forward error-correction amplifier technology that intelligently adjusts and compensates the individual linearity of the 250-watt lateral structure high-power proprietary MOSFETs. Internally there are three individual high frequency switch mode power supply units, one for each active power rail and a final for the auxiliary rails. When paired with advanced internal shielding, active cooled plenum chamber design, and custom Chord Electronics MOSFETs, you have Étude, an world class extremely fast crystal clear amplifier.

Although the amplifier is conservatively rated at 150W into 4Ω, if you run Étude in bridged mono mode you can increase this to 300W into 4Ω.

Specifications

Chord Huei Offers MM/MC Compatibility and Integrates Turntables to Chord Amplifiers

From Chord Electronics

Entirely conceived, engineered and manufactured in Great Britain, Huei has been carefully designed to provide turntables with the same high standards of amplification that Chord Electronics has become known for over the past 30 years.

Benefitting from both Moving Magnet and Moving Coil functionality, Huei offers compatibility with a huge range of cartridges thanks to comprehensive gain and impedance-matching options; Huei’s high- and low-gain switching settings are easily accessible via front-panel controls, introducing welcome flexibility.

Huei’s advanced design offers (for the first time in a Chord Electronics phono preamp) ultra-low-noise microprocessor control of its main features, including a convenient memory function. With multiple options for impedance-matching, seven-stage switchable gain and a switchable rumble filter, Huei’s design offers comprehensive compatibility.

Precision-machined from solid aircraft-grade aluminium billet, Huei has a similar form factor to the company’s Qutest DAC and also offers a top-mounted viewing window into the illuminated electronics within. The design also shares the same polychromatic control spheres the company has become known for in its digital products. The illuminated front-panel spheres offer direct access to Huei’s gain and impedance settings, selection for MM/MC cartridges and access to the on-board rumble filter.

Huei is a stylish, practical and high-performance solution for integrating turntables into Chord Electronics’ (and other) systems and features both unbalanced (RCA) and balanced outputs (XLR) with RCA inputs. A high-quality 12V external power supply is also supplied.

Specs

From Chord Electronics

Transform Your Headphone and Audio System's Sound Quality with the Hugo 2 from Chord Electronics

• Machined aluminum casing with polycarbonate buttons, acrylic signal window, and glass viewing portal
• Available in a choice of natural silver or satin black
• (x2) Rechargeable custom 3.7v 9.6Wh Li-ion batteries with 6 hour playtime
• PCM and DSD native playback support, DSD64 to DSD512
• Bluetooth® APTX: 44.1kHz to 48kHz, 16bit


From Chord Electronics

In 2014, Chord introduced Hugo, a revolutionary portable DAC and headphone amp that became a landmark product in the audio landscape. Advances in digital technology, including the latest FPGAs and WTA (Watts Transient Aligned) filters, have enabled Chord to introduce a next-generation version, Hugo 2, with flexible new features and next-generation technical and sonic performance.

Hugo 2 can be used both at home and on-the-go, either with headphones or within a conventional audio system. Its line-level output and full-function remote control adds true flexibility for full-size and desktop systems.

The Bells and Whistles

The device offers 4 digital inputs (optical, coaxial and HD USB) plus extended-range Bluetooth, with high-resolution file playback up to 768kHz and up to DSD512 via USB input. Analog outputs include (x2) RCA, and both 3.5mm and 6.3mm headphone outputs.

A 4-function switch filter offers user-selectable frequency-shaping, bringing warm and soft or transparent and incisive presentations for additional flexibility and user control. For headphone-listening, Hugo 2 retains the popular digital cross feed function of the original and offers 3 operation modes.

Hugo 2 features 4 spherical control buttons which illuminate with color-coding information that controls power, input, filtering, and cross feed functions.

Power Management

The Hugo 2 uses (x2) rechargeable custom Enix Energies 3.7v 9.6Wh (2600mAh) Li-ion batteries with play time around 7 hours. Two modes of automatic charging are available using the dedicated Micro-USB charge port with an indicator showing battery-charge status.

Full charge time is a nominal 4 hours via Micro-USB at 1.8A (fast charge), and a nominal 8 hours at 1A (slow charge.)

Features

Connectivity

• Input
  • Micro USB (White): 44.1kHz to 768kHz | 16 to 32bit
  • Coax, 3.5mm (Red): 44.1kHz to 384kHz | 16 to 32bit
  • Coax, Dual Data Mode (Yellow, using both BNC coax jacks together): 44.1kHz to 768kHz | 16 to 32bit
  • Optical (Green): 44.1kHz to 192kHz | 16 to 24bit
  • Input, Wireless: Bluetooth (Apt X) (Blue): 44.1kHz to 48kHz | 16bit
• Output
  • 6.3mm ¼” headphone
  • 3.5mm headphone
  • Stereo (L/R) RCA

General

• PCM Support: 44.1kHz / 48kHz / 88.2kHz / 96kHz / 176.4kHz / 192kHz / 358.8kHz / 384kHz / 717.6kHz / 768kHz
• DSD Support: Native playback, DSD64 (Single) to DSD512 (Octa)
• Volume Control: Digital, 1dB increments | Last known state saved on shutdown (exception: line-level mode)
• Line-level Mode: Activated via dual-press of ‘Source’ and ‘Crossfeed’ buttons | Line level is 3v via all outputs | Reset by power cycle
• Power-saving Mode: Auto-shutdown after 10 minutes of input inactivity
• Driver Support: Driverless with Mac OS X and Linux, required for Windows

Specifications

• Chipset: Chord custom-coded Xilinx Artix 7 (XC7A15T) FPGA
• Tap-length: 49,152
• Pulse Array: 10 element design
• Frequency Response: 20Hz – 20kHz, +/- 0.2dB
• Output Stage: Class A
• Impedance: 0.025Ω
• THD: < 0.0001% 1kHz 3v RMS 300Ω
• THD + noise at 3v RMS: 120dB at 1kHz 300Ω ‘A’ weighted (reference 5.3v)
• Noise 2.6 uV ‘A’ weighted: No measurable noise floor modulation
• SNR: 126dB ‘A’ weighted
• Channel Separation: 135dB at 1kHz 300Ω
• Power Output (1kHz 1% THD): 94mW 300Ω | 740mW 33Ω | 1050mW 8Ω
• Weight: 15.87 oz
• Dimensions: 5.12” x 3.94” x 0.83”
• Chord Hugo 2 Three year product warranty

In the Box

• 2A USB Charger
• 1.2m Micro-USB cable
• 15cm Micro USB Cable to Micro USB OTG Cable
• Hugo 2 Owner Manual
• IR Remote

The Hugo M Scaler is a Standalone Upscaling Device Containing the World's Most Advanced Digital Filter

• Standalone 1M-tap digital upscaling device
• Adjustable sample rate output
• Chord custom coded FPGA
• Upsampling to 768kHz

From Chord Electronics

Using technology first seen in the flagship BLU MKII digital/CD transport, the Hugo M Scaler is a standalone upscaling device containing the world’s most advanced digital filter. When used with a dual-BNC-input Chord Electronics DAC, it is capable of redefining digital audio sound quality.

The Hugo M Scaler is a highly advanced standalone upscaler capable of redefining sound quality from digital audio. It uses Rob Watts’ (our Digital Design Consultant’s) unique filter technology, the most advanced in the world, to upscale standard 44.1kHz digital audio up to 705.6kHz (16x CD’s 44.1kHz native resolution), ready to be passed to a suitable DAC; Hugo M Scaler extends its upscaling performance to 768kHz (from 96kHz input data) for our dual-BNC-input DACs: DAVE, Qutest and the new Hugo TT 2.

The Hugo M Scaler brings the unrivalled advantages of our ground-breaking FPGA-based WTA (Watts Transient Alignment) filtering technology to digitally connected audio devices, dramatically improving sound quality. Although optimised for use with selected Chord Electronics DACs (for the maximum 768kHz upscaling/decoding benefit), the Hugo M Scaler can be used with other DACs with suitable inputs, subject to their decoding capability.

The Hugo M Scaler’s compact form factor aligns with the TT (Table Top) series and has been designed to be stackable with other units in the range, including the TToby stereo power amp and the Hugo TT 2, to form a highly advanced yet space-saving system. In line with other models in the Hugo and Hugo TT series, the device features a number of illuminable fascia-mounted spherical controls, governing input selection, output sample rate and video mode for lower latency. The control spheres display data visually including input source and the incoming sample rate, using a polychromatic scale.

When partnered with either of Chord Electronics’ 768kHz-capable dual-BNC-input DACs, the Hugo M Scaler sets an astonishing technical benchmark for digital audio performance at it price point, redefining sound quality from digital audio.

Inputs:

• 2x BNC
• 2x optical
• 1x galvanically isolated USB Type-B compatible with DSD and PCM data (up to DSD 256); with DSD upsampled to PCM

Outputs:

• 1x optical
• 1x S/PDIF
• 1x galvanically isolated dual BNC (enables upscaling to the maximum resolution (768kHz from 96kHz data)

Additional features:

• The most advanced digital filter in the world
• Adjustable sample rate output (with pass-thru mode)
• Video mode (for lower latency)
• Auto video and source selection
• ‘DX’ controls for future product
• Designed, engineered and entirely made in the UK
• Precision-milled chassis, crafted from aircraft-grade aluminum

Specifications

• FPGA: Xilinx XC7A200T
• Filter tap length: 1,015,808 WTA taps
• Dimensions: 235 x 40.5 x 236mm (WxHxD)

In the Box

• Quickstart guide
• Safety instructions
• 15V 4A Switching barrel type power supply
• IR remote control
• Type-A USB to Type-B USB cable
• 2x BNC to BNC cables
• Optical cable
• 2x AAA batteries

Developed From the Transportable Chord Hugo 2, the Hugo TT2 is Bigger, Better and More Advanced in Every Way

• DAC, preamplifier and headphone amplifier
• PCM support up to 768kHz
• Sleek precision machined aluminum casting with steel ball bearing buttons

From Chord Electronics

Developed from the multi-award-winning transportable Hugo 2, the Hugo TT 2 is bigger, better and more advanced in every way. TT 2 sets a new benchmark for table top DACs, eclipsed only by our flagship DAVE.

Hugo TT 2 has been radically redesigned from the ground up, not only with beautiful new casework by Chief Designer, John Franks, but with 5x the processing power of the original Hugo TT and double that of the multi-award-winning Hugo 2. Hugo TT 2 distills over 20 years of digital development by Rob Watts and takes advantage of the very latest technology.

As expected, it delivers radically improved technical specifications and measurements across the board and exhibits drastic sonic benefits over its predecessor with 768kHz PCM and DSD 512 playback. Hugo TT 2 sets a new benchmark in table top audio, only being eclipsed by DAVE.

Delving deeper, in comparison to the 256-tap filters that traditional chip DACs may run at, Hugo TT 2’s beating heart is a powerful Xilinx Artix 7 FPGA, custom-coded by Chord Electronics’ Rob Watts, with 86x 208MHz cores running in parallel to create an advanced 16FS WTA 1 filter with 98,304-taps. Double that of its multi-award winning transportable brother, Hugo 2 (49,152). Hugo TT 2 also benefits from an upgrade from a 4-element design to a 10-element design, which works in harmony with the radically upgraded FPGA and code to deliver unrivaled audio.

A brand new high-power discreet output stage coupled with second-order noise-shaping integrated between the DAC output and filter is also employed to massively reduce distortion. Further improvements have also been made to the power delivery. Hugo TT 2 eschews the Li-Po battery power supply of the original and ushers in six super capacitors capable of delivering huge, linear dynamic currents when the music demands it with peak output of 5A, 9.3V RMS.

Hugo TT 2 also brings home the much loved four-stage user-selectable filter controls introduced with Hugo 2 and retains the three-stage user-selectable digital crossfeed function for headphone users who want to improve the perception of depth, similar to that of speakers.

Specifications

• Materials: Precision machined aluminum casing with steel ball bearing buttons, gloss black acrylic signal window, glass viewing portal, and dot matrix display. Available in a choice of two colours – silver, and satin black
• Tap length filter: 98,304-tap 16FS WTA 1 – 10 element design
• Connectivity (input): 1x USB Type-B, 2x Coax BNC, 2x Optical & Bluetooth
• Connectivity (output): Stereo XLR, Stereo RCA, 2x 6.5mm Headphone jack & 1x 3.5mm Headphone jack
• Connectivity (digital output): 2x DX BNC (expansion outputs)
• PCM support: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 358.8kHz, 384kHz, 705.6 and 768kHz – 16 to 32bit
• DSD support: DoP DSD 64 to DSD 512 – native via Windows
• Volume control: Digital
• Line-level mode: Activated within the menu
• Driver support: Driverless with Mac OS X and Linux, driver required for Windows OS

In the Box

• 1.5m 15v 4A Switching power supply
• IR Remote Control
• 1.5m Type A to Type B USB cable
• Hugo TT 2 Owners manual

The Chord Mojo 2 Redefines its Legendary Status Over the Original Mojo with Incredible Portable Sound

• Chord FPGA DAC technology in your pocket
• Built-in DSP advanced EQ adjustment for personal taste
• Up to 5.2V of power let's you drive a variety of headphones
• Incredibly low noise floor and black background
• High-speed USB-C input, (x2) 3.5mm headphone outputs, and improved battery
• Check out ddHiFi's exclusive 4.4mm adapter and Chord's genuine premium leather case for the Mojo 2

DAC and Headphone Amplifier in One

The British designed, engineered and built Mojo 2 is the most advanced portable DAC and headphone amplifier in the world.

Distinctly different from all other devices, Mojo 2 uses proprietary British digital audio technology perfected over more than two decades, coupled to a powerful ‘FPGA’ processor. The result is class-leading sound quality both on the move or at home, with the power to effortlessly drive any headphones. For music just as the artist intended, Mojo 2 brings you closer to the music than any other portable.

Unique Benefits

• Unrivaled digital audio processing - powerful 'FPGA' technology
• Additional USB-C data input for fast data-transfer
• Fully transparent 'Ultra HD' digital signal processing EQ, tailoring the sound to you
• Take Mojo 2 wireless when adding the Poly Streamer / Server (2 TB)
• Proudly made in Britain from aircraft-grade aluminum - anodized, bead-blasted, precision CNC-milled with a jett-black finish

Unique FPGA Technology

For more than 20 years, Chord Electronics has exclusively used powerful programmable (FPGA) circuits with custom coding to provide the most advanced digital-to-analogue conversion performance in the world. With digital audio technologies perfected over two decades, Mojo 2 contains more digital audio know-how than any other small DAC, resulting in unrivalled sound quality, all backed by peerless technical measurements from the lab.

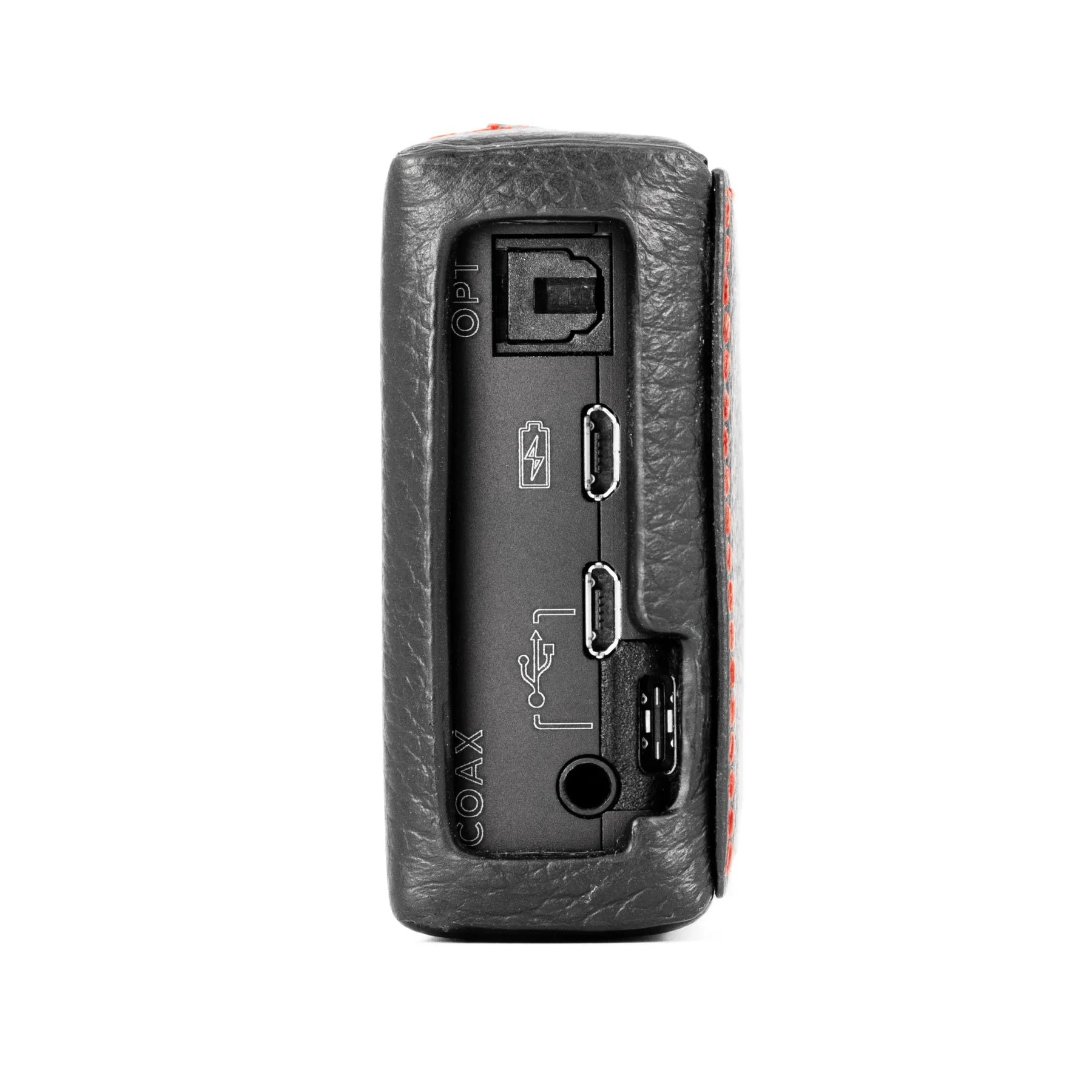

Mojo Connections

Mojo 2 offers several ways to connect to digital devices, including smartphones, tablets and laptops, plus two 3.5 mm headphone outputs, meaning two can listen simultaneously. Digital inputs include fast-transfer USB-C, Micro-USB, optical and coaxial, with charging via a separate dedicated Micro-USB input.

Mojo polychromatic light-up buttons offer simple control with an additional visual guide to the device’s settings. A new menu button offers navigation through a new range of features, including the all-important completely transparent UHD DSP function.

• Coaxial input
• USB-C input
• Micro-USB input
• Micro-USB charging input
• Optical input
• Headphone outputs (2x 3.5mm)
• Mojo 2 brings exciting new features for music lovers.

Compatible with Poly for Streaming

Completely compatible with Chord's Wireless streaming module, the Poly version 3 which allows for wireless integration to your system.

Features

• Improved FPGA: more resolution, power and efficiency
• Improved battery: FPGA-controlled management plus improved capacity
• New menu function
• 'UHD' DSP: advanced EQ adjustment for headphones, file formats and personal taste
• Improved WTA filtering: 40 DSP cores for better transparency and lower noise
• High-speed USB-C input
• Two 3.5 mm headphone outputs

Specifications

• Digital Inputs
  • Coax
  • Dual-data coax
  • Optical
  • Micro-USB
  • USB-C
• Dynamic Range: 125.7 dB A wt.
• Noise 2.7 uV A wt., no measurable noise floor modulation
• Distortion and Noise: 0.00027 % at 2.5 V 300Ω
• Power Output 1% Distortion:
  • 90 mW 300Ω (5.2 V RMS)
  • 600 mW 30Ω (4.2 V RMS)
• Output Impedance: 0.06Ω
• 118 dB stereo separation 1 kHz 300Ω 2.5V
• Chord Mojo 2 User Manual
• Chord Mojo 2 1-year product warranty

In the Box

• Mojo 2 DAC Amp
• Product paperwork and 60-day Roon subscription code
• Micro-USB to USB-A cable

The Chord Poly Turns Your Mojo into a Wireless Streaming Powerhouse

• Attaches to your Chord Mojo or Mojo2 to transform the device into a WiFi streamer

• Can use Bluetooth or lossless, high resolution WiFi to stream music from any device to your Mojo
• Works with the easy to use and configurable GoFigure app from Chord
• Has a microSD card slot to store your collection

Revolutionary Streaming from Chord

Poly is a revolutionary music streamer, the first of its kind in the world. When partnered with Mojo, it enables music streamed from a range of wirelessly connected devices to be enjoyed in the best possible sound quality, whether at home or on the go. Poly is also a music player: its unlimited-capacity Micro SD card slot can house huge libraries and liberate storage on smart devices. Full smartphone control using everyday apps enables effortless music playback whether streaming or playing music from the Micro SD.

Poly directly connects to Mojo’s award-winning audio processing (DAC) technology dramatically improving the audio quality of streamed music. Its advanced design enables everyday devices, including Android and Apple smartphones/tablets, to become portable ‘hi-fi-quality’ digital audio players: the smartphone becomes the controller, with Poly and Mojo doing the high-level audio processing. Poly can also be used with computers and laptops, plus it can access networked audio stored on NAS drives using popular DLNA apps. Playback is via Mojo’s twin headphone outputs, plus home and in-car audio systems with auxiliary (AUX) inputs can also benefit from improved sound quality.

Poly connects to Wi-Fi networks, including mobile hotspots when on the go, and remembers multiple networks with its auto-connect functionality. It also benefits from Bluetooth 4.1, AirPlay and DLNA connectivity, offering uninterrupted music streaming when transitioning from indoors to outdoors. Poly also features its own hotspot mode, enabling a connection where devices, networks or countries do not facilitate tethering. Its rechargeable LiPo batteries offer up to nine hours of playback from a four-hour charge using the device’s fast-charging USB circuit; both Poly and Mojo can be charged simultaneously.

Poly is high-resolution audio-compatible, with support for the latest studio-quality files; PCM data up to 768kHz resolution and DSD64 to DSD256 (Quad-DSD). Supported file types include ACC, WAV, FLAC, AIFF, OGG VORBIS, ALAC, WMA and MP3.

Specifications

• Portable streamer/player that combines with Mojo
• Wireless streaming from connected devices at home or on-the-go
• Built-in unlimited-capacity Micro SD card slot for music library storage/playback
• Control via familiar smartphone apps
• Upgrades sound quality from headphones, in-car systems, home audio and more
• Empowers smartphones as ‘hi-fi quality’ portable digital audio players
• Chord Electronics’ award-winning sound quality for streamed and Micro SD music
• Connects via Wi-Fi 2.4GHz (for optimum stability)
• Rechargeable LiPo 2200mAh battery: 9-hour + playtime and fast-charging via USB
• Playback support: Roon, DNLA, AirPlay and Bluetooth 4.1
• Precision-machined aluminum casing with black anodization, opaque black wireless signal window and silicone feet
• Support for all major file types including: ACC, WAV, FLAC, AIFF, OGG VORBIS, ALAC, WMA and MP3
• High-resolution audio-compatible: PCM sample rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 358.8kHz, 384kHz,717.6kHz and 768kHz; DSD via DoP sample rates: DSD64 – DSD256 (Quad-DSD); DSD from SD card
• Devices supported: iPhone, iPad, Android phones/tablets, Windows and Mac OS X computers and DAPs
• Dimensions: 50mm (L) x 62mm (W) x 22mm (H)
• Over-the-air software updates
• Hotspot mode: Poly can create its own hotspot where networks/devices/countries don’t support tethering
• Integrated Access Point: allows configuration of connected networks (up to 32)
• DLNA server and renderer (SD card); SMB Server (SD card); MPD player (SD Card)

The Chord Prima Offers Remote Control and Front Panel Operation, Precision-Machined from Aircraft-Grade Aluminum for Durability

• Five output Choral Preamplifier
• HF switch mode power supply
• Blue Velvet ALPS potentiometer
• Fully balanced circuitry

From Chord Electronics

Our Prima preamp forms part of the stylish and compact Choral range and has been designed to complement our Mezzo power amps. Despite its compact dimensions and space-saving footprint, the Prima is every bit a pedigree Chord amplifier.

Precision-machined from solid aircraft-grade aluminium billet, the Prima offers both remote control and front panel operation. Prima’s fascia offers volume and balance controls while its push-button controls atop the unit, offer input selection and tape line selection, the latter enabling its tape outputs to be selected for recording from source components.  Further design features include a top panel display, offering input choice and volume information, plus a clever porthole which enables the internal circuit board to be seen.

The Prima also benefits from our legendary proprietary Ultra-High-Frequency power supply, which is common to all Chord amplifiers. Prima offers fully balanced circuitry throughout and useful flexibility with five inputs, four unbalanced RCA and one balanced XLR, plus a balanced XLR output and a tape output. For added versatility, Prima’s audio circuit offers six independent input gain adjustments for the five inputs and low impedance outputs.

Specifications

There is no better way to house the Qutest system components than with the official Qutest System Stand. Its considered, robust industrial design allows unrestricted access to all connectors and its clever heat- transfer construction helps components to stay cool.

Like all Chord Electronics products, the Qutest System Stand is carefully designed and precision-machined in England from a single billet of aircraft-grade aluminium. It comes pre-assembled for convenience.

To use, simply lower the Qutest product into the stand. With the ability to stack multiple units, it’s easy to create an elegant, compact system that can be placed almost anywhere.

Chord Electronics Qutest: the Award Winning Standalone DAC Whose Performance Belies its Compact Size

• Class-leading digital conversion based on Chord's award-winning proprietary FPGA technology
• Precision machined aluminum casing with polycarbonate buttons and glass viewing portal
• User-selectable variable output voltage (1, 2, and 3V RMS) for flexible connectivity with a wide range of partnering devices
• Tap length filter of 49,152
• Full PCM support of 44.1 to 768kHz, and DSD support up to DSD512

From Chord Electronics

Qutest is based on Chord's home-grown technology developed for the Hugo 2 DAC/headphone amp, giving it proven class-leading technical and sonic performance. Perfectly equipped to bring the benefits of Chord's digital technology to a wide range of connected devices, it features a galvanically isolated USB-B, optical, and coaxial digital input, giving an instant performance upgrade, plus the ability to modernize aging digital source components.

Under the Hood

The Qutest chassis is all-new as well. It has significantly greater mass than its predecessor and has been precision-machined from solid aircraft-grade aluminum billet. The Qutest PCB nestles within a shallow cavity in the solid aluminum chassis, giving the circuit board greater protection within the casework and additional isolation from external vibration compared to previous designs.

Qutest offers Hugo 2’s proprietary user-selectable frequency-shaping filters and input selection controls, available via two fascia-mounted spheres, introducing useful flexibility. It also features RCA analog outputs for connection to integrated amplifiers, preamps, and headphone amps, plus high-resolution dual-data digital inputs for connection to future Chord Electronics products.

A further new feature is a user-selectable output voltage available in 1, 2 and 3V RMS outputs for flexible connectivity with a wide range of partnering devices.

Features

Connectivity

• Input
  • USB-B (White): 44.1kHz to 768kHz | 16 to 32bit
  • (x2) BNC Coax (Red): 44.1kHz to 384kHz | 16 to 32bit
  • Coax, Dual Data Mode (Yellow, using both BNC coax jacks together): 44.1kHz to 768kHz | 16 to 32bit
  • Optical (Green): 44.1kHz to 96kHz | 16 to 24bit
• Output
  • Stereo (L/R) RCA

General

• PCM Support: 44.1kHz / 48kHz / 88.2kHz / 96kHz / 176.4kHz / 192kHz / 358.8kHz / 384kHz / 717.6kHz / 768kHz
• DSD Support: Native playback, DSD64 (Single) to DSD512 (Octa)
• Variable Output: Fixed, but selectable between 3v (Blue), 2v (Green), and 1v (Red)
• Driver Support: Driverless with Mac OS X and Linux, required for Windows

Specifications

• Chipset: Chord custom-coded Xilinx Artix 7 (XC7A15T) FPGA
• Tap-length: 49,152
• Pulse Array: 10 element design
• Frequency response: 20Hz – 20kHz +/- 0.2dB
• Output Stage: Class A
• THD: < 0.0001% 1kHz 3v RMS 300Ω
• THD and noise at 3v RMS: 1117dB at 1kHz 300Ω ‘A’ weighted (reference 2.5v)
• Noise 2.6 uV ‘A’ weighted: No measurable noise floor modulation
• Channel Separation: 138dB at 1kHz 300Ω
• Weight: 1.7 lbs
• Dimensions: 6.3” x 2.83” x 1.61”
• Chord Qutest 3 Year product warranty

In the Box

• 1.5m 5v 2a Switching Micro-USB Power Supply
• 6.5' USB-A to USB-B Cable
• Chord Qutest Owners Manual
• Safety Instructions Sheet
• Raw Silk Drawstring Bag

Chord Suzi Pre is a Modular Preamplifier with a Built-In MM/MC Phono Stage, Designed for Seamless Integration with the Suzi Power Amp

• Designed to integrate with Chord Suzi power stereo amp
• Offers versatile preamp functions
• Features selectable impedance
• Includes remote control

Chord Suzi Pre

Designed by John Franks, the Suzi Pre is a versatile pre-amplifier, with a built-in MM/MC phono stage. The Suzi Pre allows the direct integration of the new Suzi amplifier to create a compact amp, preamp and phono stage system or can be used as a standalone pre-amplifier. Suzi Pre also works as a standalone preamp, ready to work with any power amp or active speakers.

The Suzi system has been conceptualized to offer consumers a myriad of options while accommodating existing Hugo 2 and Hugo 2/2go owners by offering a purpose-designed ULTIMA-technology amplifier solution with similar space-saving chassis dimensions.

Specifications

• THD: 0.0007% A-weighted
• Input maximum voltage: 3.5 V RMS
• Output max voltage: 3.5 V RMS
• Frequency response: 7 Hz – 30 kHz +/-3 dB
• Signal to Noise: -103 dB
• Operation voltage: 12 V DC
• Inputs
  • (1x) Stereo RCA turntable input (MM/MC)
  • (2x) Stereo RCA
  • (1x) 12 V DC jack
• Outputs
  • (2x) Headphone jack (3.5mm + 1/4")
  • (1x) Stereo RCA
• Manual
• Quickstart Guide

Chord's Suzi is a Cutting-Edge Modular Stereo Amplifier with ULTIMA Technology, Offering Audiophiles a Sleek, High-Performance Solution

• Modular amplifier that can directly integrate with Suzi Pre, Hugo 2 DAC or Hugo 2 combined with 2go streamer
• Delivers 30W per channel
• Fully modular system
• Features trickle down ULTIMA technology

Chord Suzi

In a world where most audio gear locks listeners into a single path, Suzi breaks the mold. It’s not just an amplifier—it’s an ecosystem. A power amp today, an integrated amp tomorrow, and a streaming hub when the time is right. Suzi evolves.

Designed by John Franks, the Suzi is an innovative ULTIMA-tech modular power amplifier, delivering 30 W per channel. The Suzi allows the direct integration of the new Suzi Pre preamplifier, Hugo 2 or Hugo 2 and 2go. The Suzi has three primary use case scenarios: as an analogue pre/power amplifier (a Suzi Pre with a Suzi); a DAC/amplifier (a Suzi with a Hugo 2), plus a streaming amplifier (a Suzi with a Hugo 2 and 2go).

The Suzi system has been conceptualized to offer consumers a myriad of options while accommodating existing Hugo 2 and Hugo 2/2go owners by offering a purpose-designed ULTIMA-technology amplifier solution with similar space-saving chassis dimensions.

Specifications

• Power Output: 30 W into 8 Ω
• Input maximum voltage: 3 V RMS
• Output max voltage: 15 V RMS into 8 Ω
• THD: 0.01%
• Signal to Noise: -116 dB
• Operation voltage: 80-250 V
• Inputs: (2x) RCA set
• Outputs
  • (1x) Pair of banana sockets
  • (1x) 12 V DC jack
• Dimensions: 215mm x 100mm x 69mm
• Weight: 5 lbs
• Manual
• Quickstart Guide

The Symphonic Brings Chord's Proprietary Technology to Vinyl Replay, Enabling the Easy Integration of Turntables Into Any System

• Moving coil phonostage
• HF switch mode power supply
• Fully balanced circuitry
• Selectable impedance

From Chord Electronics

Nestling in the Choral range, the Symphonic is our flagship MC phono stage, offering a range of advanced features over the entry-level Dual.  The high-performance Symphonic uses our latest high-frequency power supply technology to exploit vinyl’s full potential, along with many new key features, to bring the performance levels in line with the Choral range, home of the DAVE DAC/preamp.

The Symphonic offers an almost infinite number of input impedance and gain options as well as balanced and unbalanced input options to the cartridge, making it a highly flexible device for integrating high-quality turntables into Chord systems. The comprehensive settings options are all externally selectable, with selections signified internally with illuminating LEDs.

A rumble filter removes unwanted low-frequency rumble signals appearing on both channels. The Symphonic Phono stage conforms to the RIAA curve without the IEC roll-off when the Rumble filter is set to ‘off’ Preamps: CPA 2500, CPA 3000, CPA 5000, and CPA 8000. Preamps: CPA 2500, CPA 3000, CPA 5000, and CPA 8000.; this is commensurate with the high calibre of Chord amplification. The IEC curve response can be added by setting the Rumble filter to ‘on’. According to the wiring of the tone arm on the turntable used, the Symphonic can be operated in either an unbalanced or balanced mode.

Specifications

The Chord Toby Delivers Uncompromising Power and a Pure, Hi-Fi Audio Experience

• Chord MOSFET construction
• Fully balanced circuitry
• HF switch mode power supply
• Stereo unbalanced RCA inputs + balanced XLR inputs

From Chord Electronics

From Chord Electronics
Crafted collaboratively between Chord Electronics and specialist Japanese case maker, Van Nuys, the handmade Hugo 2 premium leather case has been designed to perfectly protect the Hugo 2, offering both surface protection and style, with a beautiful leather grain and contrasting red stitching detail.

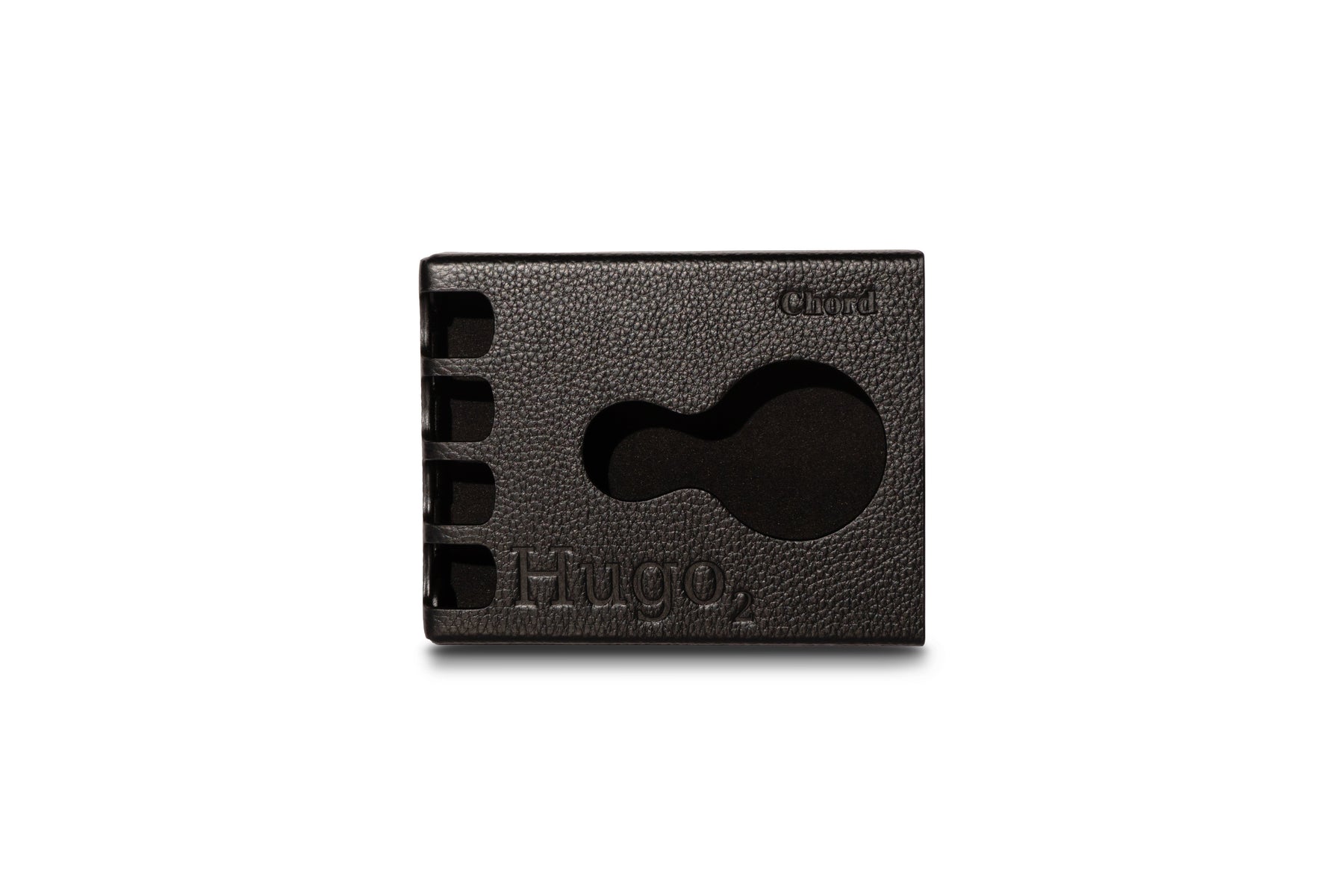

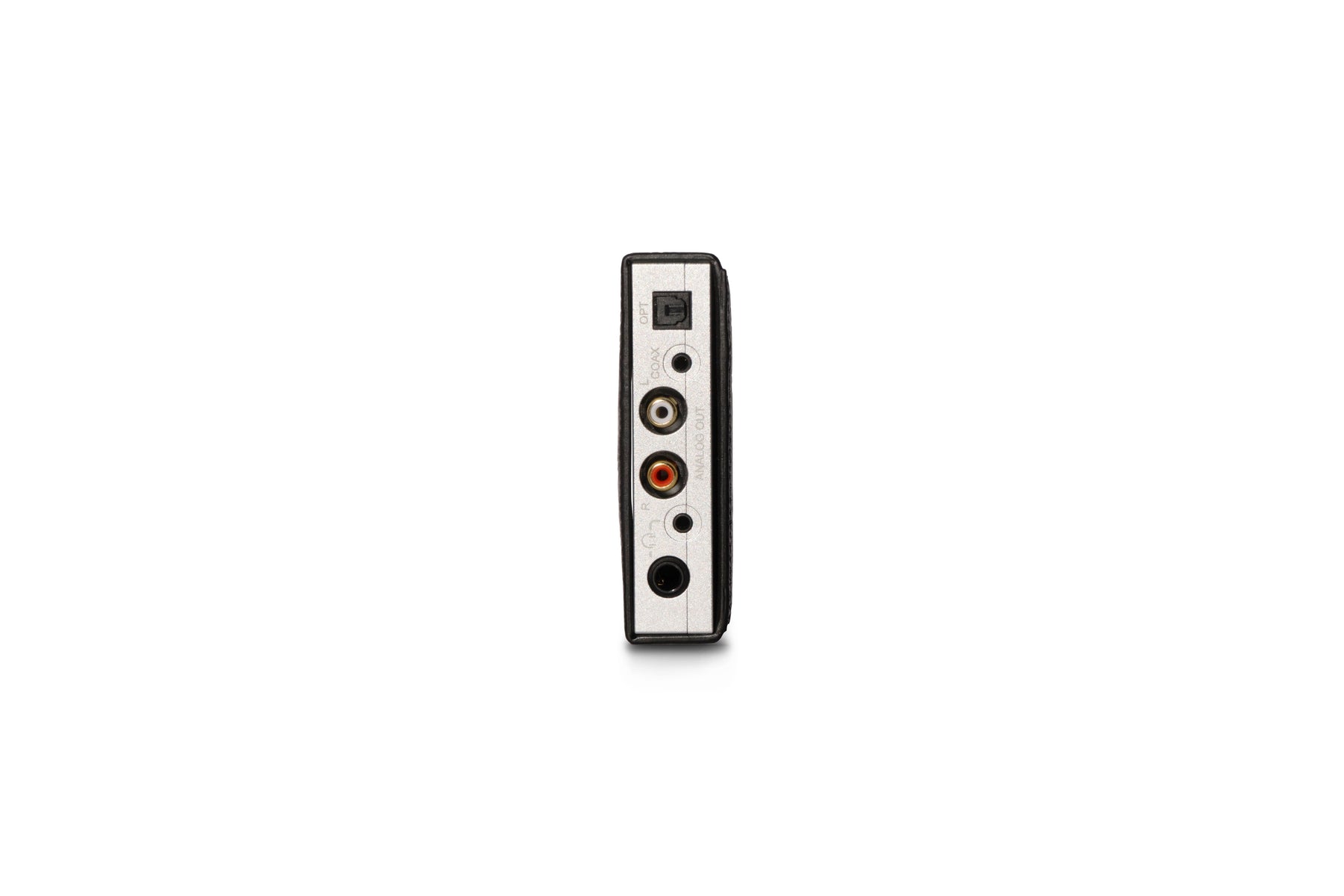

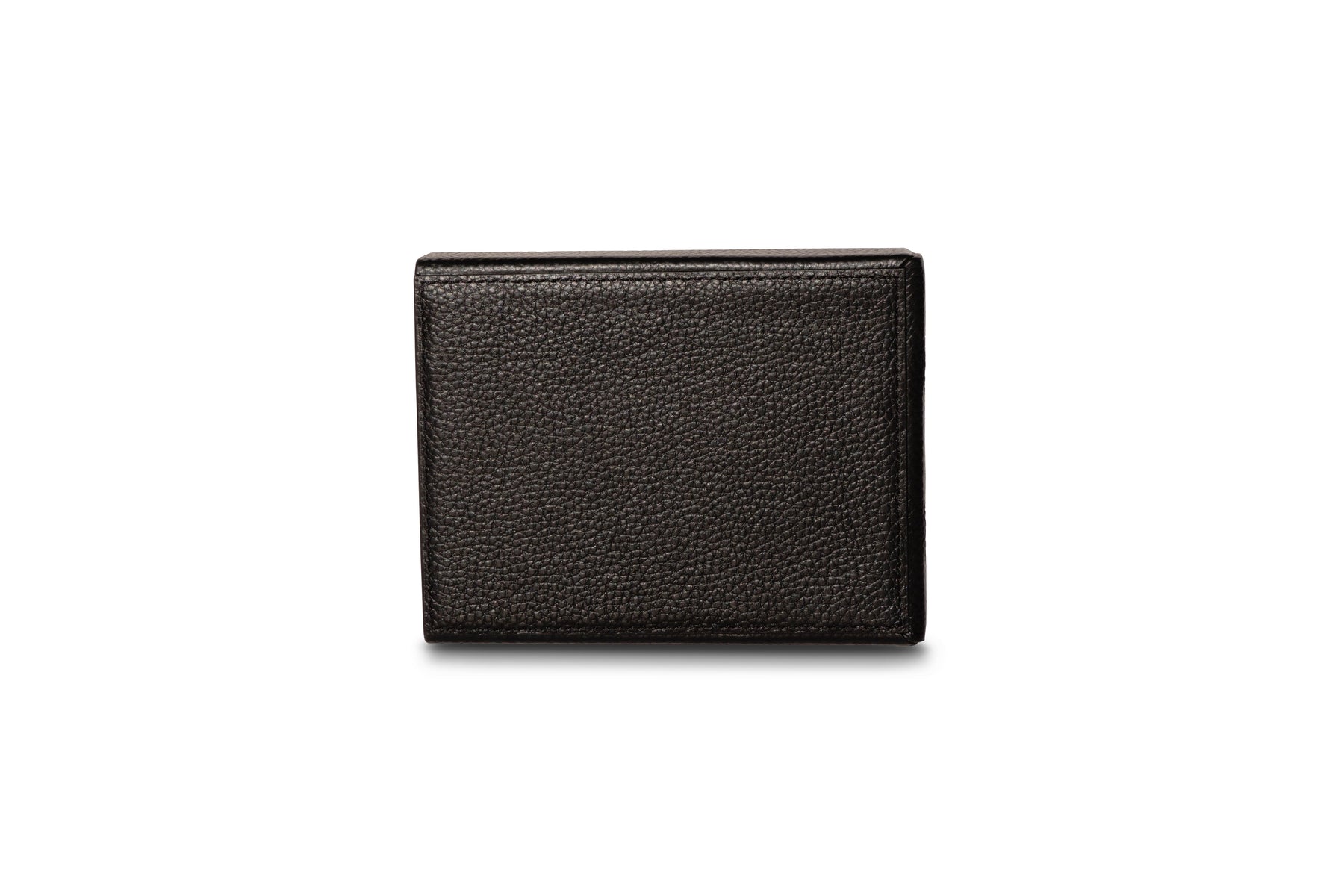

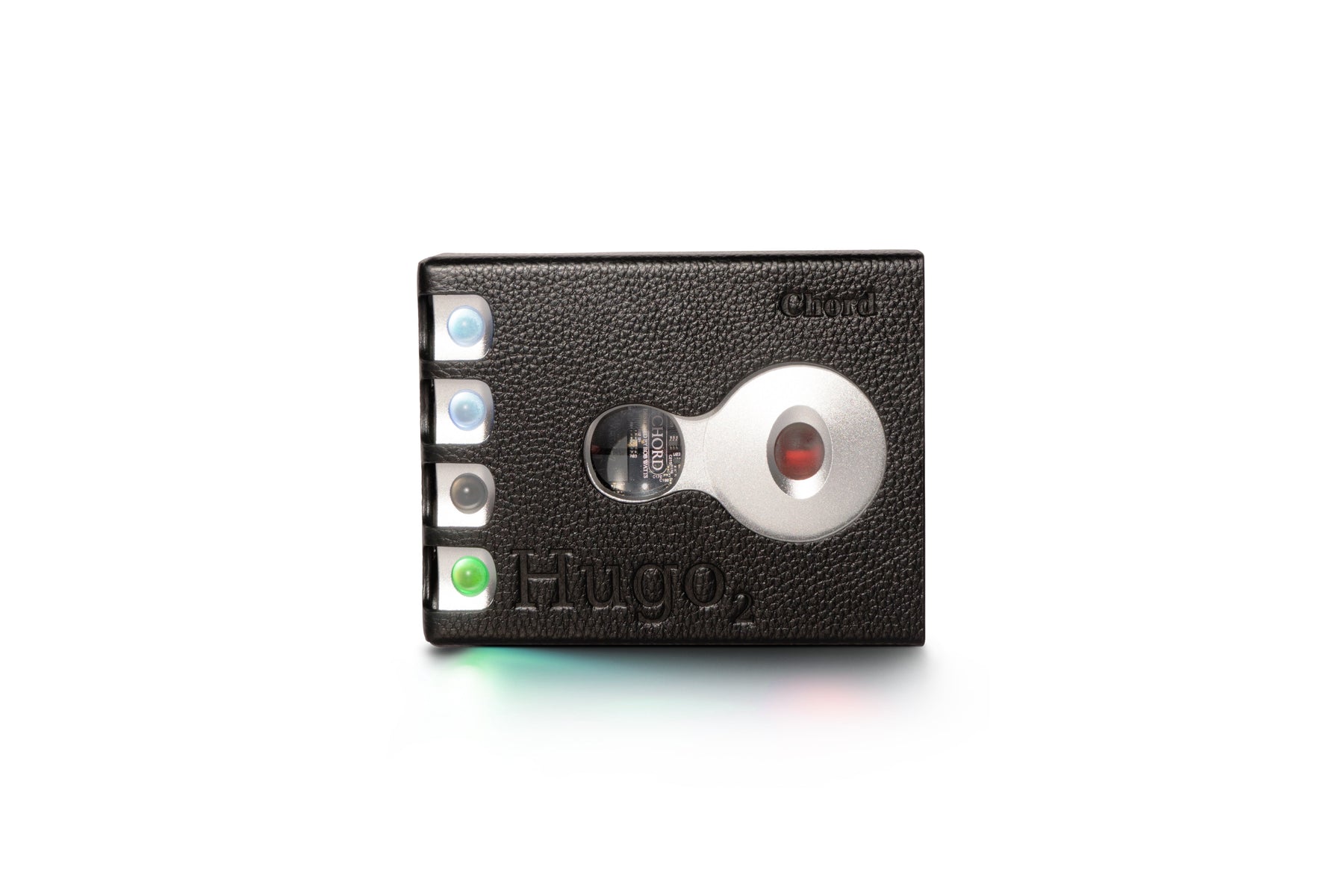

Designed to complement our award-winning Hugo 2 transportable DAC/headphone amplifier, the Hugo 2 protective leather case offers reliable protection from everyday knocks and bumps. The case has been styled by Chord Electronics and VanNuys Inc. and is exclusively manufactured by VanNuys Inc. in Tokyo.

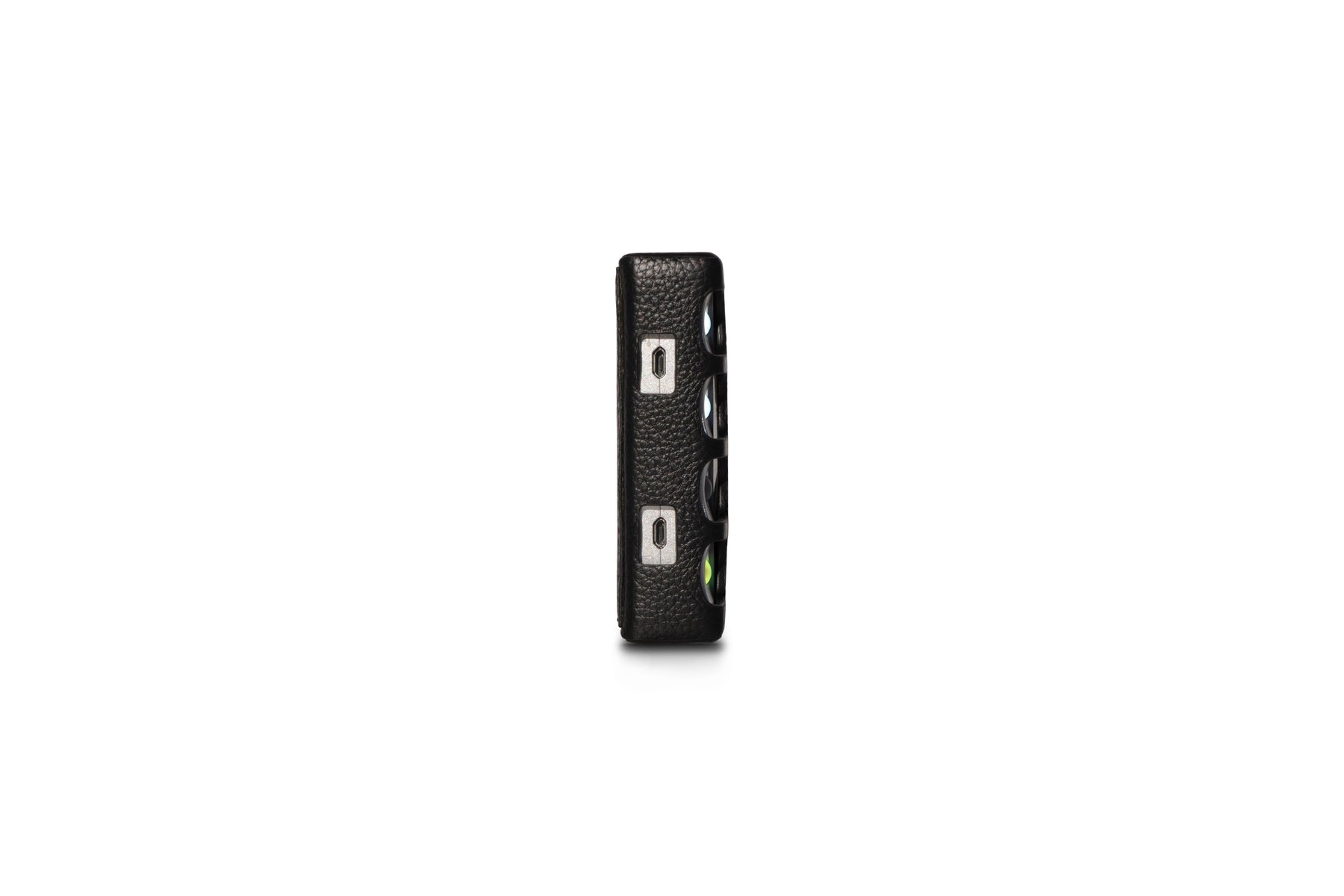

Luxuriously finished, the Hugo 2 protective leather case offers a snug fit that perfectly cossets Hugo 2’s machined-aluminum casework, offering protection both at home and on the go. The design gives unrestricted access to Hugo 2’s double-ended connectivity suite and newly introduced top-mounted features, which include the device’s control spheres, iconic viewing porthole and the volume control sphere.

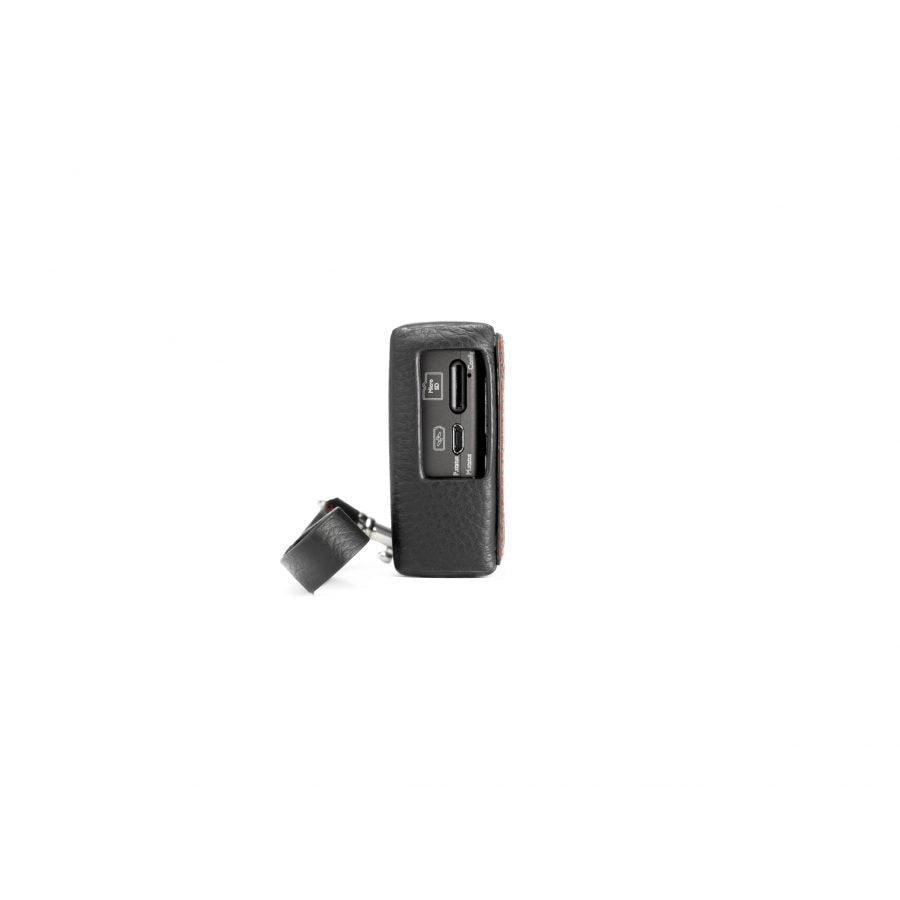

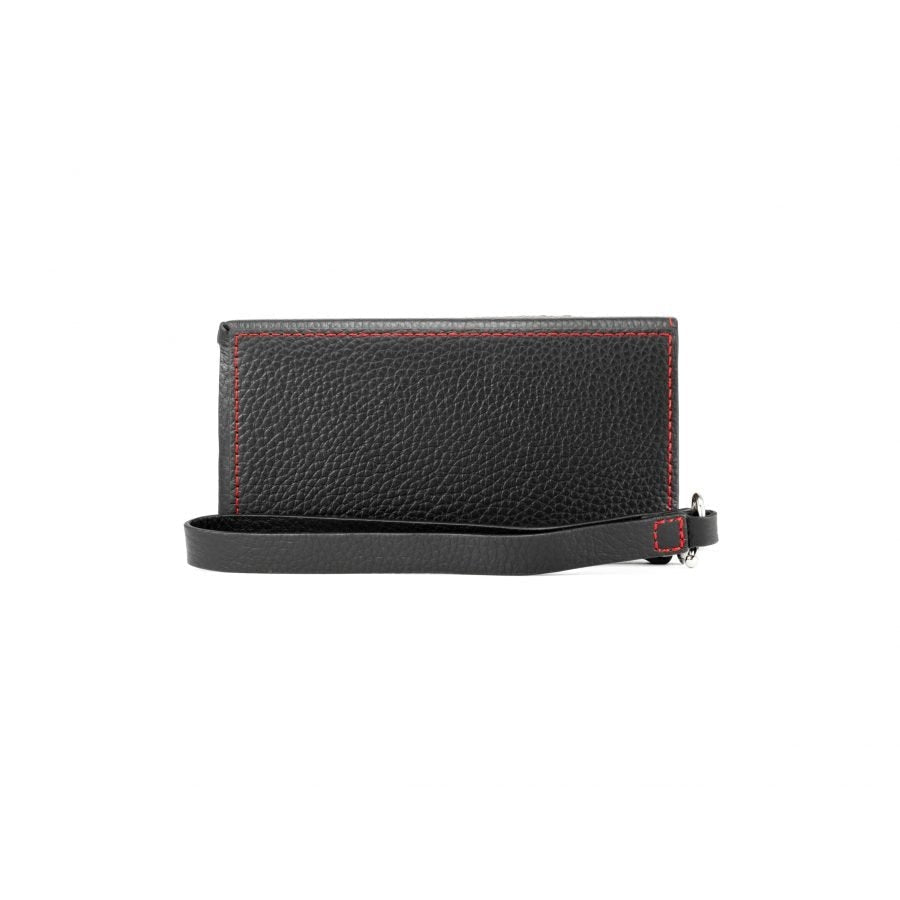

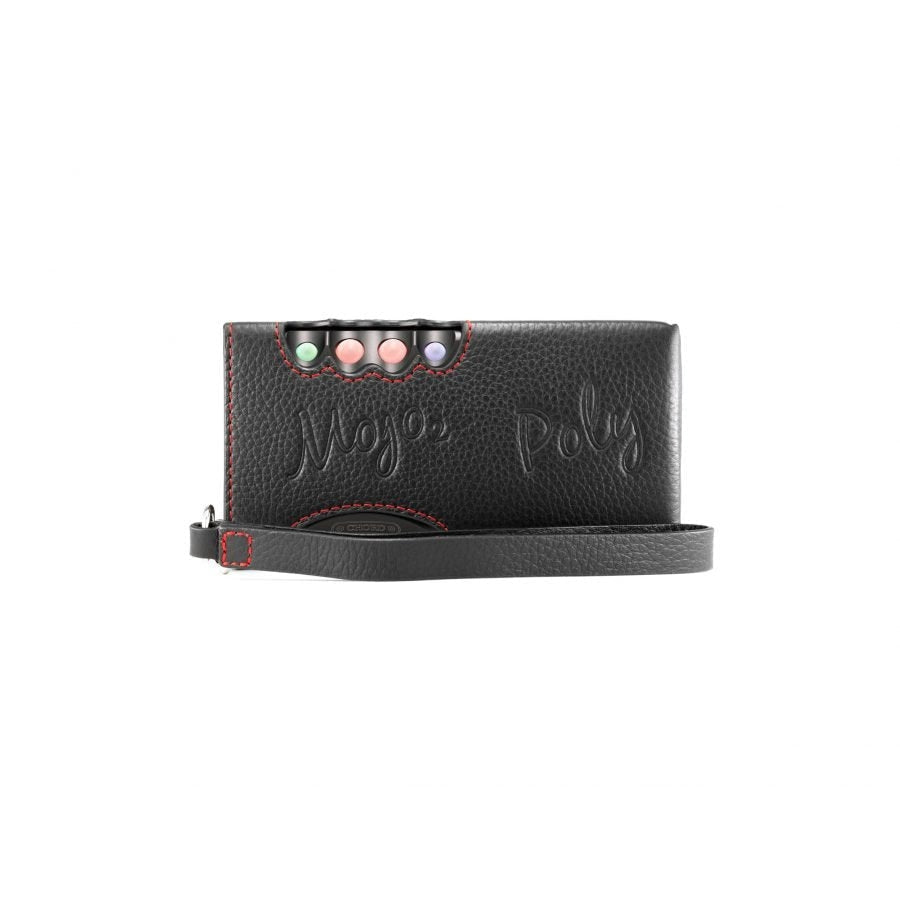

Built to protect Mojo 2 and Poly wireless streamer/player, the Poly/Mojo 2 leather case offers stylish protection for on-the-go usage. The case has been styled by Chord Electronics’ John Franks.

Luxuriously finished, the Poly/Mojo 2 protective leather case offers a snug fit that perfectly cossets the two devices, offering protection both at home and on the go. The design gives unrestricted access to Poly’s Micro SD card slot, Micro USB charging port, device status indicators and configuration port, plus Mojo 2’s twin 3.5mm headphone mini-jack outputs and illuminated control/display spheres.

Featuring high-quality black-finished leather and contrasting red stitching detail, the official Poly/Mojo 2 protective leather case is crafted to exceptionally high standards. The case offers superior protection for both units if placed into pockets and bags when travelling.

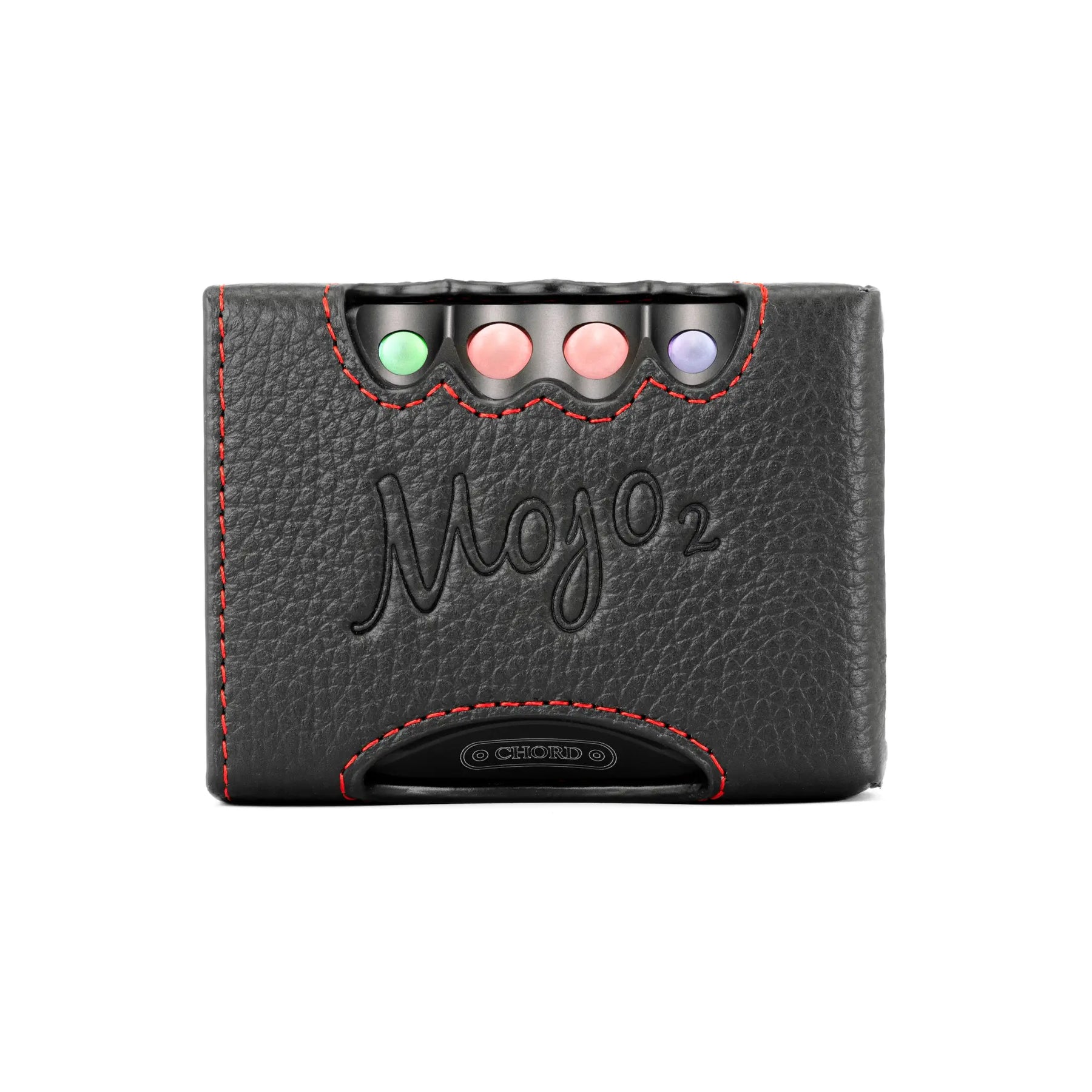

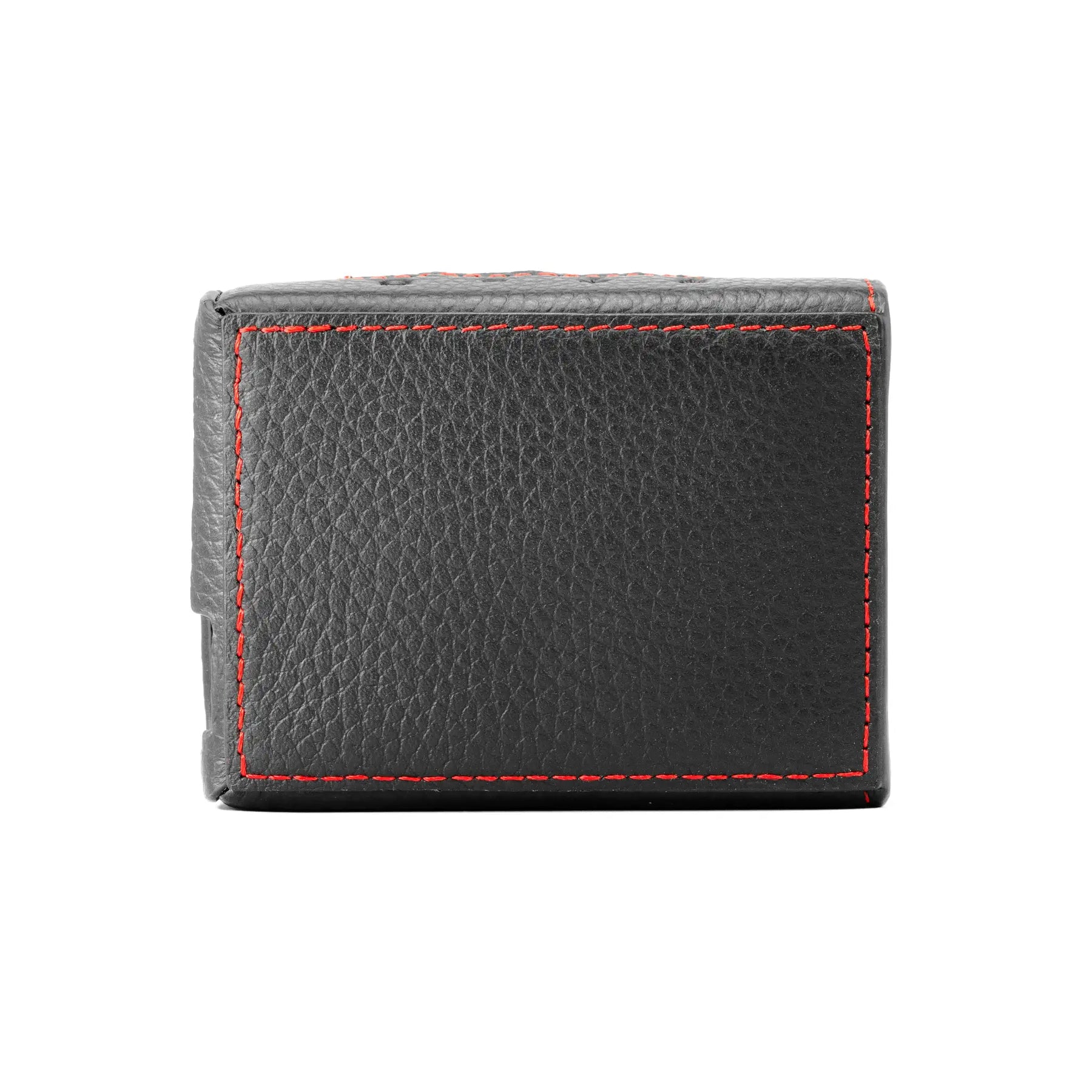

Protect Your Mojo 2 in Leather Style with Chord Electronics' Genuine Premium Leather Case

• Genuine Chord product made with genuine leather
• Portable design with trustworthy protection

Protect in Style. Travel with Confidence.

Crafted from genuine leather, the Chord Electronics Mojo 2 premium leather case is the perfect blend of luxury and protection. Designed exclusively for the Mojo 2, it offers a snug, secure fit with precise cutouts for easy access to all controls and ports. Whether you’re at home or on the move, this case keeps your Mojo 2 safe from scratches and scuffs while adding a touch of class to your portable audio setup.

Don’t just carry your Mojo 2—carry it in style.

From Chord

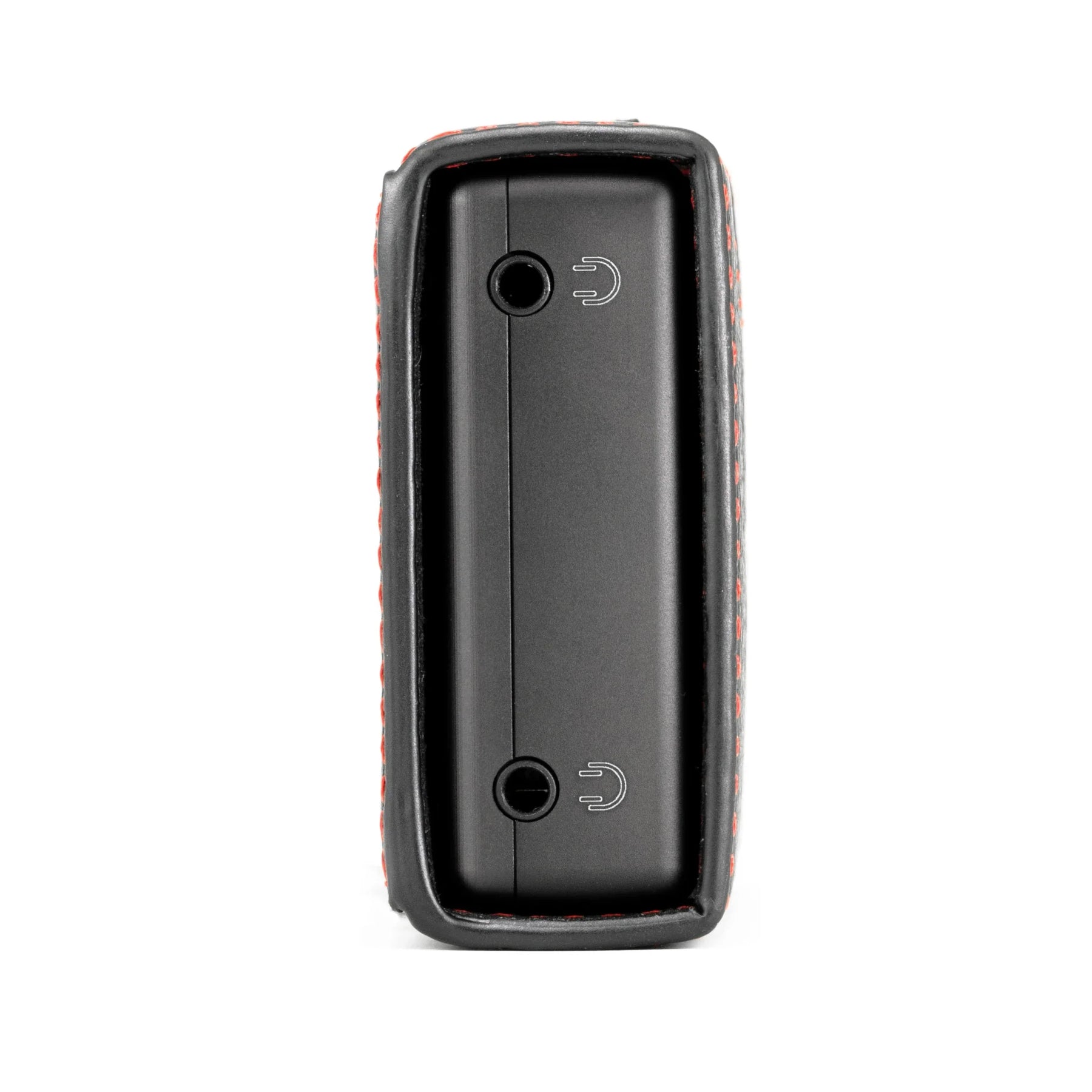

Built to protect Mojo 2, the Mojo 2 leather case offers stylish protection for on-the-go usage. The case has been styled by Chord Electronics’ John Franks.

Luxuriously finished, the Mojo 2 protective leather case offers a snug fit that perfectly cossets the device, offering protection both at home and on the go. The design gives unrestricted access to Mojo 2’s twin 3.5mm headphone mini-jack outputs, illuminated control/display spheres, both charging and input Micro USBs, USB C and Optical.

Crafted from premium black leather with bold red stitching, the official Mojo 2 case blends luxury and durability for a refined, tailor-made fit. The case offers superior protection if placed into pockets and bags when traveling.

Specifications

• Dimensions: 3.5" x 2.6" x 1.1"
• Weight: 24g

Service Contract

Daybreak, Crinacle's First Full-Production IEM Under CrinEar, Blends Science-Driven Design with Neutral, Accurate Sound

• Tuned by audio reviewer Crinacle to the IEF Preference 2025 Curve
• Triplicate-Hybrid Driver Setup: (1x) Custom DD Subwoofer + (2x) BA + (2x) Micro-Planar Tweeters
• Complex acoustic waveguides for precision crossover control and frequency separation
• Fully-filled resin shell design
• Modular Silver-plated Copper cable system

A New Dawn

Daybreak debuts as CrinEar’s first full-production IEM, a bold step forward in design, tuning, and execution. Engineered to push the limits of acoustic precision and performance, the Daybreak establishes a new benchmark in the constantly advancing world of in-ear monitors.

Development

The CrinEar Daybreak represents a milestone in high-fidelity audio design, meticulously tuned using the Brüel & Kjær Type 5128 ear simulator for cutting-edge accuracy. Developed through advanced acoustic research and refined through Crinacle’s years of tuning experience, the Daybreak achieves uncompromising tonal balance alongside top-grade resolution. Designed for those who demand measurement-grade fidelity, without sacrificing musicality.

3D Printed Internals

Advanced 3D-printing techniques enables intricate internal acoustic pathways within the Daybreak, optimizing crossover separation and delivering precise, high-resolution performance across the frequency spectrum.

The Daybreak’s fully-filled resin shell offers both stunning visual clarity and enhanced structural integrity, combining a glass-like finish with superior crack resistance compared to traditional hollow-shell designs.

Tuning

The CrinEar Daybreak is meticulously tuned to the IEF Preference 2025 curve: an evolution of the Population-Averaged Diffuse Field target that blends natural, speaker-like tonality with a dynamic and engaging low-end response.

At its core is a fully custom driver array:

• A custom-spec dynamic subwoofer delivers deep, controlled bass
• Custom-developed balanced armatures provide accurate, detailed mids
• Next-generation micro-planar tweeters ensure exceptional treble extension and clarity

Every component is purpose-built to achieve tonal perfection and immersive fidelity.

Compact, Ergonomic Shell

Despite its intricate internal architecture, the CrinEar Daybreak features a compact, pseudo-custom shell engineered for a secure, fatigue-free fit across a wide range of ear shapes.

The aluminium nozzle measures just a hair under 6mm at its widest point, striking the ideal balance between durability and comfort—perfect for extended listening sessions.

SPC Modular Cable

Crafted with high-purity silver-plated copper, the Daybreak's 4-wire stock cable is optimized for low resistance and maximum conductivity, ensuring a clean and transparent signal path that preserves sonic detail and minimizes distortion.

Designed with flexibility in mind, it features an interchangeable termination system, allowing seamless switching between 3.5mm single-ended and 4.4mm balanced.

Every detail engineered to unleash the Daybreak’s full sonic potential.&nbsp;

Specifications

• Drivers
  • 1x Custom Dynamic Subwoofer – Deep, tight bass
  • 2x Custom Balanced Armatures – Natural, resolving mids
  • 2x Micro-Planar Tweeters – Crisp, extended treble
• Impedance: 20Ω @1kHz
• Sensitivity: 105dB/mW @1kHz
• Frequency Response: 2Hz ~ 40,000Hz
• Nozzle Width: 6.0mm
• Cable Material: Silver-plated Copper

In the Box

• CrinEar Daybreak IEMs
• SPC cable with 3.5mm SE + 4.4mm BAL interchangeable connectors
• Silicon ear tips (S/M/L)
• Foam ear tips (M)
• Leatherette carrying case

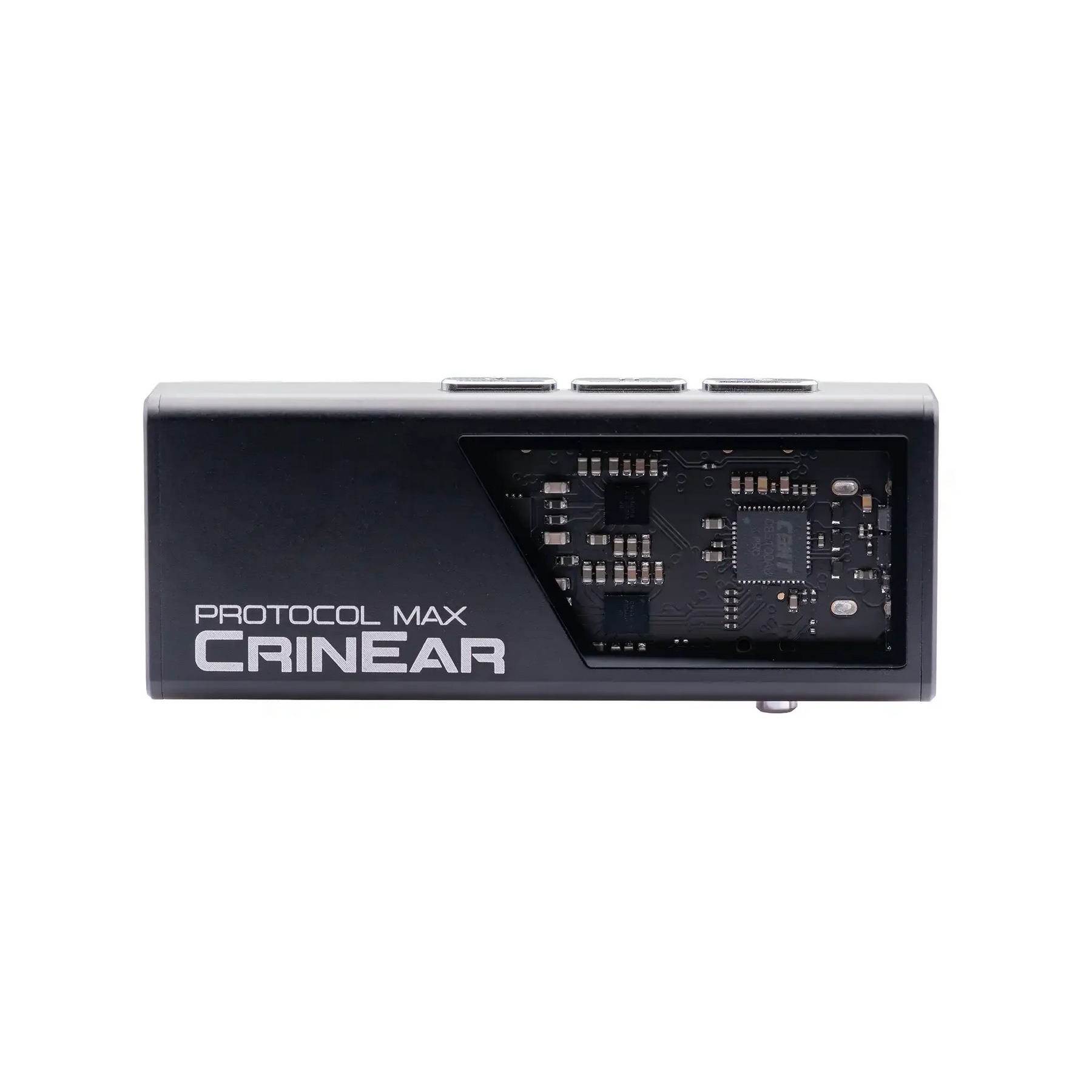

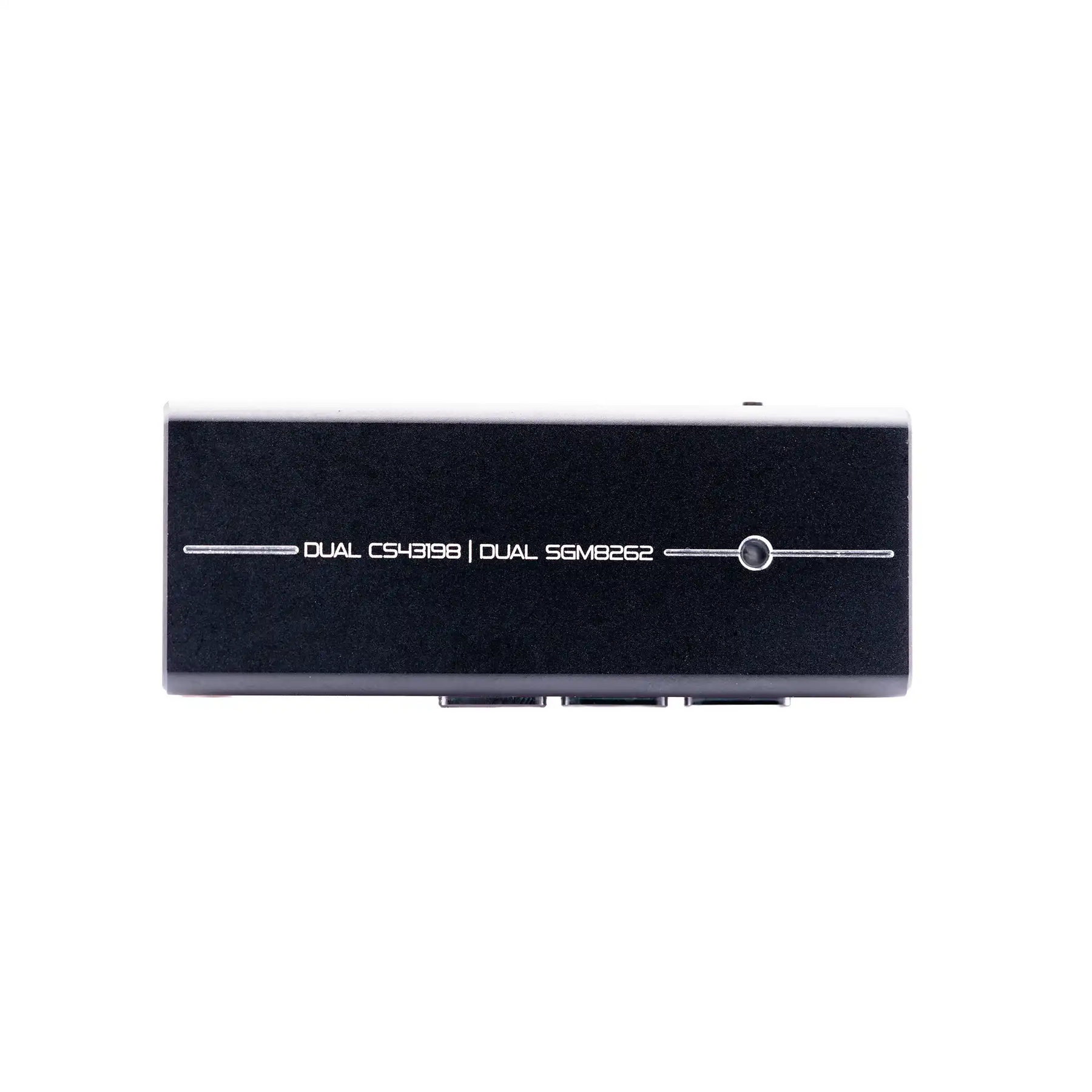

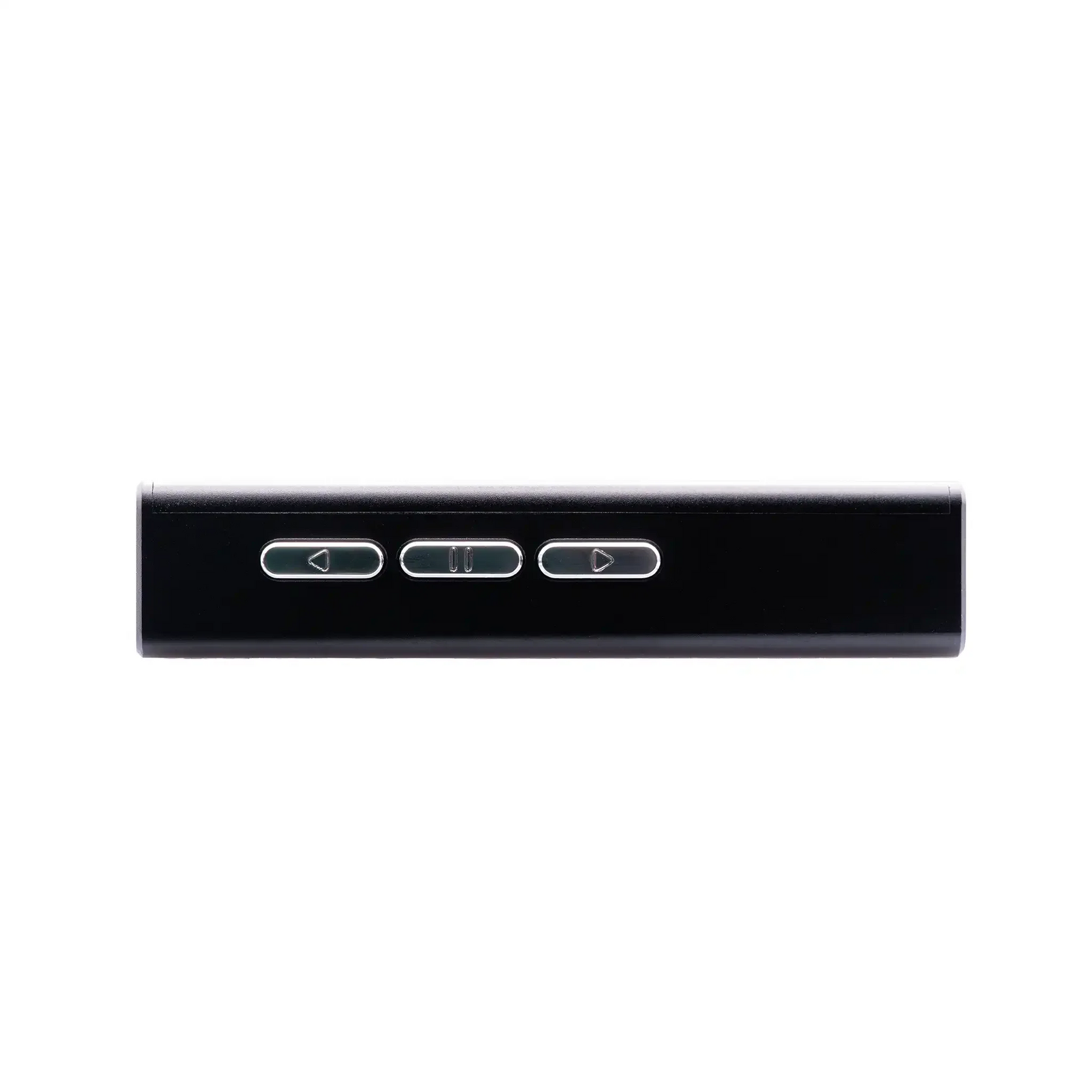

Protocol Max Brings Desktop-Class Performance to Your Pocket with Up to 600mW of Power, Driving Everything from Sensitive IEMs to Demanding Headphones

• Dual Cirrus Logic CS43198 chips for transparent, hi-res digital conversion
• Dual SG Micro SGM8262-2 op-amps provide up to 600mW of clean amplification
• Adjustable and persistent Parametric EQ
• Dual power modes for efficiency or max output
• 4.4mm BAL + 3.5mm SE outputs with low output impedance for maximum compatibility

Pocket Power, Unleashed

The Protocol Max marks CrinEar’s bold entry into the source gear market, bringing their philosophy of acoustic precision to digital-to-analog conversion and amplification. With up to 600 mW of clean power on tap from its balanced output, the Protocol Max effortlessly drives everything from sensitive in-ear monitors to demanding full-size headphones, all without breaking a sweat.

Beyond raw strength, the Protocol Max features persistent, PC browser-based parametric EQ via the Hangout.Audio Graph Tool, letting you fine-tune your sound signature and store your custom profiles directly onto the device. No companion app, no extra steps—just plug into your PC, set your curve, and enjoy.

With its blend of muscle, precision, and user-focused flexibility, the Protocol Max balances clean, reference-grade performance with real-world practicality, making it the ultimate pocket-sized DAC-amp for enthusiasts and professionals alike.

Dual DAC, Dual Amp

Equipped with dual Cirrus Logic CS43198 DACs and dual SG Micro SGM8262-2 op-amps, the Protocol Max delivers crystal-clear resolution, expansive dynamics, and distortion-free amplification, engineered for absolute fidelity.

Parametric EQ

Your sound, your way. With the browser-based Hangout.Audio Graph Tool, you can upload and store PEQ profiles directly on the device. No extra apps, no hidden steps; just seamless customization that stays with you.

Learn how to upload PEQ profiles into your Protocol Max using this guide.

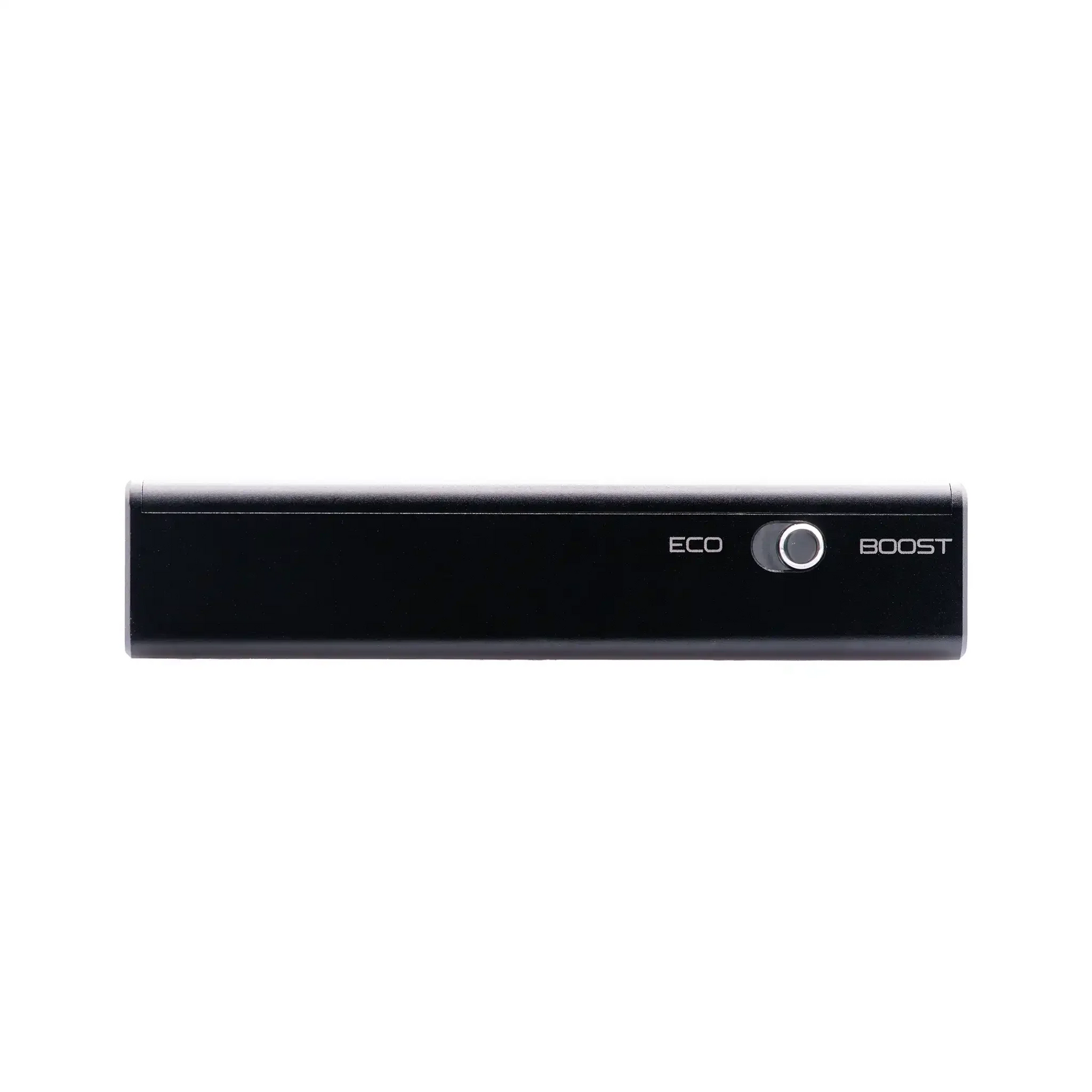

Two Power Modes

Switch between Eco mode for power efficiency and Boost mode for maximum power output. Whether you’re listening on the go or at your desk, the Protocol Max adapts to your gear and your needs.

Versatile Outputs

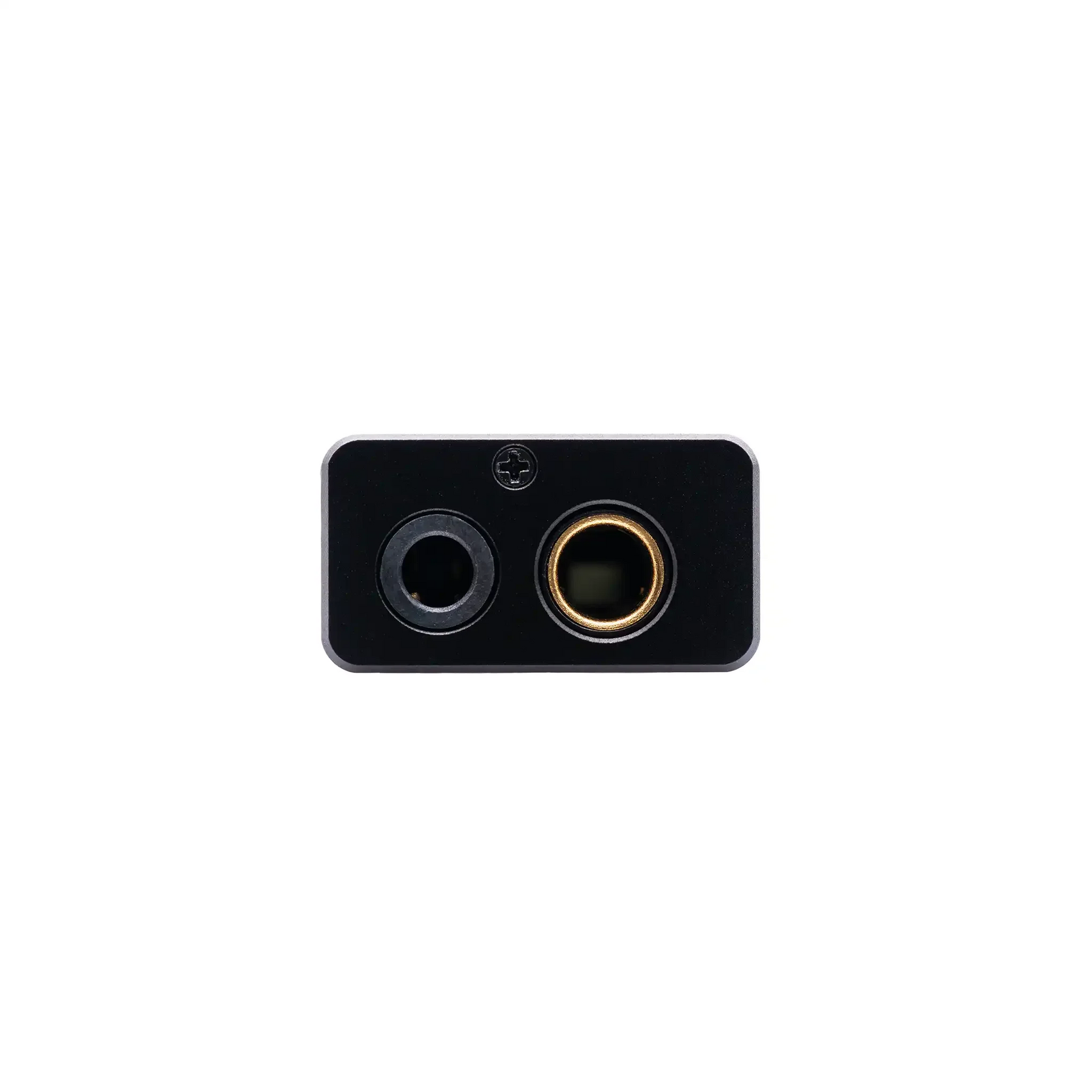

With 4.4mm balanced and 3.5mm single-ended connections, the Protocol Max pairs effortlessly with a wide range of headphones and earphones. A low output impedance (<0.3Ω SE) ensures precise control and compatibility across the board.

Built to Travel

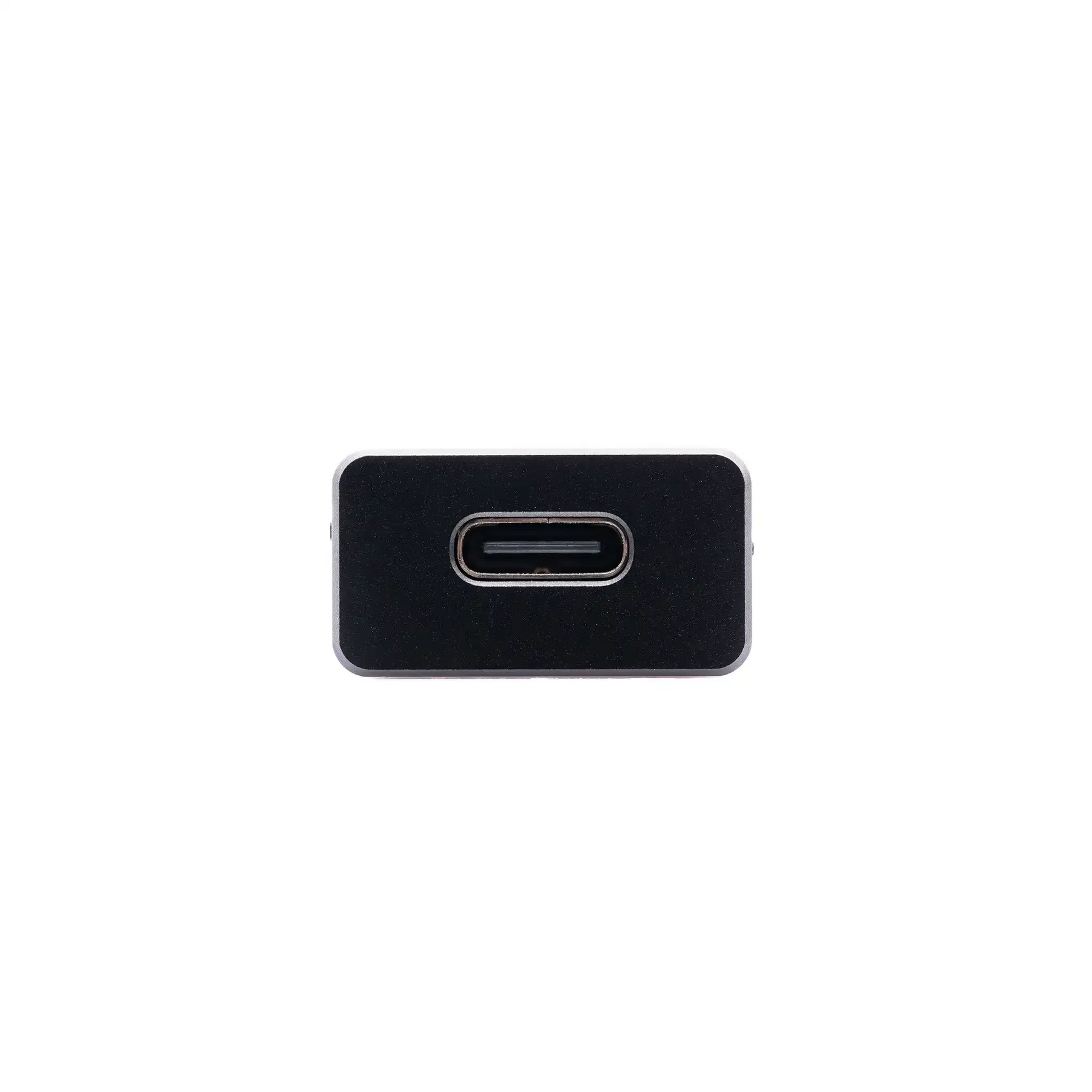

Housed in sleek aluminium with a quad-wire weaved cable, the Protocol Max is built for durability without sacrificing portability. Compact, solid, and ready to perform anywhere.

Specifications

• DAC: Dual Cirrus Logic CS43198
• Amplifier: Dual SG Micro SGM8262-2
• Max. Power Output (BAL): 600mW @ 16Ω (Boost Mode)
• Max. Power Output (SE): 500mW @ 8Ω (Boost Mode)
• SNR @1kHz 0dBFS: 132dB (BAL), 127dB (SE)
• THD+N @1kHz 0dBFS: -118dB (BAL), -116dB (SE)
• Crosstalk @1kHz -6dBFS: -116dB (BAL), -65dB (SE)
• Output Impedance: <0.6Ω (BAL), <0.3Ω (SE)

In the Box

• CrinEar Protocol Max DAC/Amp
• USB-C to C cable
• USB-C to A cable
• User manual

The D&A Alpha Pro Seamlessly Integrates Modern and Vintage Aesthetics With Uncompromising Power for the Ultimate Listening Experience

• Features ESS ES9039MSPRO Flagship DAC chip
• 4-Channel fully balanced discrete amplification
• Powerful 6000mW + 6000mW output
• 2nd PLL Clock + 3 Femtosecond Oscillators
• Comprehensive input/output ports

Flagship Decoding Engine

The Alpha Pro harnesses ESS’s flagship ES9039MSPRO DAC with MQA hardware decoding, HyperStream technology, and fully isolated digital/analog processing. Its proprietary “Zero-Jitter Clock” and 32-bit noise shaping eliminate jitter, while the “SIGMA DAC” topology, using 8-channel differential signal summation per channel, reduces output impedance by 4× and noise by 75%, delivering an exceptional 133 dB dynamic range and -124 dB THD+N.

No Headphone Beyond Reach

4C-FBDA Fully Balanced Discrete Amplification
Featuring 32 discrete transistors across four channels, the 4C-FBDA circuit achieves <0.1 ohms output impedance and 0.0001% THD. Effortlessly driving 16 ohms-600 ohms headphones, it delivers 6000mW + 6000mW at 32 ohms with zero dynamic compression.

Pure Preamplifier Function
Equipped with NJU72315 analog volume control, the industry's highest-performance chip, Alpha Pro eliminates micro-detail loss at low volumes while attenuating external noise.

Analog Input
A groundbreaking analog input circuit supports turntables and tape decks, serving as a standalone preamplifier for 90%+ legacy audio systems.

Connect Your Way

Line Input (RCA)
Connect your turntable, CD player, or any analog source using gold-plated terminals for clean, reliable signal transfer.

Bluetooth 5.1
Stream hi-res audio wirelessly with support for LDAC 24bit/96kHz, aptX HD, AAC, and SBC powered by the QCC5125 chip.

Optical + Coaxial
Enjoy crystal-clear digital audio with precision clock syncing that keeps jitter down to a minimum.

USB Audio
Hook up your computer or streamer for bit-perfect playback. Supports up to PCM 768kHz, DSD512, and full MQA decoding.

Precision Engineered Synergy

Digital and analog modules are physically segregated via 4-layer PCB isolation and independent ground planes. Shielded blocks and star-quad power routing ensure zero crosstalk between DSP processing and DAC conversion.

Built for Perfect Reproduction

Three femtosecond-grade oscillators—two for local USB clocks and one VCXO for the second PLL—reduce jitter to 15 ps, delivering sharper imaging, greater detail, and a more natural sound across all inputs.

Material Excellence

Capacitance
Precision capacitors suppress harmonic distortion and enhance analytical capabilities. The Alpha Pro implements rigorous capacitor selection, testing materials and capacitance values for each chip/position to finalize the mass production formula, a critical step in acoustic tuning.

High-Precision Low-TCR Resistors
‡1% tolerance MELF metal-film resistors ensure circuit reliability across the entire audio path. With ultra-low temperature coefficient of +25ppm/°C. resistance remains stable under thermal stress, suitable for demanding operating conditions. Such components are typically reserved for laboratory-grade instruments.

Power System
Dual Mean Well power modules deliver superior instantaneous current output and EMI performance, enhancing soundstage precision. Dual-stage input filtering eliminates 90% mains interference.

Gold-Plated Connectors
Gold-plated I/O ports maintain low contact impedance for pristine signal transmission.

Specifications

• Full list of specifications
• Dimensions: 225mm x 55mm x 199.3mm
• Weight: 3.88lbs

In the Box

• D&A Alpha Pro DAC/Amp
• Power cable
• USB cable
• User manual

Dan Clark Audio AEON 2 Noire Adds Some Fun to the AEON 2 Sound

• Closed-back planar magnetic headphones
• Portable closed-back design makes them perfect for travel or office use
• Takes the accurate, transparent tuning of the AEON 2 and adds a touch of extra bass for a more engaging dynamic sound

Noire Gives AEON 2 a Dark New Voice

Dan Clark Audio is proud to introduce the special edition ÆON 2 Noire. The ÆON 2 Noire is the latest entry in our award-winning ÆON line of headphones. Based on the ÆON 2 Closed, ÆON 2 Noire offers a new voicing to deliver a lively and involving musical experience with a stunning high-gloss all-black styling.

Same Singer, New Voice

ÆON 2 Noire uses perforated ear pads to create a unique sonic signature with a richer bass, airier midrange, and a more lively top end than the classic ÆON 2 Closed. While you can apply the perforated pads to an ÆON 2 Closed to get the same sound, this popular tuning (which the New York Times said was the best sound under $2,000) is now available through ÆON 2 Noire, right out of the box.

Back in Black

With a stunning high-gloss metallic paint, genuine carbon fiber, and an all-black finish ÆON2 Noire is quite an eye-catching design. Striking looks and a unique and exciting sound will make the new ÆON 2 Noire a great addition to your headphone arsenal.

Specifications

• Efficiency: 92dB/mW
• Weight (without cable): 340g
• Detachable 2m premium dual-entry cable with 3.5mm and 1/4" termination
• Impedance: 13Ω

In the Box

• DUMMER (Distinctly Un-Magical) cable with an integrated dual 1/4" and 3.5mm plug
• Compact case for travel or storage

From Dan Clark Audio

These the perforated ear pads are for AEON 2 Open, they may also be used with original AEON Flow Open. Made using the highest quality synthetic leather and featuring improved, more stable memory foam these ear pads will bring a new level of comfort to your headphones.

The All New Corina, a Bold New Take on Electrostatic Headphones from Award Winning Designer Dan Clark Audio

• Electrostats tuned to perform even with rock and electronic music
• Utilizes patent-pending Acoustic Metamaterial Tuning System
• Attention to detail down to the level of matching suede earpads that reduce heat and moisture buildup
• Enhanced comfort featuring self-tensioning headband design

Award-Winning Legacy

Several years ago, Dan Clark Audio entered the Electrostatic headphone market with the release of VOCE. Since its introduction, VOCE has won numerous awards for "Product of the Year" and "Best Headphone" from preeminent publications such as Positive Feedback, Absolute Sound, Headphonics, and Headphone Guru.

But as usual, the team at Dan Clark Audio strives to continuously advance the performance of their products, and today they proudly introduce the CORINA Reference Electrostatic Headphone, taking electrostatic musicality into a future of fun!

Acoustic Metamaterial Tuning System (AMTS)

Incorporating the Advanced Metamaterial Tuning System (AMTS), CORINA is DCA's first electrostatic headphone featuring their industry-leading AMTS technology first seen with the groundbreaking Stealth and Expanse headphones. With AMTS, frequency response is significantly smoother throughout the midrange and high frequencies, free of annoying “peaks and holes” for a smoother, more complete, accurate, and enjoyable listening experience.

AMTS allows DCA to re-imagine the voicing of CORINA to deliver the most natural midrange heard in an electrostatic to date. From powerful bass to the incredibly rich and well-balanced mids and highs, CORINA delivers an incredibly smooth and lifelike experience, full of electrostatic resolution, yet free from the high-frequency emphasis / glare common to many electrostatics.

New Voicing

By reducing the emphasis on higher frequencies typical of many electrostatics headphones, VOCE delivered a new take on how the electrostatic headphone could sound. With a wider and deeper soundstage, a stronger bottom end, and a smoother, richer midrange, CORINA delivers a fun, yet lifelike tone with sumptuous vocals and bass that really kicks. Unlike many electrostatics, CORINA is even fun with electronica and rock.

Ear Pad Matching

New ear pads have been developed with enhanced ergonomics, including a synthetic suede surface for the face contact, avoiding sweat and “hot spots” common to headphones. There’s more to ear pads than just their comfort, though. As most listeners know, ear pads can affect the sound of headphones dramatically.

While drivers can be precision matched, ear pads, which involve welding or stitching fabrics and use of foams, have always limited the actual tolerances of the headphone. All CORINA new and replacement ear pads are delivered as matched pairs to further tighten the tolerances between the left and right channels and reduce unit-to unit-variances.

Multiple Comfort Enhancements

CORINA utilizes the new self-tensioning headband design found in the flagship Stealth and Expanse headphones, for an incredibly comfortable yet hassle-free fit. Paired with the new ear pads and using DCA's signature titanium alloy headband design, CORINA is incredibly comfortable to wear.

New Industrial Design

Dan Clark Audio has always taken pride in industrial design, and CORINA is no exception. With its striking new grey finish and sculpted grill, CORINA is as much a delight to the eyes as it is to the ears.

Specifications

• Driver Type: Electrostatic
• Driver Size: 88mm
• Capacitance with 2m Cable: 135pF
• Weight: 1.03 lbs (465g)
• Shipping Dimensions: 18" x 14" x 19"
• Frequency Response: *Yes (flat to 6Hz)

In the Box

• DCA Corina Headphone
• Carrying Case
• 2m Electrostatic headphone cable
• Certificate of authenticity
• Manual

The DUMMER cable is the "unmagical" stock cable for Dan Clark Audio's headphones. You can get a replacement in 3.5mm with a screw on 6.5mm adapter, or upgrade to the balanced 4.4mm or XLR version.

Replacement Earpads for Dan Clark Audio E3 Headphones

Dan Clark Audio E3 Brings New Innovations to Closed-Back Headphones

• An exciting new Closed-back headphone following the footsteps of Stealth
• Uses DCA's Acoustic Metamaterial Tuning to achieve maximum closed-back performance
• New tech such as Dual-Mode Bass Port and Gorilla Glass
• Same lightweight frame as DCA's Stealth and Expanse for incredible comfort

Acoustic Metamaterial Tuning System (AMTS)

A critical feature of E3 is the enhanced AMTS tuning system, previously found only in their TOTL multi-award-winning Stealth, Expanse, and Corina headphones. E3 not only brings this ground-breaking technology to a more affordable headphone, it does so with a new mode of implementation.

All headphones are subject to HF standing waves which can make treble sound harsh, fatiguing, or synthetic. AMTS is a patent pending inline device placed between the transducer and ear that integrates waveguides, diffusion control, and resonators into one compact structure that eliminates standing waves while giving us complete control of the high frequency response profile.

AMTS isn't a "one size fits all" technology. It's custom tuned for each headphone to deliver an optimized experience for each transducer. For E3, DCA developed a new mode of deployment that delivers an absolutely superbly rendered top-end that will surprise and delight, with a tone that is remarkably lifelike.

Planar Driver Performance Revisited

E3’s all-new 5th gen planar-magnetic driver incorporates innovative diaphragms made on an all-new tensioning system for a more uniform and consistent performance. New diaphragm materials combined with highly optimized "V-Planar knurling" deliver a remarkably smooth frequency response with low distortion throughout the listening range for levels of detail more often found in TOTL electrostatics. E3’s new drivers coupled with AMTS deliver exceptionally high resolution without the fatiguing distortions and rough frequency response users may be used to.

What are Those Holes in the Glass?

That would be the Dual-Mode Bass Port, another DCA innovation. While it’s not unusual to find a bass port on a closed headphone, our ingenious dual-mode port delivers unrivaled control of the bass frequency response, creating a superbly balanced, impactful bass experience that is full of power yet free of bloat or midrange creep.

Why Gorilla Glass?

Gorilla Glass 3 is a thin sheet of alkali-aluminosilicate that makes the glass stiffer and more scratch and break resistant. The styling of the pattern under the glass evokes the mesh of an open-back headphone, a design cue to highlight the exceptionally open-back listening experience E3 delivers.

Enough Geek Talk - How Does it Sound?

E3’s 5th-Gen driver and AMTS deliver an amazing balance of delicacy, nuance, and explosive dynamics that will have you reaching for all your favorite recordings. And it’s not just about the tone and timbre: E3's soundstage is stunningly expansive, all-enveloping, and can compete with even the finest open headphones in depth, width, and imaging.

Comfort is Still King

At DCA, ergonomic design is of paramount importance. What good is a great sounding headphone if you can only wear it for 30 minutes? E3 takes advantage of every ergonomic trick DCA developed, including the acclaimed self-adjusting headband suspension system from Stealth and Expanse, and the convenient and stylish folding gimbals that make E3 a conveniently compact travel headphone.

Specifications

• Model: E3
• Driver: Planar Magnetic
• Sensitivity: -90 dB/mW
• Impedance: 27Ω
• Distortion: < 0.1% ref 80dB White Noise
• Weight: 1 lb

In the Box

• DCA E3 Headphones
• VIVO Cable
• Compact Carrying Case
• Cloth Headphone Bag
• Headphone Information Guide
• Certificate of Authenticity

Earpads for ETHER 2, Designed with a Peelable Pad-Mounting System for Quick and Effortless Pad Replacement

• Replacement earpads for ETHER 2 only
• Available in suede or perforated
• Features Dan Clark Audio's peelable pad-mounting system
• Experience more relative bass and extra treble

From Dan Clark Audio

All ETHER 2 earpads are suitable for all-around use but each offers a distinct sonic signature and a unique fit and comfort profile.

Suede

Our suede synthetic leather earpad for ETHER 2 features our new peelable pad-mounting system for fast and easy pad changes. The suede earpads delivers:

• More relative bass and a little extra treble relative to the original earpad
• Larger ear hole
• Reduced sense of clamping
• Increased soundstage


Perforated

Our perforated synthetic leather earpad for ETHER 2 features our new peelable pad-mounting system for fast and easy pad changes. The perforated earpads delivers:

• More relative bass and treble output for a more "fun" sound
• Larger ear hole
• Reduced sense of clamping
• Increased soundstage

Technical Comparison

The original earpads were voiced to deliver a very smooth, natural tone, placing the midrange front and center. While they were designed as "all-arounders" listeners particularly enjoy these pads with acoustic music and for applications where a warmer tone is enjoyable, such as pulling out old rock classics or other music tending towards brightness. Of the three pads, these place the listener closest to the "stage."

The suede pads add a little more emphasis to the bass and a slight increase in upper frequency information, making them particularly fun for electronica, metal, and other genres where the strongest possible bottom end is desirable.

The perforated pads are the most "fun" of the set, with both increased bass and treble output relative to the midrange. The perforated pads deliver the largest soundstage and the most lively top-end. DCA pick this pad for all around listening. Listeners find it particularly enjoyable for well-recorded music and for music with a large soundstage. A side benefit of the perforated pad is that when listening at lower volumes the increased output at the top and bottom compensate for the "fletcher munson" effect and will provide the most linear sonic experience below 75dB.

From Dan Clark Audio (MrSpeakers)

ETHER 2 is an all-new top of the line open-back planar magnetic headphone with a new driver, motor, baffle, and headband all designed to synergistically blend stunningly lifelike sound with the industry-leading comfort and reliability that are the hallmarks of MrSpeakers' products. ETHER 2 has an entirely new motor designed around the concept of TrueFlow technology. Instead of designing TrueFlow into the motor, we designed the motor around the TrueFlow technology to realize a major improvement in linearity, dynamics, and detail. And we didn’t stop there.

To make the most of the increased resolution of the motor we developed an all-new diaphragm that’s 70% less aluminum trace weight than the original ETHER driver. As a result, ETHER 2 delivers incredible clarity, powerful, fast bass, liquid mids, and a smooth, balanced top end that’s incredibly resolving yet not at all bright to deliver a coherent, dynamic and remarkably balanced performance.

Shedding Weight, Not Strength

ETHER 2 is light. Really light, almost 90 grams or 3.75 ounces lighter than our comfortable ETHER Flow headphones. Amazingly, this weight drop didn’t involve switching from metal to plastic components, which would compromise sound and reduce product life. Nope.

ETHER 2 sports an all-metal headphone cup and headband, with a carbon fiber driver baffle, so it’s built to last, in style. At under 290g, ETHER 2 is not only the lightest full size planar magnetic headphone on the market and it may be the lightest top-of-the-line headphone from any high-end vendor.

Ultralightweight design with a new ergonomic ear pad and an enhanced webbed head-strap combine to make ETHER 2 the new standard in high-performance headphone comfort and ergonomics.

Get Wired with VIVO!

We didn’t stop at upgrades to the headphone, either. While our original DUM (Distinctly Un-Magical) cable was a great performer, it was a bit stiffer and more microphonic than we wanted, so we set out to upgrade the cable.

Meet VIVO, our new flagship cable! For sound quality, this fully-custom cable design incorporates silver plated OFHC copper and top-quality connectors available in 6’ and 10’ 1/4” and 4-pin XLR terminations, and portable-friendly 3.5’ 2.5, 3.5, and 4.4mm cables. VIVO projects a wide open and holographic soundstage with precise imaging and tons of smooth detail.

And VIVO feels as good as it looks, and sounds. VIVO has a remarkably supple feel and is so light you’ll hardly notice it’s there and careful construction means it’s non-microphonic for comfortable and “quiet” listening.

Specs

NOIRE X Sets a New Standard in Midrange Headphones with a State-of-the-Art Tuning System, Improved Driver, and Ergonomically-Enhanced Design

• Updates the iconic Dan Clark AEON 2 NOIRE
• Built with an updated, improved AEON driver
• Features DCA's Acoustic Metamaterial Tuning System (AMTS)
• Expansive soundstage and punchy bass
• Constructed with Gorilla Glass 3 finish for durability and scratch resistance
• Minimalist black-on-black aesthetic
• Check out DCA's Open-back version, Noire XO

NOIRE X

NOIRE X updates Dan Clark Audio's iconic AEON 2 NOIRE by integrating DCA’s state-of-the-art Acoustic Metamaterial Tuning System (AMTS) with an improved driver, all carefully wrapped in a gorgeous ergonomically-enhanced design.

NOIRE X’s dramatic black-on-black aesthetic, improved ear pads, self-adjusting headband, and Gorilla Glass 3 cups sumptuously hint at the numerous exciting upgrades within, all designed to maximize your listening pleasure!

With NOIRE X, DCA sets a new standard in midrange headphone performance, comfort, and value!

Better Technology, Better Sound

The NOIRE X features an upgraded, rigid AEON driver offering improved consistency, reduced distortion, and smoother frequency response. Enhanced V-Planar knurling and optimized manufacturing ensure top-tier detail and low distortion.

Integrated with Dan Clark's state-of-the-art Audio Precision 555B, B&K 5128 measurement system, AMTS, and redesigned ear pads, the NOIRE X delivers a refined, unforgettable listening experience.

Acoustic Metamaterial Tuning System

The NOIRE X now includes DCA’s acclaimed AMTS tuning system, previously exclusive to flagship models. AMTS utilizes advanced metamaterial design to refine frequency response and eliminate high-frequency standing waves, which often cause harsh, synthetic treble. The result is a balanced, detailed, and fatigue-free treble that enhances the overall listening experience.

Sound Experience

Dan Clark’s NOIRE X delivers top-tier sonic performance without compromise, offering flagship-level technology, comfort, and sound quality at a more accessible price. With an expansive soundstage, punchy bass, smooth mids, vibrant highs, and rich detail, it provides an engaging and fatigue-free listening experience across all genres, establishing itself as an exceptional value in audiophile headphones.

Additional Features

Self-Tensioned Headband
DCA's self-tensioning headband reduces listening fatigue by distributing pressure evenly across your head for a balanced, barely there fit. The uniform pressure distribution helps prevent hot-spots and pressure-points, making NOIRE X ideal for long hours of immersive listening, free from adjustments or strain.

Gorilla Glass
NOIRE X is a stunning yet understated headphone, from the stitched headband to the all new Gorilla Glass 3 finish on the cups. Gorilla Glass 3 is a thin sheet of alkali-aluminosilicate that makes the glass stiffer and more scratch and break resistant than conventional glass formulations.

Luxurious Comfort
NOIRE X features redesigned ear pads with Alcantara synthetic suede for superior comfort, reducing heat and moisture buildup during extended sessions. The pads minimize foam wear ("foam rolling") for improved durability and consistency, and they’re fully compatible with AEON 2 NOIRE, AEON RT, and AEON 2.

Versatile Cable Options
NOIRE X includes a range of DCA 'Dummer' cable options—6.3mm/3.5mm, 4-pin XLR, and 4.4mm—at the base price, with optional upgrades to premium VIVO cables for greater flexibility. This ensures seamless and versatile pairing with any amplifier, maximizing your audio rig without the need for additional third-party cables.

Specifications

• Weight: 385g
• Efficiency: ~94dB/mW
• THD at 85dB @1KHz: <0.1% 100Hz-8KHz
• Recommended minimum power at 16Ω: 250mW

In the Box

• DCA Noire X
• DCA Dummer cable
• Travel zipper case
• User Manual
• Certificate of authenticity
• Cleaning cloth

Dan Clark Audio Noire XO Brings Refined Planar Performance and Spacious Warmth to the Open-Back Arena

• Open-back headphones with a uniquely rich, well balanced tone
• Features new driver design for improved consistency and reliability
• Incorporates DCA's Acoustic Metamaterial Tuning System
• Produces a bass response profile comparable to a closed headphone
• Updated ear pads to reduce foam movement and increase comfort
• Made in the USA (San Diego, California)

Noire XO

Noire XO is the open-back evolution of Noire X, bringing an expansive soundstage and full-spectrum performance rarely seen in open-back designs. The Noire XO stakes its claim as one of the few open headphones to follow the Harman Curve across all frequencies.

While the Noire XO retains beloved features from the Noire X, like the self-tensioning headband, it also introduces key upgrades. A newly engineered driver delivers greater consistency and reliability over previous AEON 2 designs, while redesigned ear pads minimize internal foam movement and feature a soft Alcantara suede contact surface for enhanced comfort.

Acoustic Metamaterial Tuning System (AMTS)

The NOIRE XO includes DCA’s acclaimed AMTS tuning system, previously exclusive to flagship models. AMTS utilizes advanced metamaterial design to refine frequency response and eliminate high-frequency standing waves, which often cause harsh, synthetic treble. The result is a balanced, detailed, and fatigue-free treble that enhances the overall listening experience.

Sound Experience

Dan Clark Audio reaches new heights with Noire XO's sound profile. By using their new 5128 measurement fixture, they have produced a high-frequency signature that is effortlessly pleasing. Noire XO is a true industry leader in presenting an accurately rendered deep soundstage with crystal-clear layering of instruments and voices.

Unlike typical open-back headphones, the Noire XO delivers not only a spacious and immersive soundstage but also powerful, clean bass. Listeners can enjoy precise imaging without compromising on an engaging bass experience.

Additional Features

Self-Tensioned Headband
DCA's self-tensioning headband reduces listening fatigue by distributing pressure evenly across your head for a balanced, barely there fit. The uniform pressure distribution helps prevent hot-spots and pressure-points, making NOIRE XO ideal for long hours of immersive listening, free from adjustments or strain.

Luxurious Comfort
NOIRE XO features redesigned ear pads with Alcantara synthetic suede for superior comfort, reducing heat and moisture buildup during extended sessions. The pads minimize foam wear ("foam rolling") for improved durability and consistency.

Specifications

• Efficiency: ~94dB/mW
• Weight: 409 grams
• Recommended minimum power at 16Ω: 250mW

In the Box

• Dan Clark Audio Noire XO
• Travel zipper case
• User manual
• Certificate of authenticity

Replacement Earpads for All STEALTH and EXPANSE Headphones, Featuring a Comfortable and a Sleek Design

• Replacement earpads for all STEALTH and EXPANSE headphones
• Features synthetic suede ear surface and leather exterior

From Dan Clark Audio

VIVO (in life) is our new super-premium headphone cable. VIVO is a fully custom cable made with silver plated OFHC copper with a carefully designed geometry that not only maximized sound quality but is soft and supple, ultra-light, and non-microphonic. VIVO is based on our critically acclaimed VOCE cables and delivers exceptional ergonomics and a super-smooth and spacious sound. VIVO is a cable that is so ergonomic and transparent sounding it's easy to forget its there, which in the end, is what a great cable should be!

Cables are between 1.1-2m.

Dan Clark Audio delivers flagship performance with the new Open-Back Expanse

• Open-back planar-magnetic headphones
• Uses acoustic metamaterial for audio fine-tuning
• Comfortable self-adjusting headband and lightweight design

Dan Clark Audio Expanse

Introducing EXPANSE, our new flagship open-back headphone. EXPANSE sets a new standard in open-back headphone musicality, soundstage, detail retrieval, and comfort. Featuring Dan Clark Audio’s all-new 4th generation planar-magnetic driver and our breakthrough Acoustic Metamaterial Tuning System, EXPANSE delivers a stunningly smooth presentation to bring new depth and breadth to all your favorite music.

And we didn’t stop at improving the sound; we also redesigned our headband to deliver a big step up in ergonomics and comfort!

Acoustic Metamaterial Tuning System (AMTS)

Headphones are subject to standing waves in the higher frequencies, which can make instruments like strings, cymbals, even vocals sound unrealistic and fatiguing.

AMTS is Dan Clark Audio’s patent-pending inline device located between the transducer and ear. AMTS integrates waveguides, diffusion control, quarter-wave, and Helmholtz resonators into one compact structure to eliminate standing waves, dramatically improving system performance.

Diffusion elements reduce standing wave formation while resonators act as both precision and broadband filters to smooth and shape the frequency response from the midrange through the highest frequencies.

With AMTS the upshot is high frequencies are rendered with a refreshingly smooth, accurate, and detailed delivery across all genres. OK, bad recordings are still bad, we’re not magicians!

EXPANSE Redefines "Detail"

EXPANSE’s planar driver delivers incredibly low distortion throughout the listening range with levels of detail heretofore found primarily in the top-of-the-line electrostatics. Unlike many headphones where “detail” is created through exaggerated high-frequency energy, EXPANSE’s AMTS delivers industry-leading resolution without fatiguing highs users may be used to.

Together, our 4th-generation motor and AMTS deliver a sonic performance best described as “effortless." From a delicately plucked string to the most intense dynamics of an orchestra, or the weight and attack of a kick drum to the overtones a decay of a crash cymbal, EXPANSE delivers an amazing balance of delicacy, nuance, and punch that will have you reaching for all your favorite recordings, and maybe staying up a bit too late.

And last but not least there’s the soundstage; EXPANSE is all enveloping and can compete with any open headphone in depth, width, and imaging, with instruments occupying a correct volume in space instead of being rendered as “points.”

EXPANSE’s effortless sense of space and instrument placement allowing the headphone “disappear,” so you can simply relax into your musical experience. Let the headphones, equipment, and yes, your daily stresses melt away, leaving your music to be enjoyed the way it was meant to be heard!

EXPANSE Mechanical Design Innovations

We set out to make EXPANSE a real design statement,” said Dan Clark, Founder and CEO. “EXPANSE design takes its cues from our STEALTH headphone but adds an exciting and unique grill based on mathematical functions derived from the principals of generative design, for a truly unique and stylish look.

The top grade black leather headband features fine blue stitching to create a quilted head-strap that’s not only gorgeous but is also functional and comfortable. The elegant embroidered EXPANSE logo adds a dash of color to EXPANSE’s all-black aesthetic.

EXPANSE, the Ultimate in Comfort

Gone are the mechanical sliders for fit adjustment; Dan Clark Audio has designed a stable yet comfortable “self-adjusting suspension system” that seats the headphone just right, with no muss or fuss.

At just 418g, EXPANSE is also one of the lightest super-premium headphones on the market. Taken together, our new vegan suede and "leather" ear pads, self-adjusting suspension, and lightweight chassis make EXPANSE so comfy you can just ignore it and "vanish into your music.”

And for portability or storage, we incorporated AEON 2’s elegant folding gimbal structure into EXPANSE, allowing it to conveniently pack into a compact custom case that’s small and easy to stow.

Specifications

• Driver: 76mm x 51mm single-ended planar magnetic
• Driver matching: 0.25db weighted 20-10,000Hz
• THD: less than 0.03% 20-20KHz, ref. 1KHz at 94dB
• Headband: Nickle-Titanium
• Baffle: Carbon Fiber
• Ear Pads: Synthetic Suede and Leather

In the Box

• EXPANSE Headphone
• Carrying Case
• VIVO cable
• Certificate of authenticity
• Manual

Stealth is Dan Clark Audio's Flagship Closed-Back Headphone, Offering Rich and Spacious Sound

• Flagship closed-back planar magnetic headphones
• Built with 4th Generation v-Planer driver
• Features proprietary Acoustic Metamaterial Tuning System (AMTS)
• Redesigned headband for ultimate comfort and extended listening

"Vanish into your music”

Four years in the making, DCA's flagship Stealth sets a new standard in headphone performance and ergonomics. Featuring Dan Clark Audio’s all-new 4th generation planar magnetic driver and breakthrough Acoustic Metamaterial Tuning System, Stealth delivers a stunningly smooth presentation to bring new life and enjoyment to all your favorite music.

Acoustic Metamaterial Tuning System (AMTS)

All headphones are subject to standing waves in the higher frequencies, and these can make treble sound harsh, fatiguing, or synthetic.

AMTS is DCA’s patent-pending solution to this perennial problem. AMTS is an inline device placed between the transducer and ear. It integrates waveguides, diffusion control, quarter-wave, and Helmholtz resonators into one compact structure. Diffusion elements reduce some of the standing wave formation while resonators act as both precision and broad filters to smooth and shape the frequency response, reducing the amplitude of response peaks and troughs from the midrange through the highest frequencies.

The upshot is AMTS greatly reduces standing waves so high frequencies are rendered with a refreshingly smooth, accurate, and detailed delivery across all genres. OK, bad recordings are still bad, we’re not magicians!

Stealth's all-new 4th generation planar-magnetic driver delivers the smoothest, richest, and most detailed experience we could create. Stealth’s driver is 20% larger than the E2 driver and uses our patented v-Planar technology to reduce THD and improve low frequency extension.

The Diaphragm tension is set on an all-new system for a more uniform and consistent tension, lower distortion, and better driver matching, while FEA and CFD optimized motor structures increase driver force uniformity and smooth acoustic paths to reduce distortion.

Stealth Redefines "Detail"

Stealth’s all-new planer driver delivers incredibly low distortion throughout the listening range with levels of detail heretofore found primarily in the top-of-the-line electrostatics. Unlike many headphones where “detail” is created through exaggerated high-frequency energy, Stealth’s AMTS delivers industry-leading resolution free from the fatiguing emphasis on the top register users may be used to.

Dan Clark's 4th-generation motor and AMTS deliver a sonic performance best described as “effortless." From a delicately plucked string to the most intense dynamics of an orchestra, or the weight and attack of a kick drum to the overtones a decay of a crash cymbal, Stealth delivers an amazing balance of delicacy, nuance, and slam that will have you reaching for all your favorite recordings, and maybe staying up a bit too late.

And then there’s the soundstage; Stealth is all enveloping and can compete with even the finest open headphones in depth, width, and imaging. It’s that effortless sense of space and instrument placement that lets Stealth “disappear” so you can simply relax into your musical experience. Everything – the headphones, the equipment, and yes, your daily stresses – just fall away.

Stealth Mechanical Design Innovations

The top grade black leather headband features fine red stitching to create a quilted head-strap that’s not only gorgeous but is also functional and comfortable. The elegant embroidered Stealth logo adds a dash of color to Stealth’s all-black aesthetic.

Gone are the mechanical sliders for fit adjustment; Dan Clark Audio has designed a stable yet comfortable “self-adjusting suspension system” that seats the headphone just right, with no muss or fuss. At just 418g, Stealth is one of the lightest super-premium headphones on the market.

The new vegan suede and "leather" ear pads, self-adjusting suspension, and lightweight chassis make Stealth so comfy you can just ignore it and "vanish into your music.”

If it's Not Comfortable, Game Over

The ergonomic and stylish outline of Stealth’s ear cups is a natural extension of Aeon 2 ergonomics, albeit they are larger. For storage or travel we incorporated Aeon 2’s elegant folding gimbal structure into Stealth, neatly folding it into a compact custom-molded case that’s small and easy to stow.

Stealth Key Features and Benefits:

• Improved driver tensioning system creates a driver with incredible consistency across units
• FEA and CFD optimized motor structure increases driver motor-force uniformity and smoothes acoustic flow
• All-new auto-adjusting suspended strap design makes Stealth hassle-free to wear
• Pre-formed ergonomic strap design spreads weight evenly across the head for incredibly comfortable extended listening
• Strap quilting improves comfort and reduces heat buildup
• Composite synthetic suede and protein-leather pads offer a sung fit with minimal clamp, with a pleasant touch on the skin
• Carbon / aluminum bonded cup design yields maximum stiffness with minimum weight
• Folding gimbals allow Stealth to be packed in a compact case for safe and easy transport


Specifications

• Driver: 51mm x 76mm planar magnetic
• Weight: 415g
• THD: Less than .002% at 1kHz @ 94dB
• RMS Deviation: .25dB from 20Hz to 10kHz
• Materials: Titanium "Memory Metal" headband, Japanese synthetic protein leather
• Strap: Auto-adjusting suspended comfort strap

In the Box

• Stealth Headphones
• VIVO Cable with 6 ft 6.3mm, XLR, 2.5mm, or 4.4mm termination

• Travel Case

Experience the Next Evolution of the dCS Lina DAC

• Features the same Ring DAC and streaming design as the origin dCS Lina DAC with a new form factor and added features.
• The new physical volume dial and IR Remote Control make Lina DAC X integrate seamlessly into your 2-channel system
• Expand your options with support for hi-res streaming via QQ Music, and the option to connect to CD/SACD Transports for silver disc playback.


Mosaic 1.42 and Lina 2.0 Out of the Box

Get the latest features right out of the box with no firmware update required. dCS has further improved the power and capabilities of Lina with software update 2.0. Lina 2.0 adds two new Mapper settings, DSD128 Upsampling, and new DSD and PCM filters, and Balance controls. It also provides two important accessibility improvements: text size adjustment, and support for a broader range of remotes.

Mosaic 1.42 enables you to control these new features through the app, and improves support for online radio stations to give you more music discovery options.

A New Beginning Built on a Long History of DAC Technology

Lina DAC X is both a continuation and a new beginning. Its design combines renowned dCS technologies with new innovations developed for headphone listeners, resulting in a bold new interpretation of the dCS experience, and a complete reimagining of form and function.

With the Lina DAC X, dCS has taken core playback technologies, including the dCS Ring DAC™ and Digital Processing Platform, and added new innovations developed for headphone listeners. These include their first ever touch-screen display, a streamlined user interface for easier navigation.

Stunning Results

The result is a powerful, supremely capable product designed for use in a wide range of environments, from living rooms to studios and workspaces. With its wide dynamic range, crisp and clear playback, expansive soundstage, and tonal neutrality, it provides a deeply natural, highly detailed, and profoundly musical sound that encapsulates dCS' singular approach to audio.

Add unique headphone optimization technology, an elegant and tactile design, and a high-performance streaming platform, and you have a hugely versatile source that delivers spectacular sound however you choose to listen. Designed to inspire, inform and entertain, it will give you a whole new perspective on the artists and recordings you love.

Specifications

• Finish: Black or Silver machined aluminum with crystal LED display
• Network Interface: RJ-45 ethernet
• Electronics
  • dCS Ring DAC and Digital Processing Platform
  • Stream Unlimited S800
  • Automatic voltage switching
• Digital Inputs
  • (x2) AES/EBU on 3 pin XLR 44.1-384kS/s
  • (x1) S/PDIF BNC Coax 44.1-192kS/s
  • (x1) S/PDIF on RCA 44.1-192kS/s
  • (x1) Toslink 44.1-96kS/s
  • (x1) USB Type B 44.1-384kS/s, PCM and DSD, DSDx2 in Async Mode
  • (x1) USB Type A connector for mass storage devices (navigated using Mosaic)
• Streaming Compatibility
  • UPnP
  • Qobuz
  • Deezer
  • Tidal
  • Internet Radio
  • Spotify
  • Apple AirPlay
  • RoonReady
• Sample frequencies and formats
  • 44.1-384kHz
  • DSD 64, 128
  • Native DSD + DoP (input dependent)
  • FLAC, WAV, AIFF, MQA
• Analog Outputs
  • (x1) Stereo pair 3 pin Balanced XLR
  • (x1) Stereo pair RCA
• Upsampling
  • Multi-stage DXD oversampling with switchable DSD
  • Will clock to 44.1-192kHz
• Word Clock: (x2) Word Clock inputs on 75 Ω BNC connectors
• Filters
  • PCM mode: 2 filters + MQA
  • DSD mode: 4 progressive filters
• Crossfeed Settings
  • Standard crossfeed
  • dCS Enhanced crossfeed (E1)
  • dCS Enhanced crossfeed (E2)
• Power
  • IEC inlet & power switch on rear panel
  • 90-120v & 220-240v, 50/60Hz nominal
  • Automatic voltage switching
• Power Link (on/off synchronization across other components): (x2) RJ45
• Frequency Response (on filter 1)
  • Fs = 44.1 or 48kS/s +/-0.1dB, 10Hz-20kHz
  • Fs = 88.2 or 96kS/s +/-0.1dB, 10Hz-20kHz -3dB @ >38kHz
  • Fs = 176.4 or 192kS/s +/-0.1dB, 10Hz-20kHz -3dB @ >67kHz
  • Fs = 352.8 or 384kS/s +/-0.1dB, 10Hz-20kHz -3dB @ >100kHz
  • DSD64 +/-0.1dB, 10Hz-20kHz -3dB @ >90kHz
  • DSD128 +/-0.1dB, 10Hz-20kHz -3dB @ >100kHz
• Residual Noise (6v output)
  • 16-bit data: Better than –96dB0, 20Hz-20kHz unweighted
  • 24-bit data: Better than –113dB0, 20Hz-20kHz unweighted
• Spurious Response: Better than –105dB0, 20Hz-20kHz
• L-R Crosstalk: Better than –115dB0, 20Hz-20kHz

In the Box

• dCS Lina DAC X
• (x1) Mains cable, 6.6' (2m)
• (x2) XLR cables, 1.64' (0.5m)
• (x1) Ethernet cable, 6.6' (2m)
• (x1) Power Link cable, 1.64' (0.5m)
• (x1) Aluminum Handheld IR Remote

The dCS Lina Headphone Amp, Your Ultimate Power Workhorse

• Designed from the ground up to deliver TOTL performance for TOTL headphones and IEMs
• Power and dynamics delivered with tonal transparency
• Low impedance for driving sensitive headphones and IEMs
• Delivers 2W of power for driving virtually any harder to drive Over-ear headphone
• Now available in Black and Silver finishes

Unrivaled Power and Flexibility

Whether you’re listening with custom IEMs or reference-level over-ears, the Lina headphone amplifier will ensure you experience the full impact of your headphones and your music. With its ultra-low output impedance, it confidently drives a vast range of designs and adapts to suit their unique requirements and characteristics for optimal performance.

dCS' first ever standalone amp, its design builds on decades-long experience working at the forefront of audio design and engineering, including development of the well-known, award-winning dCS Bartók Headphone DAC. Following the Bartók’s release, dCS set out to broaden their expertise in headphone amplification, specifically to engineer a standalone component that could be used separately or as part of a complete dCS head-fi system.

Gripping Power and Novel Innovation

Through exhaustive development, extensive testing, and creative thinking, dCS developed an all-new design that combines tried and tested features with novel innovations engineered to further enhance performance and efficiency.

The result is an exemplary headphone amplifier that delivers plenty of power and grip, while maintaining complete neutrality. With its low noise floor, wide dynamic range and excellent linearity, it delivers a compelling, dynamic experience that reveals the true sound and character of your music and headphones.

Specifications

• Dimensions: 4.78" (H) x 8.66" (W) x 14" (D) (121.5mm x 220mm x 356mm)
• Weight: 16.5 lbs (7.5kg)
• Finish: Black or Silver machined aluminum
• Power Link (on/off synchronization across other components): (x2) RJ45
• Electronics
• Pure analog design
• Automatic voltage switching
• Analog Inputs
• (x1) Stereo pair unbalanced RCA, input impedance 48kΩ
• (x1) Stereo pair unbuffered balanced XLR, input impedance 16kΩ
• (x1) Stereo pair buffered balanced XLR, input impedance 96kΩ
• Power: 90-120v & 230-240v, 50/60Hz nominal
• Frequency Response: 1Hz-100kHz better than +0/-3dB
• THD+N: <0.005% @ 1kHz 6V rms balanced output into 30Ω (80kHz bandwidth)
• Channel Separation
• Balanced input to balanced output into 30Ω.Better than 100dB @ 1kHz.
• Better than 80dB, 20Hz–20kHz.
• SN/R: 110dB 20Hz-20kHz A-weighted (referenced to 6V rms balanced input and output)
• Headphone Outputs
• Dual 3-pin balanced XLR, R and ;L channel
• (x1) Single 4-pin balanced XLR
• (x1) Single 6.3mm headphone jack
• Power Output
• (x2) Balanced 2W into 30Ω
• (x2) Balanced 0.48W into 300Ω
• (x2) Unbalanced 1.6W into 30Ω
• (x2) Unbalanced 0.2W into 300Ω

In the Box

• dCS Headphone Amp
• (x1) Mains cable, 6.6' (2m)
• (x1) Power Link cable, 1.64' (0.5m)

Achieve Ultimate Audio Optimization with the dCS Lina Master Clock

• Designed for the dCS Lina DAC, but compatible with other devices
• Provides often overlooked workload of digital audio clock synchronization
• Prevent small deviations in transfer rate and latency that impact clarity and dynamics
• Employs dual crystal oscillators offering unheard of musical refinement for the cleanest possible output
• Standalone design with dedicated chassis and electronics minimizes risk of clock signal interference
• Now available in Black and Silver finishes

Inspired by Dedication to Unrivaled, Superior Sound Quality

dCS brings over 30 years of experience developing master clocks for professional and home use, and the jury is out: listeners and audio experts agree they've achieved significant sonic benefits after adding a dCS master clock to their system.

Designed for use with the Lina Network DAC, it uses two crystal oscillators to deliver a precise and stable clocking reference for all audio formats and frequencies. When paired with the Lina DAC, it allows the DAC’s internal clock system to be locked to a master signal for even greater precision and enhanced audio performance.

Reliably Accurate, Unquestionably Precise

Its standalone design ensures sensitive clocking components are protected from factors that can cause interference. Each crystal oscillator is also oven-controlled to ensure its performance remains consistent, even under changing conditions and temperatures.

Designed for maximum reliability and longevity, it is a silent but powerful component engineered to operate with absolute precision and consistency, so you can experience the best possible performance from your system. Combined with the Lina Network DAC and Headphone Amplifier, it delivers an even more profound and immersive listening experience, and helps ensure the audio you hear sounds exactly as it should.

Specifications

• Clock Type: Grade 1 Master Clock, with oven-controlled crystal oscillators
• Dimensions: 4.78" (H) x 8.66" (W) x 13.35" (D) (121.5mm x 220mm x 339mm)
• Weight: 15.4 lbs (7kg)
• Finish: Black or Silver machined aluminum
• Word Clock Outputs
• (x2) Independently buffered TTL-compatible output on 75Ω BNC connectors
• Output 1: fixed at 44.1kHz
• Output 2: fixed at 48kHz
• Clock Accuracy: Better than +/-1 ppm when shipped over an ambient temperature range of +5°C to +45°C
• Power Link (on/off synchronization across other components): (x2) RJ45
• Power
• 90-120v & 220-240v, 50/60Hz nominal
• Consumption 10W
• Startup Time: Typically 10 minutes to rated accuracy

In the Box

• Master Clock
• (x1) Mains cable, 6.6' (2m)
• (x1) Power Link cable, 1.64' (0.5m)
• (x2) BNC, 1.64' (0.5m)

Decades of DAC Refinement Come Together in the dCS Lina DAC

• dCS Ring DAC technology with ultra-black background
• Elevate any headphone or two channel system
• Network streaming with the dCS Mosaic platform - supports Hi-Res streaming via Roon, Spotify, TIDAL, UPnP, and more!
• Now available in Black and Silver finishes

Mosaic 1.42 and Lina 2.0

dCS has further improved the power and capabilities of Lina with software update 2.0. Lina 2.0 adds two new Mapper settings, DSD128 Upsampling, and new DSD and PCM filters, and Balance controls. It also provides two important accessibility improvements: text size adjustment, and support for a broader range of remotes.

Mosaic 1.42 enables you to control these new features through the app, and improves support for online radio stations to give you more music discovery options.

Update Notes: Lina updates are facilitated via dCS Mosaic. Make sure Lina is connected to your network, and on Mosaic, navigate to Support -> Versions -> Check for Updates. Please allow 30 minutes for the update to complete. Do not power off Lina during the update.

A New Beginning Built on a Long History of DAC Technology

The Lina Network DAC is both a continuation and a new beginning. Its design combines renowned dCS technologies with new innovations developed for headphone listeners, resulting in a bold new interpretation of the dCS experience, and a complete reimagining of form and function.

With the Lina Network Streaming DAC, dCS has taken core playback technologies, including the dCS Ring DAC™ and Digital Processing Platform, and added new innovations developed for headphone listeners. These include their first ever touch-screen display, a streamlined user interface for easier navigation, and a powerful flex-rigid circuit board which allows for the delivery of all the features you’d expect from a dCS DAC but in a much smaller chassis.

Stunning Results

The result is a powerful, supremely capable product designed for use in a wide range of environments, from living rooms to studios and workspaces. With its wide dynamic range, crisp and clear playback, expansive soundstage, and tonal neutrality, it provides a deeply natural, highly detailed, and profoundly musical sound that encapsulates dCS' singular approach to audio.

Add unique headphone optimization technology, an elegant and tactile design, and a high-performance streaming platform, and you have a hugely versatile source that delivers spectacular sound however you choose to listen. Designed to inspire, inform and entertain, it will give you a whole new perspective on the artists and recordings you love.

Specifications

• Dimensions: 4.78" (H) x 8.66" (W) x 13.35" (D) (121.5mm x 220mm x 339mm)
• Weight: 16.3 lbs (7.4kg)
• Finish: Black or Silver machined aluminum with crystal LED display
• Network Interface: RJ-45 ethernet
• Electronics
• dCS Ring DAC and Digital Processing Platform on flex ridged PCB
• Stream Unlimited S800
• Automatic voltage switching
• Digital Inputs
• (x2) AES/EBU on 3 pin XLR 44.1-384kS/s
• (x1) S/PDIF BNC Coax 44.1-192kS/s
• (x1) S/PDIF on RCA 44.1-192kS/s
• (x1) Toslink 44.1-96kS/s
• (x1) USB Type B 44.1-384kS/s, PCM and DSD, DSDx2 in Async Mode
• (x1) USB Type A connector for mass storage devices (navigated using Mosaic)
• Streaming Compatibility
• UPnP
• Qobuz
• Deezer
• Tidal
• Internet Radio
• Spotify
• Apple AirPlay 2 (support at 44.1 or 48kS/s)
• RoonReady
• Sample frequencies and formats
• 44.1-384kHz
• DSD 64, 128
• Native DSD + DoP (input dependent)
• FLAC, WAV, AIFF, MQA
• Analog Outputs
• (x1) Stereo pair 3 pin Balanced XLR
• (x1) Stereo pair RCA
• Upsampling
• Multi-stage DXD oversampling with switchable DSD
• Will clock to 44.1-192kHz
• Word Clock: (x2) Word Clock inputs on 75 Ω BNC connectors
• Filters
• PCM mode: 2 filters + MQA
• DSD mode: 4 progressive filters
• Crossfeed Settings
• Standard crossfeed
• dCS Enhanced crossfeed (E1)
• dCS Enhanced crossfeed (E2)
• Power
• IEC inlet & power switch on rear panel
• 90-120v & 220-240v, 50/60Hz nominal
• Automatic voltage switching
• Power Link (on/off synchronization across other components): (x2) RJ45
• Frequency Response (on filter 1)
• Fs = 44.1 or 48kS/s +/-0.1dB, 10Hz-20kHz
• Fs = 88.2 or 96kS/s +/-0.1dB, 10Hz-20kHz -3dB @ >38kHz
• Fs = 176.4 or 192kS/s +/-0.1dB, 10Hz-20kHz -3dB @ >67kHz
• Fs = 352.8 or 384kS/s +/-0.1dB, 10Hz-20kHz -3dB @ >100kHz
• DSD64 +/-0.1dB, 10Hz-20kHz -3dB @ >90kHz
• DSD128 +/-0.1dB, 10Hz-20kHz -3dB @ >100kHz
• Residual Noise (6v output)
• 16-bit data: Better than –96dB0, 20Hz-20kHz unweighted
• 24-bit data: Better than –113dB0, 20Hz-20kHz unweighted
• Spurious Response: Better than –105dB0, 20Hz-20kHz
• L-R Crosstalk: Better than –115dB0, 20Hz-20kHz

In the Box

• dCS Network DAC
• (x1) Mains cable, 6.6' (2m)
• (x2) XLR cables, 1.64' (0.5m)
• (x1) Ethernet cable, 6.6' (2m)
• (x1) Power Link cable, 1.64' (0.5m)

dCS Lina, the Ultimate Headphone System

• Lina uses dCS Ring DAC technology for total black background
• Lina Amp delivers power and dynamics with tonal transparency
• Master Clock fixes timing inconsistencies caused by digital conversion and data transfer, enhancing the clarity of digital audio
• Combined, the full dCS Lina system provides an unrivaled experience
• Now available in Black and Silver finishes

Mosaic 1.42 and Lina 2.0

dCS has further improved the power and capabilities of Lina with software update 2.0. Lina 2.0 adds two new Mapper settings, DSD128 Upsampling, and new DSD and PCM filters, and Balance controls. It also provides two important accessibility improvements: text size adjustment, and support for a broader range of remotes.

Mosaic 1.42 enables you to control these new features through the app, and improves support for online radio stations to give you more music discovery options.

Update Notes: Lina updates are facilitated via dCS Mosaic. Make sure Lina is connected to your network, and on Mosaic, navigate to Support -> Versions -> Check for Updates. Please allow 30 minutes for the update to complete. Do not power off Lina during the update.

A Bold Vision

Lina began with a desire to create a system that reveals the full potential of your chosen headphones, plus the full breadth of detail, artistry and emotion in your music. Drawing on their extensive experience of pioneering audio products like the award-winning dCS Vivaldi, Rossini and Bartók headphone DAC, Lina set out to engineer a new series that embodies their singular approach to sound reproduction.

Rooted in Heritage

Lina is made possible through 3 decades of innovation, a tireless pursuit to advance the standard of sound reproduction and bring people closer to the music they love. Tempered by 35 years of development, Lina combines state-of-the-art hardware and software with a technical lineage traced back to the advent of digital audio, and the creation of the world’s first ever high-res digital converters.

A Custodian of Sound

Offering technical precision, transparency, and musicality in equal measure, Lina reproduces each aspect of a recording, from the subtlest of sonic details, to the sense of rhythm, movement, and harmonic flow, with absolute integrity. Whatever track is chosen, it delivers a performance that feels vividly detailed, effortlessly natural, and emotionally compelling. Always faithful to your music, it brings a new level of realism and purity to playback.

Specifications

Full Stack Specs
Full Stack Dimensions: 14.5" (H) x 8.7" (W) x 13.4" (D)
Finish: Black or Silver aluminum (DAC has crystal LED)
Power: 90-120v & 220-240v, 50/60Hz nominal

Lina Network DAC (Full DAC Specs Here)

• Network: RJ-45 ethernet
• Digital Inputs
  • (x2) AES/EBU, 3 pin XLR
  • (x1) S/PDIF BNC Coax
  • (x1) S/PDIF, RCA
  • (x1) Toslink
  • (x1) USB-B
  • (x1) USB-A (mass storage)
• Streaming Compatibility: RoonReady, Tidal, Qobuz, UPnP, Deezer, Internet Radio, Spotify, Apple AirPlay 2
• Sample frequencies and formats
  • 44.1-384kHz
  • DSD 64, 128
  • Native DSD + DoP
  • FLAC, WAV, AIFF, MQA
• Analog Outputs
  • (x1) Stereo pair 3 pin Balanced XLR
  • (x1) Stereo pair RCA
• Upsampling: Multi-stage DXD oversampling
• Word Clock: (x2) BNC

Lina Master Clock (Full Clock Specs Here)

• Word Clock Outputs: (x2) BNC
• Clock Accuracy: Better than +/-1 ppm

Lina Headphone Amp (Full Amp Specs Here)

• Analog Inputs
  • (x1) Stereo pair RCA
  • (x1) Stereo pair unbuffered Bal XLR
  • (x1) Stereo pair buffered Bal XLR
• Frequency Response: 1Hz-100kHz better than +0/-3dB
• THD+N: <0.005% @ 1kHz 6Vrms
• SN/R: 110dB 20Hz-20kHz A-weighted
• Headphone Outputs
  • Dual 3-pin balanced XLR, R and L channel
  • (x1) Single 4-pin balanced XLR
  • (x1) Single 6.3mm headphone jack
• Power Output
  • (x2) Bal 2W / 30Ω
  • (x2) Bal 0.48W / 300Ω
  • (x2) 1.6W / 30Ω
  • (x2) 0.2W / 300Ω

In the Box

• Network DAC
• Master Clock
• Headphone Amp
• (x3) Mains cable
• (x3) Power Link cables
• (x2) XLR cables
• (x1) Ethernet cable
• (x2) BNC cables

Enhance Your Audio Experience with the ddHiFi BC130 Net High-Purity Shielded IEM Cable

• High-purity OCC single crystal copper shielded IEM cable
• Innovative shielding structure optimizes signal transmission
• Crafted with titanium alloy components for durability
• Features a 4.4mm balanced plug with grounding shield and replaceable connectors, including MMCX and 0.78-2Pin options

Flexible Shielding Structure

The Nyx Net features an innovative flexible shielding structure that optimizes signal transmission speed using high-purity single crystal copper. This design enhances high-frequency clarity and detail. Opting for the Pentaconn plug version further refines low-frequency depth, delivering a smoother, more nuanced listening experience—especially when paired with headphones known for their dynamic energy.

Main Core Structure

The core structure of the Nyx Net mirrors that of the Nyx Pro, utilizing a precise 1:8 ratio. Seven larger-diameter single crystal copper conductors are arranged in a circular array, with ultra-fine single crystal copper strands evenly distributed around the perimeter. Each conductor is independently insulated, ensuring optimal signal transmission across all frequency ranges for superior audio clarity.

Shielded Plug

The 4.4mm plug structure in Nyx headphone cables incorporates a specialized shielding design. Each signal wire in the Nyx Net has its shielding layer connected to the fifth segment of the plug, ensuring a stable and interference-free connection. Additionally, an injected molding process reinforces the structure, preventing the mesh-style cable from loosening over time, enhancing durability and long-term reliability.

Interchangeable Pins

MMCX and 0.78mm dual-pin connectors are widely used in many earphones. In collaboration with Eletech, ddHiFi has developed the innovative Nyx Pin interchangeable system, offering greater compatibility and flexibility. The Nyx Net earphone cable includes one pair of MMCX pins and three pairs of 0.78mm pins*, ensuring a secure fit across different earphone models.

*To accommodate various 0.78mm dual-pin earphone sockets, Nyx Net provides three distinct pin housings: a transparent housing for the 3.0mm version, a black housing for the 3.5mm version, and a flat housing for non-recessed sockets.

Specifications

• Wire Conductors: 25.4AWG
• Core Conductor Material: High-Purity OCC (Taiwan)-Litz Type 2
• Core Conductor Structure: -(Φ0.08×1+Φ0.05×8)×7×4 wires
• Outer Protection Layer: Desert Color Nylon Braided Mesh
• Inner Insulation
  • 1: NUC High-Density Polyethylene
  • 2: SoftFlex PVC
• Plug: Standard 4.4mm Balanced or Pentaconn Oxygen-free Copper Gold-plated plug
• Nyx Pin: (3x) 0.78mm 2-pin, (1x) MMCX
• Weight: About 40g
• Length: 120cm

*The replaceable connectors used for the Nyx Pro earphones cable are called "Nyx-Pin" ; the replaceable connectors used for independent sales are called "Versa". While the metal shells of "Nyx-Pin" and "Versa" differ, the internal connectors are the same.

Experience a Wider Soundstage with the ddHiFi BC150B Double Shielded Silver Headphone Upgrade Cable

• Pure Silver, Furukawa Silver-Copper Alloy, and Silver-plated OCC structure
• Double-shielded coaxial structure creates cleaner background for a more enjoyable listening experience

• Balanced 4.4mm plug
• Variety of connectivity options available

Double Shielded Coaxial Structure

To enhance tensile resistance for over-ear headphone upgrade cables, the typical approach is to wrap a multi-strand braided cable with netting to prevent loosening. However, the BC150B features a unique design with two sets of signal lines arranged in a coaxial structure.

This is further reinforced by an additional layer of shielding on the outermost layer, creating a double-shielded coaxial system with three layers of conductors and insulation. This innovative structure not only provides superior tensile strength but also ensures a cleaner background sound for signal transmission.

More Pure than Silver

The core conductor is crafted from two types of pure silver with varying diameters, combined with silver-plated OCC and Furukawa silver-copper alloy. With a cross-sectional area of up to 22.8AWG, it ensures high-power transmission while maintaining optimal efficiency across different signal types. This design not only enhances transmission but also improves sound quality, delivering more accurate tonal expression for various instruments and a clearer sense of sound positioning.

Specifications

• Conductors
  • 22.8AWG (Signal+)
  • 24.3AWG (Signal-)
  • 21.5AWG (Shielding)
• Cable Structure
  • Φ0.08mm 4N Silver + Φ0.05mm 4N Silver + Φ0.05mm Silver-plated OCC + Φ0.05mm Furukawa Silver-Copper Alloy (Signal+)
  • Φ0.05mm 5N OCC (Signal-)
  • Φ0.06mm Silver Plated over OFC (Shielding)
• Plug: 4.4mm
• Connector
  • Standard 3.5 mm
  • Sennheiser 2-pin
  • Sennheiser 2-pin for recessed socket (fits Sennheiser HD800 / HD800S),
  • Focal Lemo (for Utopia)
  • Mini XLR for Audeze / ZMF
• Weight: 60g

Experience a Wider Soundstage with the ddHiFi BC150XLR Shielded Silver Headphone Upgrade Cable

• Pure Silver, Furukawa Silver-Copper Alloy, and Silver-plated OCC structure
• Double-shielded coaxial structure creates cleaner background for a more enjoyable listening experience
• Balanced XLR 4-Pin plug
• Variety of connectivity options available

Double Shielded Coaxial Structure

To enhance tensile resistance for over-ear headphone upgrade cables, the typical approach is to wrap a multi-strand braided cable with netting to prevent loosening. However, the BC150XLR features a unique design with two sets of signal lines arranged in a coaxial structure.

This is further reinforced by an additional layer of shielding on the outermost layer, creating a double-shielded coaxial system with three layers of conductors and insulation. This innovative structure not only provides superior tensile strength but also ensures a cleaner background sound for signal transmission.

More Pure than Silver

The core conductor is crafted from two types of pure silver with varying diameters, combined with silver-plated OCC and Furukawa silver-copper alloy. With a cross-sectional area of up to 22.8AWG, it ensures high-power transmission while maintaining optimal efficiency across different signal types. This design not only enhances transmission but also improves sound quality, delivering more accurate tonal expression for various instruments and a clearer sense of sound positioning.

Specifications

• Conductors

  • 22.8AWG (Signal+)

  • 24.3AWG (Signal-)

  • 21.5AWG (Shielding)

• Cable Structure

  • Φ0.08mm 4N Silver + Φ0.05mm 4N Silver + Φ0.05mm Silver-plated OCC + Φ0.05mm Furukawa Silver-Copper Alloy (Signal+)

  • Φ0.05mm 5N OCC (Signal-)

  • Φ0.06mm Silver Plated over OFC (Shielding)

• Plug: Balanced XLR 4-pin

• Connector

  • Standard 3.5 mm

  • Sennheiser 2-pin

  • Sennheiser 2-pin for recessed socket (fits Sennheiser HD800 / HD800S),

  • Focal Lemo (for Utopia)

  • Mini XLR for Audeze / ZMF

• Weight: 60g

The ddHiFi Nyx Series BC35B and BC44B are Premium Audio Cables Designed for Audiophiles Seeking High-Quality Sound Transmission

• Premium interconnect cables
• Features advanced shielding and crafted with durable materials
• Offers a clean, noise-free listening experience
• High transparency SoftFlex PVC


Precision Crafted

The ddHiFi Nyx Series BC35B and BC44B are high-quality balanced audio cables designed for audiophiles. With advanced shielding and durable construction, these cables ensure clean, interference-free sound for balanced audio setups. Perfect for enhancing audio performance, they provide reliability and clarity in every listening experience

Specifications

• Conductor: 27.2AWG (core) + 24.9AWG (spiral shielding)
• Conductor Material
  • Litz Type Il high-purity pure silver (core)
  • Litz high-purity oxygen-free copper (black)
  • Litz silver plated over long crystal copper (silver)
• Cable Structure
  • Ф0.05mm×7x7 strands x 8 strands (core)
  • 00.05mmx 7x14 strands x 8 strands (shielding)
• Inner Insulation: NUC chemical foam HDPE made in Japan
• Outer Insulation: High transparency SoftFlex PVC
• Plug
  • BC35B: 3.5mm stereo, 24K gold-plated copper
  • BC44B: 4.4mm balanced, 24K gold-plated copper
• Weight: 15g
• Length: 10cm

The ddHiFi BC44Pro Balanced Interconnect Cable is Ideal for Audiophiles Seeking Enhanced Sound Quality and Robust Performance

• Premium 4.4mm to 4.4mm balanced audio cable
• Featuring Litz Type II high-purity pure silver and single crystal copper conductors for high-fidelity sound
• Innovative dual-shell structure to prevent unnecessary wear and tear
• SoftFlex PVC for flexibility and strength

Durable and Reliable

The BC44Pro is designed for superior durability, making it ideal for audio enthusiasts. Short cables connecting to headphone amplifiers often endure frequent bending, leading to wear at the joints. To address this, the BC44Pro uses an innovative dual-shell structure.

The inner shell, molded with the cable, acts like reinforced steel in concrete for added strength, while the outer titanium alloy shell is reverse-inserted and secured with a threaded lock. This ensures exceptional protection and long-lasting performance during daily use.

8-Strand Braided Wire

The BC44Pro utilizes the same high-quality shielding wire found in the Nyx Pro cables. This specialized wire features a metallic-coated fiber shielding layer, which is meticulously woven and placed between the inner and outer insulation layers.

The main core of the cable is enveloped in this soft conductive fiber, enhancing signal integrity and minimizing interference.

Floating Shield with No Ground Connection

The 4.4mm balanced plug includes a ground line, which can connect the ground of the player and amplifier, potentially causing noise or interference. To address this, the BC44Pro employs a design where each signal line features its own shielding layer that remains unconnected to the ground. This innovative approach prevents ground loops and reduces issues like charging interference, ensuring a cleaner and more reliable audio setup when the player and amplifier share a ground connection.

Specifications

• Conductors: 25.4AWG (x8)
• Conductor Material: Litz Type II high-purity pure silver and Taiwan OCC (core)
• Cable Structure
  • Φ0.08mm × 7 strands × 4 strands ( silver)
  • Φ0.05mm × 56 strands × 4 strands (OCC)
• Inner Insulation: Japan NUC chemical foam HDPE (Made in Japan)
• Outer Insulation: High transparency SoftFlex PVC
• Plug
  • Titanium Alloy
  • 4.4mm balanced (x2)
• Weight: About 14g
• Length: 10cm

Keep Your IEMs and Cables Protected On-the-Go with ddHiFi's C100 Nylon Zipper Storage Case

• Made from polyester and nylon with mesh pockets, padding, and cross-partition
• Dual compartments
• Stylish Dark Blue with drawstring
• Bloom Audio branded C100 cases available now!

Dual Compartment Case

Upper Layer

For the upper layer, you can store earphone cables or frequently used earbuds. It’s designed with a mesh pocket on both sides of the compartment and filled with a relatively thick sponge.

Lower Layer

For the lower layer, it’s a combination of hard bottom and soft surrounded sponge. The hard bottom can protect gear against accidental drops while the soft surrounded sponge can resist squeezing.

*NOTE: Since there is no soft padding at the bottom, if you use this area to store more fragile items, it’s recommended to add additional soft padding. This compartment is intended for earphone cables, adapters, dongles, silicone ear tips, and other less-fragile accessories.

Cross-Partition Flexible Spacing

The cross partition can separate metal plugs and earphones from each other for better protection from friction during travel.

Specifications

• Model: C100 Earphone Carrying Case
• Material: 1680D double-strand nylon
• Lining: 150D Polyester
• Zipper: YKK metal slider + ddHiFi drawstring
• Color: Dark Blue
• Weight: about 135g
• Outer Dimensions: 110mm x 110mm x 90mm

Safeguard Your IEMs in Timeless Style with ddHiFi's CZ120, a Retro-Inspired Storage Case That Blends Vintage Charm with Modern Protection

• Retro cassette-style earphones storage case
• Made with microfiber and leather
• Multiple internal compartments
• Dual pullers, YKK metal + cord pull

Awakening Memories

Holding this case feels like gripping a vintage cassette player, condensing a generation's musical nostalgia in the palm of your hand. Crafted with supply microfiber leather and embossed with "Memory" as a timeless print, it revives those youthful moments of rewinding tapes to find the perfect melody. More than just a storage accessory, it's a symbol of nostalgia, ddHiFi's homage to the golden age of audio.

Timeless Craftsmanship

Inheriting the rugged DNA of the CZ180, this case features a durable microfiber leather exterior - scratch-resistant, tough, yet refined. Paired with the industry-leading YKK zipper, it ensures smooth operation and longevity, making it a steadfast companion for years to come.

Zoned Protection

Practical features are what users truly need. With multiple internal compartments, this design allows each earbud to rest in its dedicated space, eliminating friction and potential damage. Every use becomes a more pleasant experience, knowing your earphones are stored with care.

Portable and Practical

Staying true to ddHiFi's design philosophy of "compact yet functional," this case boasts cassette-tape form factor, effortlessly fitting in to your on-the-go music lifestyle. Slip it into your pocket, toss it into your bag, just like carrying a classic Walkman. It keeps your earphones and small digital accessories neatly stored, blending nostalgic charm with modern convenience.
