SMSL

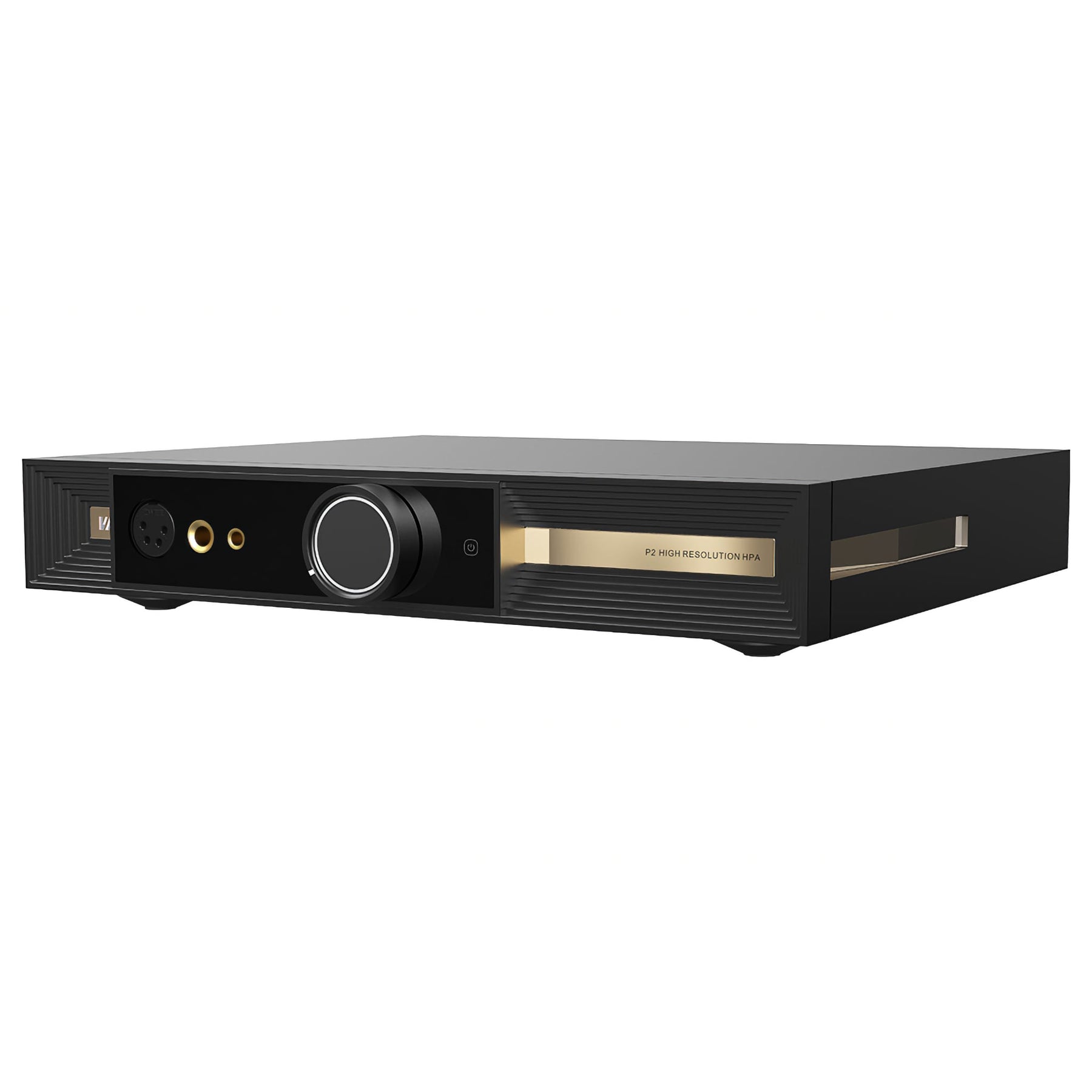

SMSL VMV P2 is a Fully Balanced Ultra-low Distortion Precision Amplifier

• Fully balanced headphone amplifier with 12 Watts of power
• Vintage style design, with the best in modern amplifier technology.
• Advanced design with 99 low-noise op-amps operating in parallel
• Optimized for both over-ear headphones and sensitive IEMs

High Output Power

VMV P2 produces up to 12W at 16ohms and 6W at 32ohms. Along with that, you can adjust the gain to compensate for either hard to drive headphones or sensitive IEMs. And the 4-way ultra low distortion precision linear feedback circuit (PLFC) ensures that all that power doesn't come with any extra noise.

Inside, VMV P2 features:

• 99 low-noise op-amps used in a parallel design
• Specially designed volume potentiometer with next to 0 channel deviation
• Comprehensive protection for DC overvoltage and overload.
• Built-in high-efficiency, low-noise power supply

Detail Oriented Design

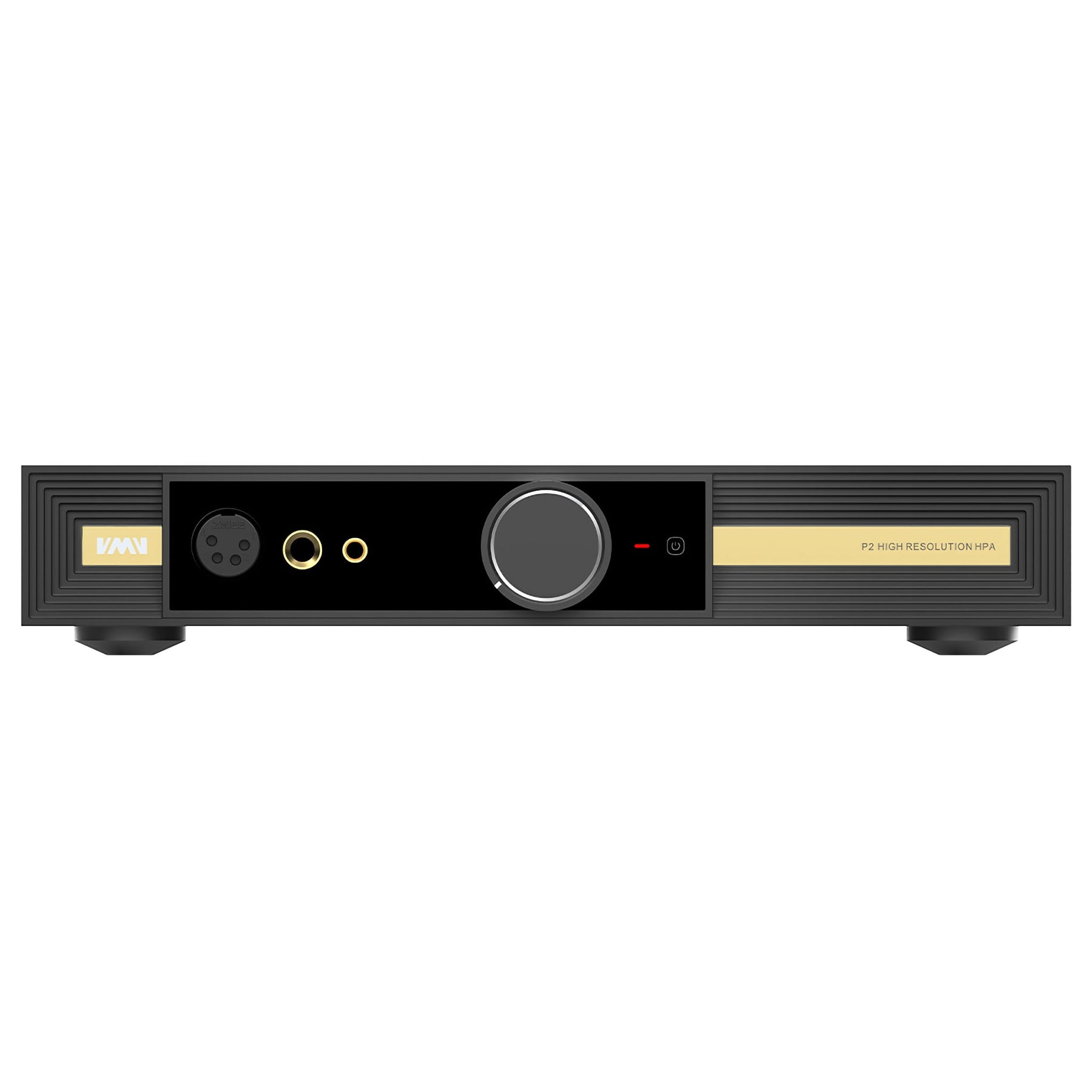

VMV P2 has high quality knobs designed to provide a smooth, sleek experience. The tempered glass panel on top lets you see the inner workings of the device, and vintage style switching provides a firm, tactile experience.

Specifications

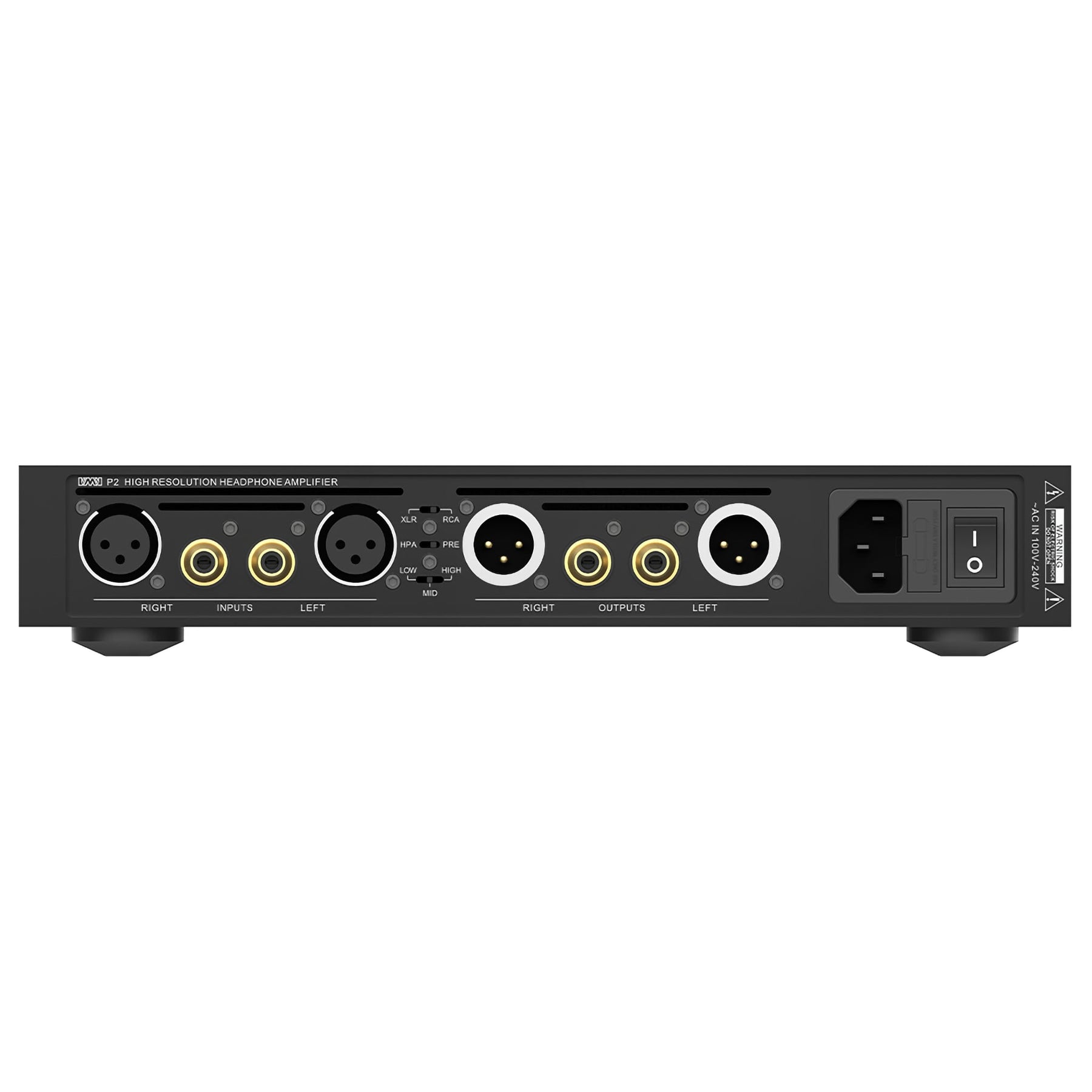

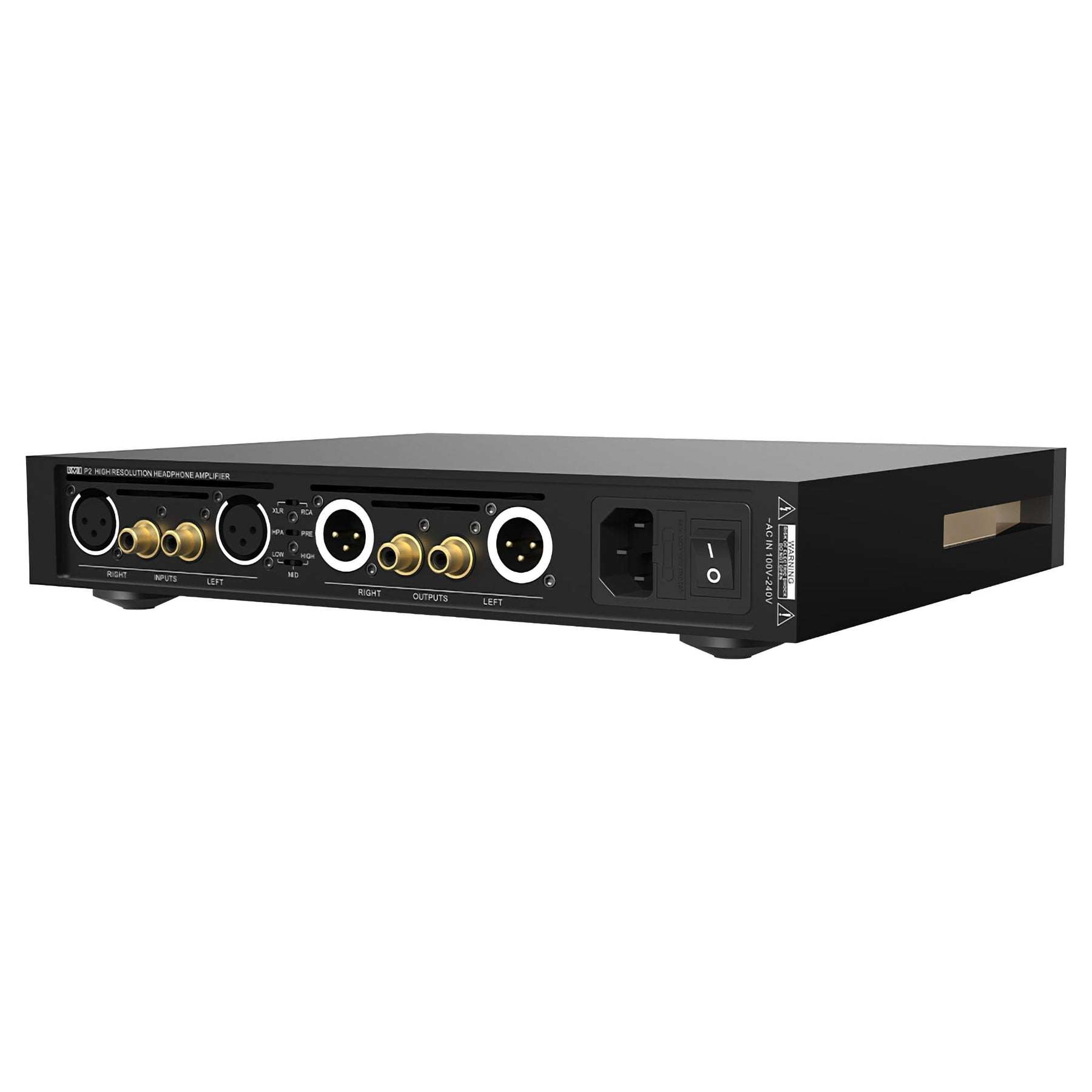

• Inputs: Balanced x1, Unbalanced x1
• Headphone outputs: 4.4mm Balanced x1, XLR 4 Pin x1, 6.35mm unbalanced x1
• Pre-outputs: Balanced x1, Unbalanced x1
  • Output Power:
  • 12W (16 ohm)
  • 2W (32 ohm)
  • 700mW (300 ohm)
  • 350mW (600 ohm)
• SNR: 133dB
• Dynamic Range: 133dB
• THD+N: -123dB, 0.00006 (1kHz)
• Frequency Response: 20Hz - 100kHz
• Power consumption: <60W
• Weight: 7.16lbs

In the Box

• VMV P2 Amplifier
• AC Cable
• Warranty Card

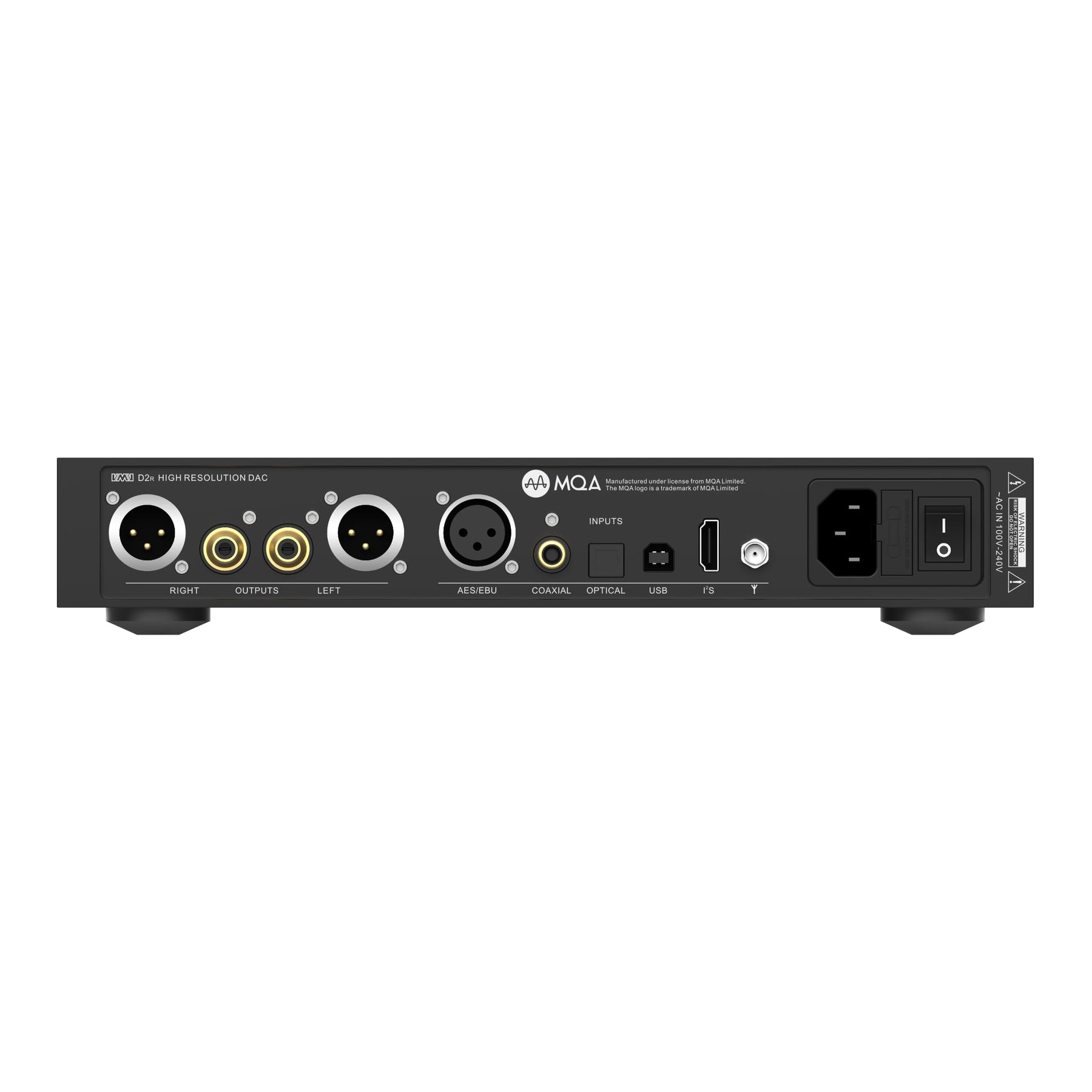

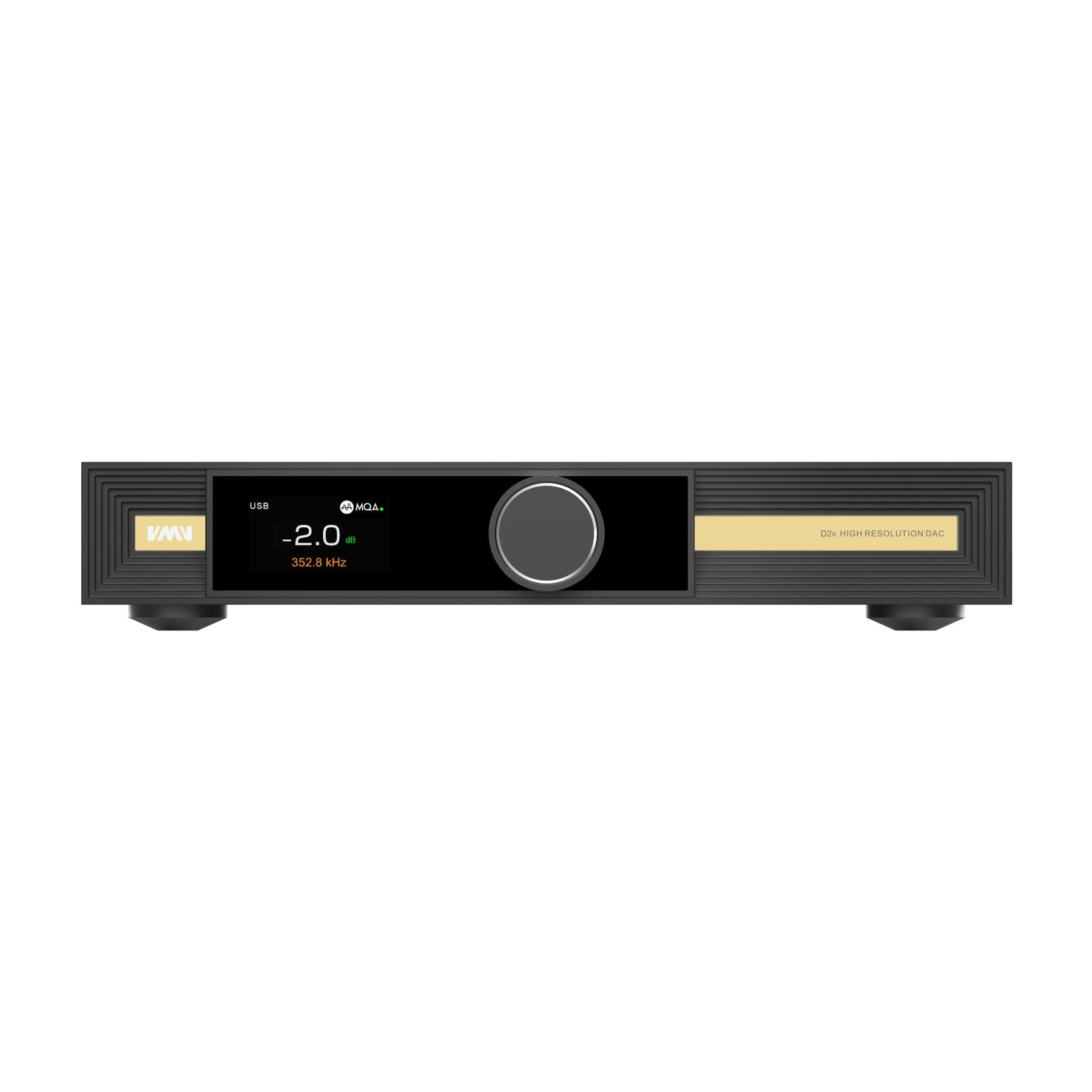

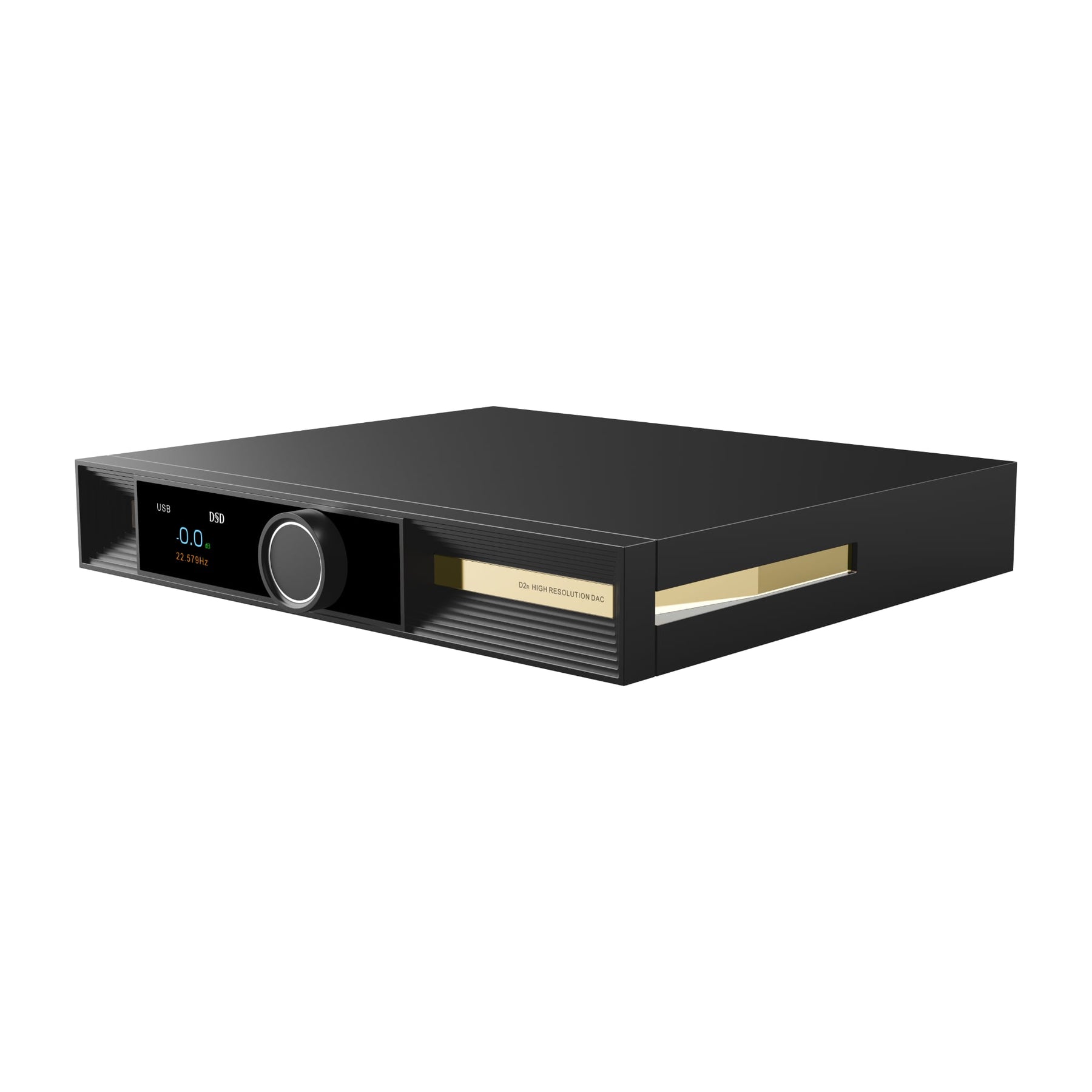

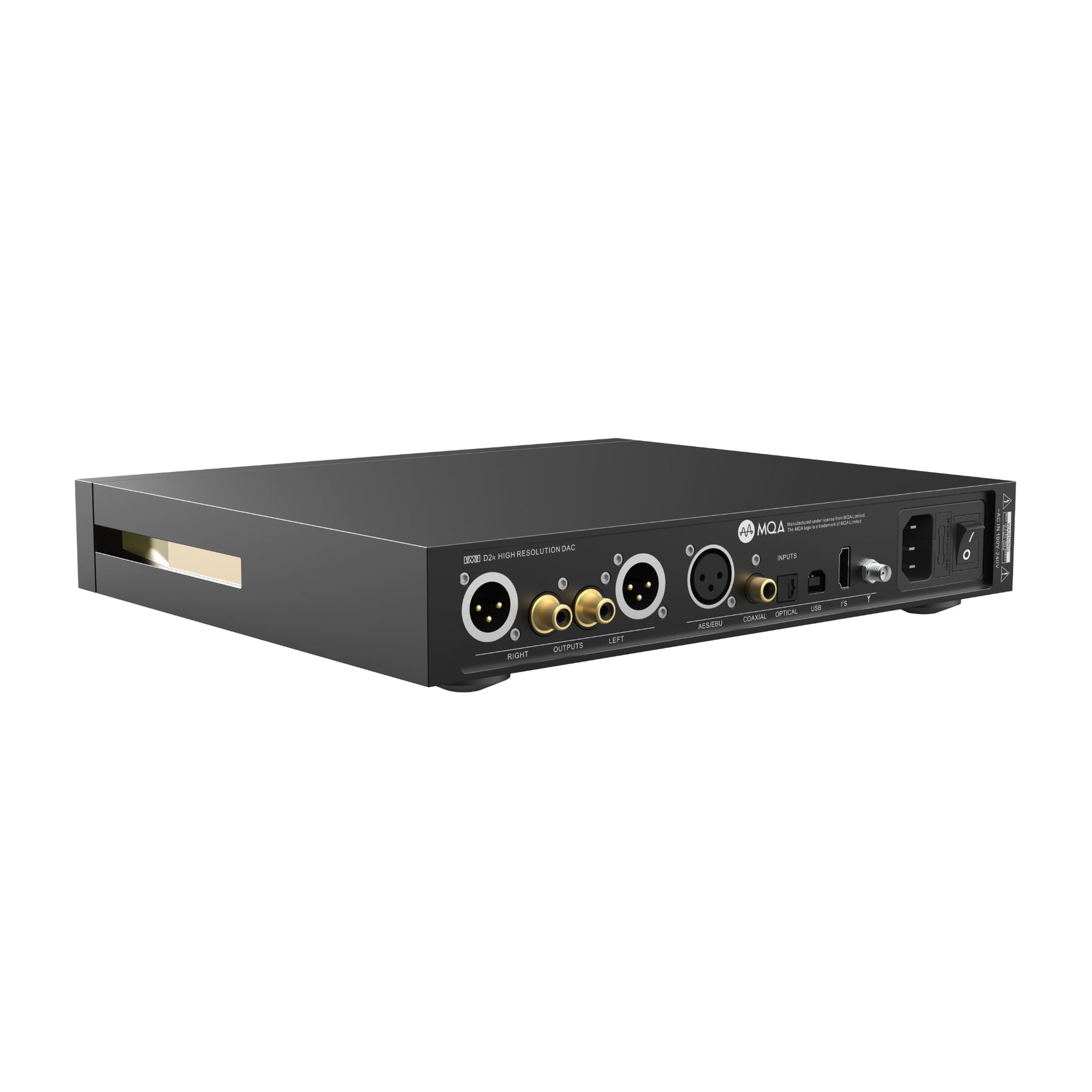

SMSL VMV D2R is Expertly Tuned and Optimized for Flagship Performance

• Uses the BD34301EKV flagship DAC from ROHM
• Ultra-low jitter operation
• Specially designed high power, ultra-low noise power supply
• Bluetooth 5.1 streaming, with support for SBC, AAC, aptX HD, and LDAC

Flagship Digital Processing

Featuring the XU-316 XMOS USB solution, the CK-03 clock processing circuit, and the flagship ROHM DAC chip, VMV D2R exemplifies the best in digital audio. VMV D2R provides absolute digital processing precision.

VMV D2R also features:

• A premium aluminum remote control.
• Specially designed volume potentiometer with next to 0 channel deviation
• Tempered glass display panel
• High quality gold-plated connection terminals

Low Noise Power Supply

Every component has potential to add noise or distortion to your signal, and power is one of the most important factors. VMV D2R uses a specially designed discrete component, stabilized power supply for the analog circuits.

Specifications

• Inputs: USB, Optical, Coaxial, I2S, Bluetooth, AES
• Outputs: RCA/XLM
• Output Level
  • XLR (Fixed/Variable): 4.0Vrms / 5.1Vrms
  • RCA (Fixed/Variable): 2.0Vrms / 2.6Vrms
• SNR (RCA/XLR): 125dB / 129dB
• Dynamic Range (RCA/XLR): 124dB / 129dB
• THD+N: -117dB, 0.00004 (1kHz)
• Sampling Rate USB PCM: 44.1-768kHz
• Sampling Rate DSD: 2.8224-22.5792MHz
• Sampling Rate Optical/Coax PCM: 44.1-192kHz
• Power consumption: <5W
• Weight: 7.05lbs

In the Box

• VMV D2R DAC
• Remote
• Bluetooth Antenna
• AC Cable
• USB Cable
• Warranty Card

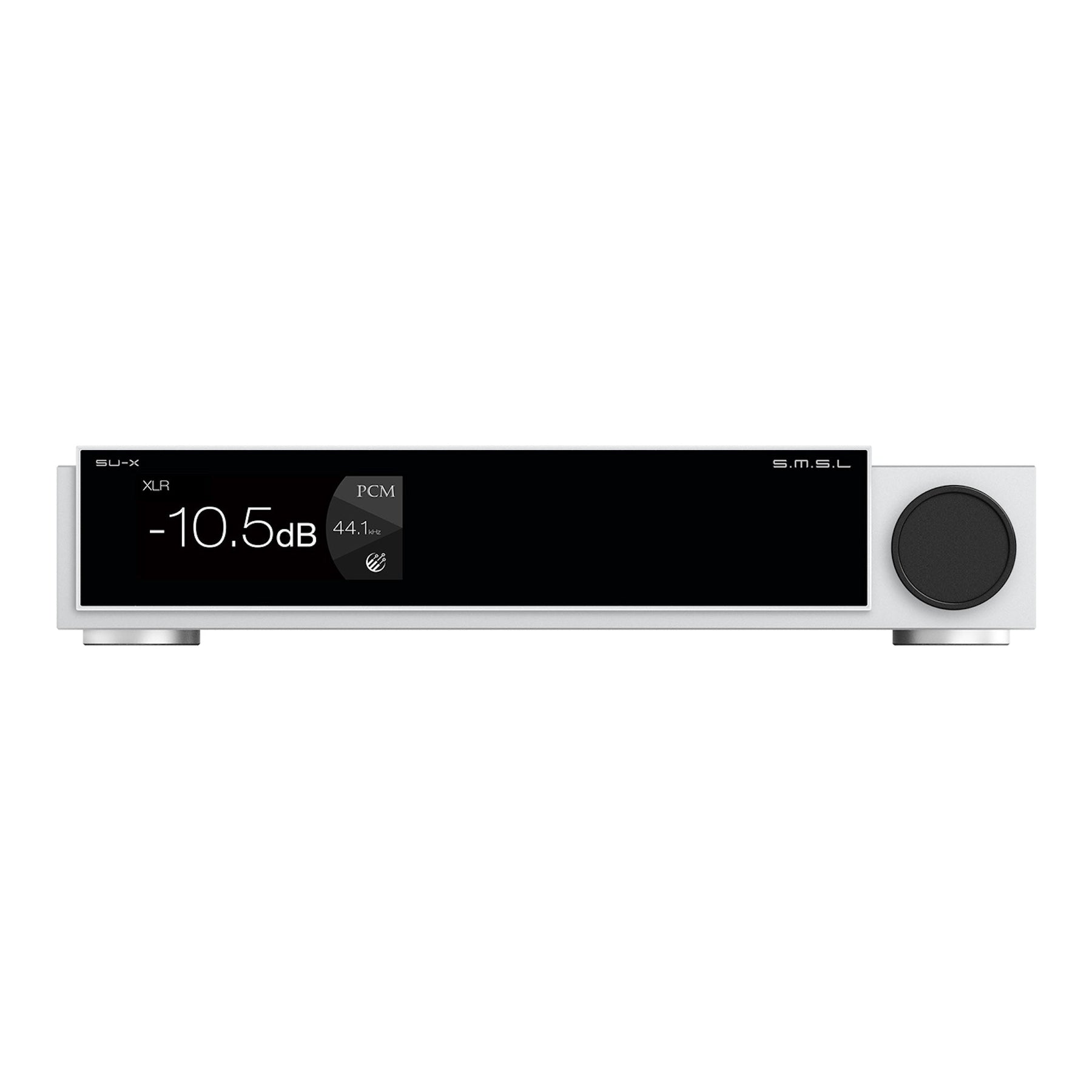

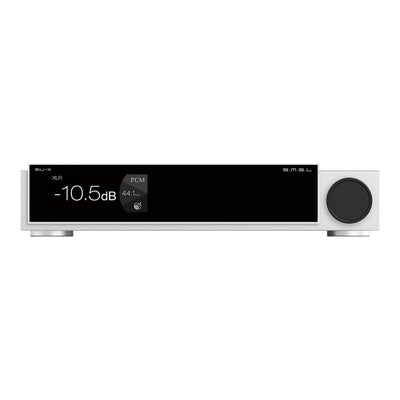

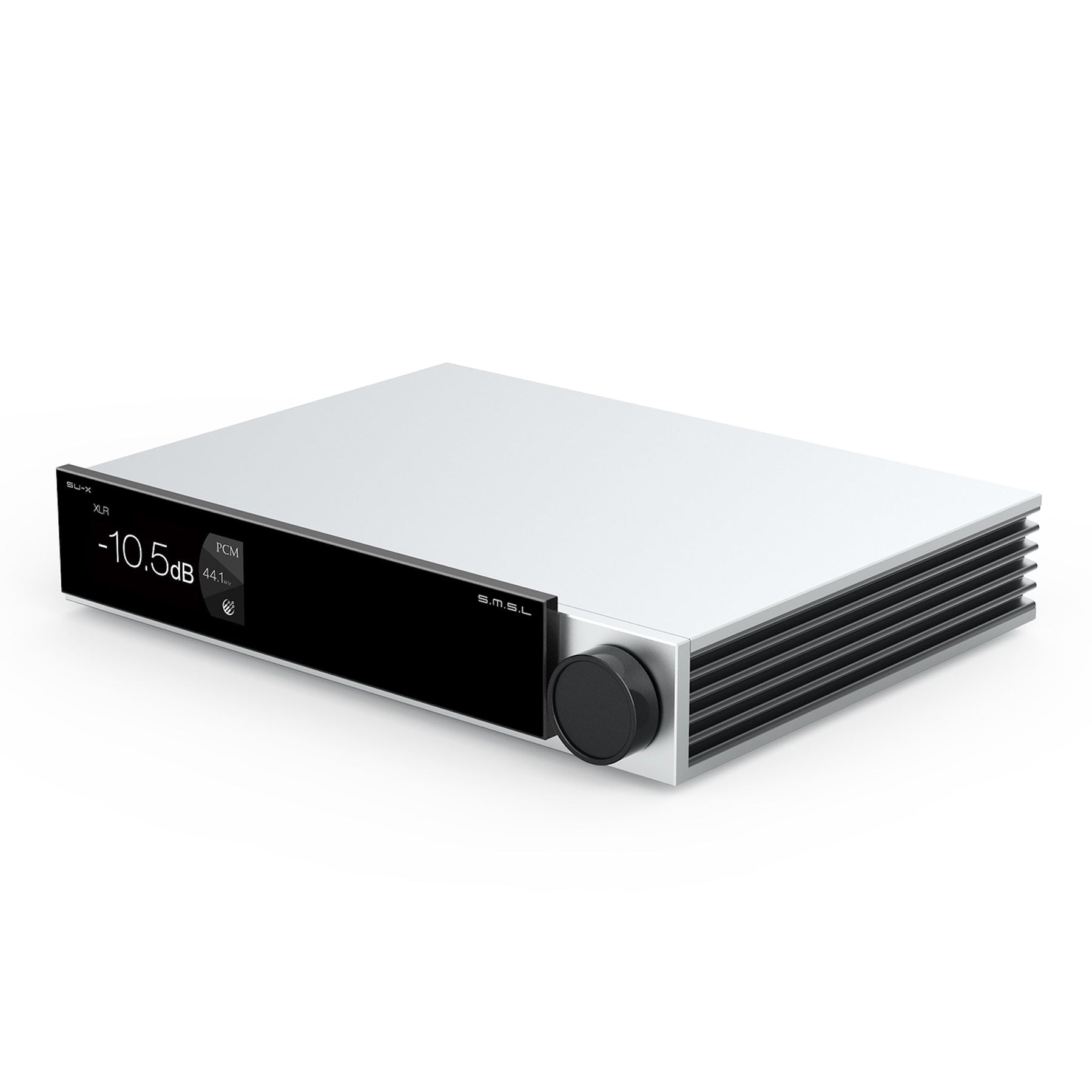

SMSL SU-X Delivers Pinnacle Sound and Design without a Summit-Fi Price

• Clearance Items are Final Sale and Non-Returnable
• Uses dual flagship ESS ES9039MXPRO DACs which includes built-in MQA support
• Supports PCM up to 32bit/768kHz and DSD512 decoding via XMOS XU-316.
• Bluetooth 5.1 streaming, with support for SBC, AAC, aptX HD, and LDAC

Meticulously Crafted Digital Processing and Analog Output

SU-X combines XU-316 XMOS, CK-03 clock processing circuit, and the flagship ESS ES9039MSPRO for a clean, transparent, low-jitter audio experience. Experience ultra-high resolution tracks that reveal every detail in the original recording with pristine digital processing.

On the output side, SMSL's eight-channel parallel circuit design keeps distortion down to 0.00004%. The 21 op-amp processing offers clean, linear amplification, with power provided by an array of low-noise regulated power supplies.

SU-X also features:

• A premium aluminum remote control.
• Full-fit color IPS display screen
• High quality aluminum alloy housing
• High quality gold-plated connection terminals

Specifications

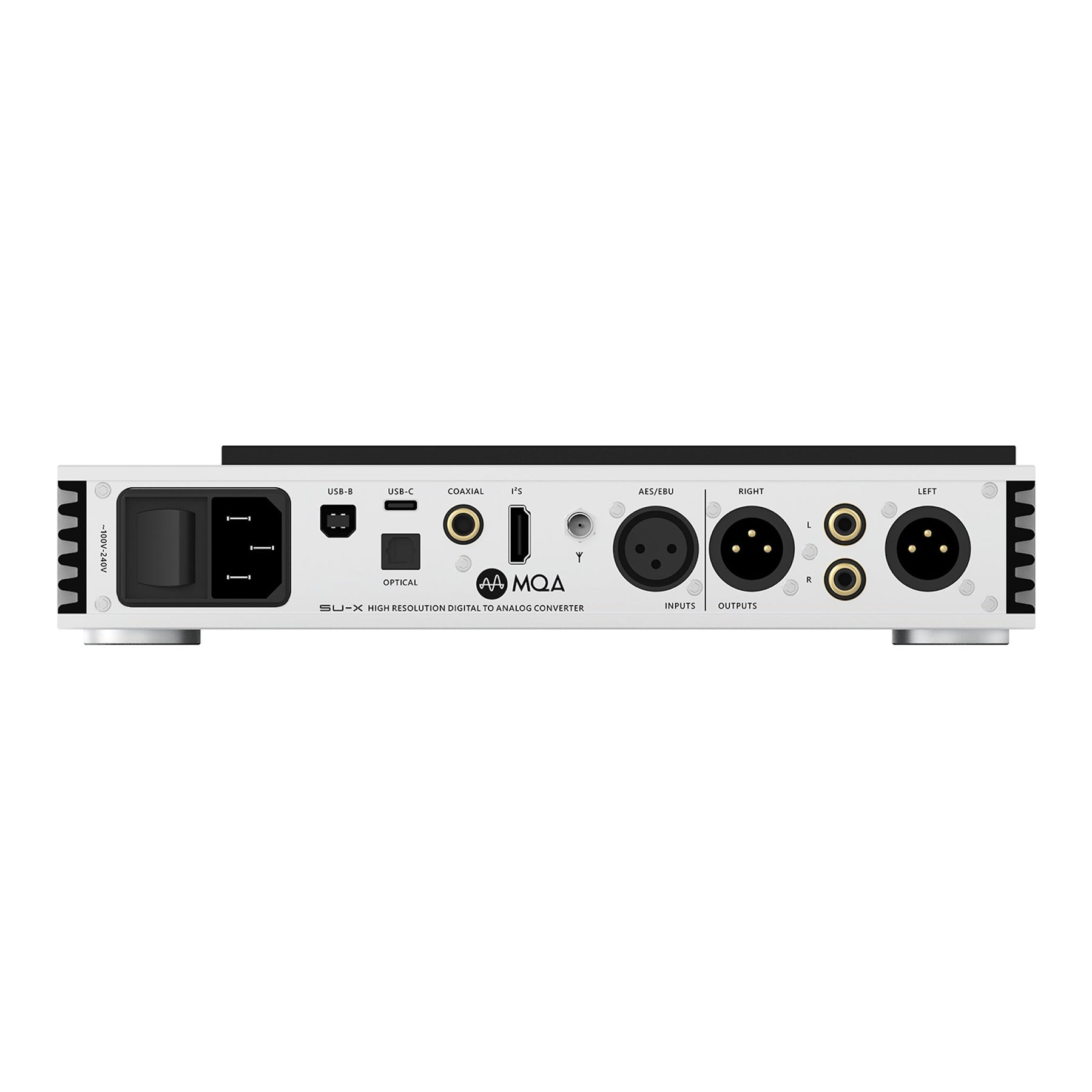

• Inputs: USB, Optical, Coaxial, I2S, Bluetooth, AES
• Bluetooth codecs supported: SBC, AAC, LDAC, aptX, aptX-HD
• Outputs: RCA/XLR
• Output Level:
  • XLR: 5.2Vrms
  • RCA: 2.5Vrms
• SNR (RCA/XLR): 128dB / 135dB
• Dynamic Range (RCA/XLR): 128dB / 135dB
• THD+N: -117dB, 0.00005 %(1kHz)
• Sampling Rate USB PCM: 44.1-768kHz
• Sampling Rate DSD: 2.8224-22.5792MHz
• Sampling Rate Optical/Coax PCM: 44.1-192kHz
• Power consumption: <20W
• Weight: 5.95lbs

In the Box

• VMV SU-X DAC
• Remote
• Bluetooth Antenna
• AC Cable
• USB Cable
• Warranty Card

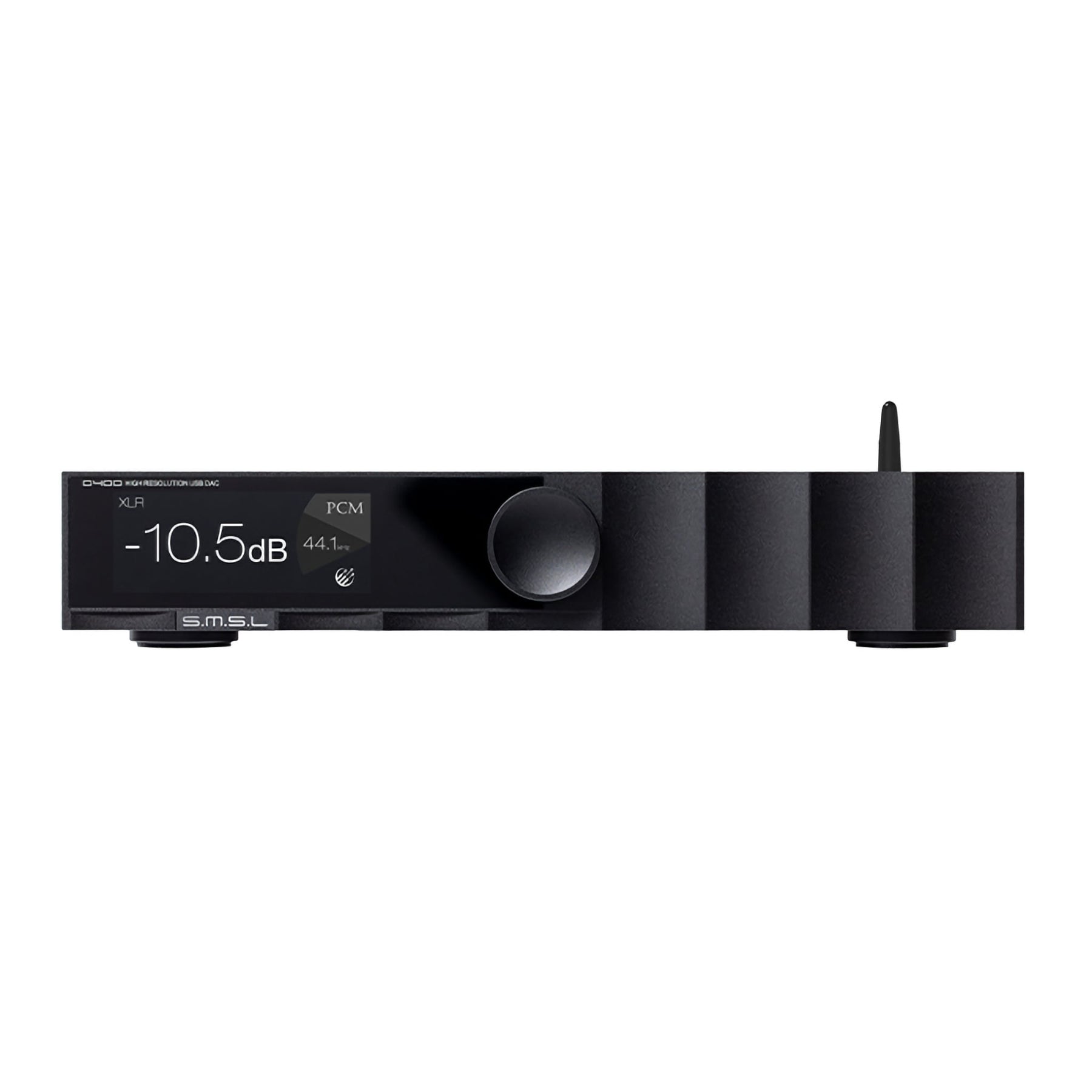

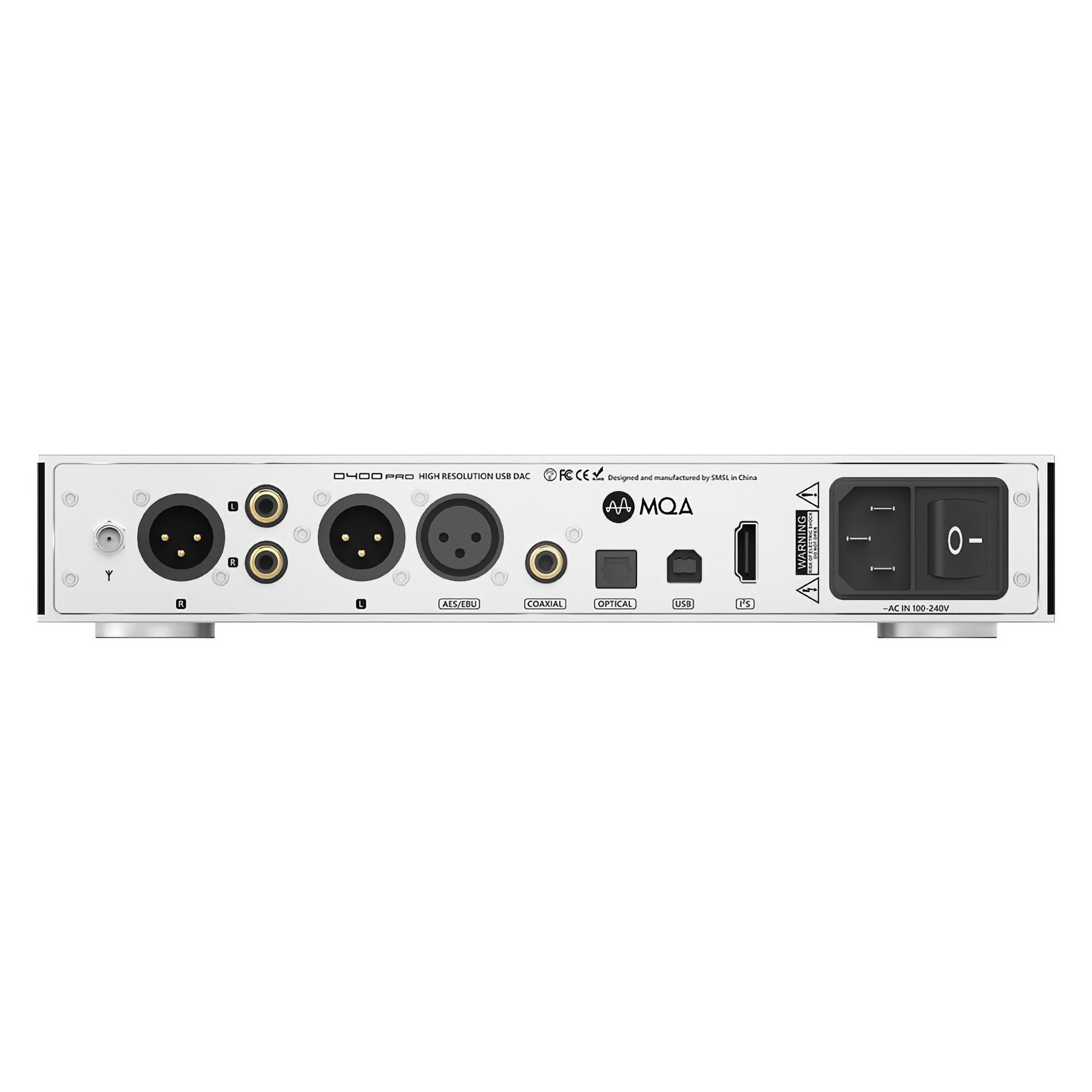

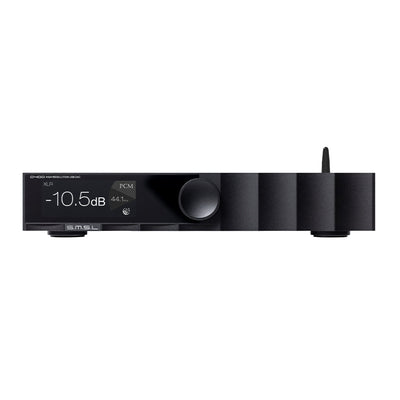

Get all the Features and Tech Behind SMSL's Flagship DAC at a Lower Price

• Clearance Items are Final Sale and Non-Returnable
• D400 Pro offers clean, detailed sound with the AK4499EX + AK4191 DAC
• The clock and digital interfaces use the same CK-03 and XMOS XU-316 as SMSL's flagship DACs
• Bluetooth 5.1 streaming, with support for SBC, AAC, aptX HD, and LDAC

Simple and Clean

You don't always need quad DACs or the latest breakthroughs in digital tech to achieve great sound. D400 Pro proves this with a clean implementation of the excellent AK4499EX DAC that provides reference sound, and combines with SMSL's flagship digital audio processing chain for impressive all-around performance.

Don't forget about the Power!

SMSL knows the value of a high quality power supply, and D400 Pro uses built-in low-noise, high efficiency power supplies for a stable, reliable, efficient, and transparent system.

SU-X also features:

• A premium remote control.
• Color display covered in laminated tempered glass, designed to be easily readable in any lightning condition
• High quality gold-plated connection terminals

Specifications

• Inputs: USB, Optical, Coaxial, I2S, Bluetooth, AES
• Bluetooth codecs supported: SBC, AAC, LDAC, aptX, aptX-HD
• Outputs: RCA/XLR
• SNR (RCA/XLR): 126dB / 132dB
• Dynamic Range (RCA/XLR): 126dB / 132dB
• THD+N: -117dB, 0.00005 %(1kHz)
• Sampling Rate USB PCM: 44.1-768kHz
• Sampling Rate DSD: 2.8224-22.5792MHz
• Sampling Rate Optical/Coax PCM: 44.1-192kHz
• Power consumption: 6W
• Weight: 4.18lbs

In the Box

• D400 Pro DAC
• Remote
• Bluetooth Antenna
• AC Cable
• USB Cable
• Warranty Card

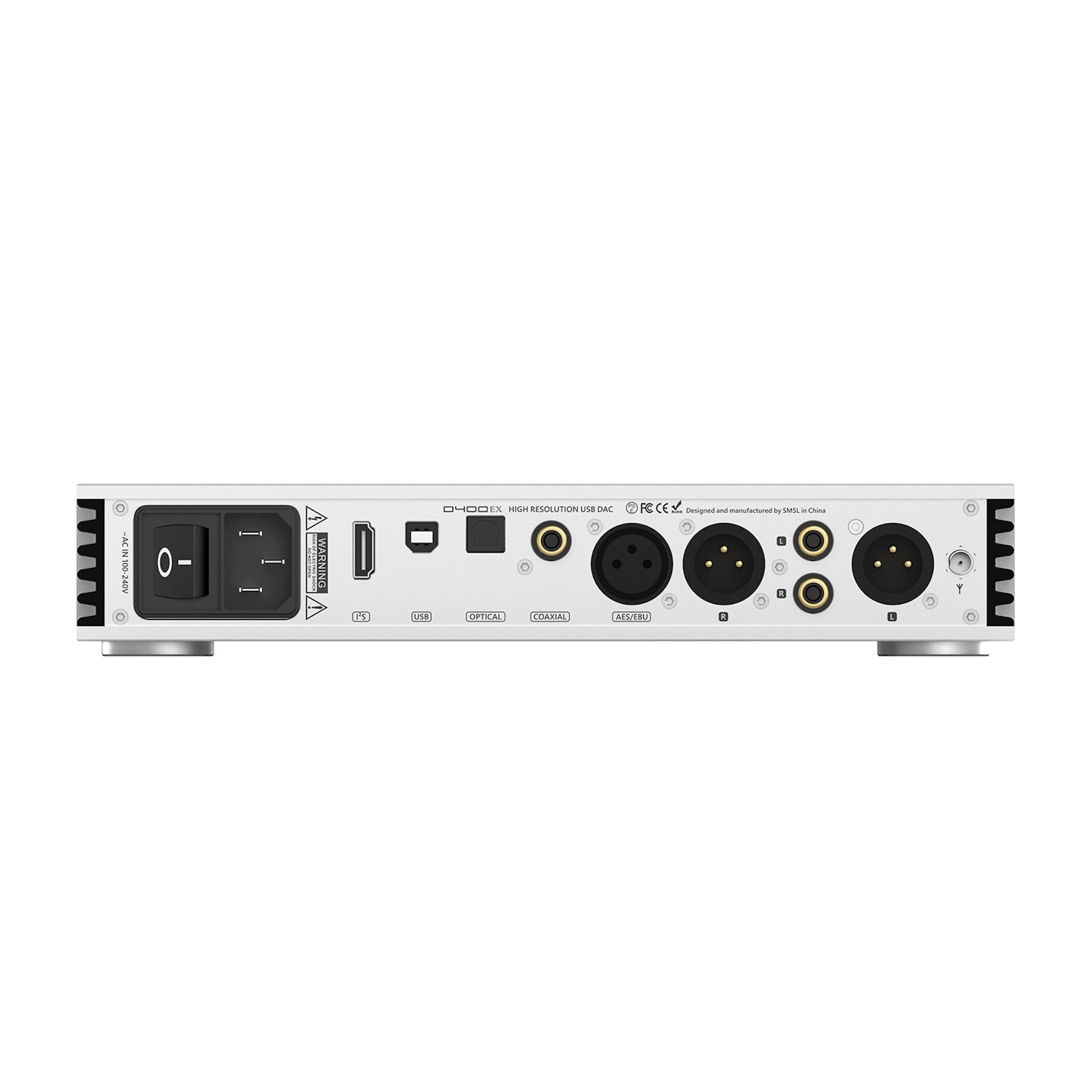

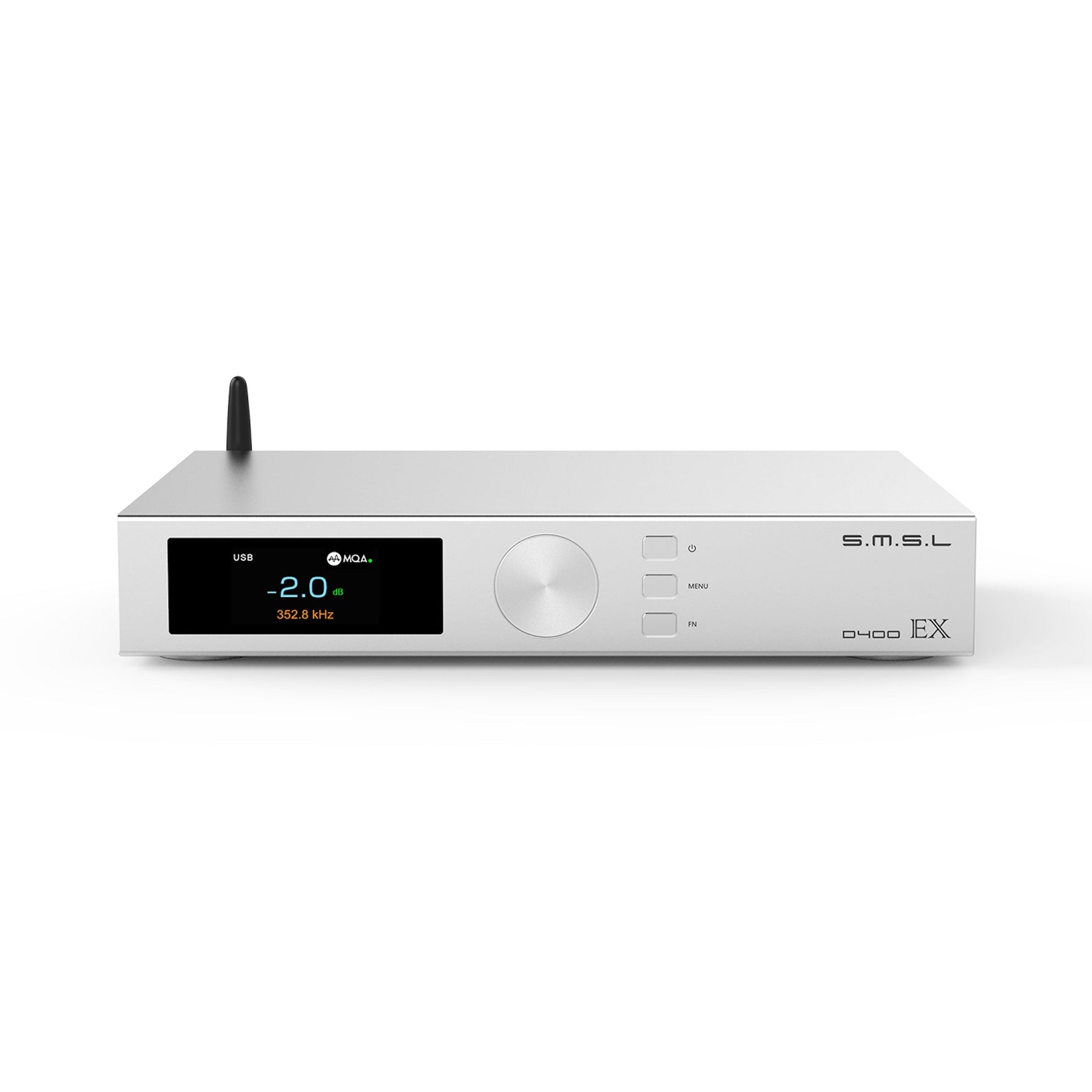

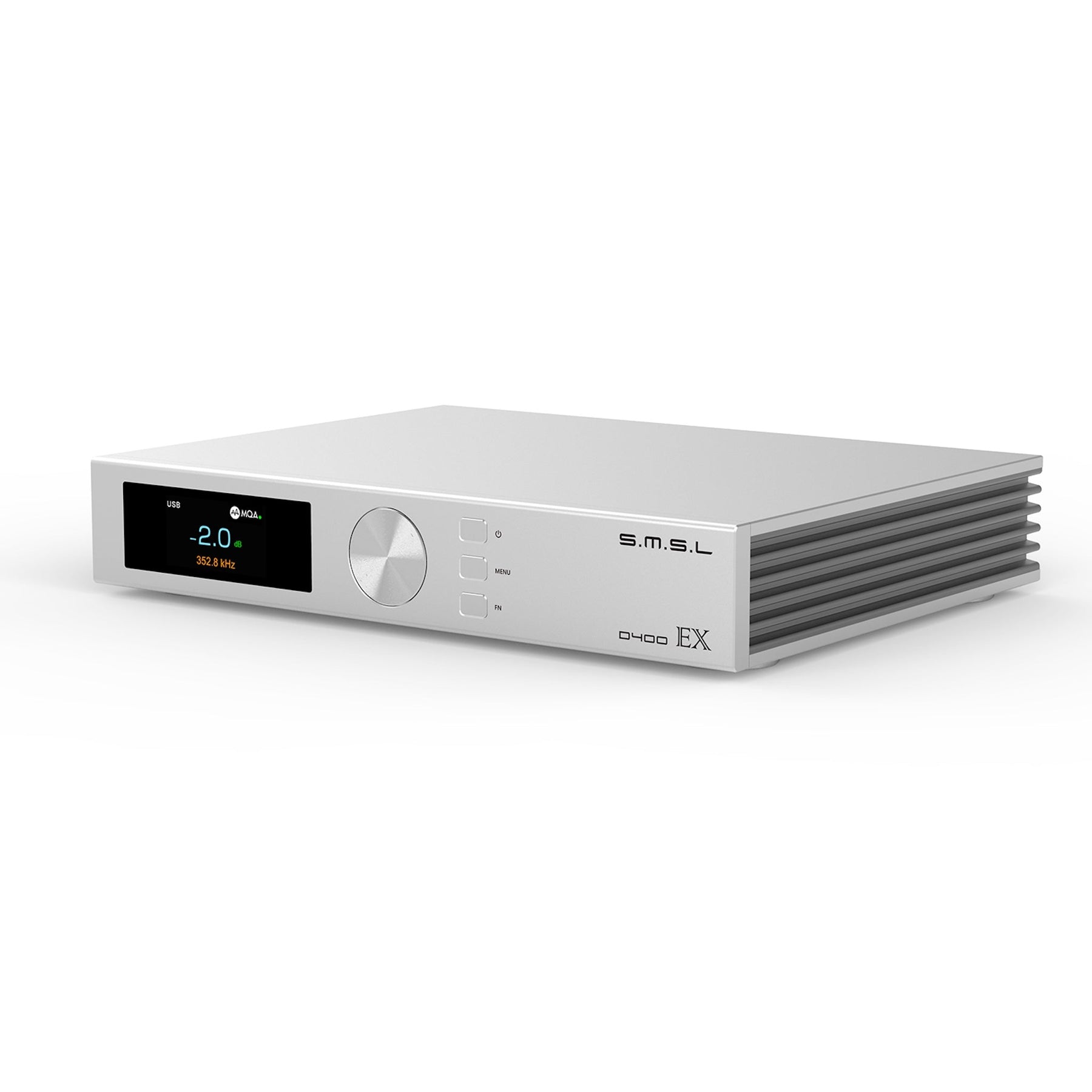

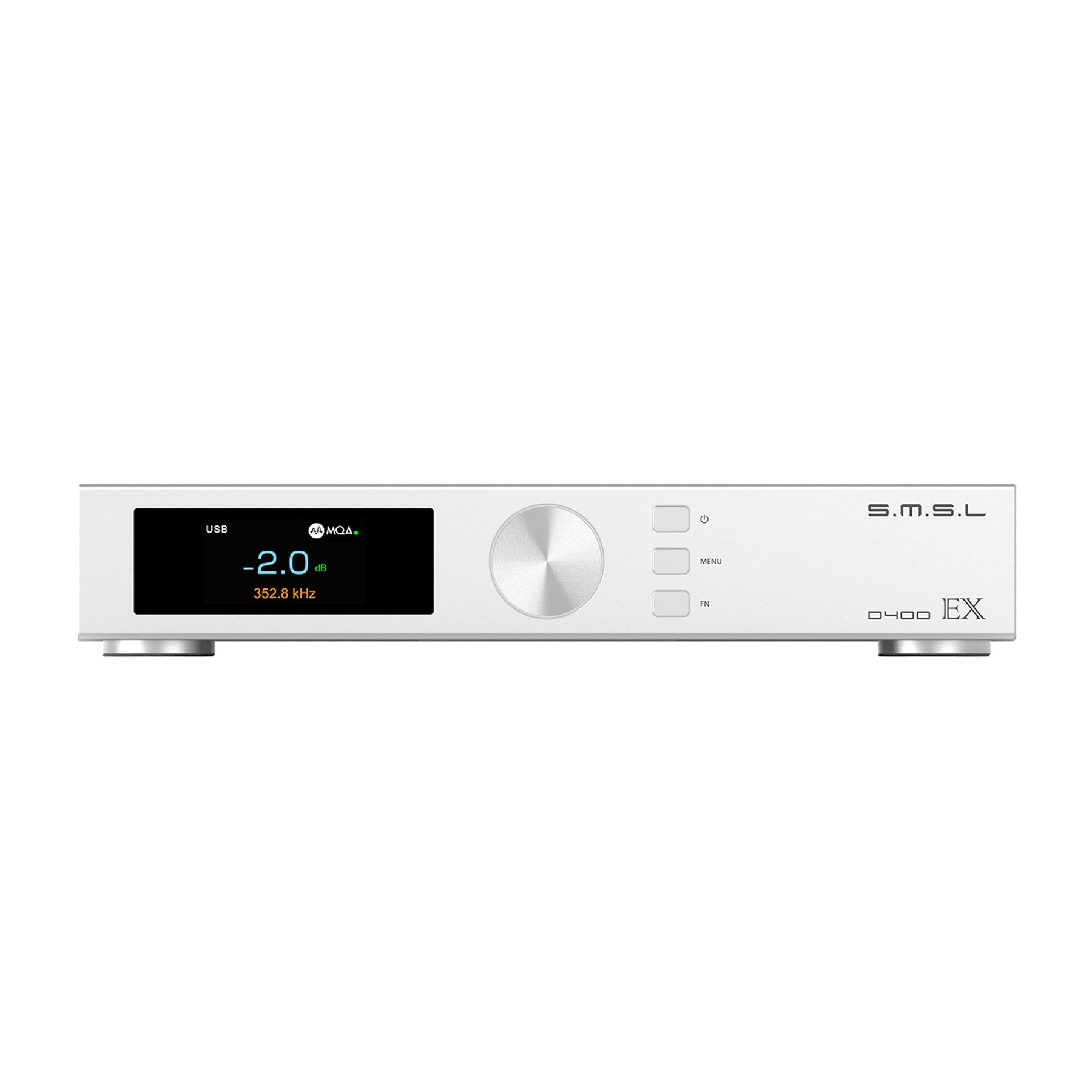

Get Advanced Design with AKM DACs in the SMSL D400 EX

• With a dual-mono DAC design, D400 EX gets the most out of its dual AK4499EX DACs
• Uses SMSL's latest USB XMOS tech for the highest resolution and lowest EM interference
• Bluetooth 5.1 streaming, with support for SBC, AAC, aptX HD, and LDAC

High Resolution Audio Processing

D400 EX can handle a wide range of audio formats, including DSD512, PCM 768kHz @ 32 bit, DoP, and MQA. Advanced XMOS processing combined with dual AK4499EX and the AK4141 EQ deliver unrivaled reference sound. Add in the CK03 clock processing circuit and you have high resolution heaven.

Don't forget about the Power!

SMSL knows the value of a high quality power supply, and D400 EX uses built-in low-noise, high efficiency power supplies for a stable, reliable, efficient, and transparent system.

D400 EX also features:

• A premium remote control.
• Color display covered in laminated tempered glass, designed to be easily readable in any lightning condition
• High quality gold-plated connection terminals

Specifications

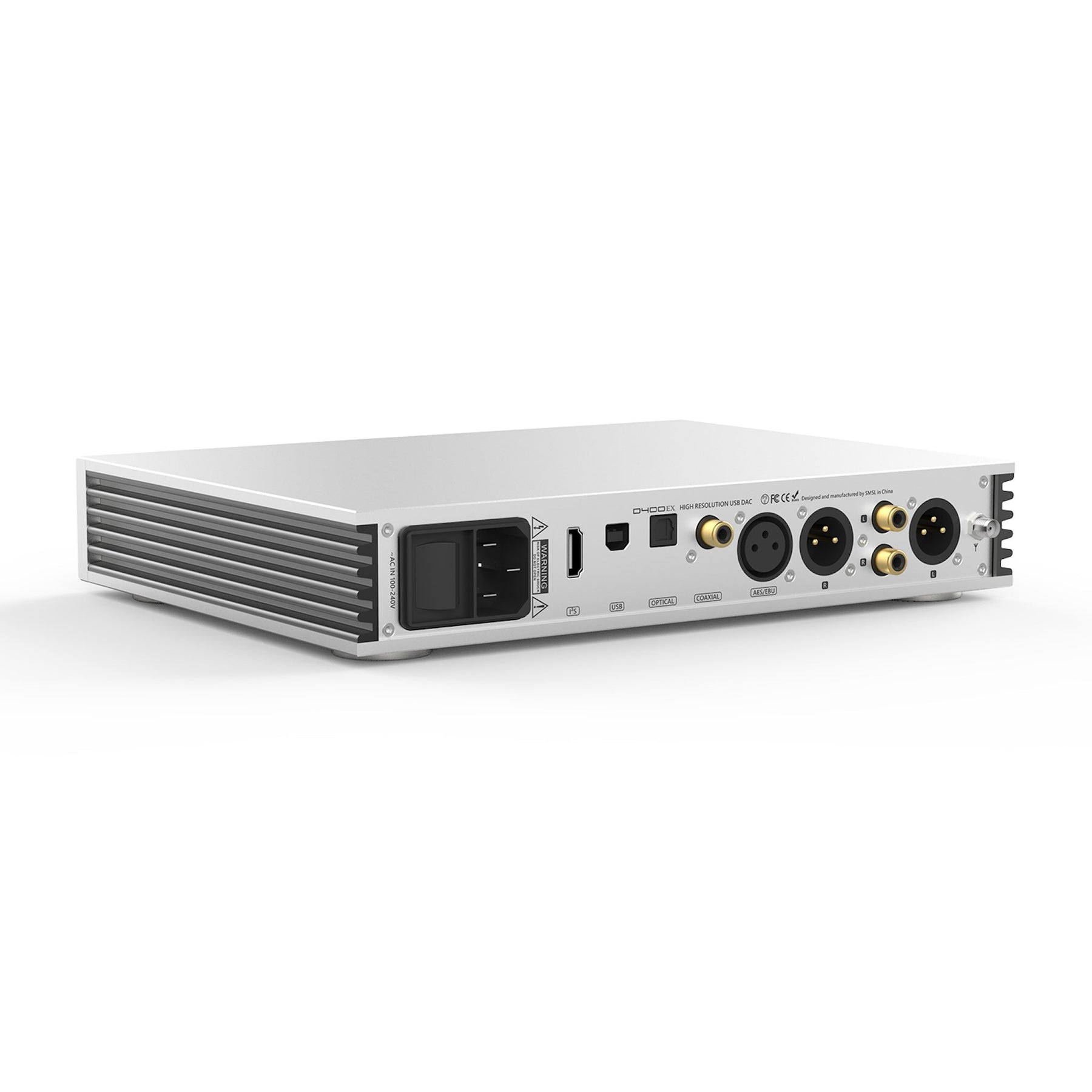

• Inputs: USB, Optical, Coaxial, I2S, Bluetooth, AES
• Bluetooth codecs supported: SBC, AAC, LDAC, aptX, aptX-HD
• Outputs: RCA/XLR
• SNR (RCA/XLR): 133dB
• Dynamic Range (RCA/XLR): 128dB / 133dB
• THD+N: -117dB, 0.00005 %(1kHz)
• Sampling Rate USB PCM: 44.1-768kHz
• Sampling Rate DSD: 2.8224-22.5792MHz
• Sampling Rate Optical/Coax PCM: 44.1-192kHz
• Power consumption: 6W
• Weight: 4.08lbs

In the Box

• D400 EX DAC
• Remote
• Bluetooth Antenna
• AC Cable
• USB Cable
• Warranty Card

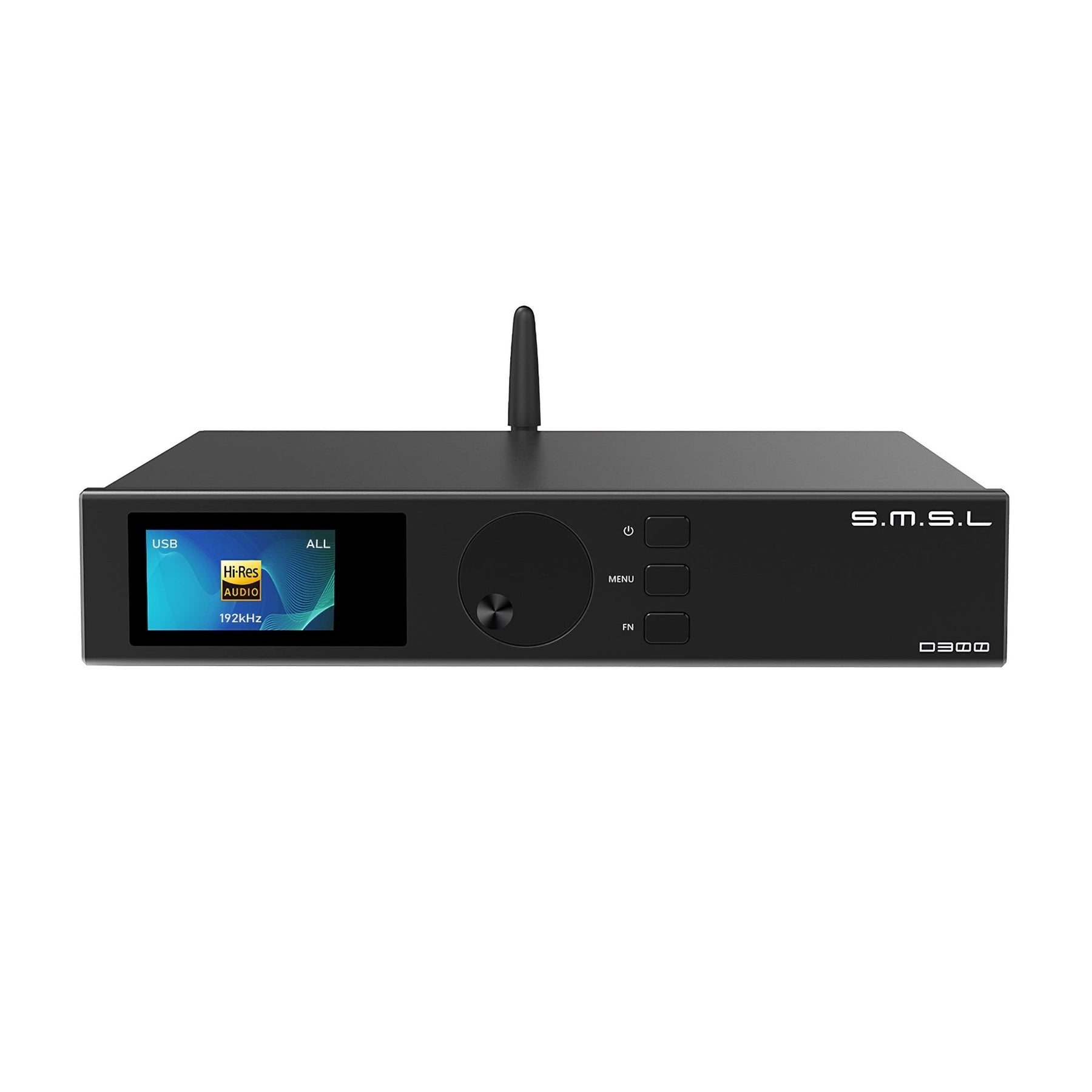

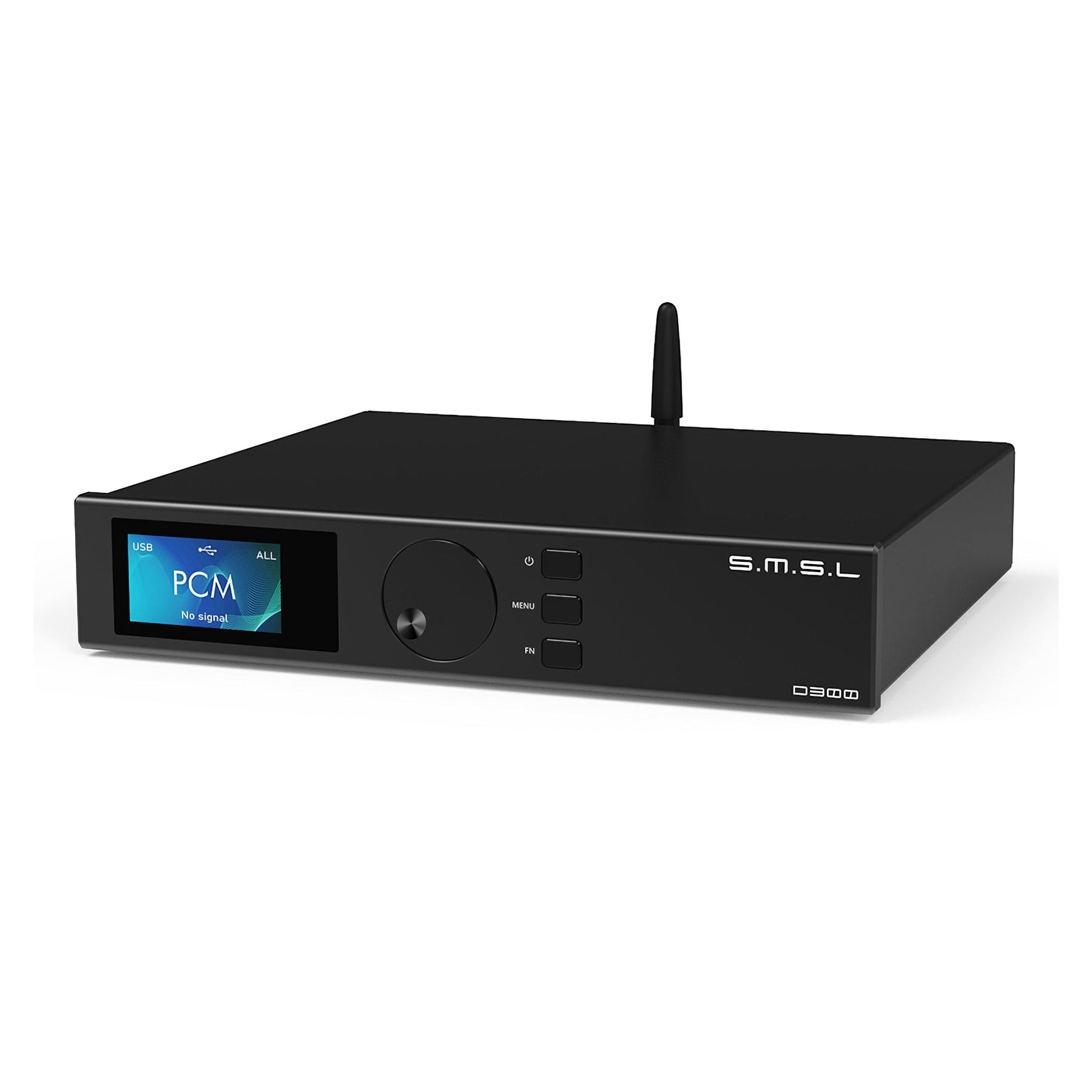

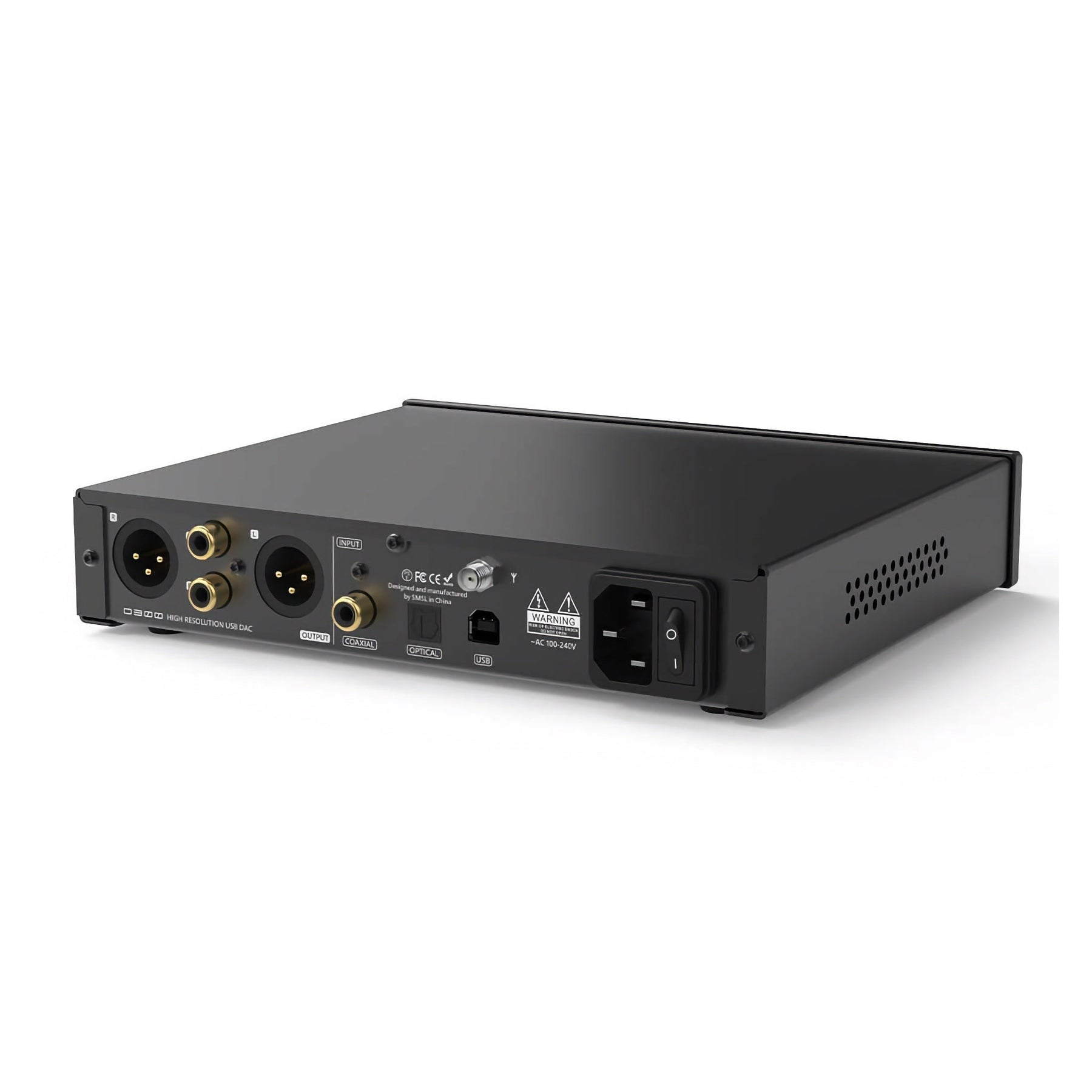

Experience Low Noise Tech, Detailed Design, and Accessible Price with SMSL's D300 Desktop DAC

• Offers clean, detailed sound with Rohm flagship DAC chip BD34301EKV
• XMOS XU-208 32bit USB solution with PCM support up to 768kHz and DSD supports up to DSD512
• Bluetooth 5.1 supports SBC, AAC, aptX, aptX HD, LDAC
• High-quality, Gold-plated input / output connections, high-quality knobs, and new, sharper LCD display
• Upgraded remote with higher sensitivity and improved ergonomics (10m distance)

Simple and Clean

You don't always need quad DACs or the latest breakthroughs in digital tech to achieve great sound. D300 exemplifies this with a clean implementation of Rohm's flagship BD34301EKV DAC chip. It provides reference sound, and combined with SMSL's flagship digital audio processing, you get impressive, all-around performance.

I Need More Power!

SMSL knows the value of a high quality power supplies, and D300 uses built-in low-noise, high efficiency power supplies for a stable, reliable, efficient, and transparent system.

Key Features

• Uses fully optimized Rohm flagship DAC chip BD34301EKV for THD+N as low as -116dB
• USB uses XMOS XU-208 32bit solution with PCM support up to 768kHz and DSD supports up to DSD512
• New CK-03 clock processing circuit achieves ultra-low clock jitter
• Built-in shielding, low-noise power supply processing, improved power efficiency, and lower power consumption
• Specially designed discrete component stabilized power supply and multiple low-noise stabilized power supplies for low-noise analog circuits
• Qualcomm's latest Bluetooth 5.1 chip supports SBC, AAC, aptX, aptX HD, LDAC
• High-quality, Gold-plated input and output connections
• Newly designed high-quality knobs
• High-resolution color fully-fitted display screen and screen-off function
• Tempered glass display panel, higher light transmittance, longer service life
• Equipped with full-function remote control (effective up to 10m)
• Japan Audio Association (JAS) Hi-Res certification


Specifications

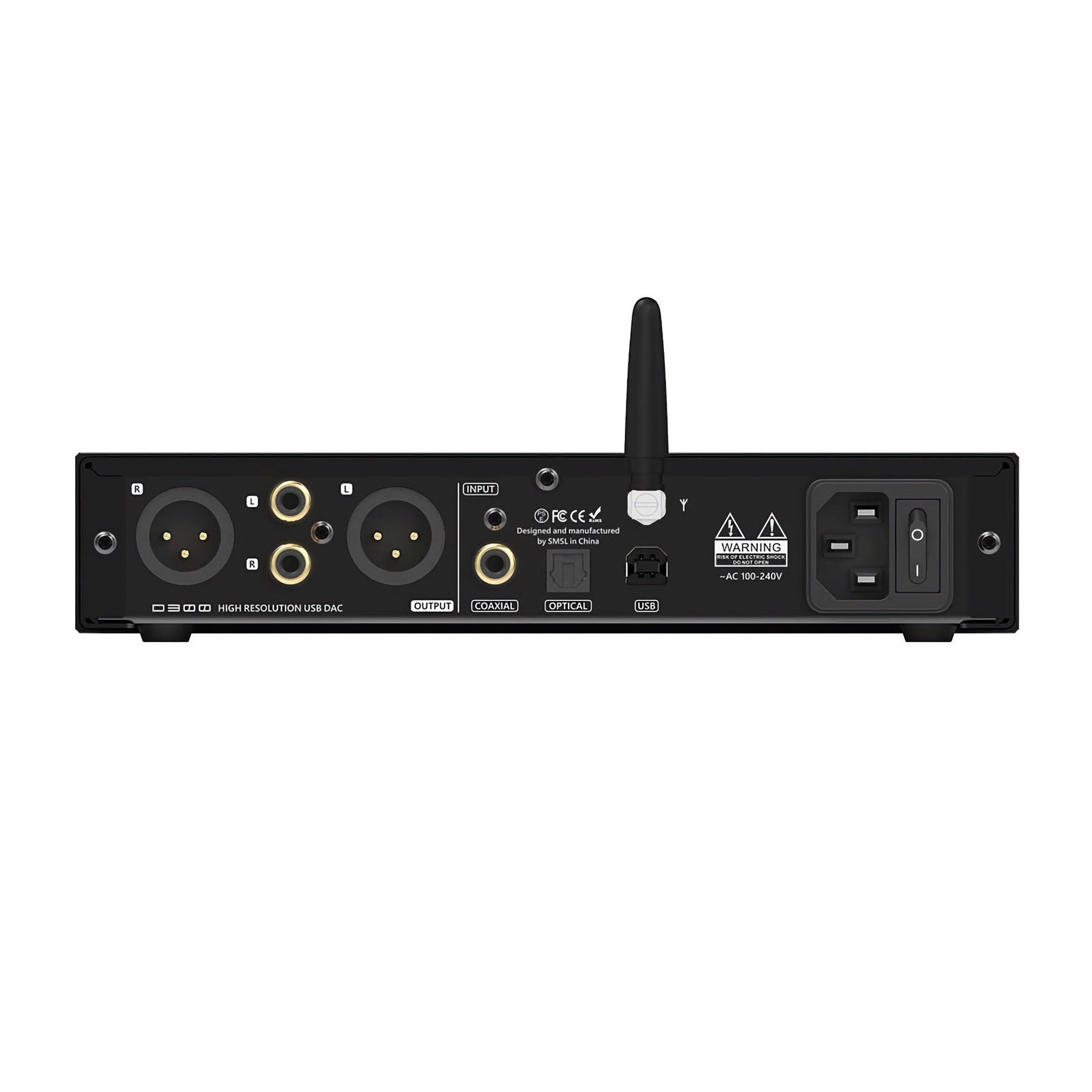

• Inputs: USB, Optical, COAX, Bluetooth
• Output: RCA + XLR
• Output Level
  • XLR: 4.0Vrms, VOL Fixed | 4.5Vrms, VOL Variable
  • RCA: 2.0Vrms, VOL Fixed | 2.3Vrms, VOL Variable
• THD+N: 0.00015% (-116dB)
• Dynamic Range: 127dB (XLR) | 125dB (RCA)
• SNR: 127dB (XLR) | 124dB (RCA)
• Output Impedance: 200Ω (XLR) | 100Ω (RCA)
• USB Transmission: Asynchronization
• USB Compatibility: Windows 7/8/8.1/10/11, Mac OSX, Linux
• Bit Depth
  • USB: 1bit, 16 ~ 32bit
  • Optical/COAX: 1bit, 16 ~ 24bit
• Sampling Rate
  • USB: PCM 44.1 ~ 768kHz | DSD 2.8224 ~ 22.5792MHz
  • Optical/COAX: PCM 44.1 ~ 192kHz | DSD64 (DoP)
• Bluetooth: 5.1 | Support SBC, AAC, aptX, aptX HD, LDAC
• Power Consumption: 5W
• Standby Power: <0.5W
• Size: 8.3” x 7.4” x 1.6”
• Weight: 2.31 lbs

• 1 Year SMSL Warranty
• SMSL D300 User Manual

In the Box

• D300 DAC
• Remote Control
• Bluetooth Antenna
• AC Cable
• USB Cable
