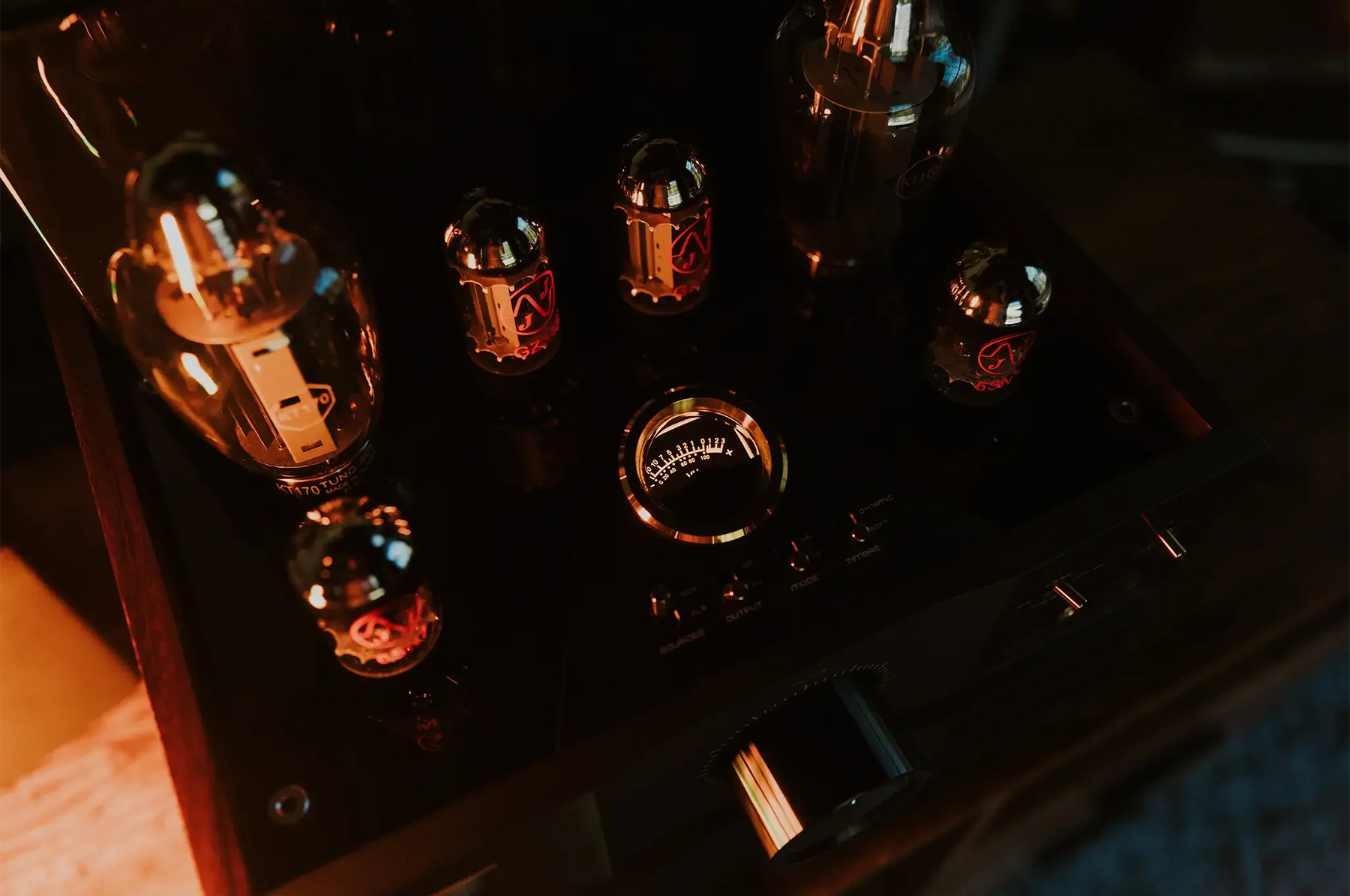

Cayin

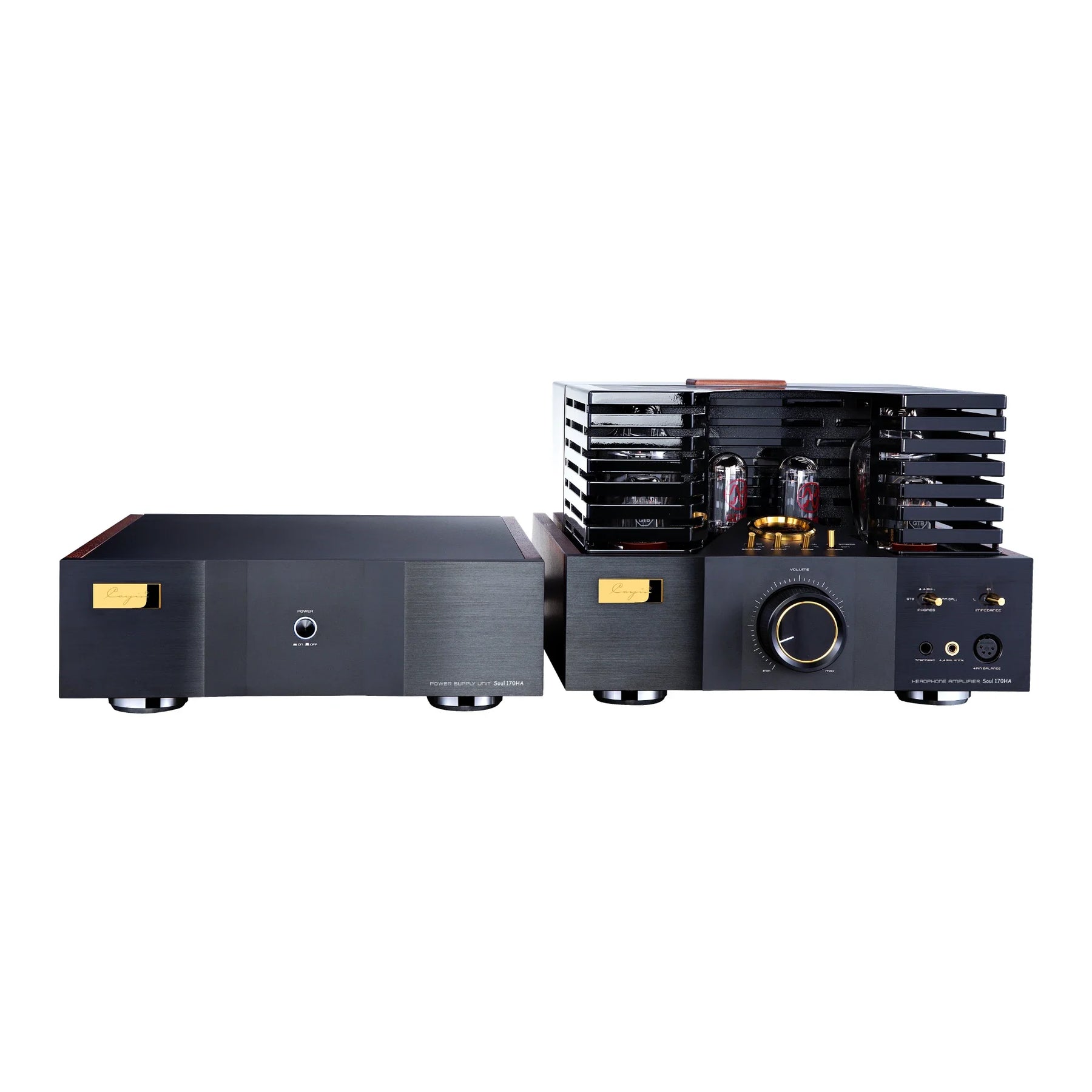

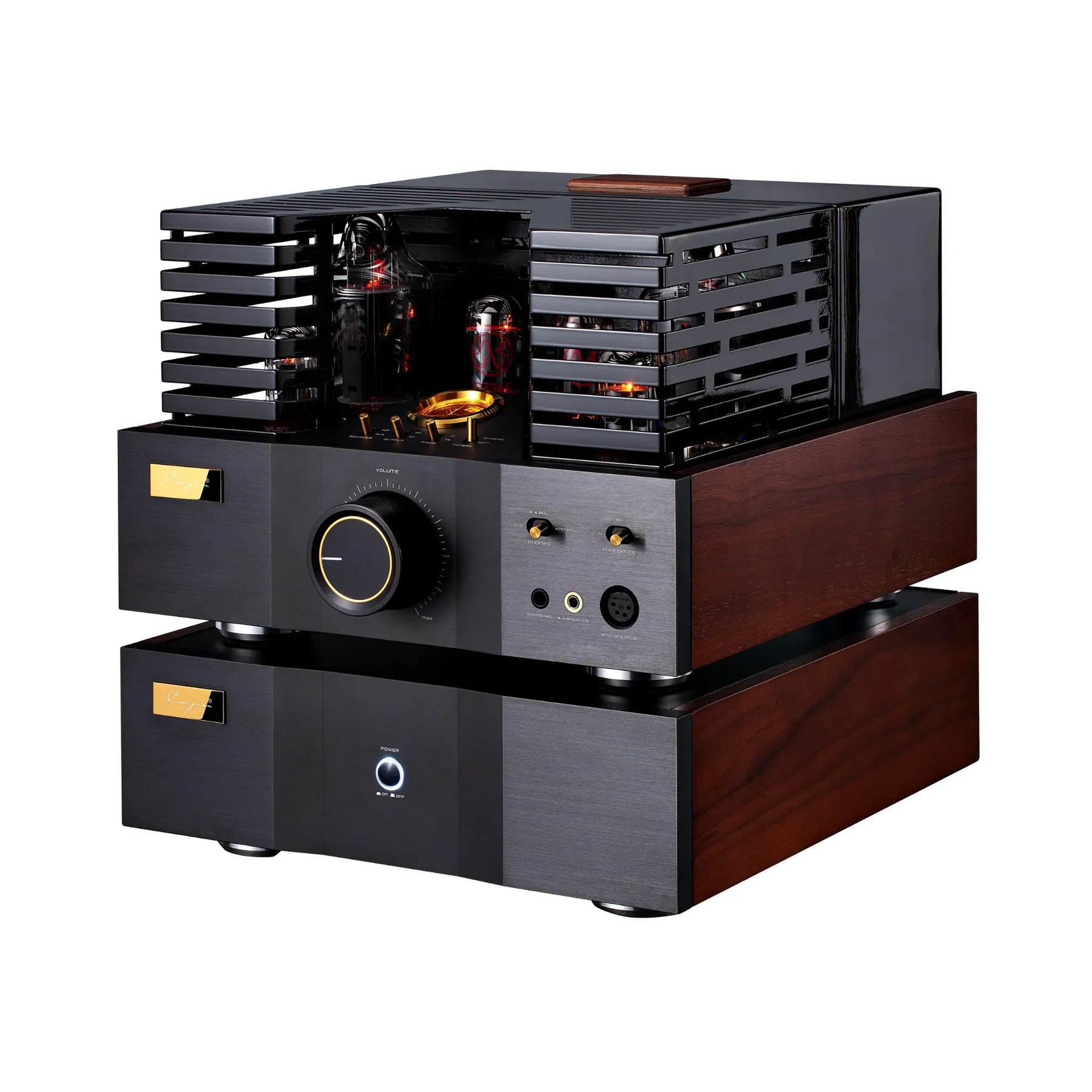

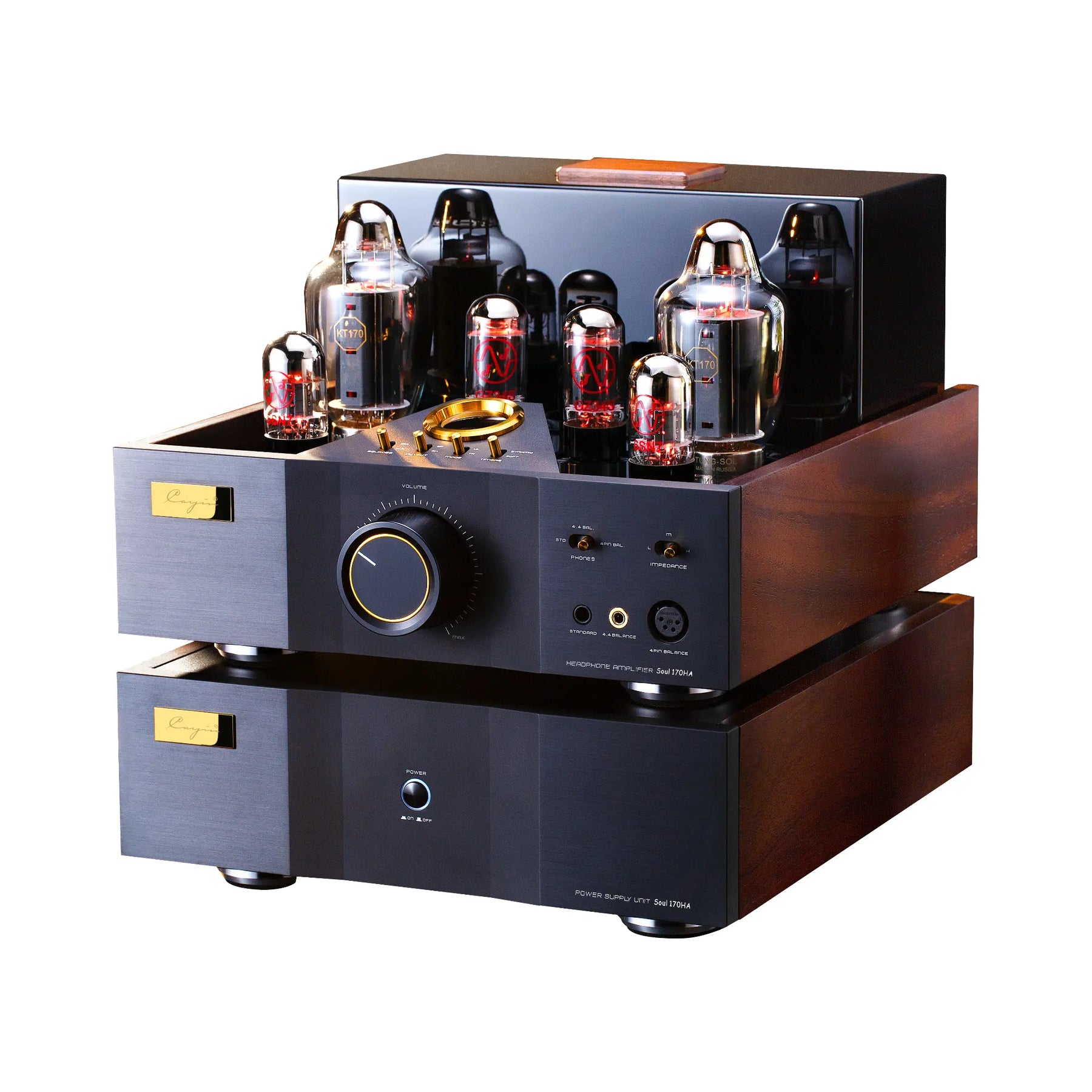

Immerse Yourself in the Sumptuous Sonic Feast of the Powerful and Authoritative Cayin Soul 170HA Flagship Speaker / Headphone Tube Amp

• Premium, powerful vacuum tube-based amp for headphones or home speakers
• Features 1st implementation of matched pair of Tung-Sol KT170 tubes in a single-ended architecture Class A headphone amp
• Authoritative 18W per channel speaker output at 8Ω and max 18W headphone output via XLR Balanced
• 6.3mm (3.5mm), 4.4mm Balanced, and 4-pin XLR Balanced headphone out
• 3 level impedance matching
• Separate power supply chassis for cleaner, low-noise power
• Ultra-premium, heavy-weighted umbilical power supply cables with quick release connectors

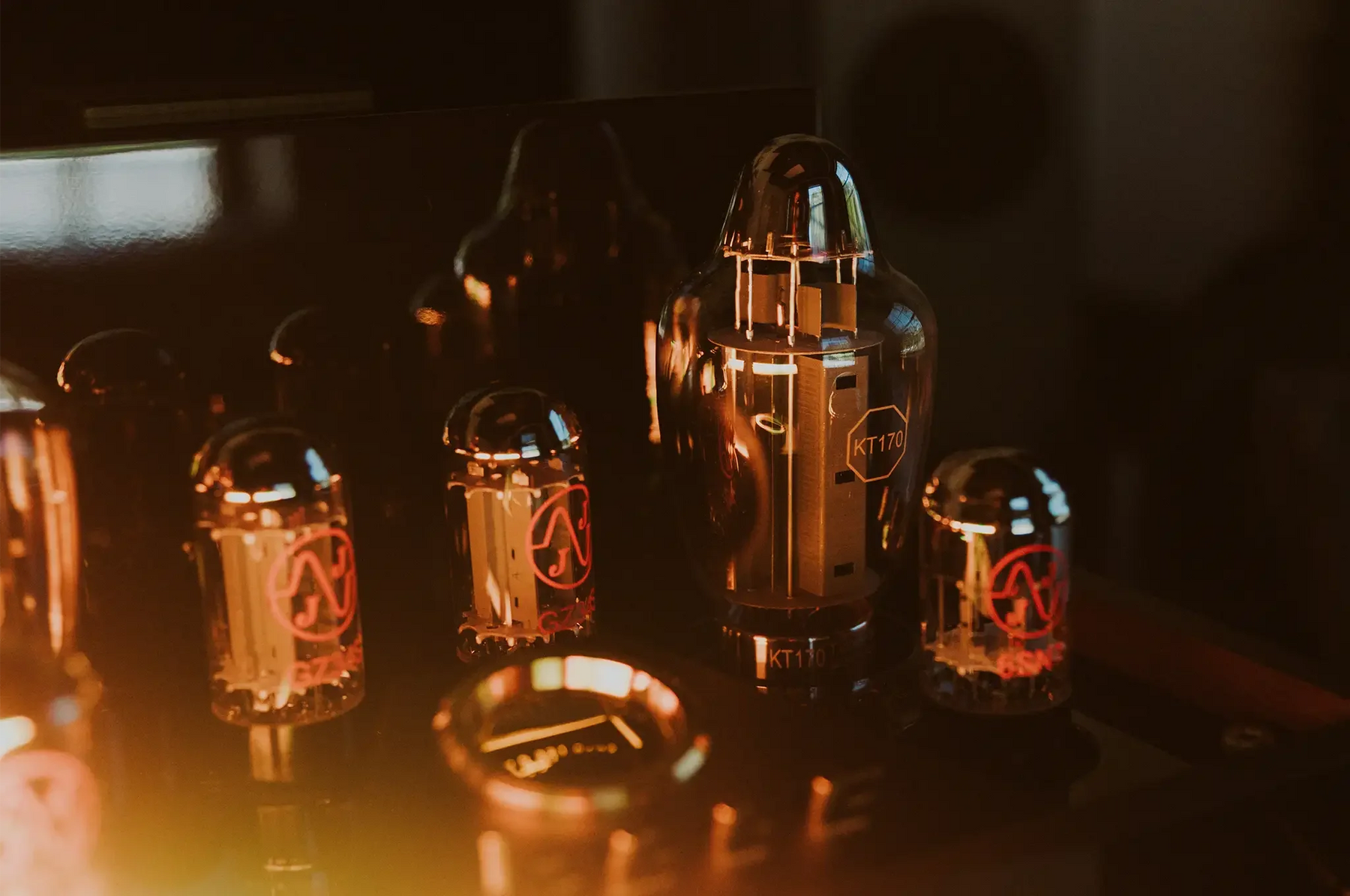

The Fascinating KT170

Tung-Sol KT170 is an octal-based beam tetrode vacuum tube. It is the 2021 newly released flagship of the KT (kinkless tetrode) tube family.

Audiophiles love the KT family, and the KT88 has maintained a center role since 1956. There were multiple attempts to develop a new vacuum tube for high-end audio, that rivaled the sonic performance of KT88 with higher power.

The KT170 is the latest attempt from Tung-Sol and by far the best attempt based on Cayin's experience with all the KT vacuum tubes currently available.

It features a high-efficiency outboard power supply circuit with substantial power reserves, delivering an authoritative headphone output of up to 18WPC, ushering headphones into a new realm of personal listening experience.

Immersive Enjoyment

The driver tubes amplify signal voltage so that the rest of the amplification circuit can operate at a very linear condition.

The KT170 output tubes, operating in single-ended Class A, will produce completed amplified output without splitting the musical signal into parts.

Cayin engineers meticulously designed the gain circuit, independently adjusting the working current of each stage of the vacuum tubes, to allow the Soul 170HA to fully display the unique rich tones of single-ended Class A design.

The Soul 170HA provides users with an immersive audio experience, maximizing musicality without scarifying on technicality.

Single-ended Voltage Amplification

After carefully evaluating different alternatives, Cayin decided to use two indirectly heated dual triode 6SN7 to take care of the voltage amplification given its medium (amplification factor) and low internal resistance.

The JJ 6SN7 is impressive for its low noise and balanced tonal balance across the audible frequency ranges. The sound performance is dynamic, with rich details, and offers excellent musical expressiveness.

Outboard Power Supply Design Empowering with Ample Energy

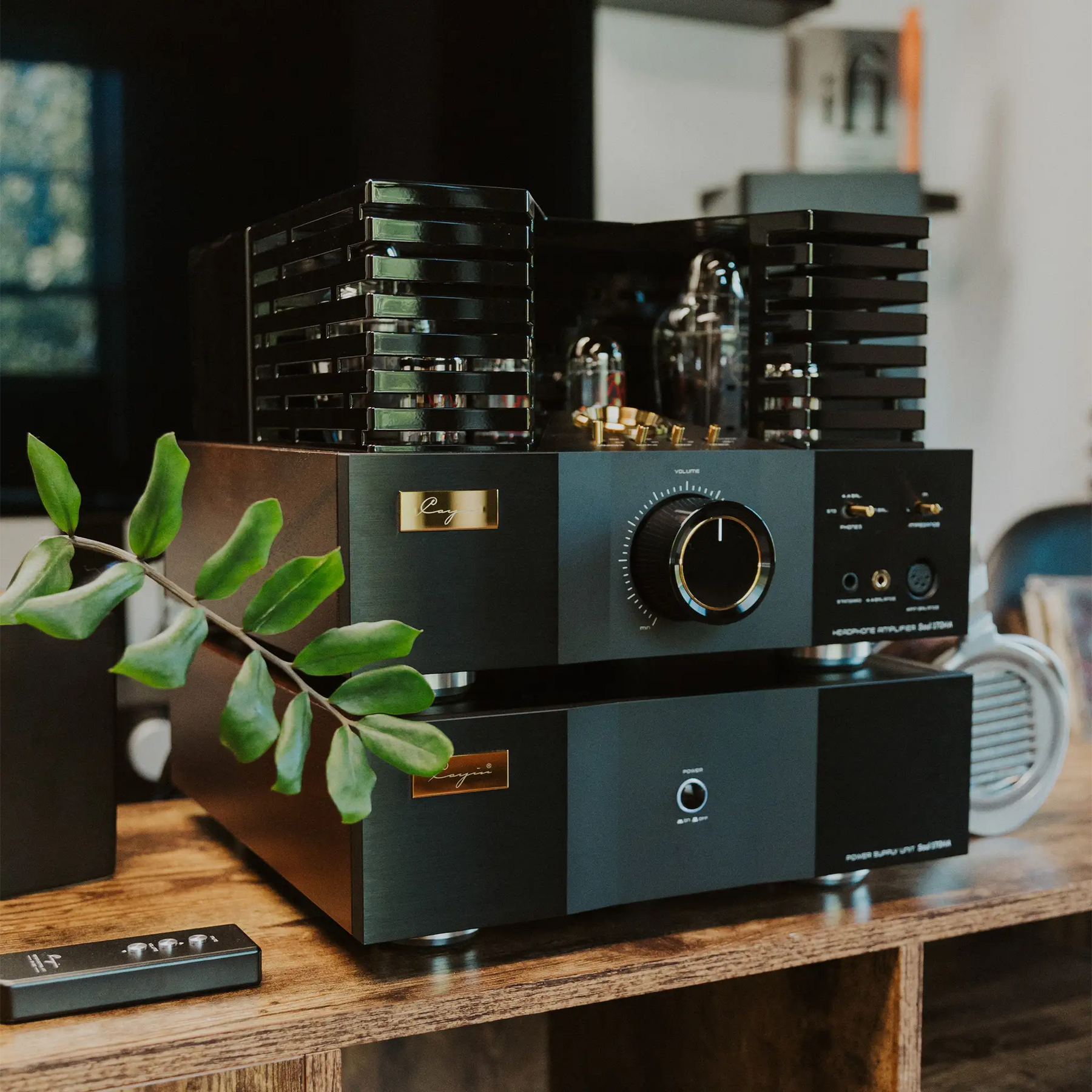

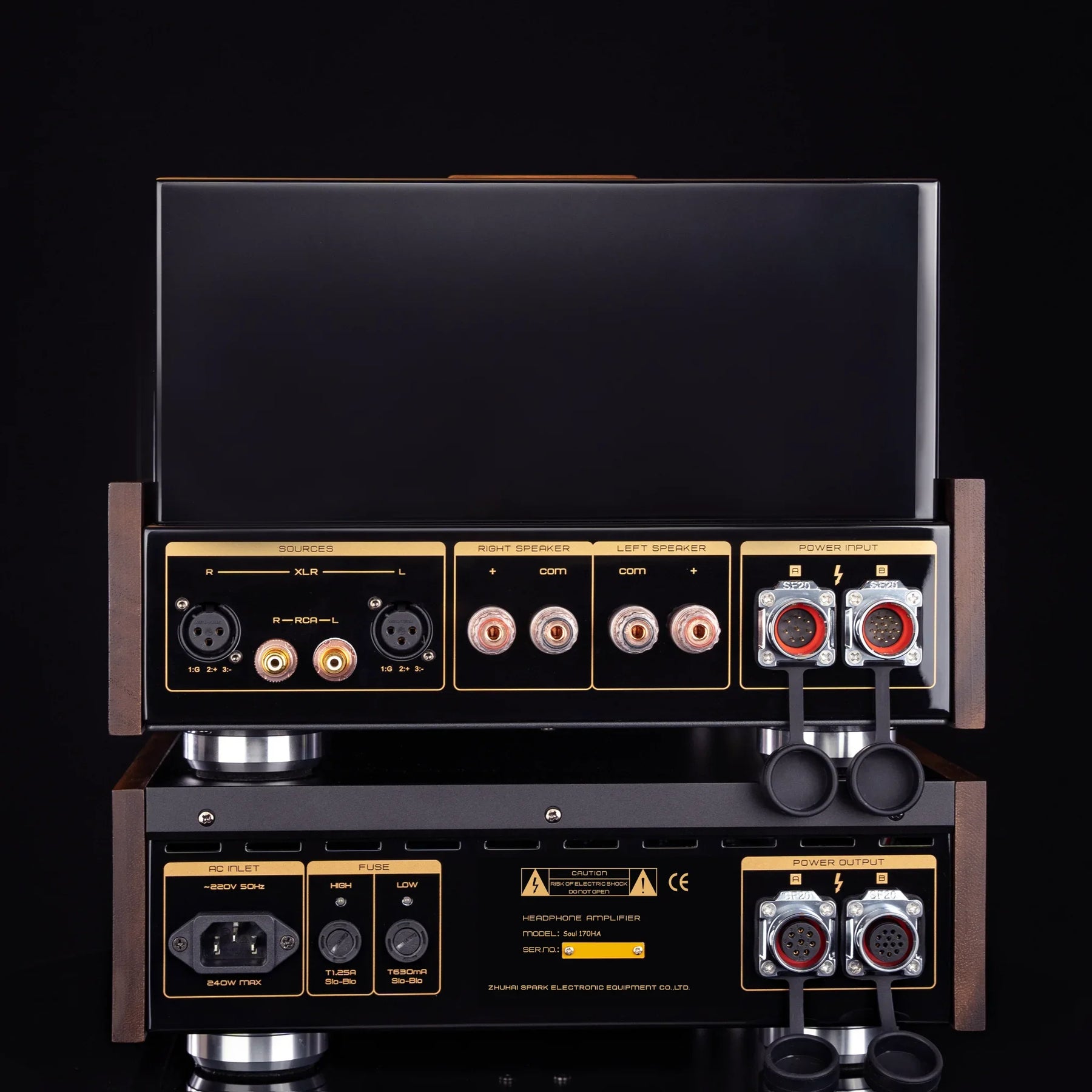

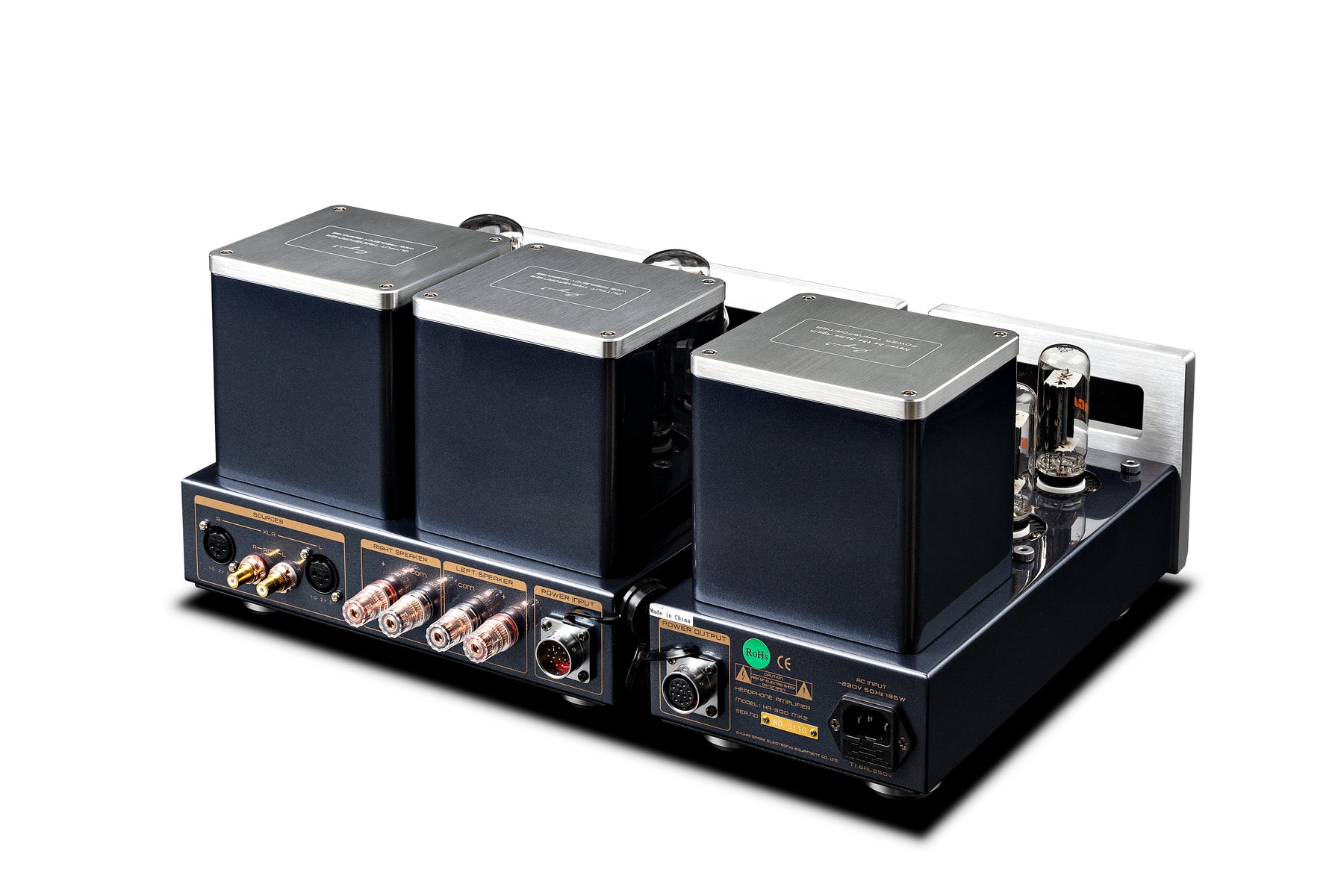

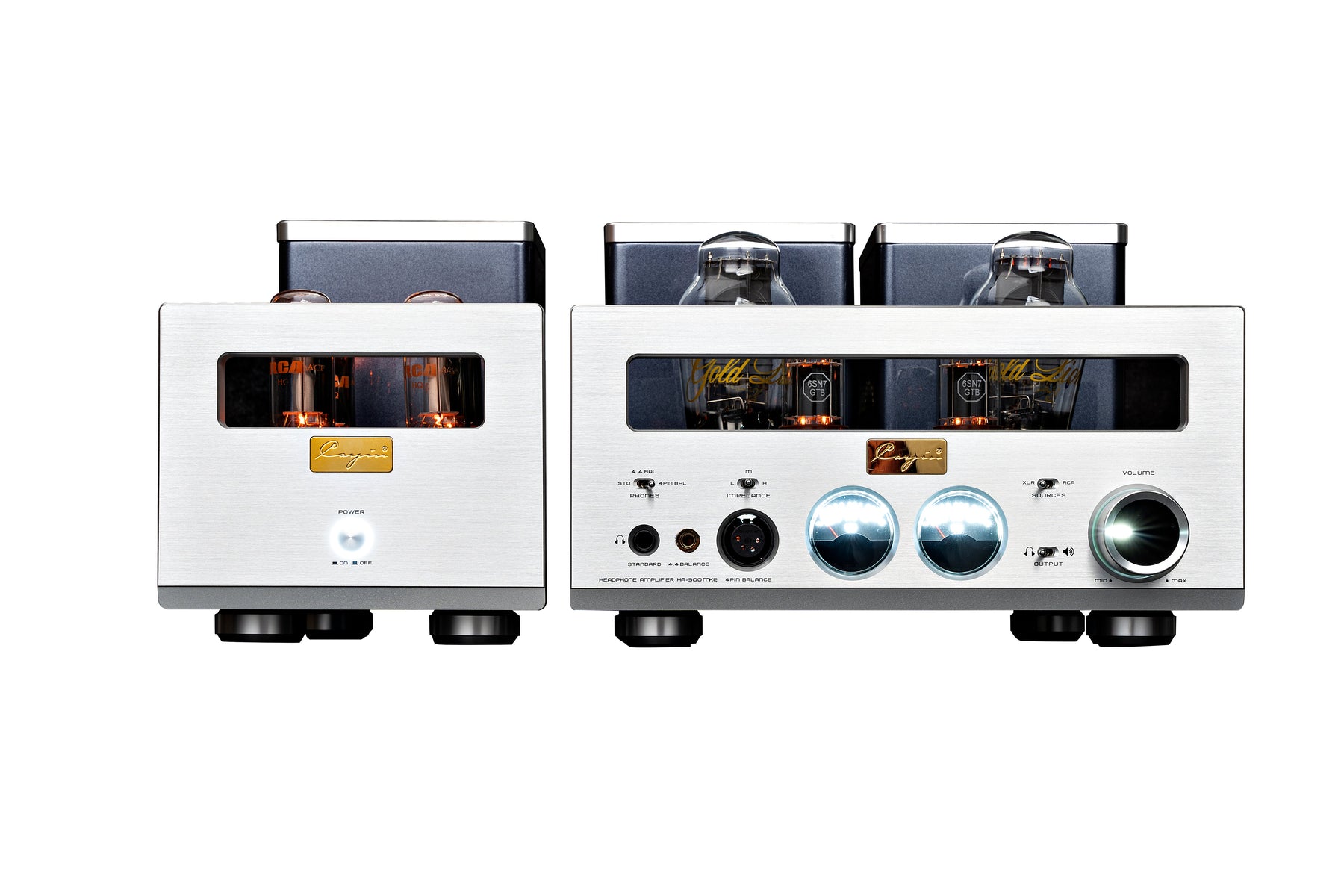

Physically separated 2 box design, the outboard power supply delivers clean, low-noise electrical power to the amplification circuit in a separated chassis independently. It also provides better heat dissipation even when stacked up, allowing the users to place the amplifiers with flexibility.

Dual power supply transformers deliver high and low voltage separately, minimize electrical interference, and safeguard clean power to the amplifier.

Multi-stage tube-regulated power supply circuit feeds power to different amplification stages independently. It can minimize ripple effect, eliminate circuit interference, and enhance circuit performance of both the voltage and current amplification.

The separated high-rigidity chassis and damping mounts absorb shock and vibrations effectively, isolating noise interference caused by transformer vibrations and magnetic leakage to achieve a higher SNR.

The Indispensable Power Supply Link

Heavy-weighted Umbilical Cable

Custom designed silver-plated 6N copper wire to connect between the outboard power supply and main amplification chassis. Separate high and low voltage transmission, with a total of two cables.

6N copper offers excellent electrical conductivity, the high level of purity reduces the presence of impurities that can interfere with signal transmission, and it also ensures consistent performance and longevity of the cables.

Independent shielded to minimize external interference as well as interference between independent transmission of multi-stage power supply circuit.

Fool-proof Quick Release Connection

Quick-release connectors from the aviation industry are used at both ends of the cables for connection.

8-pin for high voltage power transmission, and 12-pin for low voltage, making sure the output from multi-stage power supply will feed to different amplification stages independently.

Connect and disconnect in seconds, and you'll always get it right.

Tube Regulated Power Supply

Multi-stage tube-regulated power supply circuit feeds power to different amplification stages independently.

Soul 170HA employs 2x GZ34S rectifier tube from JJ to handle the driver stage high-voltage supply, providing a tube presentation that is more euphonic and nuanced.

The rectifier tube converts the incoming power source to DC, providing clean power with minimum interference for the circuit.

Unlike output tubes or driver tubes, the rectifier tubes convert signals without a heavy lifted load and can last for years without deterioration.

Since they are not involved in audio amplification directly, there are no matching requirements and they can be replaced on a per-piece basis.

The Flesh and Blood of Tube Amplifier

Transformer Coupled Balance Driven

Soul 170HA is a transformer-coupled single-ended Class A amplifier. The output from the KT170 will drive a pair of output transformers that support both headphone and speaker outputs.

The vacuum tube amplification circuit of Soul 170HA is operated in a single-ended, the output transformers provide an alternative phase and compose a balanced output, enabling a balanced driven from a single-ended vacuum tube circuit.

Custom Designed Audio Grade Transformers

Transformers play a vital role in Cayin's amplifiers. The choice of transformer core, specification of copper wire in different parts of winding, and the winding instruction affect the performance and sound signature of their amplifiers.

Cayin designs and winds all the power supply and output transformers in-house. This becomes their critical core competence and it allows the engineers to have total freedom in specifying the transformers for the circuitry they developed.

They consistently use high-purity copper enameled wire in the design of toroidal power supply transformers to reduce magnetic noise effectively.

The custom-designed wide-frequency response EI-type output transformer uses a high-quality Z11 silicon steel core, to minimize signal loss and enhance fidelity.

Cayin's shielding packaging technology and circuit protection measures further protect the machine from noise interference and extend the product's lifespan.

Dual Operation Mode

Triode Mode
KT170 screen grid connected directly to the anode. Tender, smooth and elegant. Holography with sharp image, suitable for vocals, string music and mid-range focused genre.

Ultralinear Mode
A tap is added to the primary winding of the output transformers and connected to the KT170 screen grid, providing higher voltage and changing the operating state of the power tubes. Open, bold, with great momentum. The soundstage will open up, suitable for orchestral, OST, and music with wide dynamic range.

Dual Tonality

Adjust the operating current of the two KT170 tubes synchronously

Dynamic
Dense, fast and authoritative, prominent dynamic with contrast. Forceful and exciting quality.

Soft
Relaxing, delicate and peaceful, revealing low-level details. Engaging and involving quality.

Impedance Matched Headphone Output

In-house designed output transformers provides three sets of impedance matched outputs to handle different headphone loadings accordingly:

Low (L): 8Ω-64Ω
Mid (M): 65Ω-250Ω
High (H): 251Ω-600Ω

Matching headphone impedance should produce a natural sound with well-defined bass reproduction. Planar headphones are more sensitive to impedance matching than dynamic headphones. Users can try out different settings after they are familiar with the sound signature of properly matched output.

A higher impedance setting will deliver higher output power because they are driving a harder load. It is completely different from gain control of a solid-state amplifier.

Application Oriented Output

The 4-pin XLR output is a full-fetched balanced output but the 4.4mm headphone output is optimized for wider range of applications, including high-sensitivity portable headphones and IEMs:

4-pin XLR (Balanced): 12WPC- 18WPC
4.4mm (Balanced): 2WPC - 4WPC
6.35mm (Single-ended): 7WPC - 17WPC

The 4.4mm phone out optimization has taken low-impedance high-sensitive headphones and IEMs into consideration. Cayin reduced the output and improved the S/N ratio, making sure the Soul 170HA is relevant to a very wide range of personal audio applications.

The lower output of 4.4mm phone out can also serve as a fallback when the system suffers from unidentified hum and interference.

Dynamic Auto Bias

The Soul 170HA adopts an integrated bias servo circuit design. When replacing vacuum tubes, there is no need for manual adjustment, as the Dynamic Auto Bias servo circuit handles it.

It precisely controls the power tubes, ensuring better compatibility with the amplifier. The innovative circuit design enhances safety and prolongs the lifespan of the vacuum tubes.

0dB Gain Difference

The volume control circuit comprises a custom ALPS carbon film potentiometer and a JRC MUSES72320V electronic volume chips.

The ALPS volume potentiometer acts as a physical motion sampler, and the MCU controls the two low-noise low-distortion electronic controlled resistor ladder analogue volume chips to achieve 128 levels of high precision volume control, making it more stable and reliable than traditional potentiometers. The 170HA's high-precision volume control circuit ensures a 0dB gain difference between the two channels.

Comprehensive Protection for Ideal Performance

The Soul 170HA uses an MCU to manage the entire headphone amplifier, incorporating multiple protection circuits and startup sequences to provide comprehensive protection from power on, playback, to power off. This safeguards the vacuum tubes while ensuring the amplifier always operates in an optimal state.

Performance Driven Design, Top of the Line Configuration

Hand-matched Vacuum Tubes

The vacuum tubes used in the Soul 170HA are manually tested and matched. They undergo strict performance testing, a 48-hour aging process, final measurements after installed on amplifier, and listening test to ensure high standards of channel uniformity.

Classic Point-to-Point Wielding

The entire circuitry is hand-wired using point-to-point wielding, this is time-consuming but ensures the shortest signal path with low signal loss. It also isolates audio signal, grounding, and high voltage power from cross-infecting each other, preventing mutual interference and ensuring the performance and reliability of the Soul 170HA.

High-end AudioCapX PPFXS Coupling Capacitors effectively isolate DC, improve the accuracy and stability of audio transmission, and enhance overall sound quality.

Elegant and Majestic Design

The front panel of Soul 170HA is made of aerospace aluminum with a matte black anodized finish. The side panels are crafted from North American black walnut wood with unique grain and texture, enhanced by hand polishing for a more sophisticated feel.

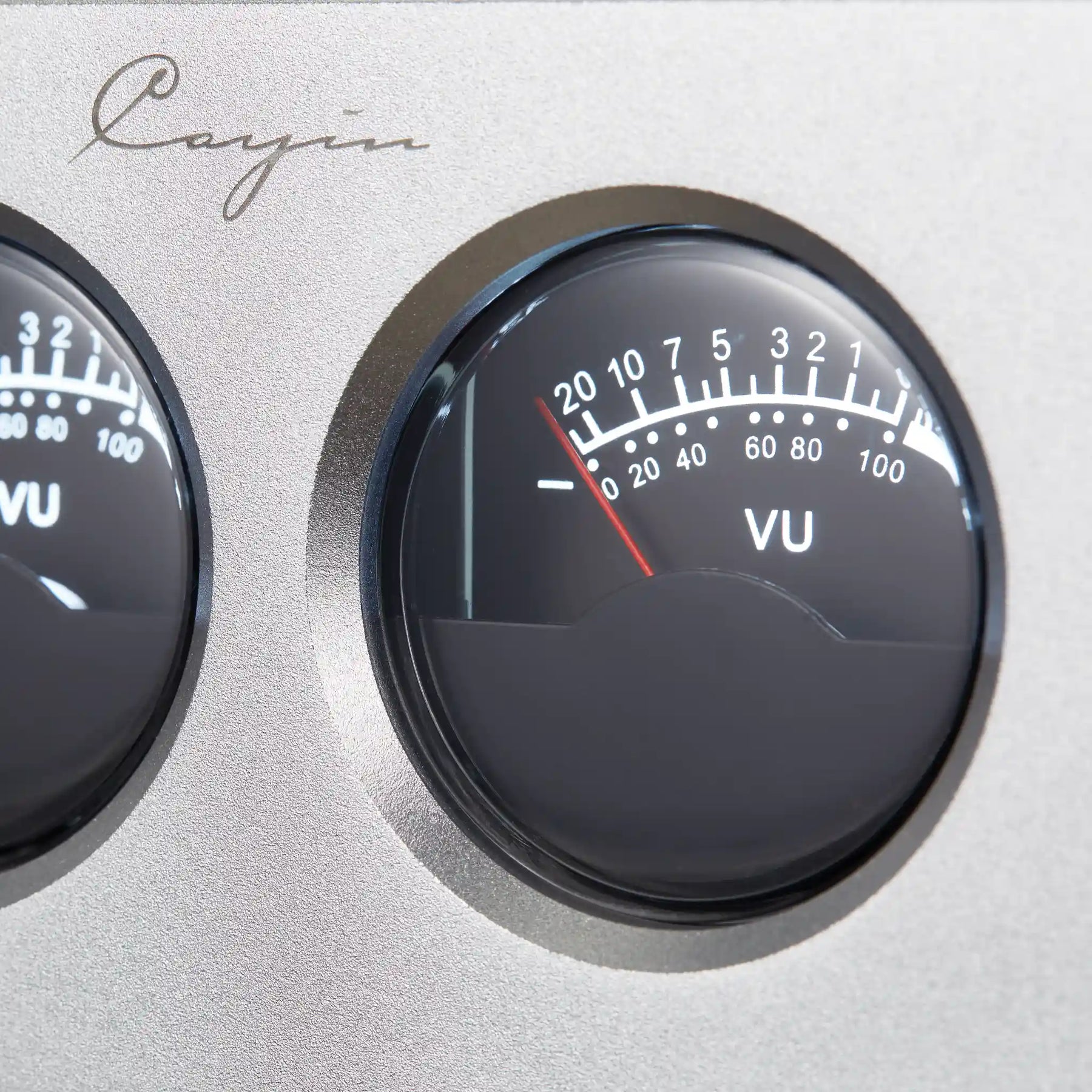

Luxurious and exquisite VU meter design, combining high aesthetics with functionality, allowing you to appreciate the charm of details while listening.

Theatrically designed tube cage protect the vacuum tubes and prevents accidental contact with the hot tubes during operation.

Specifications

• Tubes:

  • Output: TUNG-SOL KT170 x2
  • Driver: JJ 6SN7 x2
  • Rectifier: JJ GZ34S x2
• Analog Inputs: XLR (x1 pair), RCA (x1 pair)
• Output Power:
  • 3.5mm Single-ended
    • Ultralinear: 11W (L); 13.5W (M); 17W (H)
    • Triode: 7W (L); 8.5W (M); 11W (H)
  • 4-pin XLR
    • Ultralinear: 15W (L); 17W (M); 18W (H)
    • Triode: 12W (L); 14W (M);15W (H)
  • 4.4mm Balanced
    • Ultralinear: 2.5W (L); 3.5W (M); 4W (H)
    • Triode: 2W (L); 2.4W (M); 3W (H)
  • Speaker: Ultralinear: 18W (8Ω); TR: 10W (8Ω)
• THD: 1% (1kHz, 7W/UL, <5% Rated Output)
• S/N Ratio: 109dB (A-Weighted)
• Weight (Amplifier): 23.3kg
• Weight (Power Supply): 17.2kg
• Dimensions (Amplifier): 330mm x 400mm x 231 mm
• Dimensions (Power Supply): 330mm x 363mm x 114mm
• Power Consumption: 240W (Max)

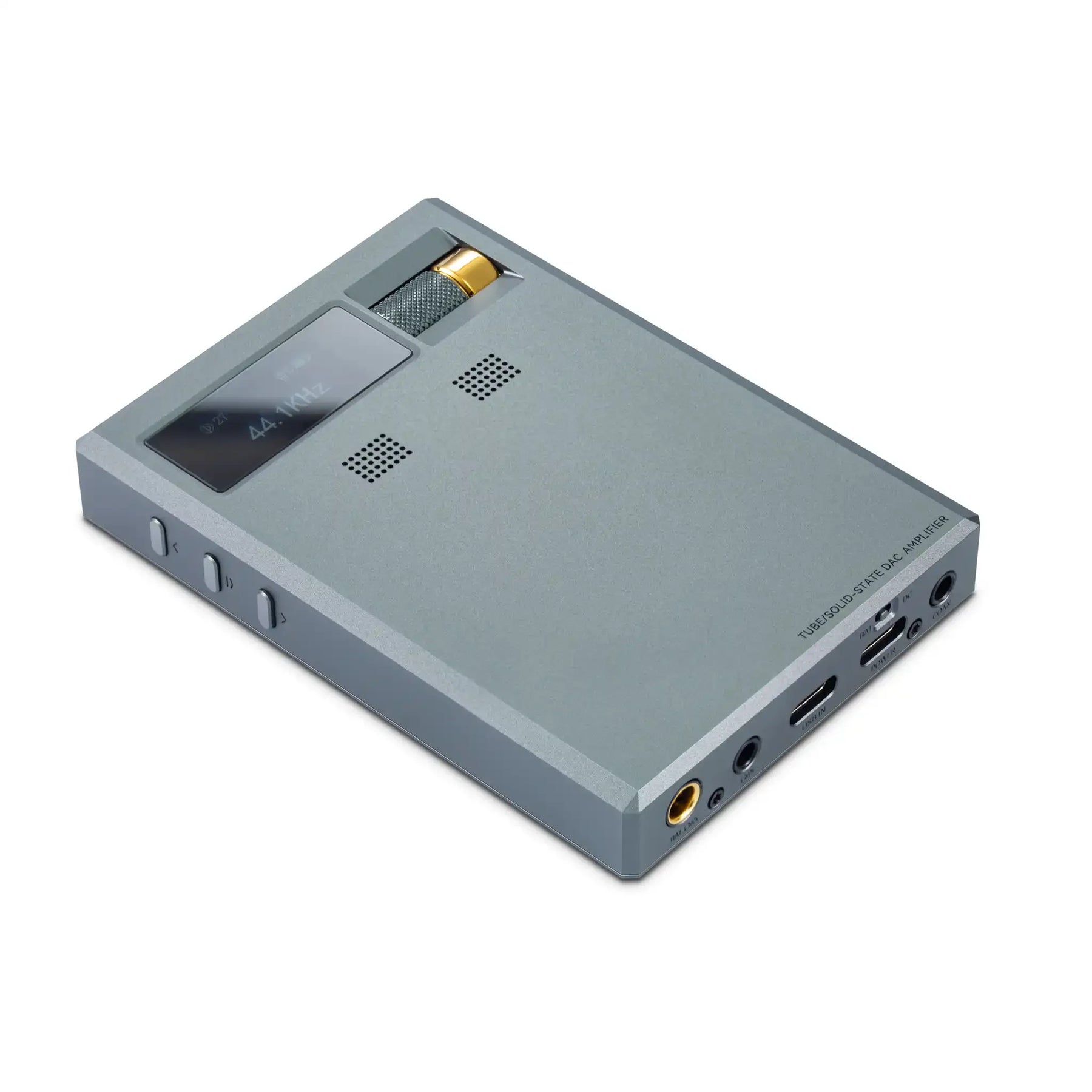

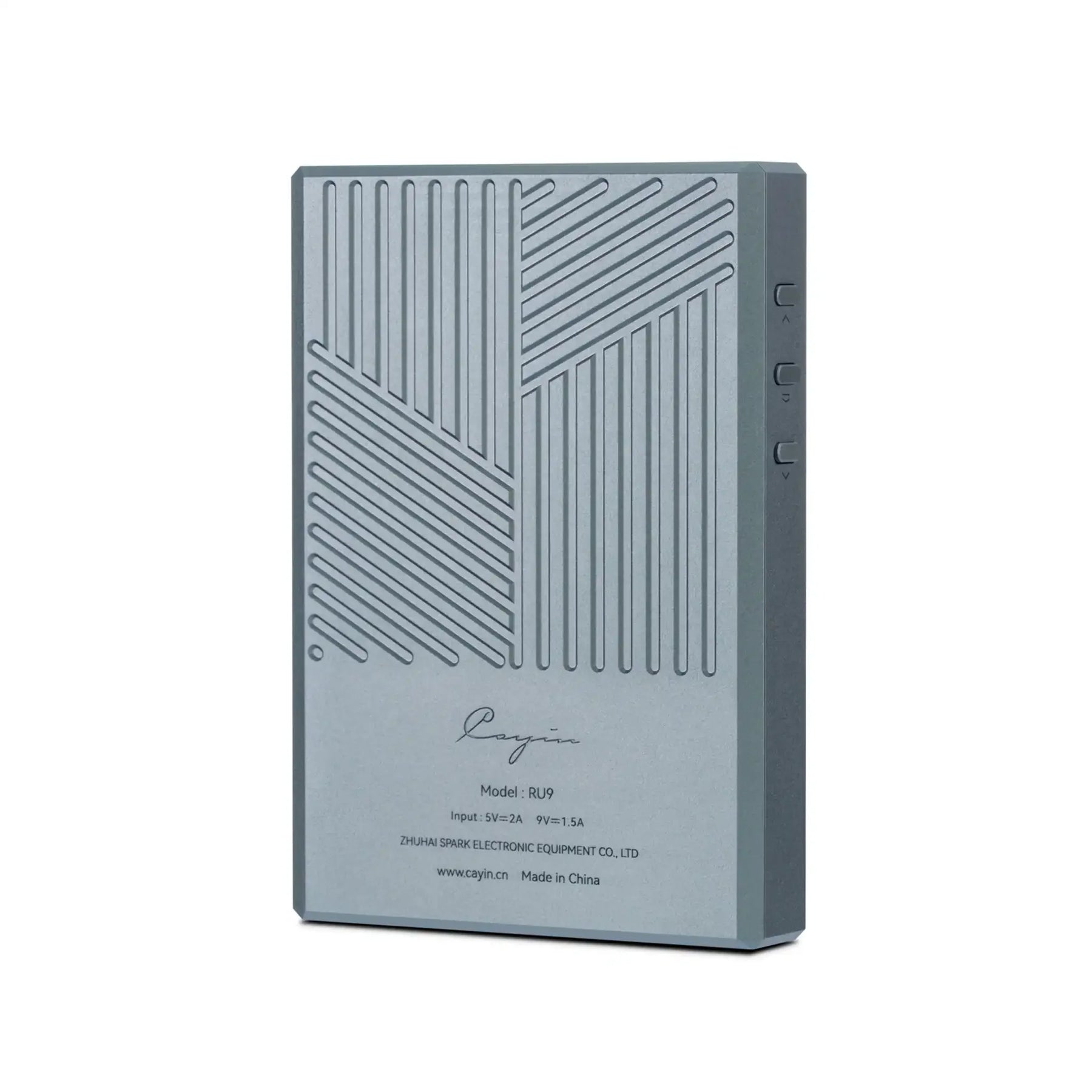

Cayin Expands Their Legacy of Innovation by Introducing RU9, a Pocket-Sized DAC/Amp Featuring a Korg NuTube 6P1 Vacuum Tube

• First portable DAC/Amp to implement a Korg NuTube 6P1 Tube
• High-performance dual AK4493SEQ DACs
• Three timbre options: Classic, Modern and Solid-State
• Magnetic back design allows smartphone attachment
• 3.5mm SE + 4.4mm Balanced phone and line outputs

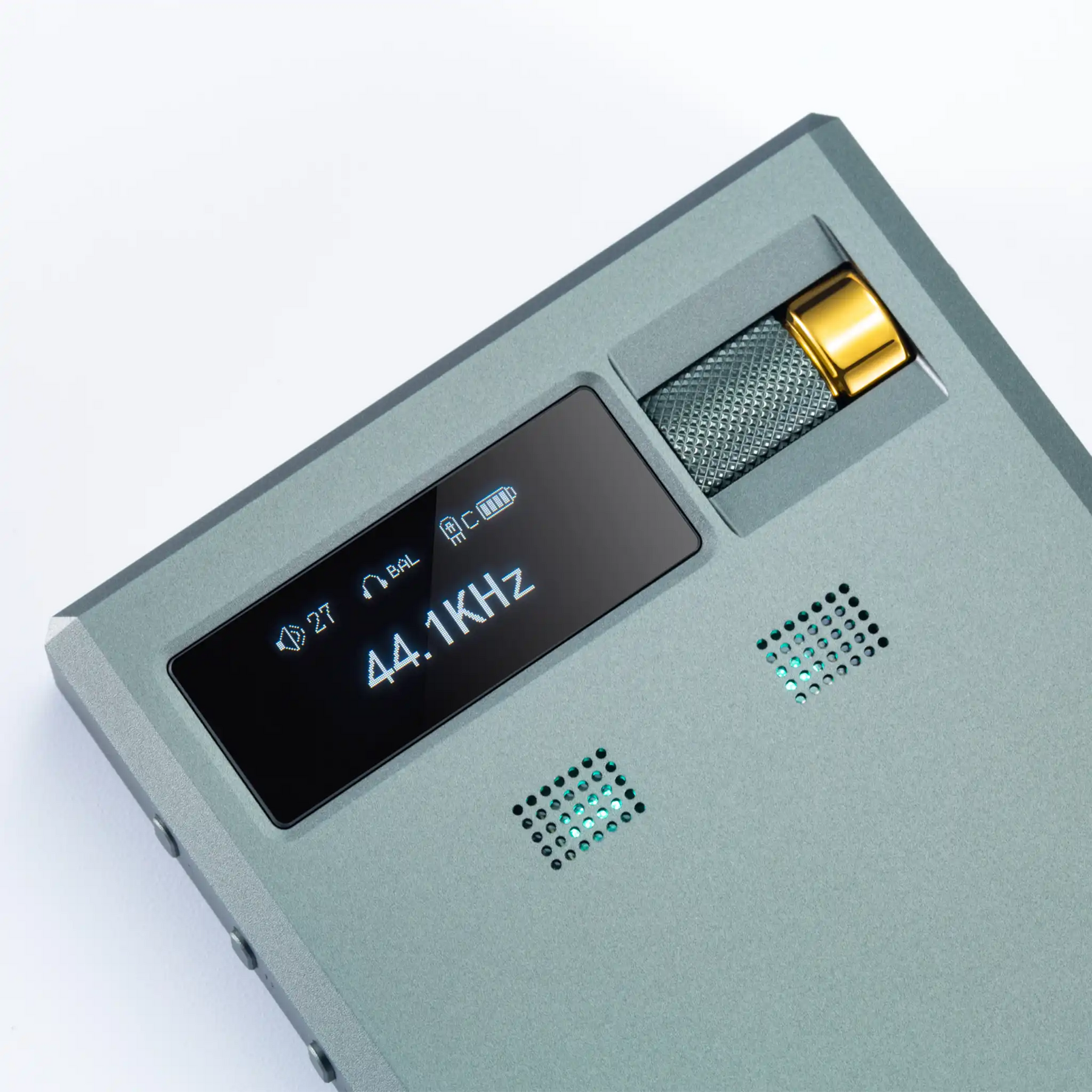

Tube Warmth On-the-Go

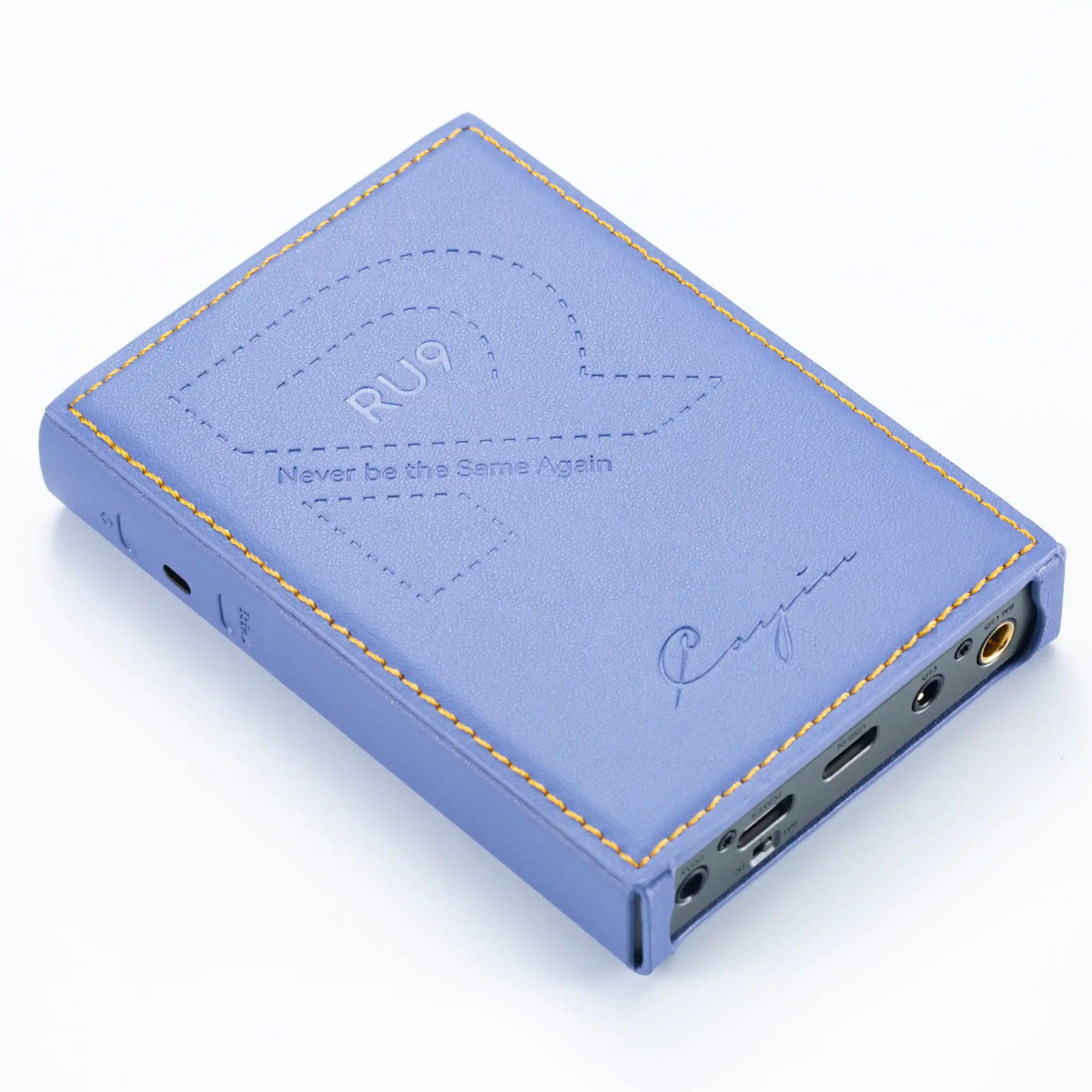

The Cayin RU9 is the latest addition to the RU series. It is a compact, portable DAC and amp that brings the classic tube sound to your mobile audio experience. Featuring the Korg NuTube 6P1 vacuum tube, the RU9 offers audiophiles a unique blend of classic and modern sound signatures.

Classic. Modern. Solid-State.

The RU9 offers users three distinct timbre options: Classic, Modern and Solid-State. As the name implies, the Classic tube mode delivers a warm, nostalgic sonic flavor - the classic tube sound.

The Modern tube timbre yields a sweet, clear and delicate modern tube sound signature. It's harmonically cleaner, offering a quieter background while preserving the warmth of tubes.

The Solid-State mode is ideal for listening to music with its original, uncolored character. It delivers neutral tonality, fast transients and highly accurate audio reproduction.

NuTube 6P1 Application

The tube circuit adopts a three-stage amplification architecture, consisting of 6 Toshiba 2SK209 audio-specific junction field effect transistors (JFETs) and a manually tested paired KORG Nature 6P1 dual triode tube. Both the single-ended and balanced ports on the RU9 can output rich tube sound.

Premium Components

With years of experience crafting high-end audio equipment, Cayin has applied their expertise to engineer the RU9 with exceptional components. RU9 is equipped with dual Equipped with dual AK4493SEQ DACs, each operating in mono mode. The Left and right channels are decoded separately for lower crosstalk and better channel separation.

Employing the latest generation XMOS XU316 USB processor, RU9 supports native DSD512 and 32bit/768kHz PCM signals. The processed signal is then amplified by a four-channel balanced headphone amplifier circuit. It uses dual ultra-low noise and ultra-low distortion OPA1662 OPAMPs with four Nexperia audio power tubes.

Additional Features

Triple Power Supply Modes
The built-in 2000mAh lithium battery offers up to 4.7 hours of playback on a single charge. The RU9 also supports USB power directly from connected devices (bypassing the battery), as well as an external DC power supply for enhanced output performance. It is fully compatible with QC and PD fast charging standards.

Hyper Mode
A specialized feature designed for headphone usage under DC power supply. It increases static operating current and voltage for enhanced audio performance. Producing a strong output, it reaches 1000mW at 32Ω impedance load.

Versatile Use Scenarios
The RU9 is compatible with smartphones, computers, digital audio players, tablets and gaming consoles. A magnetic rear panel allows seamless attachment to smartphones. RU9 supports UAC1.0 (driverless) and UAC2.0 modes.

Vibration Isolation
A custom anti-vibration system was designed for the NuTube vacuum tube. It features silicon housing on a FPC flexible PCB and a pin-supported vertical suspension system to eliminate microphonics.

Thoughtful Details
RU9 features a 0.96" color display with adjustable brightness, knurled volume knob and side-mounted indicator light for charging + sample rate/format display.

Specifications

• Material: CNC-machined unibody metal chassis
• DAC: (2x) AK4493SEQ
• Decoding: PCM up to 768kHz/32bit, DSD512
• Bluetooth: v5.1 with LDAC, aptX HD and aptX LL support
• Bluetooth Chip: Qualcomm QCC5125
• Battery: 2000mAh, polymer lithium-ion
• Connectivity: USB-C input
• Weight: 5oz
• Dimensions: 3.9" x 2.7" x 0.6"

In the Box

• Cayin RU9 DAC and amp
• Leather case
• L-shaped USB cable

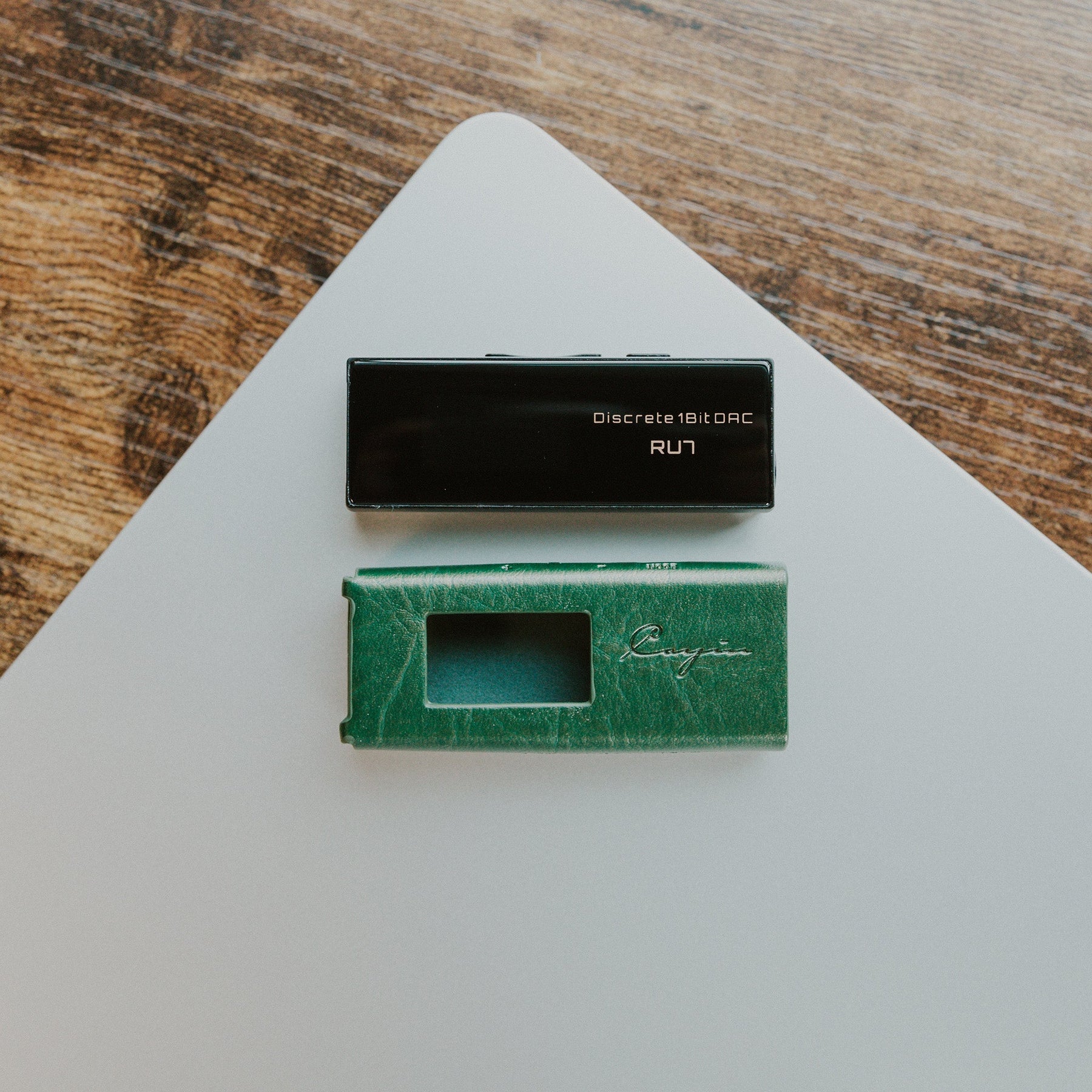

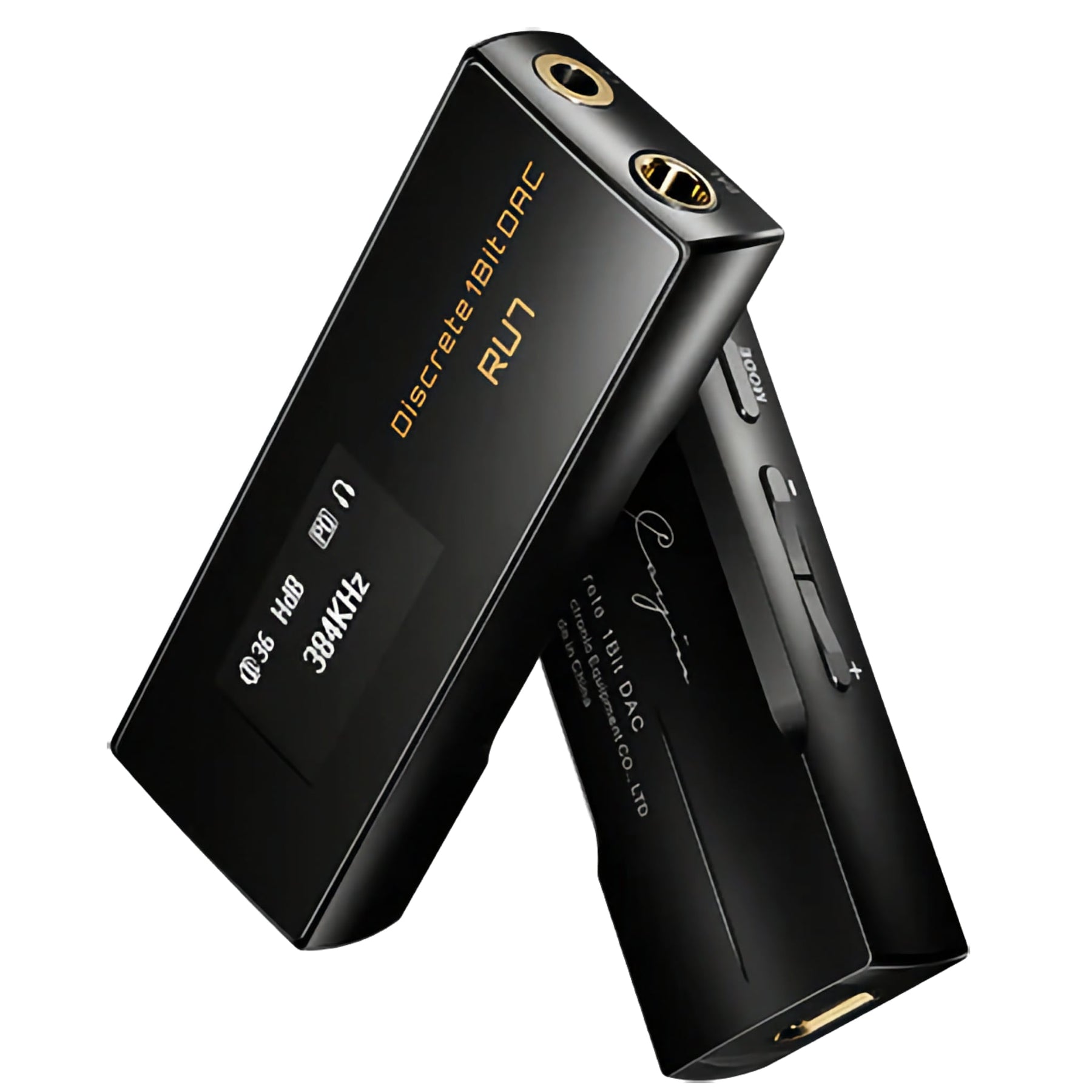

Cayin RU7: The New Benchmark in Ultra-Portable Audio

• Incredible sound from a 1-Bit Resistor Network DAC
• Parallel 4.4mm balance/3.5mm single-ended outputs
• Ultra-light 25g weight

• High-resolution audio support up to DSD256

Fully Balanced Resistor Network Discrete 1-Bit DAC and Dual Amplifiers

RU7 uses a specialized micro-miniaturized 1-Bit DAC with the power of a standard 4 channel DAC architecture. The array of 128 high precision Thin Film Resistors closely resembles the discrete DAC used in the Cayin N7 DAP.

Dual amplifiers in parallel provide high output balanced power. The two amplifiers operate in parallel to provide 160mW @ 32 ohms in single-ended output and 400mW @ 32 ohms for the balanced output.

Discrete Volume Control

The 1-Bit DAC design is very demanding of the input signal, and we recommend that you provide the maximum possible digital output volume from your mobile device to get the best signal from RU7. Cayin's specially developed low noise, low power consumption 100 step volume control offers precise control over a wide volume range to power a range of sensitive and harder to drive IEMs and headphones.

Dual PCB Design Minimizes Interference

RU7 uses a similar design to its predecessor, RU6, with two 6 layer PCB boards, separating digital and analog functions of the device. The two layers safeguard signal integrity and keep noise from the reference clock and DSP from bleeding into the amplification circuit.

Low Power Consumption and High Compatibility

Discrete resistor network DACs have low power consumption compared to other integrated DAC designs, and minimize power drain from the mobile source. Combine the DAC design with a carefully designed amplification circuit and RU7 manages a low 100mA power drain. This enables compatibility with:
Android based devices

• iOS devices
• macOS Computers
• Windows 7-11 PCs
• Digital Audio Players with USB Audio Output

Bundled Protective Case

RU7 includes a supple handmade leather case custom made to fit the device. Included with the case are two discreet magnets with adhesive that you can use to attach RU7 securely to your car, phone, or anywhere else that you use it regularly.

Specifications

• DAC: Fully Balanced 1-Bit Resistor DAC
• Headphone/Line Output: 3.5mm SE, 4.4mm BAL
• 3.5mm Headphone Output:
  • Power: 160mW @ 32 ohms
  • THD: 0.006% @ 1kHz/1V
  • SNR: 114dB
  • Channel Separation: 76dB
• 4.4mm Headphone Output:
  • Power: 400mW @ 32 ohms
  • THD: 0.02% @ 1kHz
  • SNR: 112dB
  • Channel Separation: 92dB
• 3.5mm Line Output
  • Power: 1.2Vrms Fixed
  • THD: 0.02% @ 1kHz
  • SNR: 112dB
  • Channel Separation: 100dB
• 4.4mm Line Output
  • Power: 2.4Vrms Fixed
  • THD: 0.02% @ 1kHz
  • SNR: 112dB
  • Channel Separation: 102dB
• Net Weight: .9 oz
• Cayin 1 year warranty

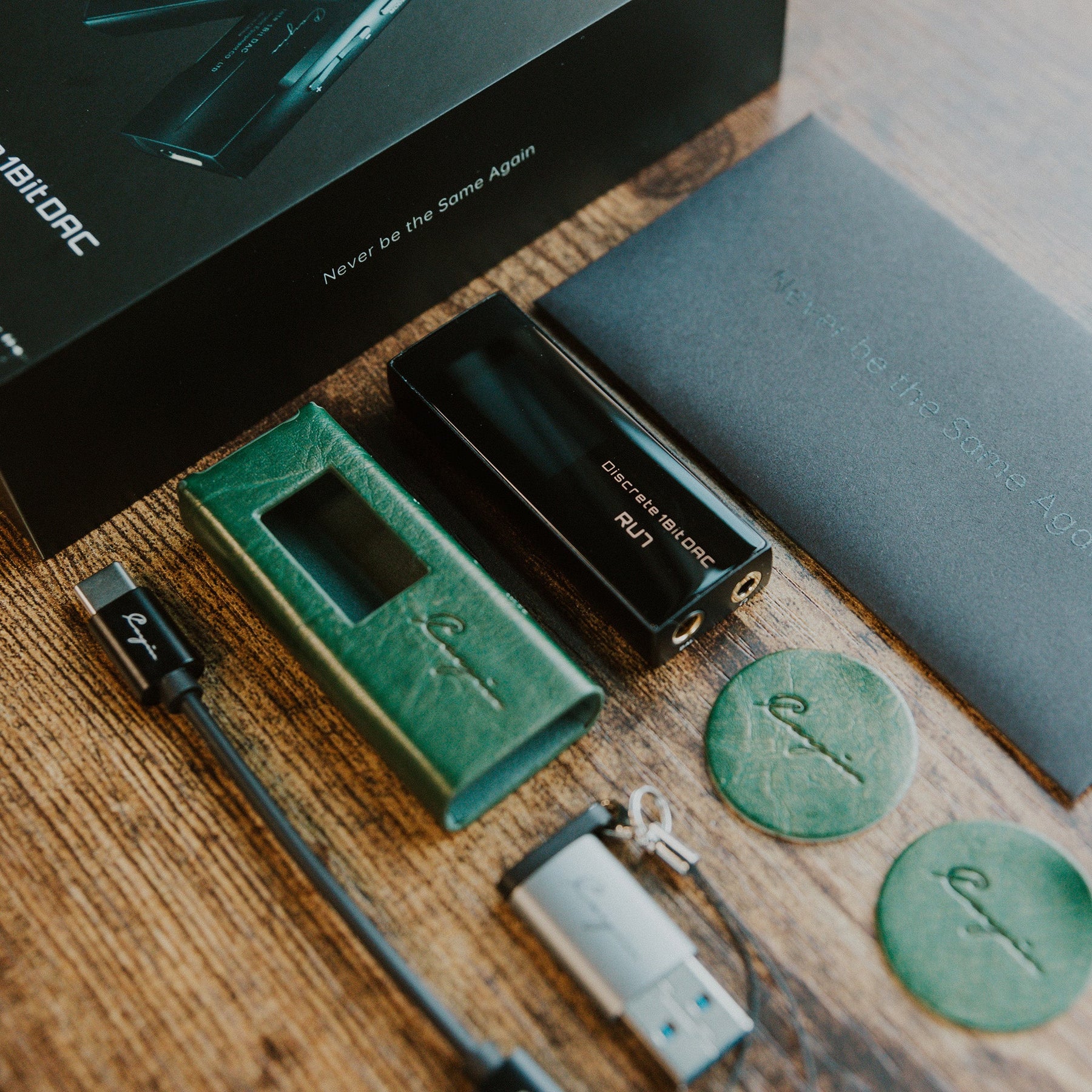

In the Box

• RU7 Portable DAC
• Leather Protective Case

• USB-C Cable x1
• User Manual

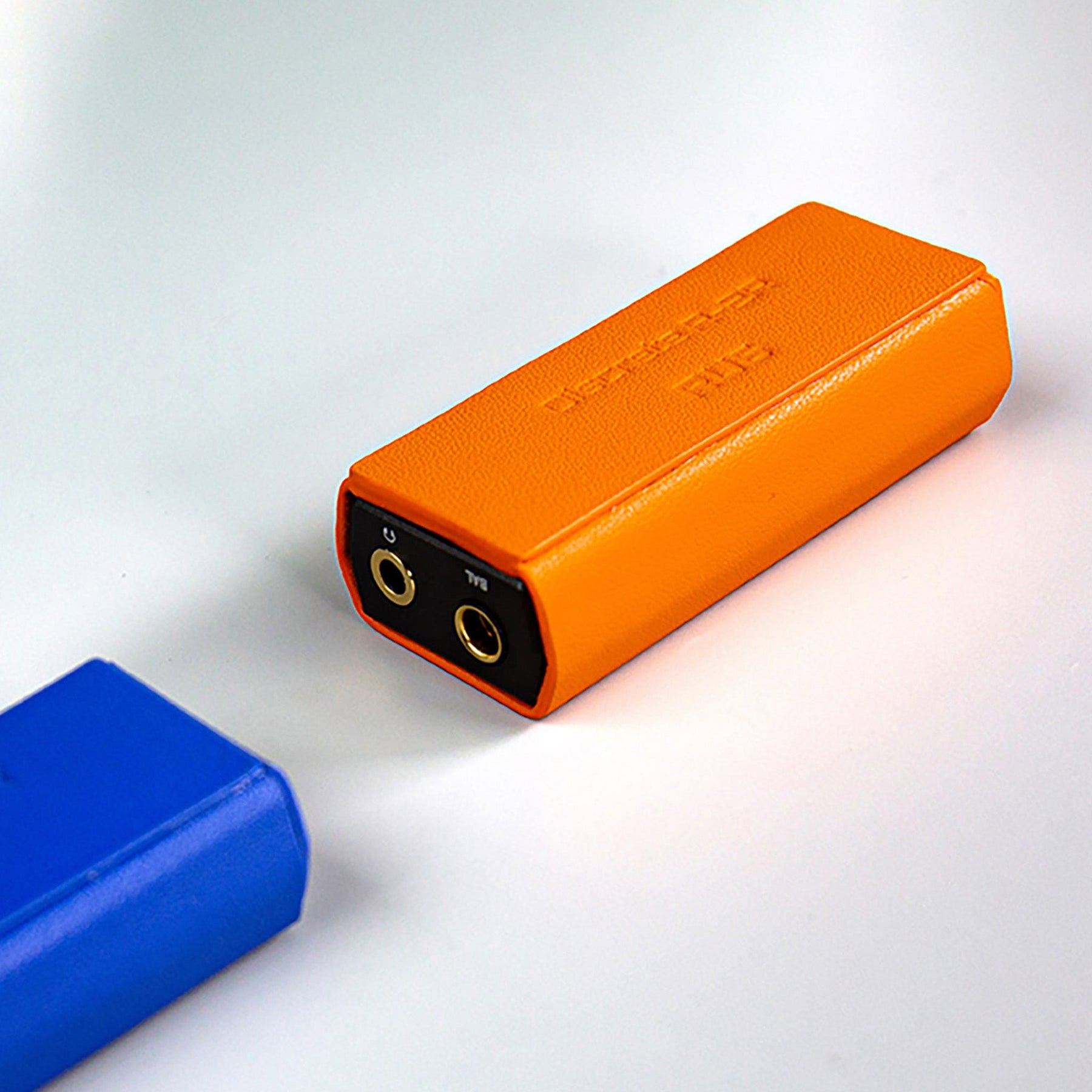

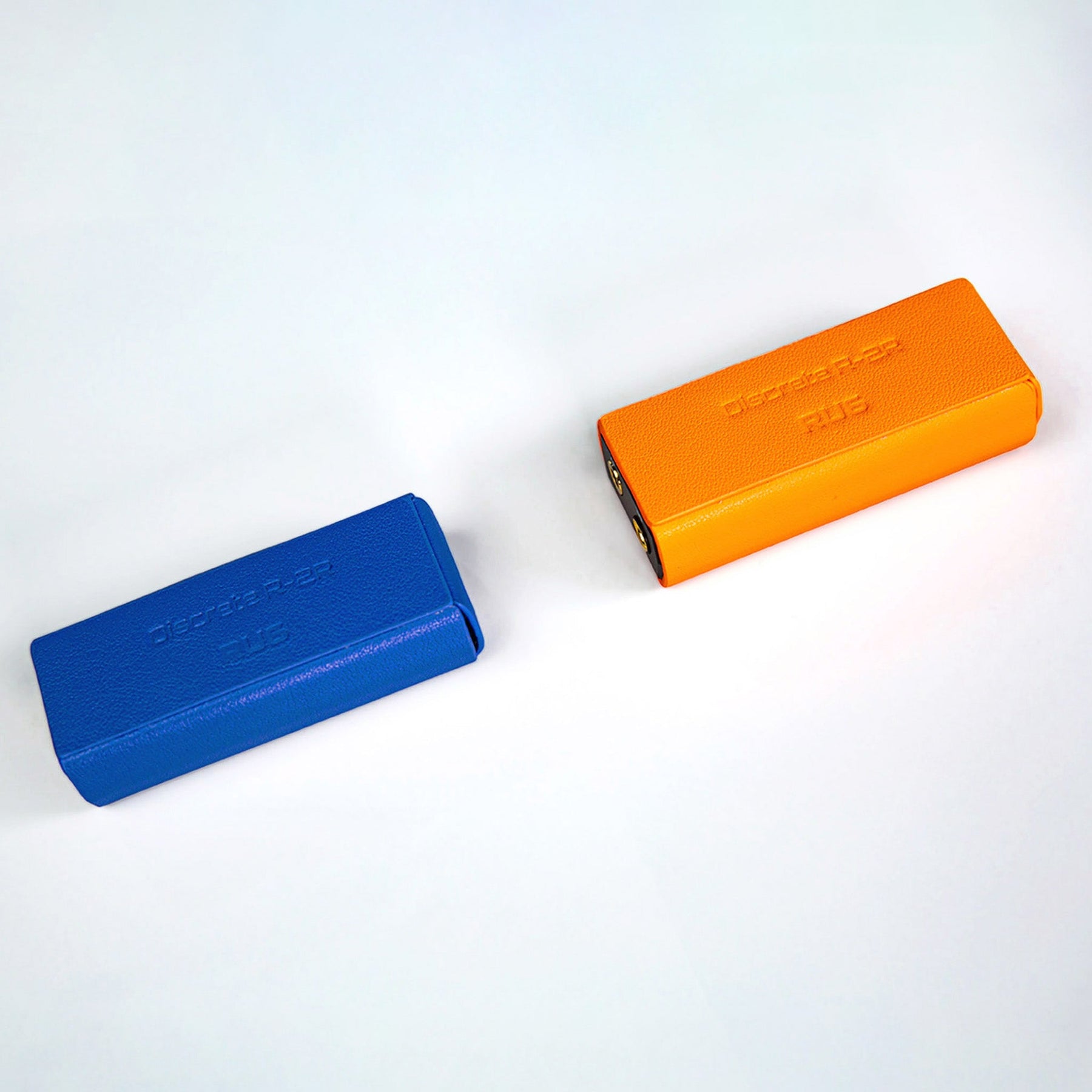

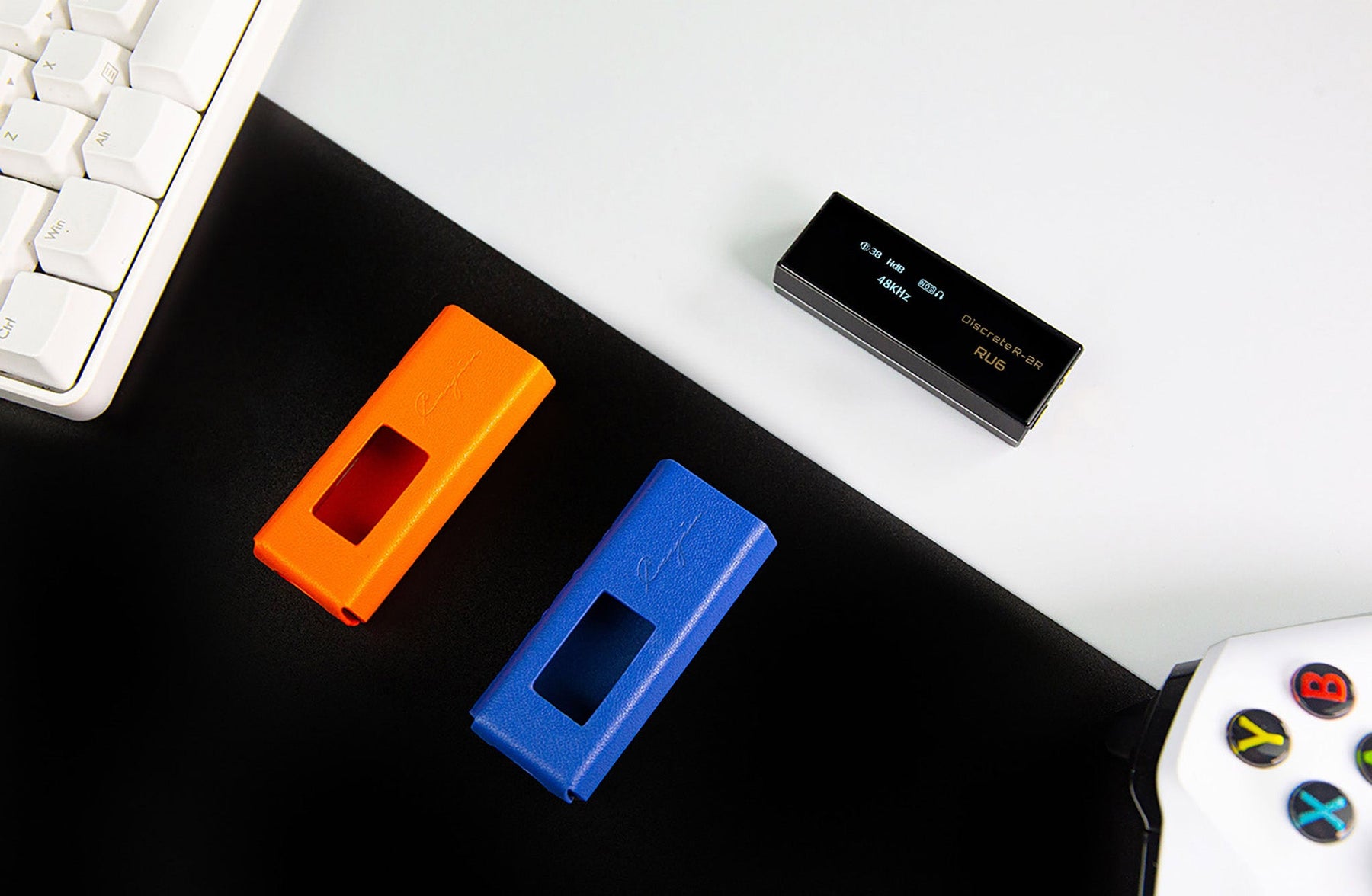

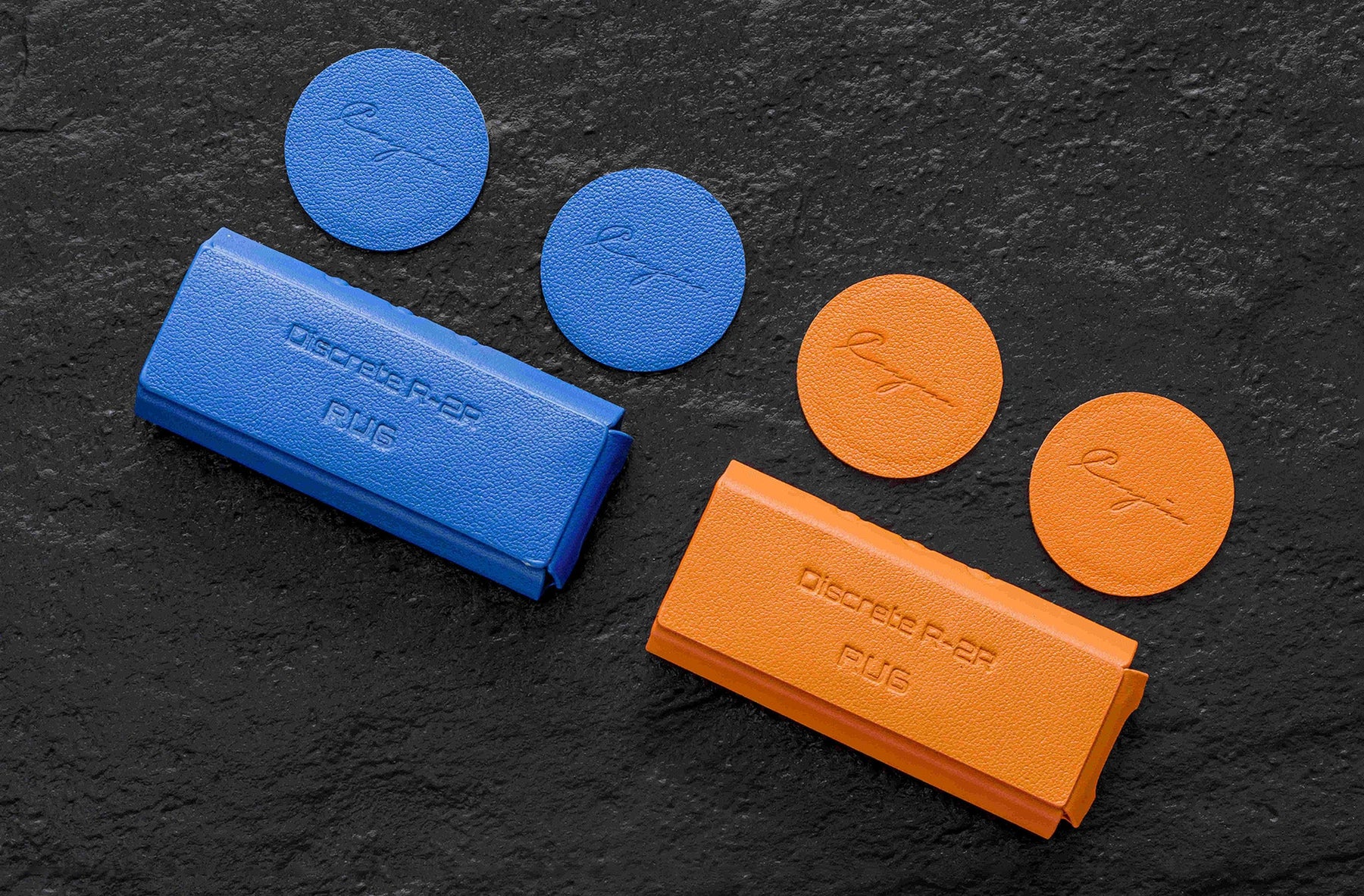

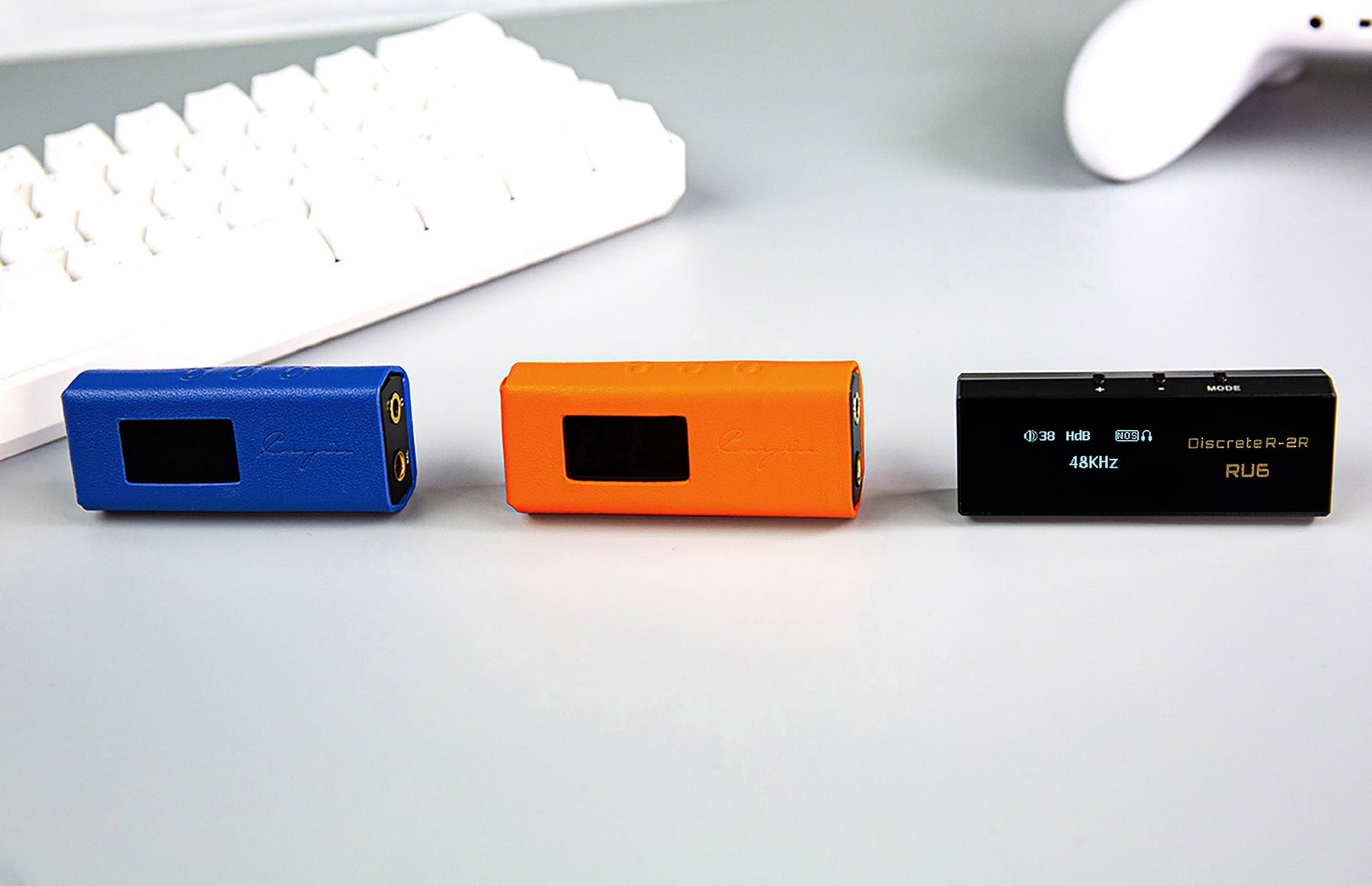

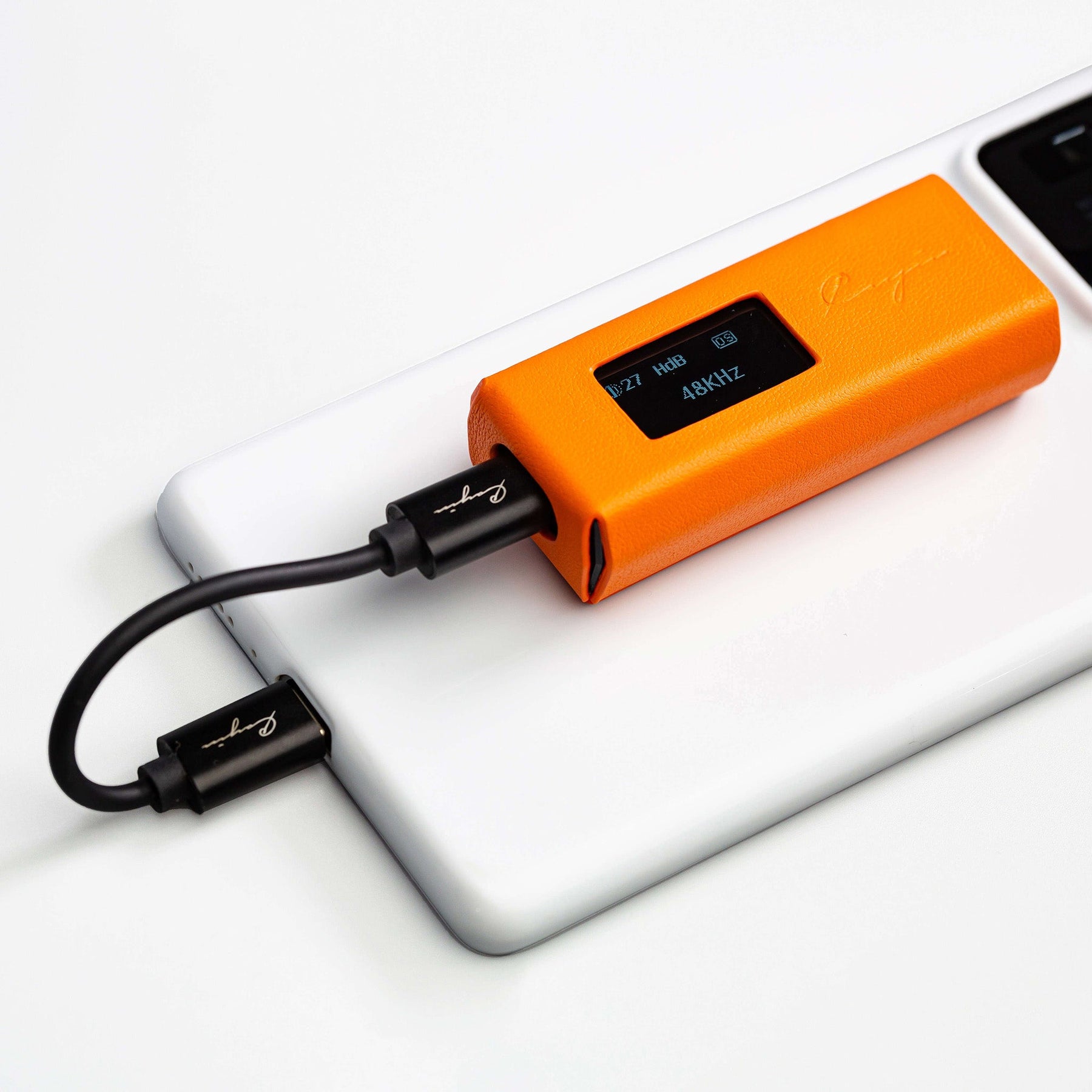

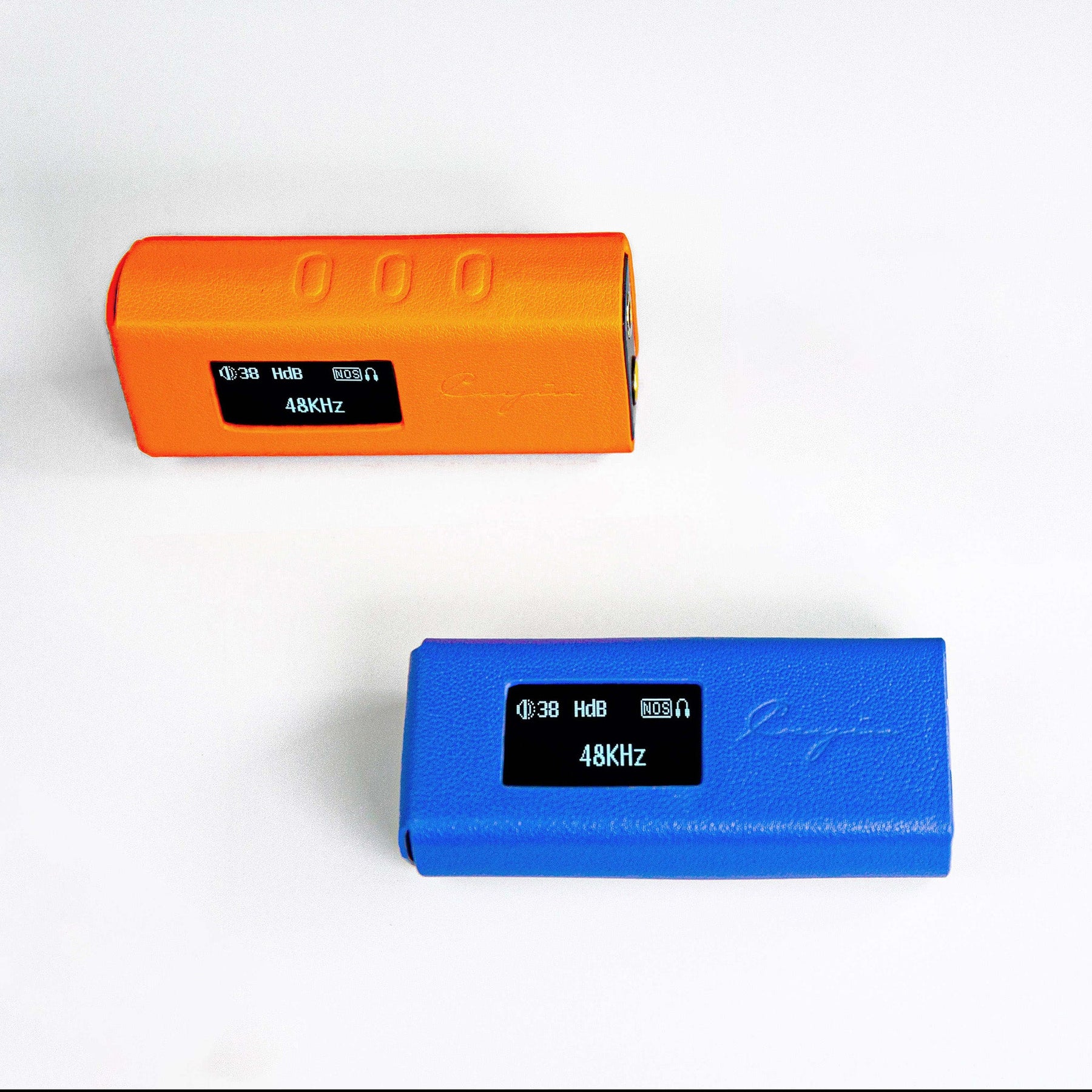

Keep Your RU6 Safe on the Go With a Stylish, Protective Case

• High quality leather perfectly molded for the RU6
• Enables you to use and enjoy the DAC while keeping it protected.
• Includes magnetic stickers to attach to your phone or other surface

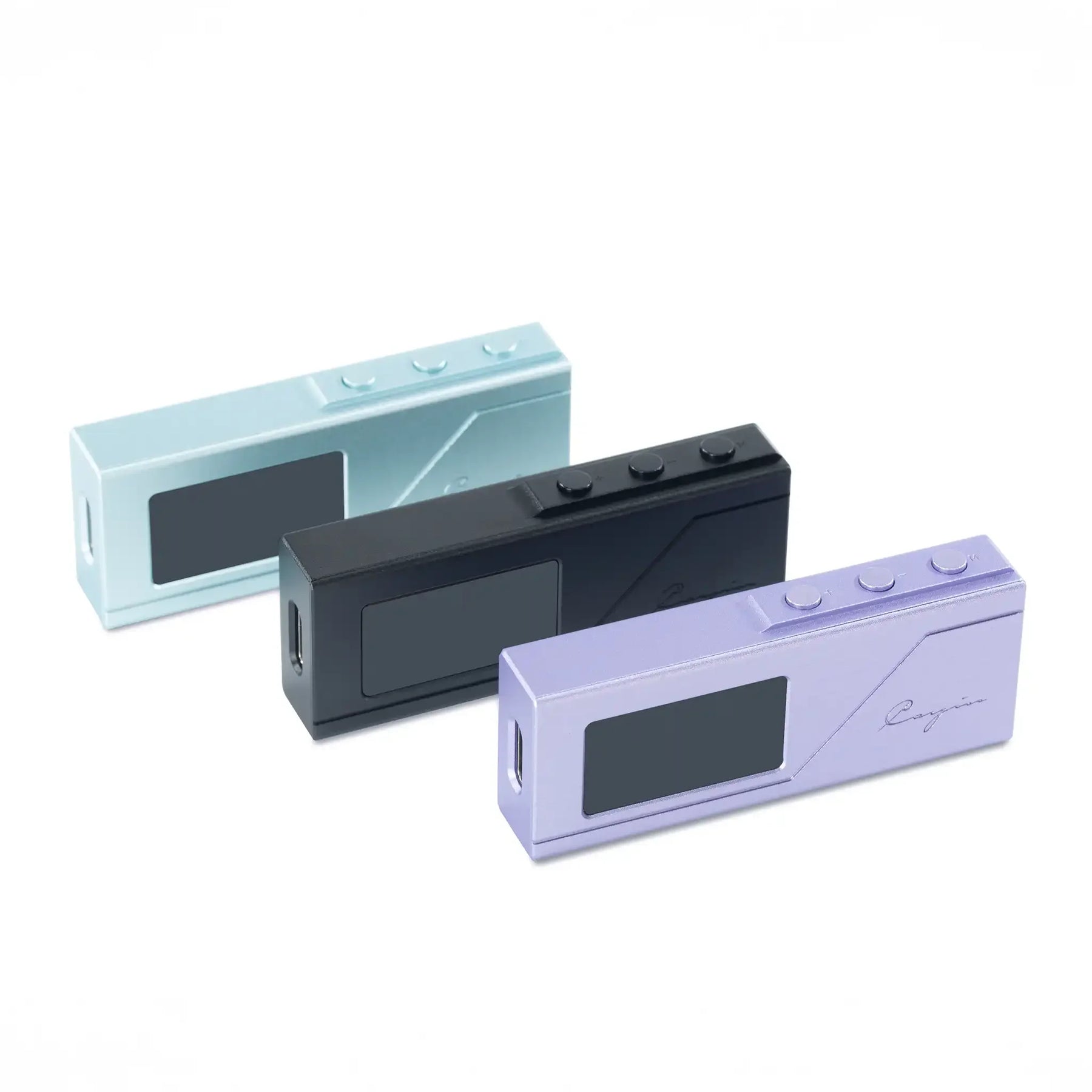

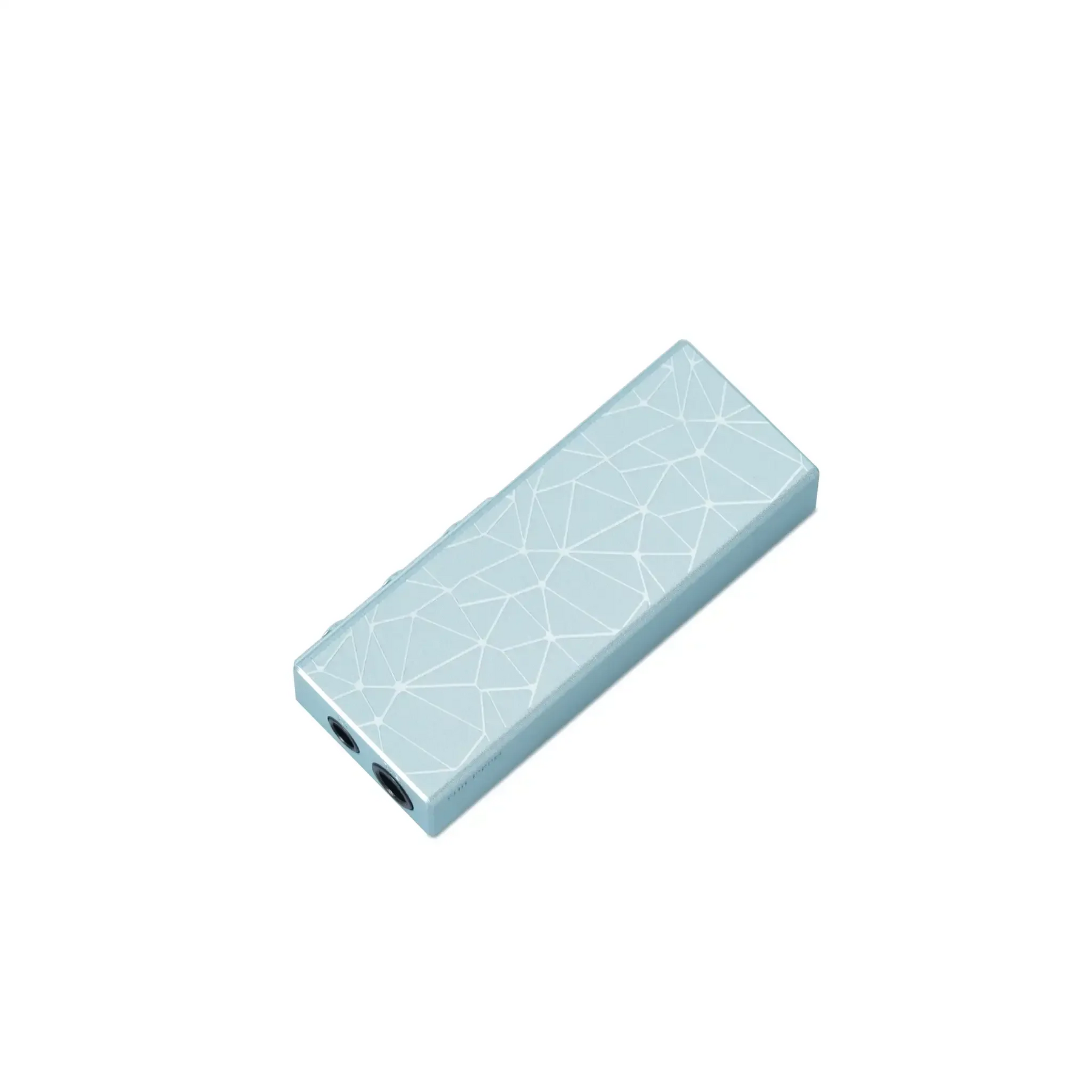

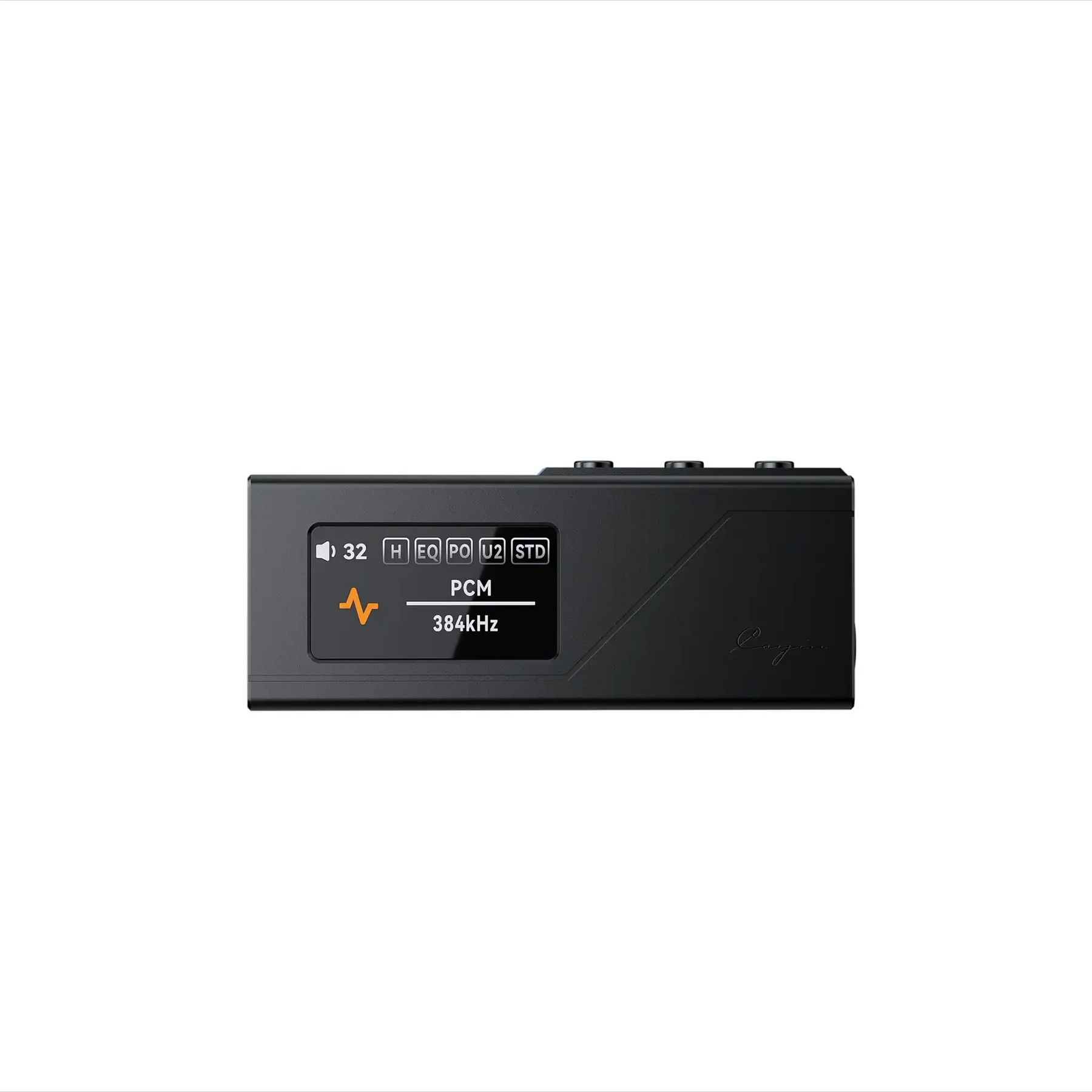

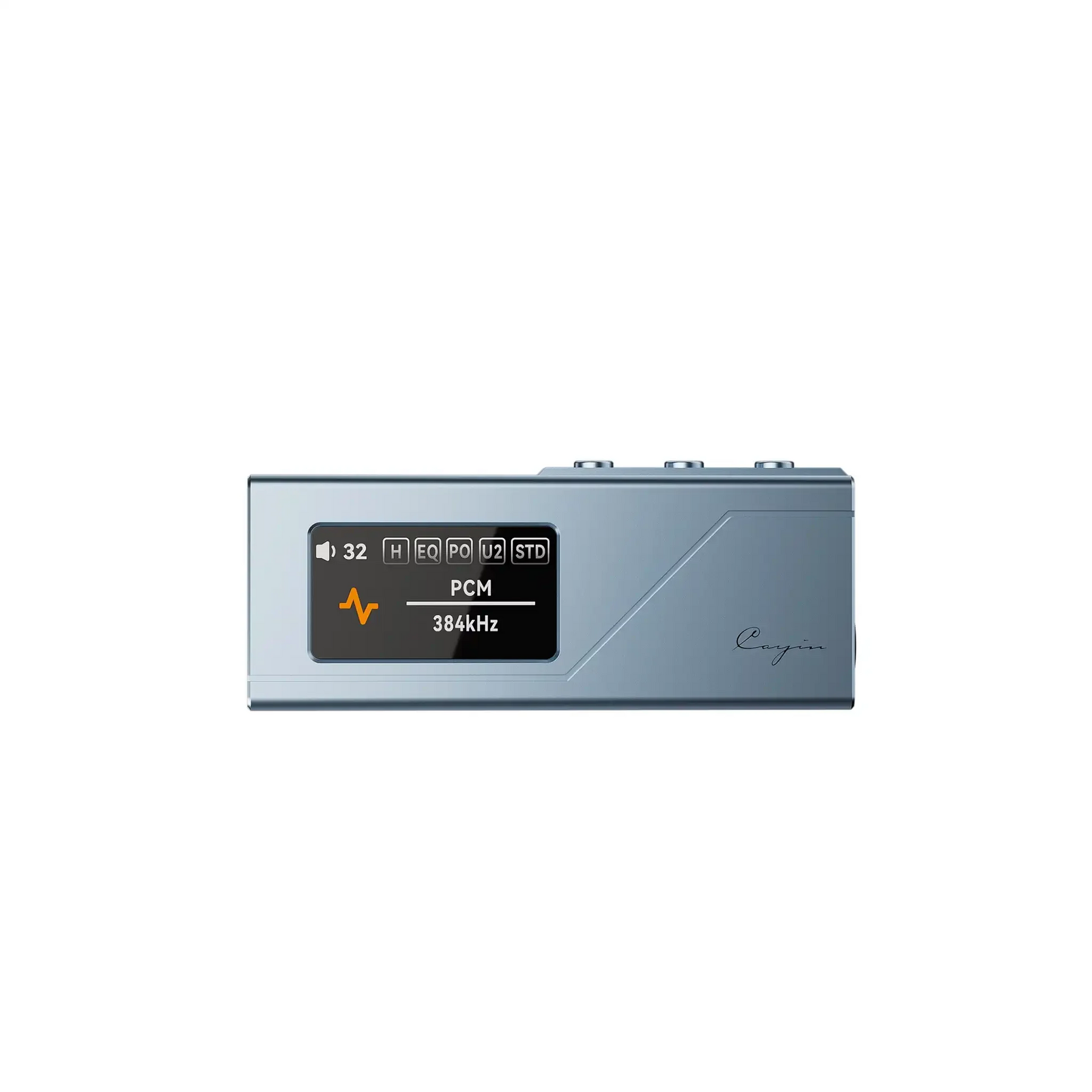

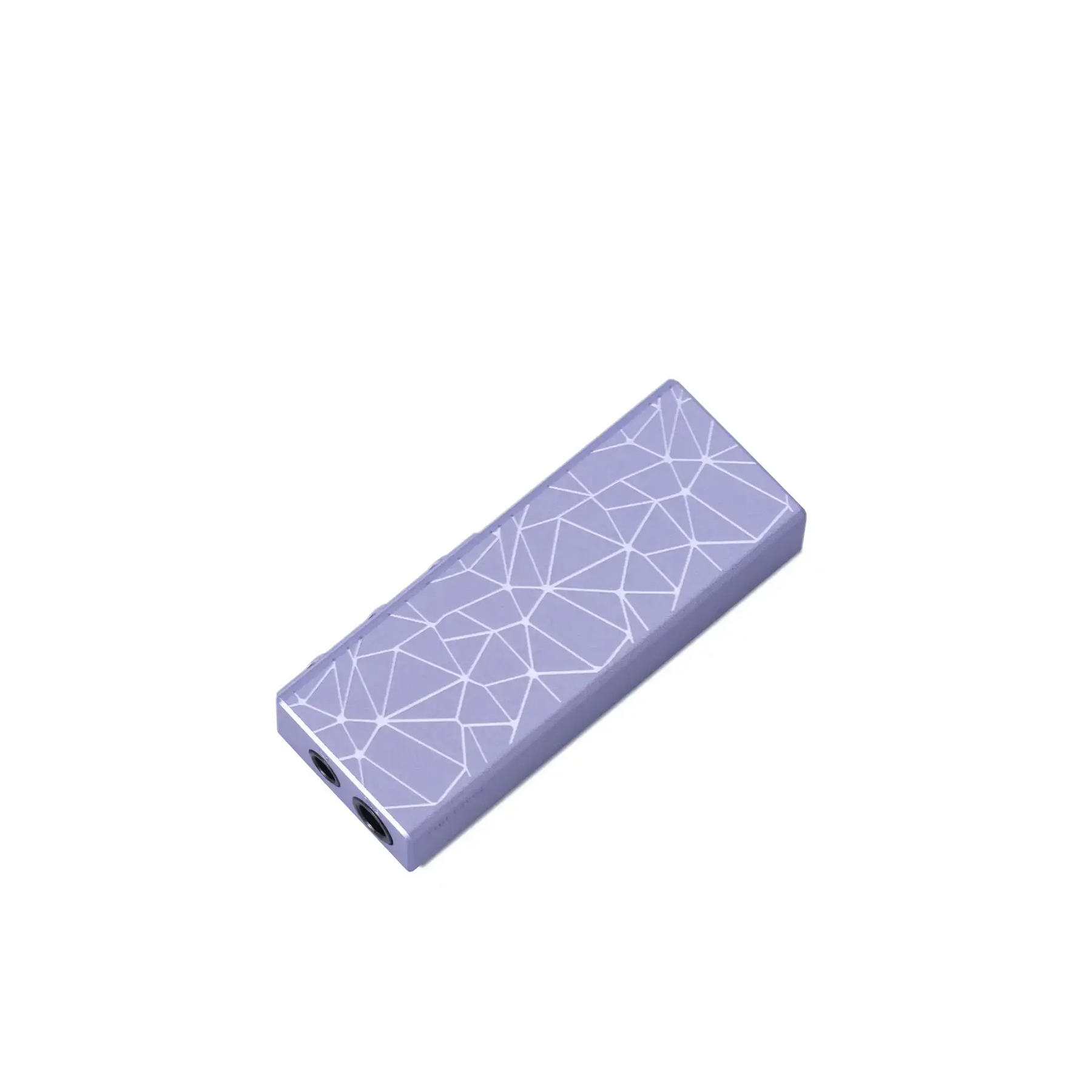

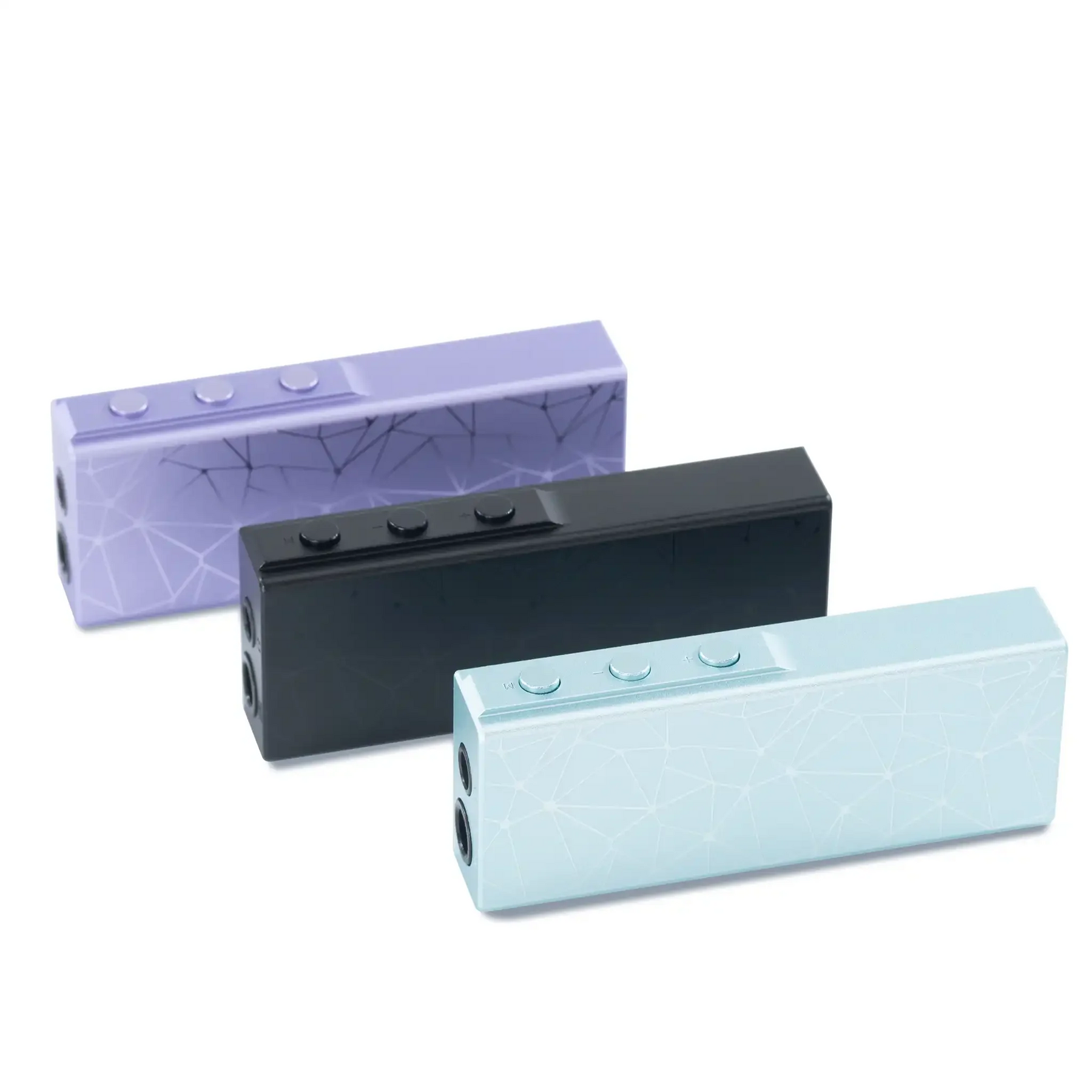

Engineered for Precision and Portability, RU3 Packs High-Precision Decoding and Dynamic Power into a Sleek, Pocket-Sized Form

• Built around ESS ES9069Q high-performance DAC
• Hyper Mode full output: 560mW + 560mW (32ohms)
• Decoding up to 768kHz/32bit DSD512
• 0.96-inch IPS color display

Audiophile-Grade DAC

RU3 is powered by a single ESS ES9069Q DAC in a dual-channel configuration, built around ESS’s latest HyperStream IV Dual DAC architecture and advanced SABRE HiFi technology. Each channel features its own independent op-amp stage, delivering pinpoint signal precision and outstanding channel separation.

A dedicated LDO power system and ultra–low phase noise crystal oscillator further refine performance, reducing distortion and crosstalk to vanishing levels. The result is a soundstage that opens up with greater width and depth, unveiling layers of crystal-clear detail and breathtaking musical realism.

Unleash Dynamic Performance

RU3 is built with two TI OPA1602 op-amps for high-precision I/V conversion and line driving, paired with two SGM8262 low-noise amplifiers to form a fully balanced quad-drive design.

In Hyper Mode, RU3 delivers greater output power and extended dynamic range while maintaining exceptional stability and tonal purity. Distortion and noise are effectively minimized, ensuring accurate imaging, a wider soundstage, and a deeply immersive listening experience.

HYP/STD Dual Power Modes

RU3 integrates a high-efficiency power management system with intelligent energy control, delivering high output while maintaining optimal efficiency. Users can switch between HYP/STD modes to adjust output levels for different listening environments. Its advanced regulation circuitry ensures stable, high-fidelity sound in both modes, completely free from USB power constraints.

Hyper (HYP) Mode
Up to 50mW of power output. Effortlessly drives a wide range of headphones with full dynamics and clarity.

Standard (STD) Mode
Reduces power load on mobile devices. Lowers consumption and heat for cooler, more efficient operation.

Dual-Core Audio Architecture

RU3 is powered by the SPV5068 processor with a high-performance RISC-V dual-core audio architecture. This design offers low latency, high compatibility, and outstanding energy efficiency, significantly reducing distortion and noise for a cleaner background and richer detail. Supporting 32-bit / 768kHz PCM and native DSD512, RU3 delivers high-resolution playback that meets the demands of true audiophiles.

Additional Features

Cayin Control App
RU3 integrates seamlessly with the Cayin Control App, providing intuitive access to essential audio settings. RU3 features a 10-band high-precision lossless EQ for in-depth sound customization in the app.

3.5mm + 4.4mm Phone/Line Output
Despite its compact size, RU3 delivers outstanding output capability. Selectable high/low gain modes match various headphone impedances.

Broad Compatibility
RU3 offers seamless compatibility with Android, iOS, Windows, and macOS systems, allowing flexible switching between UAC 1.0 and UAC 2.0 modules.

Elegant and Portable
The DAC/amp features a unibody CNC-milled chassis made from aerospace-grade aluminum alloy. Its anodized surface finish forms a dense oxide layer that enhances both durability and metallic texture.

Specifications

• USB Audio Bridge: SPV5068 (RISC-V Dual-Core)
• DAC Chip: ESS ES9069Q
• Output: 3.5mm SE / 4.4mm BAL (PO/LO shared)
• Power Output
  • 3.5mm: 180 mW + 180 mW (32ohms)
  • 4.4mm: 560 mW + 560 mW (32 ohms)
• Supported Formats: PCM 32-bit/768kHz, Native DSD512
• SNR: 115dB (SE) / 117dB (BAL)
• THD+N: 0.0018% (SE) / 0.0015% (BAL)
• Frequency Response: 20Hz-50kHz (+- 0.2dB)
• Dimensions: 60mm x 25.4mm x 11mm
• Weight: 24g

In the Box

• Cayin RU3 DAC/amp
• USB-C cable

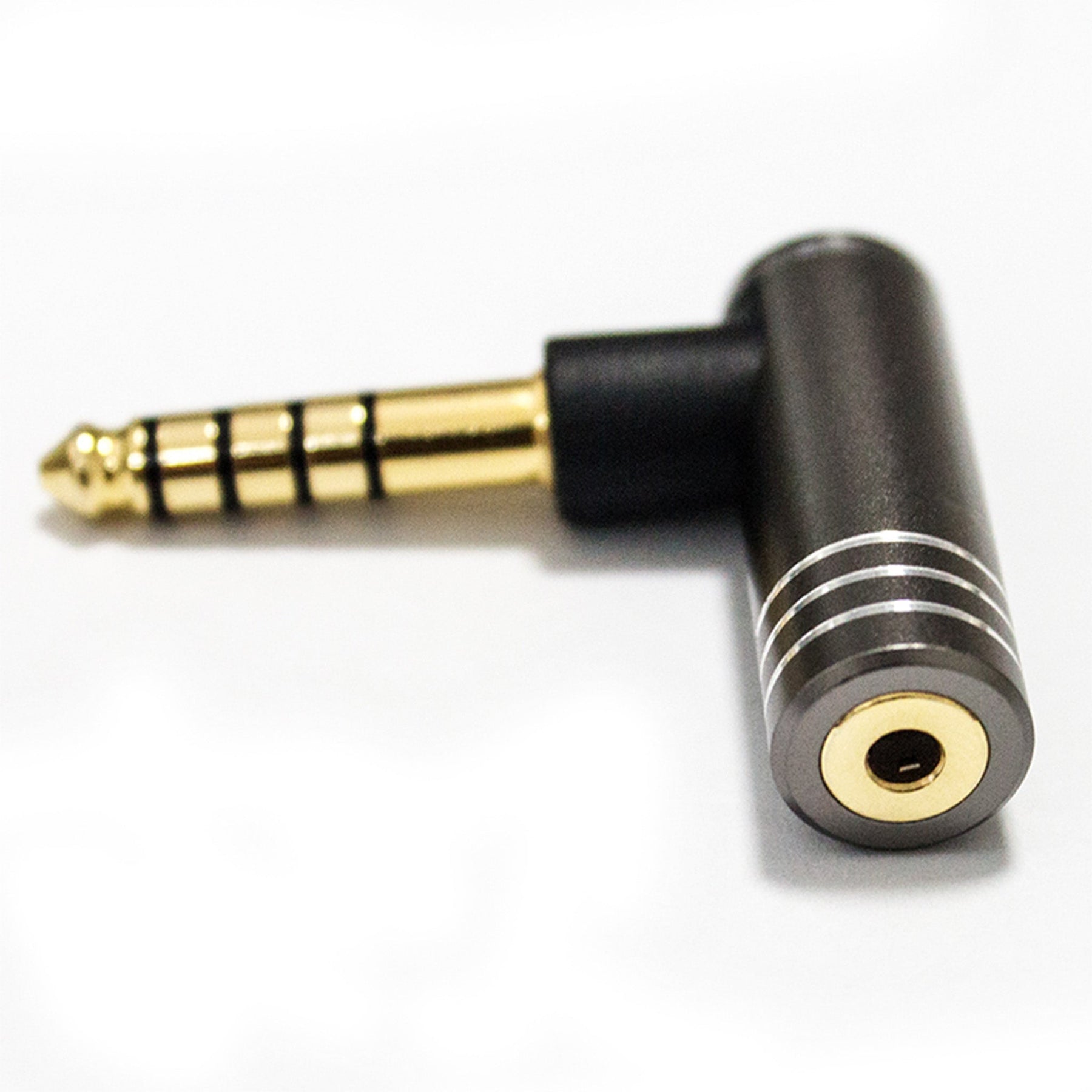

Cayin PH-4X Converts 2.5mm Balanced Connections to 4.4mm For the Latest DAPs and Portable DACs

• 4.4mm male to 2.5mm female: Connect any 2.5mm balance plug to devices with 4.4mm terminal.
• The solid base is CNC machined magnesium alloy and stainless steel offering integrity and durability for a lifetime of use.

Perfect Sound Transmission

PH-4X adopts high quality materials to transmit signals at the best quality, providing maximum stability of connectivity and loss of transmission. The L-shaped design protects against damage during long periods of use.

Specifications

• Size: 0.4 x 1.1 x 0.9 inches (10 x 28 x 23 mm)
• Weight: 0.2 oz (7 g)
• Material: Magnesium alloy, stainless steel (body), gold plated audio jacks and sockets, and silver plated monocrystalline copper inside.

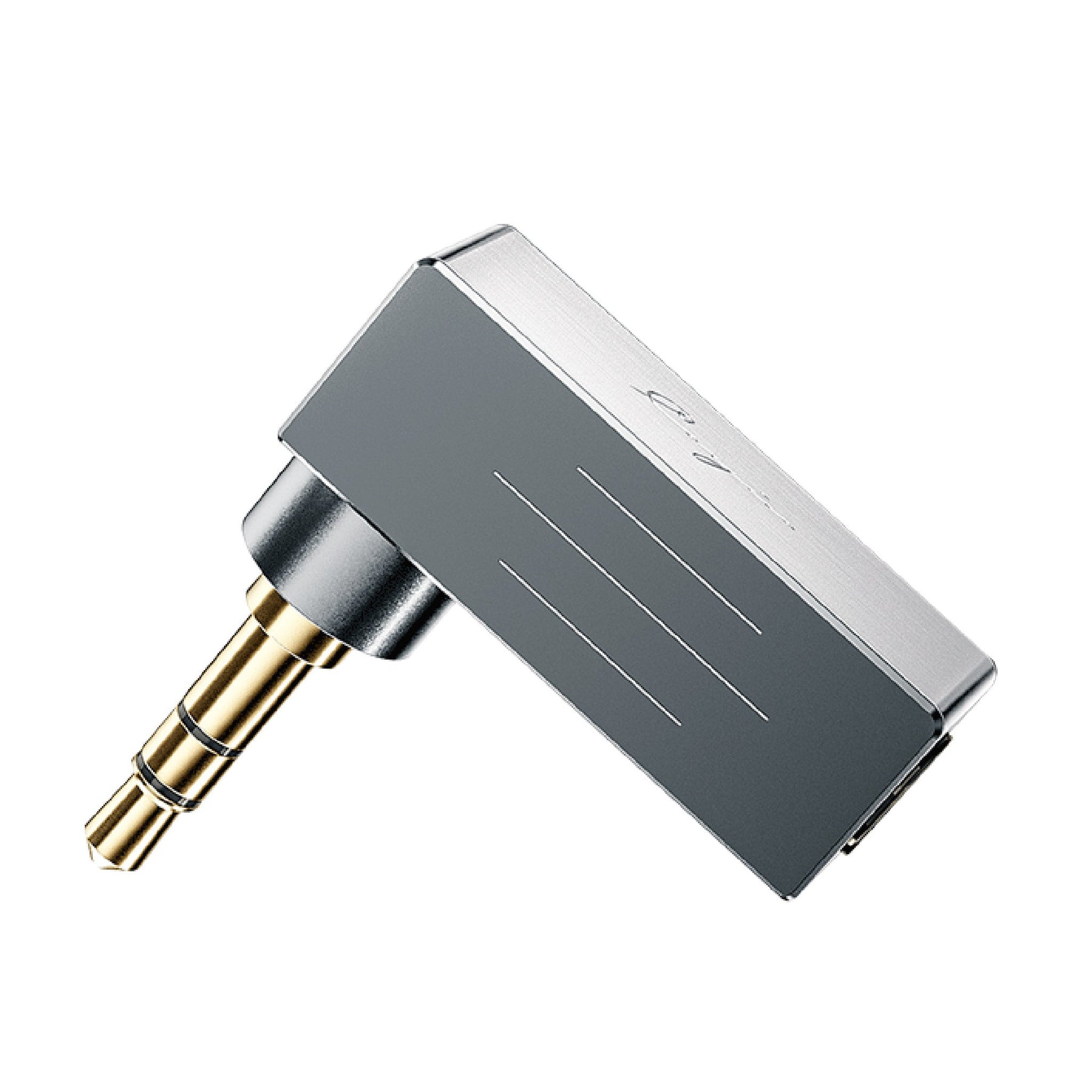

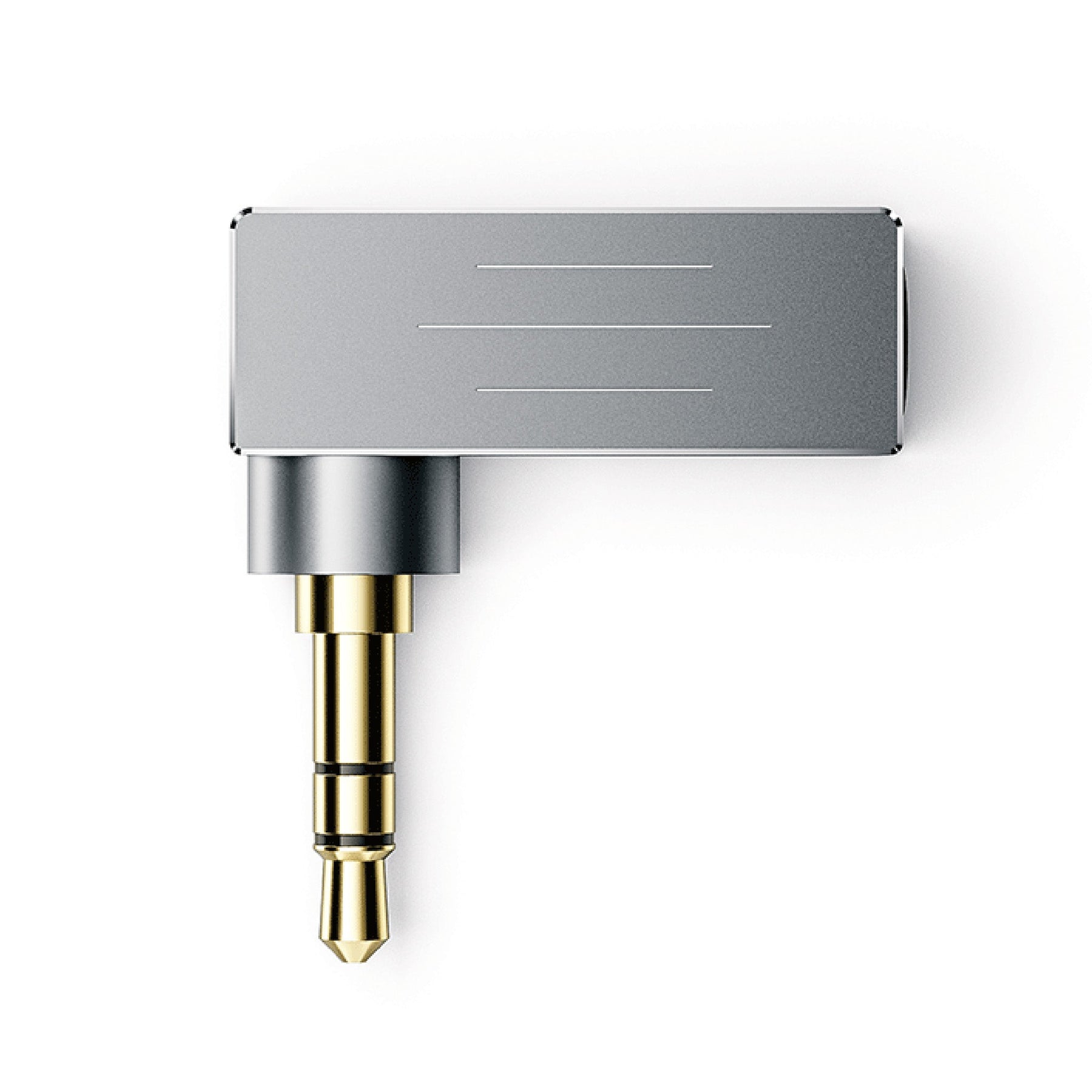

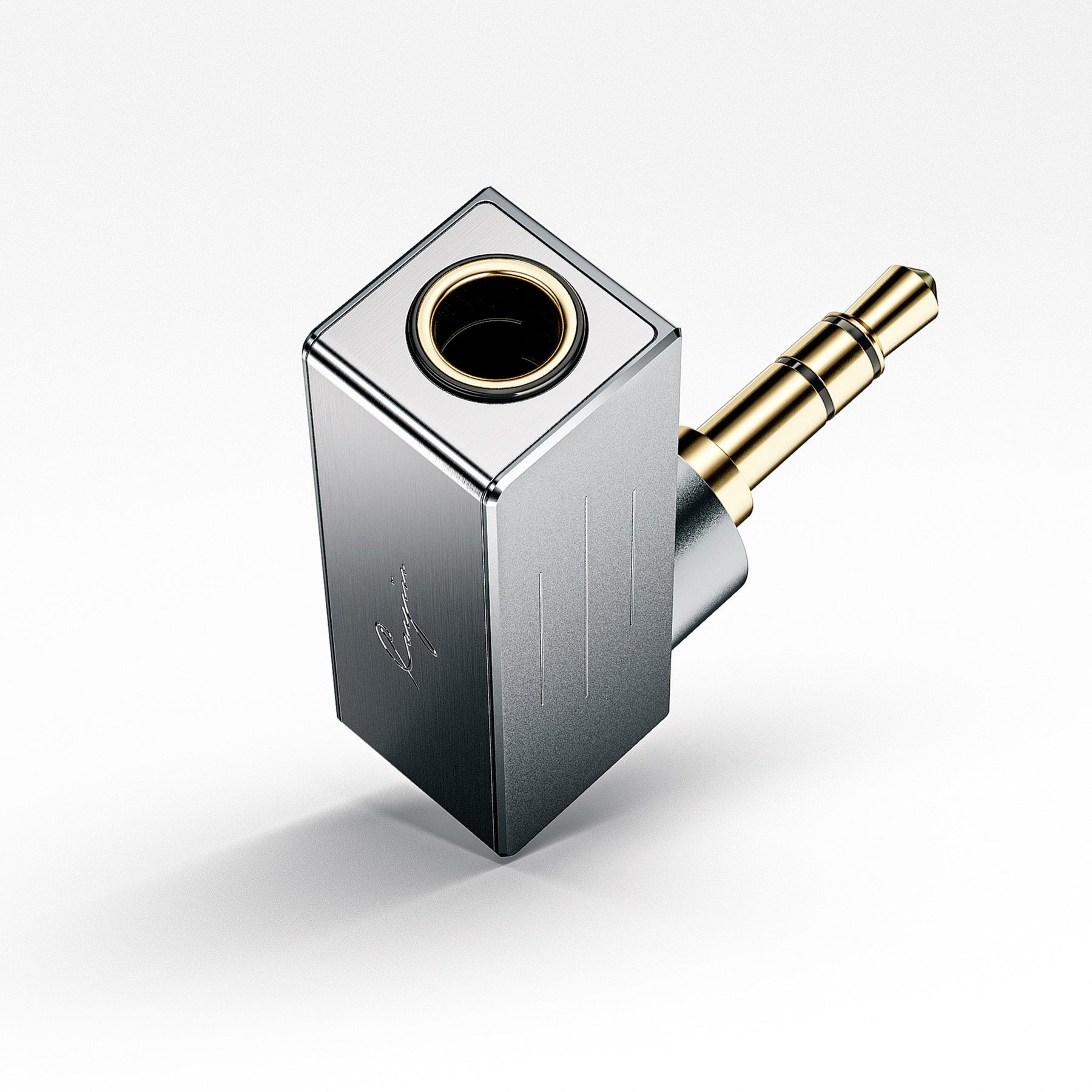

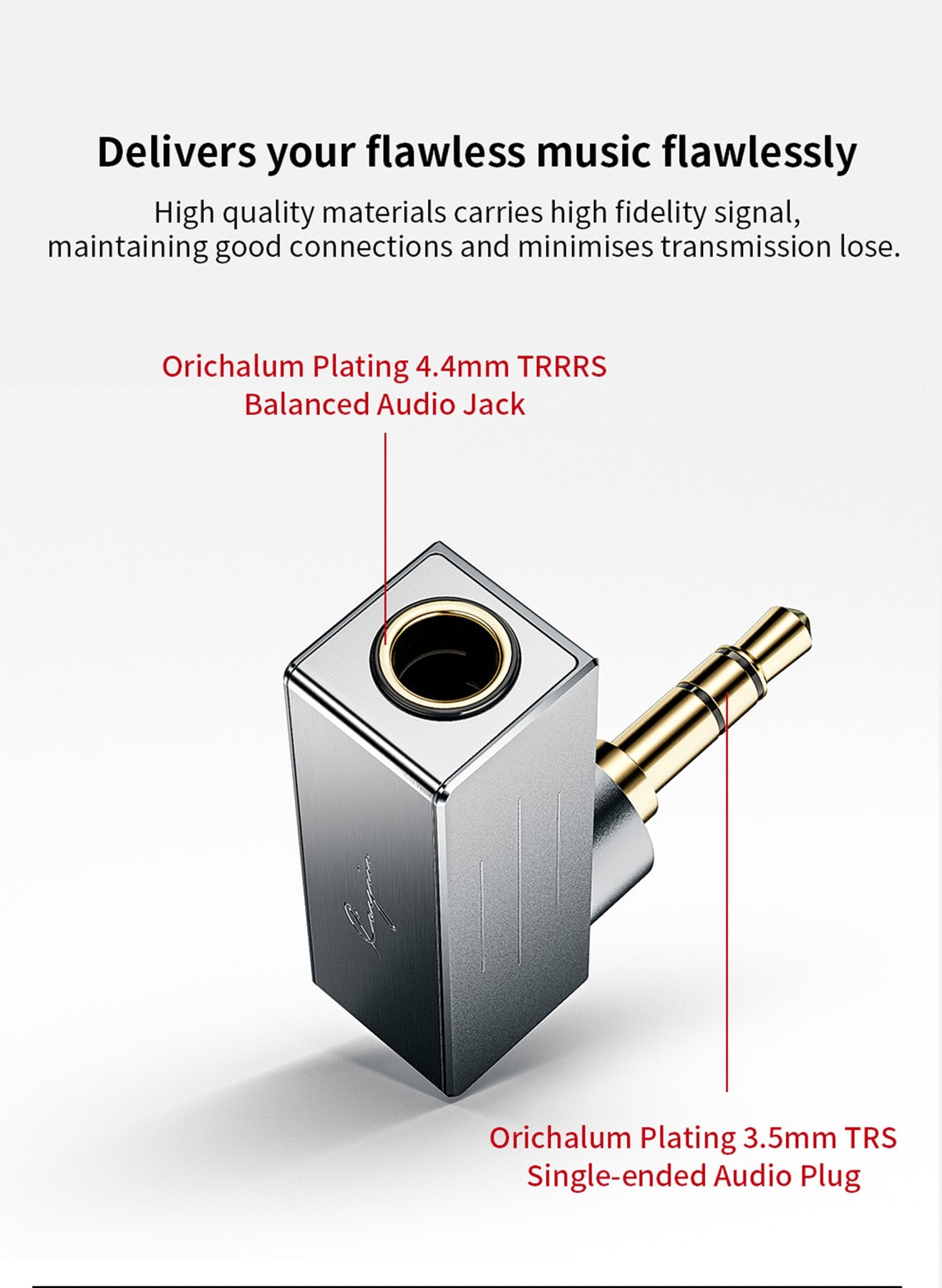

Cayin PH-35X is a high quality adapter that let's you connect balanced HiFi Headphones to a broader variety of sources

• 3.5mm male to 4.4mm female: Connect any 4.4mm balance plug to devices with 3.5mm terminal.
• The solid base is CNC machined magnesium alloy and stainless steel offering integrity and durability for a lifetime of use.

Perfect Sound Transmission

PH-35X adopts high quality materials to transmit signals at the best quality, providing maximum stability of connectivity and loss of transmission. The L-shaped design protects against damage during long periods of use.

Specifications

• Size: 0.4 x 1.1 x 0.9 inches (10 x 28 x 23 mm)
• Weight: 0.2 oz (7 g)
• Material: Magnesium alloy, stainless steel (body), gold plated audio jacks and sockets, and silver plated monocrystalline copper inside.

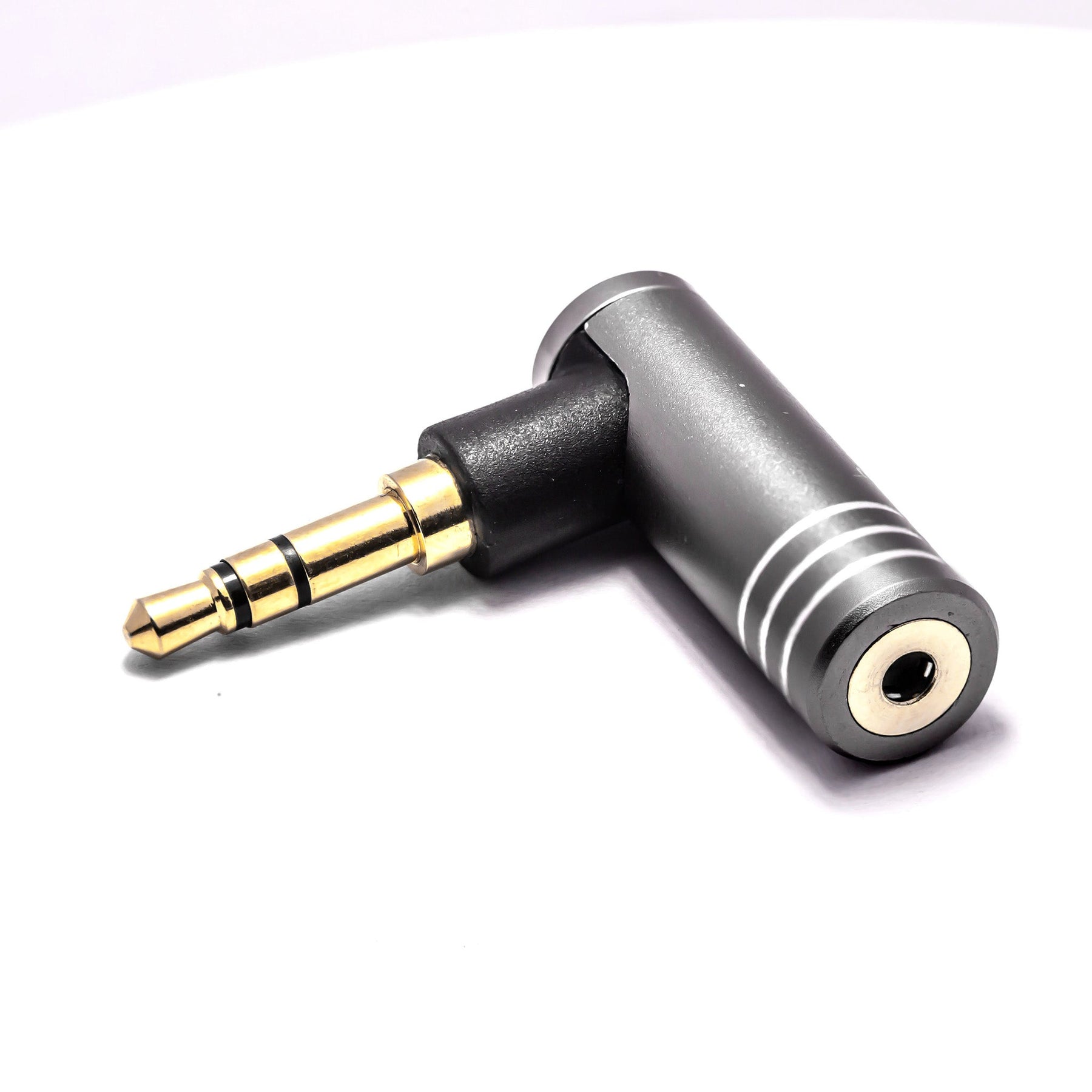

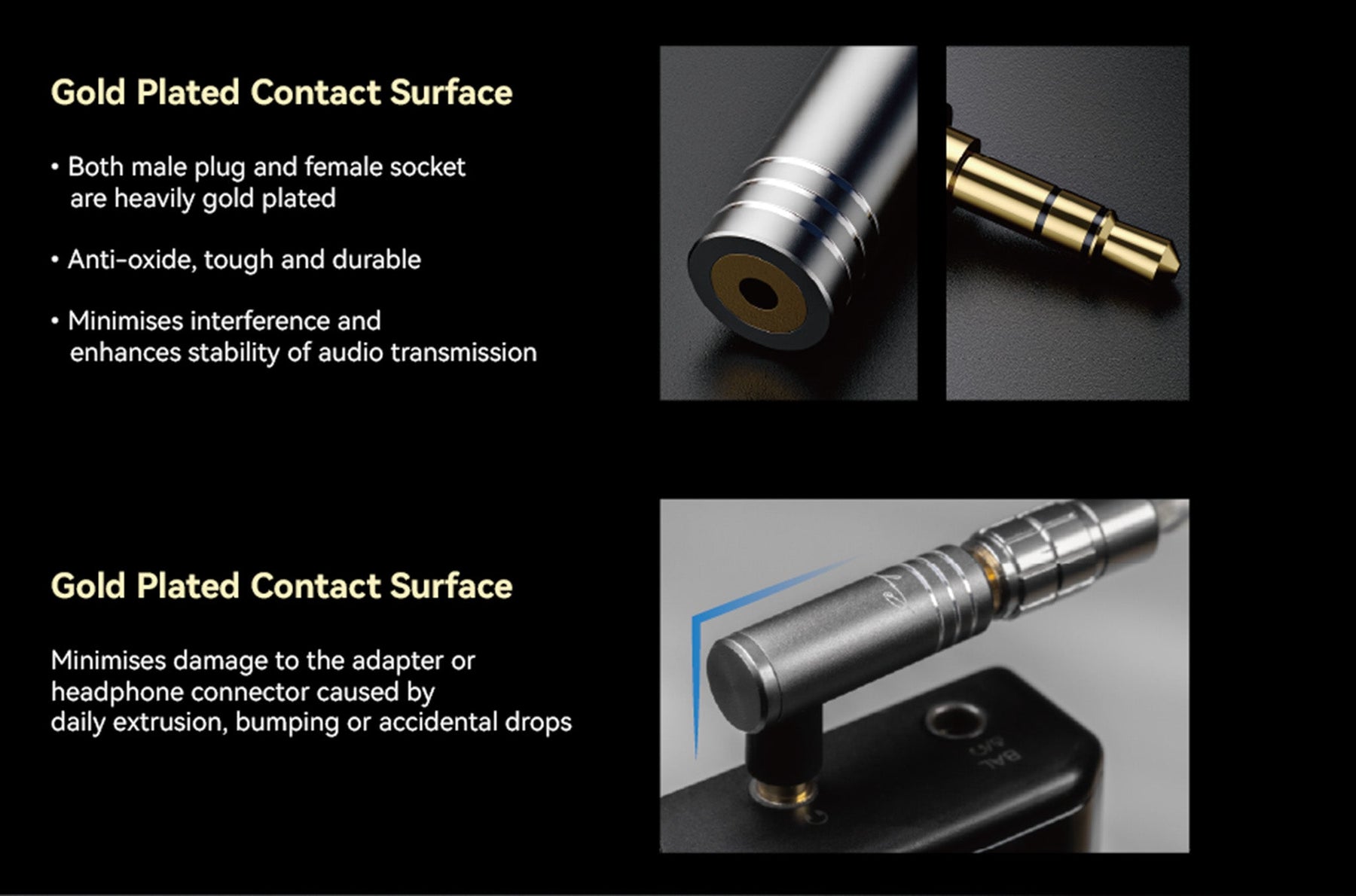

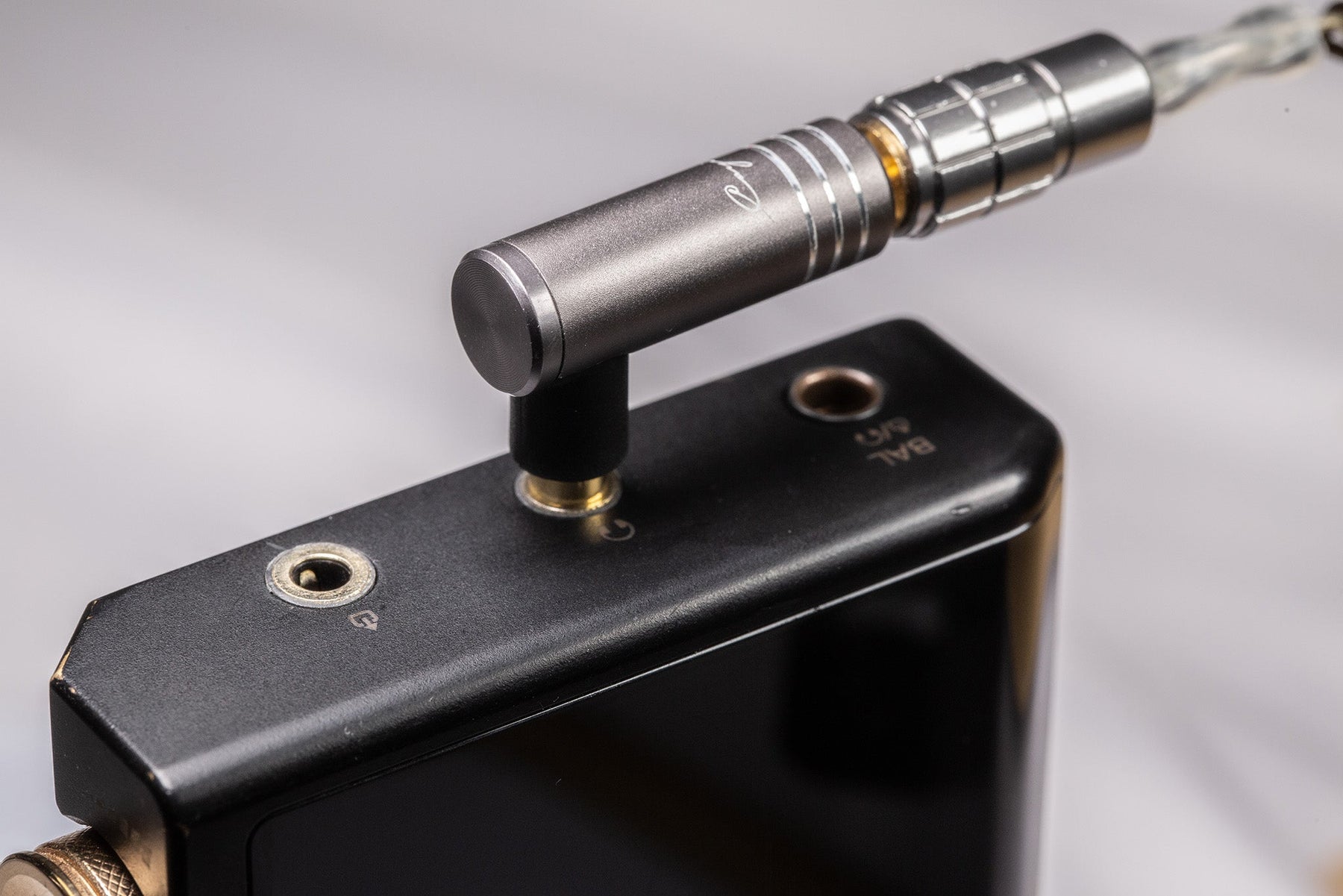

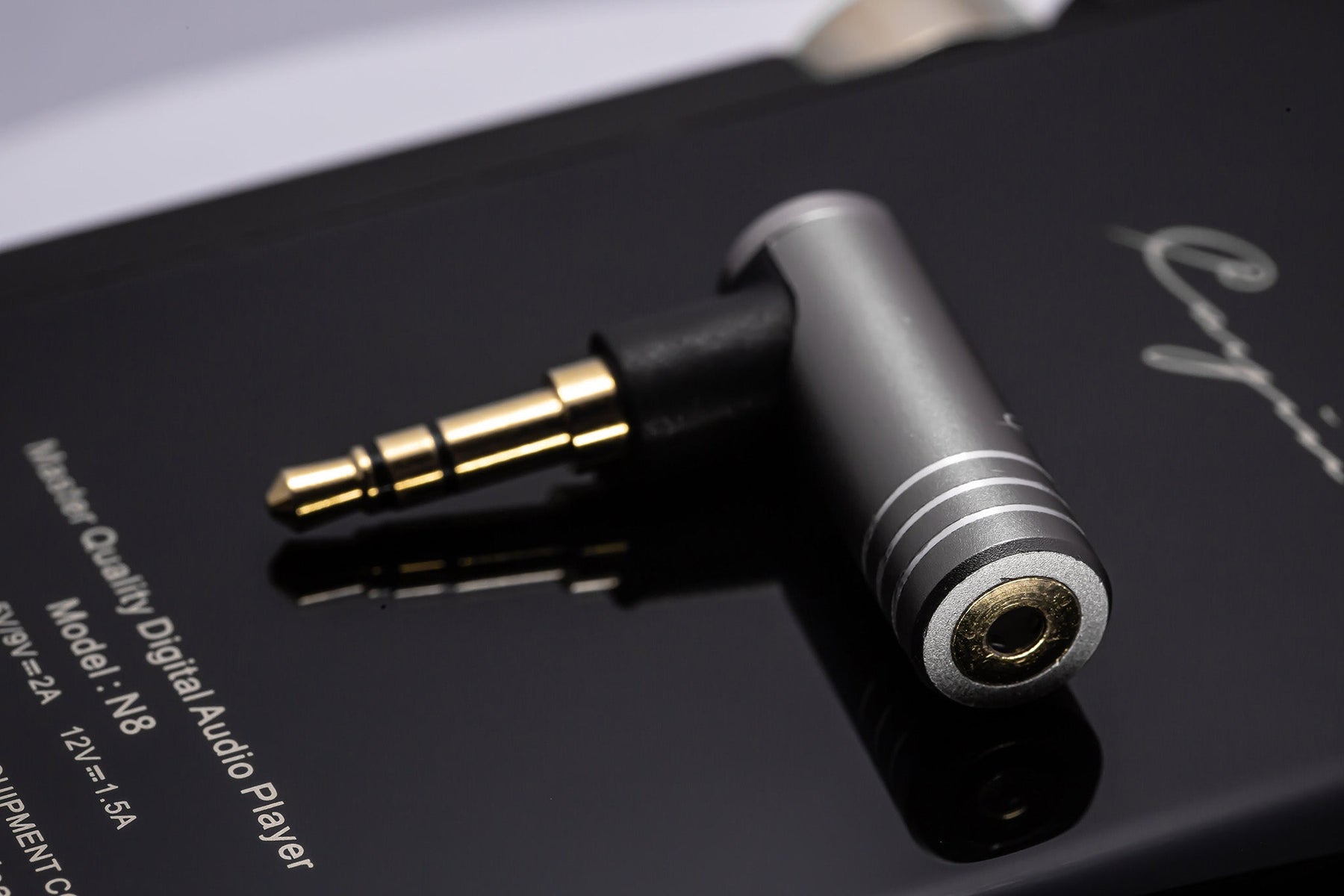

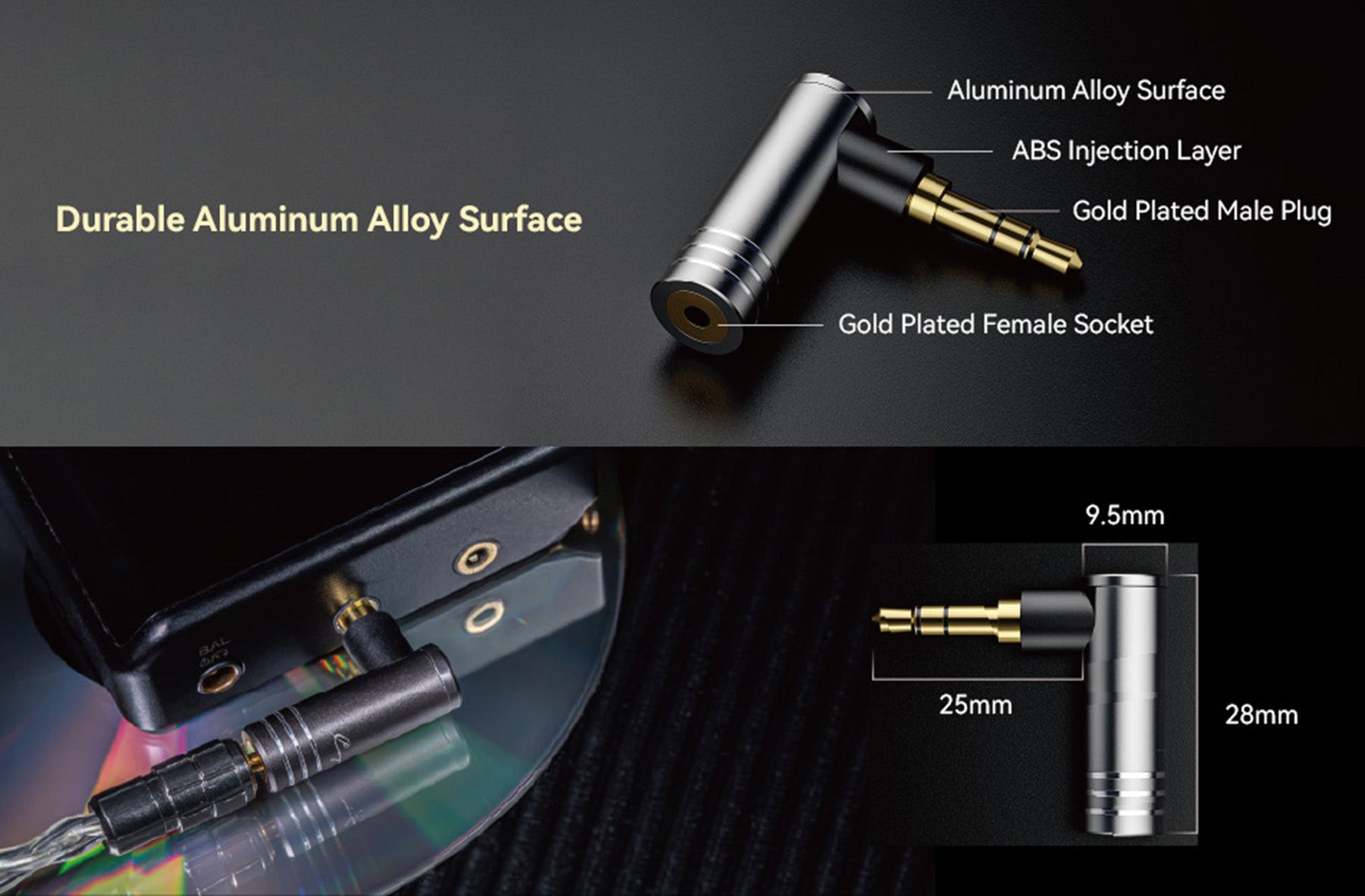

Cayin PH-32X is a high quality adapter that let's you connect balanced HiFi Headphones to a broader variety of sources

• 3.5mm male to 2.5mm female: Connect any 2.5mm balanced plug to devices with 3.5mm terminal.
• The solid base is CNC machined magnesium alloy and stainless steel offering integrity and durability for a lifetime of use.

Perfect Sound Transmission

PH-32X adopts high quality materials to transmit signals at the best quality, providing maximum stability of connectivity and loss of transmission. The L-shaped design protects against damage during long periods of use.

Specifications

• Size: 0.4 x 1.1 x 0.9 inches (9.5 x 28 x 25 mm)
• Weight: 0.18 oz (5 g)
• Material: Magnesium alloy, stainless steel (body), gold plated audio jacks and sockets, and silver plated monocrystalline copper inside.

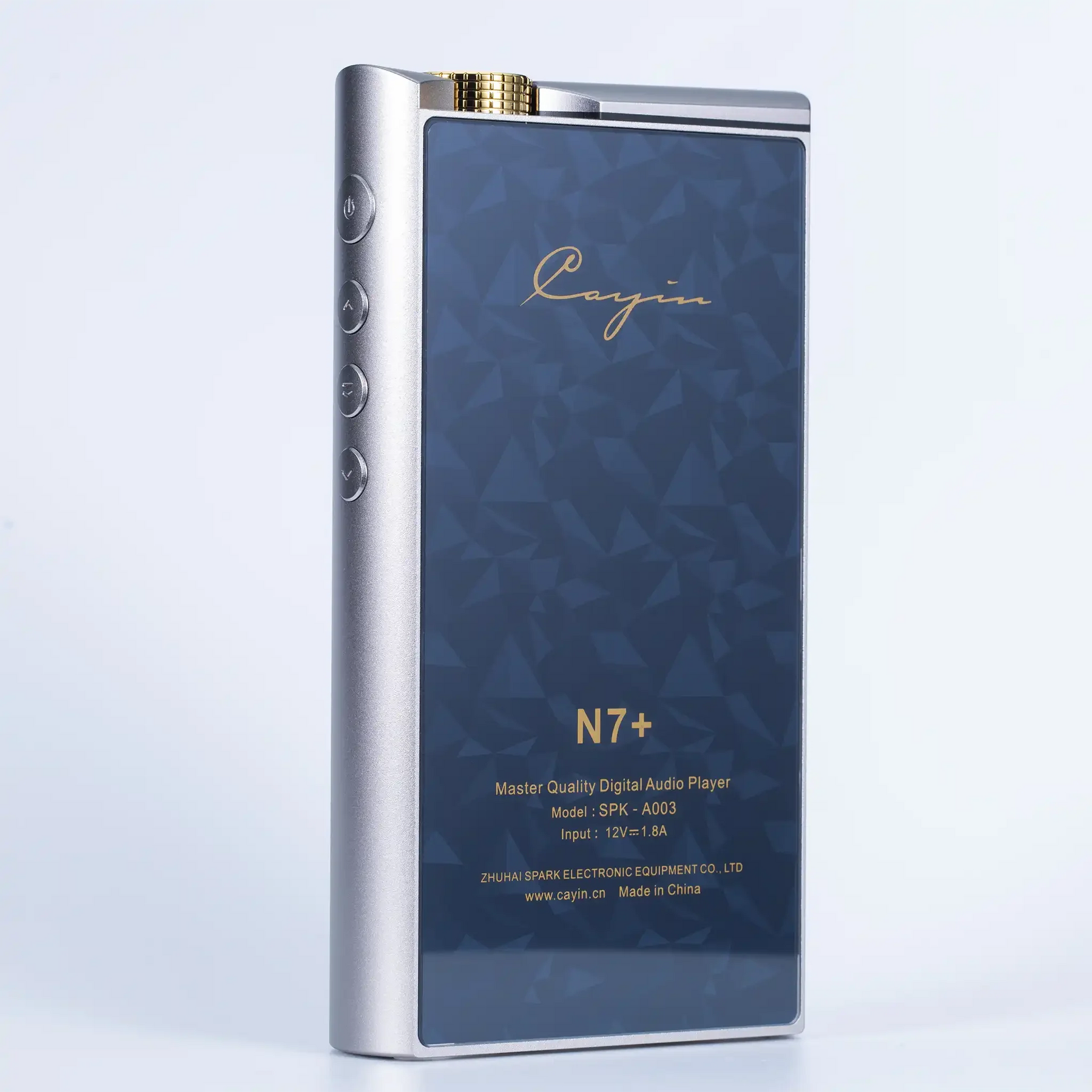

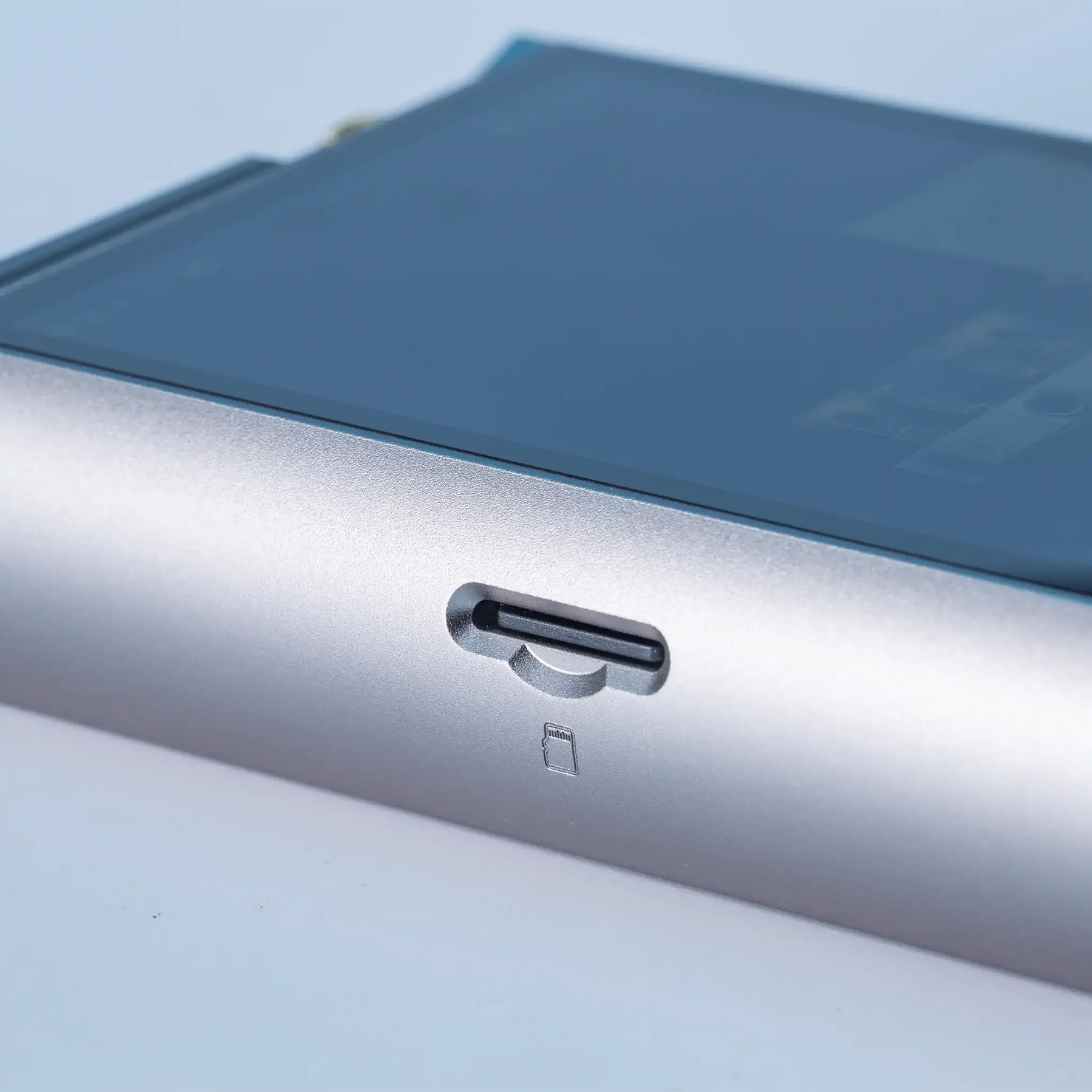

The Cayin N7+ Expands on its Predecessor, Offering Higher Power Output, Improved Power Management, and an Upgraded Power Transistor

• Fully-discrete, fully-balanced design for superior performance

• Selectable Class A / AB headphone amplifier circuit operating modes
• Up to 330mW for 3.5 SE + 690mW for 4.4 BAL power output
• Independent power supply for the digital and analog circuits
• Optimized power system offering up to 13hrs of playback

Power Boost

The optimized headphone amplifier architecture delivers a significant boost in output power—up to 330mW (+32%) from the 3.5mm PoE and 690mW (+38%) from the 4.4mm PoE—making it effortlessly compatible with everything from high-sensitivity IEMs to high-impedance headphones. This upgrade ensures richer detail and greater dynamic control across a wide range of listening gear.

Enhancing the design further, the four power transistors have been upgraded to PHPT610030NPK models, improving transient current handling. Additionally, the seven OPA1612A op-amp ICs now use a SOIC-8 package, offering significantly better thermal stability. The improved pin layout and electrical characteristics reduce latency and crosstalk, resulting in cleaner signal transmission and purer audio reproduction.

Fully Discrete and Fully Balanced Portable Audio

A groundbreaking product in the portable audio market, the N7's DAC is constructed from 128 discrete resistors, with 32 resistors per channel across four channels forming a fully differential balanced structure. This truly demonstrates a 1-bit circuit architecture comprised of fully differential discrete components.

Discrete components are used throughout the LPF closed-loop gain, negative feedback level, and circuit architecture, ensuring high-performance overall circuit amplification. The AMP utilizes audio-specific field-effect transistors (JFETs) for the differential input stage, and paired-package transistors for the voltage amplifier and power output stages, resulting in low internal resistance and strong load-driving capability.

Sound Foundation

The power system, combined with 1-bit circuitry, provides completely independent power supply for the digital and analog circuits. Within the digital circuitry, high-level and low-level logic circuits are also completely independent, ensuring that the transmission and amplification process is free from interference from clock signals, resulting in a cleaner audio signal

MQA

MQA (Master Quality Authenticated) is a new end-to-end technology that allows studio-quality music to be transmitted and stored using a new audio processing method called Music Origami. This technology allows files to be fully expanded into the highest-quality source upon playback.

The N7+ features MQA technology, allowing users to enjoy the original master audio experience when playing MQA audio files and using apps that stream MQA music. The N7+ is capable of full 16x MOA decoding.

Fast and Smooth System

Powered by a Qualcomm Snapdragon 665 octa-core 64-bit processor, this device combines 4GB of RAM with 64GB of internal storage, plus support for up to 1TB via TF card expansion. Running on Android 12 with DTA lossless output support, it ensures high-quality audio performance across Android devices.

Dual-band 2.4GHz/5GHz Wi-Fi is enabled by a specially designed metal-frame antenna, delivering strong signal strength and reduced interference for fast, stable streaming. It also supports OTA firmware updates and app installations for a customizable and future-ready experience.

Long-Lasting Battery

The N7+ features an optimized internal power system design. In PoE mode (Class AB), a single-ended battery life of 3.5" allows for up to 13 hours of full-day music playback, ensuring you never have to worry about running out of power. It supports PD2.0 fast charging.

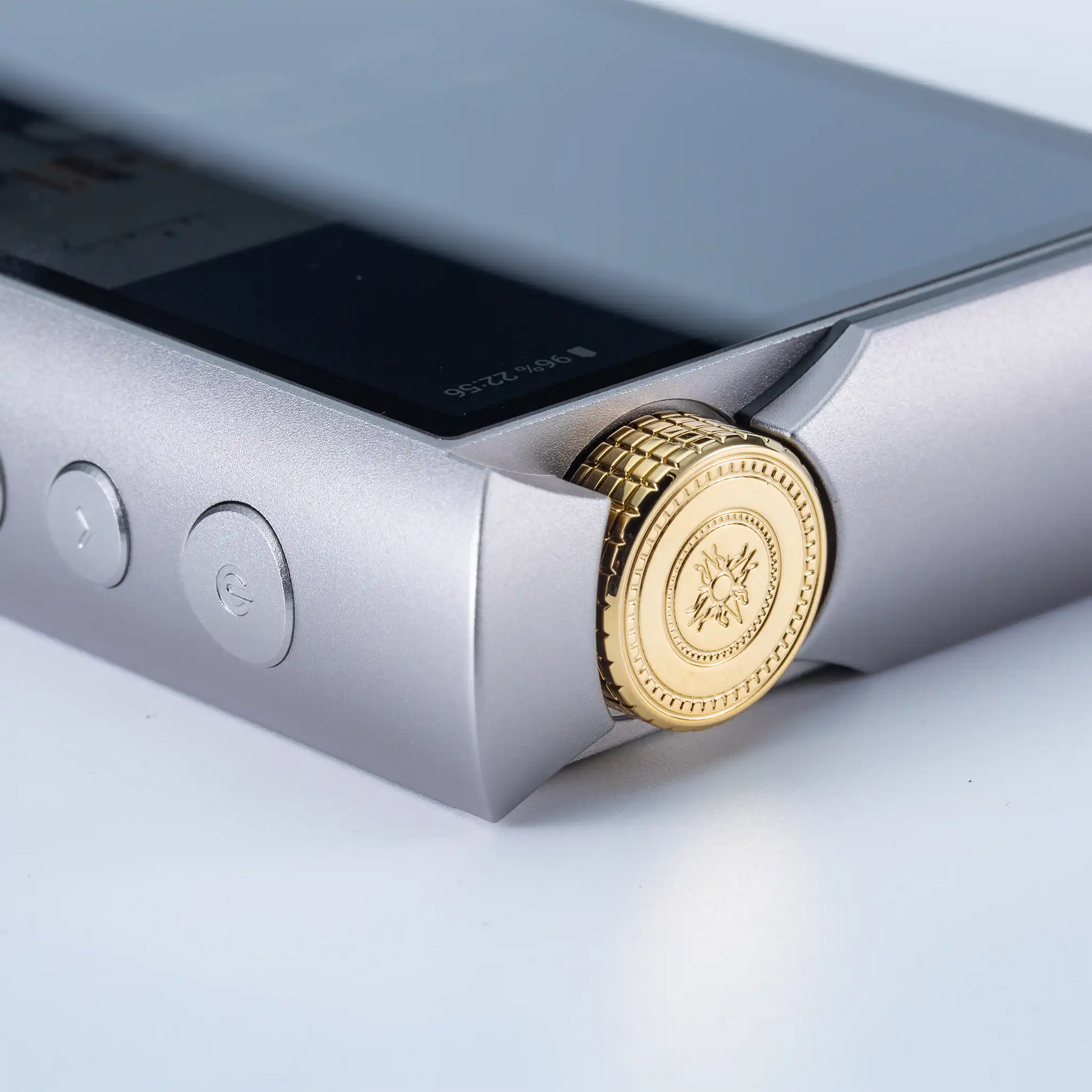

Upgraded Look and Feel

The N7+ has been comprehensively upgraded in both appearance and craftsmanship. The new titanium-colored housing is crafted from aircraft-grade aluminum-magnesium alloy using a CNC process, balancing lightweight design with high-strength protection. It visually displays a delicate metallic luster, ensuring "at first sight, at first grip, you'll fall in love."

Specifications

• CPU: Snapdragon 665
• OS: Android 12
• WiFi: IEEE 802.11 a/b/g/n/ac
• Battery: 3.8V 9000mAh (34.2Wh)
• Display: 5.0" TFT 1080*1920 (FHD)
• Weight: 370g
• Dimensions: 142 x 77.8 x 22.2mm
• Full list of specifications
• N7 and N7+ comparison
• Cayin 1 Year Warranty

In The Box

• Cayin N7+ DAP
• N7+ leather case
• 4.4mm to 2.5mm (F) adapter
• 3.5mm to 2.5mm (F) adapter
• USB-C cable
• Temper glass screen protector
• User manual

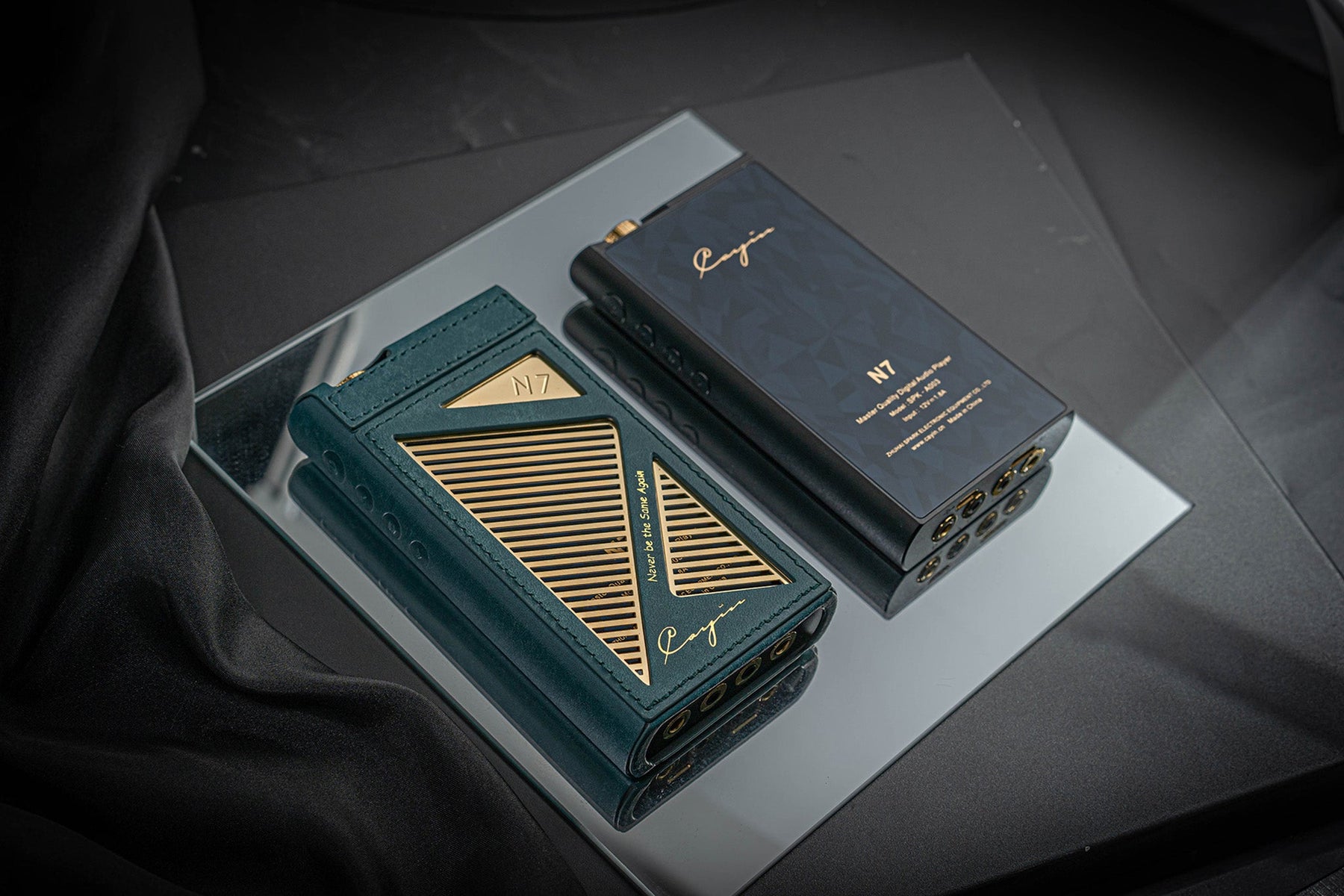

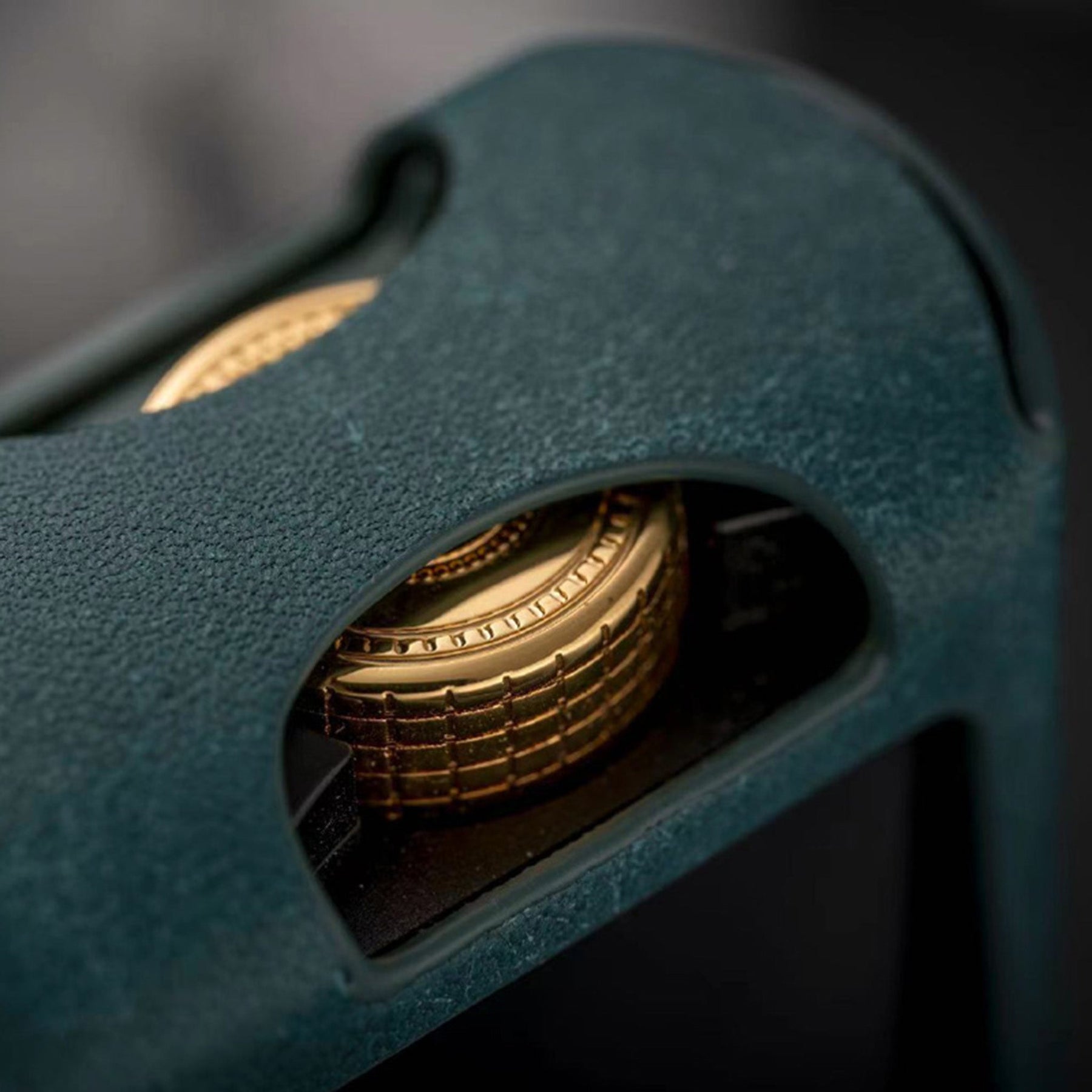

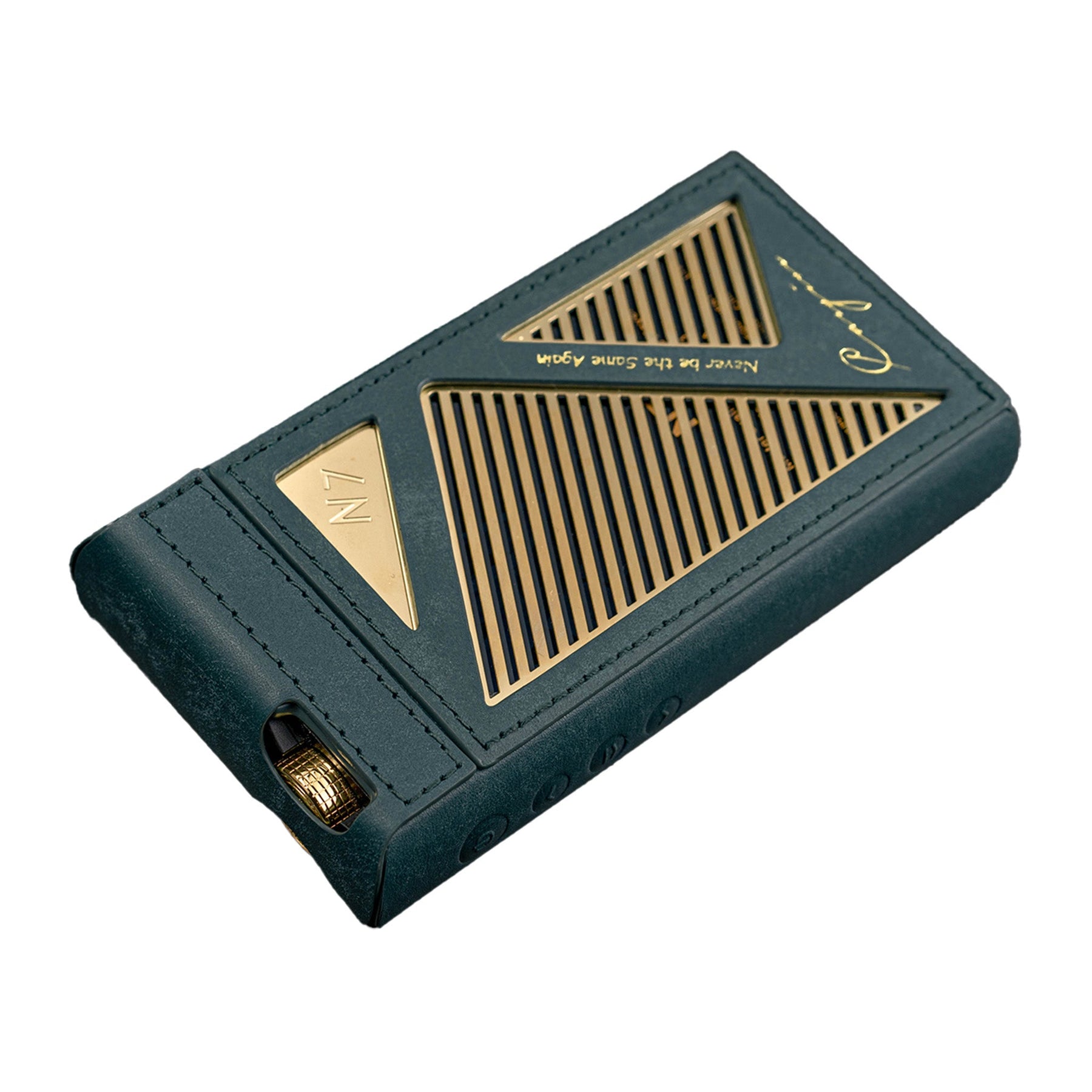

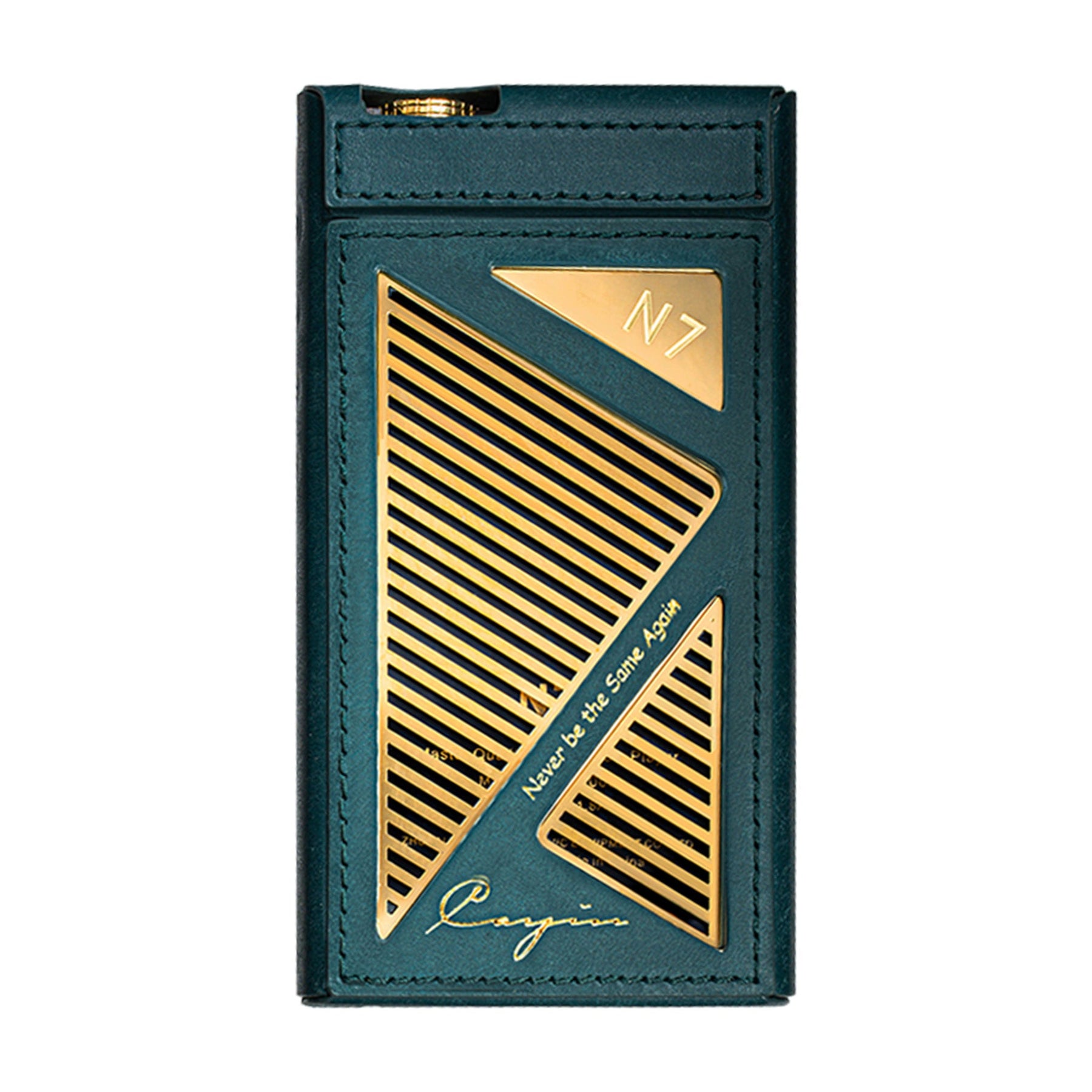

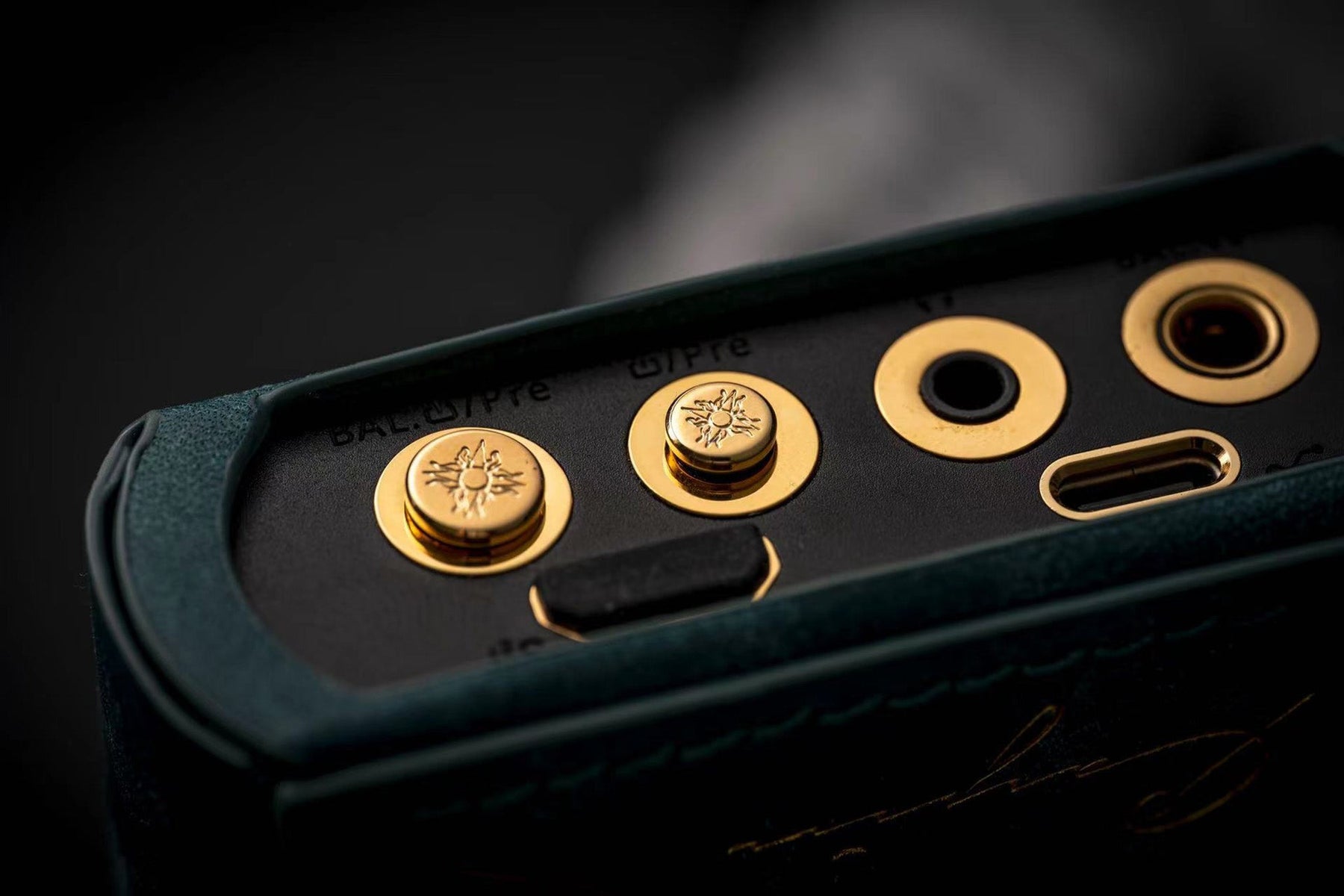

Protect Your DAP With the Luxurious Look and Feel of the Cayin N7 Leather Case

• Handmade genuine leather adds a taste of high fashion to the N7
• The magnetic clasp provides a tighter, more stable fit
• The rear metal grill improves heat dissipation and ensures that the device doesn't overheat

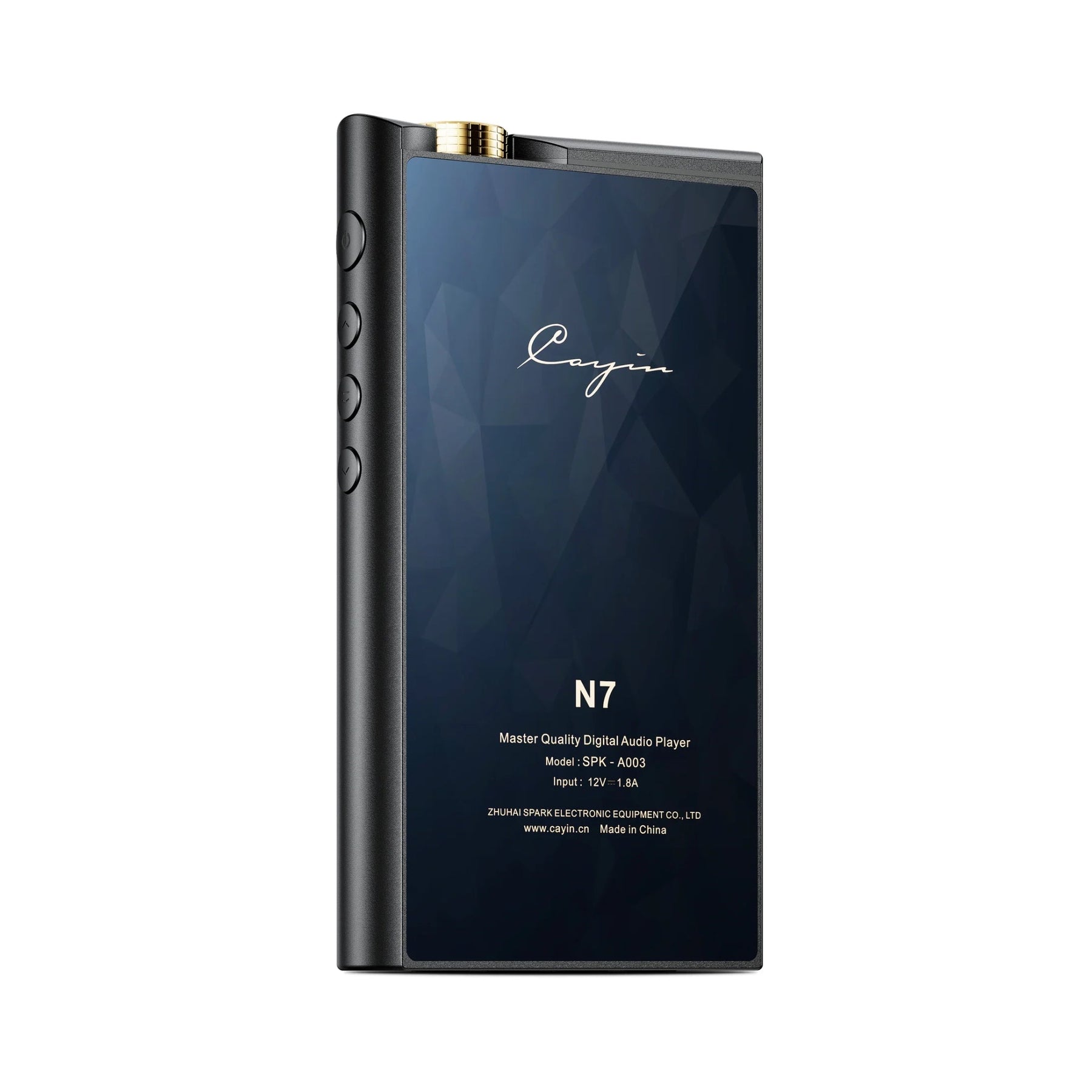

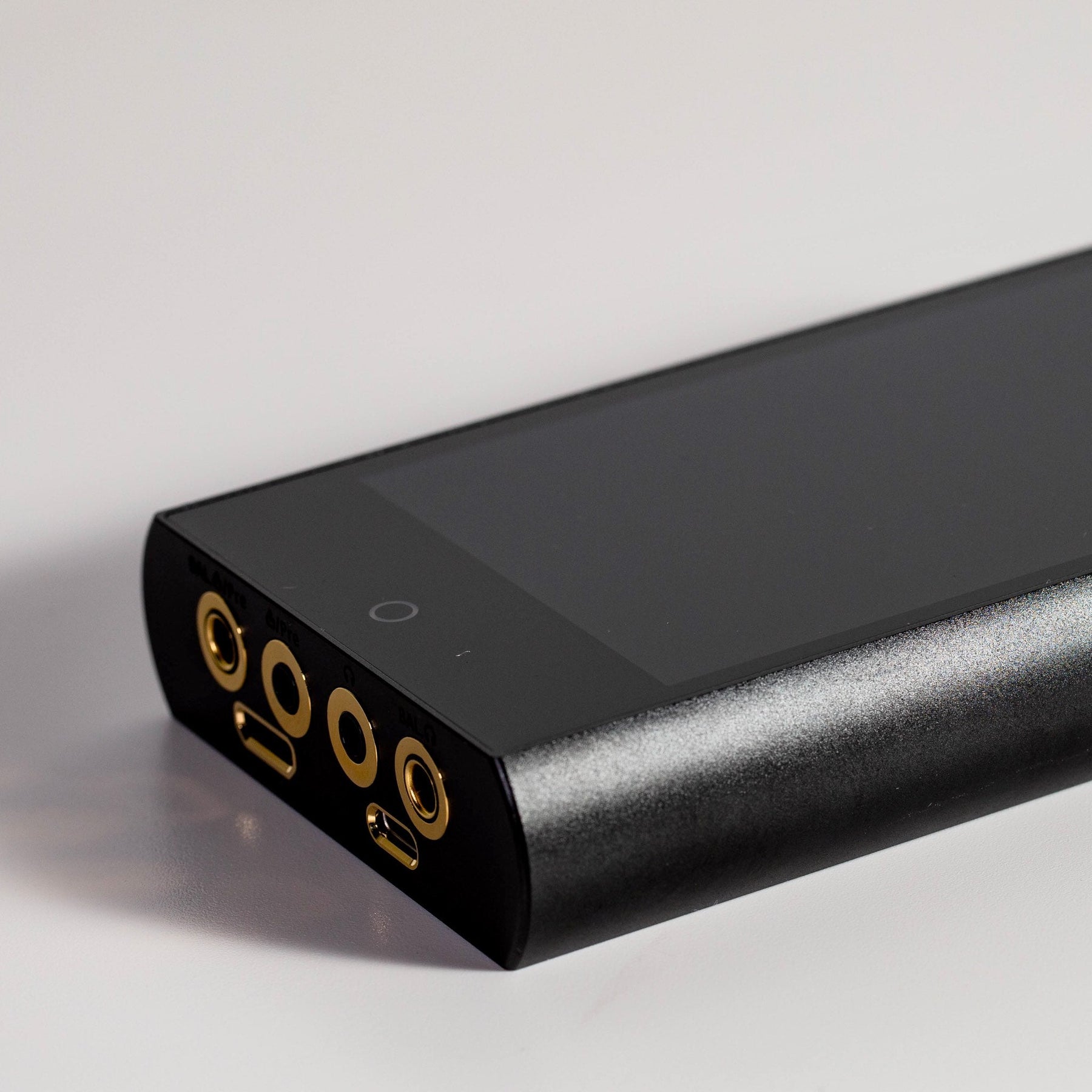

Cayin N7 is a Discreet Powerhouse DAP with Impressive Layout and Features Galore

• Fully-discrete, fully-balanced design for superior performance
• Class A / AB dual-amplifier operation mode
• Dedicated 3.5mm and 4.4mm Balanced headphone out with shared line out/pre out
• USB-C, mini-HDMI, S/PDIF, and Bluetooth digital outputs
• Large 3.8V 9000mAH Lithium battery with carefully tuned power management


Discreet, Portable, Competent

The Cayin N7 DAP is a master quality portable music player with the world's first fully-discrete circuit in a fully-balanced design, and it comes packed with plenty of features. With its pure single-bit resistor DSD decoder, discrete LPF circuitry, and discrete headphone amp section and dual-amp modes, the N7 is the perfect portable player promising exceptional sound clarity for your favorite music!

Fully-discrete, Fully-balanced Unexplored Frontier

Going discrete is technically more demanding, but it allows more room to fine tune sound signature and deliver superior performance over op-amp based designs.

Regular stereo circuits compose of left (L) and right (R) channels with balanced circuits involving differential inputs and outputs, hence a required L+, L-, R+, and R-. Cayin makes its first attempt to use discrete circuits for DAC, LPF and headphone amp in the N7 DAP. It adopts a symmetrical double-side PCB layout to minimize interference and keep the layout and length of the signal path as uniform as possible.

Pure 1-Bit DSD DAC

The N7 features a purposely designed, micro-miniaturized 1-bit DAC circuit from fully discrete components:

Discrete 1-Bit DAC
Converts digital signals to analog through a resistor network composed of 128 pcs (4x32) high precision thin film resistors.

FPGA
Enhanced digital audio signal and output L+, L-, R+, R- digital bitstream for fully balanced decoding.

Audio Bridge
Pass-through DSD unaltered, converted PCM to 1-bit bitstream before transmitting to DAC circuit.

Power Supply
Sophisticated low-noise, highly-isolated supply circuit to support various functions of digital and analog processing separately.

Discrete LPF

N7 features a discrete components design for closed-loop gain, negative feedback, and circuit architecture of the LPF. After numerous attempts, Cayin developed a symmetric Class A push/pull amplification circuit based on dual NPN+PNP Bipolar transistors, delivering high performance, reduced board space, and low power consumption / heat dissipation.

Discrete Headphone Amp

Uncompromised Design
The N7 features a 4-channel discrete component-based circuit with a low-noise, audio-grade JFET (Junction-gate Field-Effect Transistor) serving the differential input stage and a BJT (Bipolar Junction Transistor) providing voltage amplification and final output stage. It delivers high-power, low-noise output that's optimized for low impedance IEMs and portable headphones.

Synchronized Accurately
Sophisticated resistor networks can efficiently decode when their algorithm can perfectly synchronize between varying sampling frequencies. N7 employs x2 Femtosecond Crystal Oscillators with extremely low phase noise (-100dBc) to
facilitate high-precision and low-jitter playback, minimizing digital artifacting while enhancing musicality.

Dual Amp Operation Mode
The Dual Amplifier Operation Mode allows you to switch between Class A and Class AB modes instantly through the pull down menu. Choose the sound signature to fit your personal preference of sound, genres, and/or pairing with different IEM/headphones:

• Class A Mode: Low distortion, optimum playback condition. Silky smooth, warm and lush. Best fit for sentimental music with lots of detail and macro dynamic.
• Class AB Mode: Higher efficiency and dynamic. Clean, tight, extended, and authoritative slam. Best fit for music with high dynamic range and liveliness.

The Devil in the Details
Class A amplification requires all channels to be aligned with near-identical gain. To achieve this, critical components must be manually matched and installed to the PCB before reflow soldering. Similarly, the static current must be controlled so that discrete components will maintain stable operation in saturation mode. Multiple adjustable resistors are installed so that the PCB can be fine-tuned manually to consistently match the reference design.

Perfect Portable Source

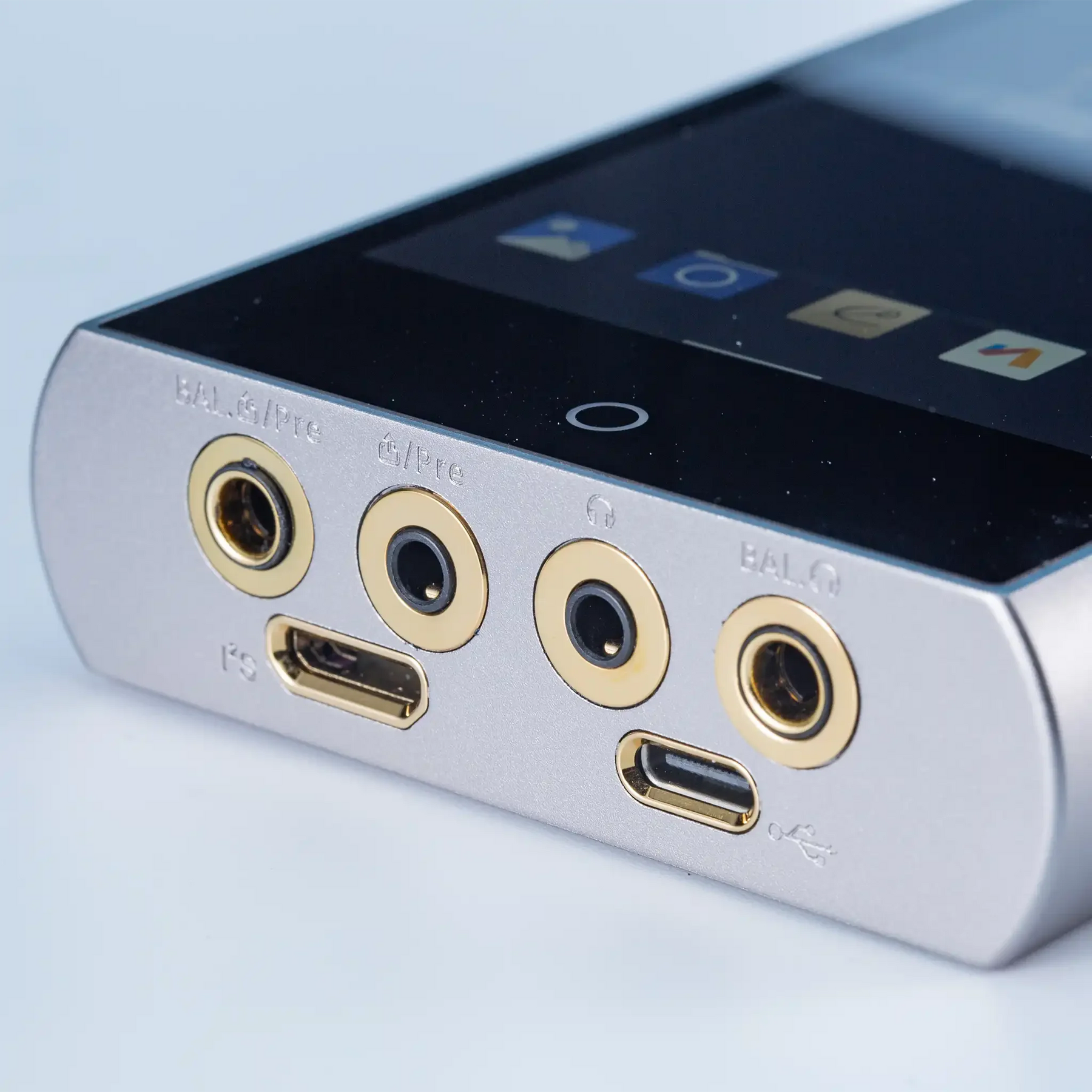

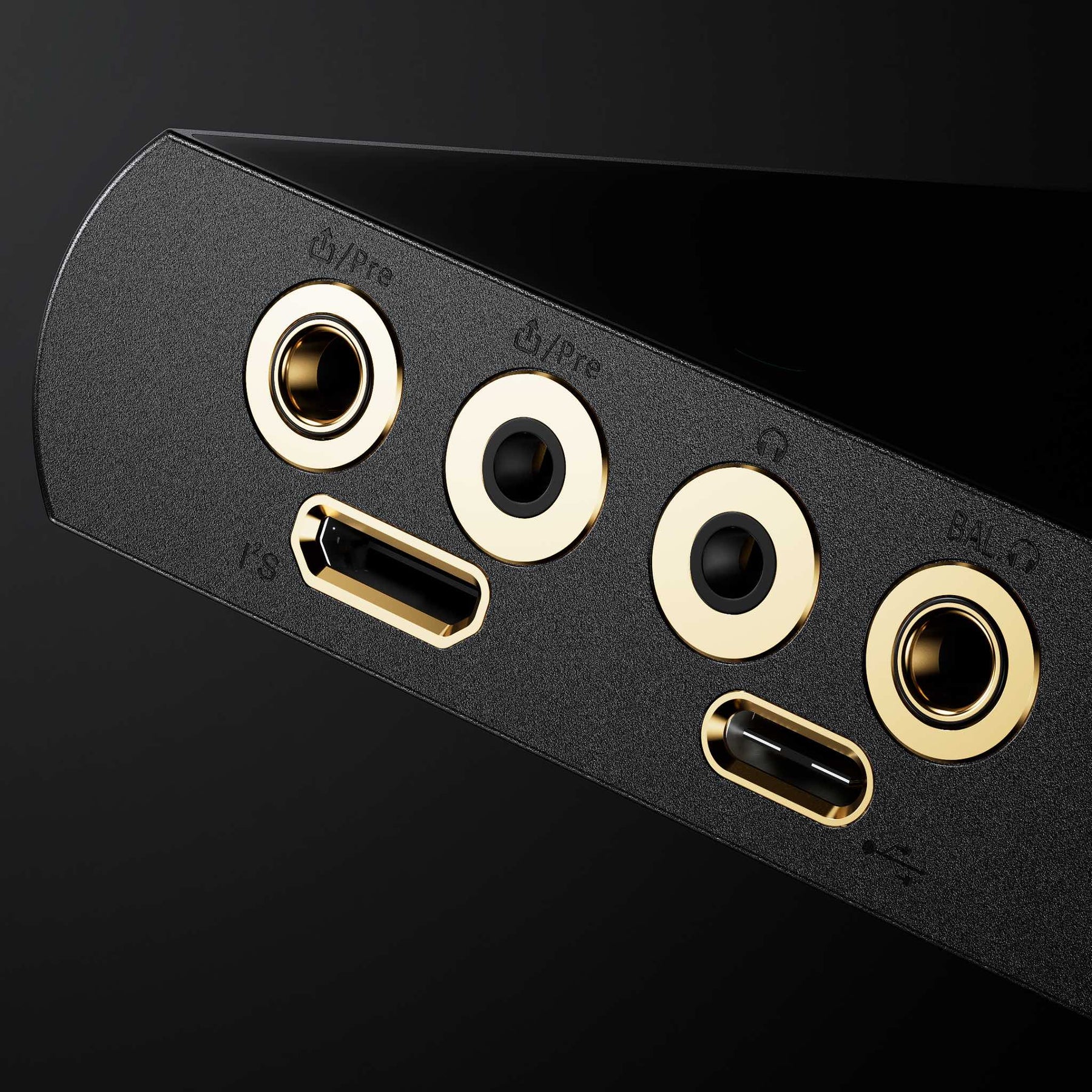

Shared Dual Line-Out and Pre-Out
Both 4.4mm Balanced and 3.5mm single-ended can be configured into Line-Out or Pre-Out. This allows listeners to connect the N7 to a vast array of portable, desktop, and home audio devices. Dedicated drivers handle Line-Out and Pre-Out signals independently, ensuring both outputs are optimized for their respective applications.

Clean Line Out
The N7's Line-Out is a fixed voltage line level output that bypasses volume control. this allows it to serve as a high-quality source for portable or desktop headphone amplification or as an integrated amp in your home audio system.

Unique Portable Pre-amp
Pre-Out on the N7 is a variable voltage line-level output with high-precision analog volume control allowing it to serve as a high quality pre-amplifier for portable or desktop power amps.

Specifications

• MCU: Snapdragon 660
• System: Customized Android 9.0 (Google Play preinstalled)
• Memory: 6GB LPDDR4X
• Storage: 128GB eMMC, TF (up to 1TB)
• Display: 5" (1280 × 720) OLED multi-point touch screen
• Physical Control: Volume knob, power on/off playback buttons
• USB-C: USB3.0, OTG, QC3.0, Digital Audio
• Chassis: Sandblasted CNC Aluminum
• Vacuum Tube: KORG Nutube 6P1 (x2)
• DAC: ROHM BD34301 (x2)
• Bluetooth: v5.0 | LDAC, UAT, AAC, SBC
• Wi-Fi: 2.4G/5G IEEE 802.11 a/b/g/n/ac
• Headphone Out: 3.5mm SE, 4.4mm BAL
• Line Out: 3.5mm SE (dedicated), 4.4mm BAL (switch in OS menu)
• Digital Interface: I²S, SPDIF Coax (embedded), USB Audio (in / out)
• Battery: 3.8V 10000mAh (38Wh)
• Battery Charge Time: ~7 hours (5V-2A) | ~4.5 hours (QC3.0)
• Playback Time: ~9.5 hours
• Dimensions: 5.8" x 3.1" x 1"
• Net Weight: ~15.6 oz

• Cayin 1 Year Warranty
• Full N7 Audio Specs

In the Box

• N7 Player
• N7 Leather case
• 4.4mm to 2.5mm (F) adapter
• 3.5mm to 2.5mm (F) adapter
• USB-C cable
• Tempered glass screen protector
• User Manual

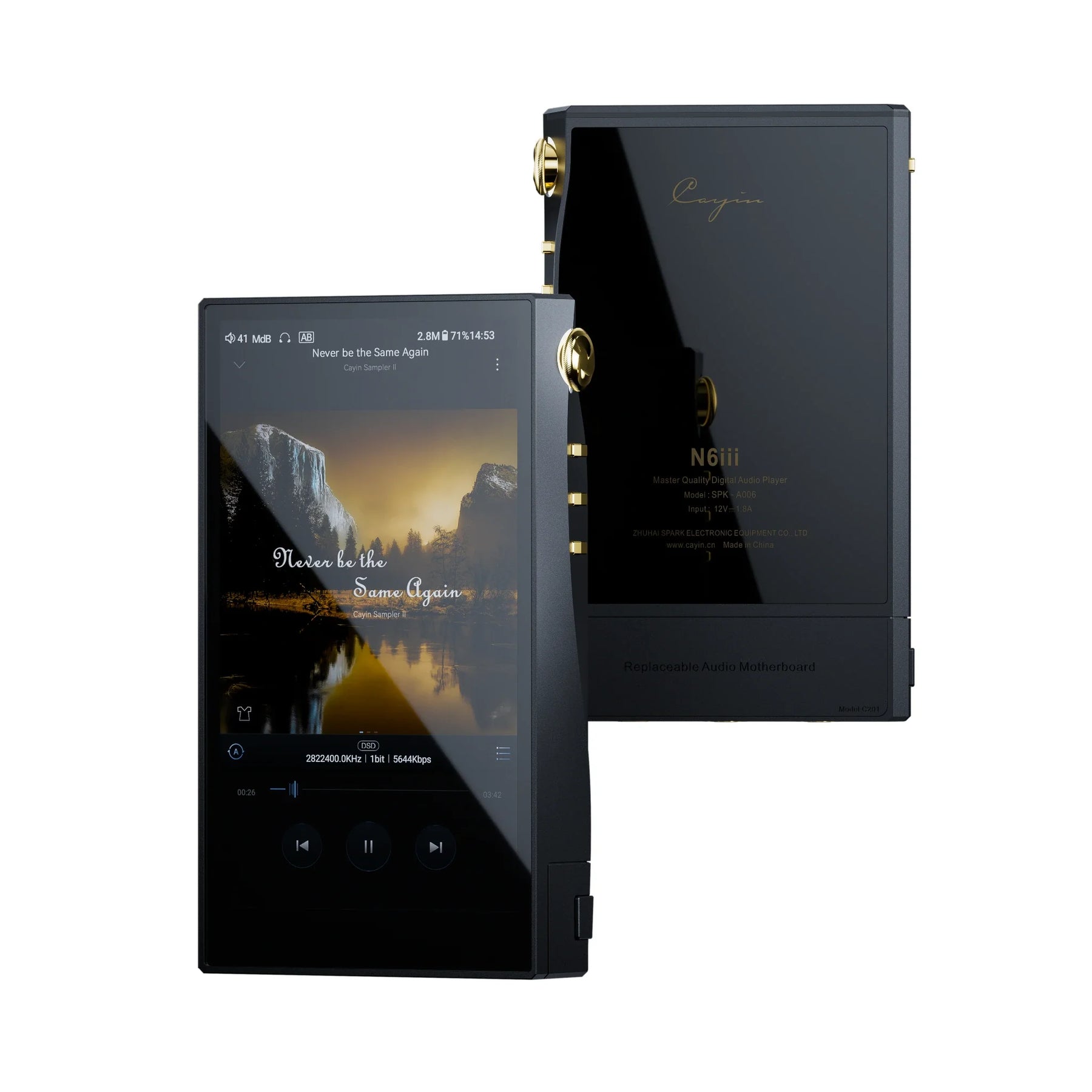

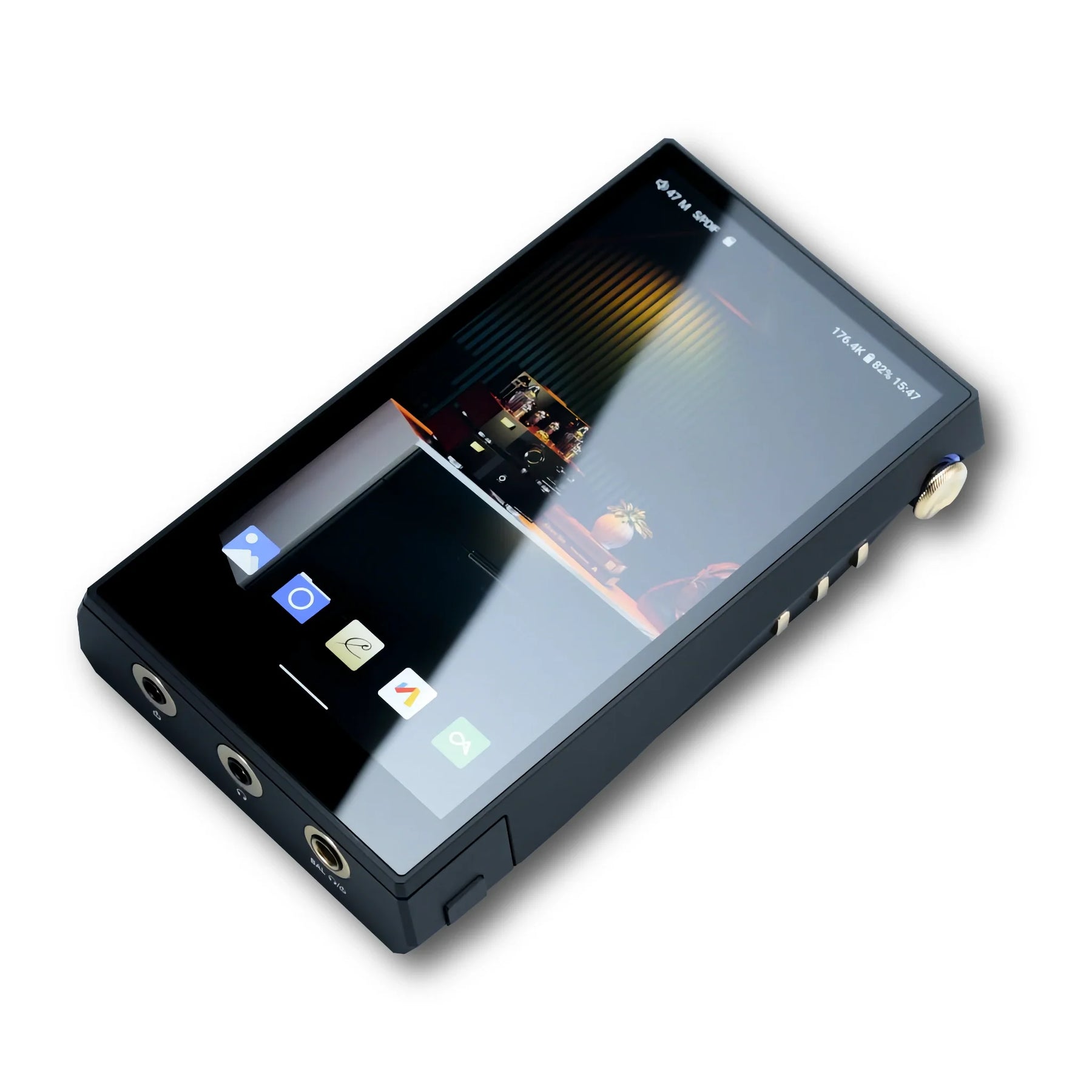

Reimagine the Boundaries of Portable Audio With Cayin's N6iii Digital Audio Player

• Fully modularized DAP succeeding the Cayin N6ii
• Constructed with Qualcomm Snapdragon 665
• User-replaceable C201, E203 or R202 Audio Motherboards

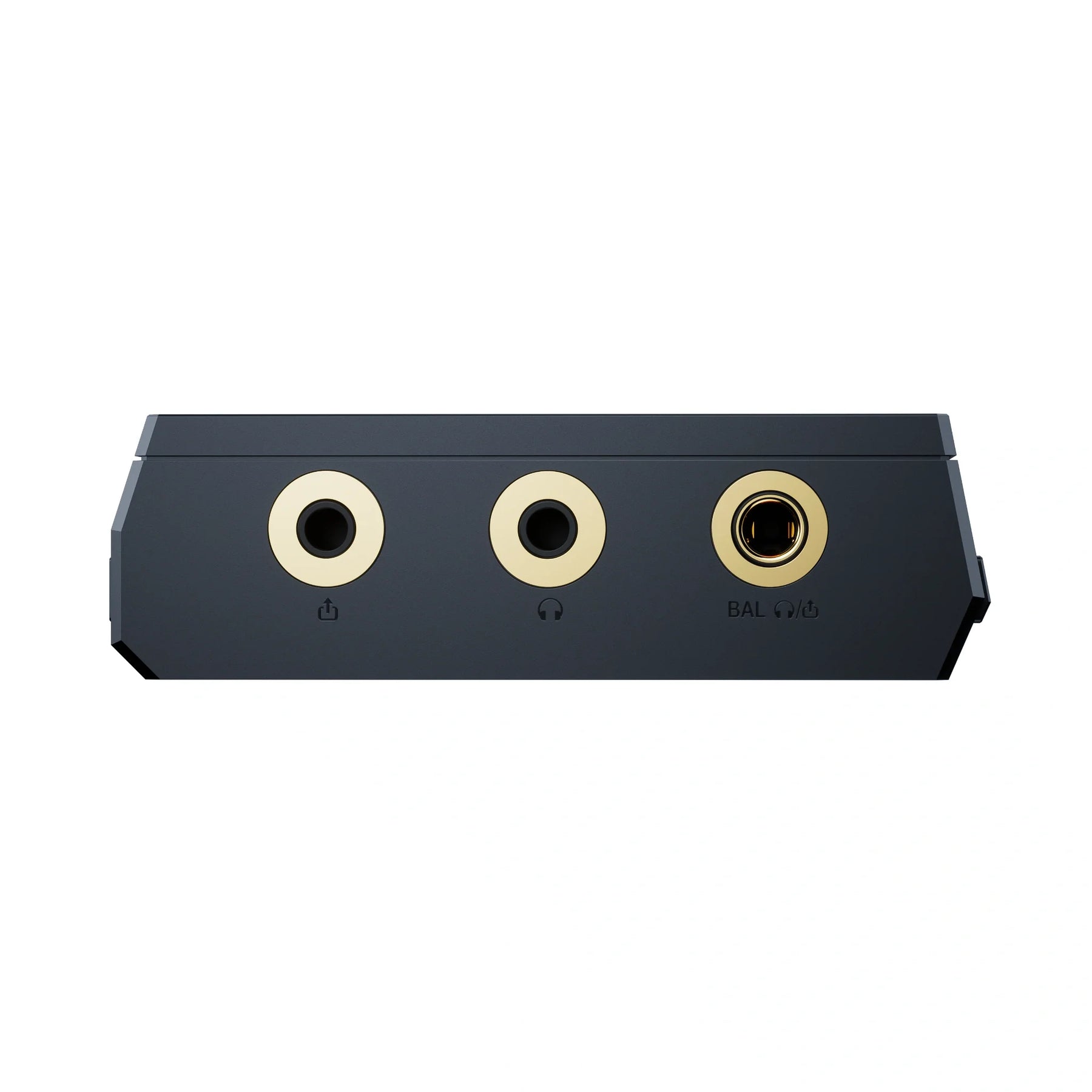

• Dedicated 3.5mm SE + 4.4mm BAL + shared line/pre output
• Increased stability, higher dynamic range, and reduced distortion with (x8) DAC chips total
• Improved channel separation and stereo imaging due to dedicated DAC chips and multiple power supplies
• Updated UI and faster processor for smoother navigation and playback performance

New and Improved

The Cayin N6iii boasts a 5” all-screen display, larger than the N6ii’s 4.2” but still compact and ergonomic for one-handed use. By eliminating chassis extensions and neatly placing playback buttons and the volume knob under the screen, the N6iii balances enhanced visuals with portability.

Curved sides improve grip, ensuring comfort despite the larger display, while maintaining the device’s portability and sleek design.

For improved streaming, the N6iii uses a semi-exposed antenna below the top panel, offering better performance than the N6ii. Though it provides slightly less gain than external antennas on models like the N7 or N8ii, this design enhances connectivity without increasing size.

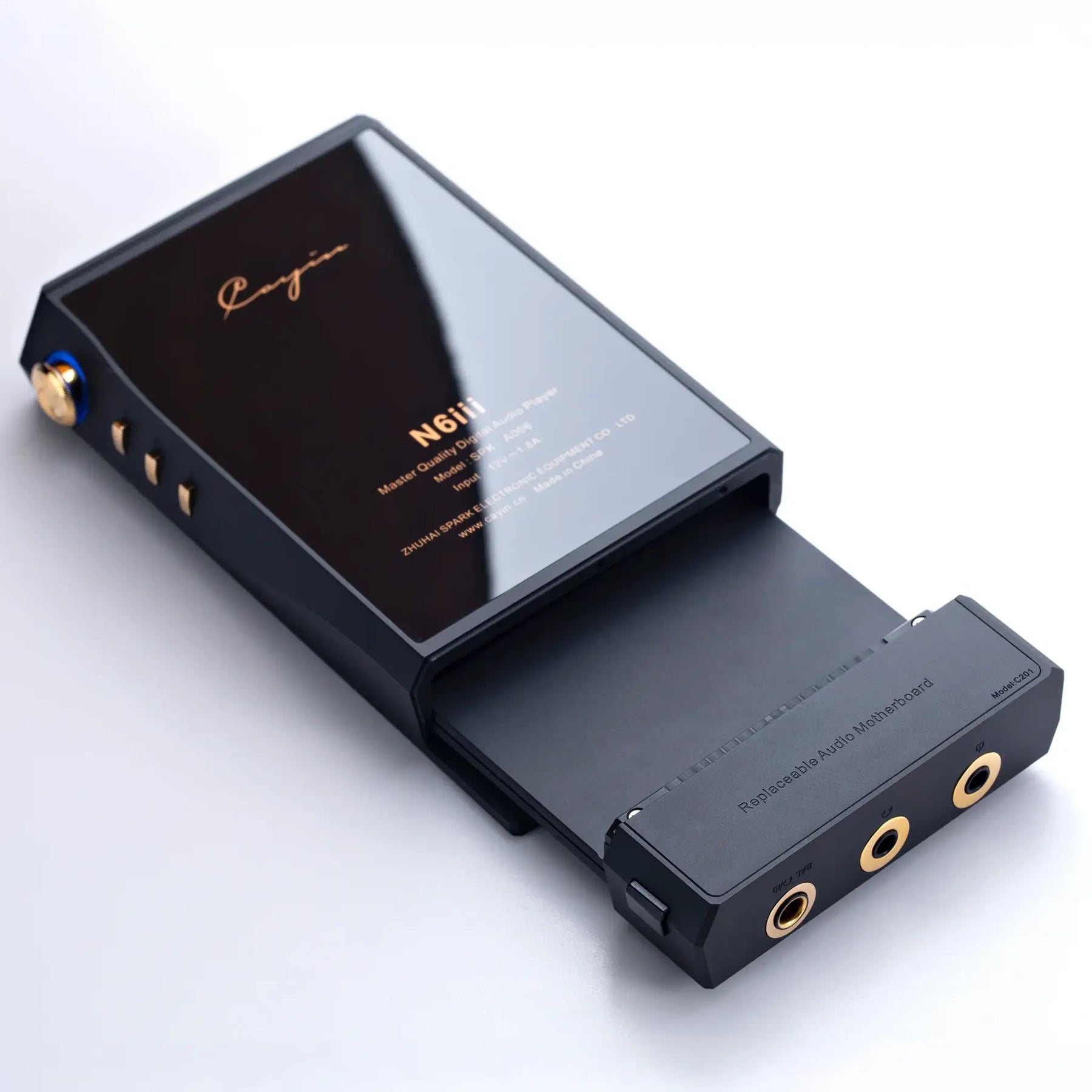

Replaceable Audio Motherboard

The N6iii introduces a quick-release 3-point locking system for easy, tool-free audio motherboard swaps, inspired by the C9ii. Its Gen2 Audio Motherboard, featuring Cayin’s latest audio technologies, is larger for enhanced performance but not backward-compatible with N6ii boards, balancing innovation with portability. Each motherboard tailors the N6iii to unique listening preferences.

C201, E203 and R202 Audio Motherboards

The C201, E203 and R202 motherboards for the Cayin N6iii differ in design and sound performance. The C201 features 8x Cirrus Logic CS43198 DAC chips, delivering a clean and transparent playback with a slight smoothness to the highs.

The E203 uses dual ESS ES9038Q2M DAC chips, offering a more analytical, precise sound with enhanced clarity and dynamic range, catering to those seeking a highly detailed and neutral listening experience.

The R202 features both a 24-bit R-2R ladder DAC and a discrete 1-bit DAC, each using ultra-precise 0.1% thin-film resistors for native PCM and DSD decoding. While R-2R Mode provides a rich, smooth sound, 1-Bit Mode offers a more natural rendering with a clear soundstage.

C201

The C201 is the first time Cayin has used a Cirrus Logic DAC chip in a portable product. Historically, in the early 2000s, the CS4398 and PCM1792 DAC chips were dominant in the audio industry, and Cayin used them extensively in its early DAC and CD players.

The C201 audio motherboard in the N6iii features (x8) Cirrus Logic CS43198 DAC chips, arranged in a “Parallel Full-Differential Matrix DAC” design. Each DAC operates in MONO mode, receiving individual I2S signals and outputting differential signals. Groups of (x4) DACs combine for a full-differential output channel, with discrete, symmetrical power supplies ensuring stability and precise phase alignment. This low-jitter, high-performance design enhances sound density, reduces distortion, and delivers exceptional audio quality.

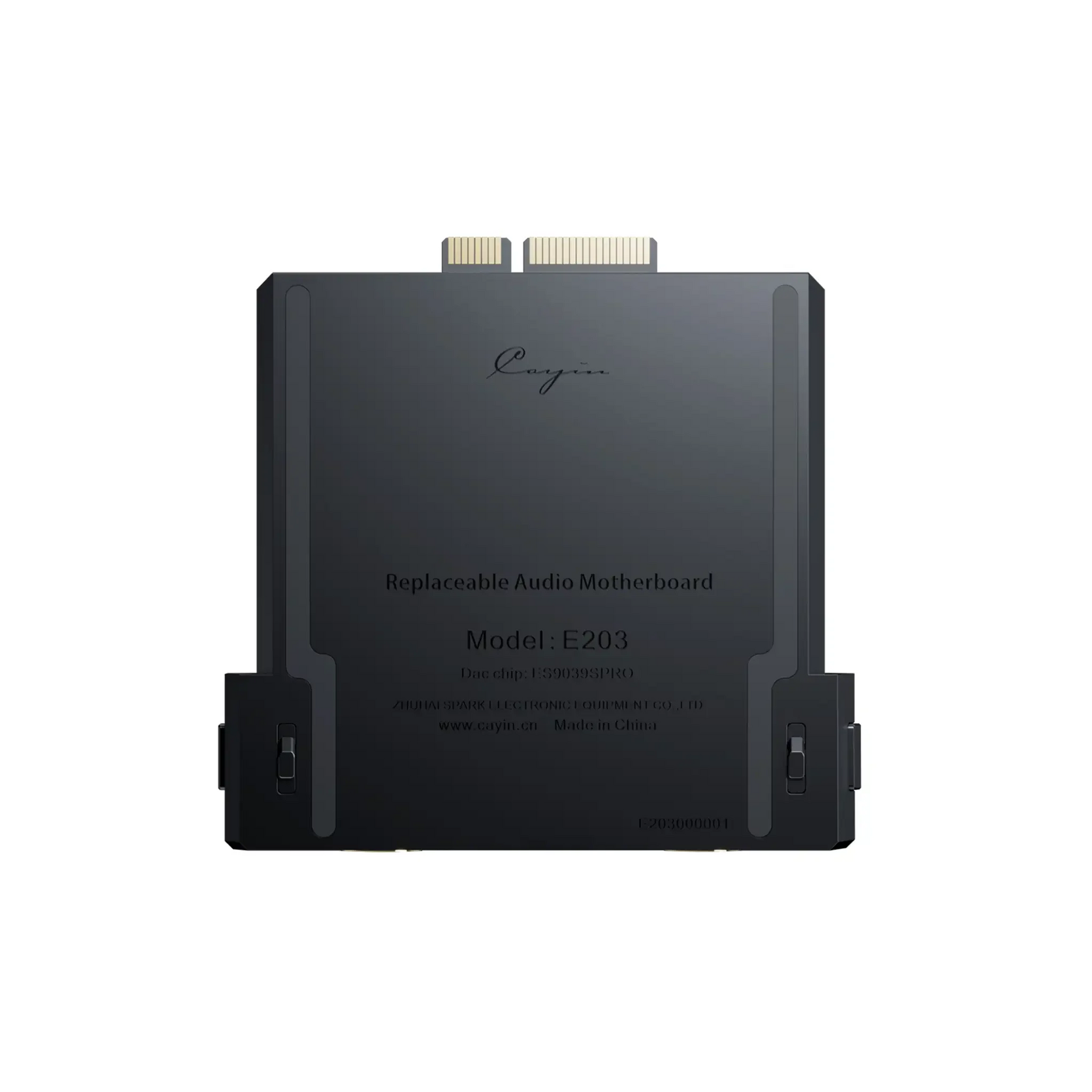

E203

The DAC chip in the E203, the ES9039SPRO, was developed under the latest Hyperstream® IV architecture.

The ES9039SPRO features an 8-channel independent current output path, to align with this design, Cayin has implemented an 8-channel independent I/V (Current-to-Voltage) conversion circuit corresponding. It is followed by the LPF circuit to extract four fully-differential signals, which are then paired with a Buffer driver circuit.

R202

The Cayin R202 motherboard is a high-performance audio module built around a fully discrete, fully balanced dual-DAC architecture. It features both a 24-bit R-2R ladder DAC and a discrete 1-bit DAC, each using ultra-precise 0.1% thin-film resistors for native PCM and DSD decoding. A dual digital audio processor supports up to PCM 768kHz and DSD512, with smart triple decoding modes—automatically selecting the best DAC architecture for the input format.

The motherboard also includes a quad-channel, fully balanced headphone amplifier built from high-grade op-amps and INA1620 drivers, delivering dynamic, transparent sound. Power is delivered through a matrix-structured clean supply with ultra-low-noise LDO regulators, ensuring a quiet, stable signal path.

Highlighted Features

Interchangeable Audio Motherboards
The N6iii allows users to swap audio motherboards, enabling customization of the device’s sound signature to suit personal preferences.

Dual DAC Configuration
Equipped with dual AK4497EQ DACs, the N6iii delivers precise and detailed audio reproduction, ensuring a rich listening experience

Balanced and Single-Ended Outputs
The player offers both balanced (4.4mm) and single-ended (3.5mm) headphone outputs, providing flexibility for various headphone types.

Android Operating System
Running on an open Android OS, the N6iii supports a wide range of music streaming apps, enhancing its versatility.

High-Resolution Audio Support
The device supports high-resolution audio formats, including DSD and PCM up to 32-bit/768kHz, catering to audiophiles seeking superior sound quality.

Expandable Storage
With a microSD card slot, the N6iii allows for expandable storage, accommodating extensive music libraries.

Wireless Connectivity
Featuring Bluetooth and Wi-Fi capabilities, the player enables wireless streaming and easy file transfers.

Long Battery Life
Designed for extended use, the N6iii offers substantial battery life, making it suitable for long listening sessions.

Specifications

• CPU: Qualcomm Snapdragon 665 Octa-core x64 Processor
• OS: Android 12.0, Hiby Customized OS DTA (Direct Transport Audio)
• RAM: 6GB (DDR4)
• ROM + Expandability: 128GB, up to 2TB TF card
• Display: 5.0" Sharp TFT display, Corning Gorilla Glass 3 Multi-touch
• Physical Button: Independent power button volume knob
• Bluetooth: v5.0: Supports UAT, LDAC, AAC, SBC
• Digital Audio Output: S/PDIF, USB Audio In/Out
• Battery: 9000mAh 3.85V
• Fast Charge: PD2.0 (~4 hrs)
• Motherboard Installation: Quick release tool-free design
• Dimensions: 4.9" x 3" x 1"
• Weight: 10.4 oz (Excluding motherboard)
• Cayin N6iii R202 specifications
• Full Cayin N6iii + C201 + E203 + R202 specifications
• Cayin 1 Year Warranty

C201 Motherboard

• DAC: (8x) CS43198
• Volume Control: (4x) NJU72315
• Amplification: (4x) OPA1622 (Parallel for two channels)
• Parallel Connection: Synchronous 4x DAC Chip
• Headphone: 3.5mm + 4.4mm Balanced
• Line Out: 3.5mm (Dedicated) + 4.4mm (Shared)

E203 Motherboard

• DAC: ES9039SPRO
• Op-Amp Circuit: (11x) OPA1612
• Headphone Amp Circuit: OPA1612 + Four Channels Discrete Output Stage
• Amplification Modes: AB Class / A Class / Hyper
• Output Functions: SE 3.5mm PO + BAL 4.4mm PO

R202 Motherboard

• DAC
  • Fully discrete 24-bit balanced R-2R DAC built with 192 x 0.1% ultra-precision thin-film resistors (48 x 4 configuration)
  • Fully discrete 1-bit balanced DAC built with 128 x 0.1% ultra-precision thin-film resistors (32 x 4 configuration)
• OP-AMP IC: (4x) OPA1612 + (2x) OPA1662
• Headphone Amp Circuit: (4x) INA1620 Dual-channel op-amps
• Output Interface: SE 3.5mm PO + BAL 4.4mm PO

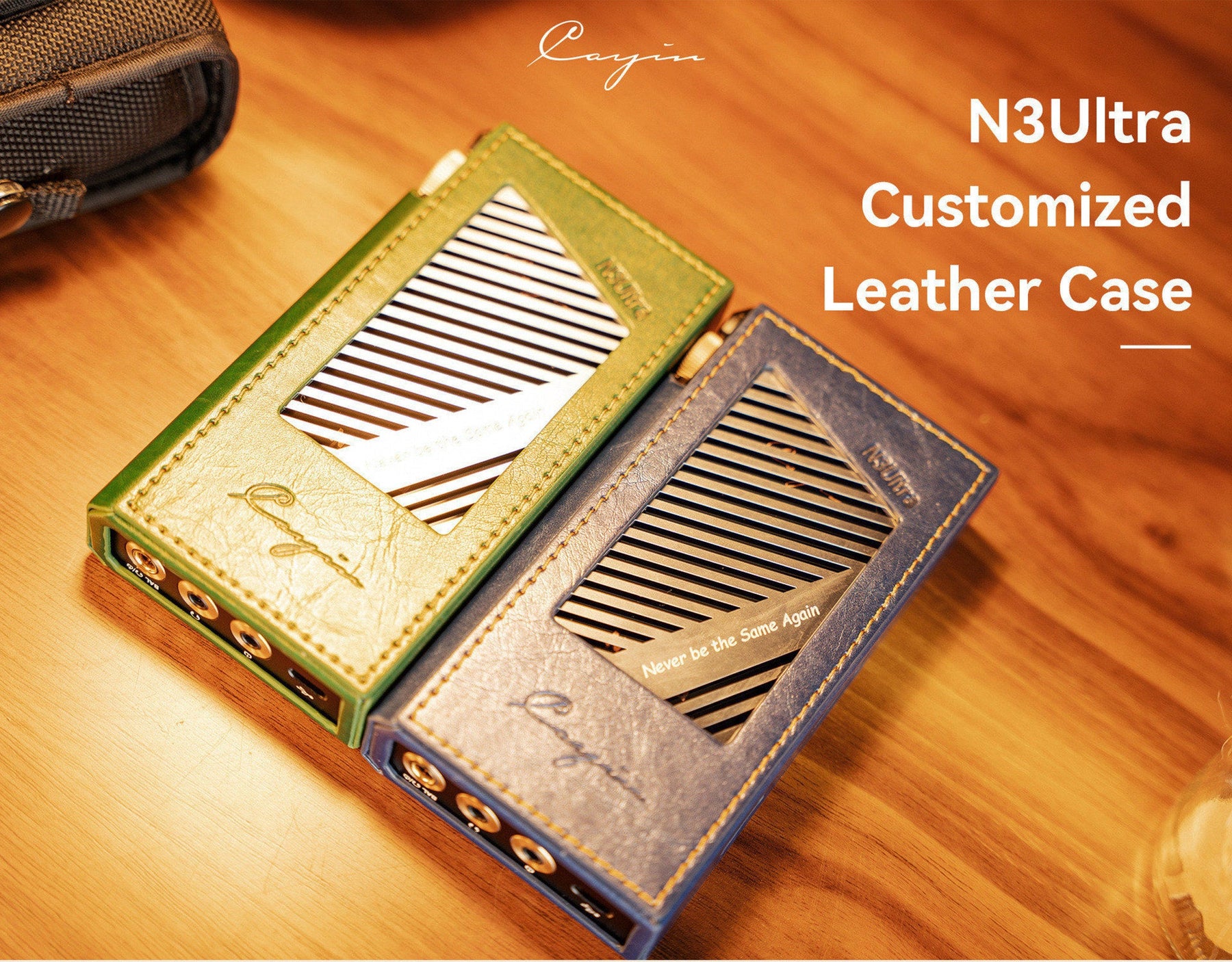

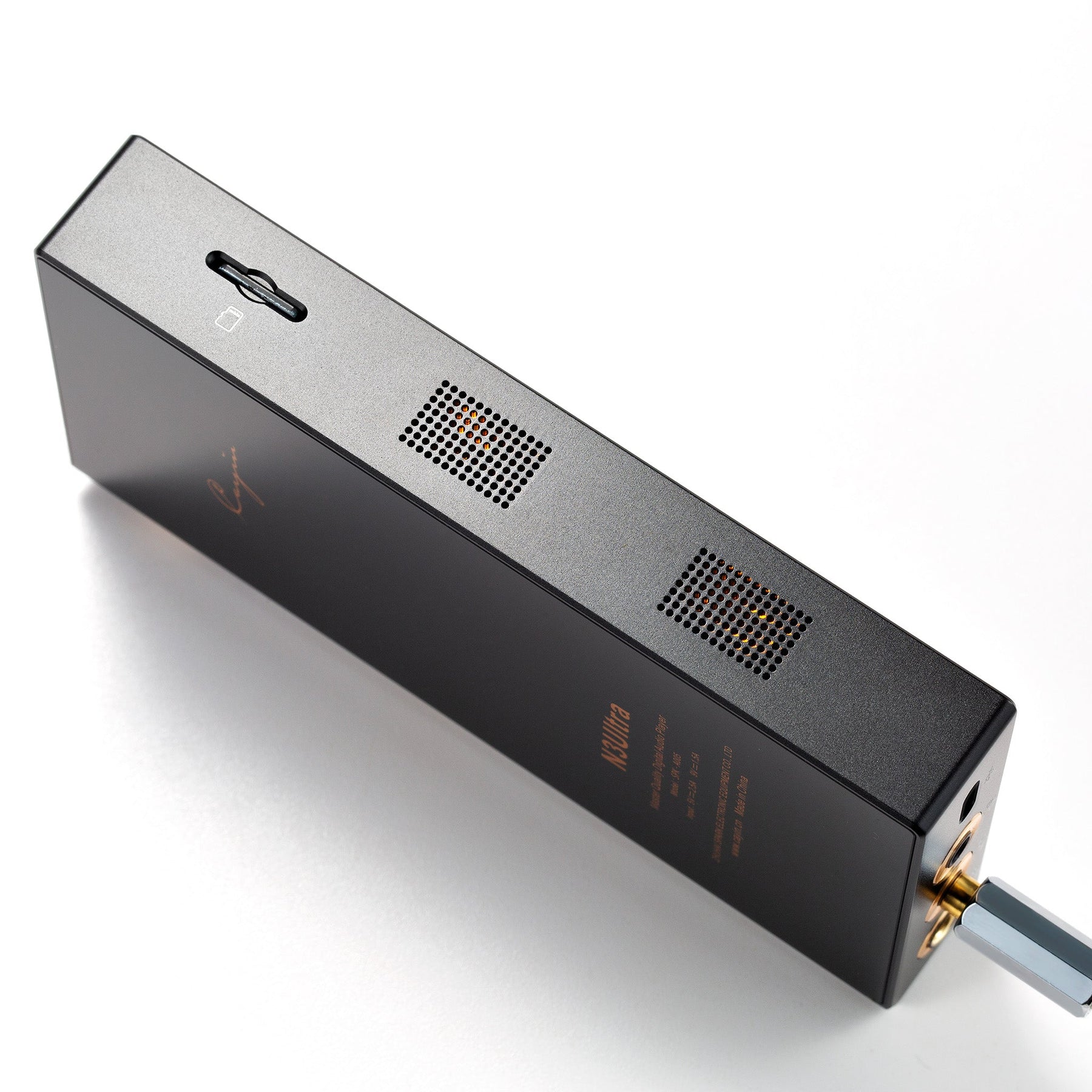

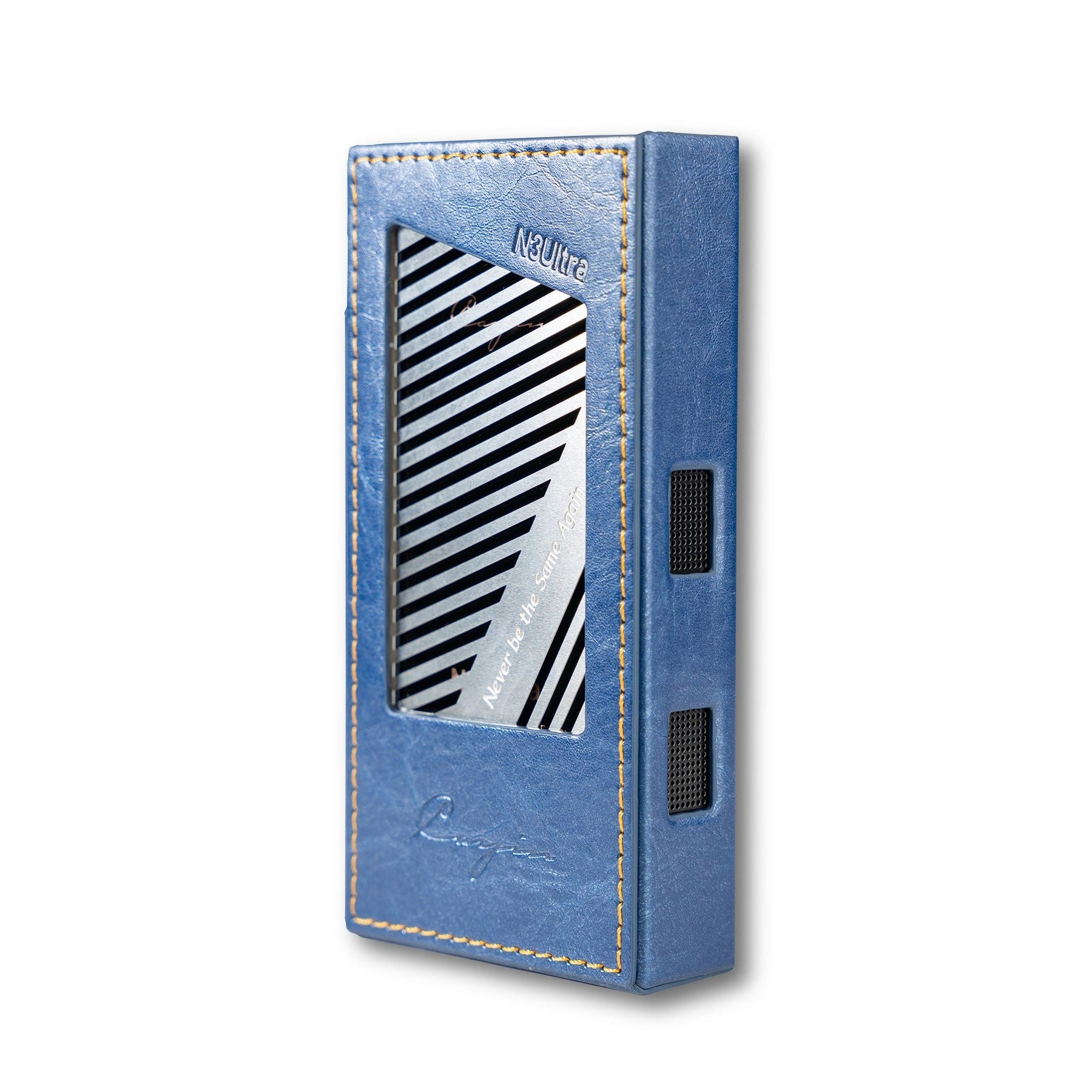

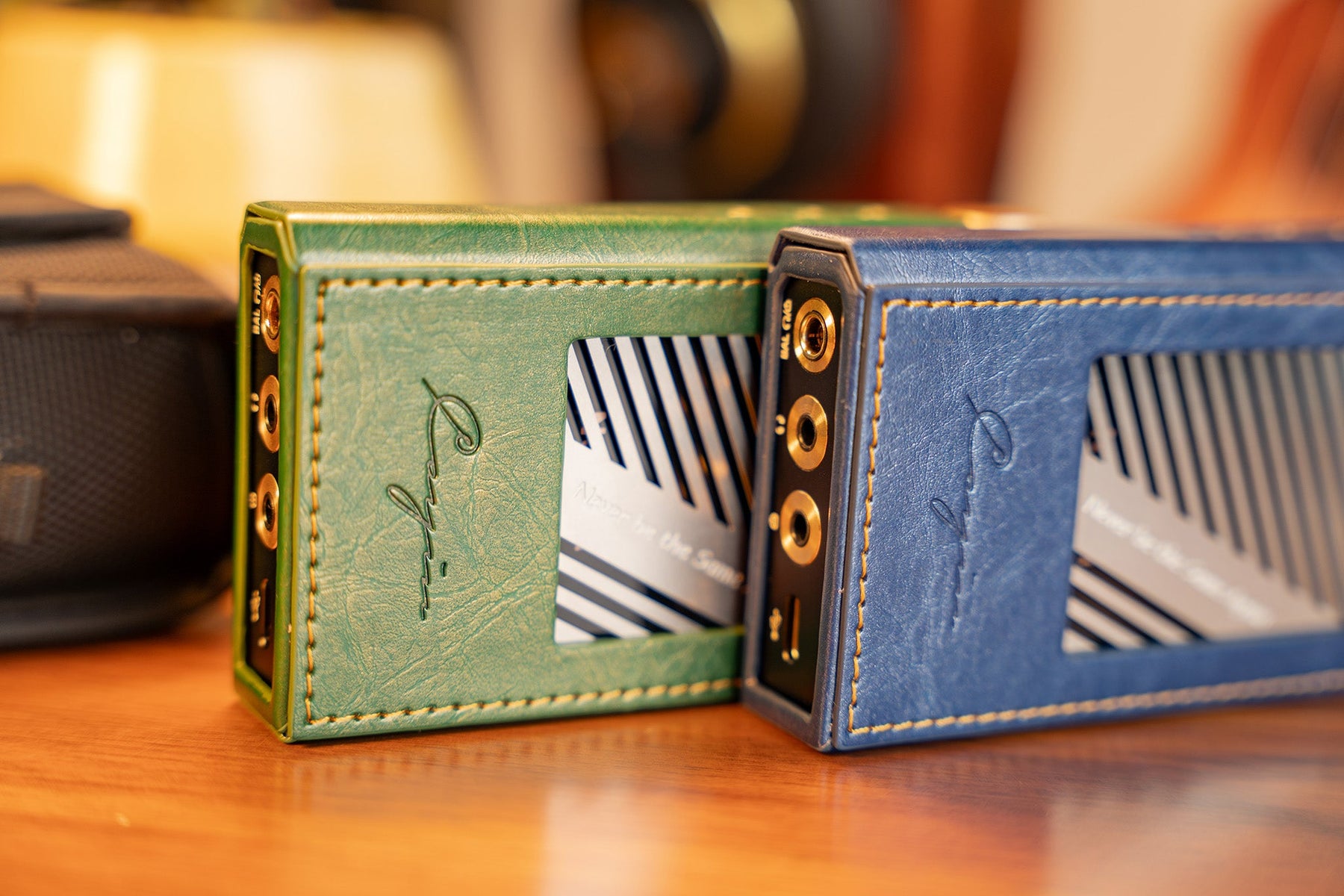

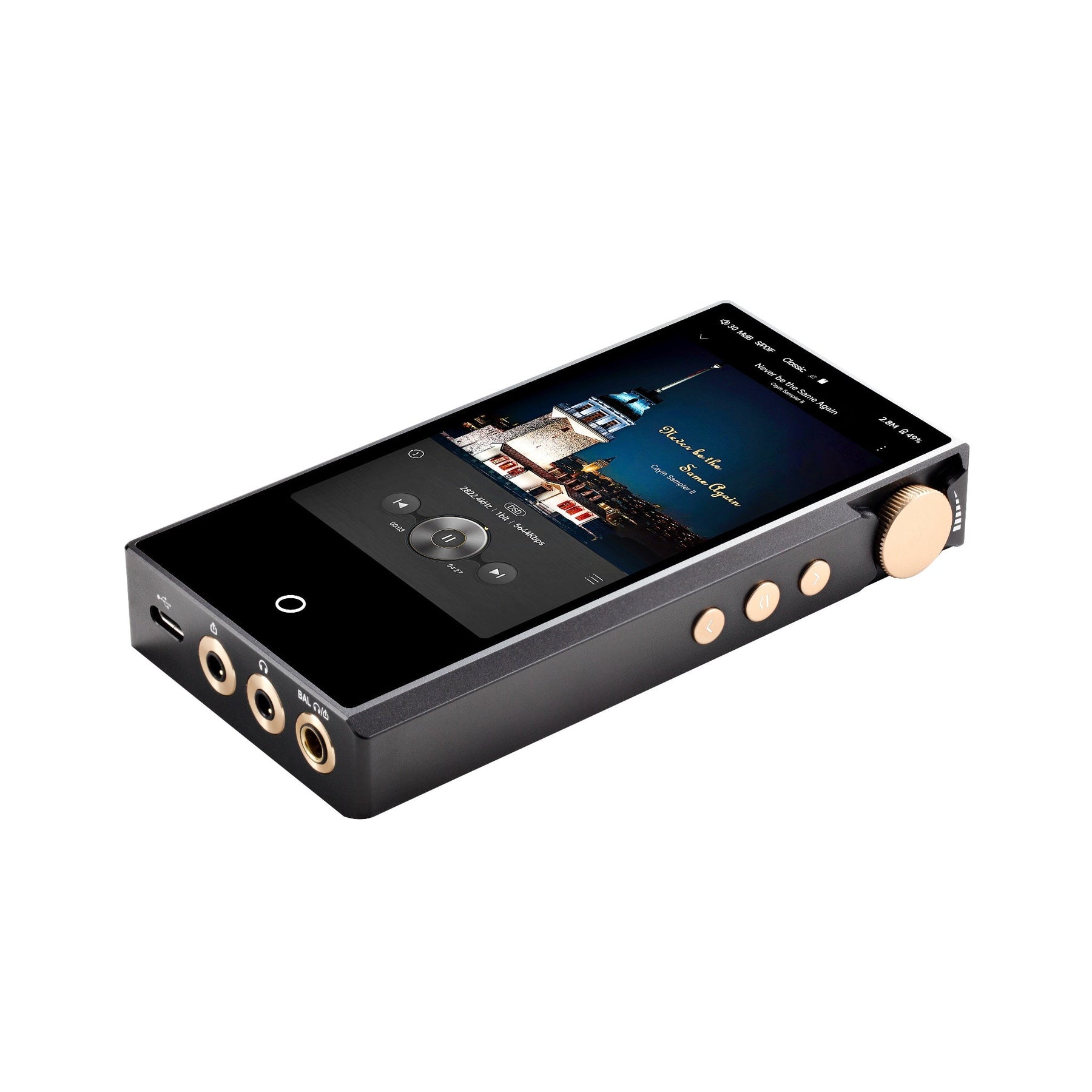

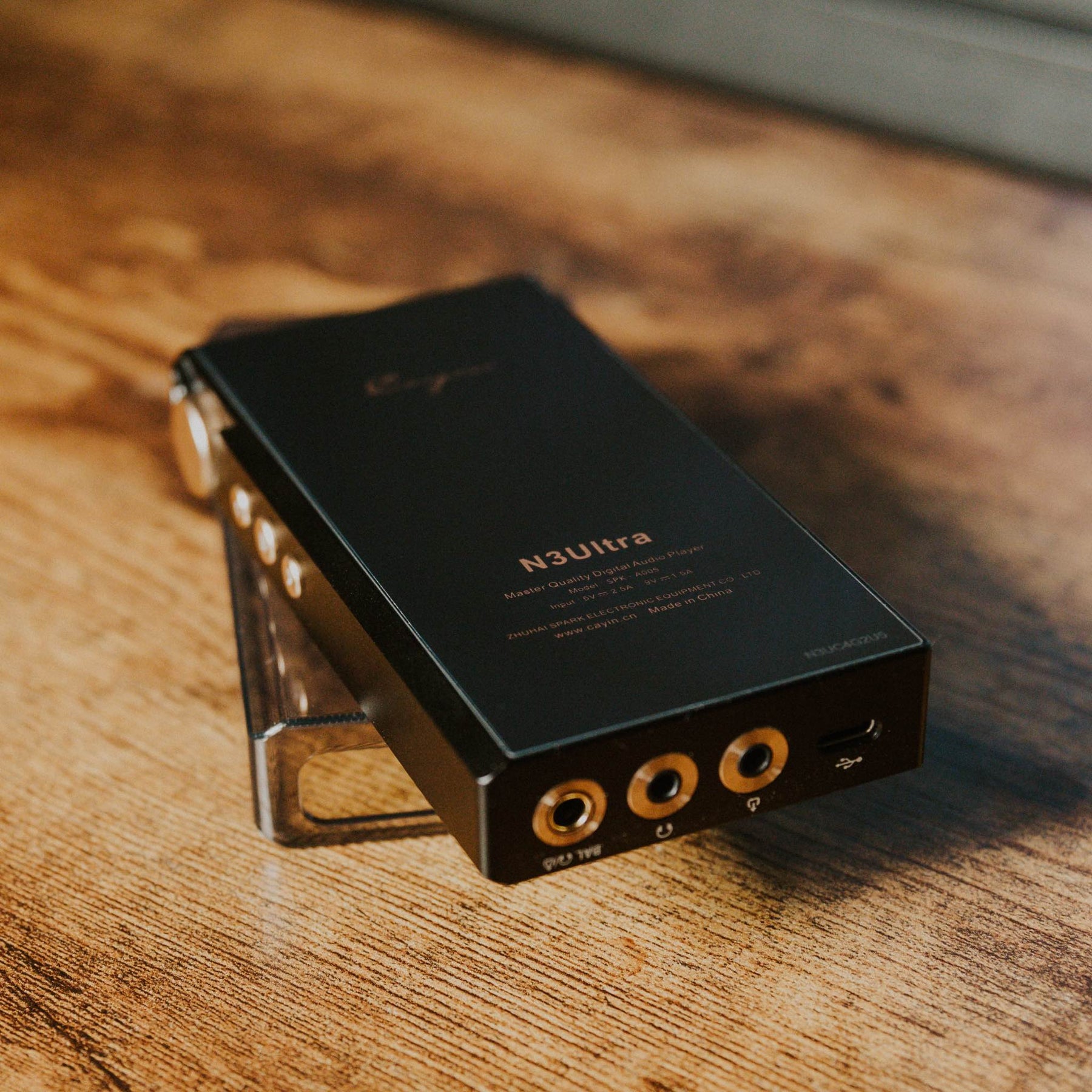

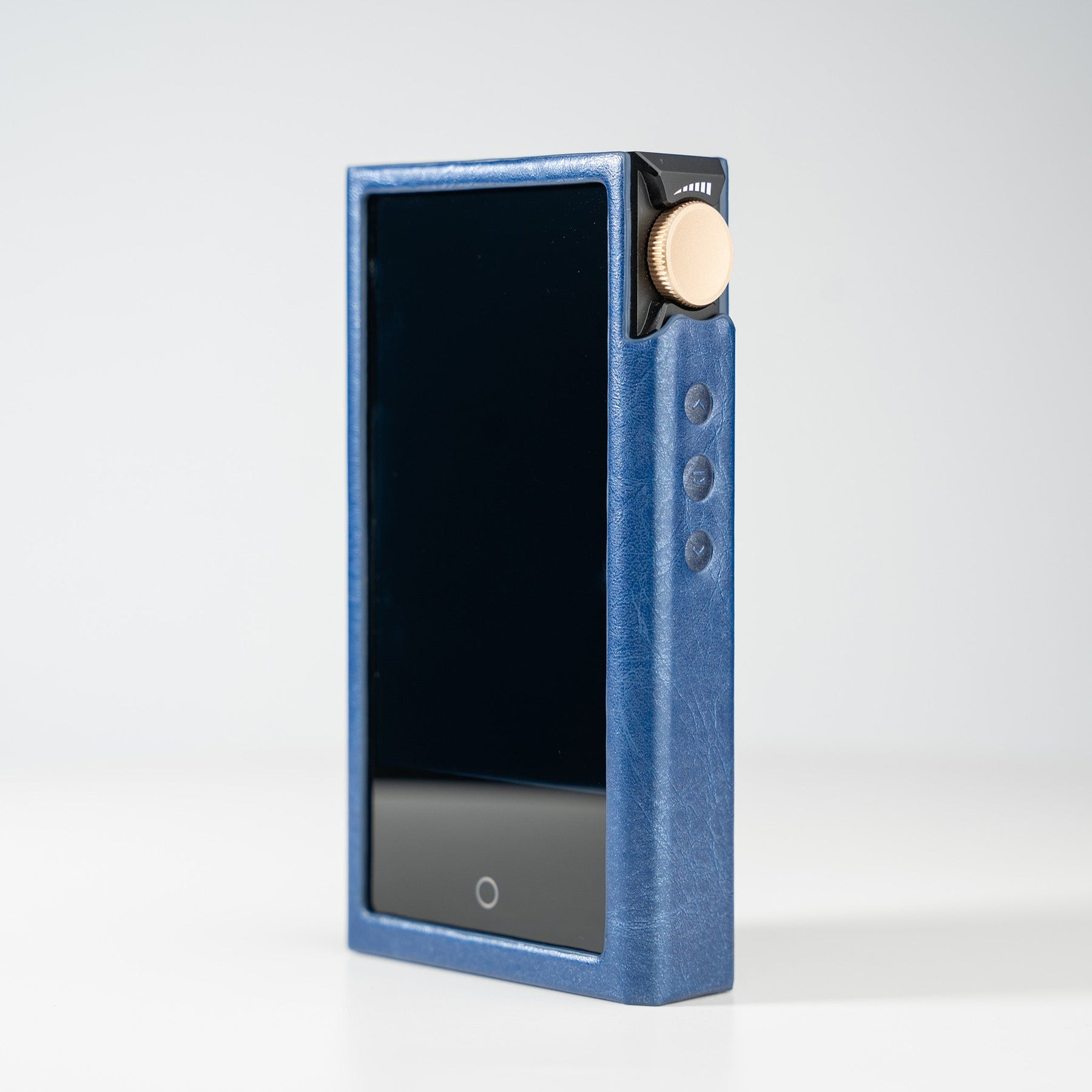

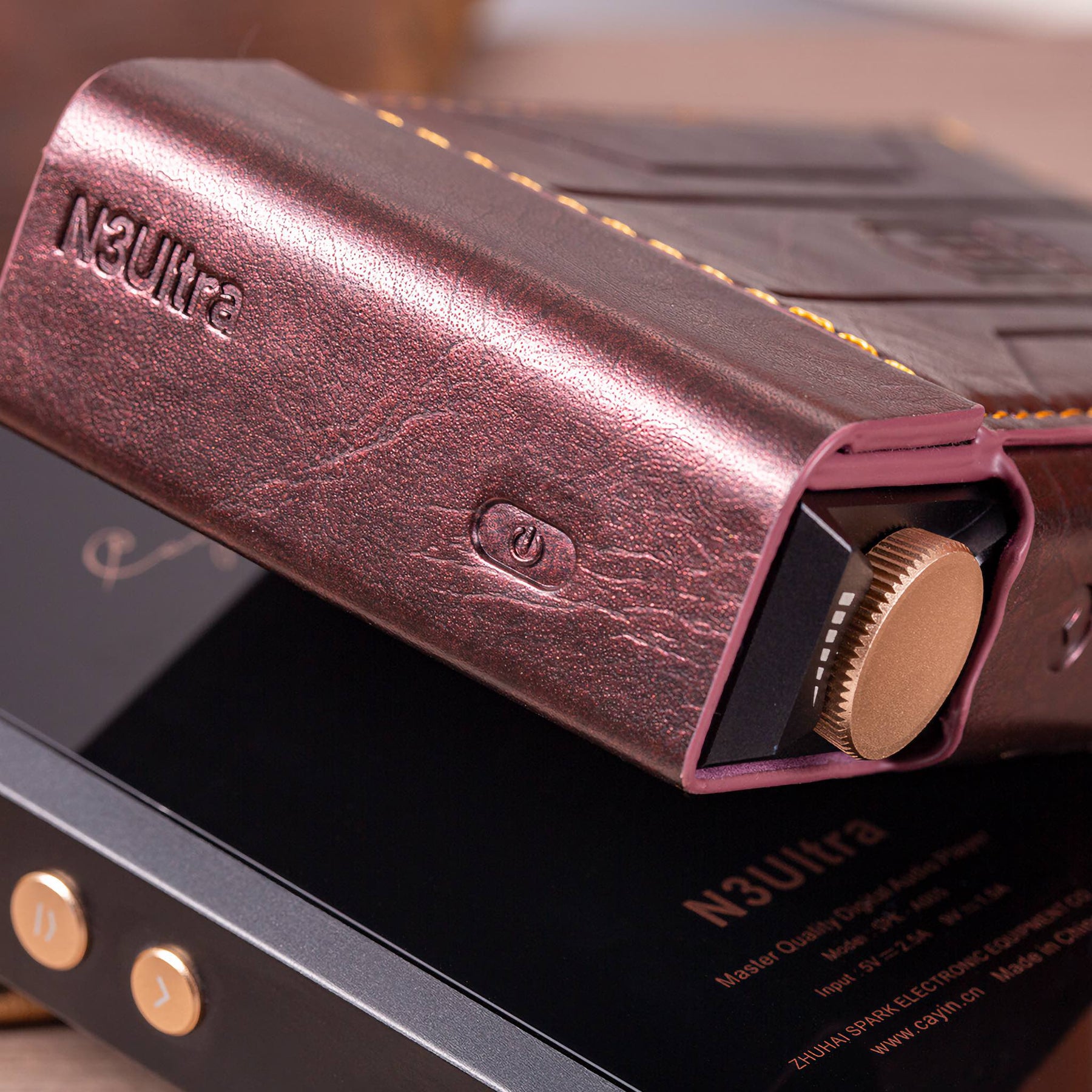

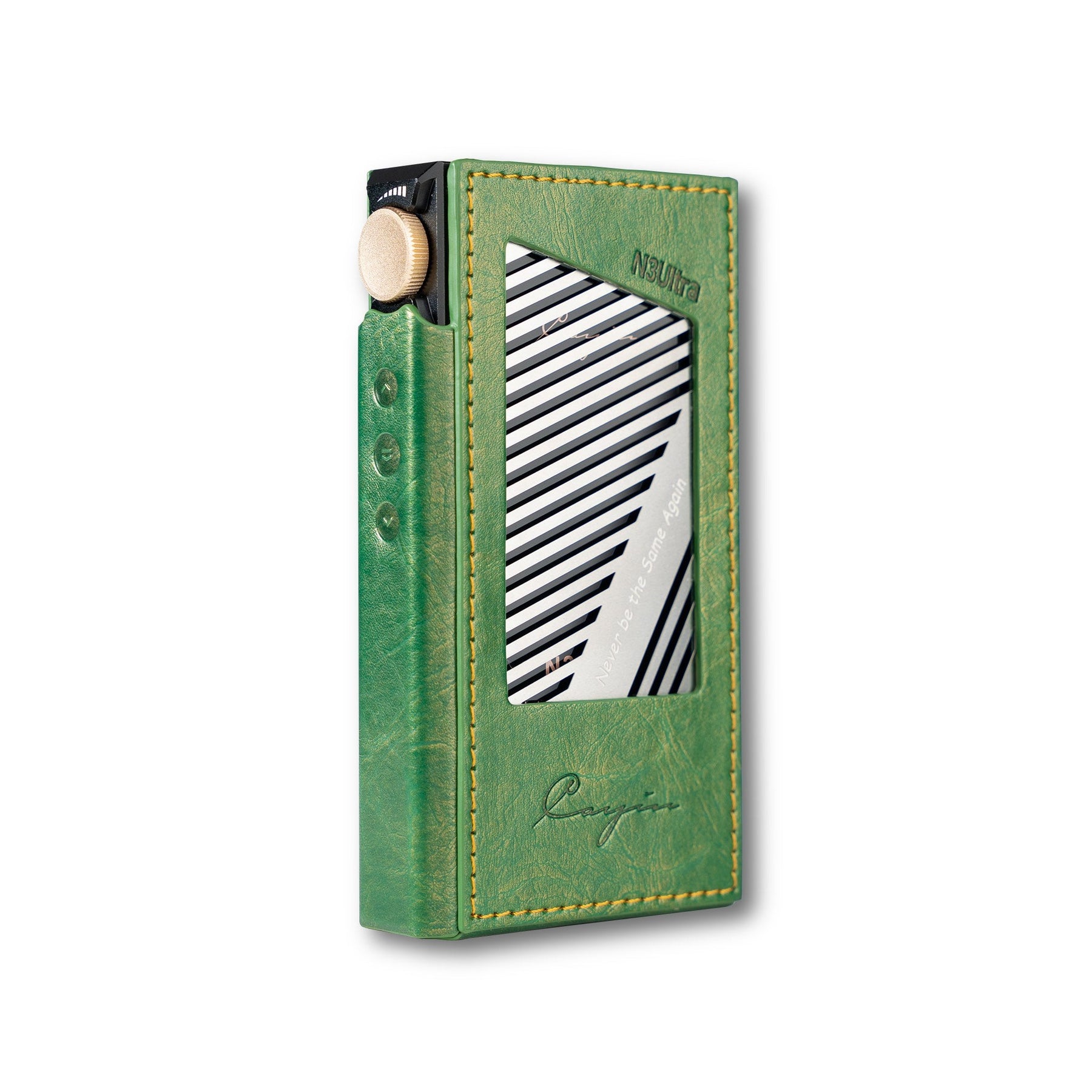

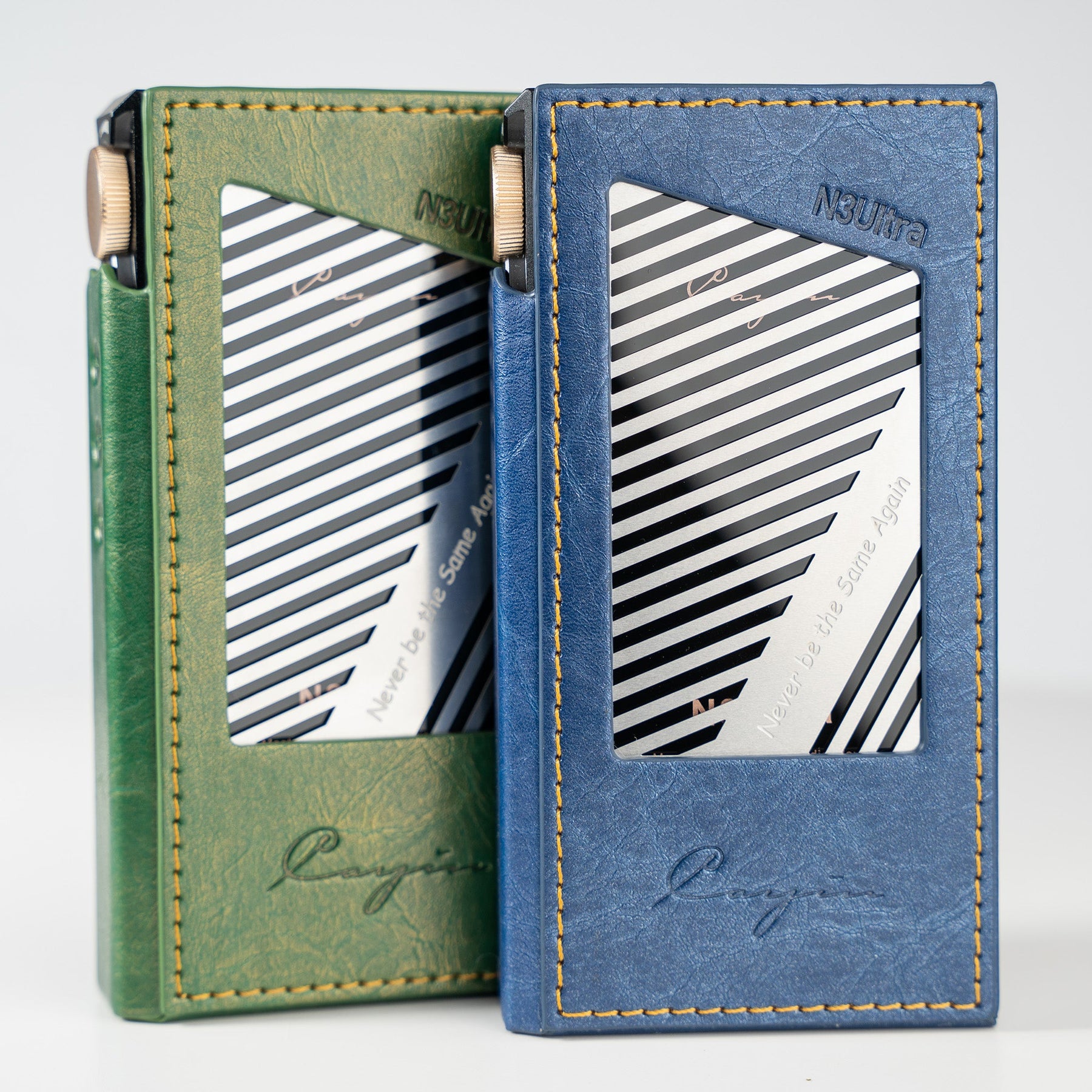

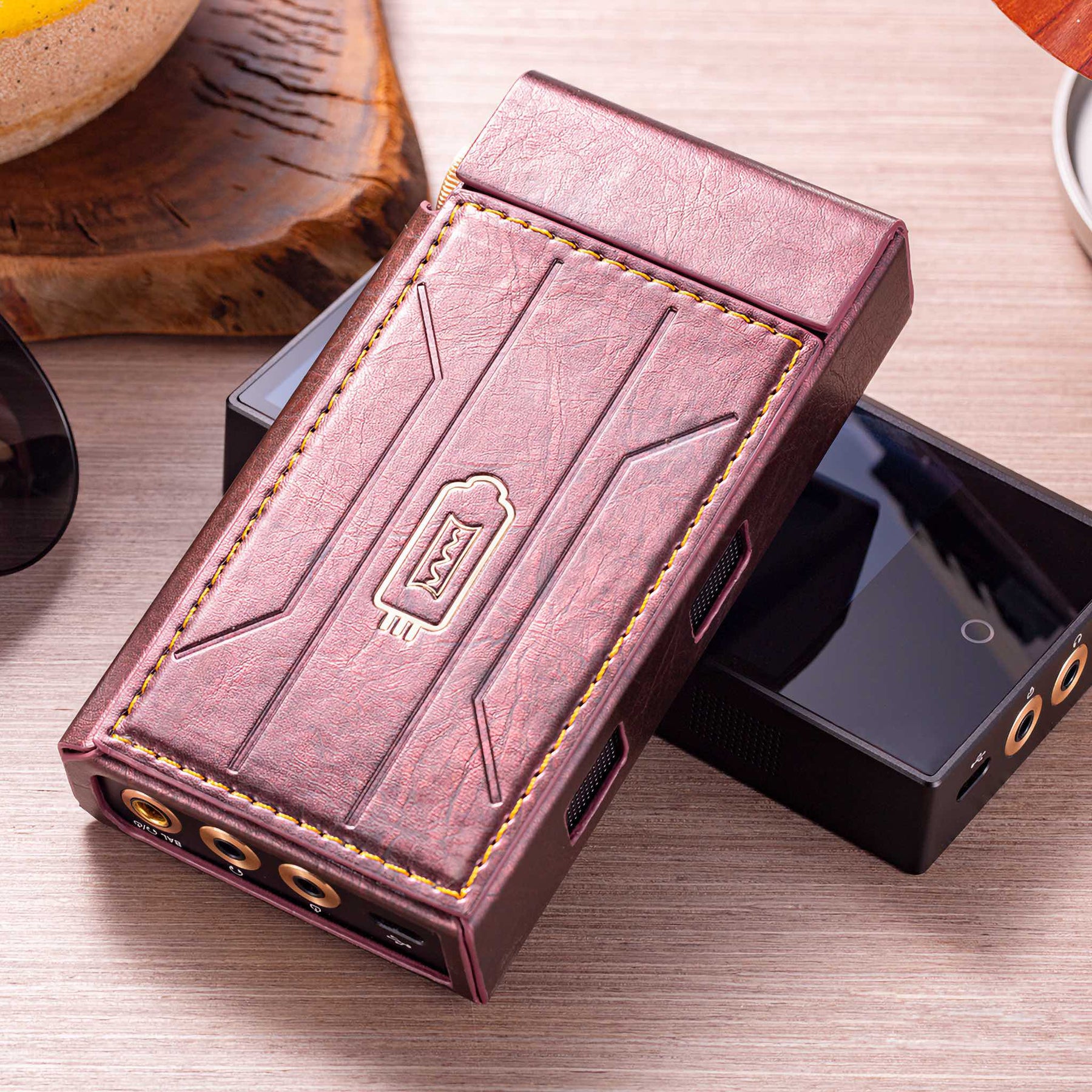

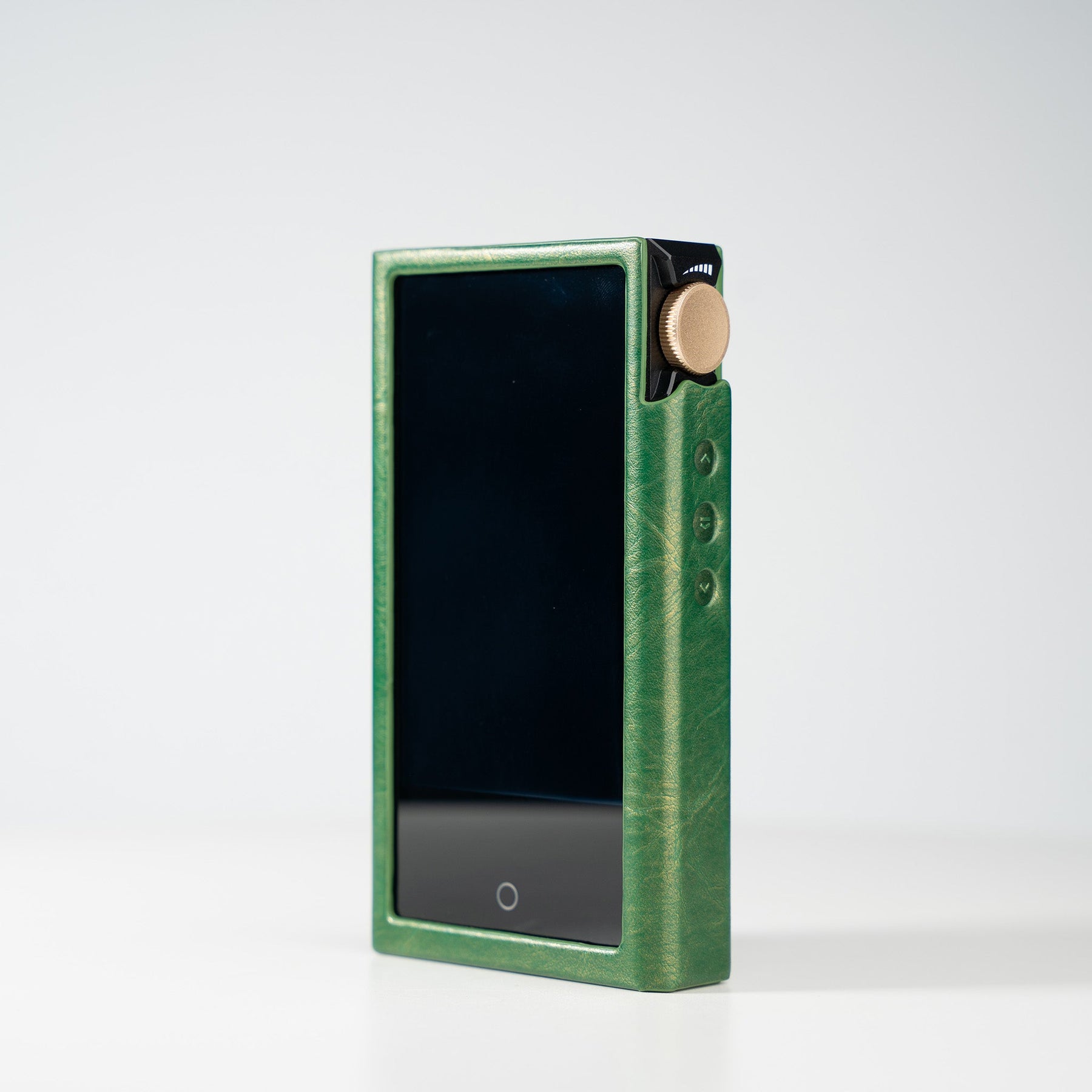

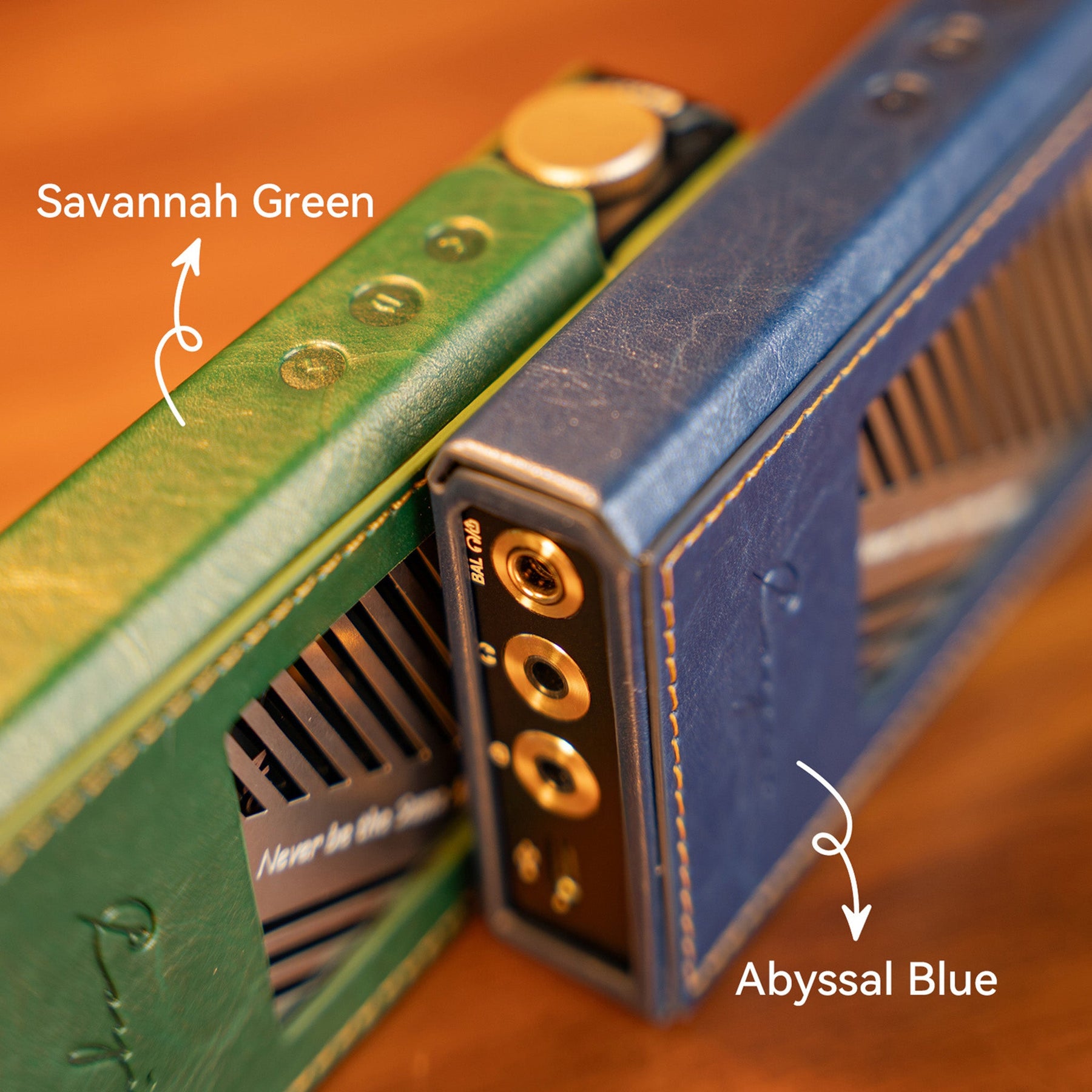

Protect Your N3Ultra DAP With the Perfectly Designed Case

• High quality protein leather perfectly molded for the N3Ultra

• The metal grills on the back provide enhance heat dissipation efficiency
• Cayin combines exquisite detail with a user friendly design that doesn't impact access to the DAPs functions

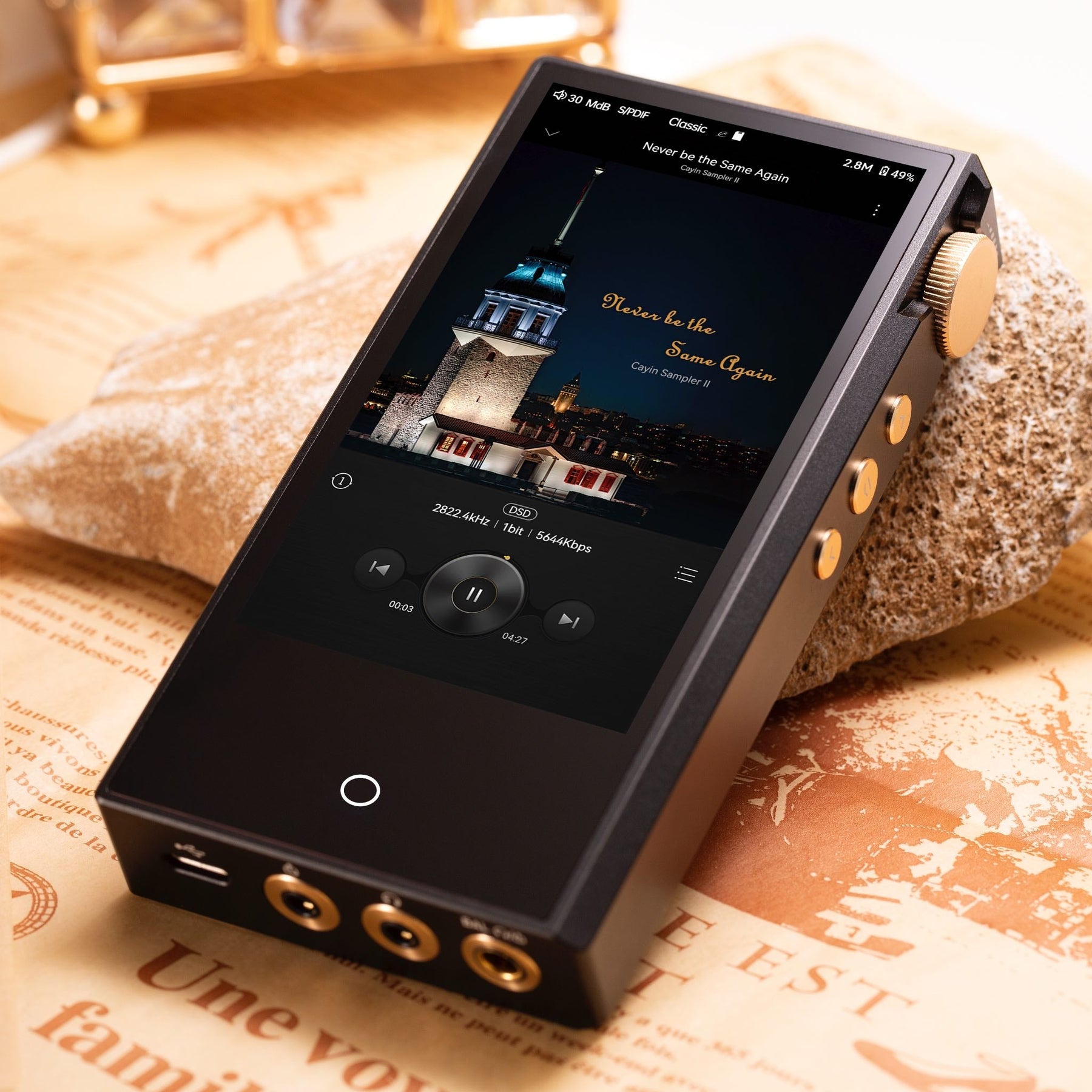

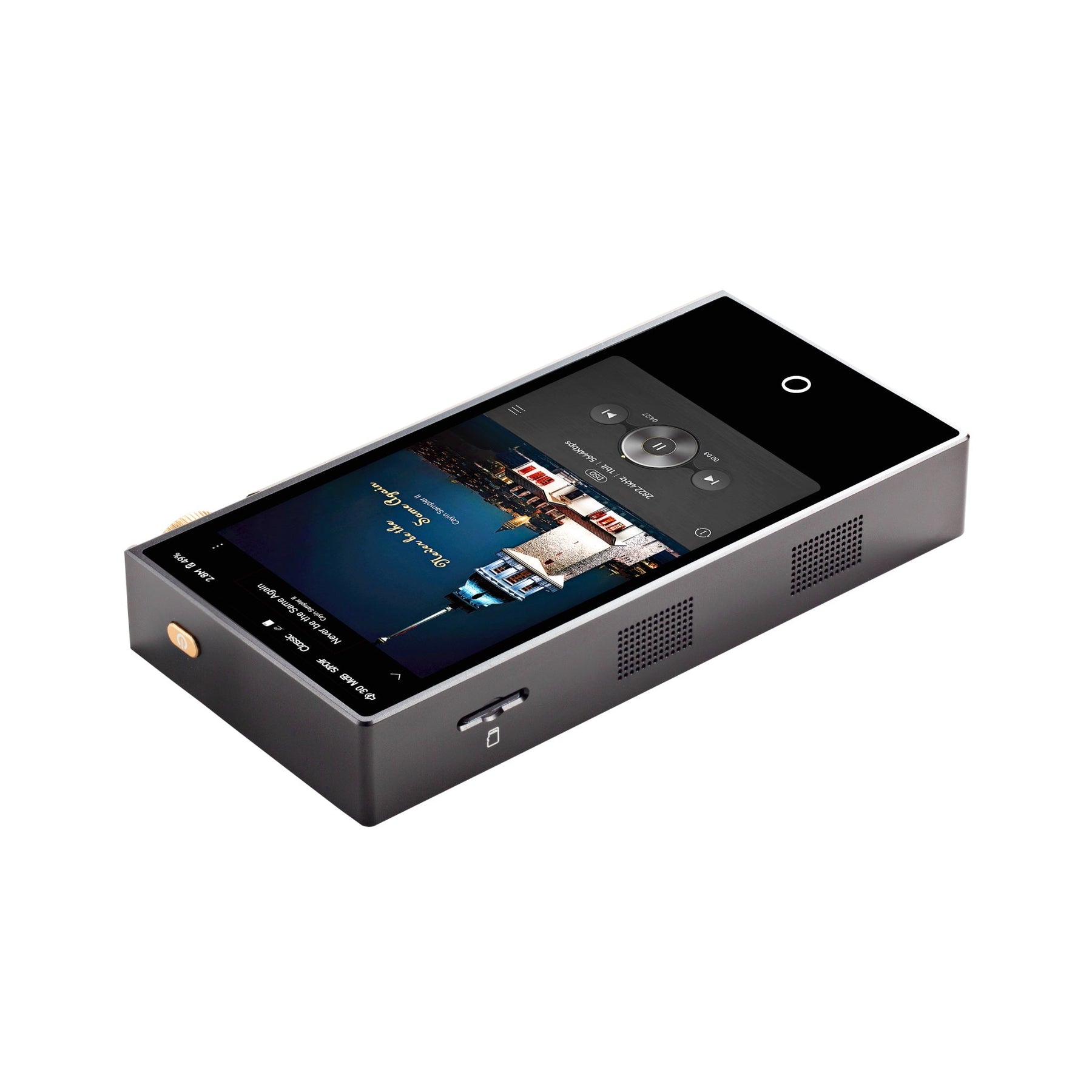

Experience the Elegance of Simplicity, Vintage Tubes, and Cutting Edge Sound with the Cayin N3Ultra

• Classic, modern, solid-state triple timbre
• Dual AK4493S DAC mono mode
• Two Raytheon JAN6418 military-grade miniature direct-heated pentode NOS vacuum tubes
• 3.5mm SE + 4.4mm Balanced phone and line outputs
• Genuine Cayin Leather case available in Blue or Green
• New Firmware v1.3 available with new features!

The Beauty of Simplicity

The N3Ultra uses a fully-customized operating system streamlining to focus solely on audio application. Crafted with intention, the device provides an authentic and minimalist experience, allowing users to enjoy the new auditory pleasure brought by the vintage JAN6418 vacuum tubes.

Shock Absorber and Suspension

Custom-molded shock absorption Silicon housing to hold and shield the JAN6418 vacuum tube. Designed pairs of suspension pins into the CNC aluminum frame of N3Ultra, the JAN6418 is hanged vertically with suspension effect.

Cayin integrated the miniature vacuum tube with the body frame, achieving multi-directional stress relief for the tube's filament. The DAP offers enhanced stability by introducing an appropriate amount of inter-stage loop NFB to inhibit the closed-loop gain. FET is employed to control the power supply of the vacuum tube and stabilize the working current of the tube filament.

Classic. Modern. Solid-State

Instead of using the miniature pentode tube as an audio buffer, N3Ultra adopts Cayin's Gen3 vacuum tube technology and employed a two stage timbre circuit for JAN6418.

By varying the connection method of the screen grid of the pentode tube, the JAN6418 incorporates local NFB through the screen grid, resulting in two distinct styles of circuit response, distortion, and output impedance.

Dual Line Out

On top of a dedicated 3.5mm single-ended line out, the 4.4mm balanced output can be configured into Phone out or Line out.

Maximum compatibility with configurable output levels

• 3.5mm: 2.1V (High), 1.6V (Mid), 1.0V (Low)
• 4.4mm: 4.2V (High), 3.2V (Mid), 2.0V (Low)

This enables users to connect the N3Ultra to a variety of portable desktop and home audio devices.

Clean and Unamplified

Line Out is fixed voltage line level output bypassing volume control and headphone amplification. This serves as high quality source for headphone amplifier (portable or desktop) and integrated amplifier home audio systems.

Applicability of Tube Timbres

Solid-State, Classic tube and Modern tube timbres are available to all analog outputs, including 3.5mm and 4.4mm headphone and line output options.

Versatile Interface Expands Beyond DAP

DAC/Digital Transport

• USB Audio (Input/Output) - USB-C
• S/PDIF Coaxial (Output) - USB-C embedded

Amplifier/Active Speakers (Line Out)

• 3.5mm Single-ended
• 4.4mm Balanced (Shared)

Headphone

• 3.5mm Single-ended
• 4.4mm Balanced (Shared)

Customizing with Parametric EQ

A 10-bands parametric EQ is specifically designed for the N3Ultra, offering unlimited sound tuning possibilities. This allows detailed customization of IEM pairing according to listening preferences, creating a personalized audio experience tailored to the user.

Digital Audio with Fully Differential Output

Dual AK4493S DAC chipset operates in Mono mode for fully differential output. Independent DAC chips and analog audio circuits for each channel minimize crosstalk, enhancing the audio clarity and stereo separation.

Professional Precision

• Employs JRC NJW1195A 4-channel volume controller
• Employs (x2) Accusilicon AS318 Femtosecond Oscillators
• Low noise distortion resistance ladder analog volume chip commonly used in audiophile preamp
• Ultra low phase noise (-100dBC) maintaining signal conversion accuracy with significantly lower jitter
• 4-channel in one integrated controller offers high precision and lower power consumption
• Minimize digital artifact and enhance the musicality and naturalness of playback

Fast Charging, Long Playback Duration

The N3Ultra employs a hefty 3.85V 4500mAH Lithium battery with a carefully tuned power management system. Continuous playback is available up to 11.8 hours with 3.5mm SE connected IEM in solid-state timbre, and 7.6 hours with 4.4mm balanced connected IEM in vacuum tube timbre. Recharge quickly with QC3.0 which yields an 80% charge in about 1 hour!

High Performance + Portability

• One TF card supports up to 1 TB, can further expand storage through OTG USB for flash drives and card readers
• 4.1" 720x1280 touch screen, fast response times and high frame rates for clear, wide-angle viewing and intuitive operation
• Cater to operational preferences, provides physical knob and buttons on top of touchscreen
• Weighing just 7.20 oz, the device is perfectly sized for one-handed use and pocket-friendly
• Runs on an Android-based system with a Qualcomm 425 CPU, offering a tailored UI for smooth and responsive control
• The Smart glowing HOME button serves as sampling rate indicator. It also doubles as BACK key for routine file/menu operations

Specifications

• MCU: Snapdragon 425
• System: Customized Android 8.1
• Memory: 2GB RAM
• Storage: TF x1 (support up to 1TB)
• Display: 4.1" (720x1280) TFT multi-point touch screen
• Physical control: Volume knob, Power On/Off, Playback control
• USB-C: USB3.1, OTG Storage, Digital Audio QC3.0 (PD2.0 not supported)
• Chassis: Sandblasted CNC-machined Aluminum
• Vacuum Tube: Raytheon JAN6418 x2
• DAC: AK4493SEQ x2 (Mono Mode)
• Headphone out: 3.5mm SE, 4.4mm BAL, shared
• Line Out: 3.5mm SE, 4.4mm BAL, shared
• Digital Interface: USB Audio (in and out), SPDIF Coaxial (USB-embedded)
• Battery: 3.85V 4500mAh (17.3Wh)
• Battery Charge Time: ~3.5 hours (5V-2A) | ~2 hours (QC3.0)
• Playback Time: ~11.8 hours (3.5mm SS) ~7.6 hours (4.4mm BAL Classic Tube)
• Dimensions: 4.9" x 2.6" x 1"
• Net Weight: 7.2 oz
• Cayin 1 Year Warranty

In the Box

• N3Ultra Digital Audio Player
• N3Ultra Silicon Protective Case
• Temper Glass Screen Protector x1
• USB-C Cable x1
• User Manual
• Hi-Res label x2

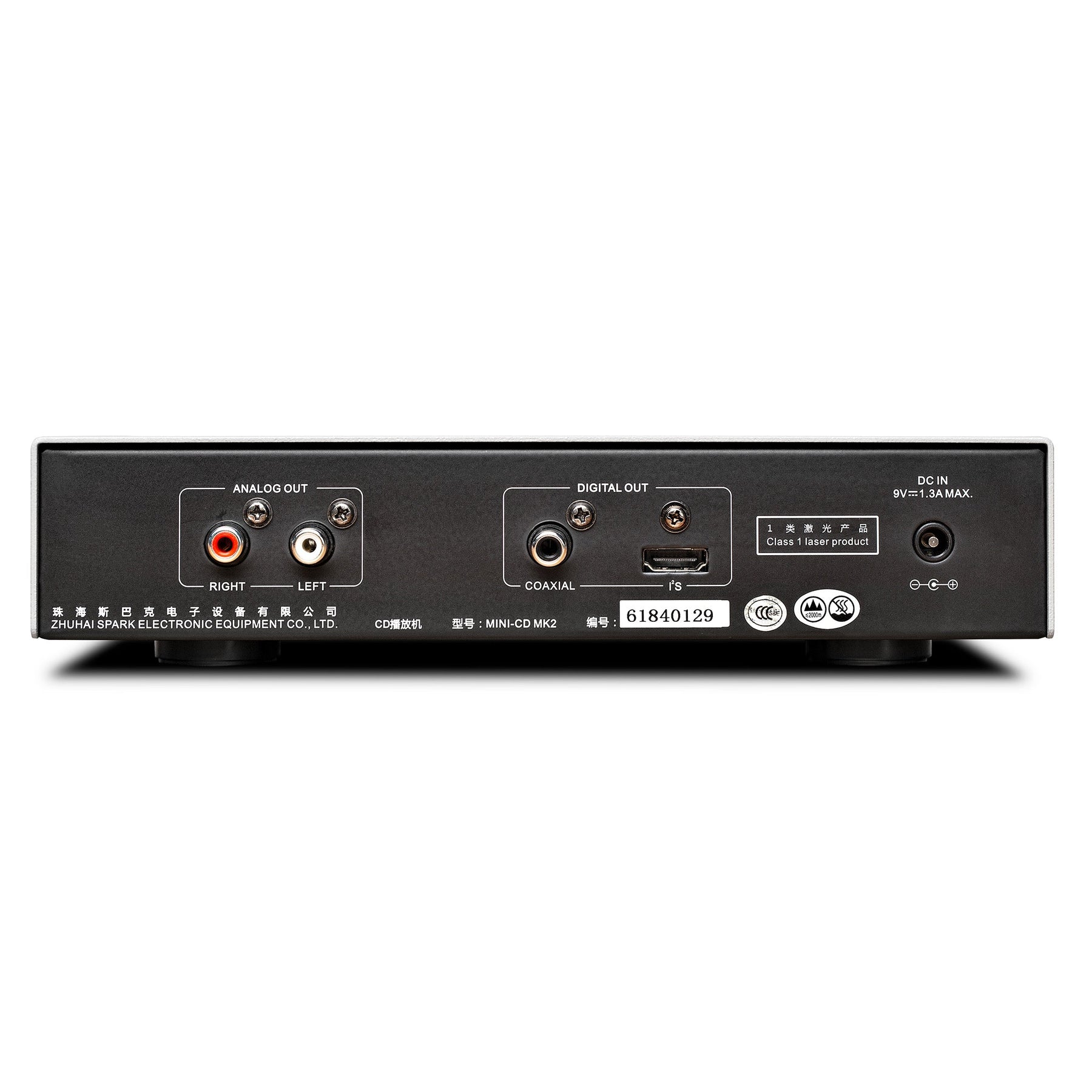

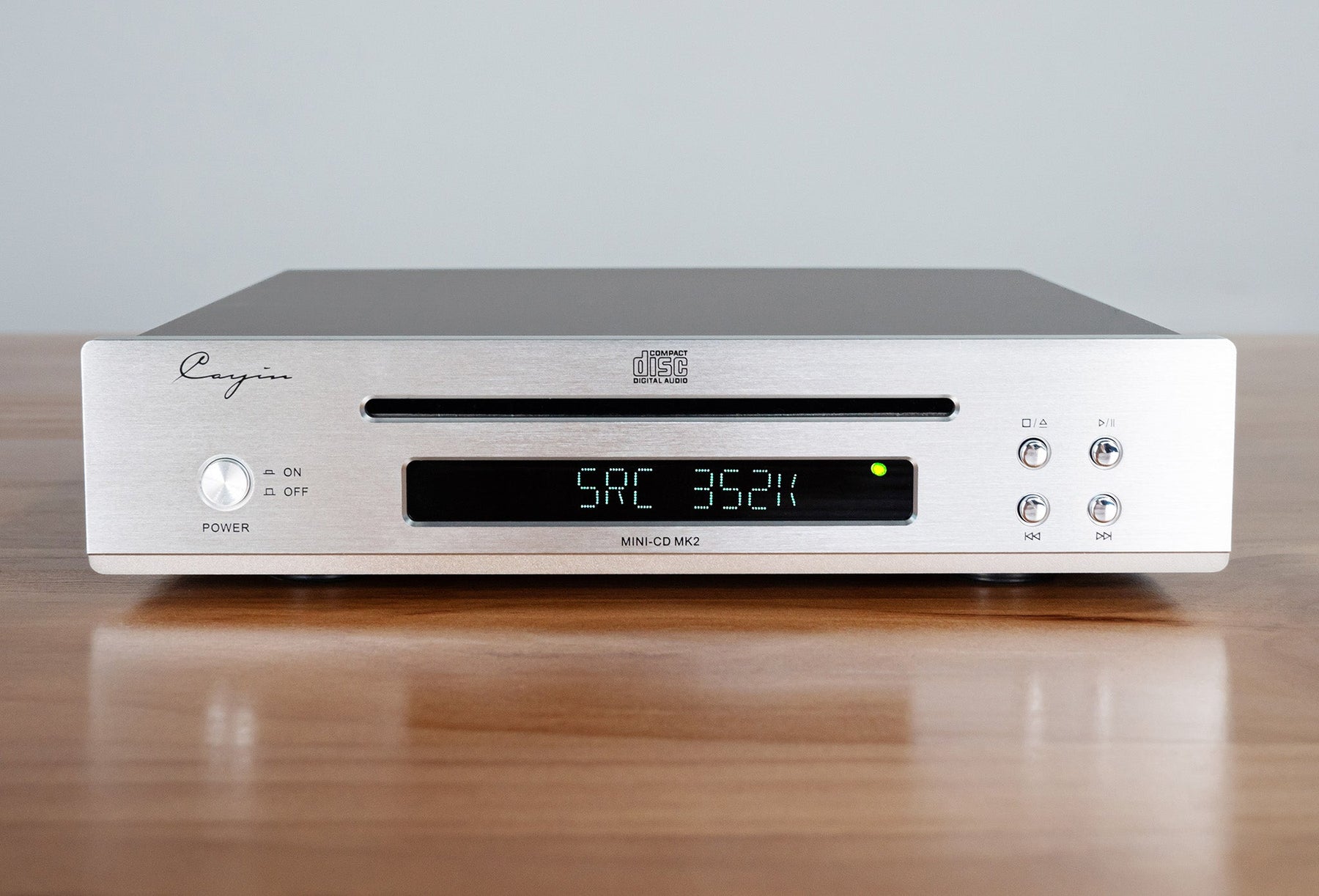

Mini-CD MK2 Offers Beauty and Grace in Sound and Design

• Ultra precise CD reading combined with the ESS ES9018K2M delivers unparalleled sound
• Aviation grade aluminum molded into precise contours makes for an elegant design

Style and Sound

Fresh styling with an aviation grade aluminum alloy panel makes for a sleek, compact design. Mini-CD MK2's small size provides versatility to fit into any space. Couple that with the performance of the ESS ES9018K2M DAC, and you get the performance combination of looks and audio.

Go Upscale

Mini-CD MK2 supports sample rate conversion with up to 8x upsampling. The SRC can be set by a dedicated button on the remote control, allowing you to convert the standard CD quality of 44.1kHz all the way up to 352.8kHz.

Key Features

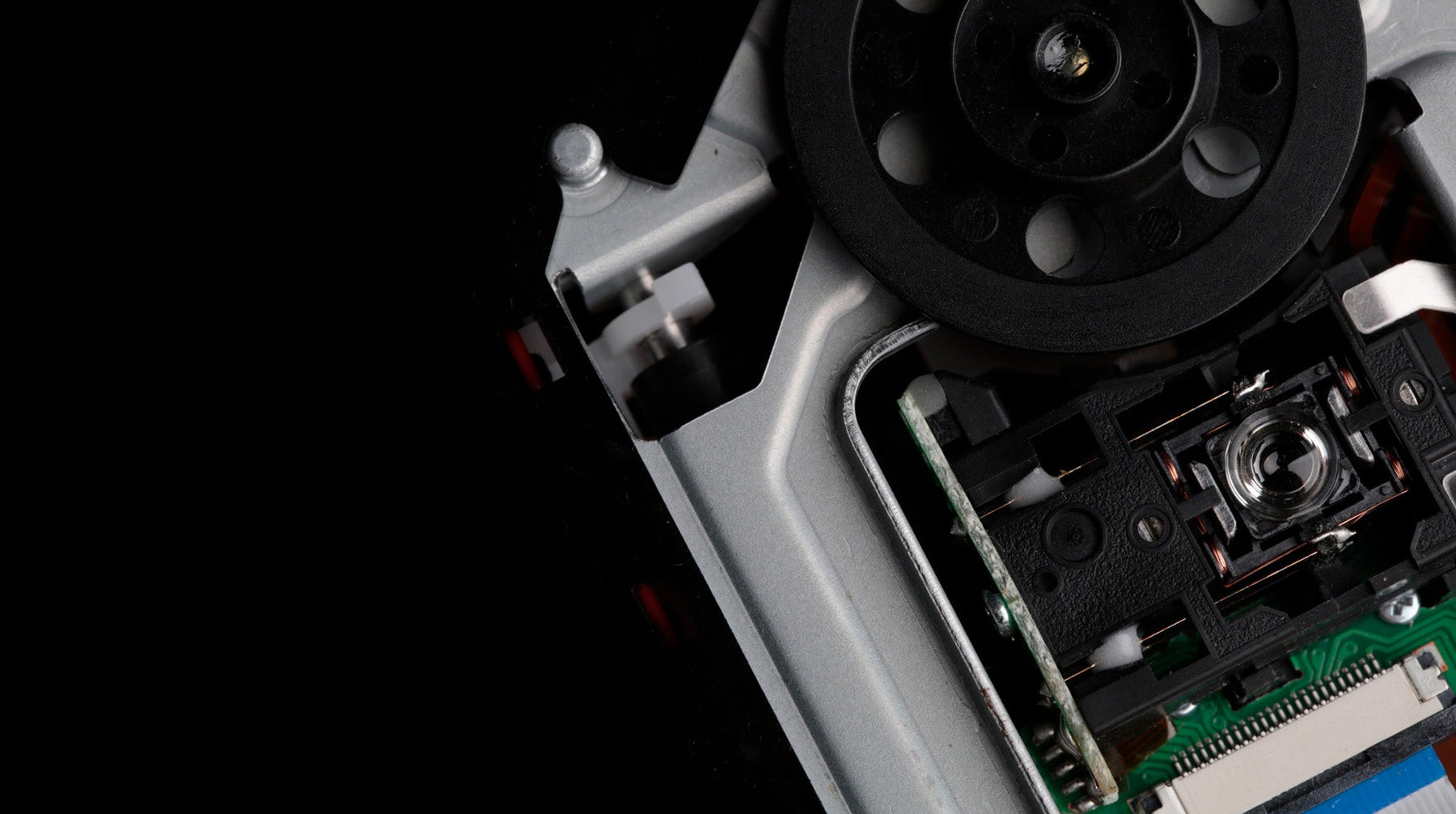

• Slot-in Style CD Drive: Long durabtion stability and reliability
• Sanyo High Precision Laser Head: Fast, precise, stable performance
• VFD Dynamic Display: shows the playback status in a classic way

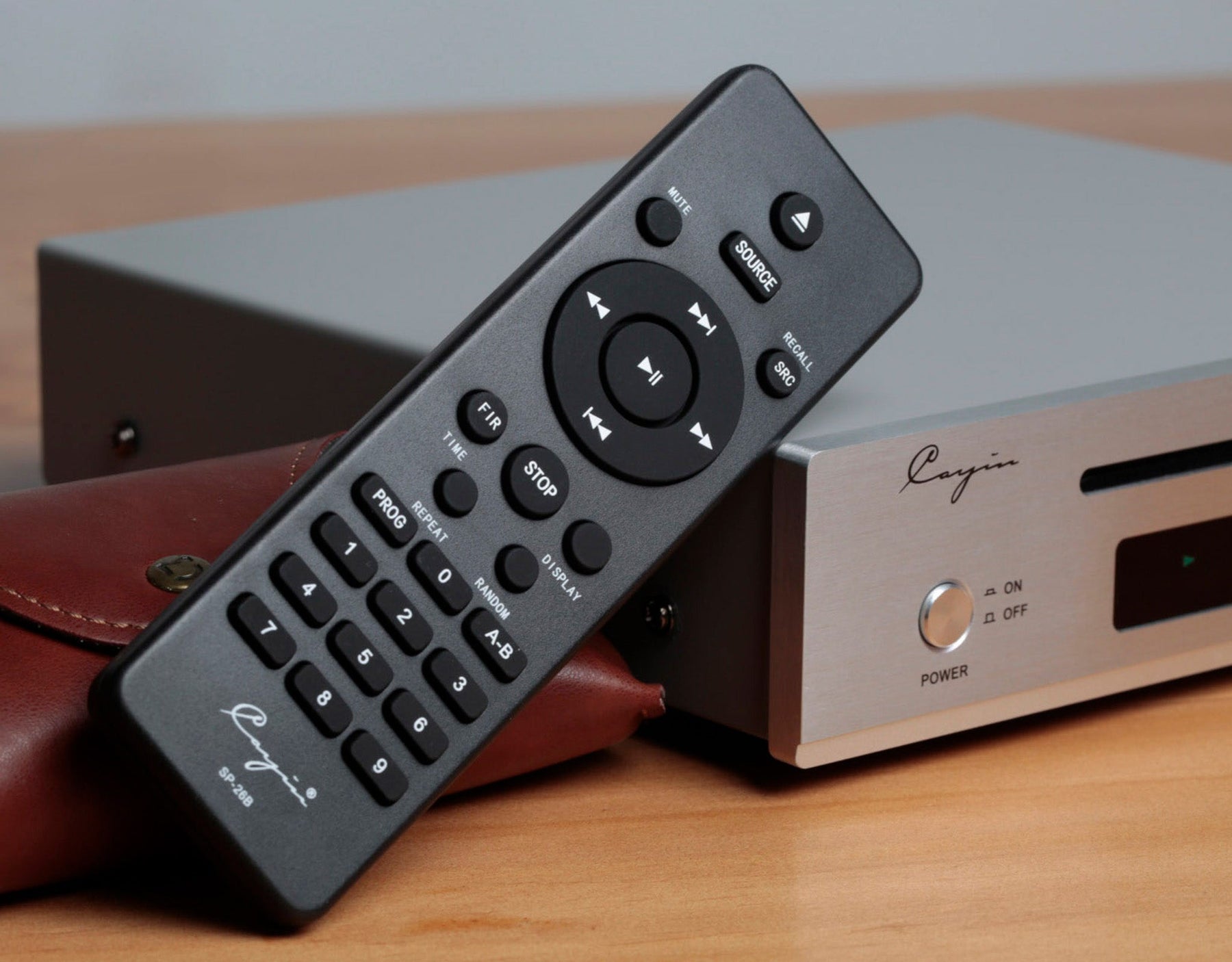

• Versatile Remote Control: Basic operation with just one press of the remote control, feel free to enjoy the music

Specifications

• Line Output: 2V
• THD: 0.007%
• SNR: 90dB
• Crosstalk: 77dB
• Digital Ouptuts: RCA Coaxial S/PDIF, I2S HDMI
• Dimensions: 240mm x 213mm x 58mm<
• Weight: 4.5 pounds
• Maximum Power Consumption: 12W

In the Box

• CD-Mini MK2
• Remote Control
• Power Cable
• User Manual

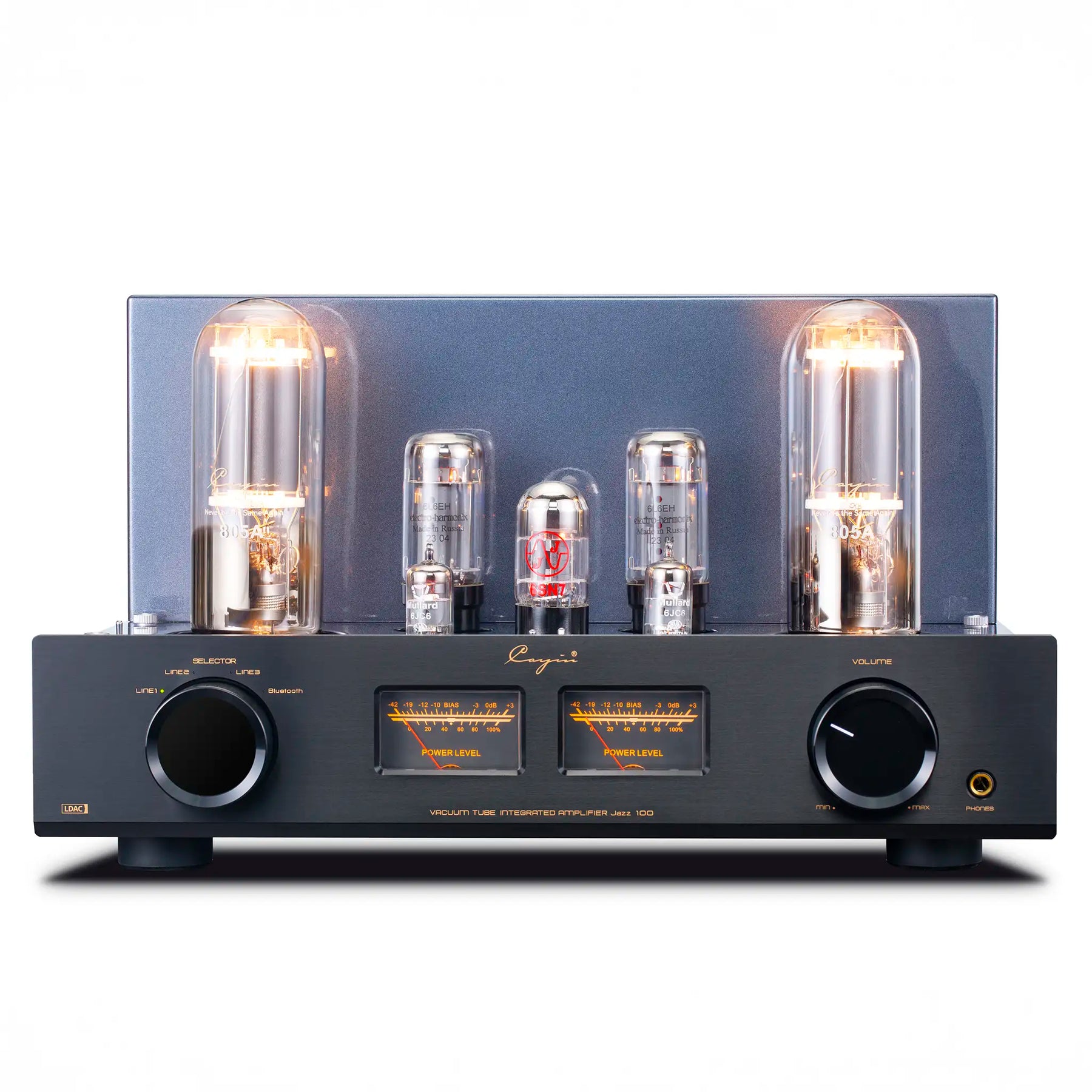

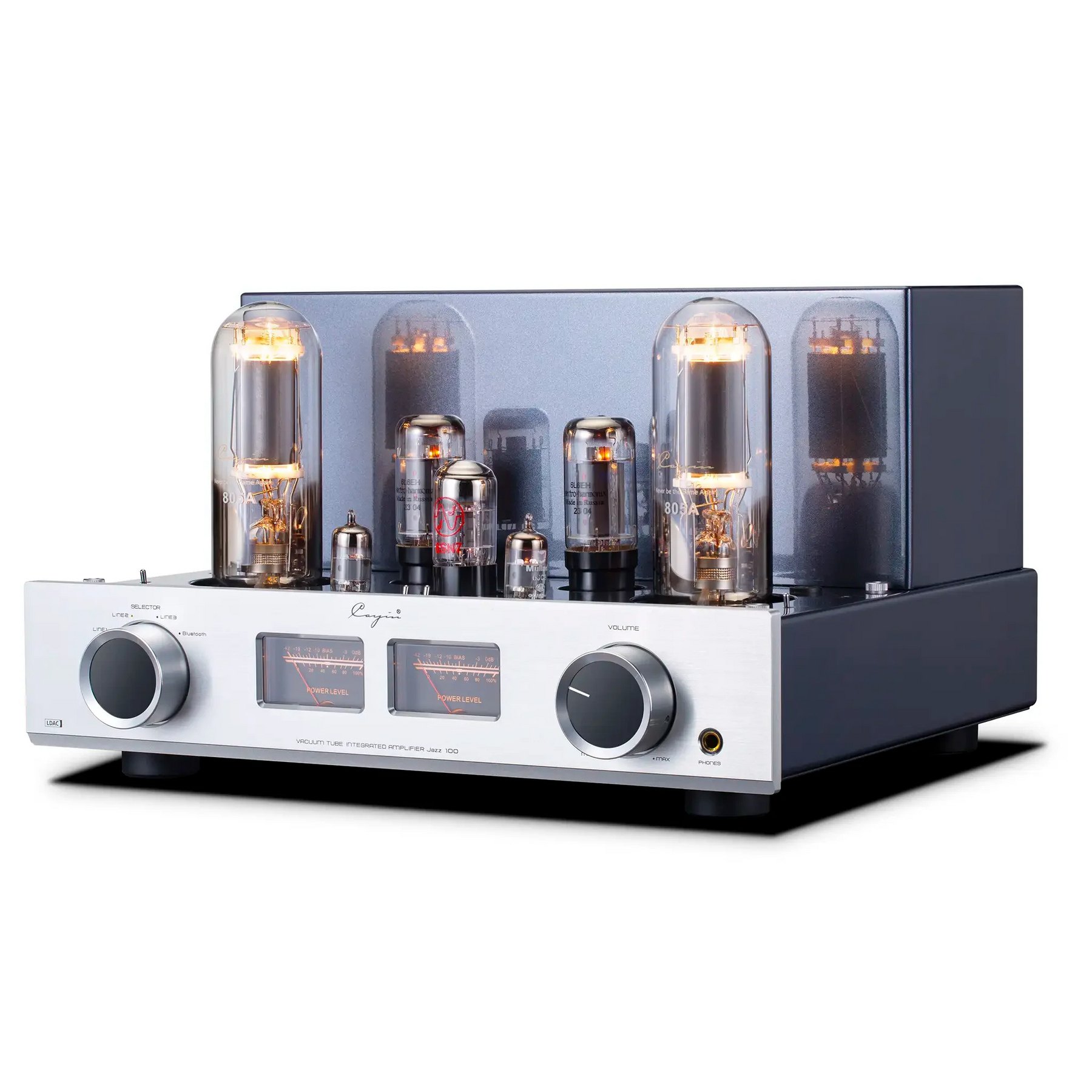

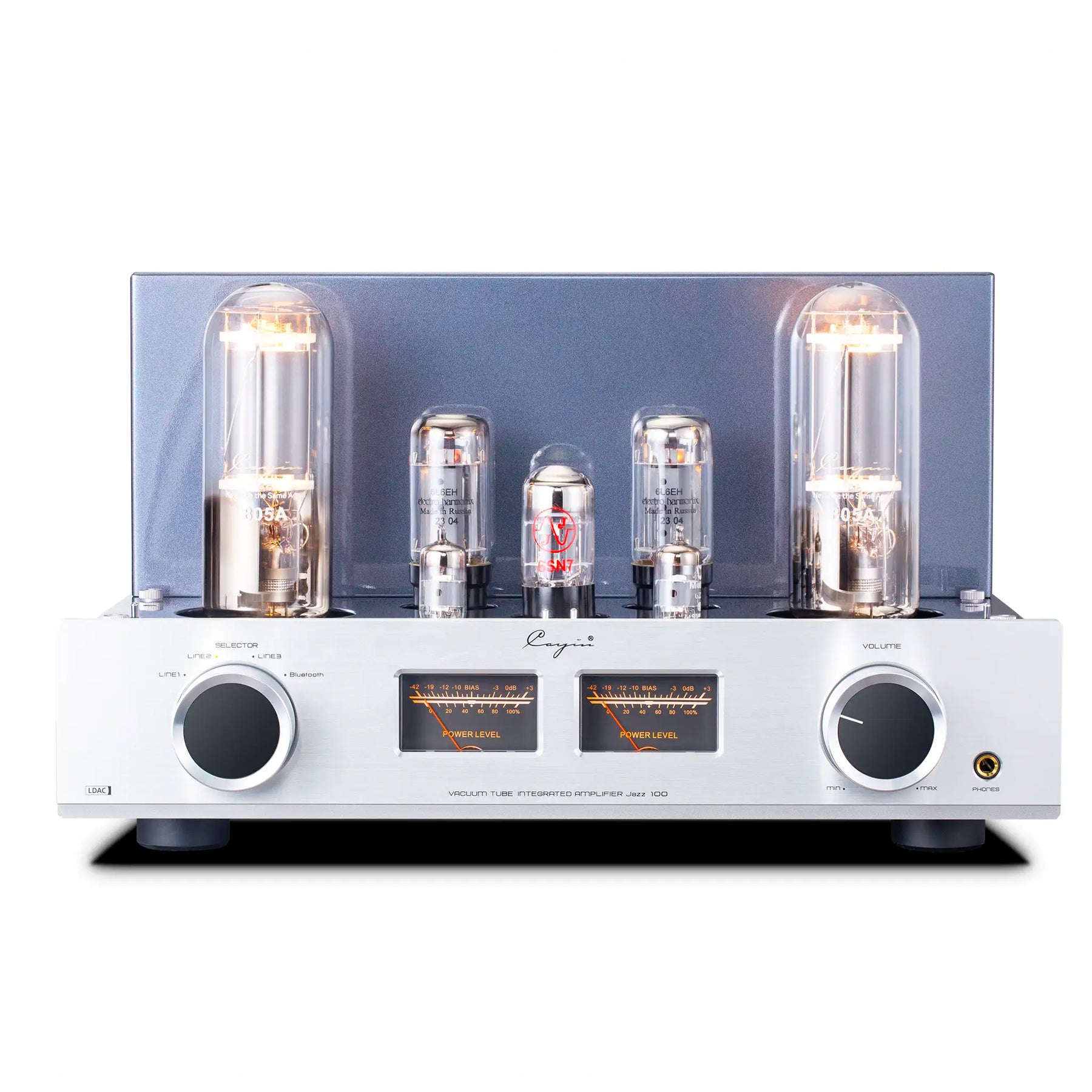

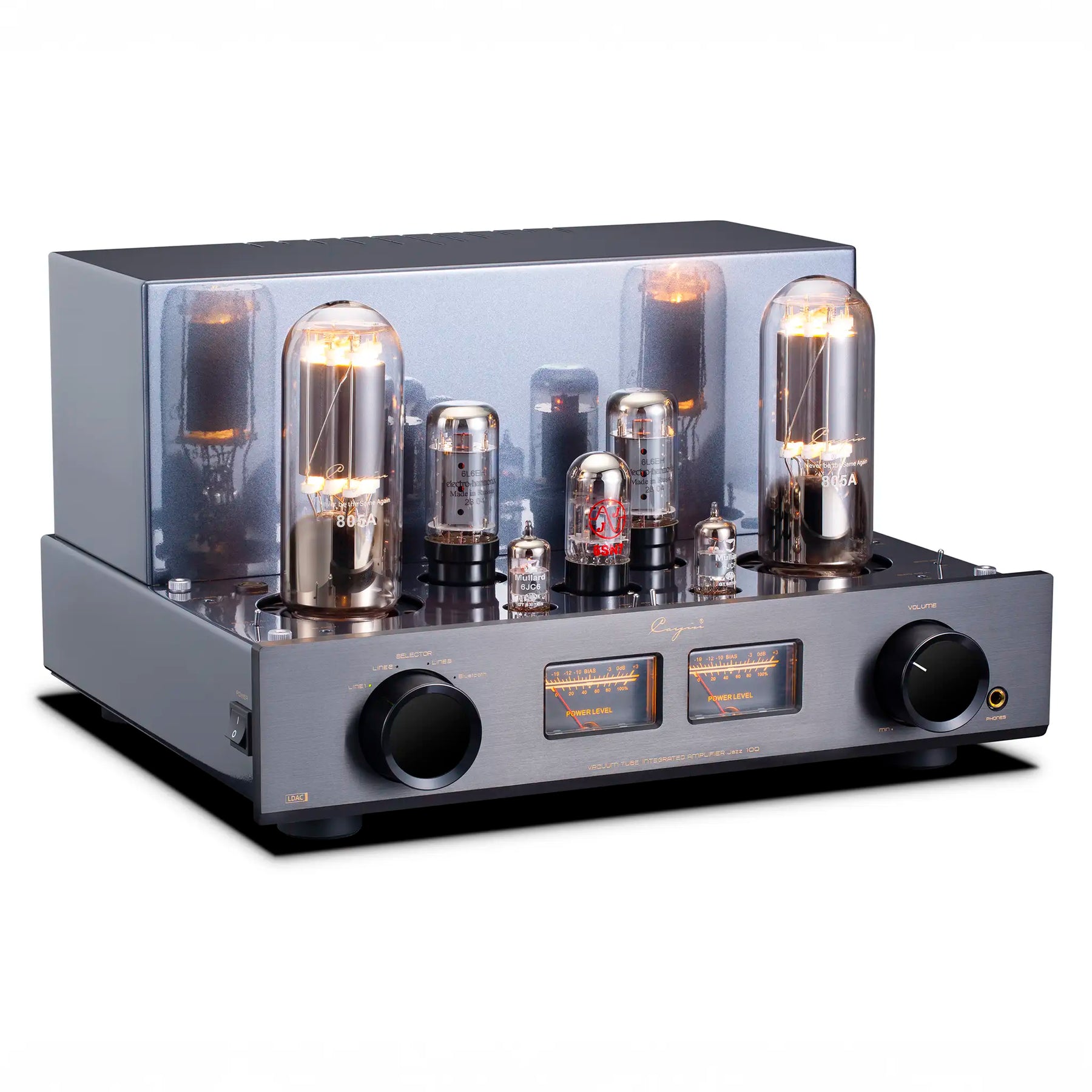

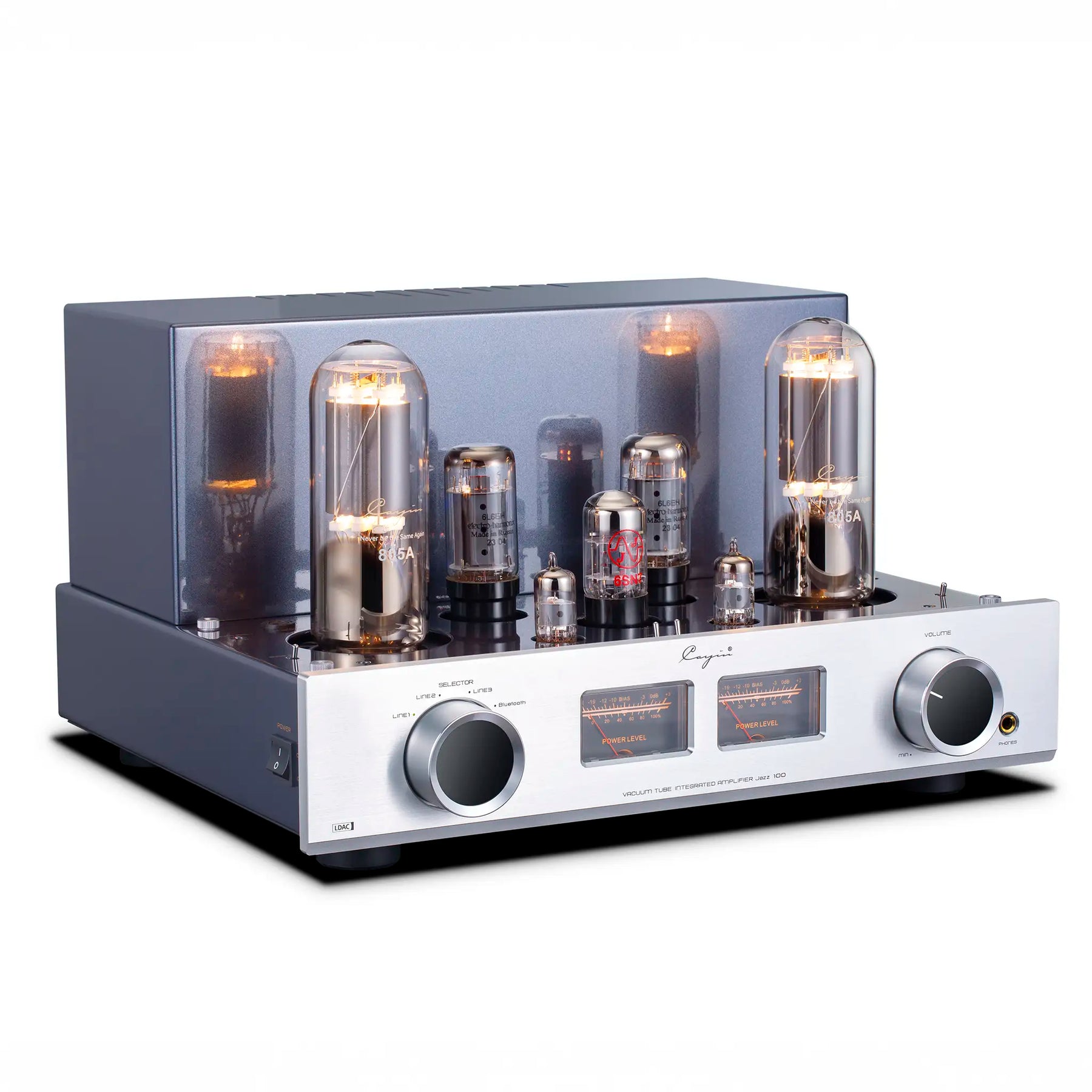

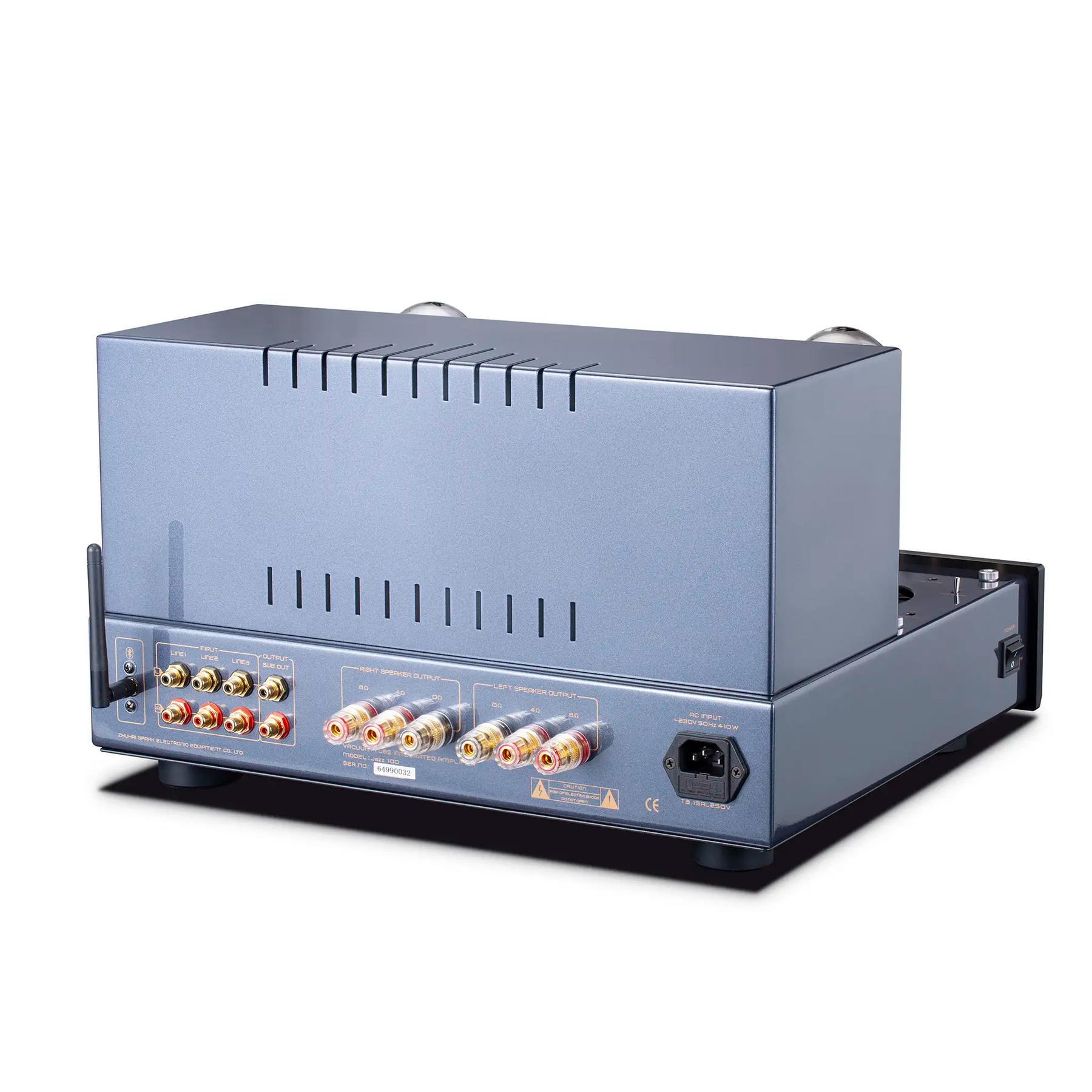

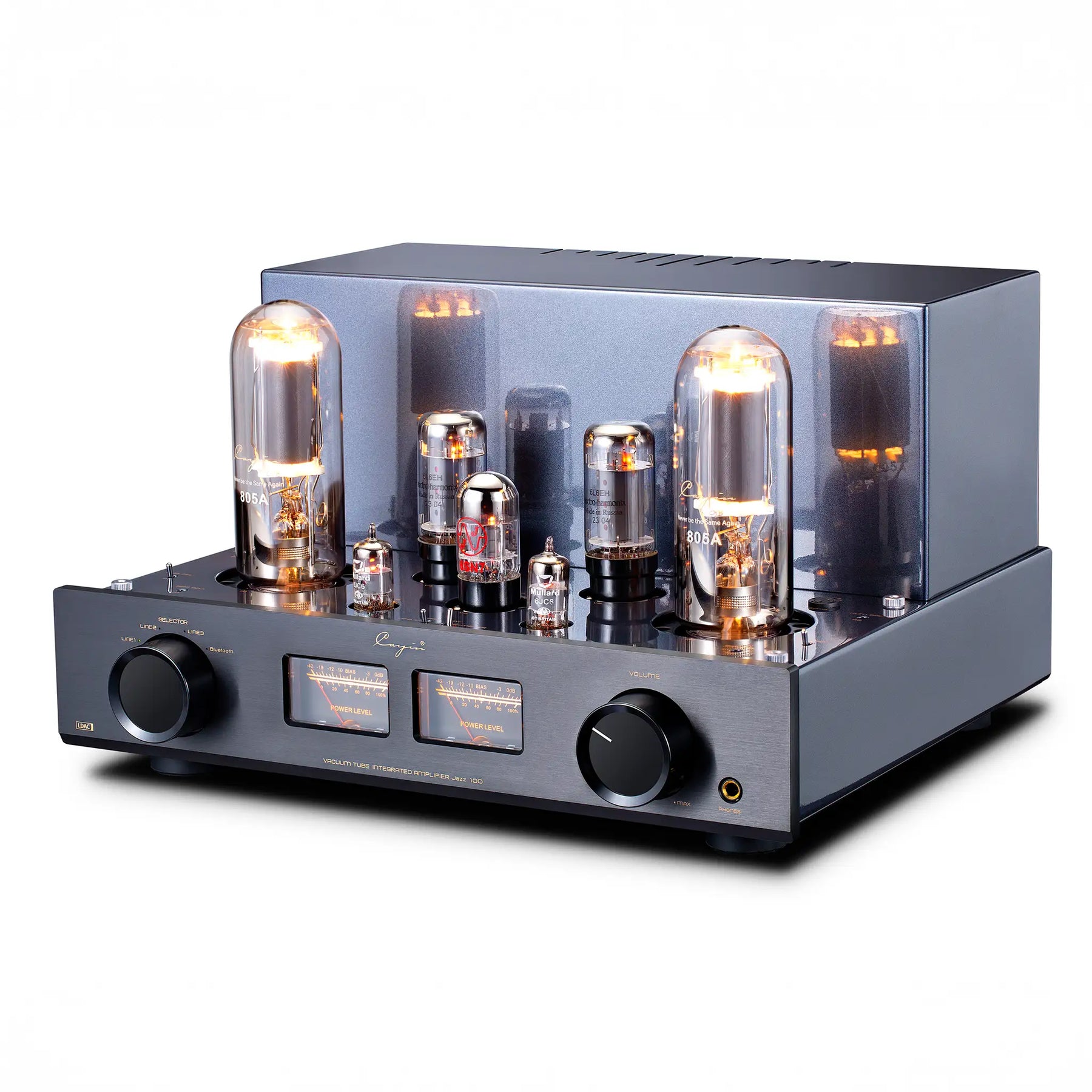

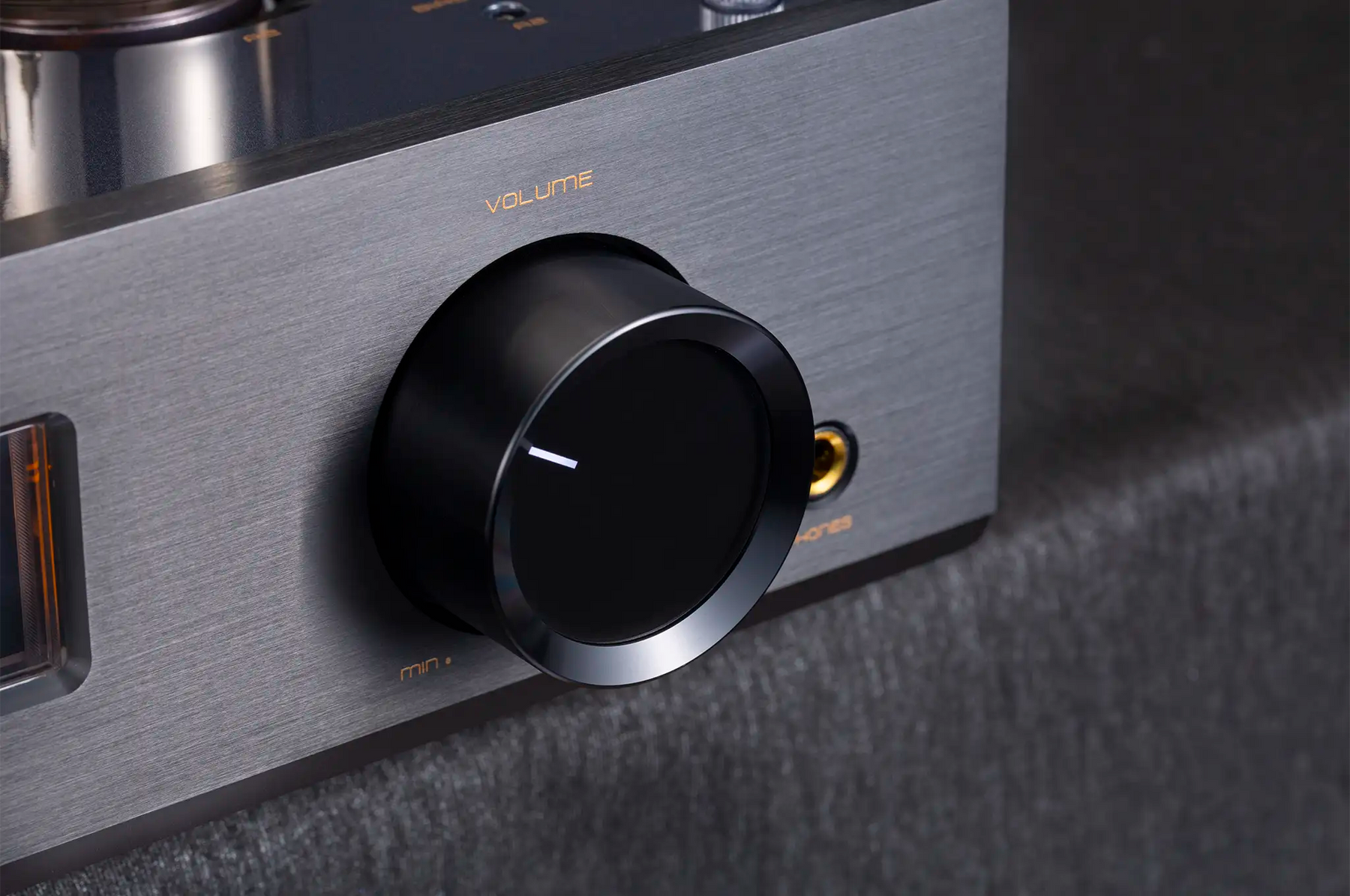

The Cayin Jazz 100 is the Perfect Amplifier for Those Seeking a Rich, Natural, and Immersive Audio Performance

• Single-ended Class A Amplifier with 805A tubes
• Delivers 46W per channel
• Tube rolling compatible for your 2-channel customized sound
• Dual-function VU meters for power monitoring and bias adjustment
• Features Bluetooth capability and three line inputs

Pure Analog Sound

The Cayin Jazz 100 integrated tube amplifier is crafted for audiophiles seeking the warmth and richness of pure Class A amplification. Powered by 805A output tubes, the amp delivers 46W per channel, delivering a smooth and dynamic listening experience.

Designed for ultimate versatility, the Jazz 100 features a Mullard 6JC6 and 6SN7 voltage amplification stage, paired with a 6L6 driver stage to deliver rich, dynamic sound. But the real magic lies in its tube rolling capability—swap in EL34, 6CA7, 5881, 6550, KT88, KT90, and more to explore a world of tonal possibilities. Whether you crave a warm, vintage glow or a bold, powerful punch, the Jazz 100 gives you the freedom to shape your ideal sound.

Flexible Connectivity and Superior Sound

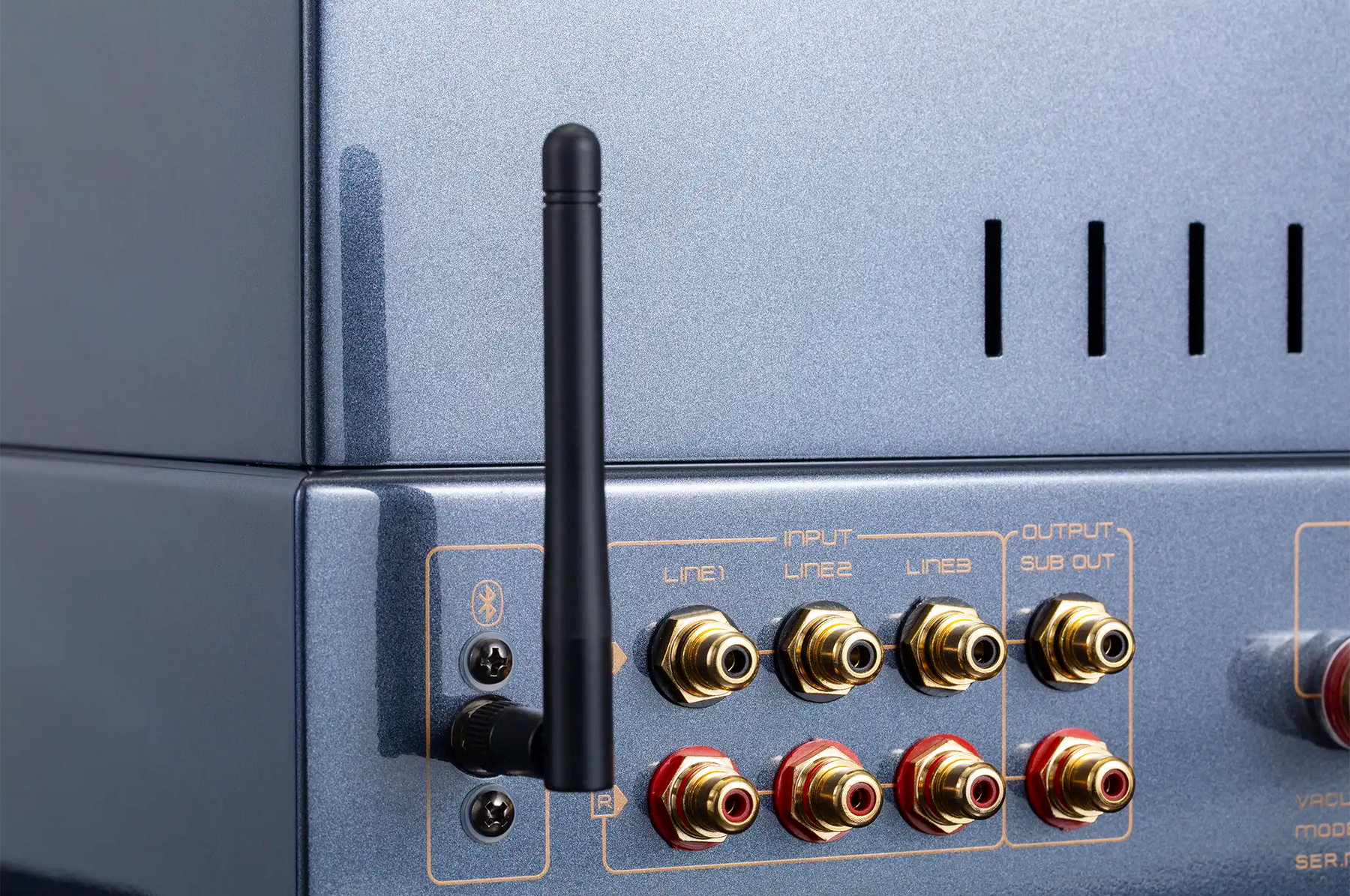

Designed for modern versatility, the amplifier offers three pairs of line inputs along with a dedicated bluetooth input, promising compatibility for a wide range of setups. The custom output transformer enables a dedicated headphone output, delivering an exceptional personal listening experience. Speaker terminals for both 4 ohm and 8 ohm speakers ensure optimal performance with your chosen sound system.

Precise Control

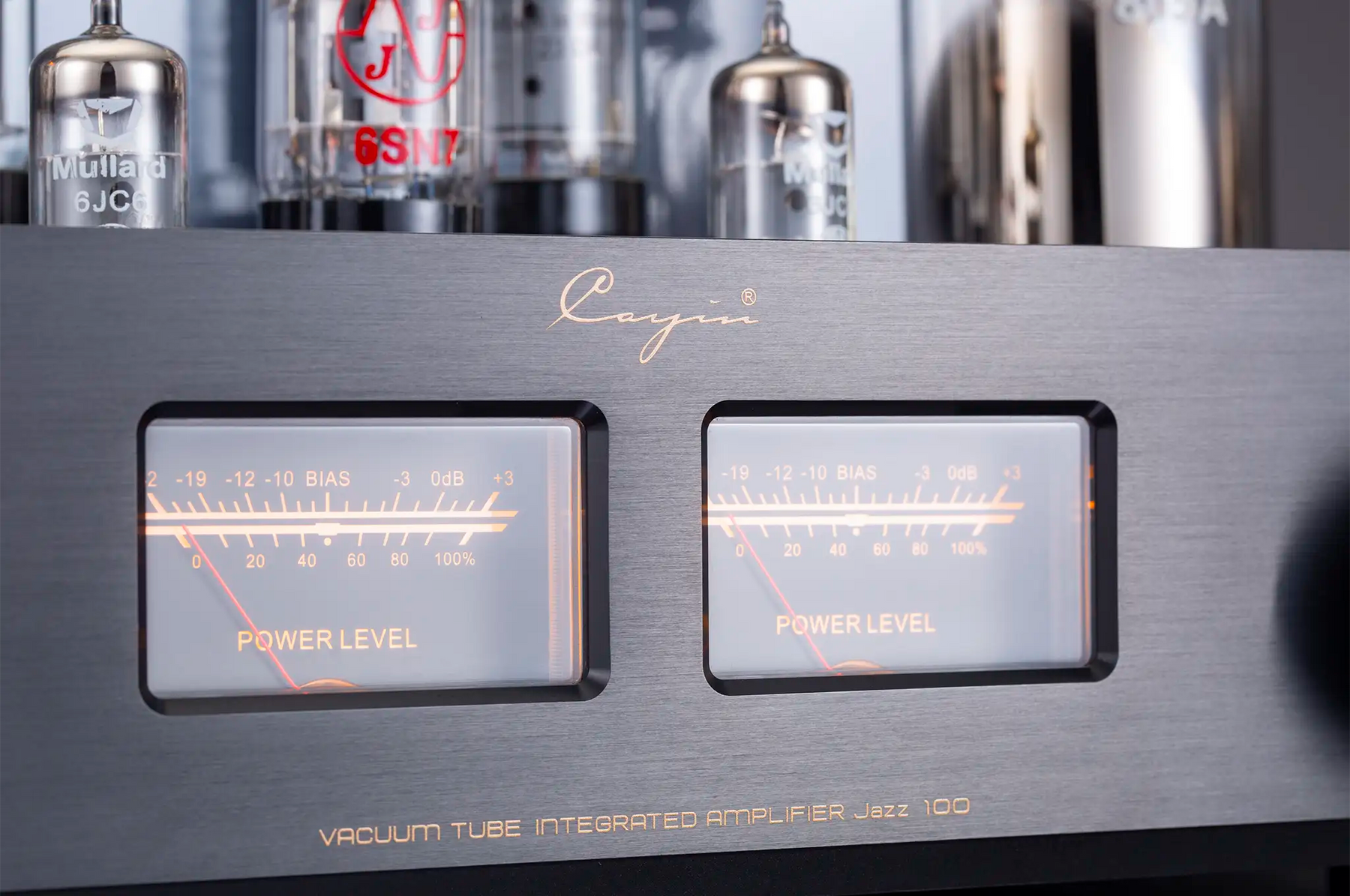

The dual-function VU meters found in the Jazz 100 amplifier not only monitor power output but also serve as a bias adjustment tool, allowing for precise tuning. Fine-tune your sound even further with user-accessible bias controls, a hum balancer for the 805A tubes, and an NFB switch that provides control over negative feedback levels.

Enhanced Protection and Premium Craftsmanship

Built with precision and durability in mind, the Jazz 100 contains a hand-assembled chassis with an anodized aluminum front panel, point-to-point wiring, and a fully vented design for optimal head dissipation.

Inside, audiophile-grade components such as Alps volume control, porcelain tube sockets, audio-grade capacitors, and carbon film resistors ensure exceptional sound quality and long-term reliability.

To enhance durability, the amplifier includes a toroid power transformer and wide-bandwidth EI output transformers, delivering clean, stable power. Protection features such as High Voltage Fuses, a soft-start circuit, and a high-voltage delay safeguard the tubes and internal components, extending their lifespan and making troubleshooting effortless.

Specifications

• Power Output: 46W+46W
• Frequency Response: 12Hz~33KHz (-3dB)
• THD: 0.2%(1W/1kHz)
• S/N Ratio: 90dB(A-Weighted)
• Input Sensitivity: 320mV
• Input Impedance: 100kΩ
• Output Impedance: 4Ω, 8Ω
• Max Power Consumption: 410W
• Tube:
  • 6JC6×2
  • 6SN7×1
  • 6L6 ×2
  • 805A ×2
• Headphone Output Impedance: 16Ω~300Ω
• Bluetooth: Version 5.0, QCC5125 chip
• DAC: ES9018K2M SABRE32
• Audio Format: UAT, LDAC, apt-X, apt-X HD, apt-X Low latency, SBC, AAC
• Effective Range: ≤10M
• Dimensions: 420mm × 389mm × 248mm
• Weight: 35kg

In the Box

• Cayin Jazz 100 Amplifier
• Jazz 100 User Manual
• Remote control
• Power cord

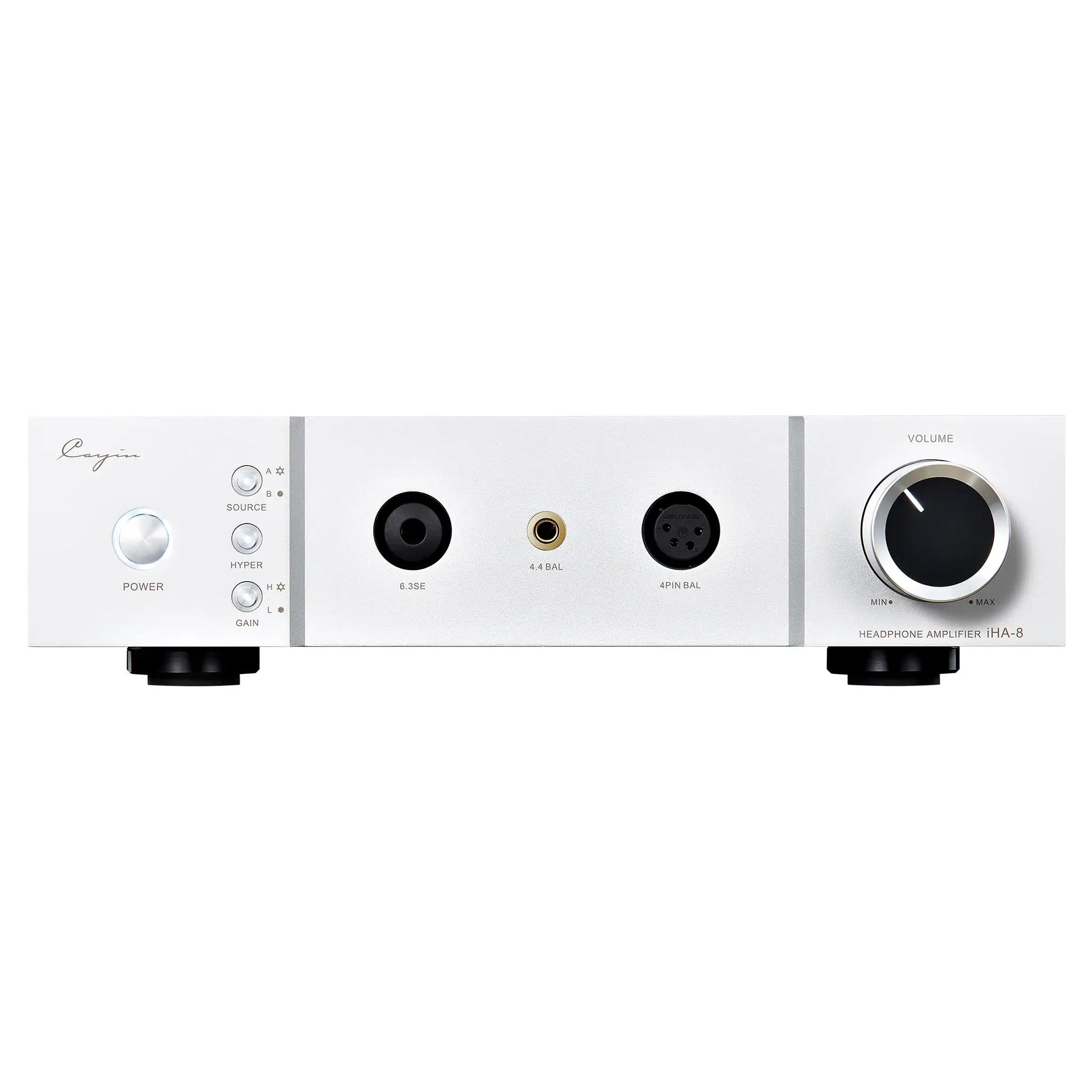

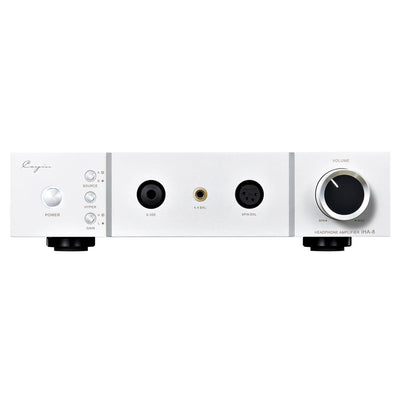

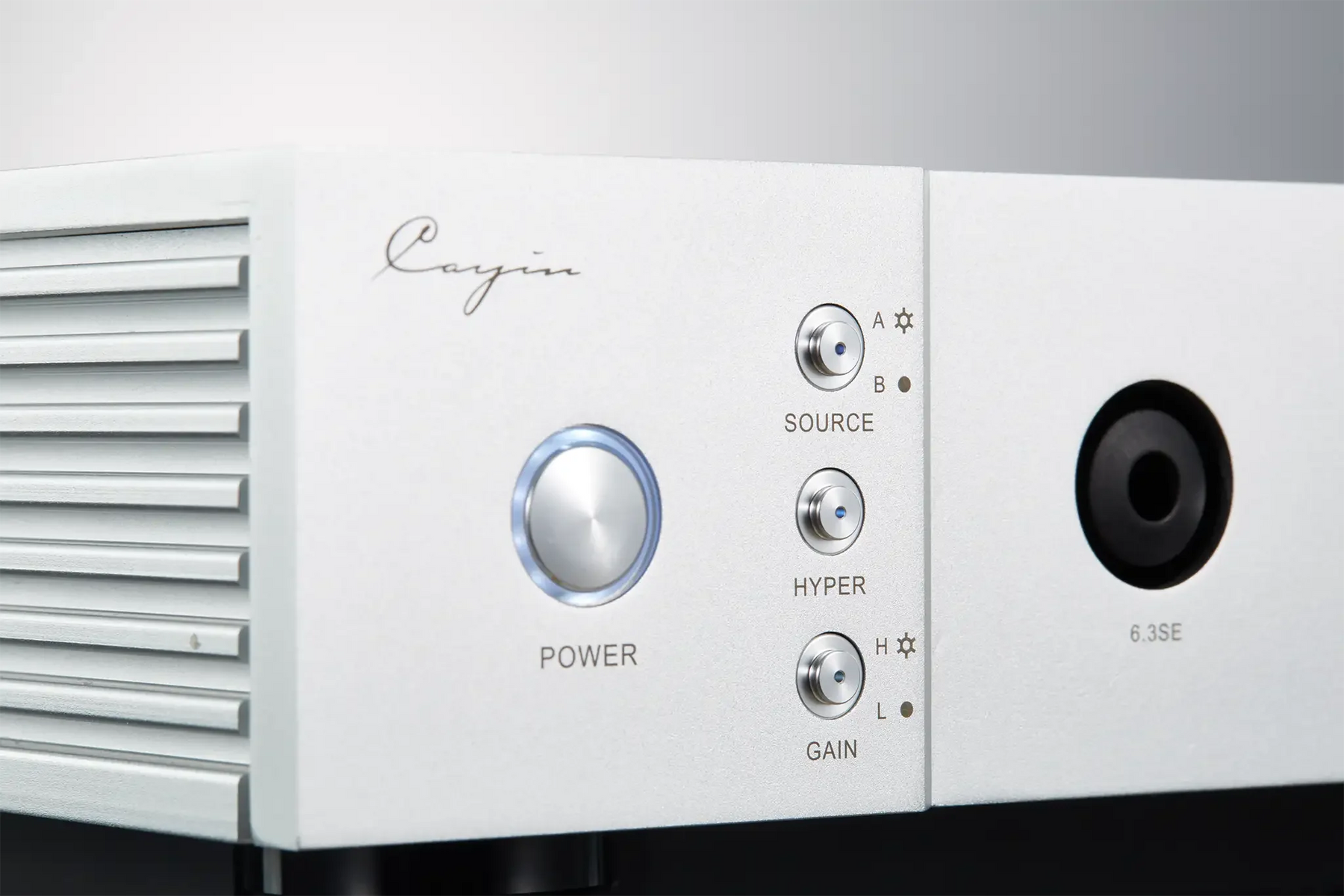

Cayin iHA-8 is a High Power High Current Headphone Amplifier Designed to Deliver Exceptional Audio Fidelity and Versatility

• Fully Balanced Pure Class A headphone amplifier
• Hyper Mode feature enhances power and dynamics
• Employs special circuit design with a 4-channel discrete MOSFET configuration

• 75W Toroidal transformer and 50,000uF Nichicon capacitors ensures stable power delivery

Pure Class A Headphone Amplification

The iHA-8 employs a four-channel discrete pure Class A buffer circuit with low-noise TI Op-Amps and dual Toshiba JFETs per channel, ensuring lower noise, reduced distortion, enhanced current output, and stronger driving power. Powered by Vishay MOSFETs in a three-stage pure Class A design, it features a DC offset servo for 0V output stability and adaptive circuits for optimized performance, delivering an exceptional listening experience.

Ultimate Hyper Mode

Hyper Mode unlocks the peak performance of the headphone amplification circuit by fine-tuning the static operating current and voltage in the pure Class A state.

This enhancement boosts both output power and gain while maintaining the integrity of Class A operation. The result is a more pristine, transparent sound with a dynamic, well-defined soundstage that elevates your listening experience to new heights.

Volume Control with Precision

The volume control circuit combines a custom ALPS step potentiometer with a pair of high-end 130-step electronic volume chips, JRC MUSES72320V.

Although electronically managed, the volume adjustment occurs entirely in the analog domain.

This meticulous design offers a refined tactile experience, ensuring stable, accurate, and highly precise volume control for exceptional audio quality.

Promising Power Supply

Compact and Versatile

The iHA-8 joins the Cayin i-series lineup, sharing a cohesive design language with the iDAC-8 and the iDAP-8 headphone amplifier. Each product functions seamlessly on its own or can be combined to create a unified audio system.

Compact and thoughtfully designed, the iHA-8 fits effortlessly into any home audio or desktop setup. Its L-shaped aluminum cover plate is crafted with precision mold extrusion, CNC machining, fine sandblasting, and an anodized finish, offering a sleek and uniform texture that is both stylish and durable.

The ridged heat sink panels on the sides not only enhance the streamers’s aesthetic appeal but also improve heat dissipation by increasing surface area for better airflow. This optimized thermal performance ensures the iHA-8 operates at peak efficiency for the best possible audio output.

Additional Features

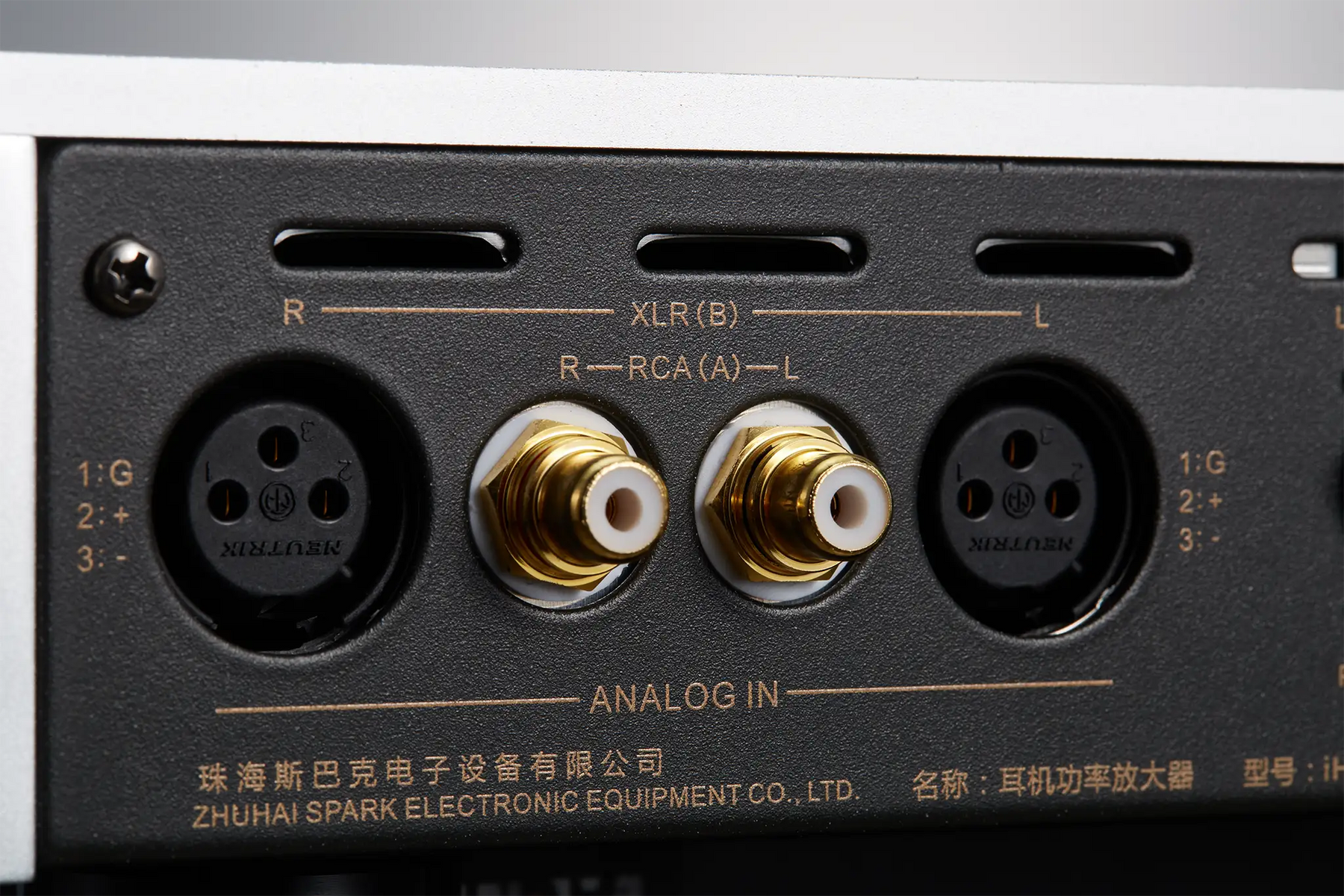

Three Inputs
The iHA-8 offers versatile connectivity with three input options to accommodate popular headphone types: 6.35mm Single-Ended, 4.4mm Balanced, and 4-pin XLR Balanced.

Dual Inputs
Seamlessly connect with CD players, desktop decoders, portable players, and other audio sources with Line-level output using XLR or RCA connectors.

Comprehensive Protection
A monolithic protector IC ensures the amplifier’s safety by providing output DC detection, power-on delay squelch, power-off noise cancellation, and overcurrent/overload protection.

Specifications

• Circuit Design: 4Ch Discrete MOSFET Pure Class A
• Special: Hyper Mode
• Volume Control: (2x) MUSES72320 stereo e-volume, ALPS potentiometer
• Power Supply: 75W Toroidal transformer
• Power Management: 50,000uF Nichicon capacitors with ultra-fast recovery rectifier
• Amplifier Modes: Line level input, Pre-Amp input
• Phone Outputs: SE 6.35mm, BAL 4-pin XLR, 4.4mm
• Analog Inputs: BAL XLR (2x), SE RCA (2x)
• Gain Control: Low Gain, High Gain, +12dB
• Physical Control: Power On/Off, Source, Hyper, Gain, Line/Pre, Volume Knob
• Weight: 11lbs
• Dimensions: 270mm x 215mm x 70mm
• Cayin 1 Year Warranty
• Headphone Outputs specs

In the Box

• Cayin iHA-8 Desktop Amplifier
• Power cord
• USB cable
• BT/WiFi Antenna
• (2x) Replacement fuse
• User Manual
• Warranty card

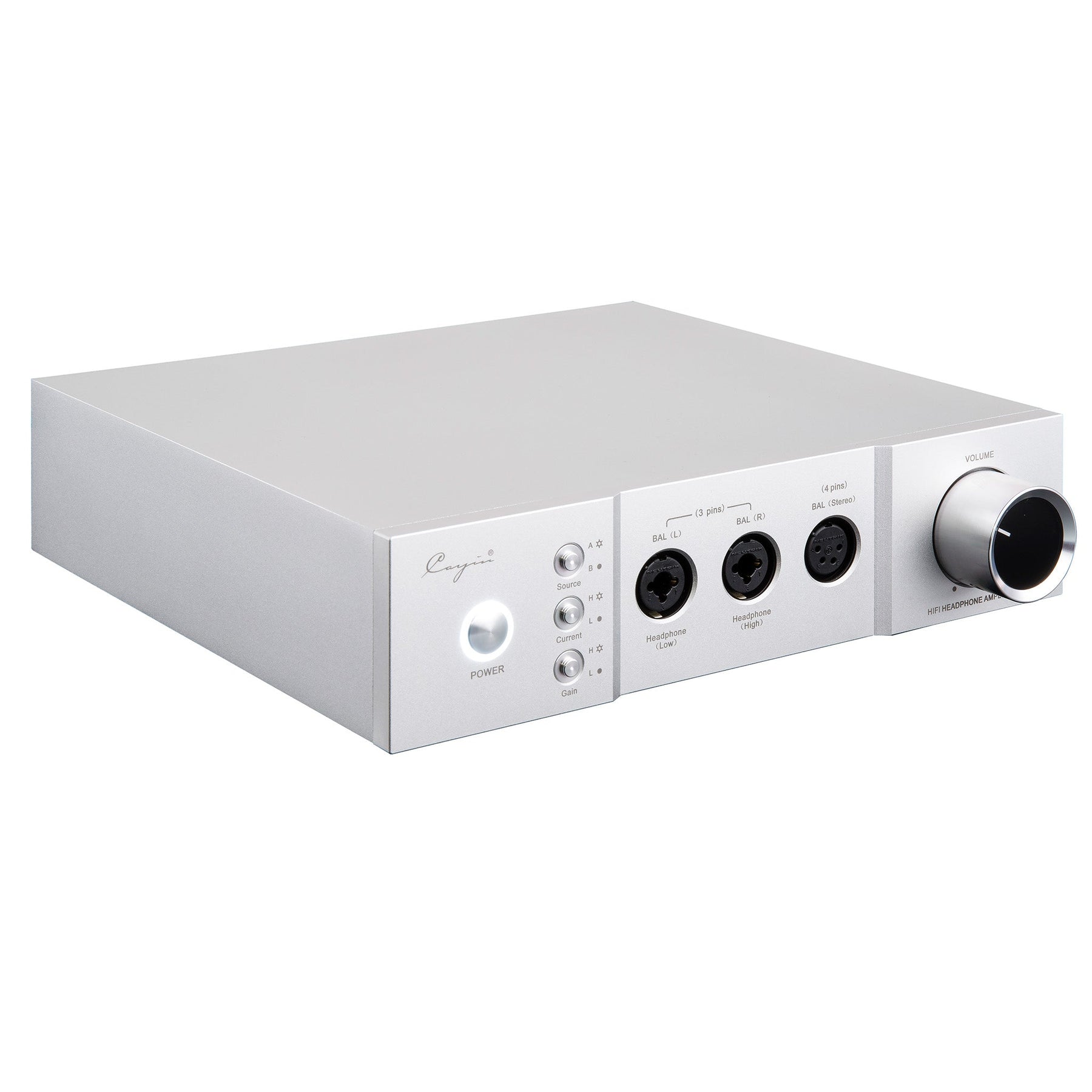

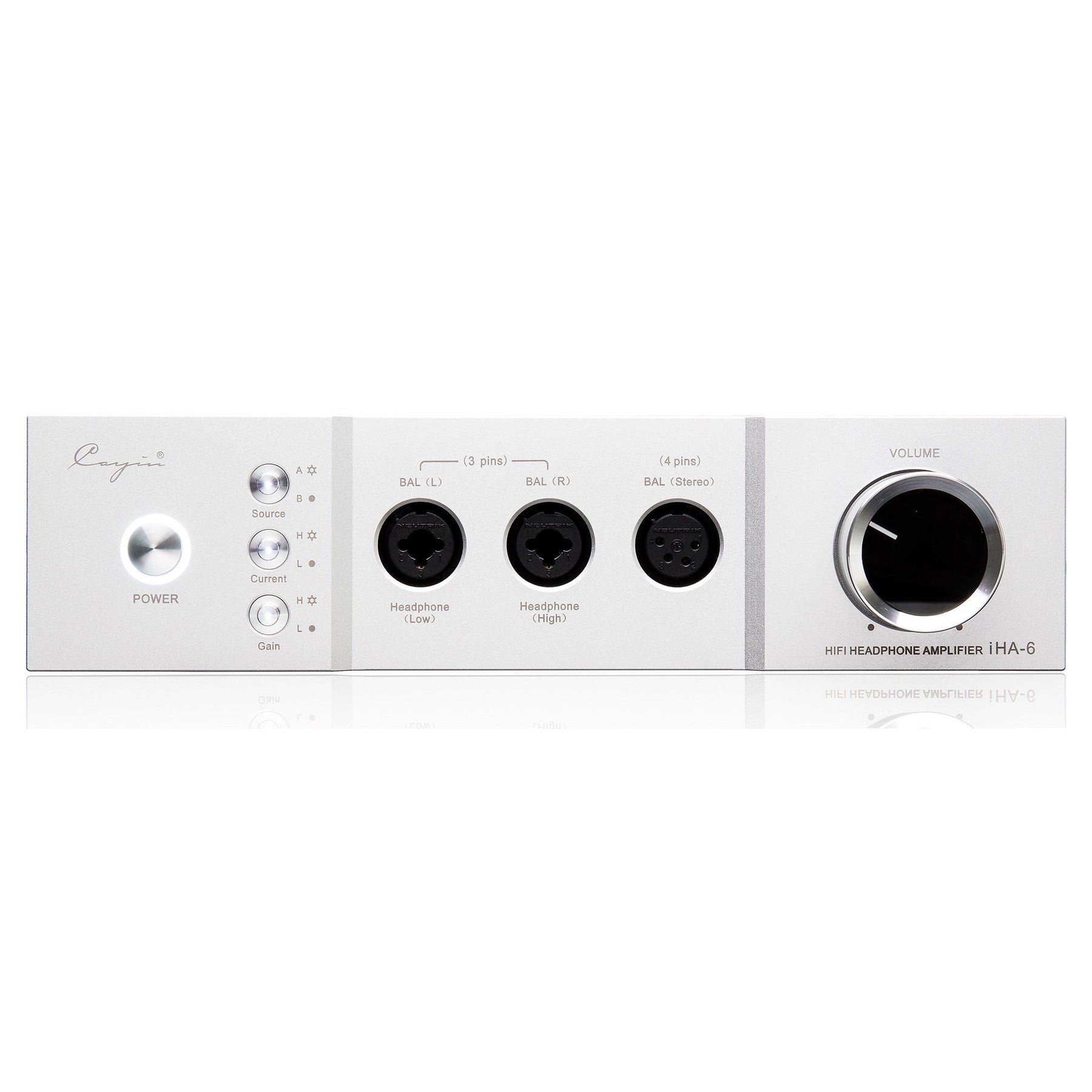

Experience Flexible, Powerful Amplification with Cayin iHA-6

• Features High/Low Current options to optimize output for both high impedance and low sensitivity headphones.
• Ultra-low noise design
• Up to 7W of power with the balanced output

Sound and design

iHA-6 combines beauty and function. The compact minimalist design is fashionable enough to fit in with your home decor, while the solid aluminum alloy chassis and sandblasted finish provide shielding from external interference.

Innovative Current and Gain control maximizes compatibility with both high and low impedance headphones with either planar magnetic or dynamic drivers. iHA-6 even provides separate 6.3mm outputs for high and low impedance headphones.

Clean Power

The quadruple amplifier design uses fully discrete components and is fully-balanced. Power interference is reduced with an independent power supply for left and right channels, and an extensive protection circuit. Toshiba audio-grade FET in a differential input circuit ensure low noise and high quality audio performance. iHA-6 derives its excellent performance from a push-pull amplification design with a high power, ultra-low resistance MOSFET power amp stage.

Specifications

• Analog Inputs
  • RCA
  • XLR
• Analog Outputs
  • 6.3mm TRS Low Impedance
  • 6.3mm TRS High Impedance
  • Dual-3-Pin XLR Balanced
  • 4-Pin XLR Balanced
• Dimensions: 240mm x 252mm x 60mm
• THD: <0.02%
• Power output:
  • Single-Ended Headphone (High Current/Low Current):1100mW/2200mW
  • Balanced Headphone (High Current/Low Current): 5000mW/7000mW

In the Box

• iHA-6 Amplifier
• Power Cable
• User Manual

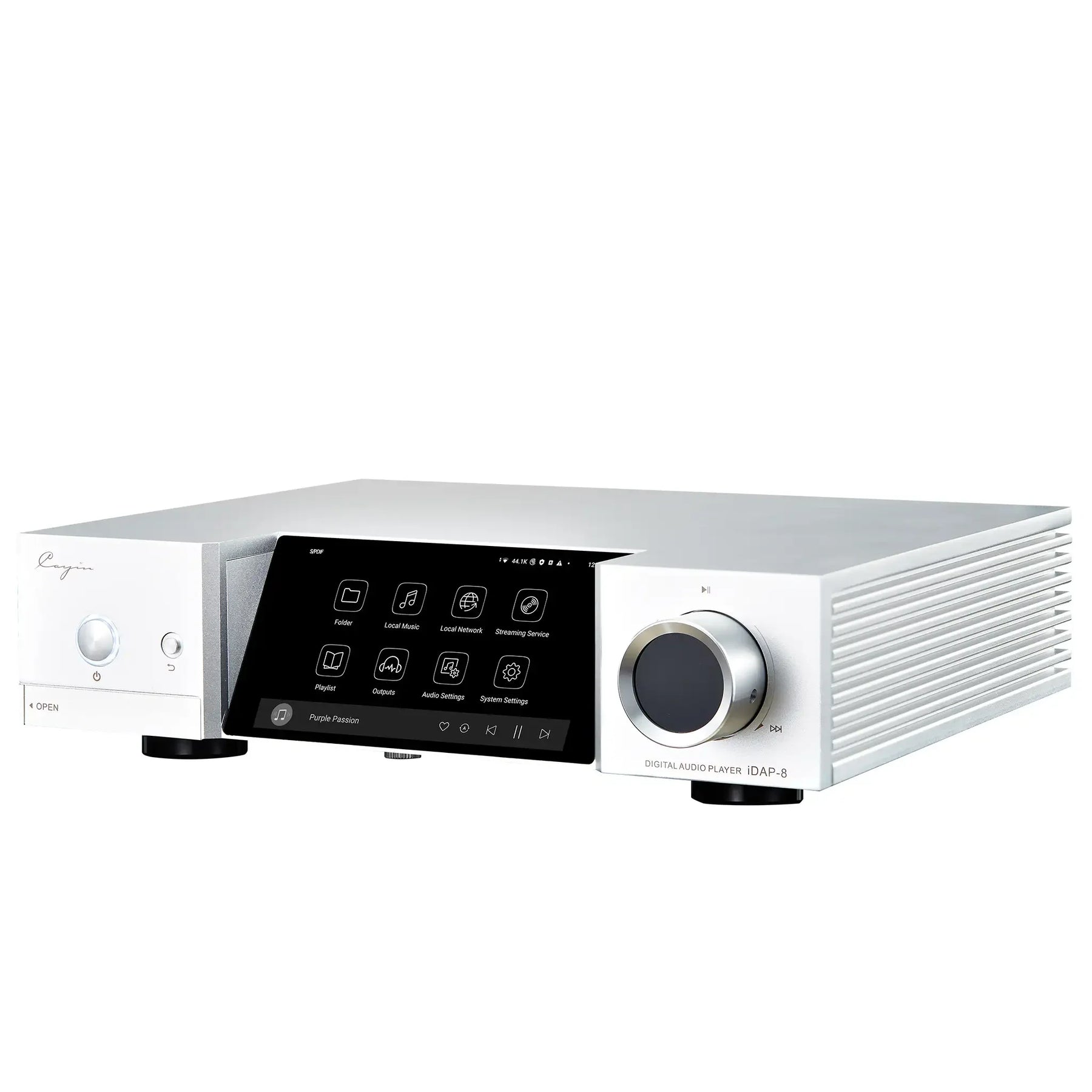

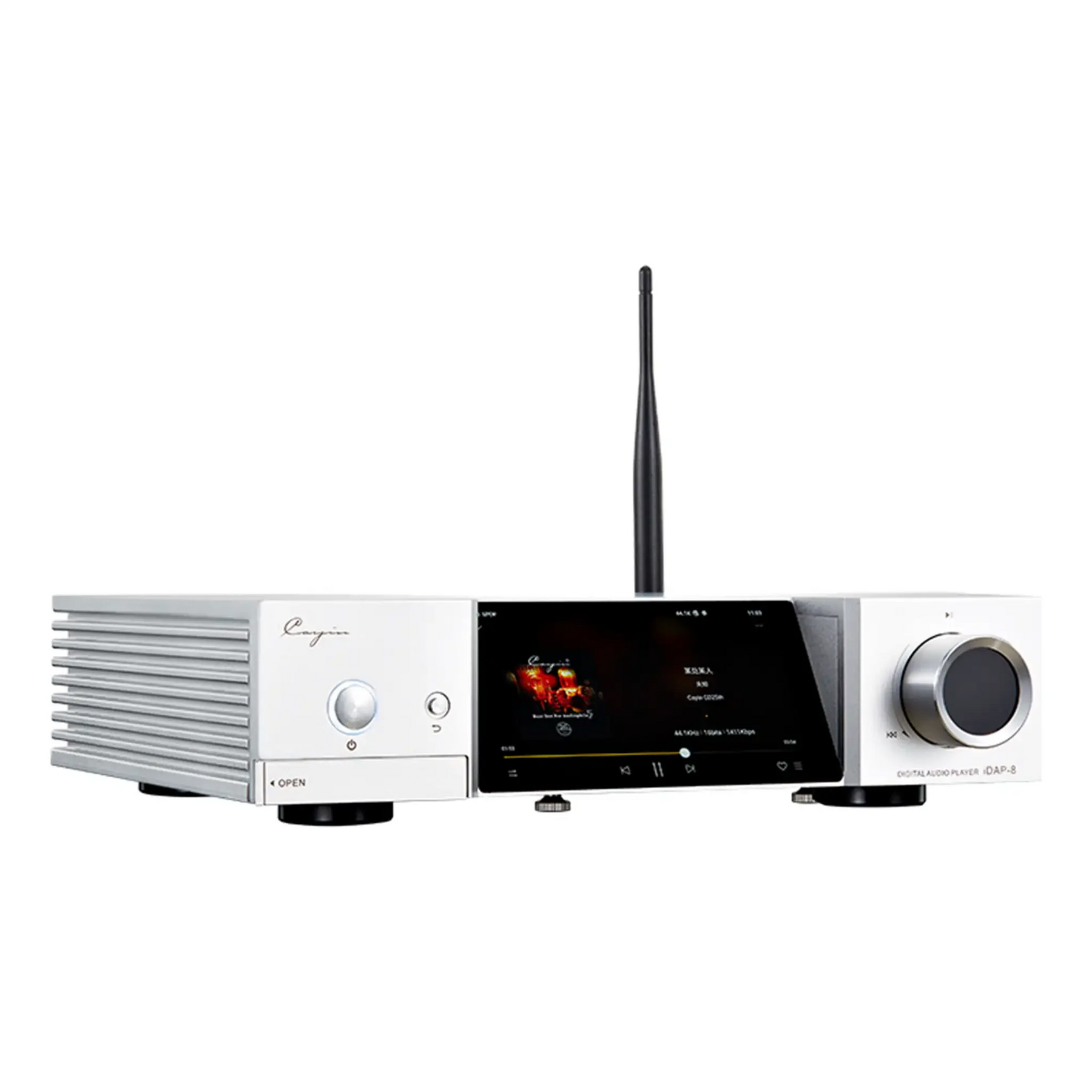

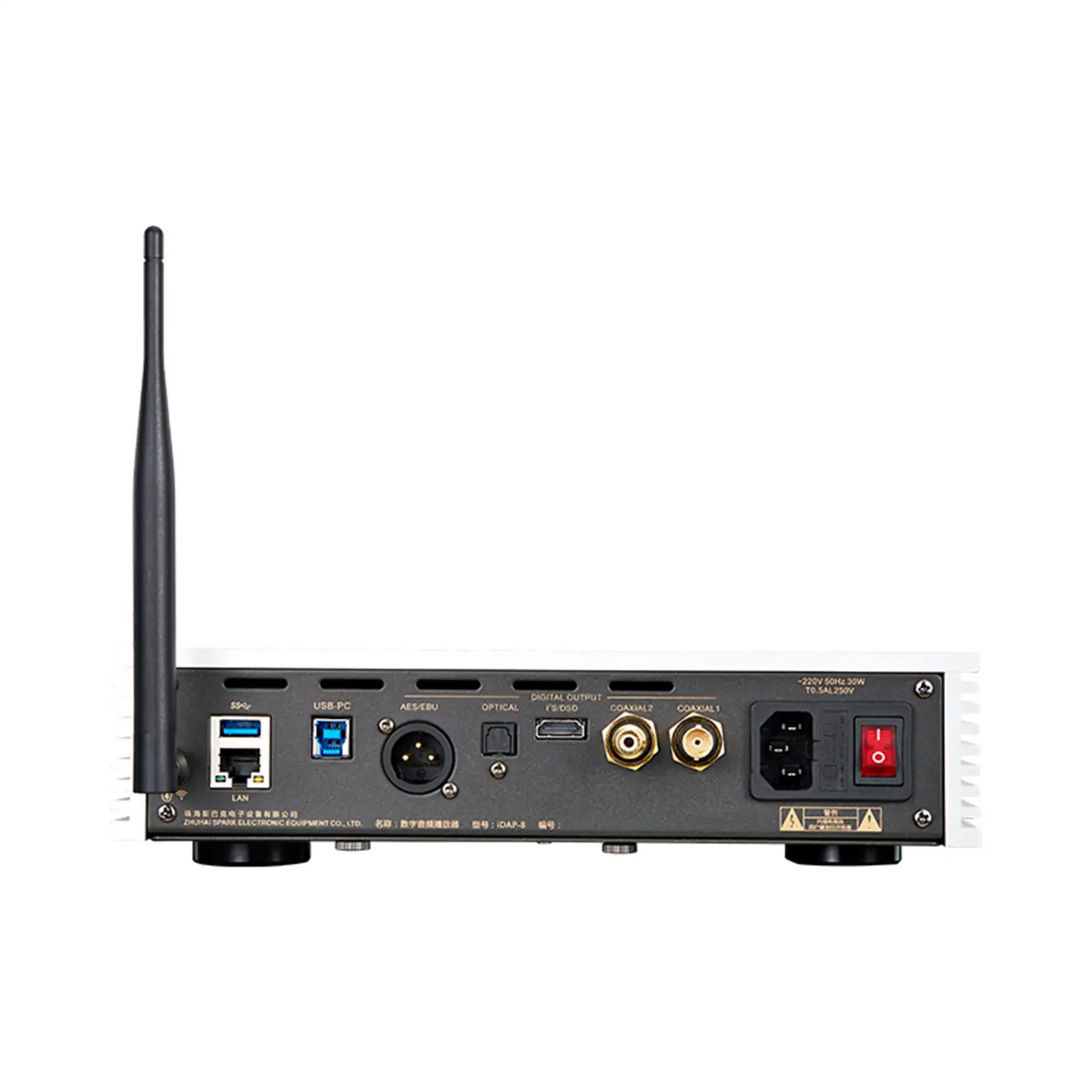

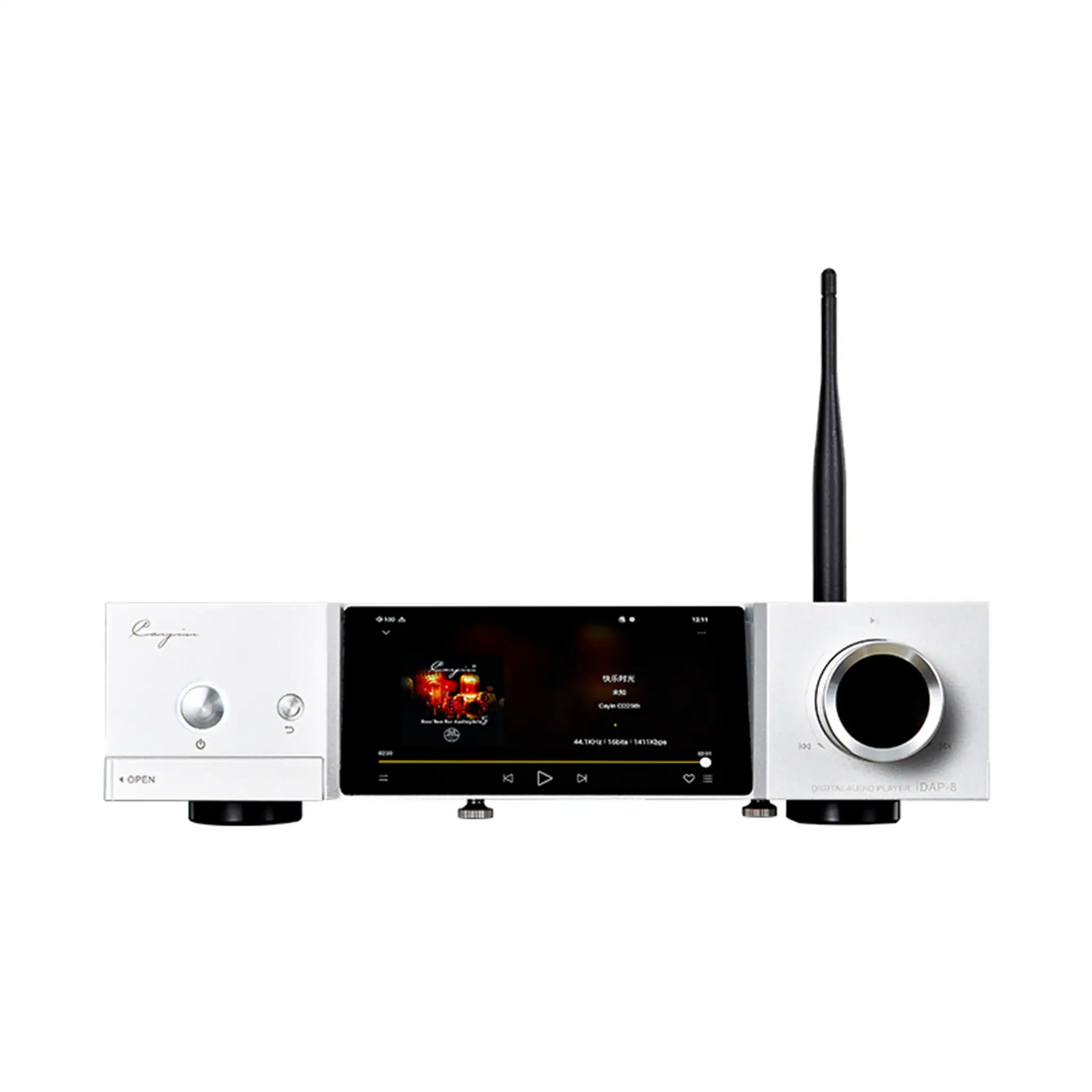

Cayin iDAP-8 is a High-Resolution Digital Audio Streamer Designed for Audiophiles Who Value Pristine Digital Signal Delivery

• Offers pure digital transport for high-res digital signal delivery

• Versatile digital outputs including I²S (HDMI), AES/EBU, Coaxial, and Optical
• Features ultra-low phase noise femtosecond oscillators
• User-friendly 3.95" full-color touchscreen for intuitive navigation
• Supports playback of PCM up to 32-bit/384kHz and DSD256 (native and DoP)

Premium Components

The iDAP-8 is equipped with two specialized Accusilicon audio-grade active femtosecond oscillators: 45.1584MHz for DSD and 44.1kHz multiples, and 49.152MHz for 48kHz multiples. These oscillators feature ultra-low phase noise at 200fS (@100MHz), effectively minimizing jitter, digital artifacts, and signal loss. This precision enhances conversion accuracy, delivering a cleaner, more detailed, and immersive audio experience.

Powered by Qualcomm

The Qualcomm SDM660 eight-core processor delivers blazing-fast data read/write speeds, ensuring high performance and a low-latency memory pool for seamless operation. Effortlessly handle smooth multitasking while managing internal storage, SD cards, USB devices, and hard disk files simultaneously with precision and efficiency.

Precision Engineered Power Supply Transformer

Cayin meticulously designs and manufactures its transformers, recognizing their crucial role in delivering superior audio performance. The iDAP-8 features a 45W toroidal transformer, crafted with high-purity copper enameled wire and encased in specialized shielding for optimal performance. Enhanced with advanced circuit protection measures, this design minimizes magnetic interference and effectively shields the circuitry from noise, ensuring pristine audio quality.

All-New UI Design

Featuring a vibrant 5” FHD TFT multi-touch screen, the iDAP-8 delivers sharp and clear visuals, including text, graphics, and high-resolution album art. Its intuitive interface ensures all information is thoughtfully organized and easy to navigate. Designed with ergonomics in mind, the 59-degree tilted screen offers effortless viewing and seamless control for a superior user experience.

Compact and Versatile

The iDAP-8 joins the Cayin i-series lineup, sharing a cohesive design language with the iDAC-8 and the iHA-8 headphone amplifier. Each product functions seamlessly on its own or can be combined to create a unified audio system.

Compact and thoughtfully designed, the iDAP-8 fits effortlessly into any home audio or desktop setup. Its L-shaped aluminum cover plate is crafted with precision mold extrusion, CNC machining, fine sandblasting, and an anodized finish, offering a sleek and uniform texture that is both stylish and durable.

The ridged heat sink panels on the sides not only enhance the streamers’s aesthetic appeal but also improve heat dissipation by increasing surface area for better airflow. This optimized thermal performance ensures the iDAP-8 operates at peak efficiency for the best possible audio output.

Additional Features

NAS Direct Playback
Effortlessly access your entire music collection stored on a NAS (Network-Attached Storage) without needing to download files to the iDAP-8. Simply connect and enjoy seamless playback of your favorite tunes.

Expandable Storage
The iDAP-8 features a dedicated HDD/SSD compartment with SATA3.0 data interface, supporting up to 4TB 2.5” hard disks or SSDs. This allows you to build a robust local music library, ensuring reliable playback through various music player applications.

Android Based Audio System
Powered by a versatile Android operating system, the iDAP-8 is preloaded with popular music apps and supports additional app installations. Its intuitive interface ensures a user-friendly experience from the moment it’s powered on.

High-Speed Wired and Wireless Connection
Stay connected with cutting-edge network options:

• Wireless Network: Dual-band 2.4GHz and 5GHz communication for stable wireless performance


• Wired Network: Dual-band 2.4GHz and 5GHz communication for stable wireless performance

Specifications

• MCU: Snapdragon 660 2.2GHz
• Memory: 6GB LPDDR4 RAM
• System: Customized Android 9
• Storage:
  • 128GB Internal
  • 2.5" SATA3.0
  • SD
  • External USB
• Oscillator: (2x) Accusilicon Ultra-Low 20ppm phase noise Femtosecond
• File Format: DSF, DFF, SACD-ISO, FLAC, AIFF, WAV, APE, ALAC, WMA, MP3, AAC, OGG, + Opus
• Lossless: DTA bypass Android SRC
• Digital Interface: IS, USB, AES/EBU, Optical, COAX (RCA + BNC)
• LAN: IEEE 802.3/IEEE 802.3u, Support 1000M/100M/10M
• Bluetooth: BTv5.0 + BR/EDR + BLE
• Wi-Fi: 2.4GHz / 5GHz
• Display: 5" FHD TFT multi-point touch screen
• Power Supply: 45W Toroidal Transformer
• Weight: 9.7lbs
• Dimensions: 270mm x 215mm x 70mm
• Cayin 1 Year Warranty
• Digital Interface Specs
• Music Format Specs

In the Box

• Cayin iDAP-8 Desktop Streamer
• Power cord
• USB cable
• BT/WiFi Antenna
• (2x) Replacement fuse
• User Manual
• Warranty card

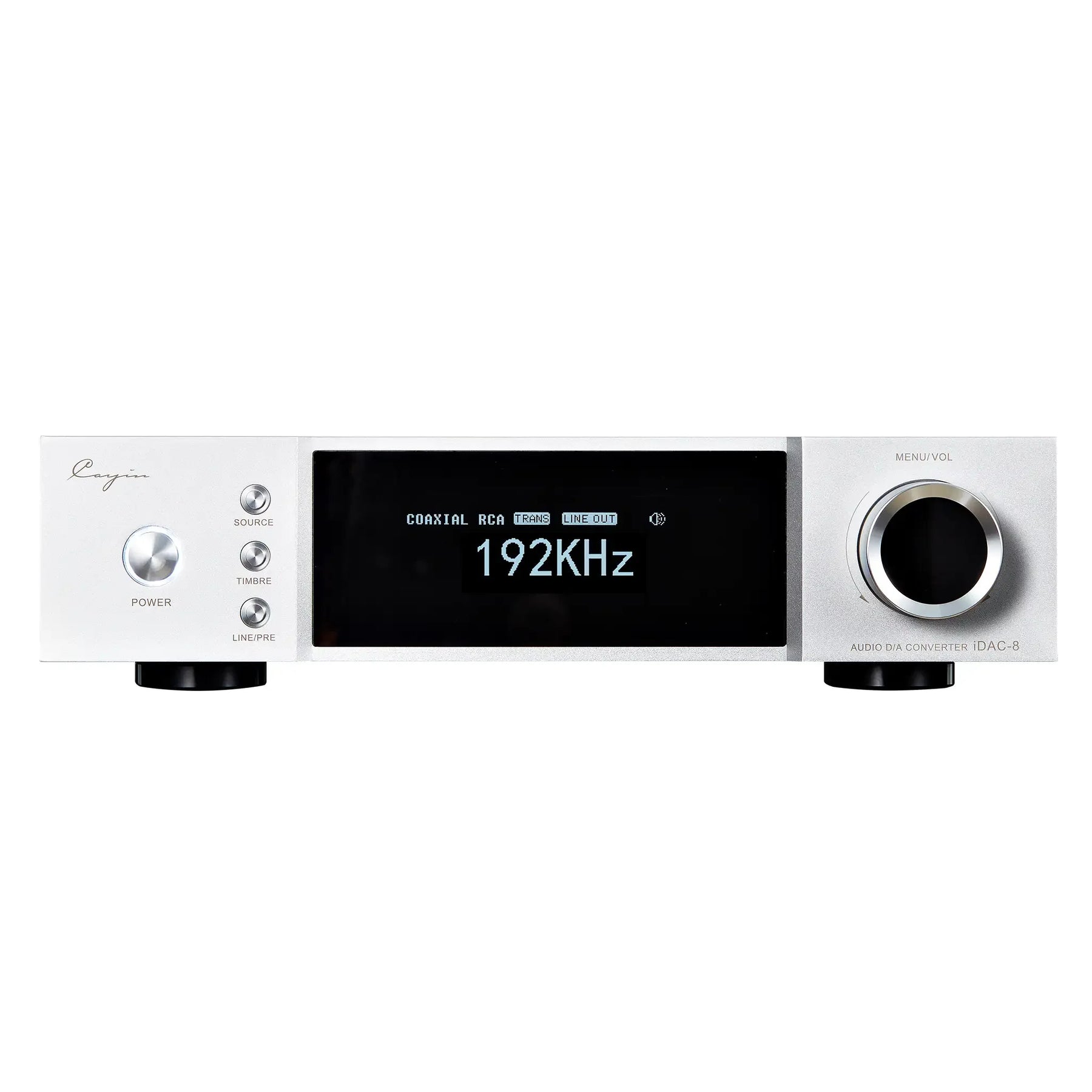

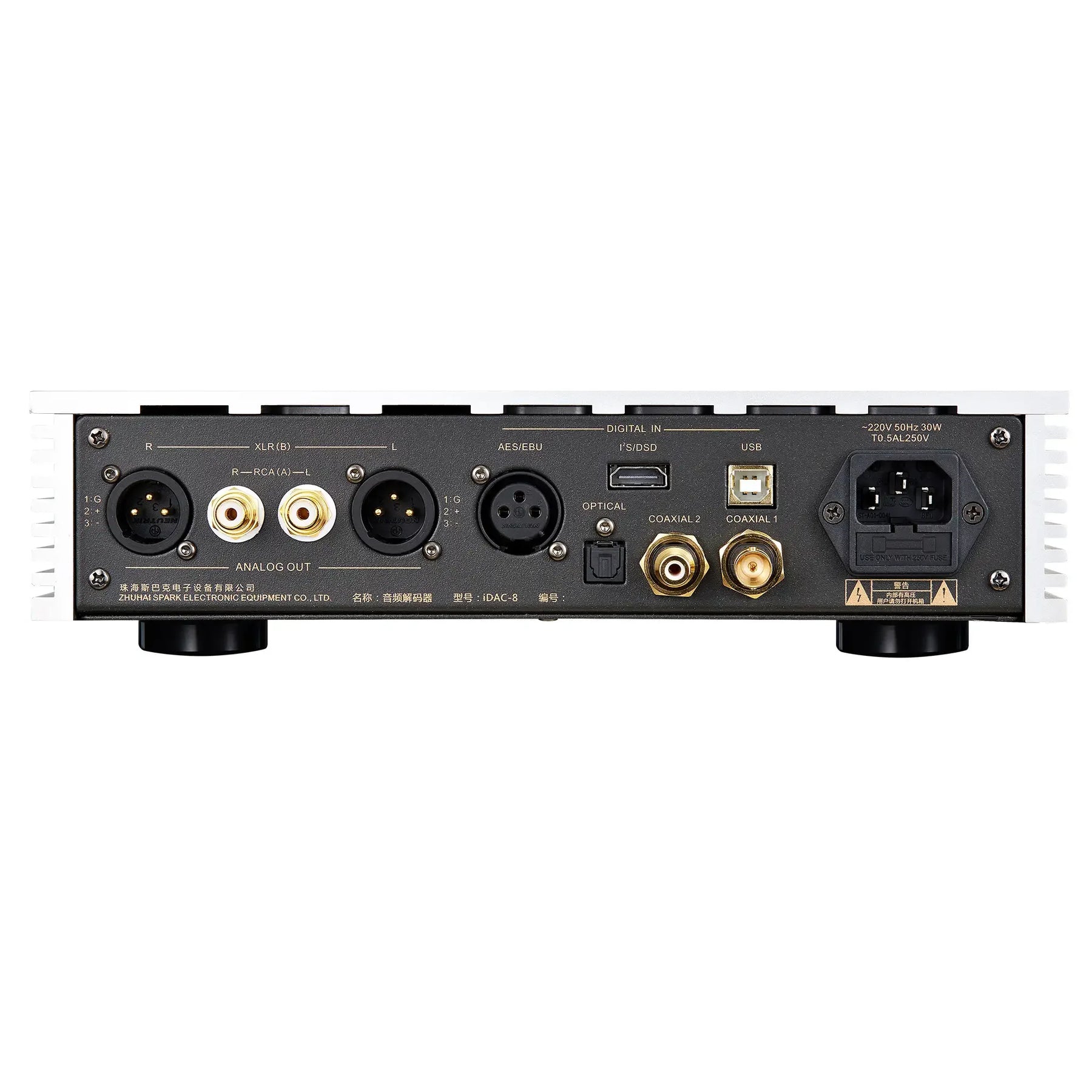

Cayin iDAC-8 is a High-Performance DAC Featuring Dual Timbre Modes, Fully Balanced Architecture, and Precision Volume Control for Hi-Fi Audio

• Dual Timbre Mode: Offers both Tube and Solid-State timbre options, allowing users to customize the audio signature to their preferences
• Utilizes a 4-channel low noise, low distortion resistance ladder circuit for accurate and transparent volume adjustments
• Equipped with a fully balanced circuit architecture, ensuring precise and high-fidelity sound reproduction

• Offers versatile connectivity with I2S, USB Audio, Coaxial, AES/EBU, and Optical inputs

Vacuum Tube | Solid-State

Vacuum Tube Timbre: 6H6b-B Dual Triode

• Single-Ended Mode: Utilizes 2x 6H6b-B tubes, one for each channel. Within each tube, two parallel triodes form the first stage of the timbre circuit, operating as cathode followers to enhance current driving capability and reduce noise. A fast-switching, low-resistance Vishay MOSFET is used in the second stage as a voltage follower for improved performance.


• Balanced Mode: Also employs 2x 6H6b-B tubes, with the two triodes in each tube dedicated to amplifying the current and driving the positive and negative phases of the same channel.

Solid-State Timbre: Utilitarian Op-Amp

The solid-state timbre circuit integrates high-performance, low-noise, dual-channel audio-grade operational amplifiers from Texas Instruments. A single Op-Amp is sufficient for the single-ended circuit, while the balanced circuit uses two Op-Amps for precise audio reproduction.

Pre-Amp Output | Line Level Output

The Apex of Decoding

The AKM flagship AK4191 + AK4499EX chipset powers the digital-to-analog conversion, utilizing dual AK4499EX chips—one dedicated to each channel. This ensures the DAC operates in MONO mode within a fully balanced circuit, maximizing the chipset’s performance potential.

Ultra Low Noise Power System

In-house designed and manufactured high-performance toroidal power supply transformers have a rated power of up to 45W.

High Precision Volume Controller

Volume control is crucial when Preamp mode is active, as it ensures precise adjustment while maintaining transparent and accurate playback.

The iDAC-8 utilizes the NJW1195AV volume controller, which operates through a 4-channel low-noise, low-distortion resistance ladder circuit. This design delivers exceptional inter-channel consistency and a highly accurate audio experience.

Though electronically managed, the volume adjustment is performed entirely in the analog domain for optimal sound integrity.

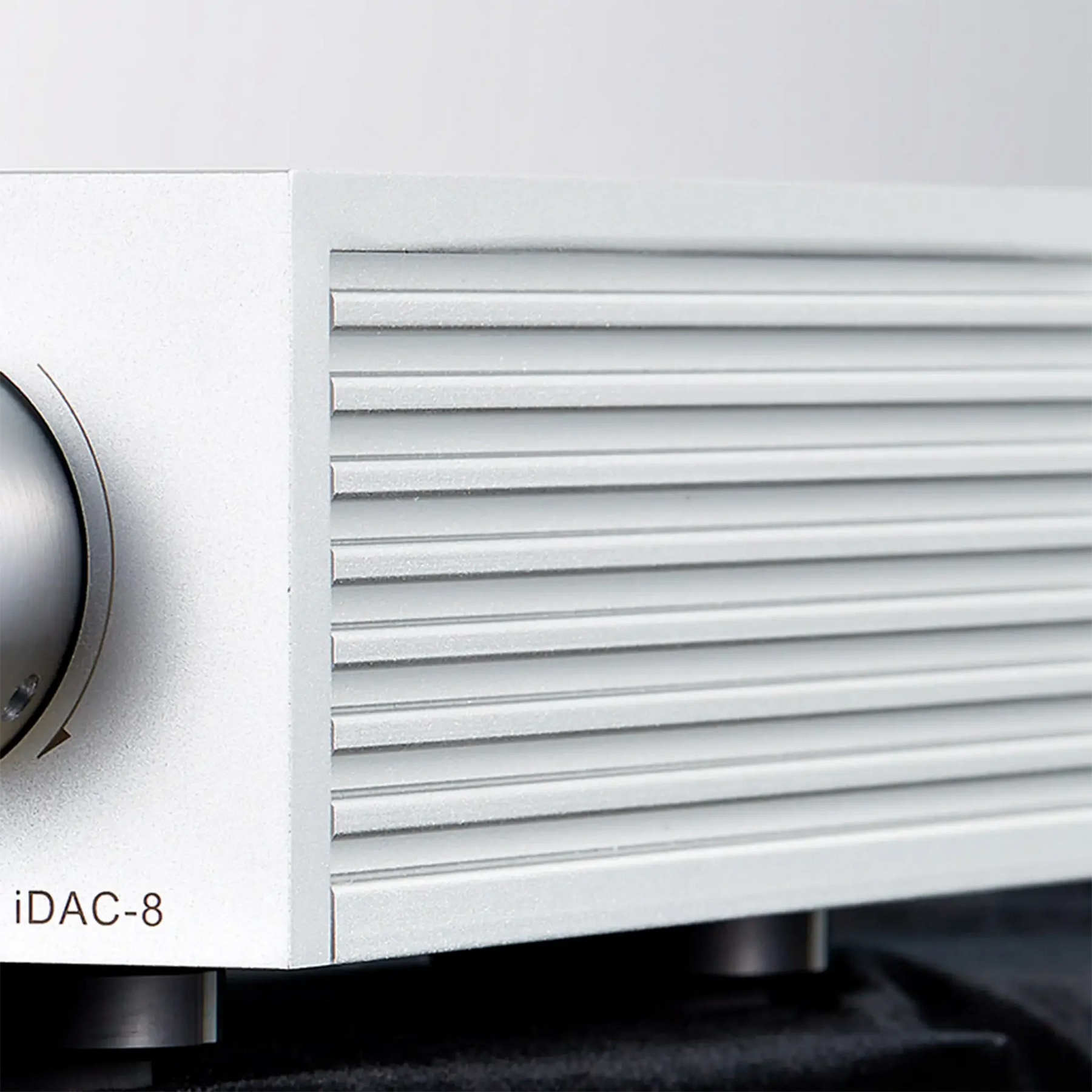

Compact and Versatile

The iDAC-8 joins the Cayin i-series lineup, sharing a cohesive design language with the iDAP-8 digital streamer and the iHA-8 headphone amplifier. Each product functions seamlessly on its own or can be combined to create a unified audio system.

Compact and thoughtfully designed, the iDAC-8 fits effortlessly into any home audio or desktop setup. Its L-shaped aluminum cover plate is crafted with precision mold extrusion, CNC machining, fine sandblasting, and an anodized finish, offering a sleek and uniform texture that is both stylish and durable.

The ridged heat sink panels on the sides not only enhance the DAC’s aesthetic appeal but also improve heat dissipation by increasing surface area for better airflow. This optimized thermal performance ensures the iDAC-8 operates at peak efficiency for the best possible audio output.

Specifications

• DAC: AK4191 Digital A Modulator + (2x) AK4499EX (Mono Mode)
• Vacuum Tube
  • RCA: (2x) 6H6b-B
  • XLR: (2x) 6H6b-B
• Volume Control: NJW1195AV 4-channel electronic controlled analog volume
• Display: 3.12" 256 x 64 OLED Dot-matrix
• Digital Inputs: 3S, USB Audio, Coaxial (RCA),
  Coaxial (BNC), AES/EBU, + Optical
• Analog Outputs: (2x) BAL XLR + (2x) SE RCA
• Output Modes
  • Fixed Level: Line Out
  • Variable Level: Pre Amp Out
• Power Supply: 45W Toroidal Transformer
• Power Management: 29,200uF Nichicon filtering capacitors + LDO + Regulators
• Weight: 10.14lbs
• Dimensions: 270mm x 215mm x 70mm
• Cayin 1 Year Warranty

Analog Outputs (Line Out)

• Output Level
  • RCA SE: Solid State + Vacuum Tube
    • 2.2V + 2.2V
  • XLR BAL: Solid State | Vacuum Tube
    • 4.2V + 4.2V | 4.1V + 4.1V


Analog Outputs (Pre Out)

• Output Level
  • RCA SE: Solid State + Vacuum Tube
    • 6V + 6V
  • XLR BAL: Solid State | Vacuum Tube
    • 12V + 12V | 10V + 10V


• Extended Analog Output Specifications
• Digital Input Specifications

In the Box

• Cayin iDAC-8 Desktop DAC
• Power cord
• USB cable
• (2x) Replacement fuse
• User Manual
• Warranty card

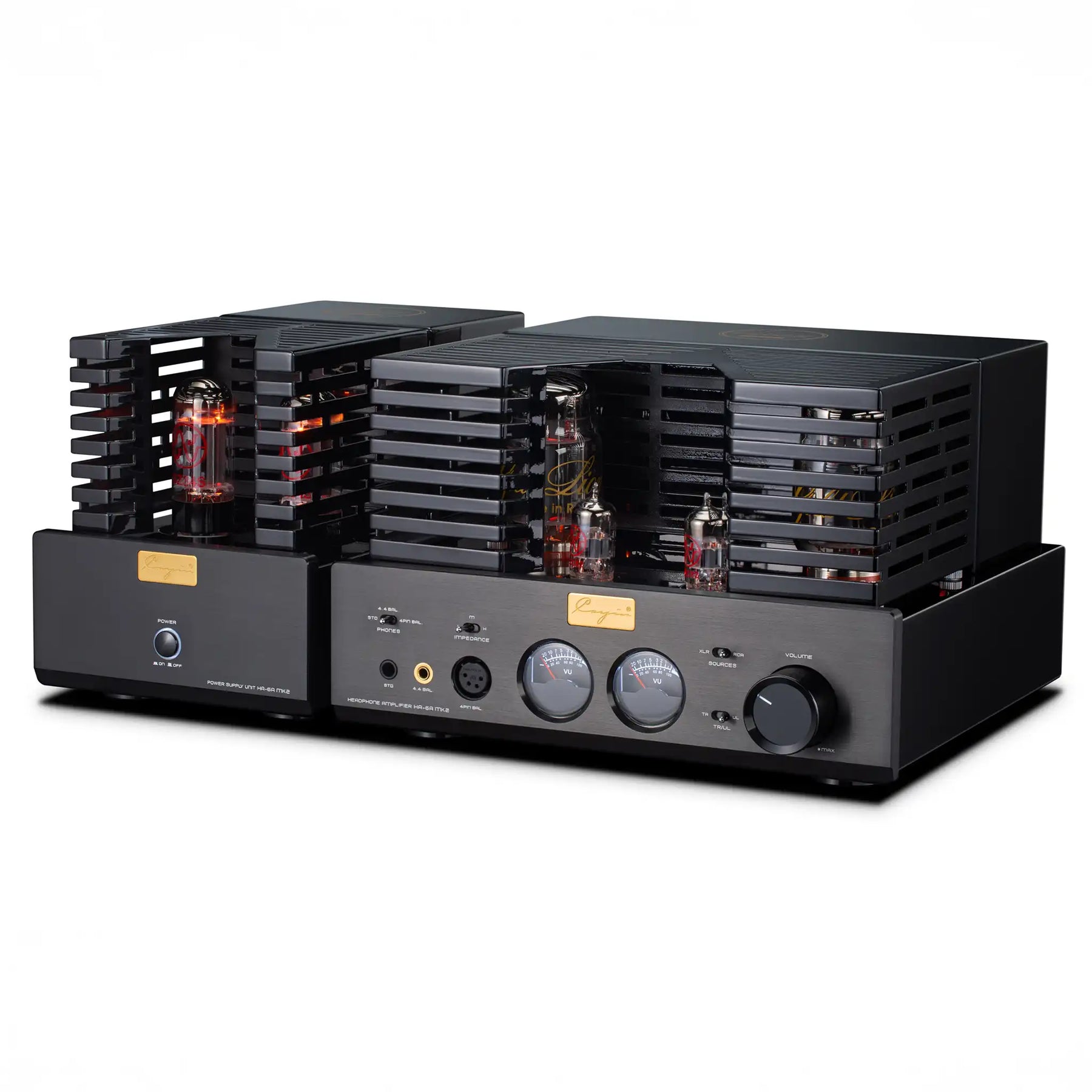

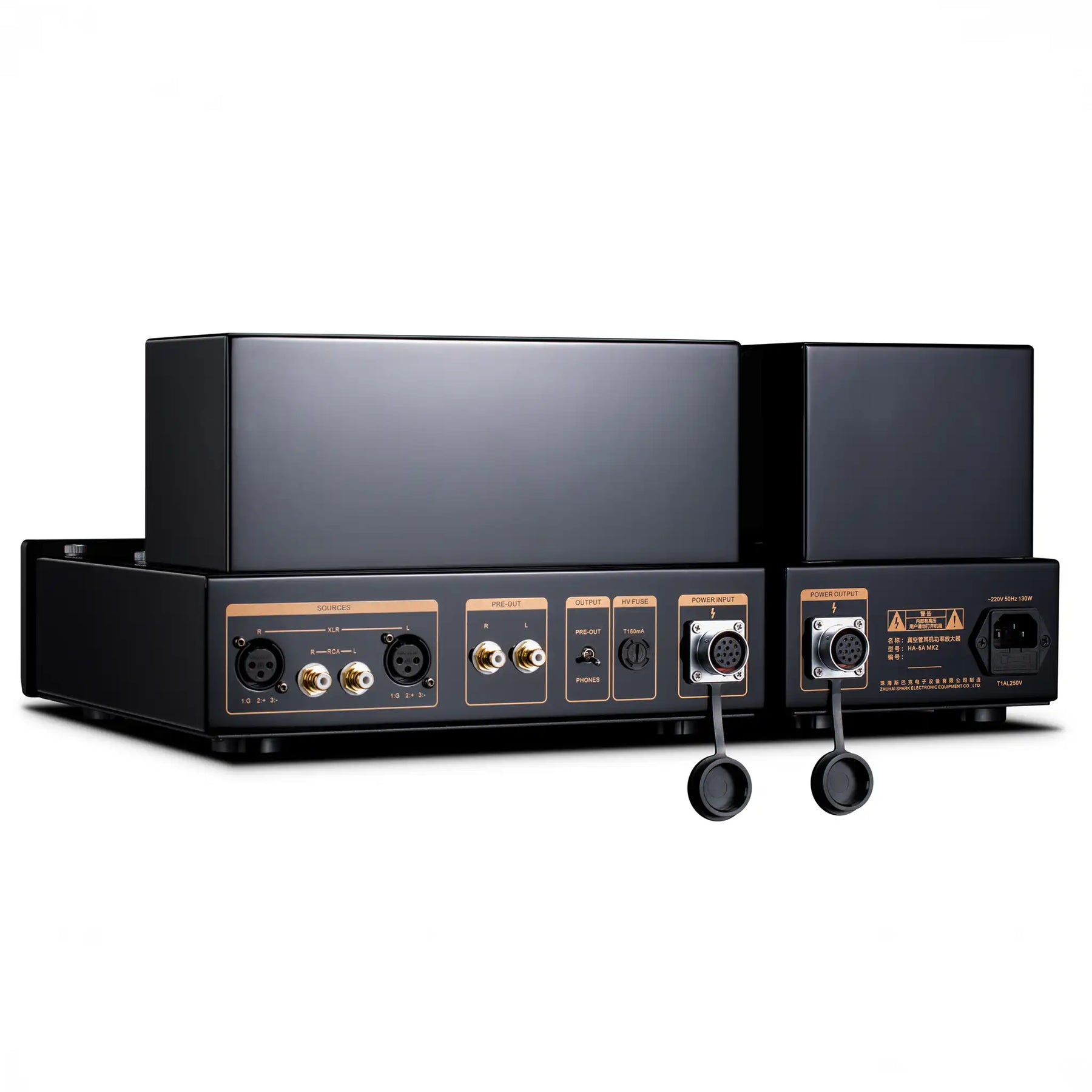

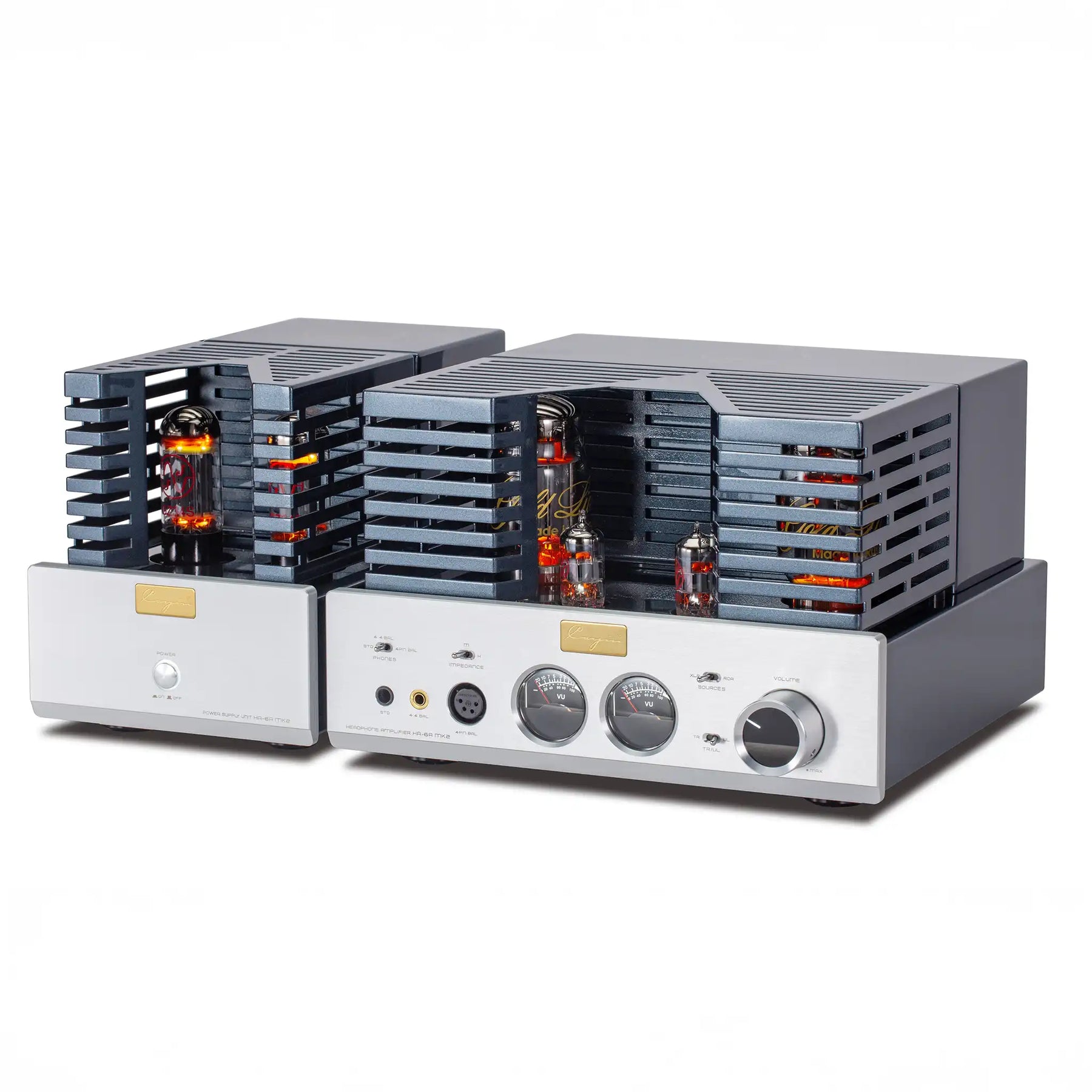

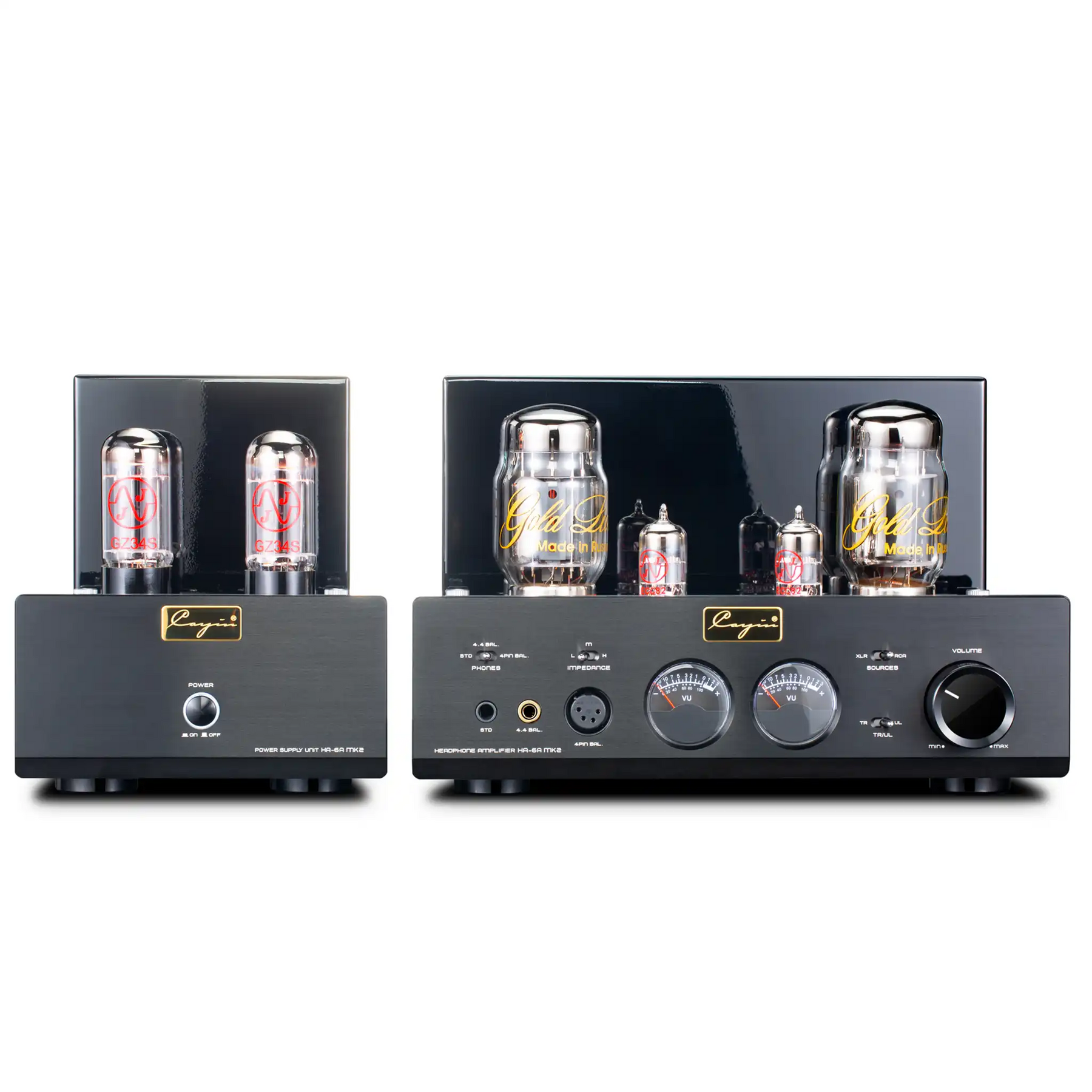

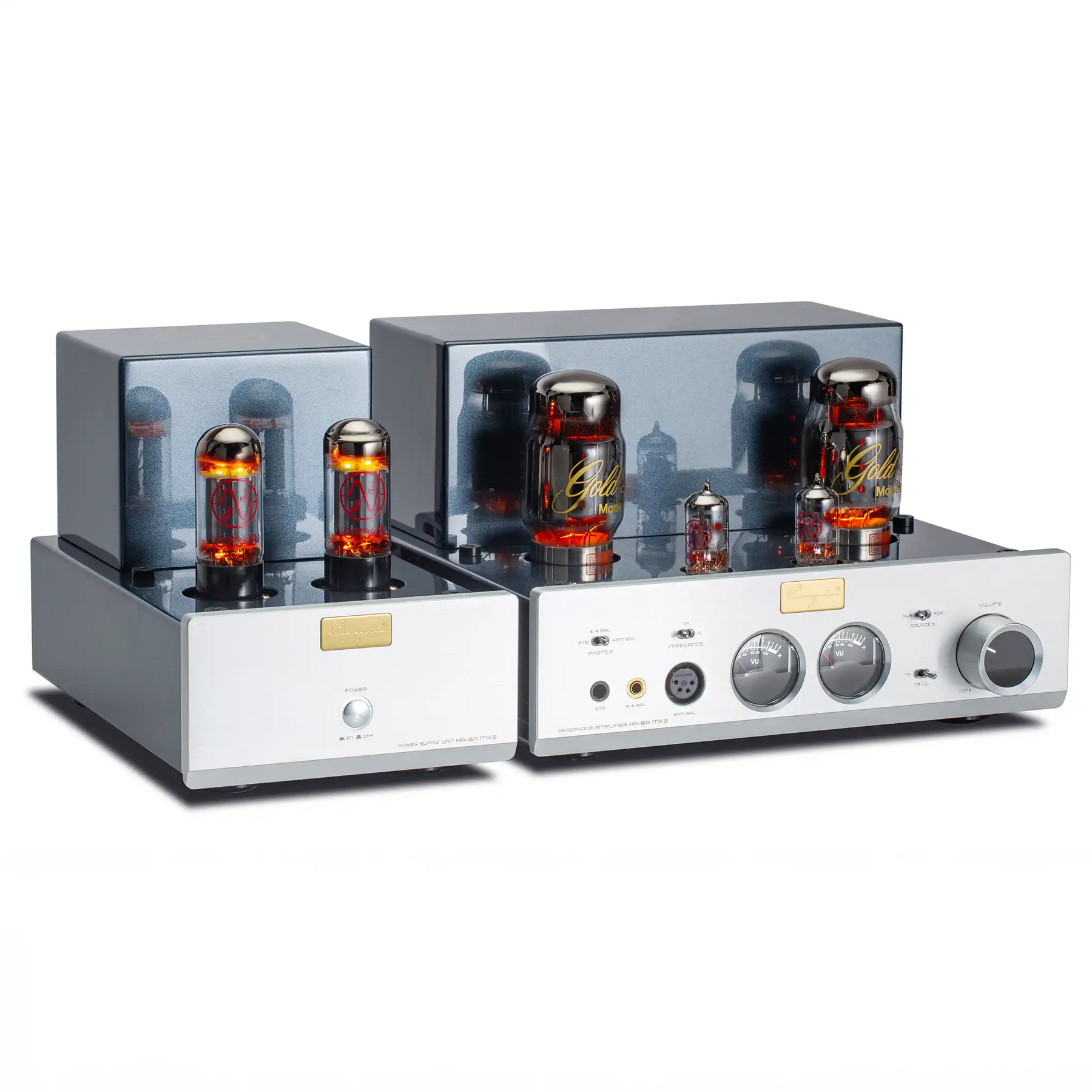

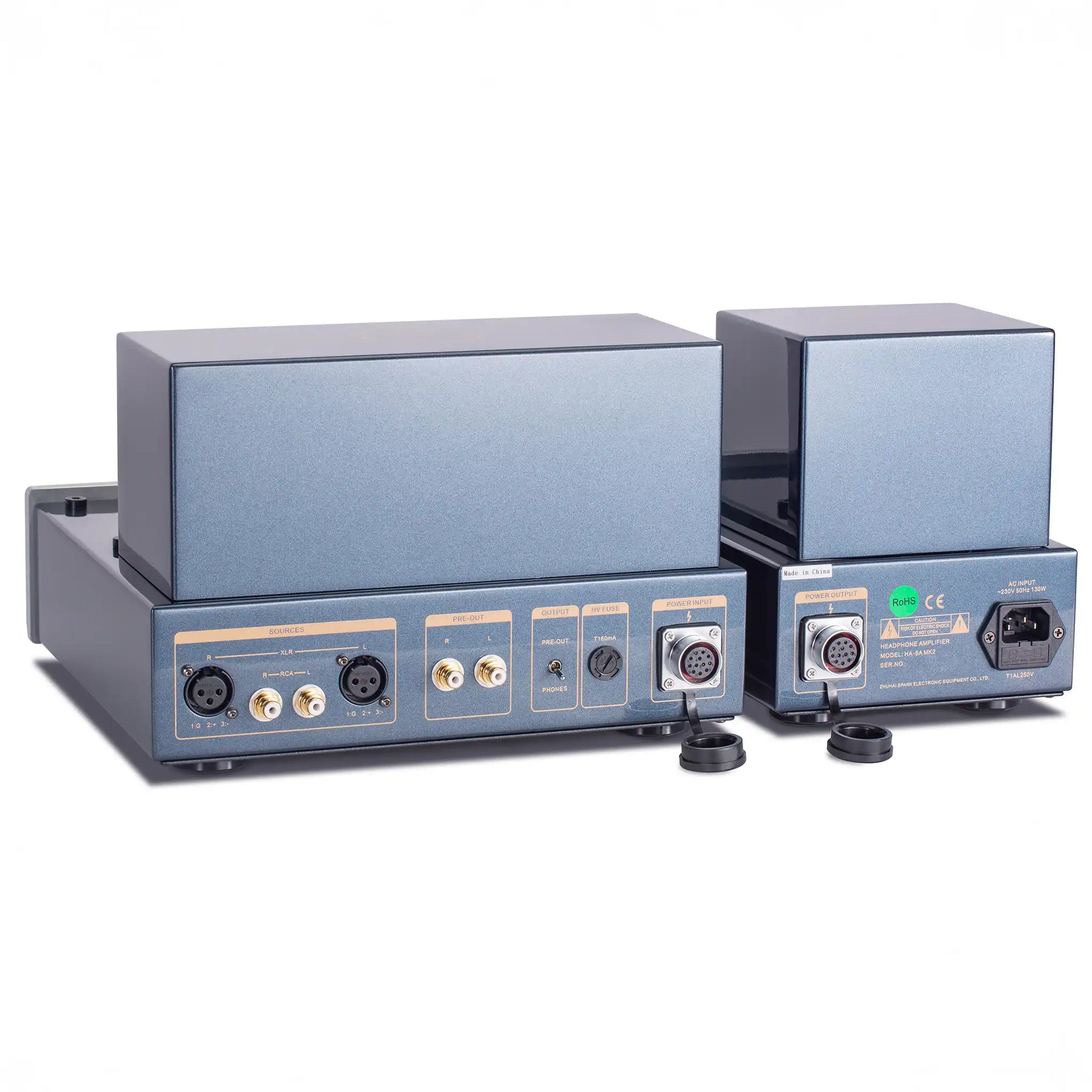

The Cayin HA-6A MK2 Builds Upon Its Predecessor With a Dual-Chassis Design, Updated Vacuum Tubes, and a Dedicated Pre-Out Output

• Single-ended Class-A vacuum tube headphone amp
• Upgraded amplification circuit
• Outboard power supply design for darker, cleaner background
• Gold Lion Genelax KT88 tubes provide faithful reproduction
• Includes preamplifier output to connect with power amplifier

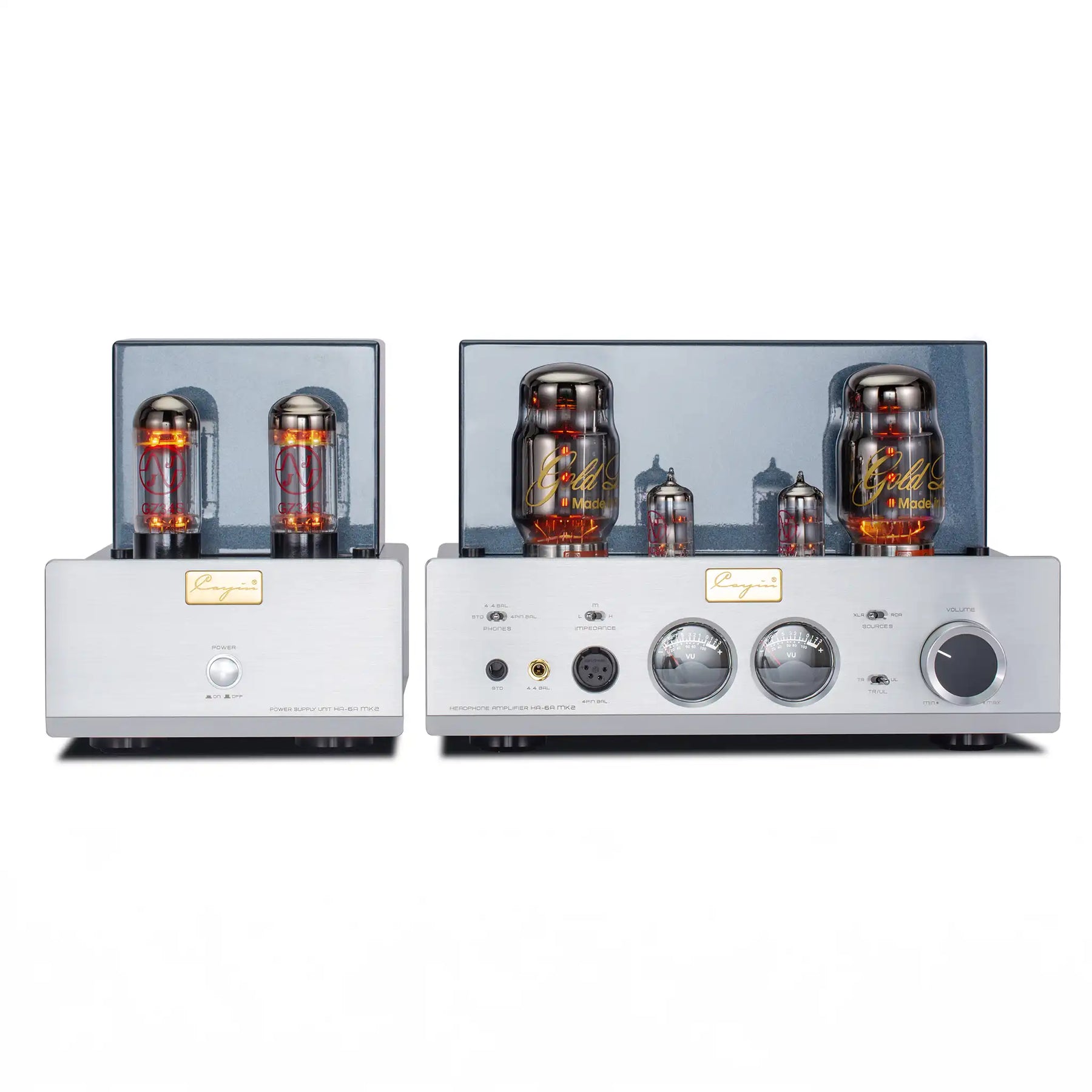

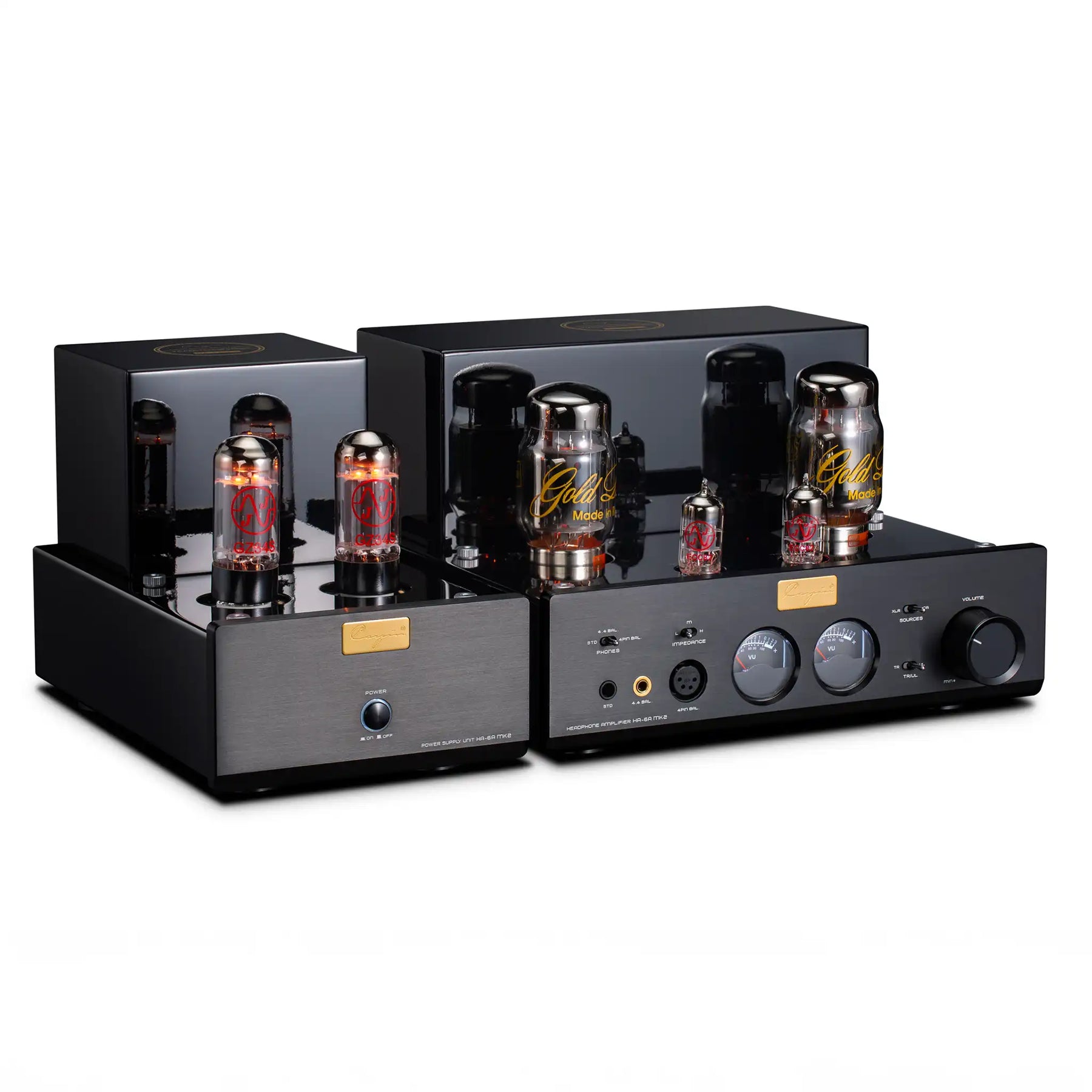

HA-6A MK2

The Cayin HA-6A MK2 is a single-ended Class A headphone amplifier powered by KT88 output tubes. The driver tubes amplify signal voltage under highly linear conditions, while the K188 tubes deliver complete, undivided output tor maximum musical integrity. Cayin designed the gain circuitry, independently adjusting the operation current of each vacuum tube stage and pairing it with a pure, stable power supply, ensuring the HA-6A MK2 fully expresses the rich tonality and musical depth that single-ended Class A design is renowned tor.

Delivering 3000mW (TR) or 4500mW (UL) per channel, the HA-6A MK2 powers a wide range of headphones with both precision and musicality.

Engineered for Pure Performance

Designed for uncompromising sound quality, the HA-6A MK2 features a dual-chassis design that isolates the power supply for lower noise and greater clarity. Each amplification stage is independently regulated to minimize interference, while a custom silver-plated copper umbilical cable ensures efficient, lossless current delivery.

Upgraded Amplification Circuitry

The headphone amplification circuit has been upgraded with high-quality components, delivering breakthroughs in both core performance and user experience. With wide compatibility and enhanced driving power, it can accommodate and power a greater variety of headphones.

Tube Complement

High-Voltage Rectifier
Equipped with two JJ GZ34 / 5AR4 rectifier tubes, delivering strong and stable current output.

Voltage Amplification Stage
Driven by two JJ 12AU7 / ECC82 dual triodes, providing enhanced signal gain while preserving fine detail and layering.

Single-Ended Class A Power Amplification
Utilizing a matched pair of Genalex KT88 tubes, faithfully reproducing the natural tonality of music with rich, engaging sound.

Impedance Matched Headphone Output

In-house output transformers provide impedance-matched outputs for low (8–64Ω), mid (65–250Ω), and high (251–600Ω) loads, ensuring natural, balanced sound. With 6.35mm, 4.4mm, and 4-pin XLR outputs, it delivers up to 4500mW per channel for demanding headphones, while the optimized 4.4mm jack suits sensitive IEMs with reduced output and improved S/N performance.

Additional Features

Dual Operation Mode
Change your sound signature with the flip of a switch. Triode mode offers a smooth sound with rich harmonics and lush, holographic imaging. Ultralinear Mode improves the dynamics and punch, with a clean authoritative sound and enhanced extensive on both ends of the frequency spectrum.

Volume Control
A Premium Japanese ALPS potentiometer delivers smooth, precise and reliable volume adjustment.

More Than a Headphone Amp
The HA-6A MK2 introduces a dedicated PRE-OUT output, elevating it from a headphone amplifier into the centerpiece of your audio system. Connect it to external power amplifiers or active speakers to create a refined desktop or small-scale Hi-Fi setup.

In-House Developed Transformers
Cayin has always insisted on developing high-quality transformers in-house. The custom toroidal power transformer uses a high-purity copper winding design, which produces lower magnetic noise compared to standard transformers.

AudioCapX Coupling Capacitors
Accurately isolate DC current, improving the precision and stability of audio signal transmission.

High-Grade Electrolytic Capacitors (Japan)
Provide fast power delivery and filter out ripple current, reducing sonic coloration.

60-Second Soft Start Function
Ensures silent startup with a delayed warm-up, allowing the tubes to fully stabilize and deliver the best sound performance.

Specifications

• Dimensions
  • Power Supply: 160 x 297 x 185mm
  • Amplifier: 285 x 297 x 185mm
• Net Weight
  • Power Supply: 8.2KG
  • Amplifier: 11.2KG
• Full list of specifications
• Cayin HA-6A + HA-6A MK2 comparison

In the Box

• Cayin HA-6A MK2 power supply + amplifier
• Tubes
• Power cable
• User manual

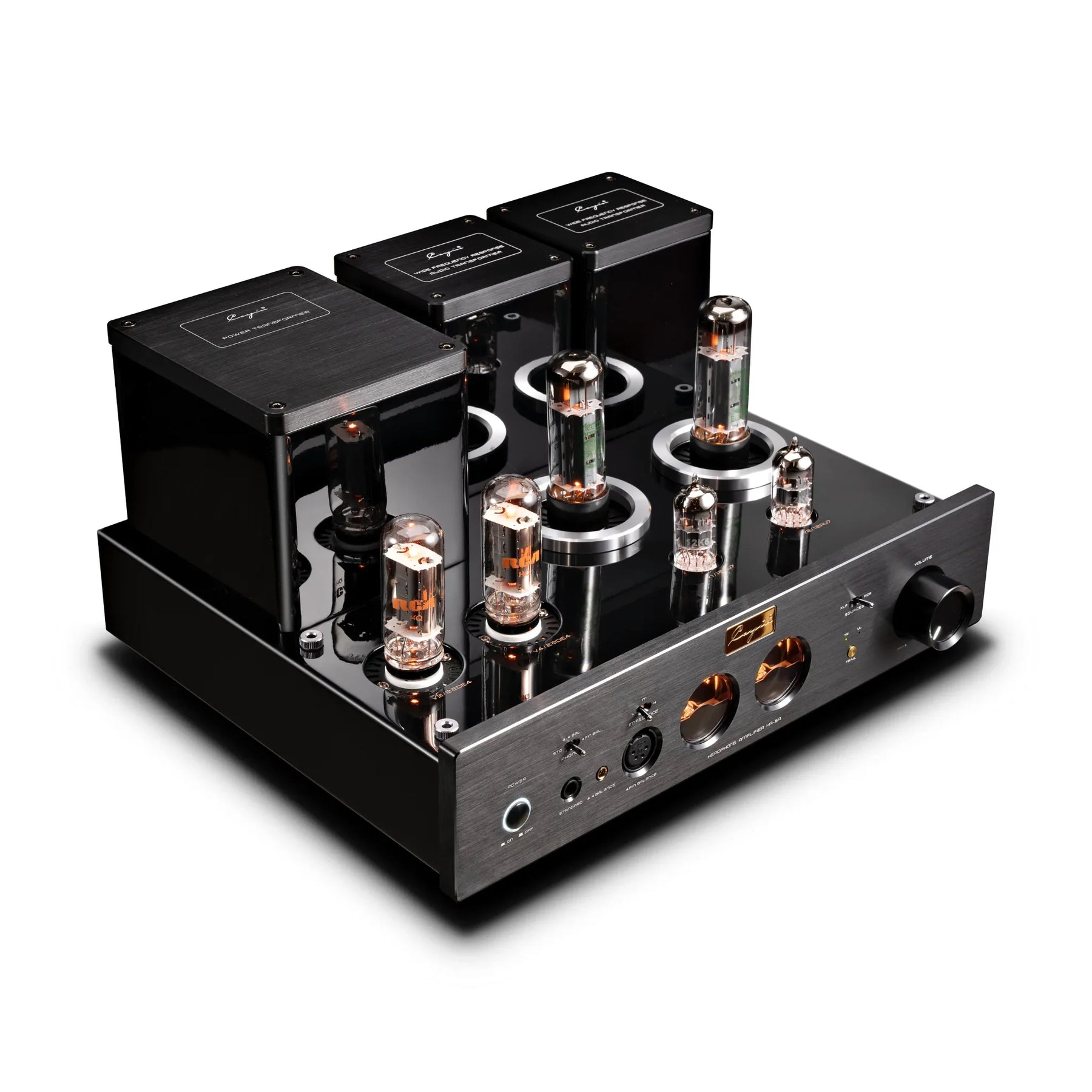

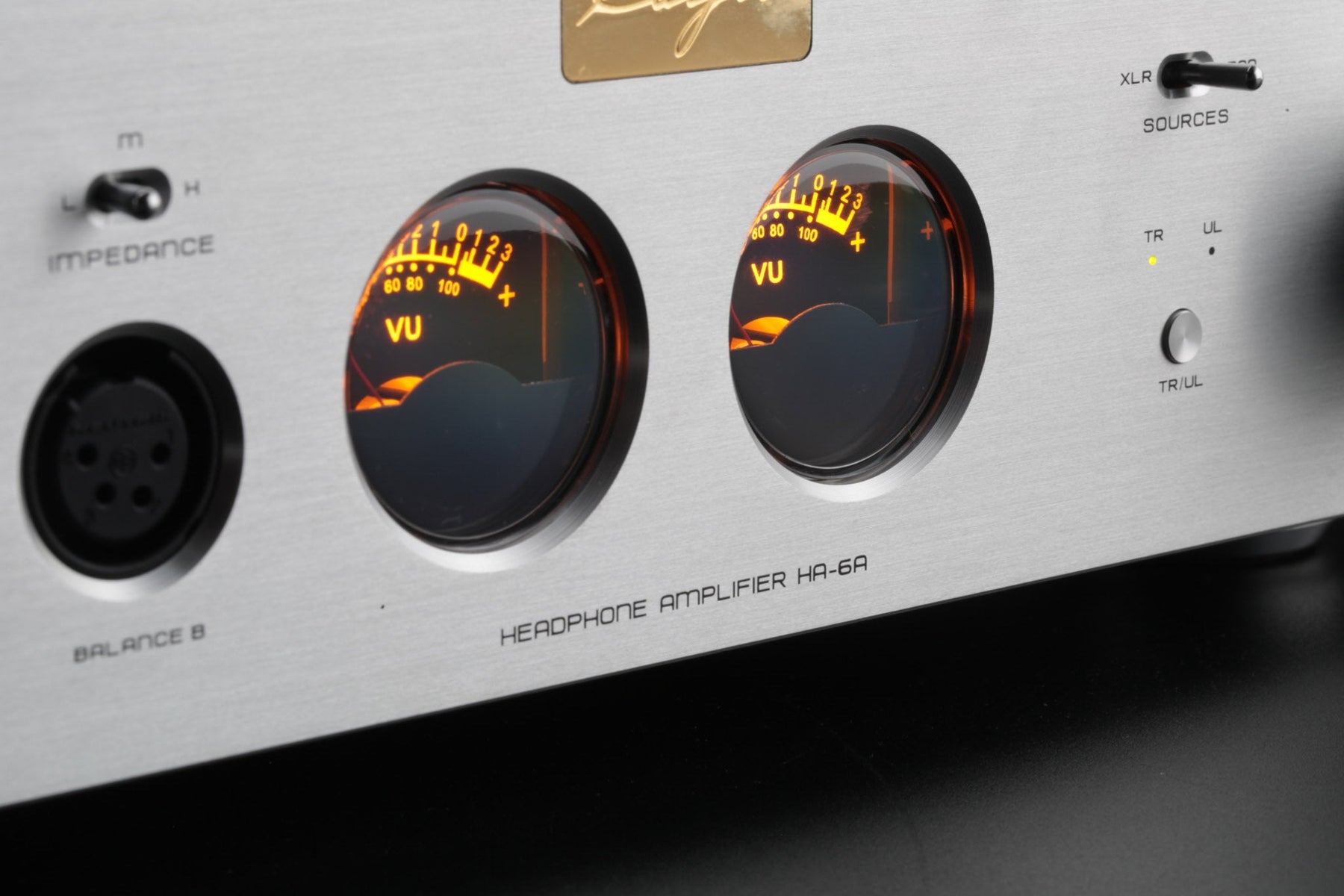

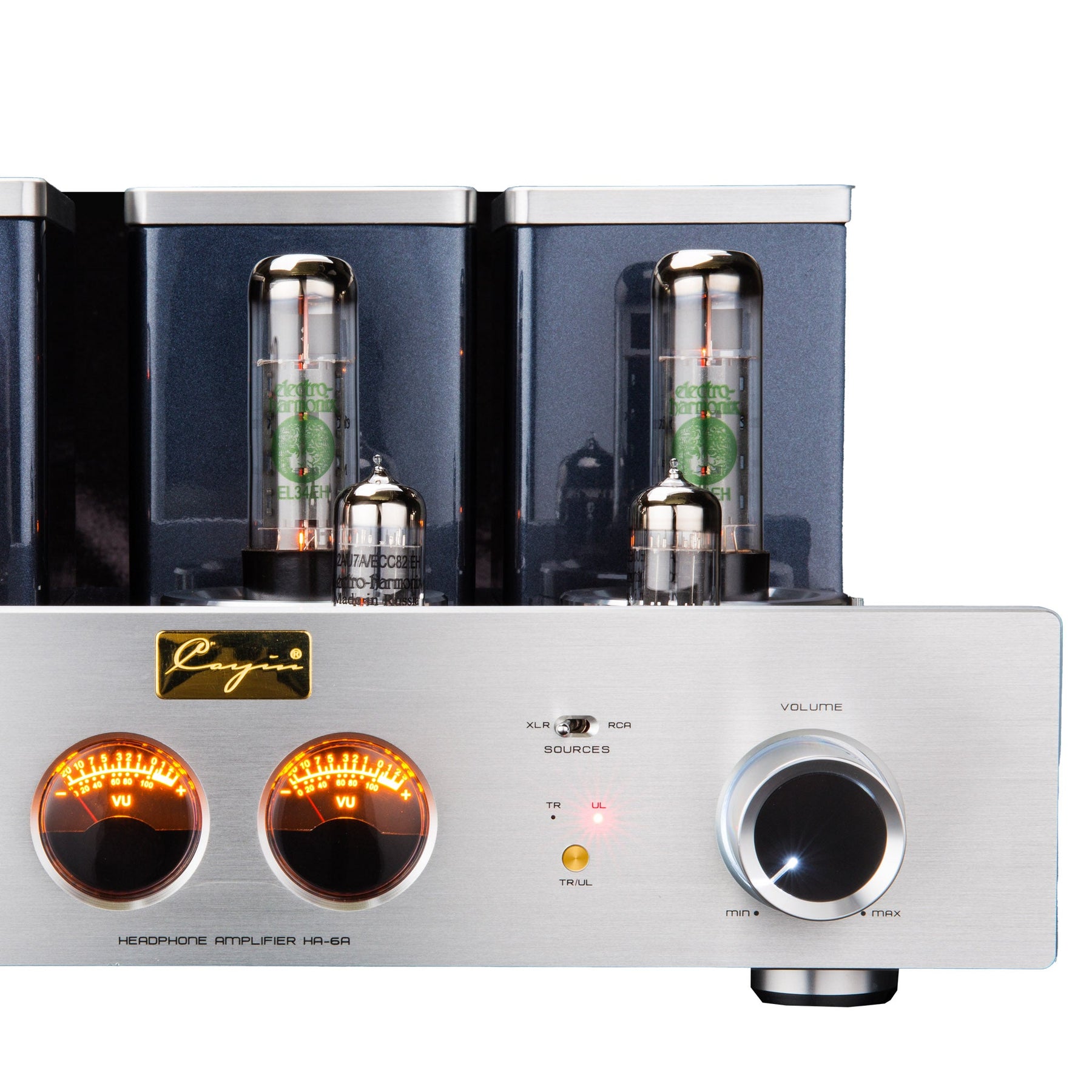

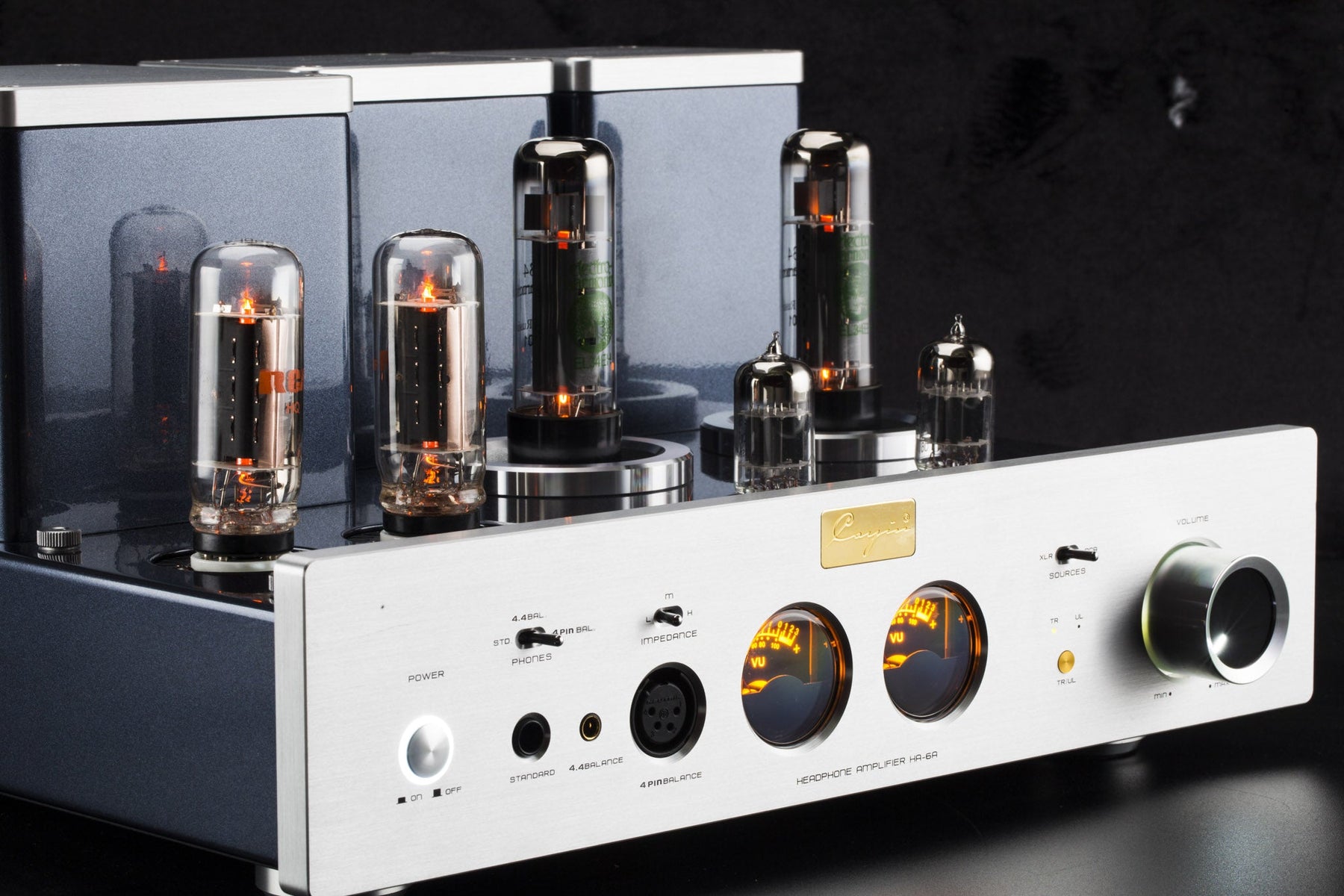

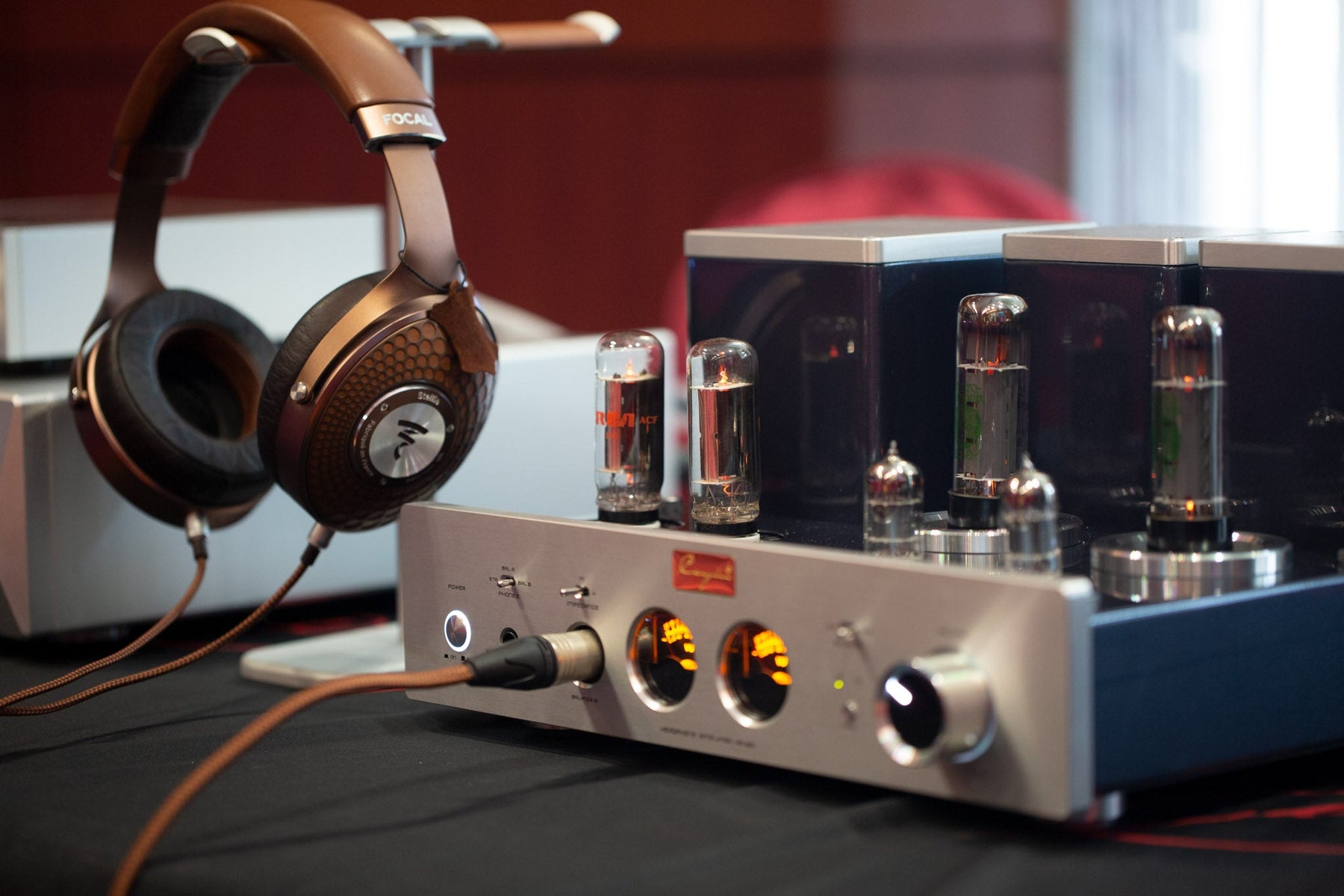

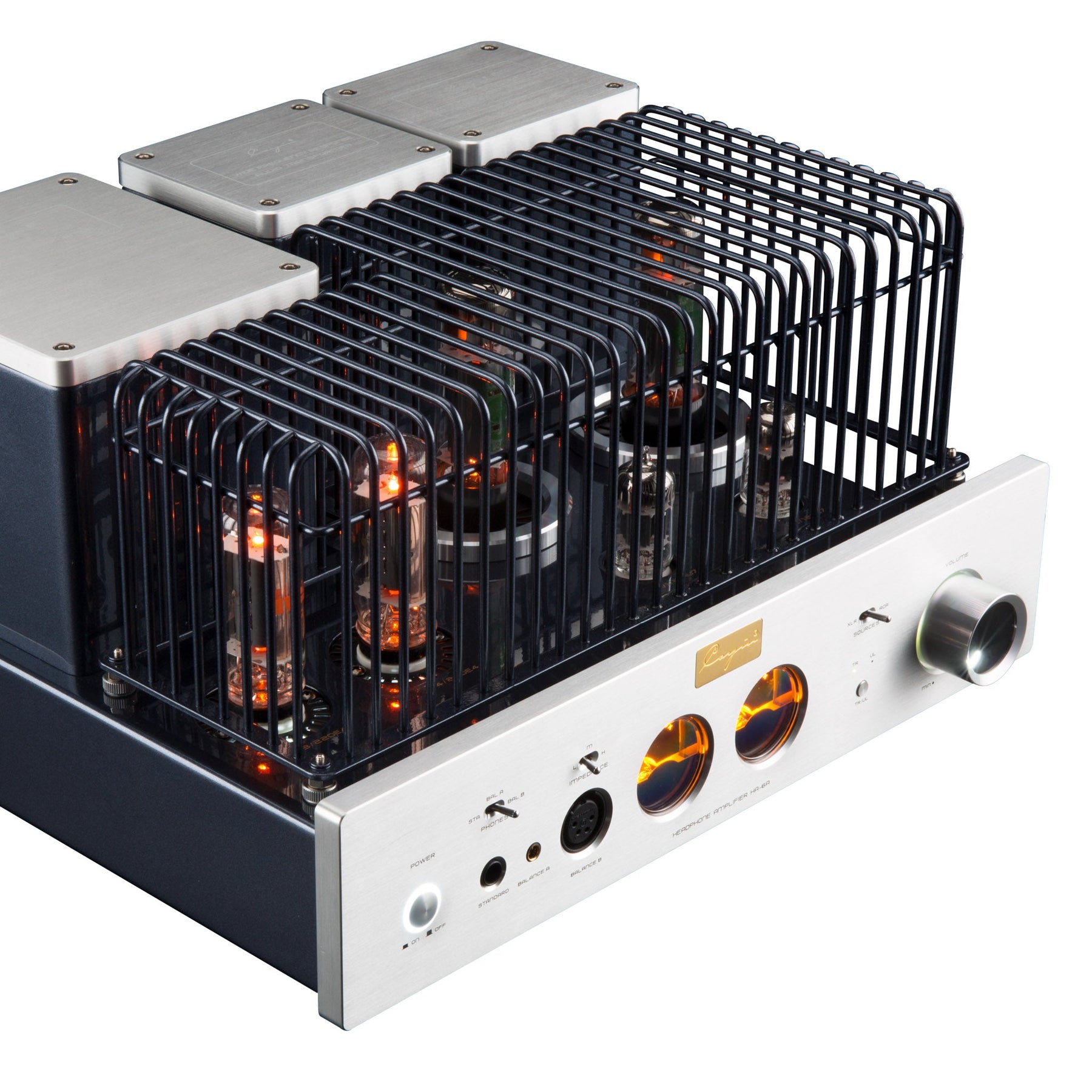

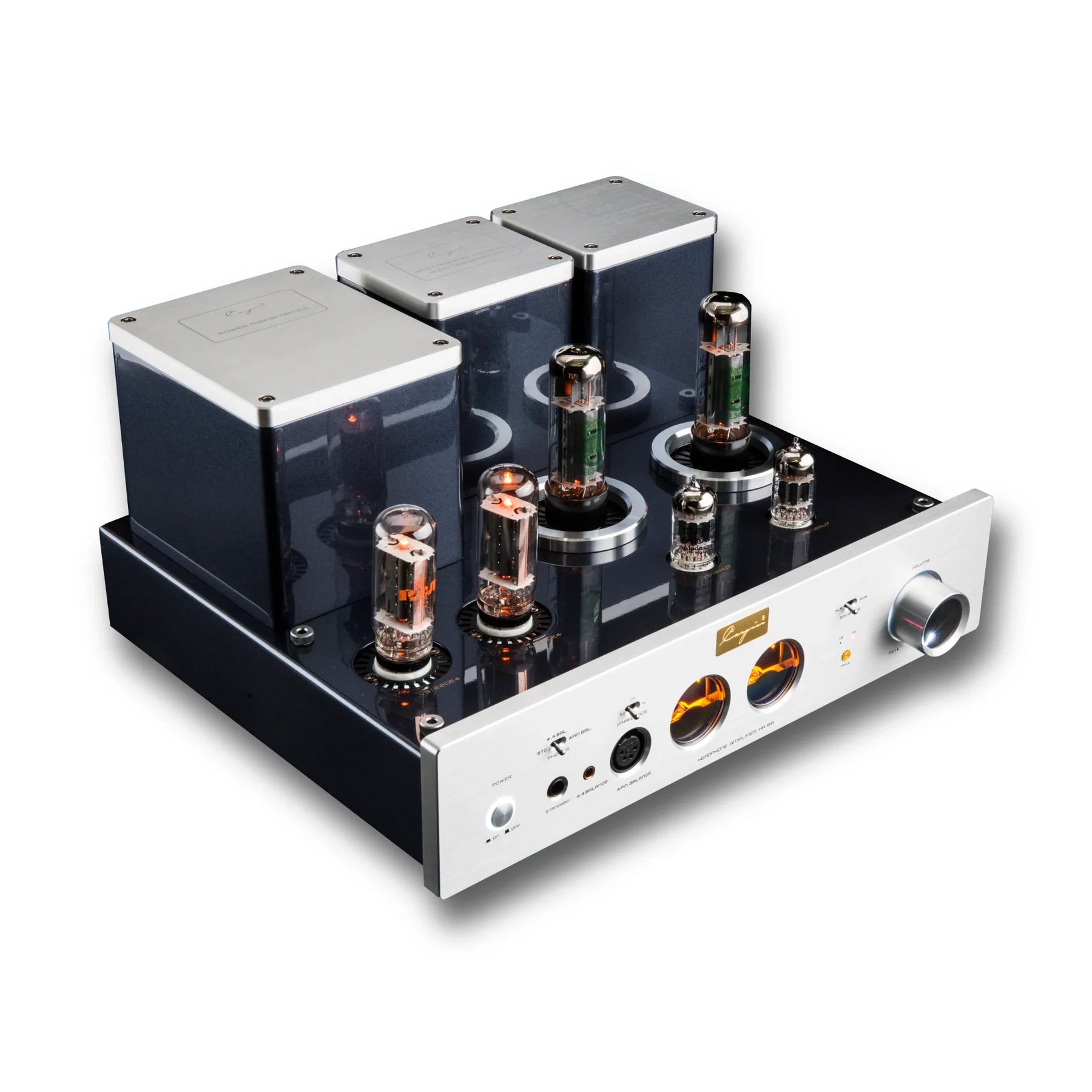

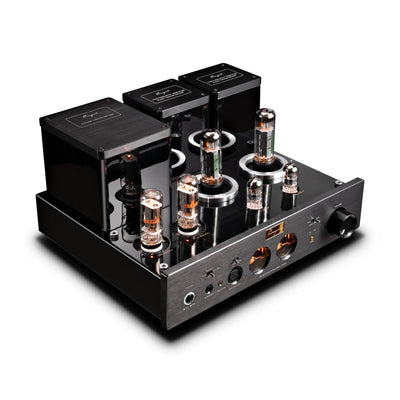

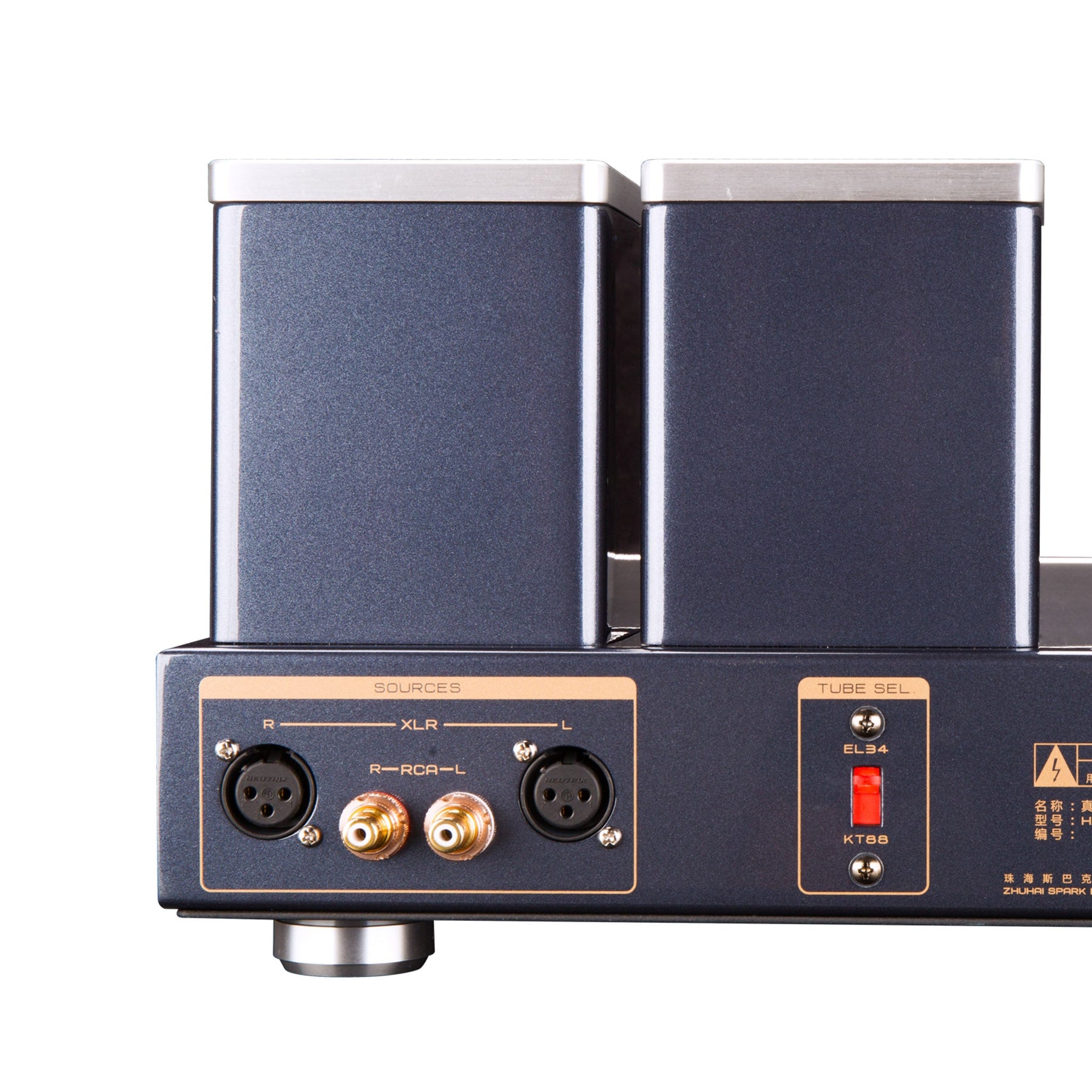

Cayin HA-6A Brings Music to Life in Any Space

• Transformer Coupled, Balanced Vacuum Tube Headphone Amplifier
• Features 4-Pin, 4.4mm, and 6.3mm Headphones Outputs
• Easy tube rolling and selectable output impedance for endless tonal options

Dual Operation Mode: Triode and Ultralinear

Change your sound signature with the flip of a switch, optimizing the presentation for different moods or styles of music. Triode mode offers a smooth sound with rich harmonics and lush, holographic imaging. Ultralinear Mode improves the dynamics and punch, with a clean authorative sound and enhanced extensive on both ends of the frequency spectrum.

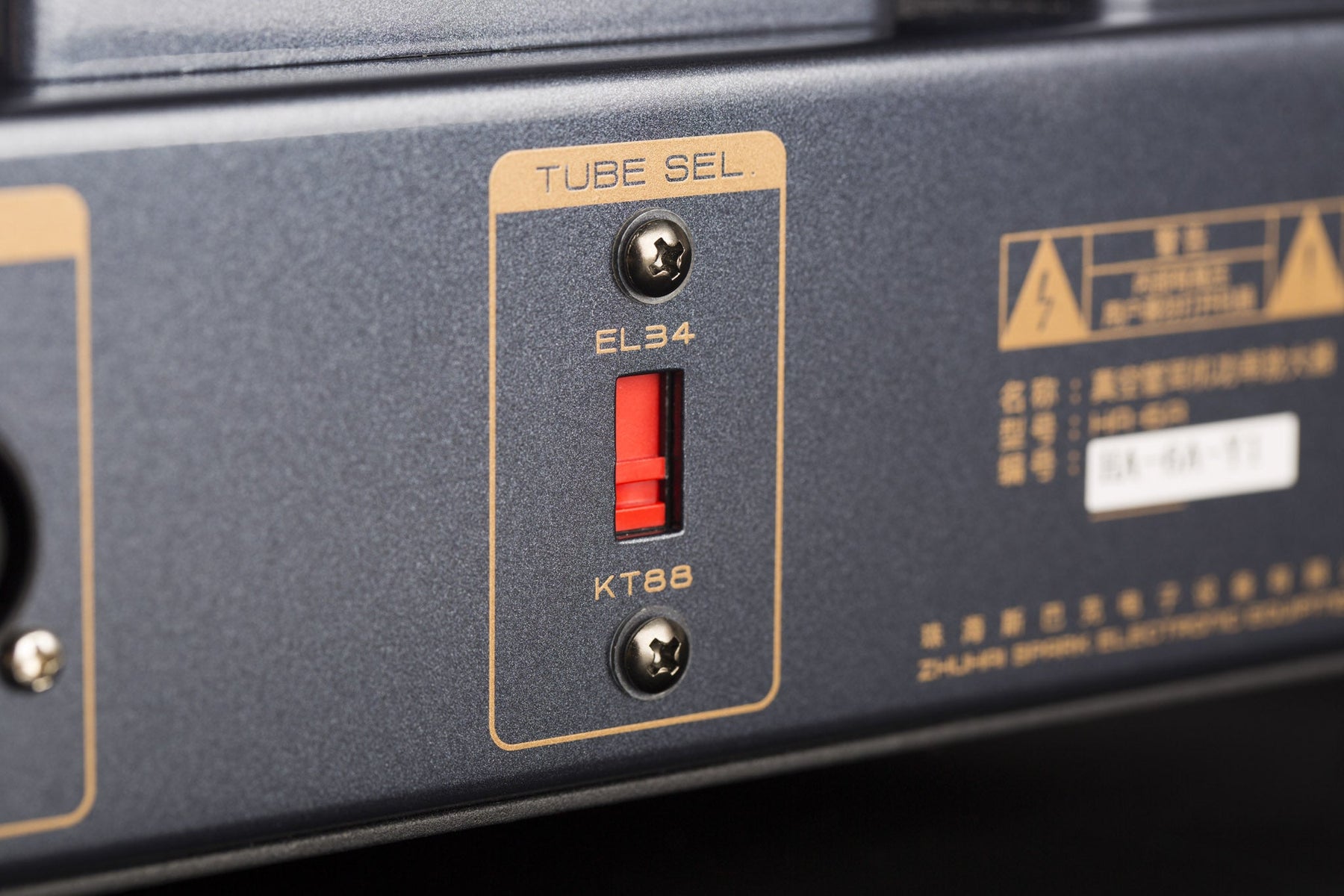

Just Roll With It

HA-6A is built for tube rolling. The included EHX EL34 were hand selected by Cayin's engineers, but you can easily change the sound with different types of tubes to fully explore your tonal options. Combine easy tube rolling with selectable impedance for headphones ranging from 8-600 ohms, and the tonal options are endless.

Key Features

Impedance Matched Headphone Output: choose from Low, Medium, or High impedance to match your headphones

Optimized Headphone Outputs: the 4-pin XLR will provide the maximum power while the 4.4mm output allows for compatibility with high-end IEMs and more sensitive options.

60 second start up delay circuit: Protects your tubes and minimizes noise related to the warm up cycle of the amplifier

Incredible Craftsmanship and In-house design

The entire circuit is hand wired using point to point wiring, rather than a circuit board. Point to point, shortens the signal path and improves the efficiency and conductivity. Cayin also uses power transformers designed and wound in house, to ensure that the shielding and output is up to their standards. HA-6A's power transformers are a matched pair for further power and efficiency in the design.

Specifications

• Tubes:
  • Power: EHX EL34 EH
  • Drive: JJ 12AU7 EH
  • Rectifier: RCA 17AX4GT
• Analog Inputs
  • RCAx2
  • XLRx2
• Output Power
  • Single Ended/Triode: 750mW (L), 1400mW (M), 2200mW (H)
  • Single Ended/Ultra-Linear: 1000mW (L), 2000mW (M), 3300mW (H)
  • Balanced/Triode: 1000mW (L), 1800mW (M), 2900mW (H)

  • Balanced/Ultra-Linear: 1600mW (L), 2800mW (M), 4200mW (H)

• THD: <1%
• SNR: 98dB
• Weight: 19.5kg
• Dimensions: 360mm x 322mm x 197mm
• Power Consumption: 140W

In the Box

• HA-6A Amplifier
• Tubes
• Power Cable
• User Manual

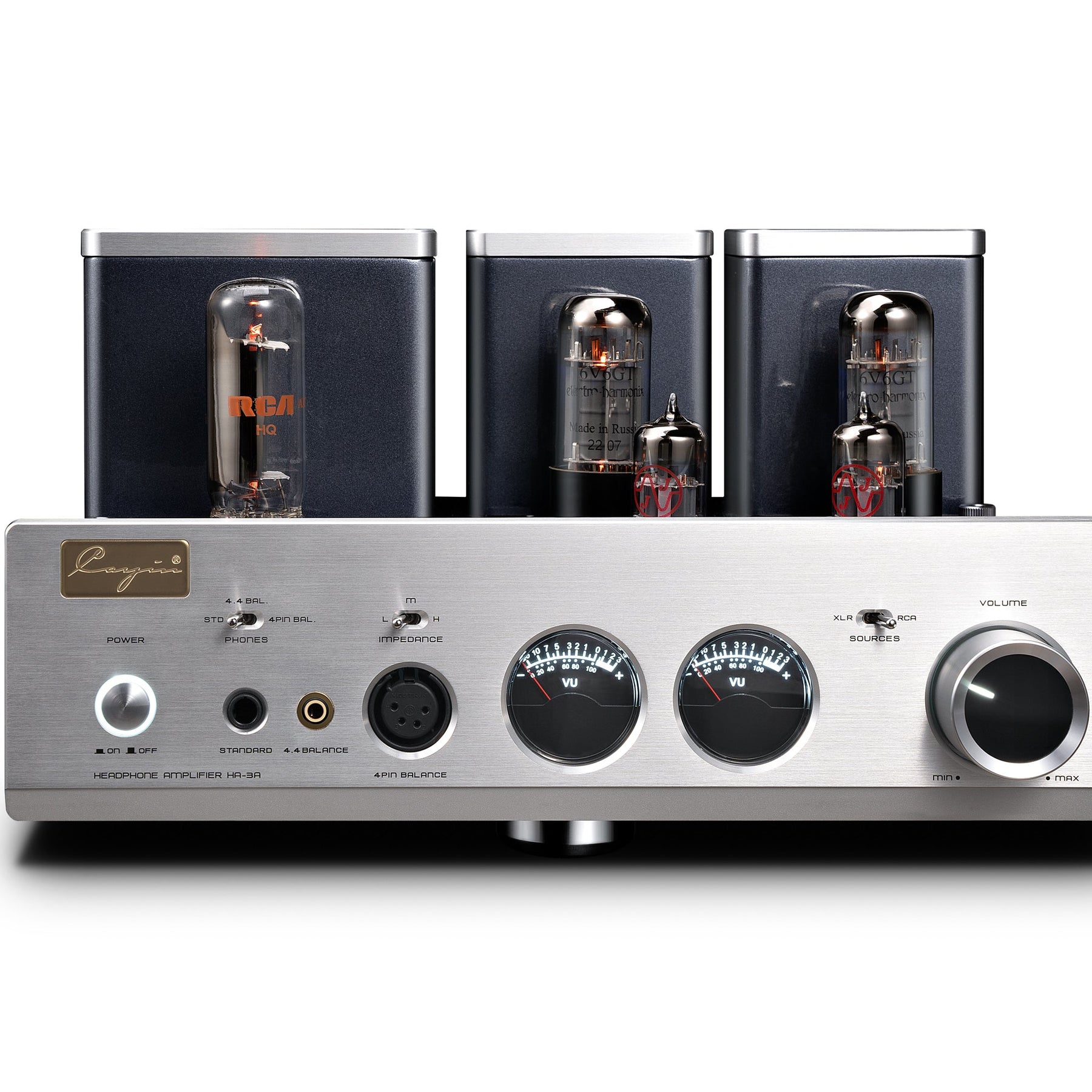

Cayin HA-3A Combines Refinement and Pure Tube Power

• Transformer Coupled, Balanced Vacuum Tube Headphone Amplifier
• Features 4-Pin, 4.4mm, and 6.3mm Headphones Outputs
• Desktop friendly design helps HA-3A fit into your lifestyle

Engineering meets Aesthetics

The HA-3A represents exquisite design accomplished by first class engineering – aesthetics backed up by genuine production quality. The HA-3A vacuum tube headphone amplifier is built so you can listen favorite music through your choice of headphones or earphones, and escape into a private, indulging retreat.

HA-3A might look compact and simple, but Cayin has devoted our renowned engineering and decades of audio equipment manufacturing to combine carefully selected, high-performance components to make it happen.

Clean Power with Minimum Interference

HA-3A users the renowned RCA 25AX4GT as a rectifier tube. The rectifier converts the incoming power souce to DC current and the RCA 25AX4GT does this while minimizing interference and providing clean power to the amplification circuit. Accompanying the RCA 25AX4GT Rectifier are dual matched JJ 12AU7/ECC82 in the driver stage, and dual EHX 6V6GT for the output stage.

Transformer-coupled, Balanced Drive

The 6V6 output drivers a pair of proprietary output transformers that support single-ended and balanced headphone outputs. The secondary winding of the output transformer provides the alternate phase needed for a balanced output, enabling balanced power from a single-ended origin.

Key Features

Impedance Matched Headphone Output: choose from Low, Medium, or High impedance to match your headphones

Optimized Headphone Outputs: the 4-pin XLR will provide the maximum power while the 4.4mm output allows for compatibility with high-end IEMs and more sensitive options.

60 second start up delay circuit: Protects your tubes and minimizes noise related to the warm up cycle of the amplifier

Incredible Craftsmanship and In-house design

The entire circuit is hand wired using point to point wiring, rather than a circuit board. Point to point, shortens the signal path and improves the efficiency and conductivity. Cayin also uses power transformers, designed and wound in house, to ensure that the shielding and output is up to their standards.

Specifications

• Analog Inputs
  • RCAx2
  • XLRx2
• Output Power
  • 4.4mm BAL: 230mW (L), 350mW (M), 400mW (H)
  • 6.3mm SE:400mW (L), 600mW (M), 700mW (H)

  • 4-Pin XLR: 600mW (L), 750mR (M), 850mW (H)
• THD: <0.2%
• SNR: 100dB
• Weight: 12kg
• Dimensions: 306mm x 260mm x 170mm
• Power Consumption: 80W

In the Box

• iHA-6 Amplifier
• Power Cable
• User Manual

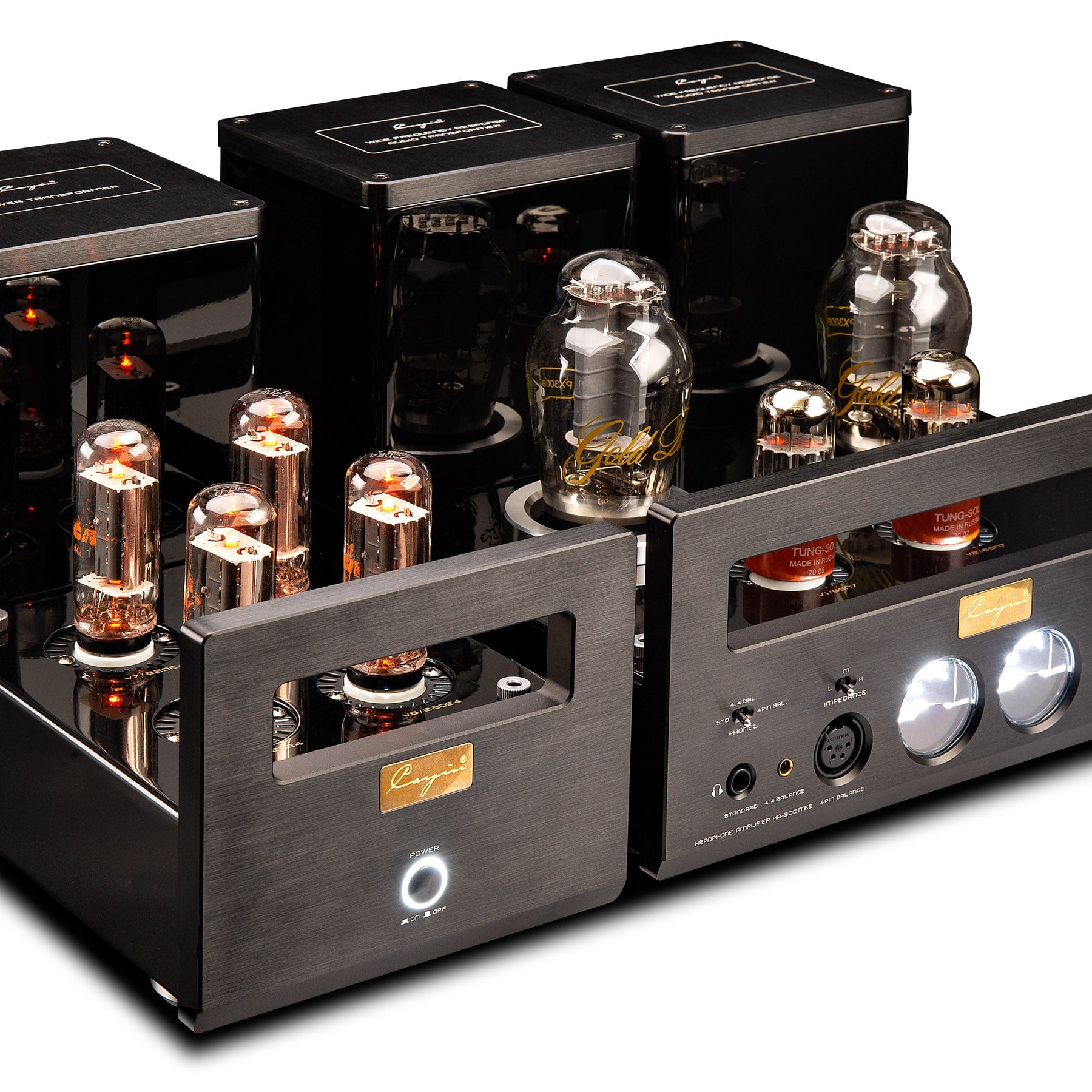

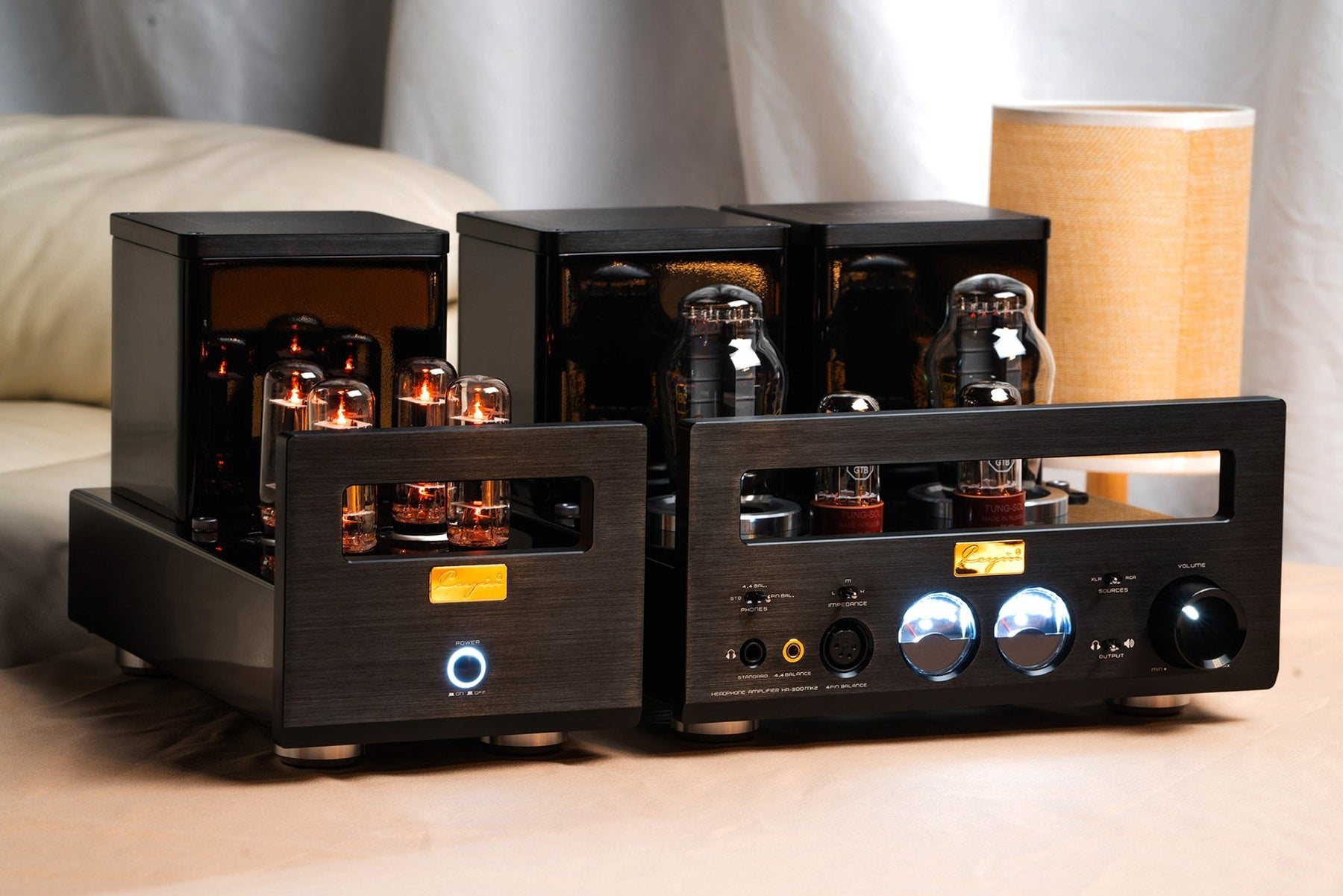

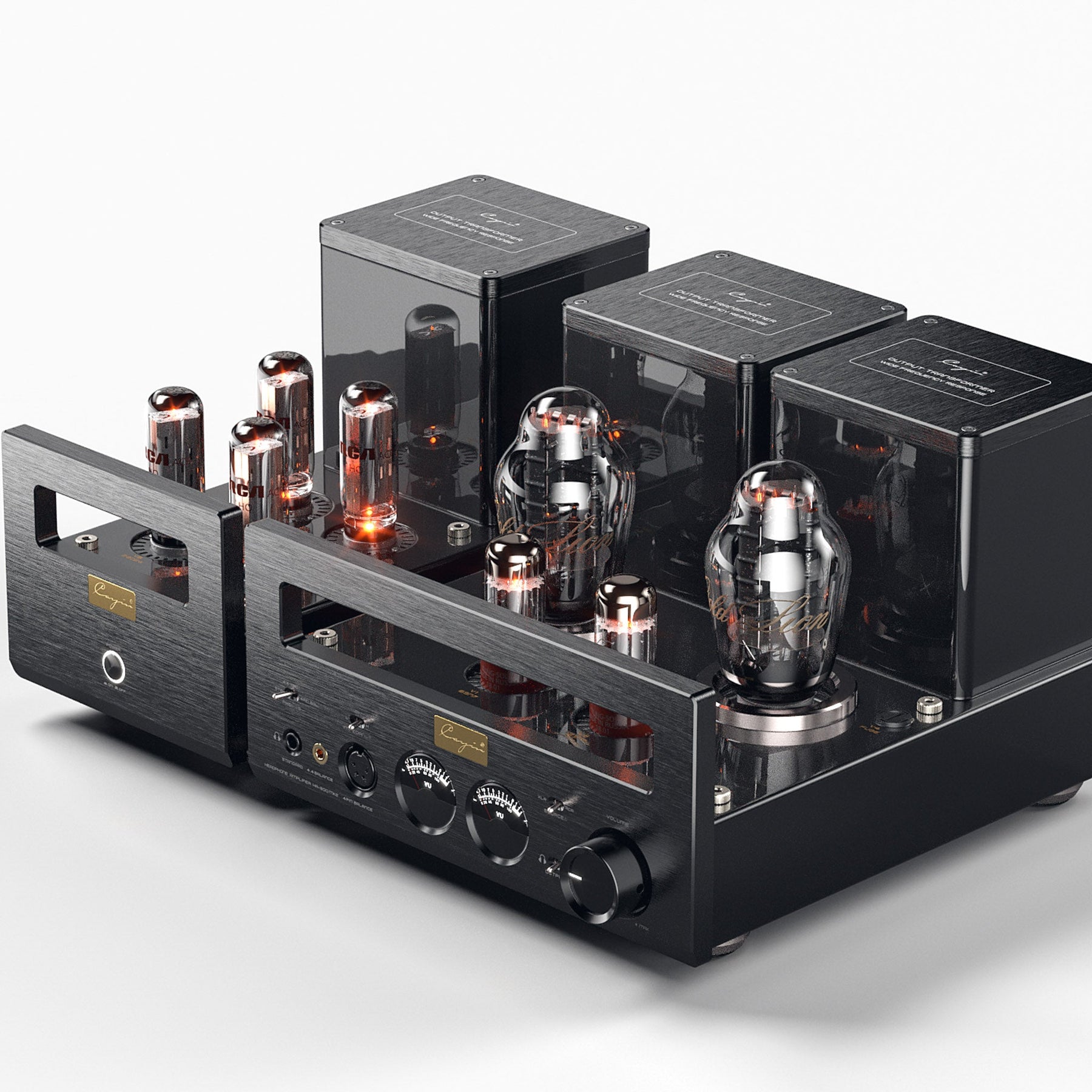

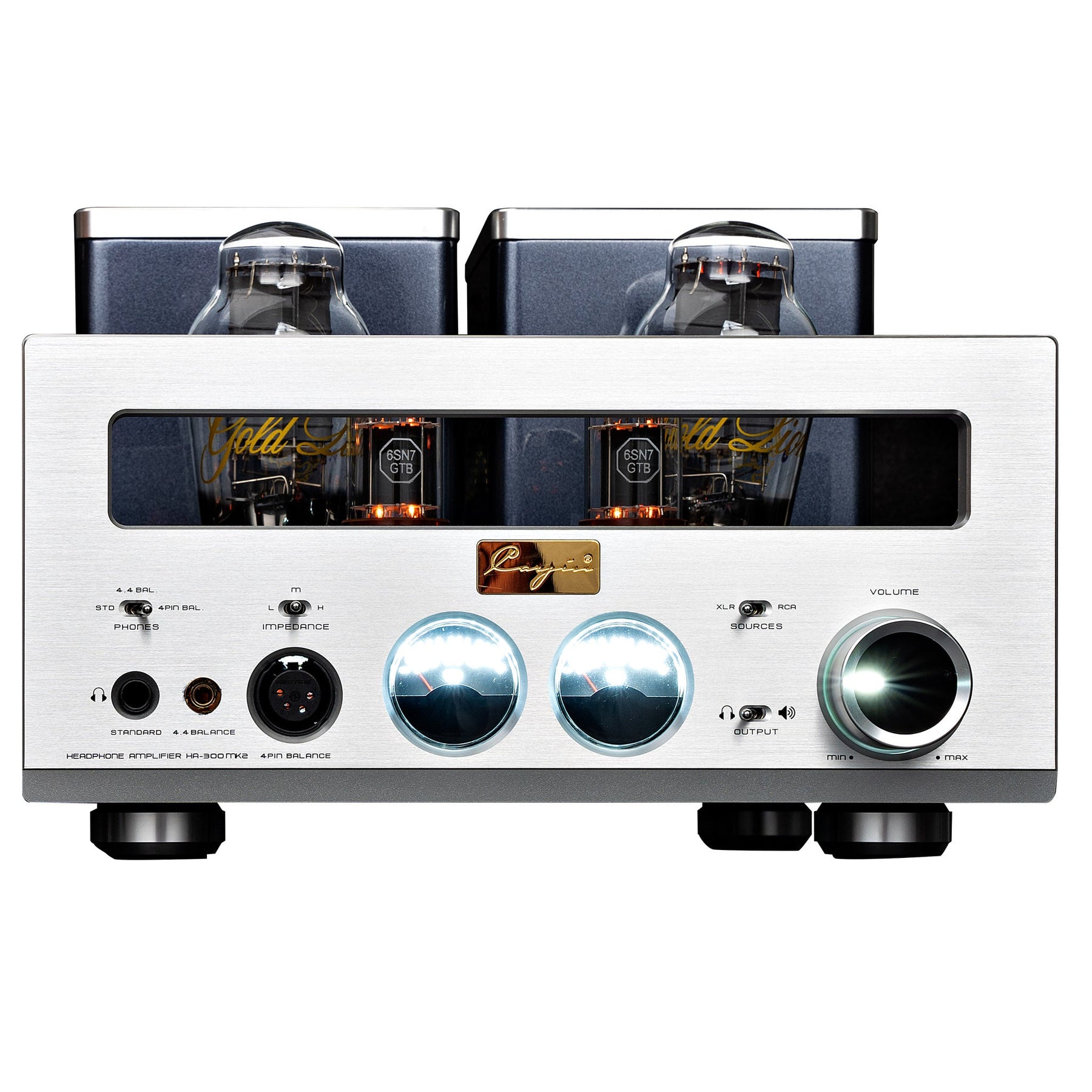

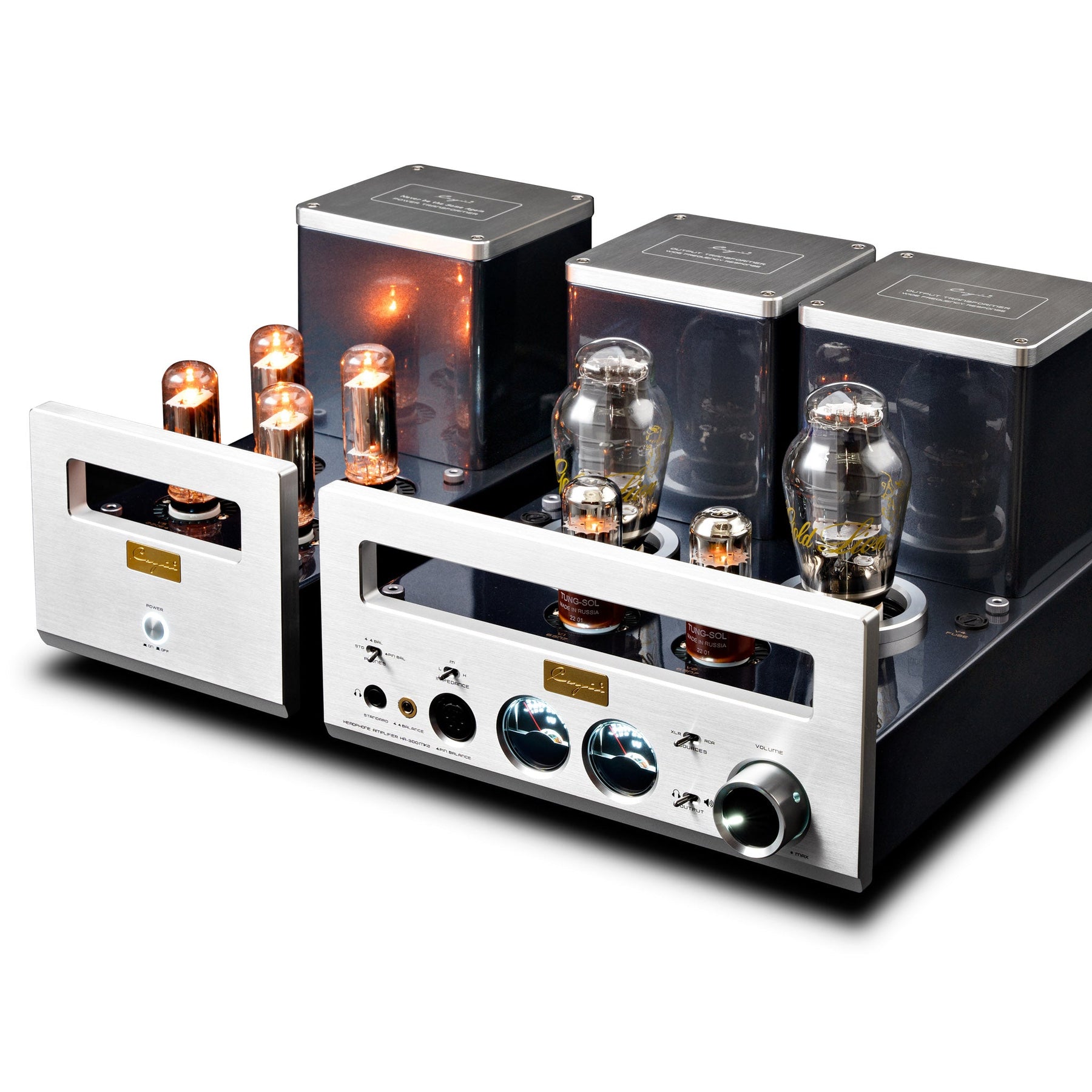

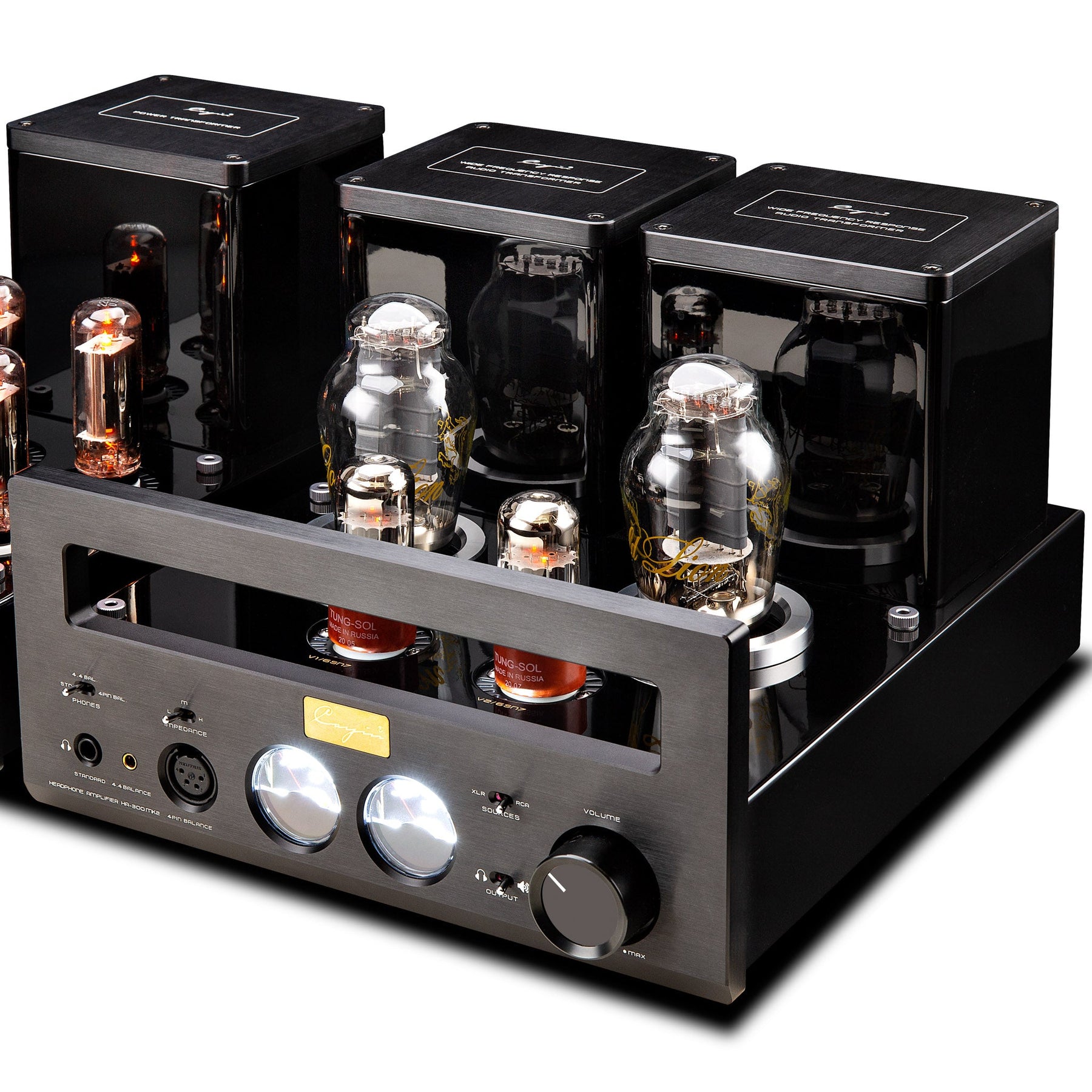

Cayin HA-300MK2 Offers Highly Refined Elegance in Sound and Design

• DHT Amplification provides tube goodness with a clean linear output

• Delivers up to 6W for headphones and 8W for speakers with it's dual outputs

• Flexible inputs and outputs, with adjustable impedance let you use HA-300MK2 with a variety of setups


The Pursuit of Direct Heated Triode (DHT) Perfection

DHT refers to triode tubes that use the cathode as the filament and heat up the cathode directly. This simple approach offers stellar dynamics, excellent representation of transients, and a transparent presentation. Using this design for headphones is even more challenging because DHT designs are sensitive to shock, vibration, and electrical inference.

The Irresistible 300B

HA-300MK2 uses a matched pair of Golden Lion PX300B low-noise audio triodes, which are renowned for their dreamy tonal characteristics, as its power output tubes. Each tube used by Cayin is tested for reliability, natural sound signature, and frequency extension.

Less is More

HA-300MK2 is a Single-Ended Triode Amplifier (SET) which uses a single vacuum tube to amplify the signal. Combined with a 2-stage amplification design, this provides a clear, linear amplification.

New Old Stock (NOS) Rectifier Tubes

HA-300MK2 uses 4x NOS RCA 22DE4, one of the best versions of the 22DE4 available. The rectifier stage converts incoming power to DC current, and Cayin's design offers clean power with minimum interference.

Speaker Output

HA-300MK2 also functions are a speaker amp, with a 8W per channel Class A output. You can connect speakers and seamlessly switch between headphones and speaker output.

Key Features

Impedance Matched Headphone Output: choose from Low, Medium, or High impedance to match your headphones

Optimized Headphone Outputs: the 4-pin XLR will provide the maximum power while the 4.4mm output allows for compatibility with high-end IEMs and more sensitive options.

60 second start up delay circuit: Protects your tubes and minimizes noise related to the warm up cycle of the amplifier

Specifications

• Tubes:
  • Power: Genalex PX300Bx2

  • Drive: Tung-Sol 6SN7GTBx2
  • Rectifier: RCA 22DE4x4
• Analog Inputs
  • RCAx2
  • XLRx2
• Output Power
  • 3.5mm Single Ended: 1200mW (L), 2200mW (M), 5000mW (H)
  • 4.4mm Balanced: 1400mW (L), 2200mW (M), 5400mW (H)
  • Balanced/Ultra-Linear: 2000mW (L), 2400mW (M), 6000mW (H)
  • Speakers: 8W per channel
• THD: <1%
• SNR: 100dB
• Weight (Amplifier): 19kg
• Weight (Power Supply): 12kg
• Dimensions (Amplifier): 286mm x 368mm x 210mm
• Dimensions (Power Supply): 150mm x 345mm x 210mm
• Power Consumption: 185W

In the Box

• HA-300MK2 Amplifier
• Power Supply
• Tubes
• Power Cable
• User Manual

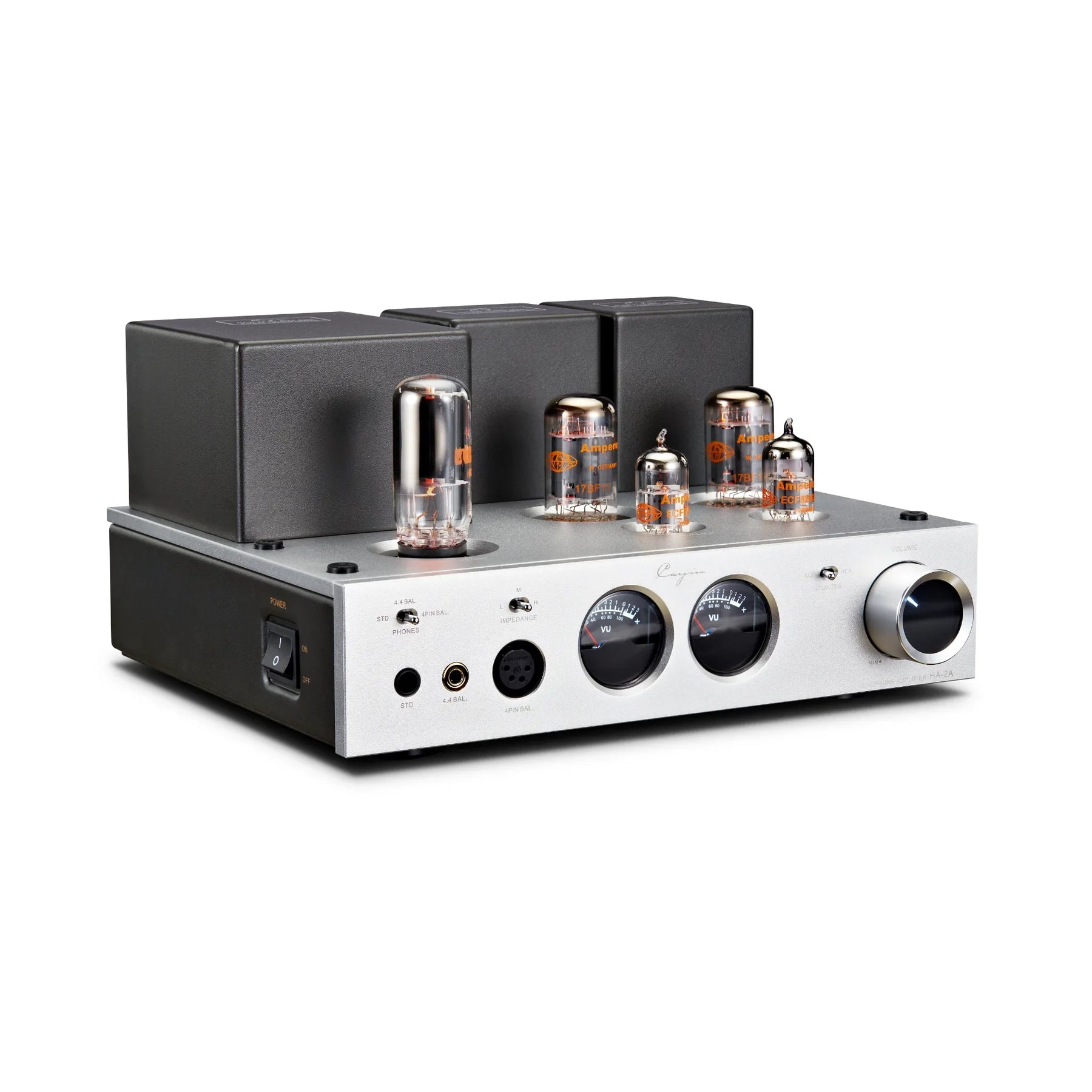

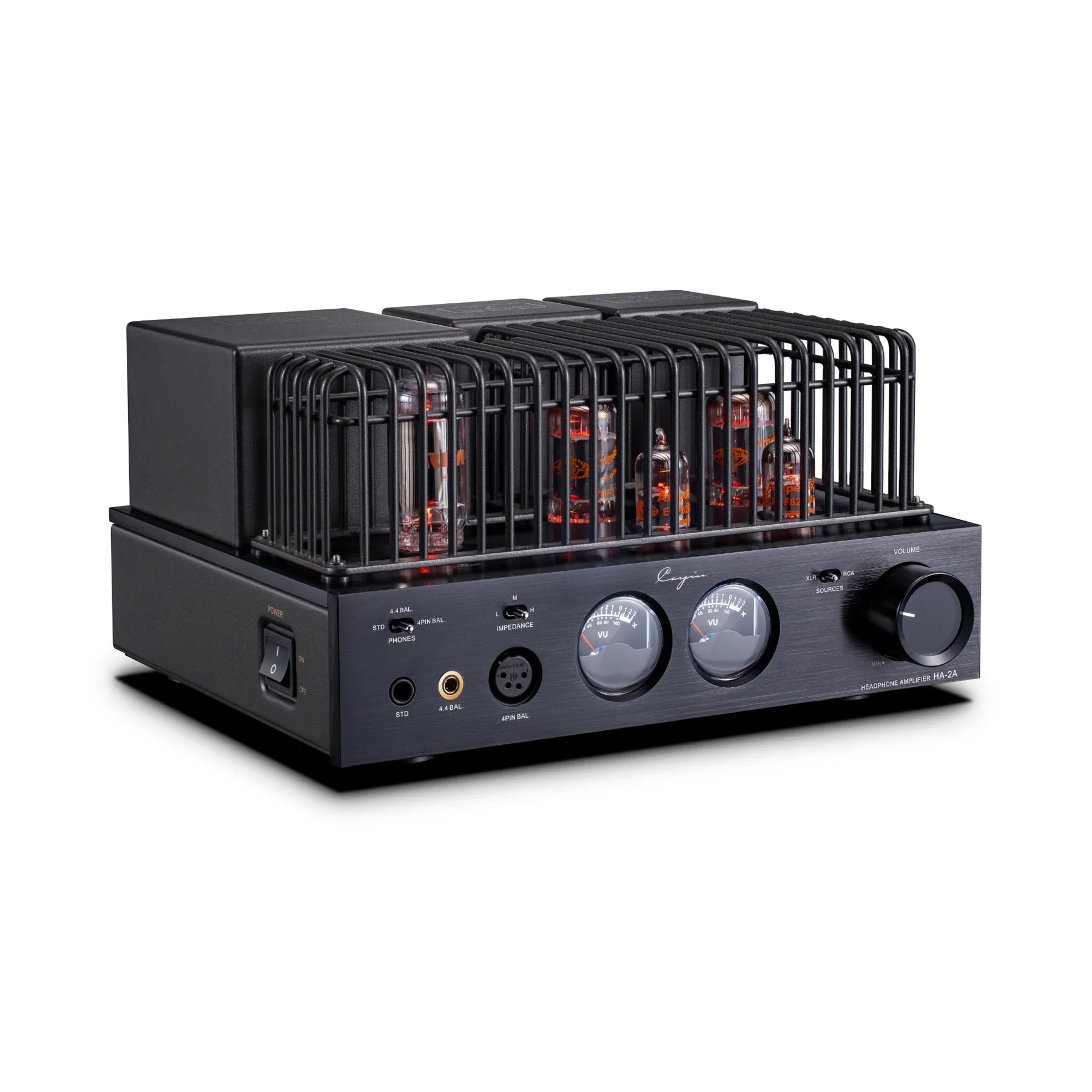

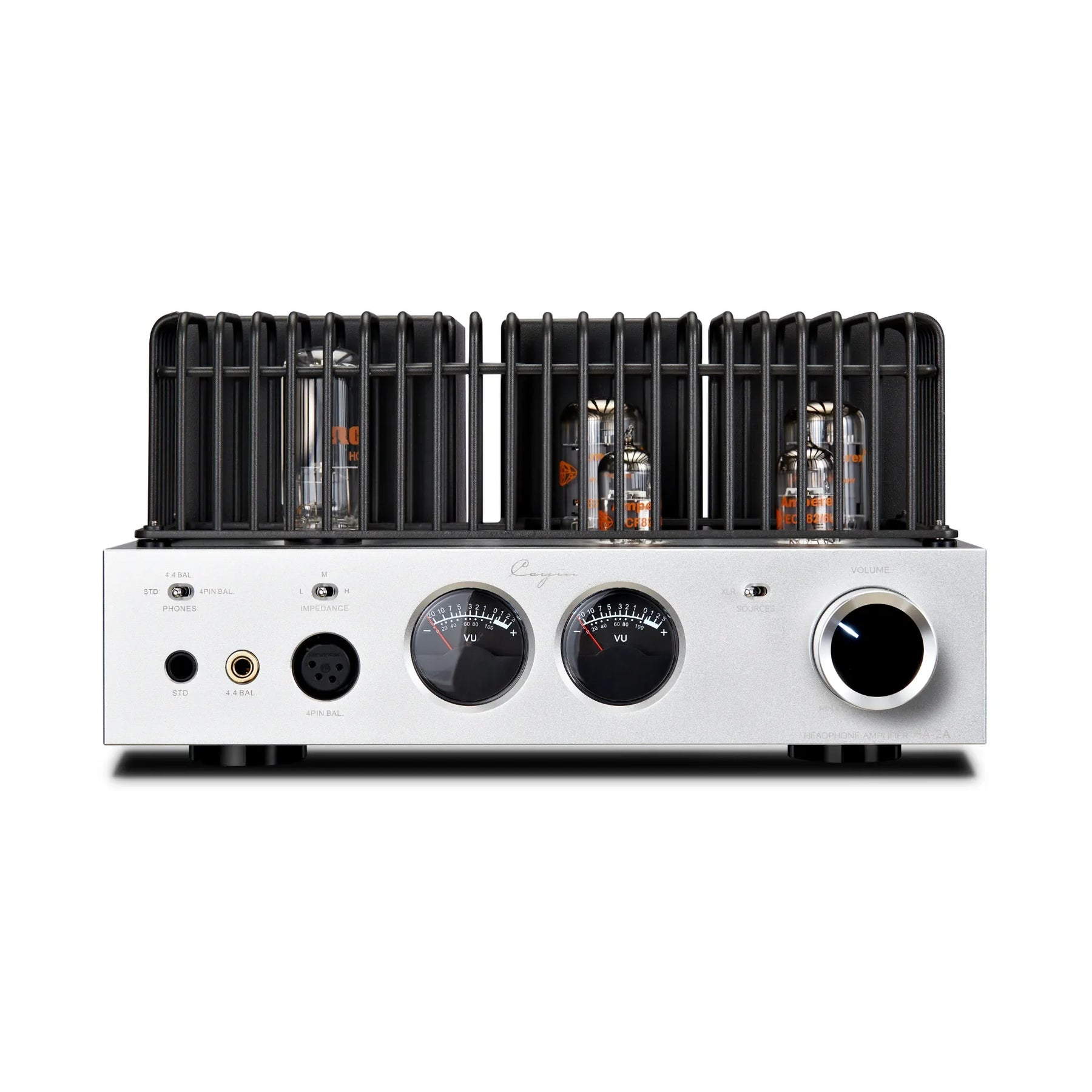

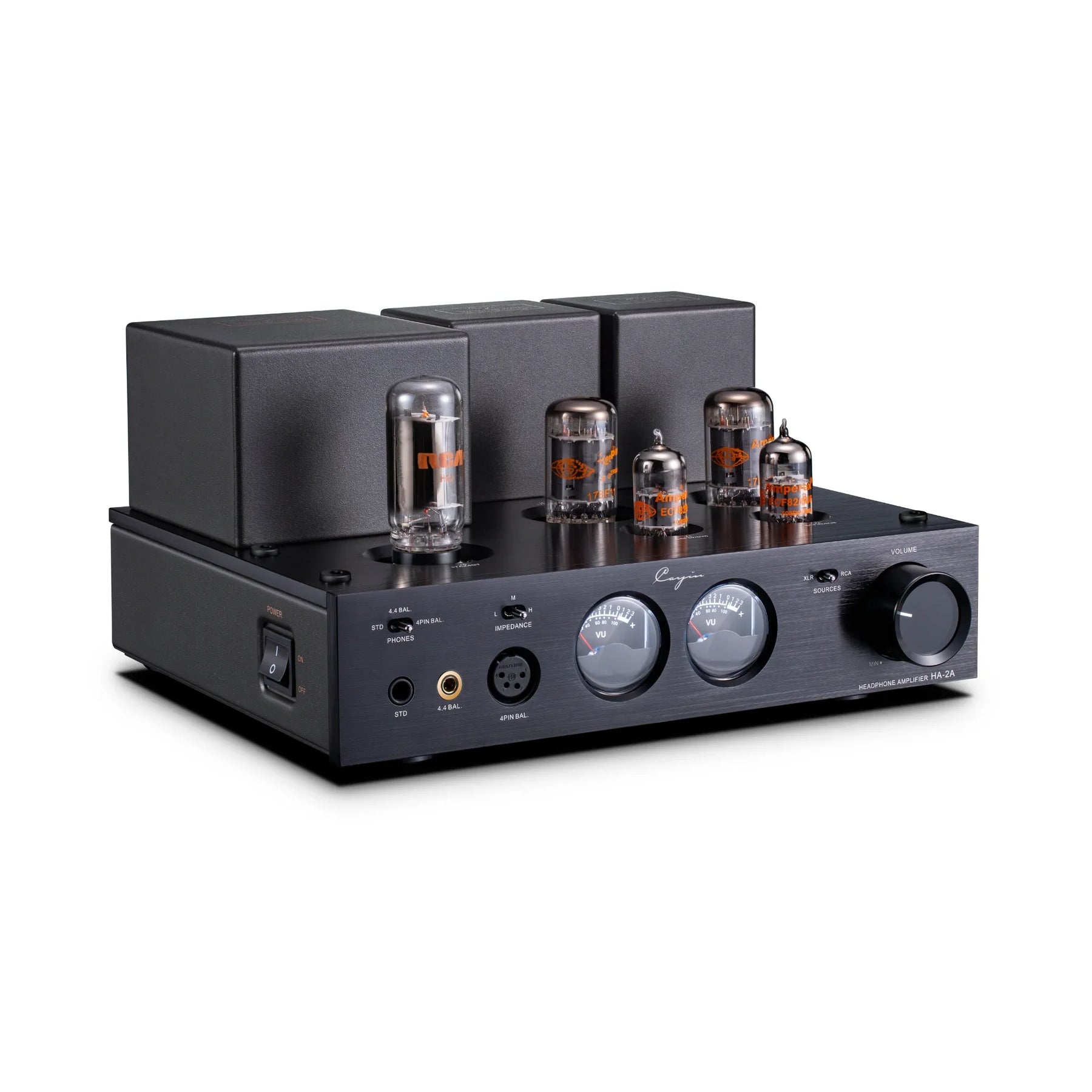

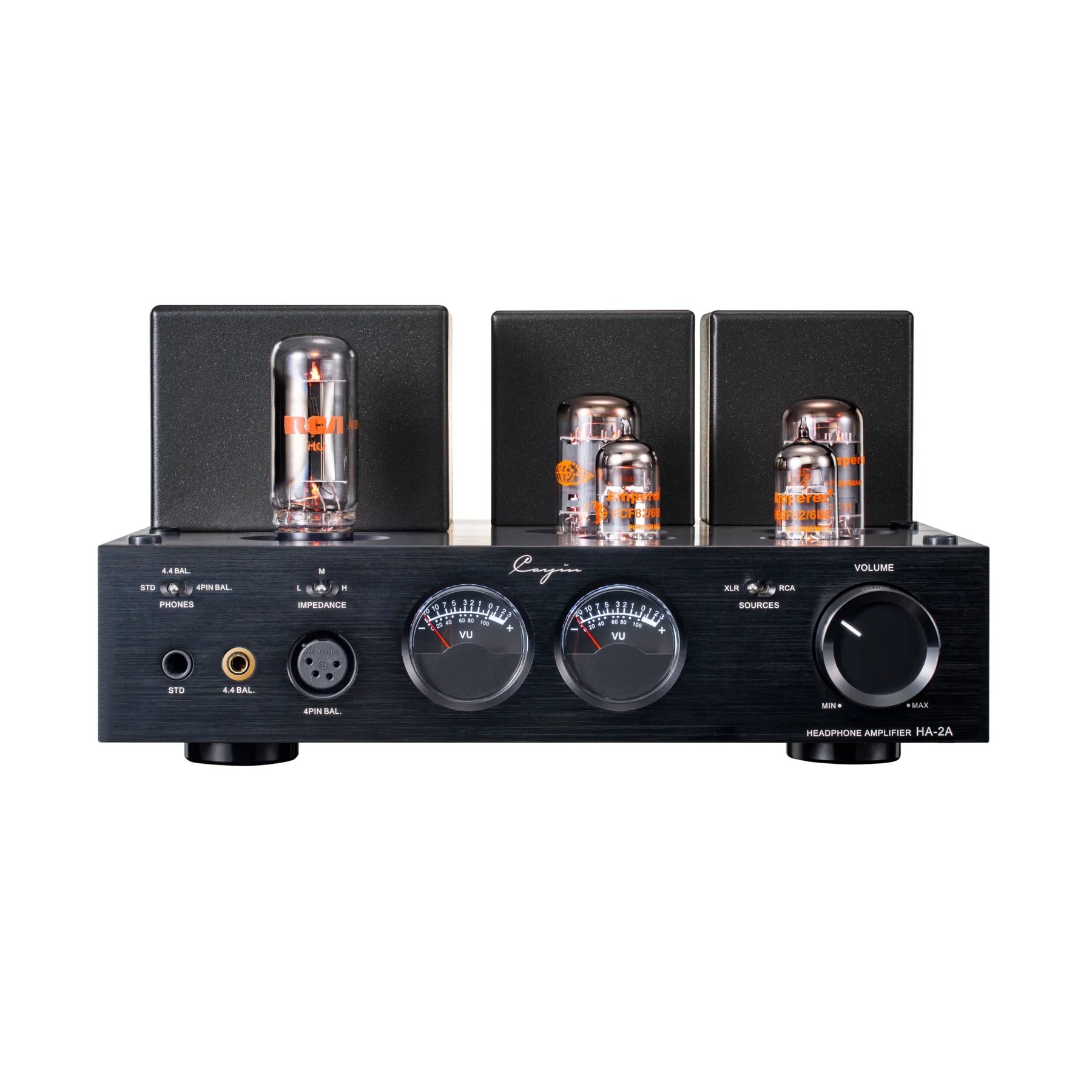

Cayin HA-2A Captures Vintage Sound and Delivers it With Modern Precision

• HA-2A was designed from the ground up to deliver vintage tube character
• Features 4-Pin, 4.4mm, and 6.3mm Headphones Outputs
• Desktop friendly design helps HA-2A fit into your lifestyle

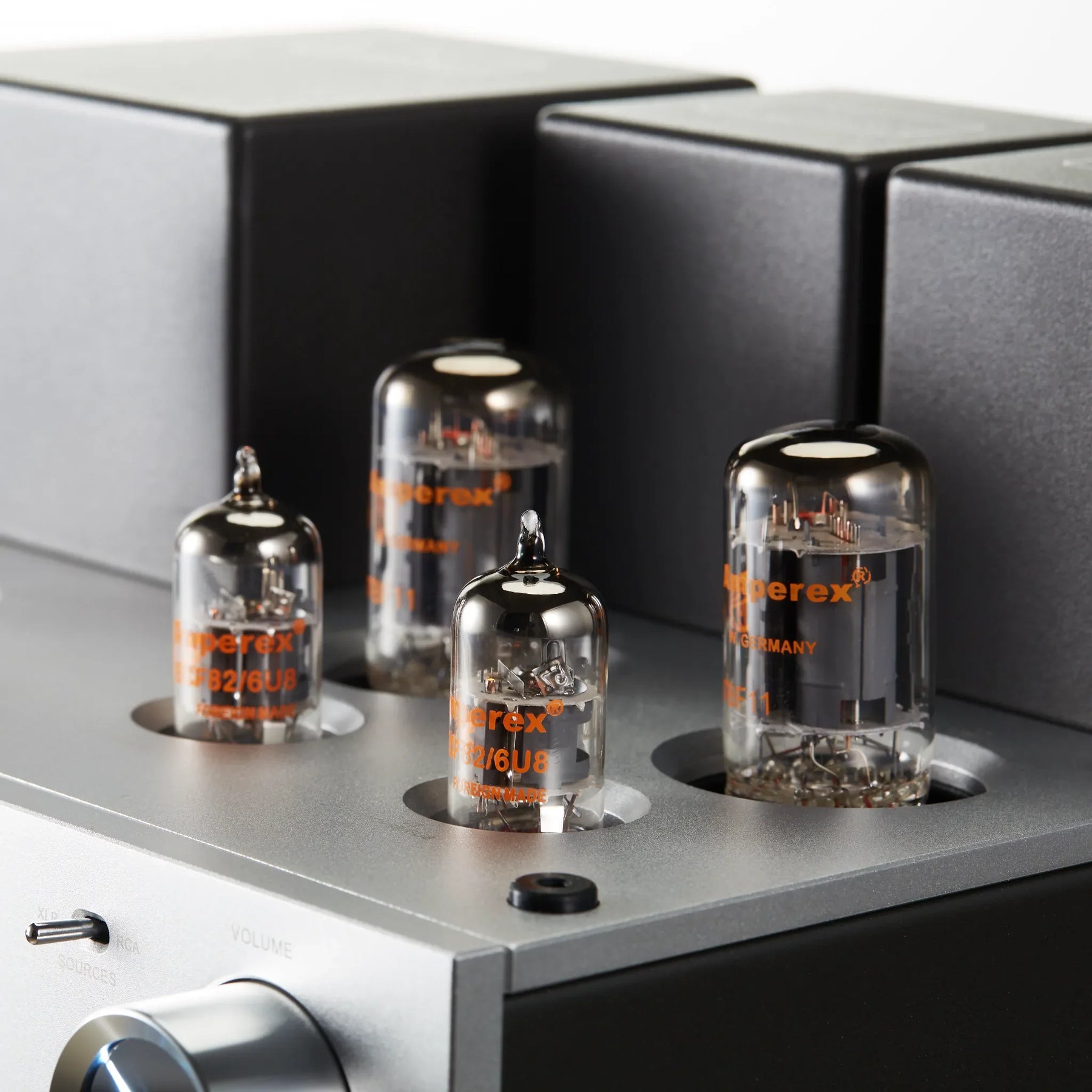

Precisely Crafted Amplifier with Vintage Vacuum Tubes

A carefully engineered circuit with (x5) vintage NOS vacuum tubes, CA-2A sounds stunning. Expect rich detail, a wide soundstage, and effortless musicality along with the unique mellow timbre and warmth of vintage NOS tubes.

• Matched pair of Amperex 17BF11 NOS dual pentode composite tubes for SE Class A power amplification
• Matched pair of Amperex ECF82/6U8 NOS high-gain pentode / medium-gain triode composite tubes for voltage amplification
• Single RCA 17AX4GT NOS rectifier tube for pre-amp stage plate power supply

Specialized Single-Ended Class A Tuning

Cayin's engineers created a single-ended Class A design to take full advantage of the characteristics of each vintage tube. In every step of the design, component selection, and final wiring, preserving the character of the tubes was carefully considered.

Key Features

Impedance Matched Headphone Output: choose from Low, Medium, or High impedance to match your headphones

Optimized Headphone Outputs: the 4-pin XLR will provide the maximum power while the 4.4mm output allows for compatibility with high-end IEMs and more sensitive options.

60 Second Startup Delay Circuit: Protects your tubes and minimizes noise related to the warm up cycle of the amplifier

Reference Grade Point-to-Point Wiring: Cayin vacuum tubes are point-to-point wired to ensure the shortest signal path. The entire circuitry is hand-wired by skilled, attentive to detail craftsmen using premium components.

Exquisite, Refined Aesthetics: seamlessly integrates with the Cayin portfolio and features dual retro VU meters, Vacuum Tube protection cage, and premium chassis finish with uniform color and fine contours.

Incredible Craftsmanship and In-house design

The entire circuit is hand wired using point to point wiring, rather than a circuit board. Point to point, shortens the signal path and improves the efficiency and conductivity. Cayin also uses power transformers, designed and wound in house, to ensure that the shielding and output is up to their standards.

Specifications

• Analog Inputs
  • RCA L+R
  • XLR L+R
• Output Power
  • 4.4mm BAL: 200mW (L), 300mW (M), 370mW (H)
  • 6.3mm SE: 330mW (L), 550mW (M), 750mW (H)

  • 4-Pin XLR: 800mW (L), 900mR (M), 1000mW (H)
• Vacuum Tubes
  • Amperex 17BF11 (x2)
  • Amperex ECF82/6U8 (x2)
  • RCA 17AX4GT
• THD: <0.2% (1kHz, 100mW)
• SNR: 100dB (A-weighted)
• Weight: 22 lbs (10kg)
• Dimensions: 10.6" x 9.7" x 5.6" (270 x 247 x 143mm)
• Power Consumption: 60W

In the Box

• HA-2A Amplifier
• Tubes
• Power Cable
• Cayin HA-2A User Manual

Experience Decades of Cayin Tube Amp Heritage in the HA-1A MK2

• HA-1A was designed from the ground up to deliver vintage tube character

• Dual outputs each offer unique sound signatures and can be used for shared listening
• Desktop friendly design helps HA-1A fit into your lifestyle

Classic Tube Design

Equipped with 2 EL84EH Output tubes, 2 12AU7 Drive tubes, and 1 12DT5 Rectifier tube, with  a single-ended amplifier circuit. The result is a natural timbre and warm, relaxed sound signature that tube amps are famous for.

Key Features

Pre-out: HA-1A MK2's preamp output lets you experience Cayin's tube excellence in any system.

Refined Volume Control: The high quality ALPS-27 rotary potentiometer offers smooth volume control while preserving every ounce of the original signal.

Dual Headphone Outs Offer Unique Tonal Options

Headphone A provides more dynamics and punch, with a faster, more energetic sound. B provides a softer, more intimate signature. Both can be used at the same time, but the impedance settings are shared, so connecting headphones with different impedances at the same time may have a negative impact on audio performance.

Specifications

• Tubes
  • Output: EL84EHx2
  • Drive: 12AU7x2
  • Rectifier: 12DT5x1
• Analog Inputs
  • RCAx2

• Analog Outputs:
  • RCA x1
  • 6.3mm Headphone x2
• THD (Headphones): 2%
• THD (preamp): 0.8%
• SNR: 88dB
• Weight: 7kg
• Dimensions: 126.5mm x 304mm x 215mm
• Power Consumption: 60W

In the Box

• HA-1A Amplifier

• Power Cable
• User Manual

The Cayin C9ii Sets a New Benchmark in Sonic Excellence with Three Versatile Timbre Options, Class A/AB/Hyper Amplification Modes and Advanced Power Management

• Advanced Amplification Circuit: Fully discrete, fully symmetric differential amplification with a three-stage circuit design for superior load-driving capability and enhanced transparency.
• Three Amplification Modes: Offers Class A and Class AB modes, along with the newly introduced Hyper Mode, maximizing circuit performance for superior fidelity, dynamics, and soundstage.
• Triple Timbre Options: Features Tube Timbre with dual KORG Nutube 6P1 vacuum tubes for warm, analog-rich sound, Solid-State Timbre for a clean and precise sound profile, and Bypass Timbre for uncolored output, ensuring versatility for different listening preferences.
• High-Quality Power Management: Powered by four high-capacity 21700 batteries with an advanced power supply circuit to ensure stable, high-current delivery for all modes and timbre options.

Premium Amplification Technology

The Cayin C9ii features a fully discrete, fully symmetric differential amplification architecture with a sophisticated three-stage design. This approach ensures unmatched transparency, a wide dynamic range, and precision in audio reproduction. Its enhanced load-driving capability caters to even the most demanding headphones and IEMs, allowing the C9ii to deliver a balanced, high-fidelity listening experience with ease.

Three Amplification Modes

Designed to cater to diverse listening preferences, the C9ii offers three distinct amplification modes:

• Class A Mode provides rich harmonic textures and a natural, organic sound signature, ideal for immersive music sessions.


• Class AB Mode balances efficiency and sonic detail, delivering a cleaner sound with tighter control over dynamics.


• Hyper Mode takes performance to the next level by optimizing the circuit for enhanced soundstage depth, superior dynamics, and crystal-clear fidelity.

Heavy-Duty Timbre Circuit

The Cayin C9ii features an advanced Gen5 Nutube 6P1 vacuum tube circuit with a fully discrete JFET buffering architecture, paired with a high-performance constant current source design.

This state-of-the-art three-stage low-gain buffering timbre circuit employs a matched pair of Nutubes as low-gain voltage amplifiers, enabling enhanced load-driving capability.

To achieve superior audio performance, the circuit integrates 16 Toshiba 2SK209 audio-grade JFETs, ensuring stable and consistent current regardless of varying voltage loads. This innovative design delivers a rich, authentic timbre, allowing for precise and dynamic sound reproduction across all listening scenarios.

Versatile Timbre Selection

The C9ii takes customization further with three selectable timbre options:

• Tube Timbre utilizes dual KORG Nutube 6P1 vacuum tubes to produce a warm, lush analog sound that exudes musicality.


• Solid-State Timbre offers a clean and precise sound signature with remarkable clarity and resolution.


• Bypass Timbre provides a neutral and uncolored signal, preserving the original sound of your audio source.

These timbre options allow users to tailor the audio output to suit their preferences or specific genres of music, delivering unparalleled versatility.

Flexible Connectivity Options

The C9ii ensures compatibility with a variety of audio setups thanks to its balanced (4.4mm) and single-ended (3.5mm) inputs and outputs. This versatility allows the amplifier to seamlessly integrate into both portable and desktop systems, accommodating a wide range of headphones and source devices.

High-Quality Power Supply

At the heart of the C9ii’s reliable performance is its robust power supply, powered by four high-capacity 21700 rechargeable batteries. These batteries provide extended playtime, ensuring uninterrupted audio enjoyment. The advanced power management circuit delivers a stable, high-current supply, guaranteeing consistent performance across all amplification modes and timbre settings.

Unparalleled Sound Performance

The Cayin C9ii is meticulously tuned to deliver the ultimate audio experience, transcending the boundaries of portable amplification. Whether you prefer rich analog warmth, precise solid-state detail, or a neutral and uncolored sound, the C9ii adapts to suit your needs.

Specifications

• Analog Inputs
  • 3.5mm TRS
  • 4.4mm TRRRS
• Analog Outputs
  • 3.5mm TRS
  • 4.4mm TRRRS
• Timbre Circuit (Tube): KORG Nutube 6P1 x2
• Timbre Circuit (SS): Toshiba 2SK209 JFET x 4
• Input differential Amp: LIS LSK489 + LSJ689 JFET x 4
• Electronic Volume Control: MUSES72320x2
• Battery: Samsung INR18650-35E (3400mAh) x4
• Dimensions: 165 x 88.5 x 30mm
• Weight: 650g

• C9ii Product and Battery Specs
• C9ii Headphone Output Specs

In the Box

• C9ii Portable Headphone Amplifier
• C9ii Battery Module

• Single-ended Portable Interconnect (3.5mm to 3.5mm)
• Balanced Portable Interconnect (4.4mm to 4.4mm)
• Samsung Samsung INR18650-35E Batteries x4
• USB-C Charging cable

• User Manual

The Cayin C9: Flagship Portable Power

• Incredible versatility and up to 4.1W of power in your pocket.

• Choose between the euphonic tube mode or the incredible accuracy of solid state.

• Class A and Class AB offer further customization of the sound and efficiency.
• Supports 4.4mm and 3.5mm input and output, with BAL to SE, and SE to BAL options.
• User serviceable and replaceable batteries.


Choice of Timbre Vacuum Tubes/Solid State

C9 uses a custom-designed fully balanced 4-ch dual timbre circuit with the Toshiba 2SK209 JET(Quad Set) for solid state, and a Korg Nutube 6P1 Double Direct Heated Triode for tube mode. You can use either mode for both Single-ended and Balanced Headphone Output

Vacuum Tube Timbre Circuit

The Redesigned timbre circuit gives you a livelly, euphonic, and delicate presentation using two miniature double Direct Heated Triode (DHT) for both Balanced and Single-ended output, with carefully implemented NFB that reduce THD+10 to 0.03%. Cayin's innovative installation process eliminates the microphonic effect of vacuum tubes.

Solid State Timbre circuit

The solid state circuit delivers a warm and rich timbre that is realistic and engaging. It uses a fully discrete buffer and amplification audio circuit designed around two matched pairs of high quality, low noise Toshiba 2SK209 JFET op-amps.

Dual Amp Operation Mode

C9's dual amp operation mode lets you switch between Class A and Class AB operation instantly. Class A mode is less energy efficient, but provides the lowest possible distortion, and a warm, smooth, musical sound. Class AB offers longer battery life along with a clean, tight low-end presentation.

Dual Input Mode

C9's dual input mode allows you to optimally receive fixed or variable volume signals, and bypass the C9's volume control when connected to a device with its own volume control.

Line: Receives fixed voltage audio signal from line level output and functions as a headphone amplifier with local volume control

Pre: receives variable voltage audio signal from pre-amp output and function as a power amplifier: volume is controlled at the source equipment

The amp also isn't limited by your input source. You can use balanced headphones with a single ended source or single-ended headphones with a balanced source, seamlessly.

User Serviceable Batteries

One of the biggest problems portable audio fans face is battery degradation on their high-end devices. Usually a battery replacement means waiting weeks to receive service from the manufacturer. C9 gets reliable, replaceable power from 4x Sony VTC6 3000mAH 18650 Lithium Batteries.

Specifications

• Analog Inputs
• 3.5mm TRS
• 4.4mm TRRRS
• Analog Outputs
• 3.5mm TRS
• 4.4mm TRRRS
• Timbre Circuit (Tube): KORG Nutube 6P1 x2
• Timbre Circuit (SS): Toshiba 2SK209 JFET x 4
• Input differential Amp: LIS LSK489 JFET x 4
• Electronic Volume Control: MUSES72320x2
• Battery: Sony US1865V9VTC6 x 4
• Battery Duration
• Solid State:
• SE/Class AB: 15 hours, SE/Class A: 12 hours
• Bal/Class AB: 10 Hours, Bal/Class A: 7 Hours
• Vacuum Tubes:
• SE/Class AB: 9.5 Hours, SE/Class A: 8 Hours
• Bal/Class AB: 9 Hours, Bal/Class A: 5.5 Hours
• Charge time (estimated):
• Standard Charger: 6 hours
• Quick Charge 3.0: 3 hours
• Output power
• 3.5mm SE: 16Ω: 1200mW, 32Ω: 700mW, 150Ω: 160mW, 300Ω: 80mW
• 4.4mm Bal: 16Ω: 4.1 W, 32Ω: 2.6 W, 150Ω: 640mW, 300Ω: 320mW
• Dimensions: 160x80x28mm
• Weight 550g
• Full C9 Specs

In the Box

• C9 Portable Headphone Amplifier
• C9 Battery Module
• Read Panel Glass Protector
• Single-ended Portable Interconnect (3.5mm to 3.5mm)
• Balanced Portable Interconnect (4.4mm to 4.4mm)
• USB-C Charging cable
• Replacement screws for battery module
• T6 Screw Driver
• User Manual

Introducing Cayin's BTC-2 Hi-Res Bluetooth DAC AMP: Hi-Res On the Go

• Offers pristine audio performance with ES9018K2M DAC chip
• Features Qualcomm QCC5125 Bluetooth Audio SoC
• Bluetooth 5.1 supports SBC, AAC, aptX, aptX LL, aptX HD, LDAC
• Customized OLED display
• All-metal chassis, minimalist design

Seamless Connectivity

The BTC-2 features the Qualcomm QCC5125 High-Fidelity Bluetooth SoC with Bluetooth 5.1. It supports a variety of high-resolution wireless audio codecs, including aptx HD and LDAC (LDAC transmits up to 96kHz/24Bit high-resolution audio). Enjoy wireless convenience with stable signal transfer and exceptional sound quality for a smart, user-friendly experience.

Using Bluetooth does not mean Cayin compromises on circuit design. The BTC-2 features a dual-chip, 4-channel balanced circuit with positive and negative signal separation, this circuit design maintains balance throughout the decoding and amplification stages. Thanks to the balanced circuit, it significantly reduces noise and distortion, delivering clearer, more accurate sound. Every subtle moment of signal transmission and conversion faithfully preserves the original audio, free from unwanted distortion and interference.

Precise and Pure

Equipped with the ES9018K2M DAC chip, specially designed for stereo systems, this low-power DAC ensures precise reproduction and pristine audio performance. Whether you're connecting to a TV, set-top box, or smartphone via S/PDIF input or Bluetooth, you'll enjoy a more true-to-life and detailed sound experience.

Superior EMI Shielding

The body is crafted from a finely engineered all-metal chassis, expertly designed to mitigate the impact of external electromagnetic fields on the device's circuits and components. This design provides effective EMI shielding, ensuring high-fidelity audio signal transmission.

Versatile Application

Bluetooth Connectivity
Received and decoded by the device to drive headphones or output LINE analog and S/PDIF digital signals

S/PDIF Digital Input
Received and decoded by the device to drive headphones or output LINE analog signals

LINE IN
Received by the device to drive headphones or output LINE analog signals. When using LINE IN, the signal bypasses the internal DAC and is routed directly to the amplification circuit.

Uncompromising Components for Reliable Sound

Equipped with Nichicon coupling capacitors imported from Japan, the circuit ensures exceptional clarity and transparency of sound while minimizing distortion and noise.

The audio circuit utilizes a high-precision, high-performance audiophile-grade operational amplifier (op-amp), delivering outstanding current drive capability, excellent transient response, and low noise floor, all of which guarantee high-precision audio signal processing.

The volume knob features a premium, precise ALPS potentiometer from Japan, providing a superior tactile feel with low distortion and noise, ensuring precise volume adjustment.

User-Friendly Design

The BTC-2 features a USB-C power port which makes things easy. The included power cable is widely compatible, allowing for easy connection to various power adapters and even directly to power banks maximizing BTC-2's flexibility.

Convenient Buttons:

SOURCE: Toggle between Bluetooth, S/PDIF digital, or line-in modes. Long press the SOURCE button or use FUN1 key on the remote to access the filter selection menu. You can cycle through filter options, which include Fast Roll-Off, Slow Roll-Off, and Minimum Phase.

Play/Pause/Long: press to disconnect Bluetooth.

Previous Track/Next Track

Aluminum Volume Knob: Adjusts headphone output volume with precision.

Cayin provides a complimentary remote control with the BTC-2. It supports infrared remote functionality allowing convenient adjustment of various settings with ease.

The high-gain "rubber ducky" antenna can be quickly detached when not using Bluetooth saving space if things are tight.

Sleek Design

The panel is crafted from 6mm thick, high-quality Aluminum Alloy with refined, brushed anodized finish. The BTC-2 is equipped with an OLED dot matrix display, providing clear and intuitive playback info at a glance. The sleek and minimalistic designed chassis seamlessly fits into various environments, making it a stylish and versatile addition to any setup.

Specifications

• Bluetooth SoC: Qualcomm QCC5125
• DAC: (x1) ES9018K2M
• Op-Amp: (x1) OPA1652
• Amplifier: (x2) RT6863
• Output Power:
  • SE: 190mW + 190mW
  • BAL: 280mW + 280mW
• Digital Input:
  • BT: 96kHz/24bit
  • S/PDIF: 192kHz/24bit
• Power Input: USB-C Port, 5V/1A
• Dimensions: 7.1" x 6.6" x 1.6"
• Weight: 1.65 lbs
• Operating Mode: Bluetooth Input Decoding, COAX Input Decoding, Line Input Amplification
• Output Mode: Analog Line Output, Digital COAX Output, BAL and SE Headphone Out
• Screen: 1.7" 128x32 white OLED
• Bluetooth: 5.1 | LDAC, aptX HD, aptX LL, aptX, AAC, SBC
• Cayin 1 Year Warranty

In the Box

• BTC-2 Hi-Res Bluetooth DAC Amp
• User manual
• USB cable
• Remote control
