Ruark Audio

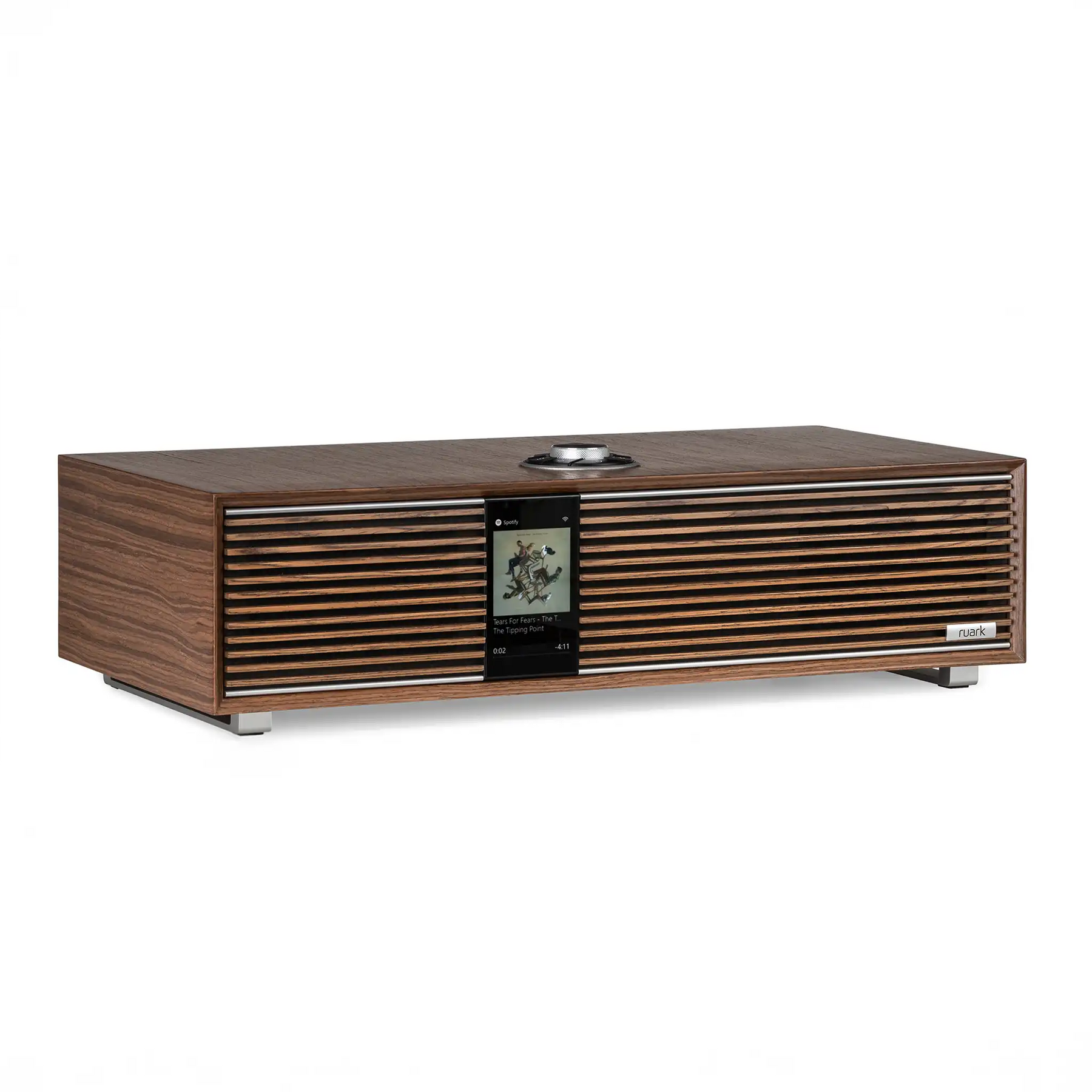

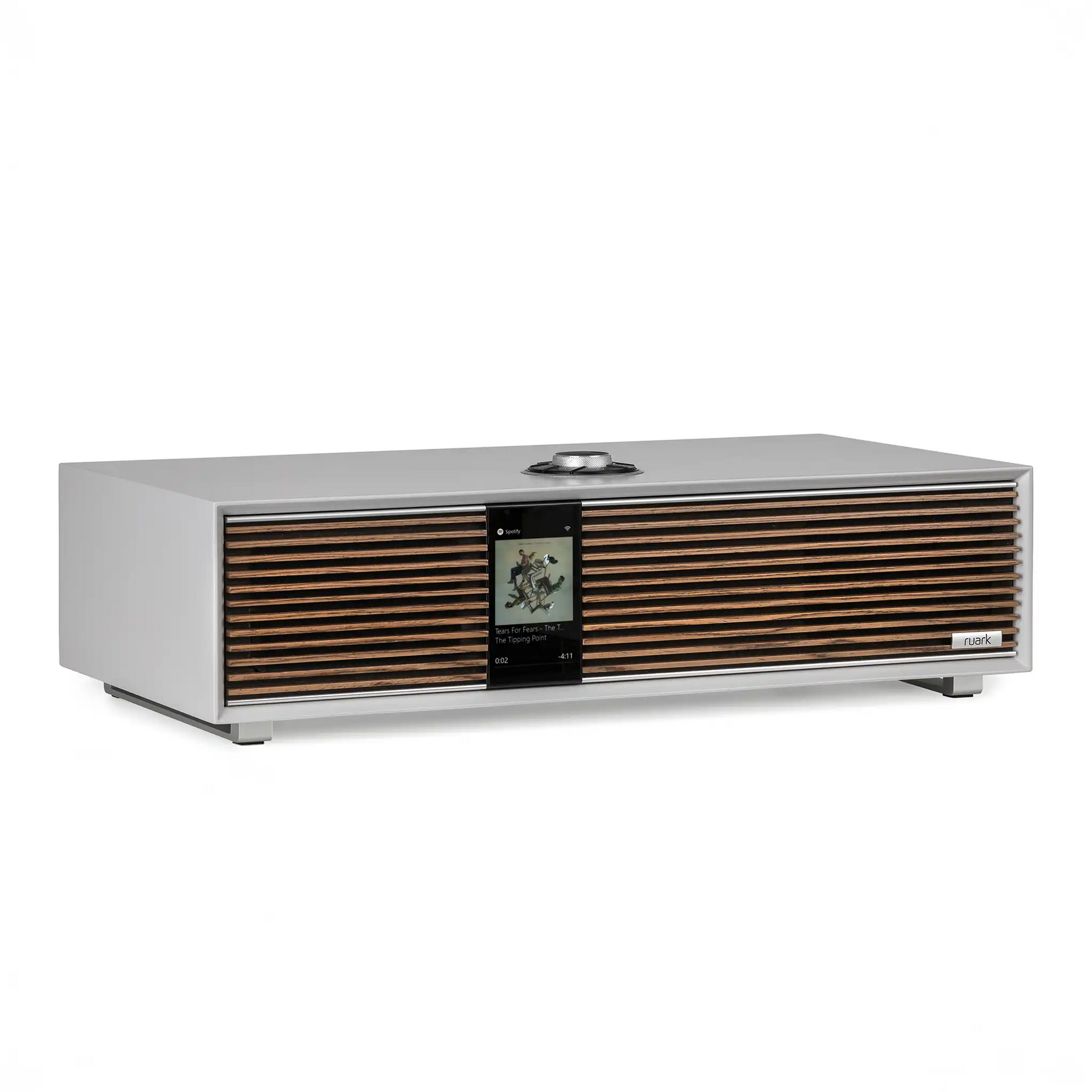

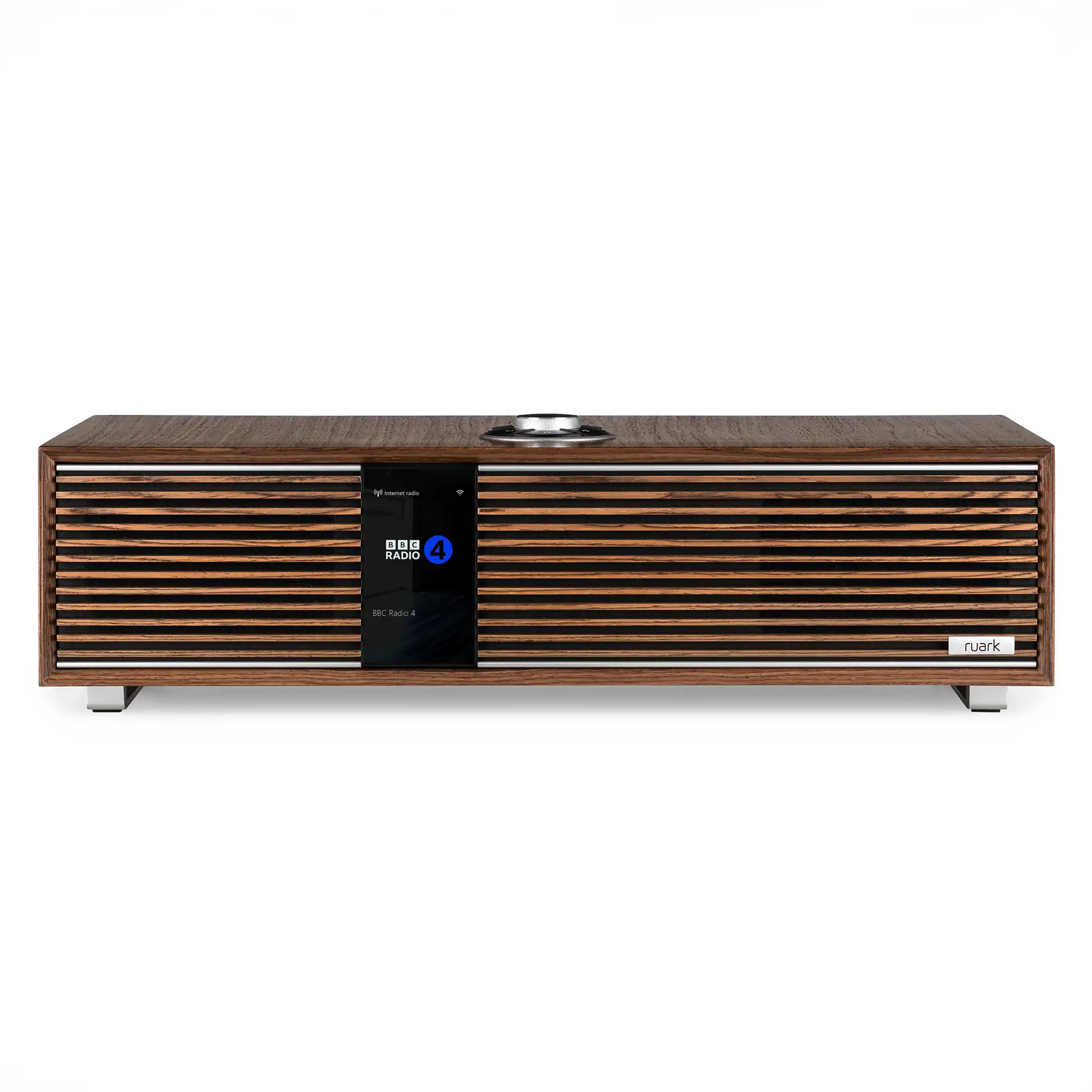

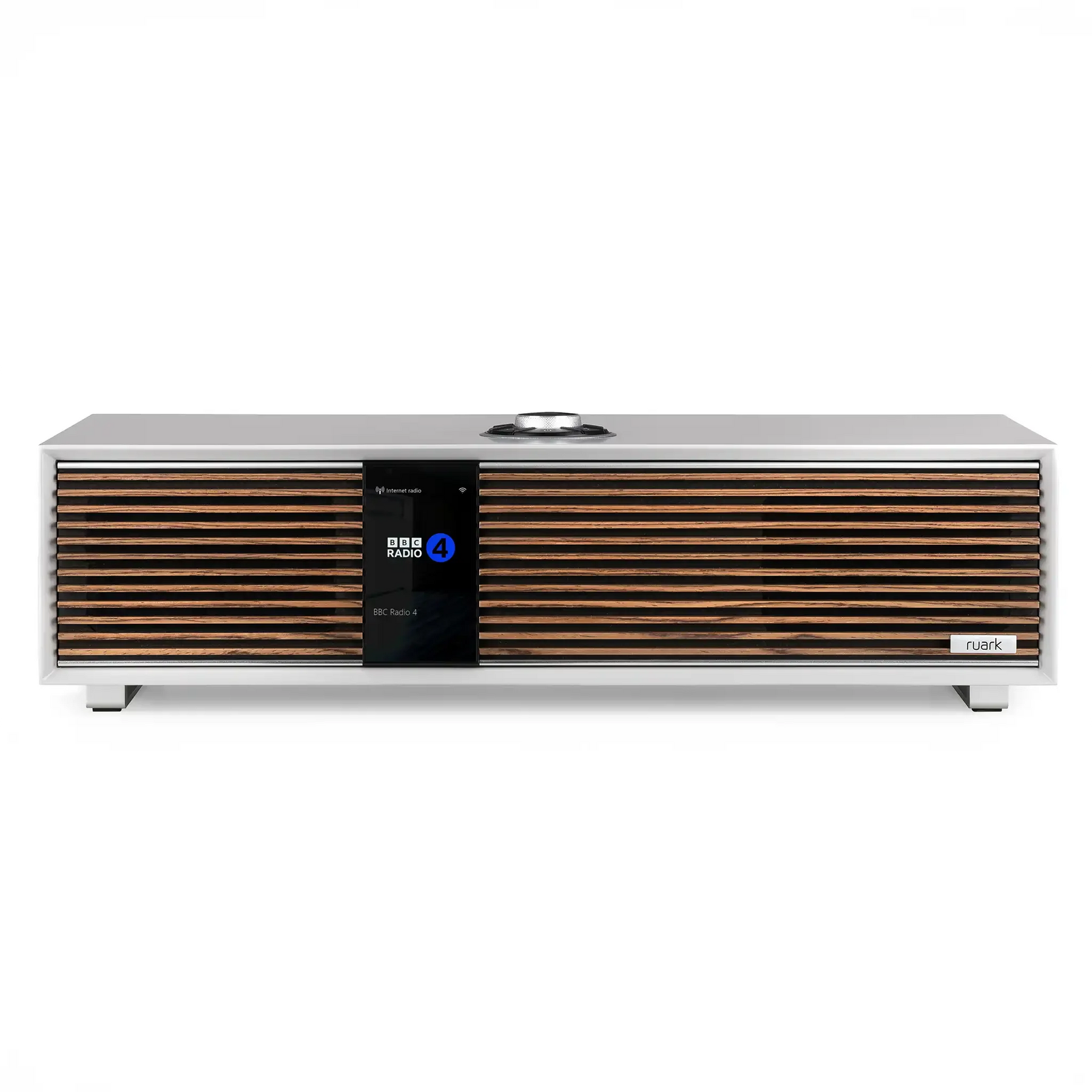

Ruark Audio R410 is a Beautifully Crafted All-in-One Music System, Delivering Rich, Room-Filling Sound with Effortless Elegance

• Hi-Res music file support up to 32-bit 384kHz
• Apple Music, BBC Sounds, Deezer, Qobuz and more
• Internet/DAB/DAB+ and FM tuners
• Apple AirPlay and Google Chromecast built-in
• HDMI ARC/eARC connection

Designed to Be Seen

With exquisite attention to detail and a modern take on seventies styling, R410 is a product that’s designed to be seen. From the hand-crafted grille and cabinet to the precision-formed components, only the finest quality materials have been used.

Further enhancing R410’s stunning aesthetics is the material that we’ve selected for the grille and enclosure. Engineered from sustainable woods that are expertly spliced and recomposed, the resulting material closely resembles slow-growing hardwoods, but with true ecological credentials.

Hi-Res Connectivity and CD Support

R410 provides all the connectivity you are ever likely to need. Streaming is its speciality, but if you want to play LPs or CDs, these can still be enjoyed by connecting a turntable to the phono inputs or a CD-ROM drive to the USB-C socket. Additionally with its HDMI ARC/eARC input, you can connect most modern TVs to R410, with its expansive sound making watching TV a wholly enjoyable experience.

Able to play the highest quality audio streams, R410 brings a new level of insight and pleasure to music. Spotify Connect and TIDAL Connect are built-in and with the addition of Apple AirPlay and Chromecast built-in, you can stream directly from apps such as Apple Music, BBC Sounds, Amazon Music, Qobuz with better than CD sound and for radio lovers, R410s Internet Tuner provides swift access to an amazing array of stations worldwide. Finally with R410, you can also easily build a flexible multi-room system, linking it with other AirPlay and Chromecast speakers, including another R410 or our flagship R810.

Beautiful to Control

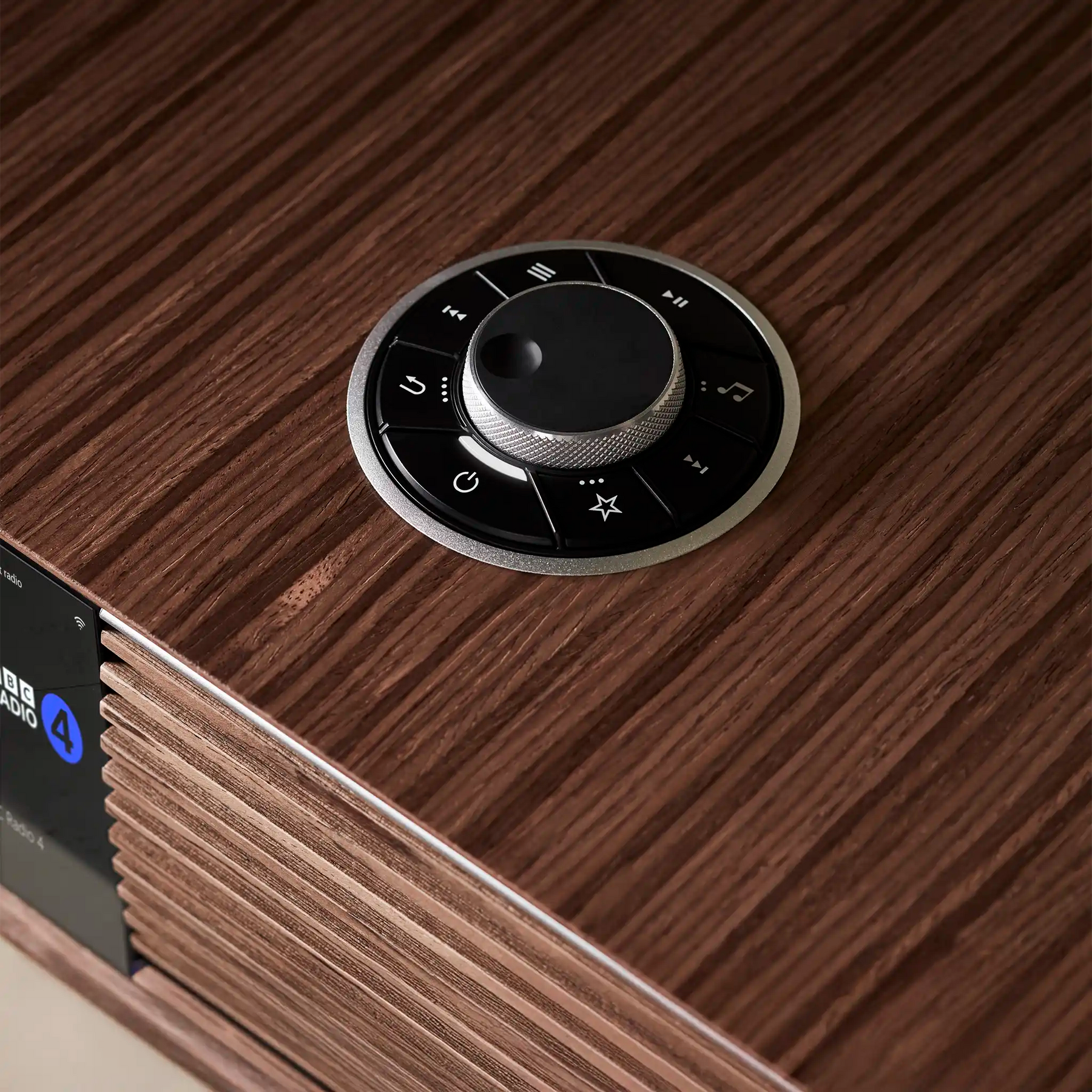

Our RotoDial control system has been a distinctive part of Ruark products since the introduction of our R1 in 2006, but for 100 Series we have refined its design from top to bottom. Also included with R410 is a matching rechargeable remote. Bluetooth connectivity means that aiming is not required – and like a quality watch, it’s an item that you will love to use, as it looks and feels so good.

Beautiful to See

R410’s advanced processor has allowed us to provide a slick user interface, handling input from apps and our control system and promptly displaying the interaction on R410’s colour high-resolution display. The portrait orientation of the display intentionally emulates the way that we view most services on our smartphones, making R410 intuitive to use, but most importantly the display brings an interactive element to R410 that few other systems offer.

Specifications

• Frequency Response: 35Hz-22kHz
• Speaker Units
  • 2x Ruark 20mm silk dome tweeters
  • 2x Ruark 100mm NS+ bass-mid units
• Amplifier: 120W RMS Class D amplifier (0.02% THD @ 30W/CH)

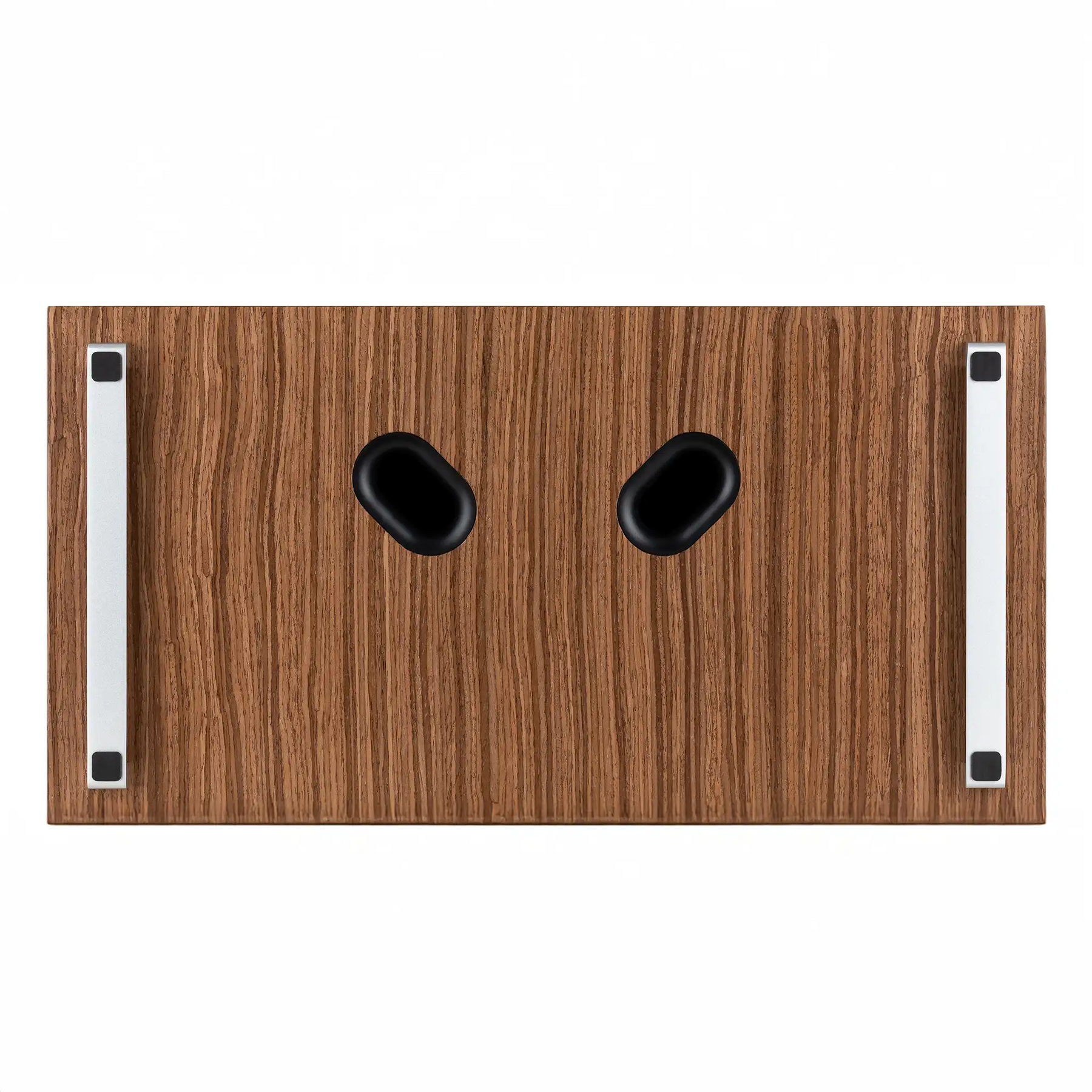

• Cabinet Type: Tuned dual bass reflex enclosure
• USB Charge Port: USB-C 5V 1A
• Wi-Fi: 802.11 a/b/g/n/ac/ax, WPS2, WEP, WPA, WPA2
• Bluetooth: 5.1, aptX HD, SBC, AAC, BLE, A2DP

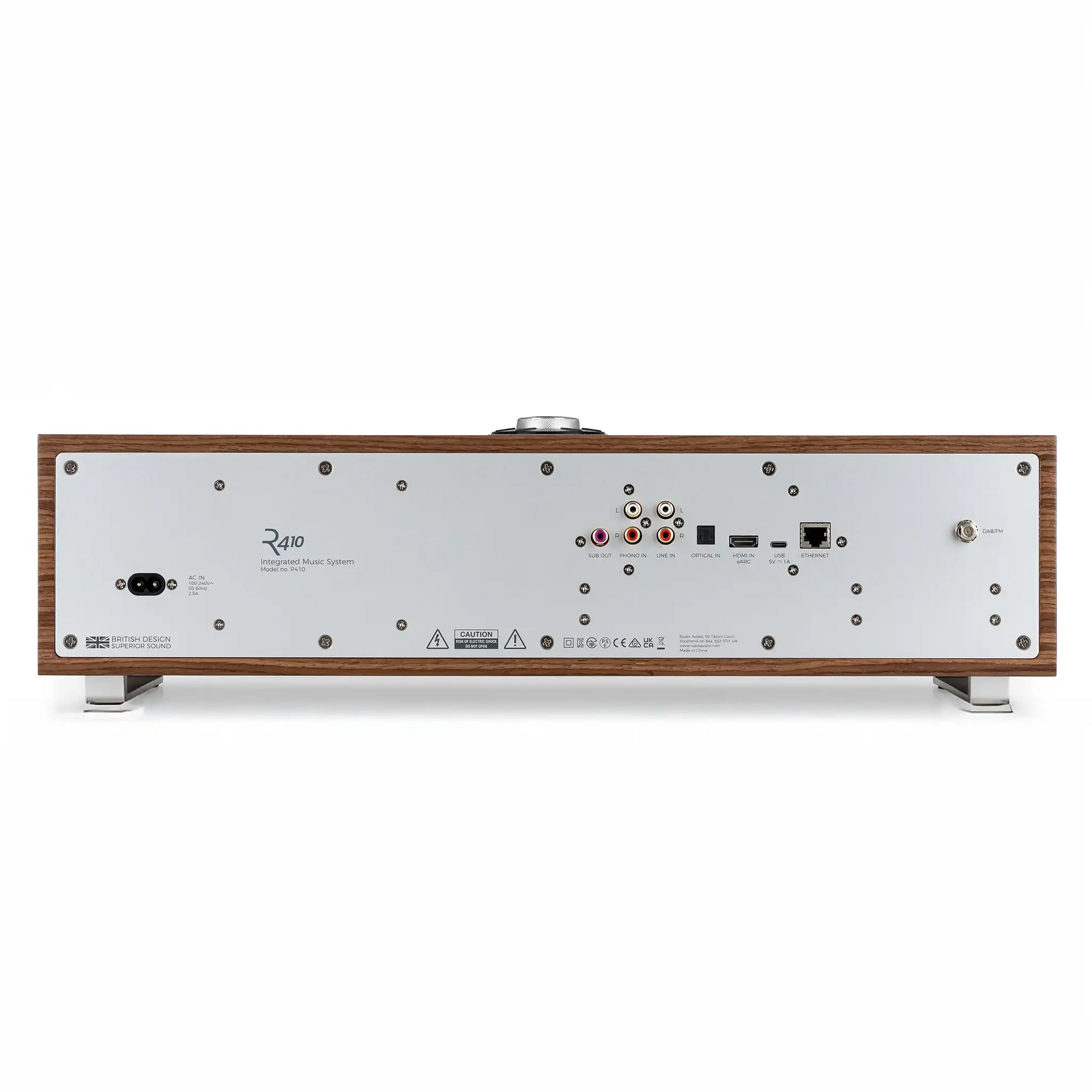

• Ethernet: RJ45 connector 10/100 Mbps
• Line-Input: Stereo RCA input (up to 2.3Vrms)
• Moving Magnet RIAA Phono Input: Turntable input with MM phono gain stage
• Optical Input: TOSLINK input up to 24-bit 192kHz
• Subwoofer Output: via mono RCA
• USB: 2.0 type C FAT32 playback port
• Aerial: 75Ω F-type aerial connector
• Supported Formats: MP3, AAC, FLAC, ALAC, WAV, WMA, WMA 9
• Power Input: 90-240VAC, 50-60Hz, 2.5A
• Power Consumption: <2W standby. 5-10W typical
• Dimensions: H150 × W560 × D290mm
• Weight: 9.5kg

In the Box

• Ruark Audio R410 Music System
• 3m Mains power cable
• Quick start guide
• RotoDial BT LE rechargeable remote
• Telescopic aerial and spanner

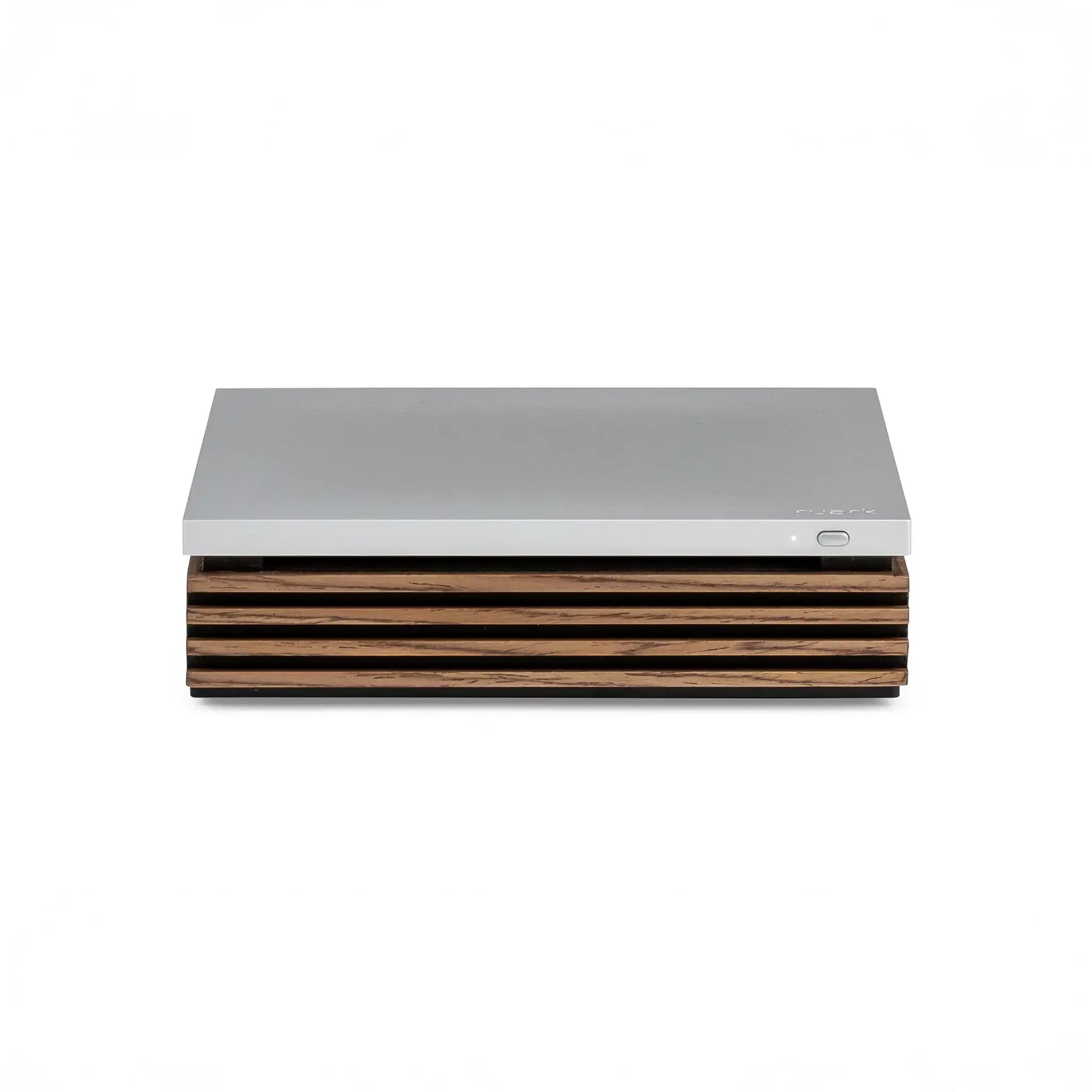

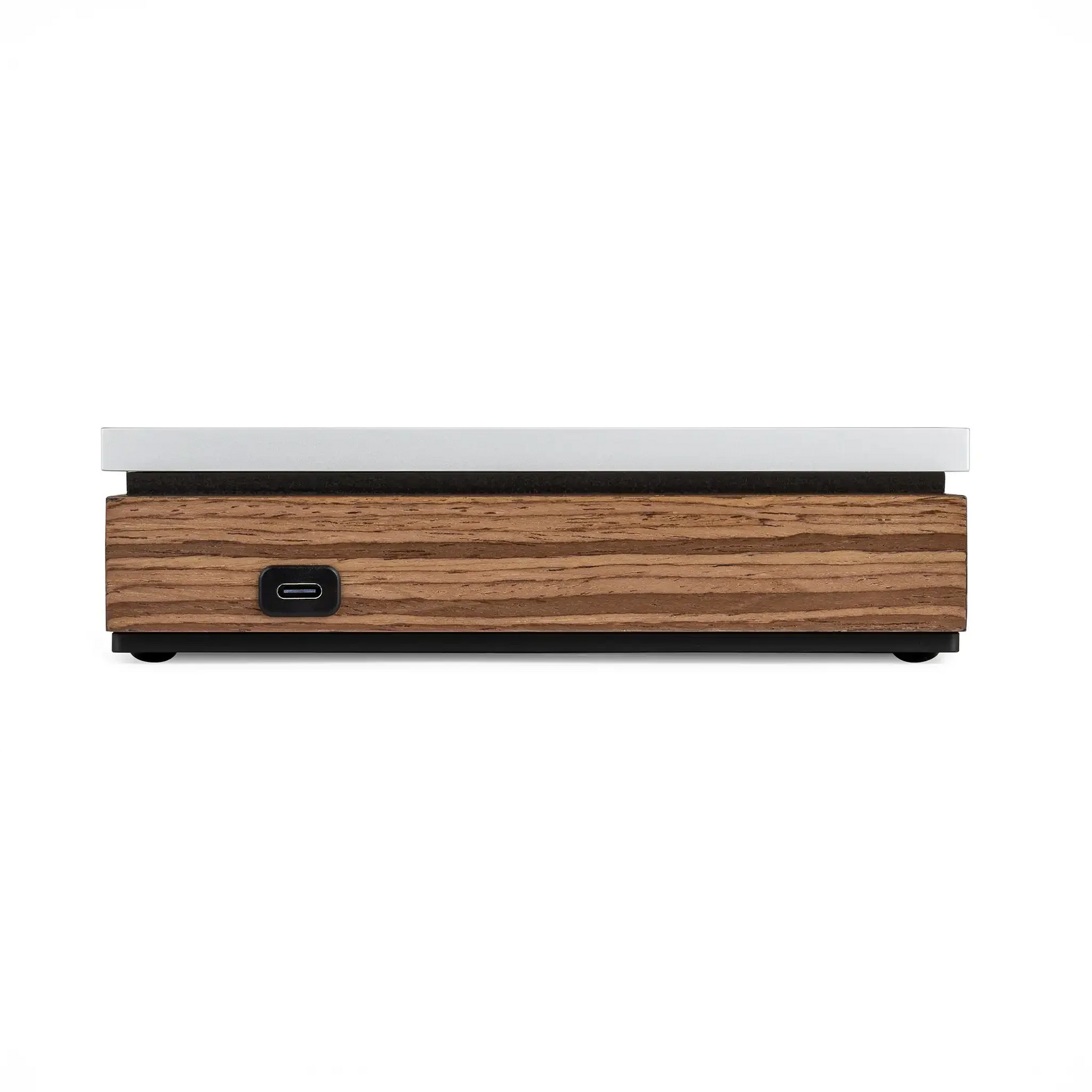

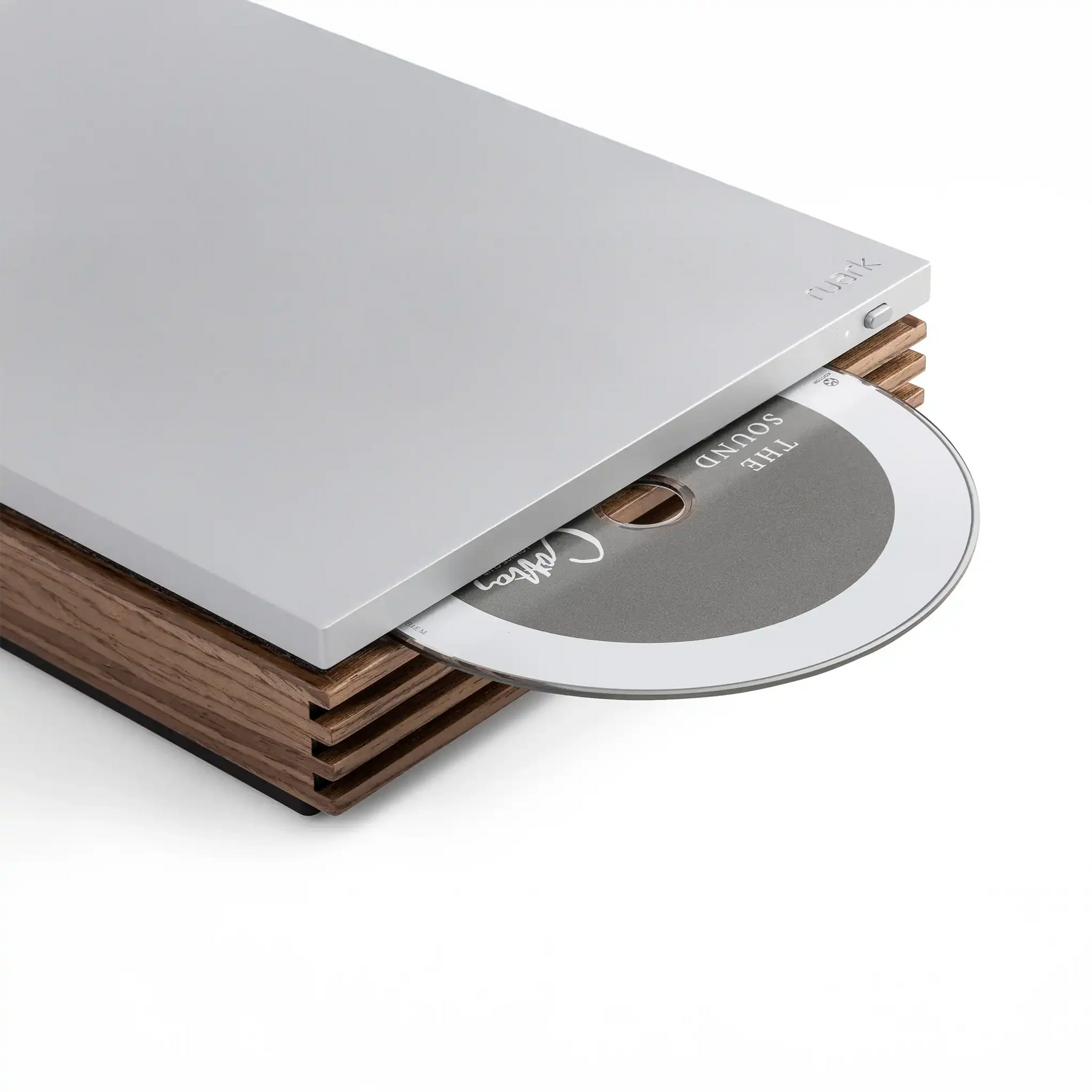

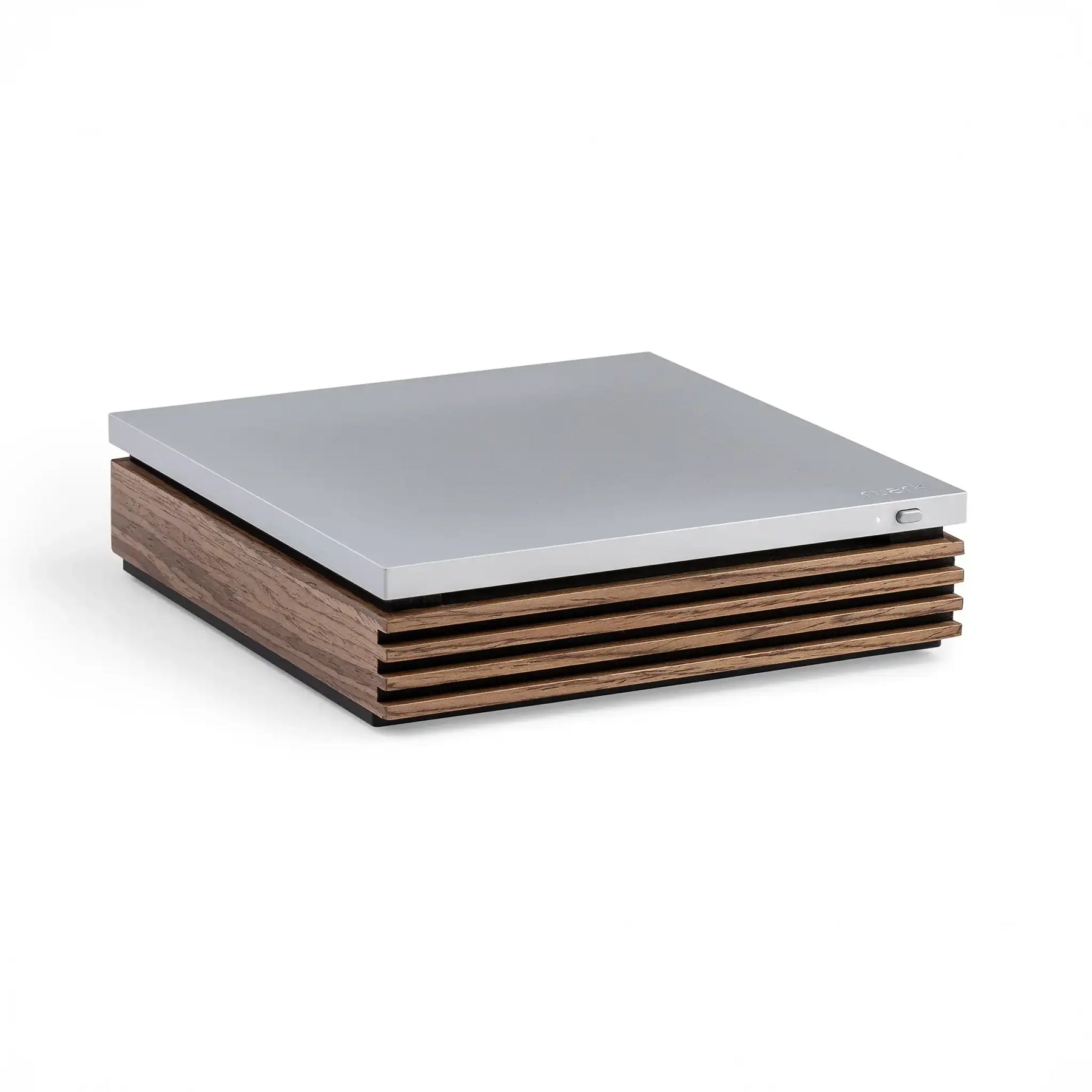

The Ruark Audio R-CD100 Player's Sleek Aesthetic Pairs Perfectly with the R410 Functionally and Visually

• CD Drive for R410, R610 and R810 models
• Acoustically isolated enclosure
• Precision, slot loading CD mechanism
• Whisper quiet playback
• Compatible with CD-DA and CD-R discs

Evocative Sound

Playing CDs offers a pure, uncompressed audio experience and is also entertaining because it provides a tactile and nostalgic link in the history of recorded music.

Utilizing a high quality CD mechanism allied to an optimized CD servo to USB interface, simply connect R-CD100 with its supplied cable to any of Ruark Audio's 100 Series models and it automatically integrates, with CD appearing as an additional source on the display. Signal processing is carried out by the advanced digital to analogue converters within the 100 Series products themselves, so best sound quality is assured.

Further enhancing performance are the precision machined top and bottom plates and hand crafted cabinet. As well as making for a tactile and sleek looking unit that matches perfectly the design of 100 Series, the enclosure also isolates the mechanism from external vibrations for optimum musical performance.

Specifications

• Finish: Machined Aluminium top with Fused Walnut cabinet

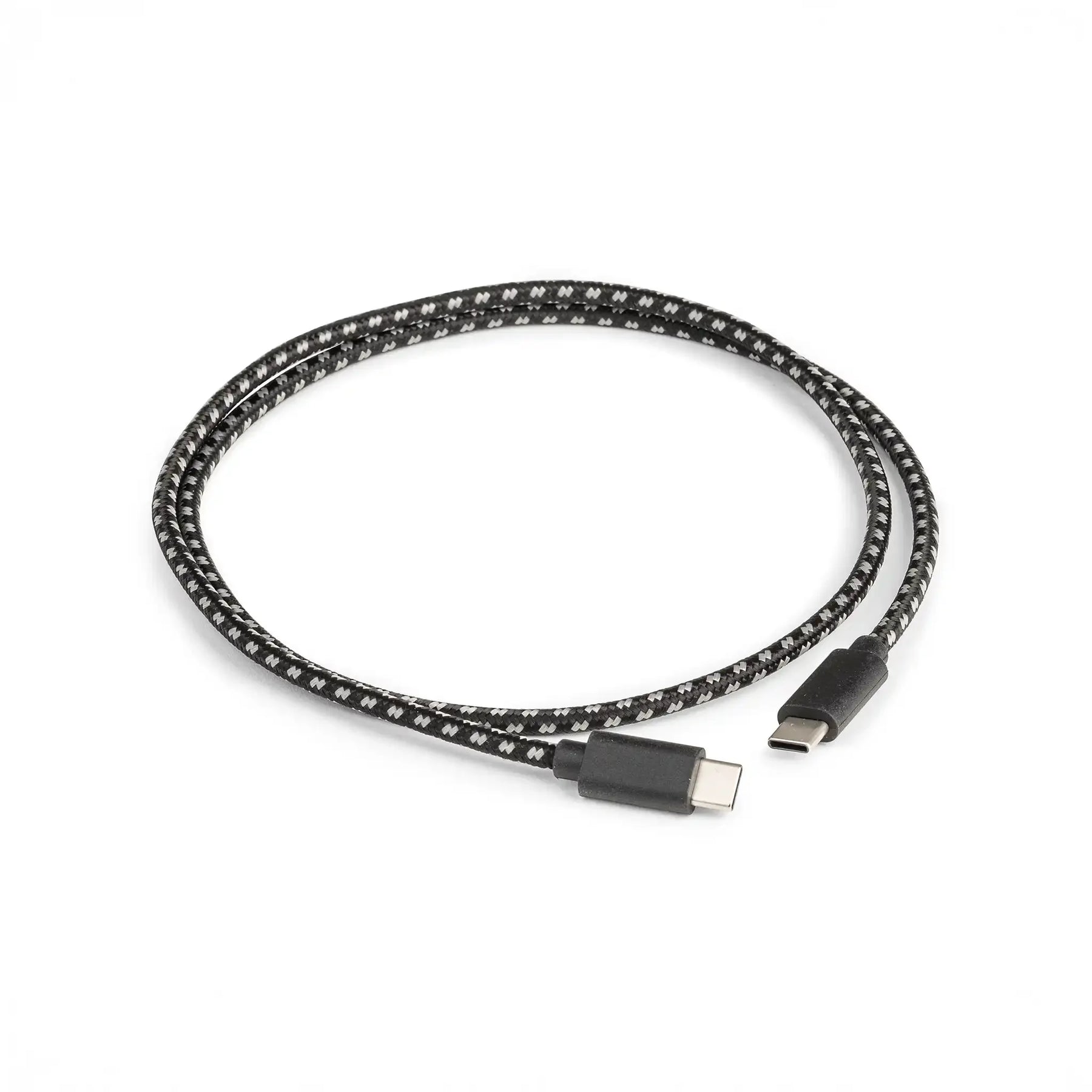

• Included items: R-CD100 USB CD player, USB C cable
• Power input: USB 5V 1A (5W) max
• Interface: Plug and Play USB 2.0/3.0
• Connection: USB type-C socket
• Compatible discs: CD-DA, CD-R, CD-RW
• Controls: eject button and power LED
• Product dimensions: H45 × W175 × D167mm
• Product weight: 1.20kg
• Quick start guide

For a Sound You'll Always Come Back to, the MR1 is More Than a Speaker, it's Your Very Own Soundscape

• Ruark custom 20mm silk dome tweeter
• 85mm treated natural fibre cone bass/mid unit
• Moving magnet phono stage built-in
• 2 × 25W nominal Class D amplification
• Bluetooth with aptX HD

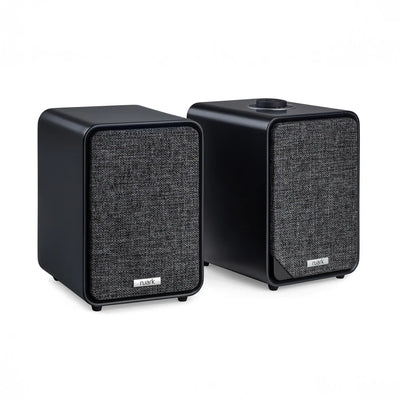

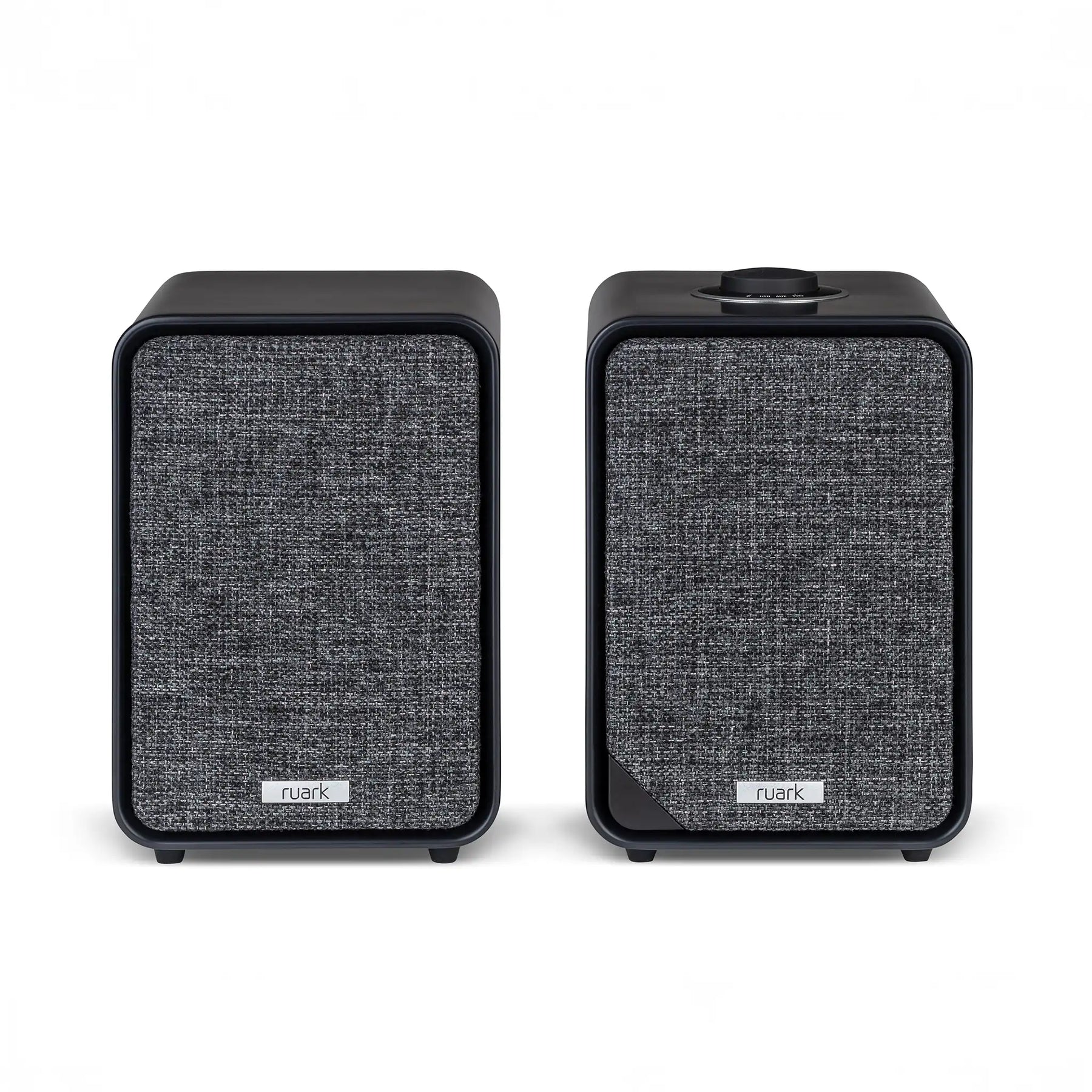

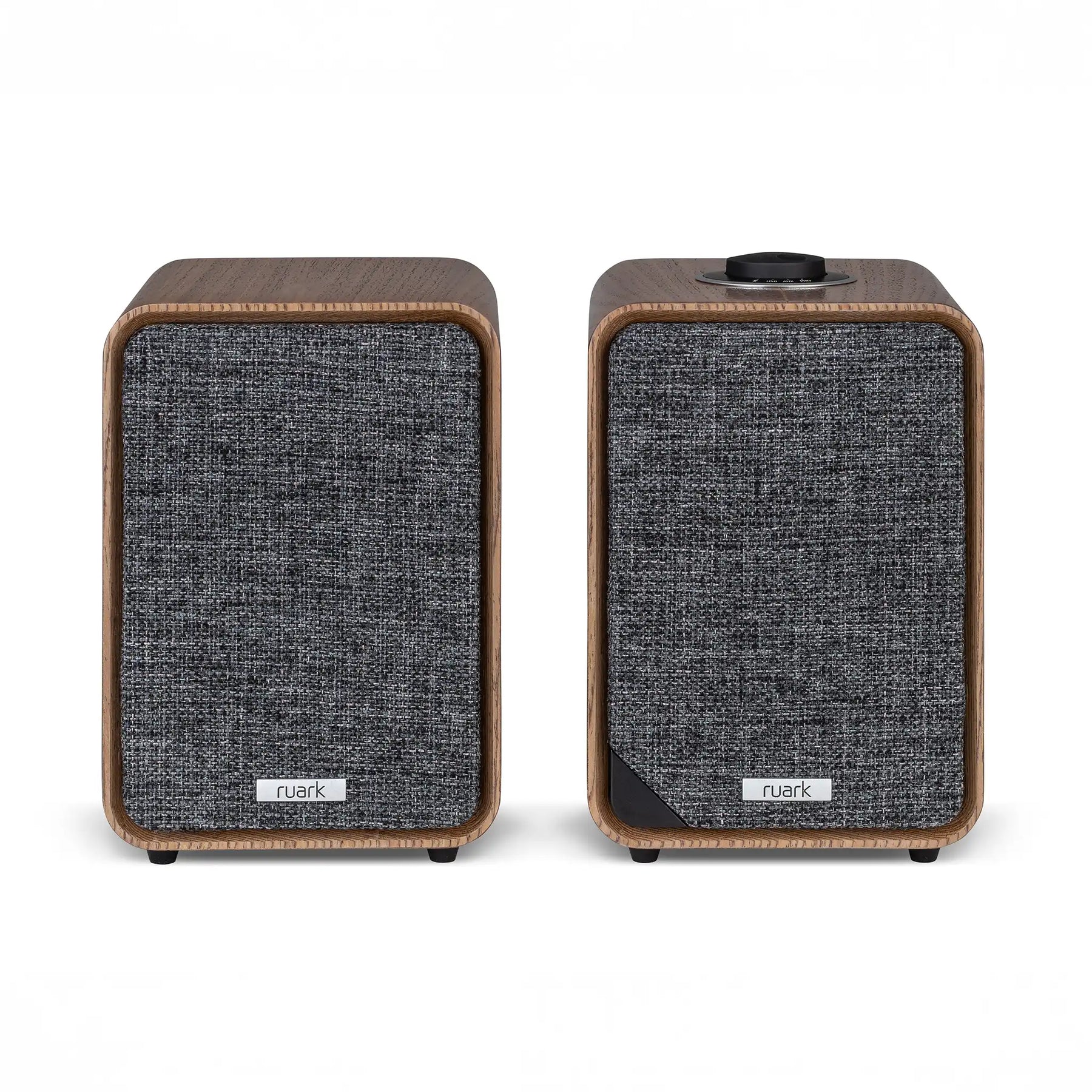

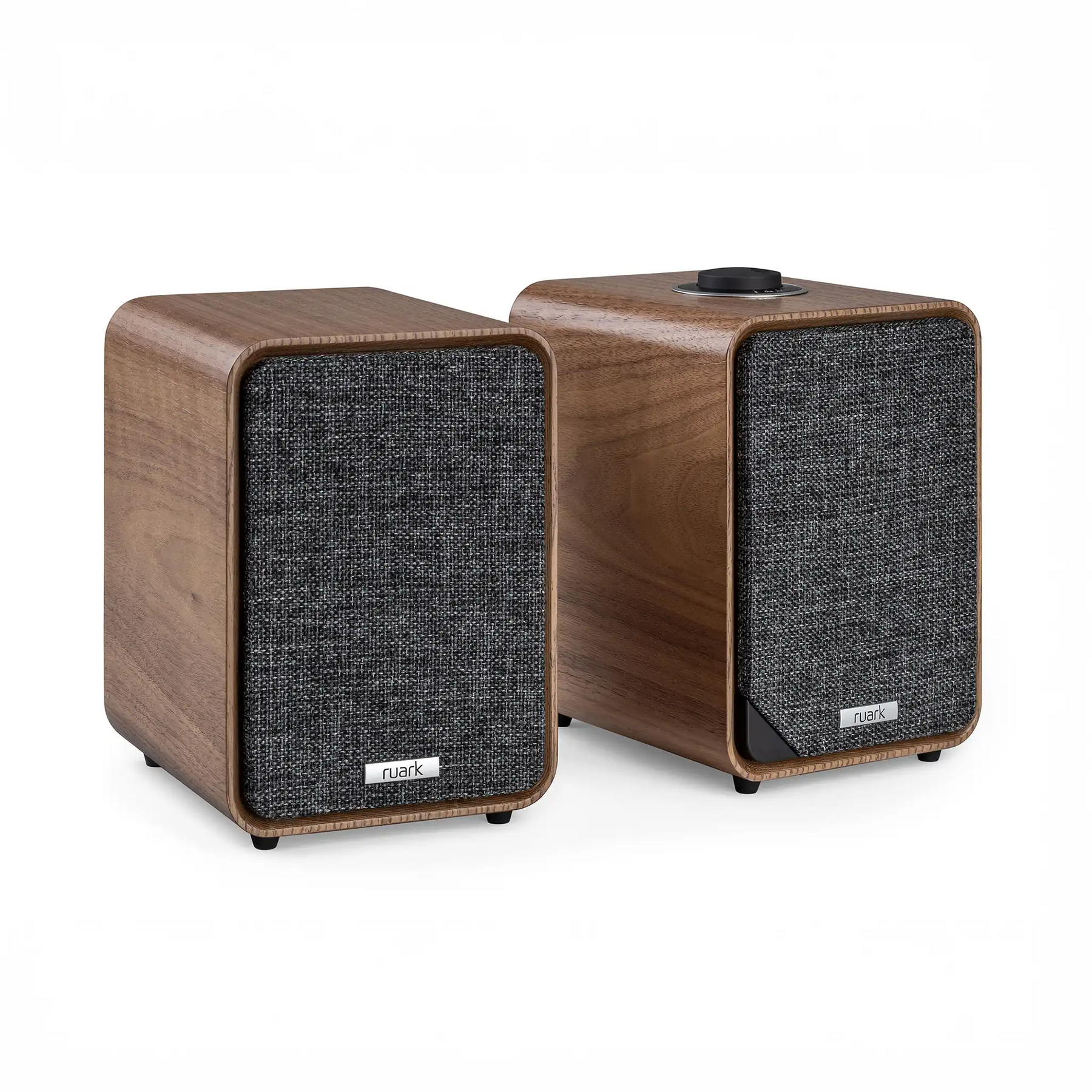

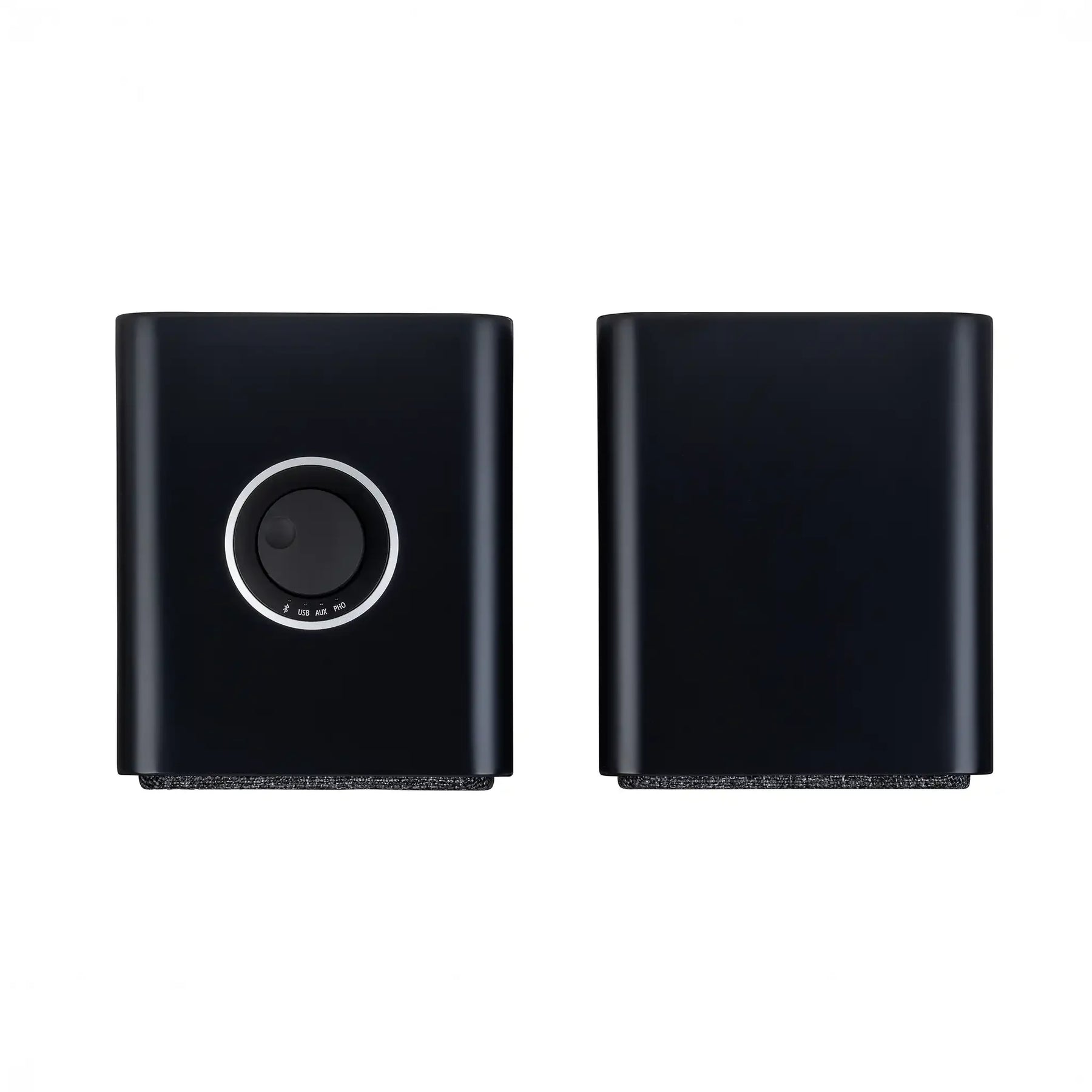

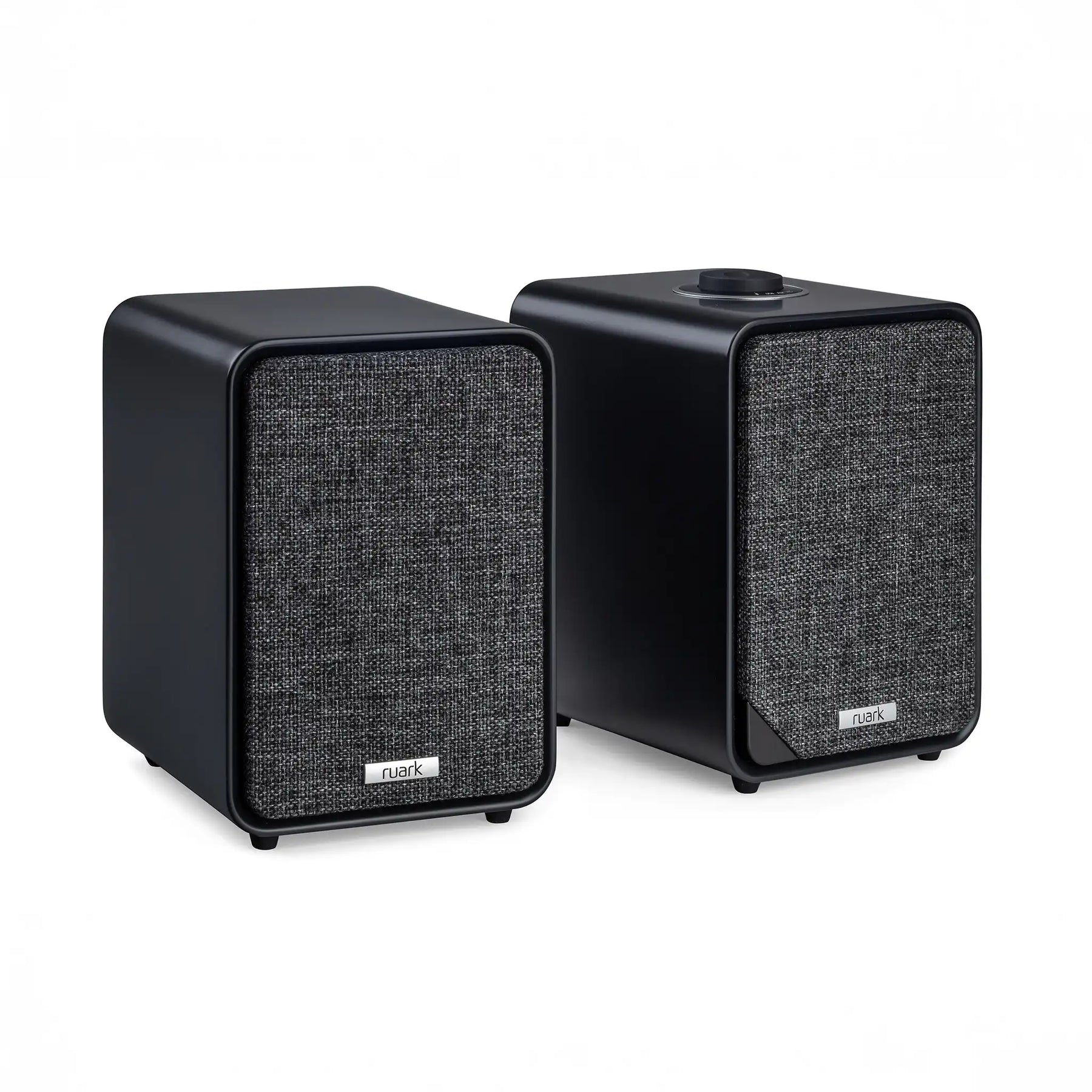

MR1 MK3

Crafted for customers who appreciate aesthetics and sound in equal measure, MR1 Mk3 is where thoughtful design meets true artistry and where precision audio engineering makes every note resonate with clarity. Whether you’re exploring digital worlds or rediscovering the joy of playing records again, MR1 Mk3 turns everyday listening into something extraordinary, for a sound you’ll always come back to.

Since 1985, Ruark Audio has designed and engineered all their music systems in-house, driven by an enduring commitment to audio excellence. The MR1 Mk3 brings four decades of innovation and craftsmanship together in one beautifully balanced speakers system.

Big Sound, Compact Form

Winner of What Hi-Fi’s Best Desktop Speaker award for seven years, the MR1 Mk2 became a firm favourite, but the Mk3 improves upon this greatness with a sound that’s simply exceptional.

The new handcrafted cabinets provide ideal acoustic properties and with their bevelled front edges and Slate Grey grilles, now look even more stylish. Size wise the enclosures have been subtly enlarged to allow optimum volume for their new NS+ Bass/Mid units and for amplification they've adapted the Class D technology used in their R410, for a sizable increase in power output and control.

Painstaking optimization of the speaker crossover and reflex tuning have resulted in a significant leap in acoustic performance. The MR1 Mk3 delivers deeper bass, a clear lucid midrange, and exceptional high frequency detail from our custom 20mm silk dome tweeters, so from the shimmer of cymbals to the resonance of a cello, every nuance is delivered with clarity and depth.

Your Sound, Your Way

The MR1 Mk3 has been designed to be versatile, so no matter how you listen, they adapt to you. Equipped with Bluetooth aptX HD, they deliver pristine high resolution wireless playback and with switchable connections including a combined analogue/optical input, USB audio input and a dedicated turntable input you can easily plug in auxiliary devices of your choice. Whether you’re streaming, playing vinyl, gaming, or connecting your television for an enhanced viewing experience, MR1 can do it all.

Your Vinyl, Reimagined

The vinyl revival shows no sign of abating and combining MR1 with a quality turntable, is a perfect way to enjoy this timeless format. With a superior moving magnet pre-amp with variable gain built-in, it’s easy to pair and match MR1 with most modern cartridges, allowing consistent volume levels across inputs.

As a system for playing vinyl, MR1 brings analogue warmth with modern clarity and bass with unprecedented precision, transforming casual listening into an immersive musical journey revealing new dimensions in recordings old and new.

Desktop Audio, Redefined

The MR1 desktop speakers will transform your home workspace with sound that defies their compact size and with a USB-C audio input, the best quality, high resolution playback from connected computers and smart devices is guaranteed. Experience desktop audio that elevates both your environment and listening journey, bringing studio-quality sound to your personal space.

Specifications

Audio

• Typical in-room frequency range 50Hz – 22kHz
• Custom 20mm silk dome tweeter
• 85mm treated natural fibre cone bass/mid unit
• 2 × 25W nominal Class D amplification
• 2-way bass reflex tuned cabinet
• Internal cabinet volume of 2.0 litres
• 2.5kHz crossover frequency
• 104dB 24-bit/192kHz DAC

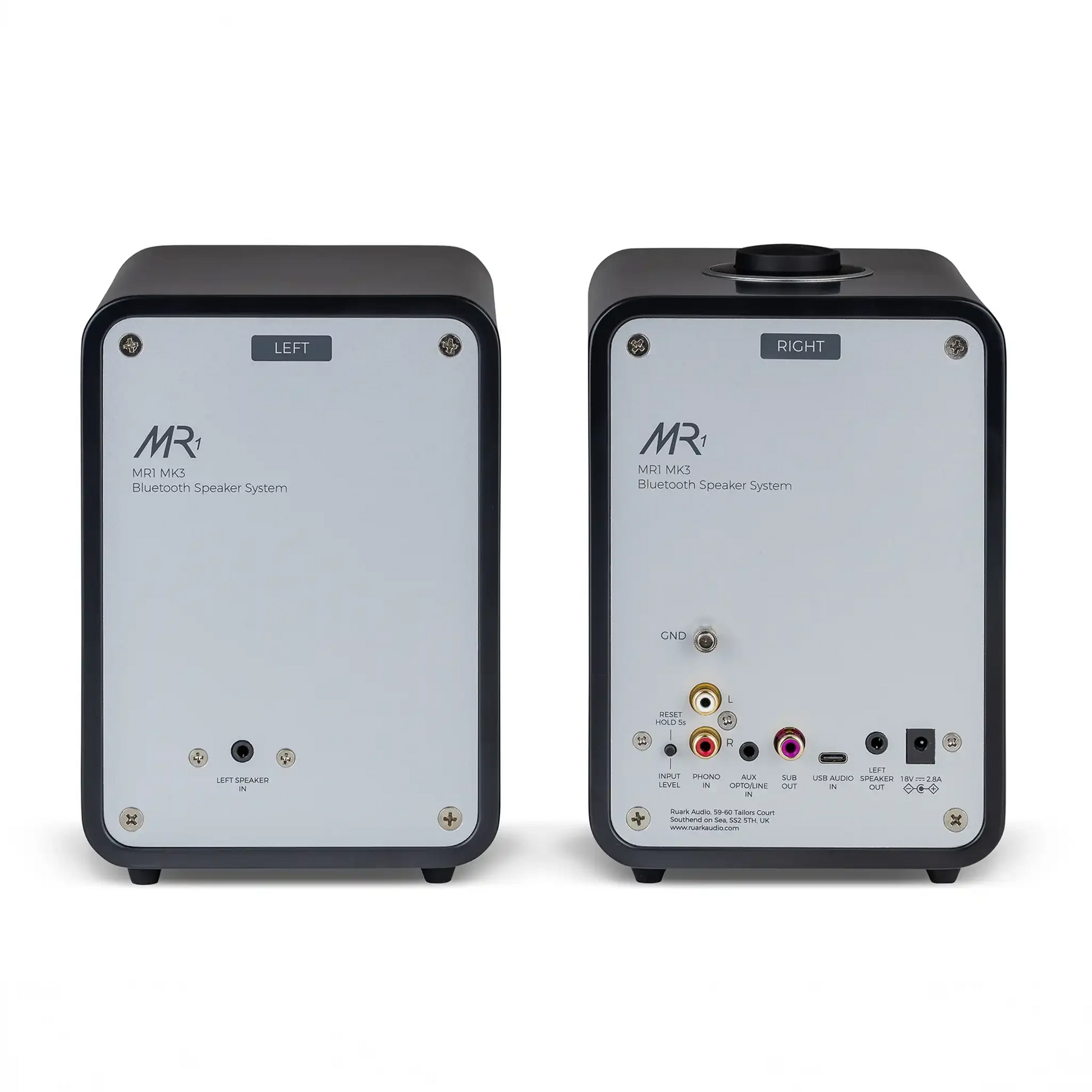

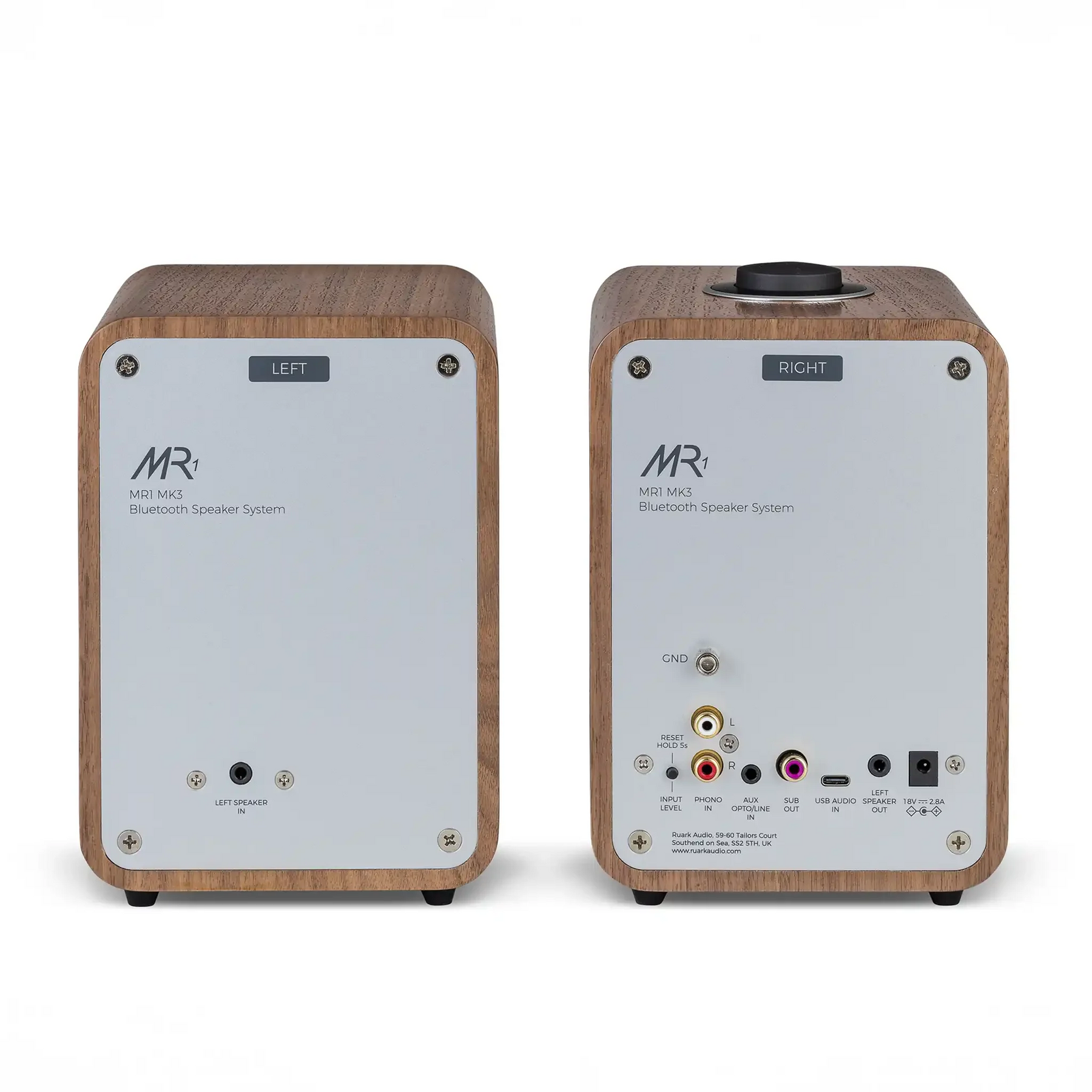

Connectivity

• Bluetooth V5.1, aptX HD, SBC, AAC, BLE, A2DP
• MM phono input Stereo RCA (max 7mV)
• 3.5mm combined stereo jack / optical input (TOSLINK 24-bit/192kHz PCM)
• USB-C audio in 24-bit/96kHz UAC 1.0
• Full-frequency subwoofer output mono RCA (max 2.0Vrms)

General

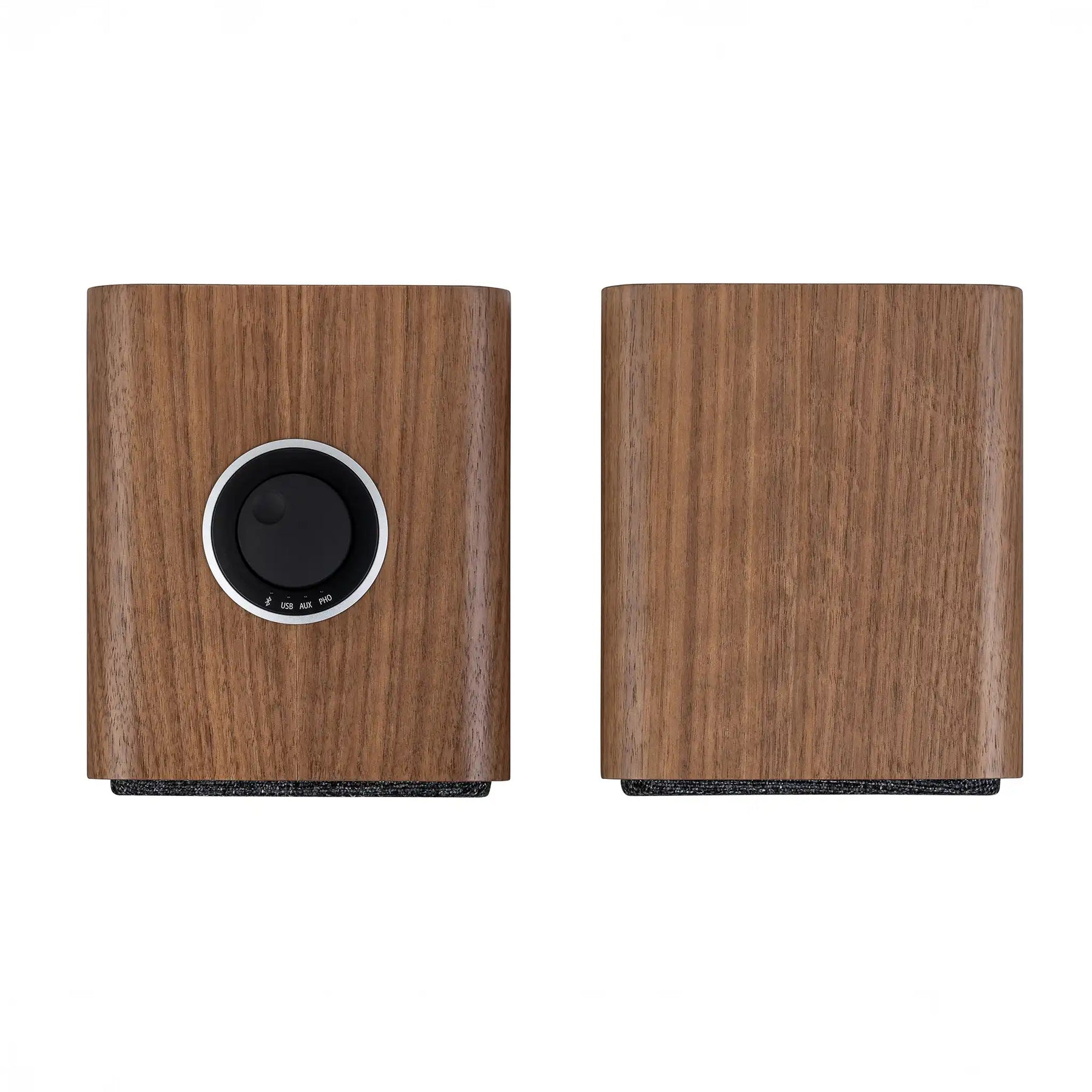

• Finishes: Rich walnut veneer or charcoal lacquer with dark slate woven fabric grille
• Power Consumption: 0.5W standby, 7W typical
• Dimensions: H202 × W135 × D165mm (including RotoDial)
• Weight: 2.2kg each

In the Box

• Ruark Audio MR1 MK3 Speaker System
• AC power adapter ( 18VDC 2.8A output, 1.8m cable, 2.1 × 5.5mm DC plug)
• 3m High purity speaker interconnect cable
• Remote control with battery
• Quick start guide
